Wolf Tooth Rear Axle for X-12

Wolf Tooth Rear Axle for X-12 Info

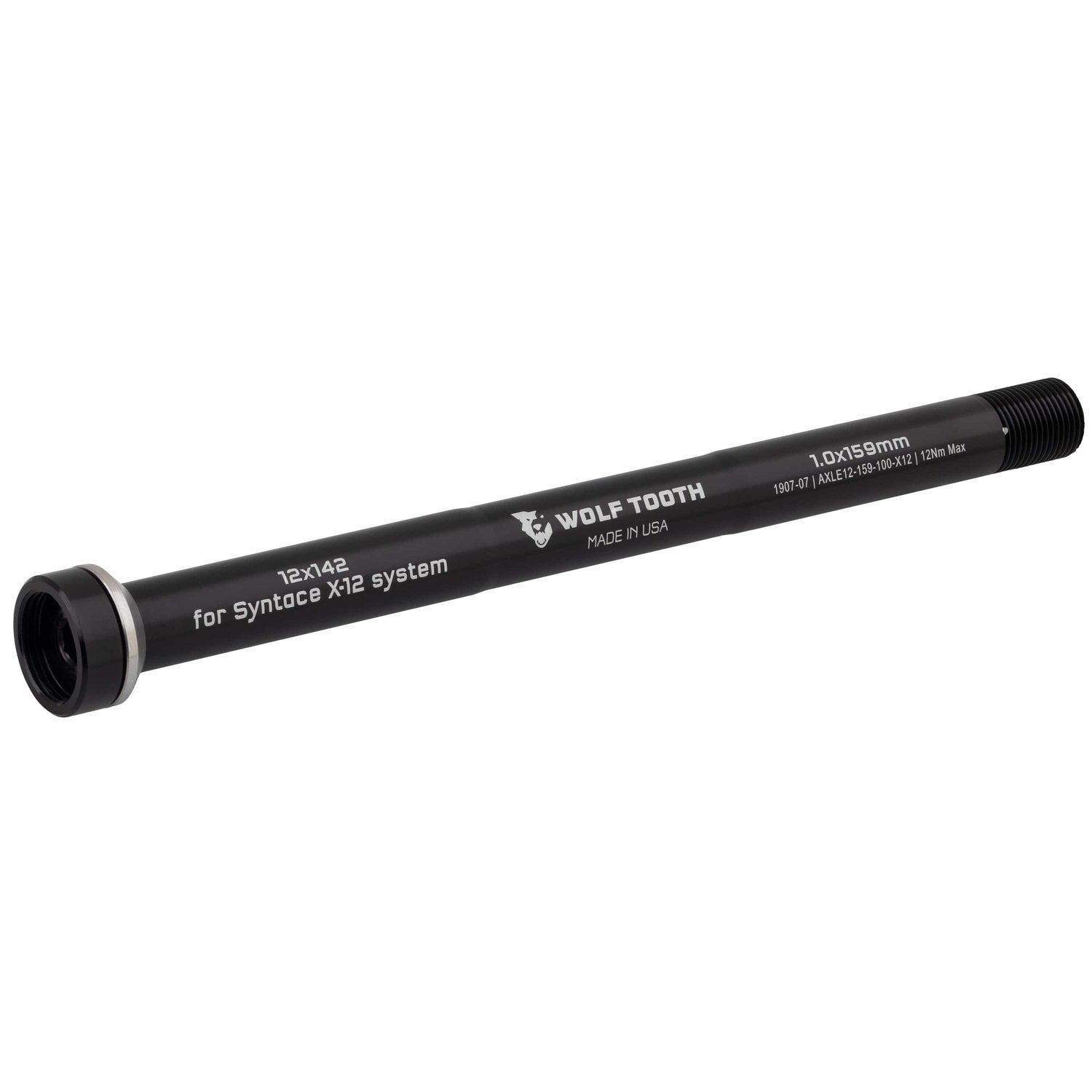

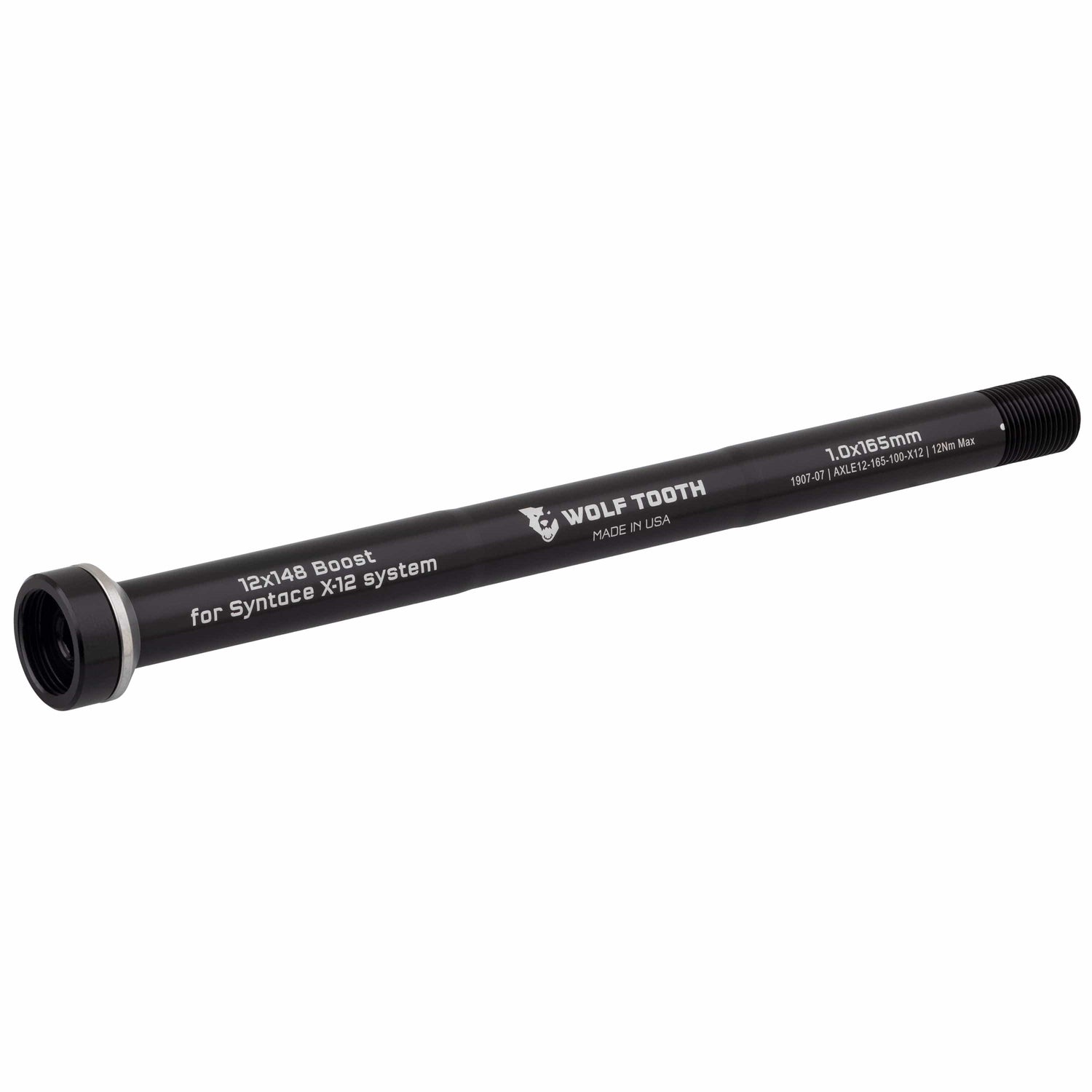

Wolf Tooth Rear Axle for X-12 is a precision-machined 12mm thru axle engineered specifically for frames that use the Syntace X-12 system. Designed as a premium replacement for stock axles, it delivers improved clamping performance, smoother installation and removal, and enhanced frame protection.

The defining feature of the Wolf Tooth Rear Axle for X-12 is its captive conical stainless steel washer beneath the axle head. Unlike flat washer designs, the conical interface reduces friction at the dropout face, helping transfer more tightening torque directly into clamping force. The result is a stiffer, more secure rear-end interface while minimizing the risk of sticking or galling during removal.

Machined from 7075-T6 aluminum and built to aerospace-level tolerances in Minnesota, this axle is an ideal upgrade for riders who want dependable performance and refined finishing details. It’s also an excellent replacement option for lost or damaged original equipment axles.

Rear Axle for X-12 Specs at a Glance

• System Compatibility: Syntace X-12
• Diameter: 12mm
• Thread Pitch: 1.0mm
• Thread Length: 12mm

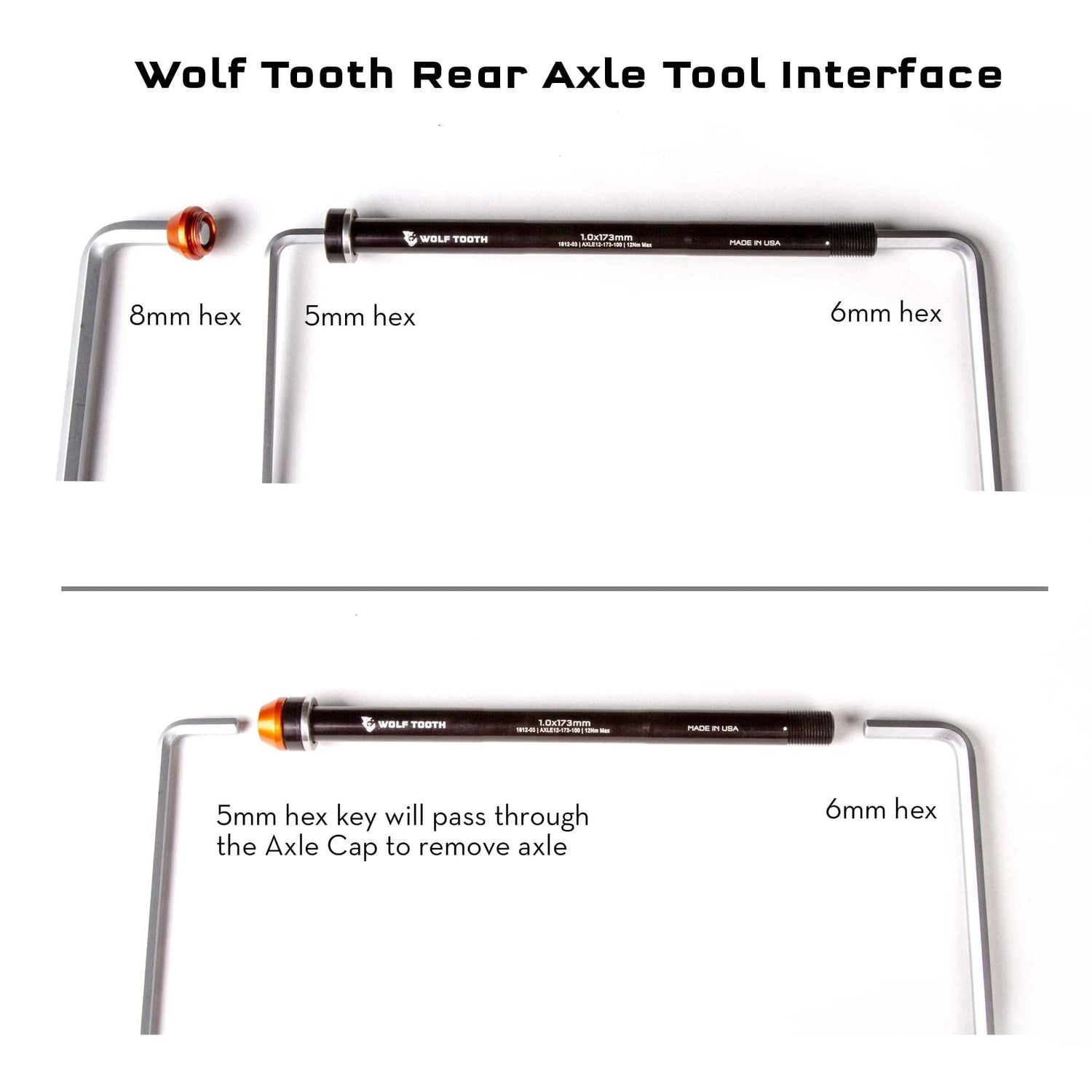

• Tool Interface: 5mm hex key
• Torque Spec: 12 Nm maximum
• Material: 7075-T6 aluminum axle with stainless steel conical washer
• Weights: 159mm – 42g | 165mm – 43g
• Origin: Made in the USA

Compatibility Notes

• Designed for 12mm rear thru axle frames using the Syntace X-12 system.
• Axle length compatibility is ±2mm.
• Axle length is independent of hub dimensions—measure frame requirement carefully.
• Compatible with many brands that use X-12, including models from Specialized, Cannondale, Intense, 3T, Canyon, and others.

Installation Recommendation

• Apply a small amount of grease to the threads and conical washer before installation.

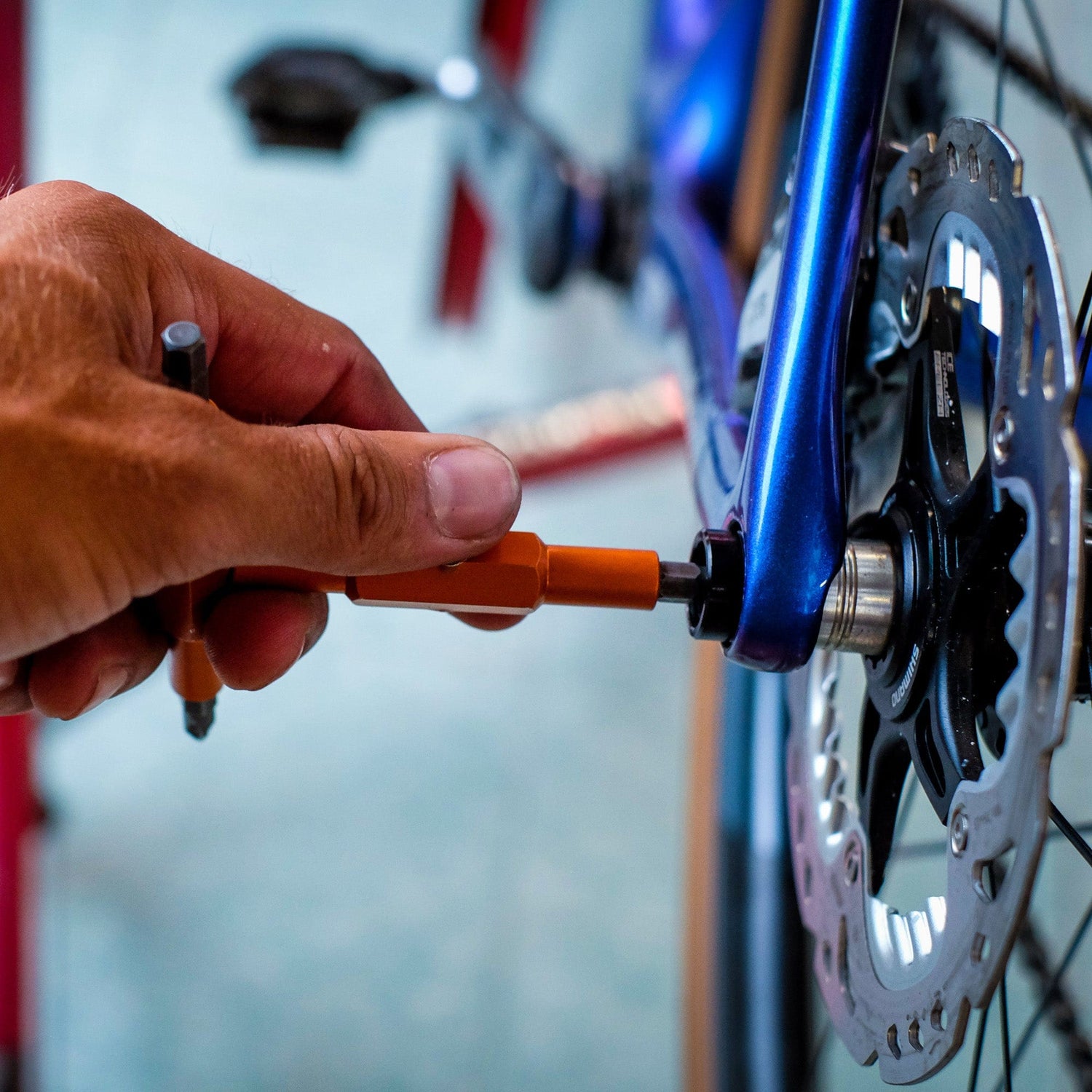

• Tighten to a maximum of 12 Nm using a 5mm hex key.

Design Benefits

1. Improved Clamping Efficiency: Conical washer design enhances torque transfer and rear-end stiffness.
2. Frame Protection: Reduced friction at dropout face minimizes wear and galling.
3. Premium Construction: 7075-T6 aluminum balances strength and lightweight performance.
4. Reliable Replacement: Direct upgrade for stock Syntace X-12 axles.

Final Take

The Wolf Tooth Rear Axle for X-12 is a thoughtfully engineered upgrade for frames built around the Syntace X-12 standard. With a conical stainless washer for improved clamping performance and smooth serviceability, it offers a durable, precision-machined solution for riders who expect more from their drivetrain interface.
