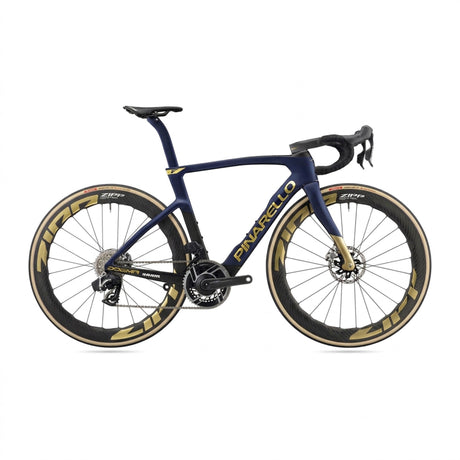

The Pinarello Dogma F

The Endless Pursuit of Speed

See the options here

The History of the Pinarello Dogma: A Timeline of Triumph

The Pinarello Dogma has a storied past that is nothing short of remarkable. Since its debut, this bike has been a powerhouse in the world of competitive cycling, racking up wins at prestigious events like the Tour de France. Each generation of the Dogma has brought new innovations that enhance performance and comfort, making it the go-to choice for champions. The Dogma F continues this winning tradition, embodying years of expertise, technology, and a commitment to excellence. As you ride the Dogma F, you're joining a legacy of success that has helped shape the sport of cycling.

2008 First Carbon Fiber Pinarello Dogma

The introduction of the first carbon fiber Dogma model.

2011 Dogma 2

The release of the Dogma 2, enhancing aerodynamics and performance.

2013 Dogma 65.1 Think2

The Dogma 65.1 Think2, known for its versatility and improved stiffness.

2014 Dogma F8

The launch of the Dogma F8, featuring a new aerodynamic design.

2016 Dogma F8 XLight

An ultra-light version of the F8 for climbing efficiency.

2017 Dogma F10

The Dogma F10, with enhanced aerodynamics and weight reduction.

2019 Dogma F12

The release of the Dogma F12, a top choice for professional racers.

2020 Dogma F

The latest iteration with cutting-edge technology and design.

2024 Dogma F - 2024

The most advanced Dogma model, featuring state-of-the-art advancements in bike engineering.

Embracing the Pinarello Ethos

At its core, the Pinarello brand is about more than just bikes; it's about a passion for cycling that runs deep in Italian culture. The Dogma F exemplifies this ethos by blending tradition with cutting-edge technology. Each frame is crafted with a deep respect for cycling heritage while incorporating the latest advancements in design and materials. When you choose the Dogma F, you're not just getting a high-performance bike—you're embracing a rich history and a philosophy that values both artistry and functionality.

Introducing the 2025 Dogma F: The Next Level of Performance

Building on the foundation laid by its predecessor, the new Pinarello Dogma F incorporates advanced features that elevate your riding experience. You'll notice improvements in aerodynamics, weight reduction, and overall ride quality. This latest iteration retains the winning characteristics of previous models while introducing innovations that make it a true game-changer on the road. Whether you're racing or enjoying a weekend ride, the Dogma F is designed to exceed your expectations.

Form Meets Function with Italian Flair

Every element of the Dogma F is thoughtfully designed to serve a purpose while also looking stunning. The Italian flair is evident in the bike's sleek lines and artistic design, proving that performance and aesthetics can go hand in hand. From the frame to the components, every detail is crafted with precision to ensure that you not only ride fast but look great doing it. The Dogma F is not just a bike; it's a statement of style and performance.

CARBON M40X

Developed through extensive testing with Pinarello X-Light models and the Ineos Grenadiers team bikes, this new carbon fiber boasts exceptional tensile strength, giving the Dogma F unparalleled lateral stiffness. Giving you better handling and more power transfer.

Redesigned Downtube

The downtube on the Dogma F has undergone a complete redesign, making it thinner and more aerodynamic. This improvement minimizes wind resistance, enhancing your bike's overall performance by reducing drag.

Shop Now

Aero-Keel BB

Inspired by the Hour Record, the new Dogma F features an innovative down tube that is rotated by 3.5° to create a keel shape. This unique design enhances the aerodynamic performance of the bottom bracket area by 1.2%, helping you maintain speed with less effort.

Onda Fork

The new Onda fork has a slimmer profile that significantly improves aerodynamics. Additionally, it has a 47mm rake, which gives the Dogma F greater stability on steep descents.

Streamlined Top Tube Design

The Dogma F's distinctive head tube shape, first introduced with the Dogma F8 in 2014, has been refined. The volume and width of the nose area have been reduced by 8mm, creating a more streamlined design giving you cleaner lines for aerodynamic gains.

Innovative Headset Design

To achieve the reduced width of the headtube, Pinarello engineers created a new elliptical steering tube and a unique headset with different bearing diameters. This enhances stability but also contributes to the overall aerodynamic profile of the bike.

Shorter Thru Axles

The bolt on the right side of the fork is now integrated into the carbon, eliminating external holes. This began as an aesthetic feature but ended up being an aerodynamic benefit.

Integrated Seat Post Clamp

The seat post clamp on the Dogma F is now fully integrated into the frames. Giving it a cleaner, uncluttered look. Knocking off a few additional grams to the frame doesn't hurt either.

MOST Talon Ultra Fast

The MOST Talon Ultra Fast integrated cockpit is lighter and more aerodynamic. Designed with a natural twisted lever position, it allows riders to find an optimal aero position safely.

Please Note that this cockpit is sold separately from the frameset.

Find Your Size

Sizing can be difficult to figure out so if you need any assistance, do not hesitate to reach out to one of our experts. The Pinarello Dogma F comes in 10 sizes so that it fits more cyclist than most bikes on the market.

Size:

46.5

51.5

57.5

59.5

B. Seat Tube (c-t)

430

465

500

515

530

540

550

560

575

595

C. Top Tube Length

500

515

525

535

545

550

557

565

575

587

D. Head Tube Length

102

109

114

119

128

136

147

154.5

168

204

E. Chain Stay Length

407

408

409

F. BB Drop

G. Seat Tube Angle

74.4

73.7

73.4

72.4

H. Head Tube Angle

69.5

70.5

71.4

72.5

72.8

73.2

73.7

73.4

J. Wheel Size

700c

K. Stack

502

517.3

525.2

532.1

542.4

551

561.5

570.1

584.8

613.2

L. Reach

351.5

365.4

372.2

378.2

385.6

385.3

389.2

390.8

396.7

393.4

Choose your Pinarello Dogma F Color!

Pinarello Dogma F - Luxter Venice

See it here

Pinarello Dogma F - Edge Crystal White

See it here

Pinarello Dogma F - Black on Black

See it here

Pinarello Dogma F - Aurik Yellow

See it here

Pinarello Dogma F - Luxter Red Gold

See the SRAM Red build here See the Shimano Dura Ace build here

Pinarello Dogma F - Luxter Blue

See the SRAM Red build here See the Shimano Dura Ace build here

Paint It Your Way: Customization Options - MyWay

Want a Dogma F that's uniquely yours? With Pinarello MyWay, you can customize your Dogma F to reflect your personal style. Click here to explore your options and lets build your one-of-a-kind Pinarello Dogma F

Build It Your Way with RA Cycles

At RA Cycles, we believe that every cyclist deserves a bike that feels perfect for them. Whether you want to build your dream Pinarello Dogma F in-store or online, our team of specialists is ready to assist you.
