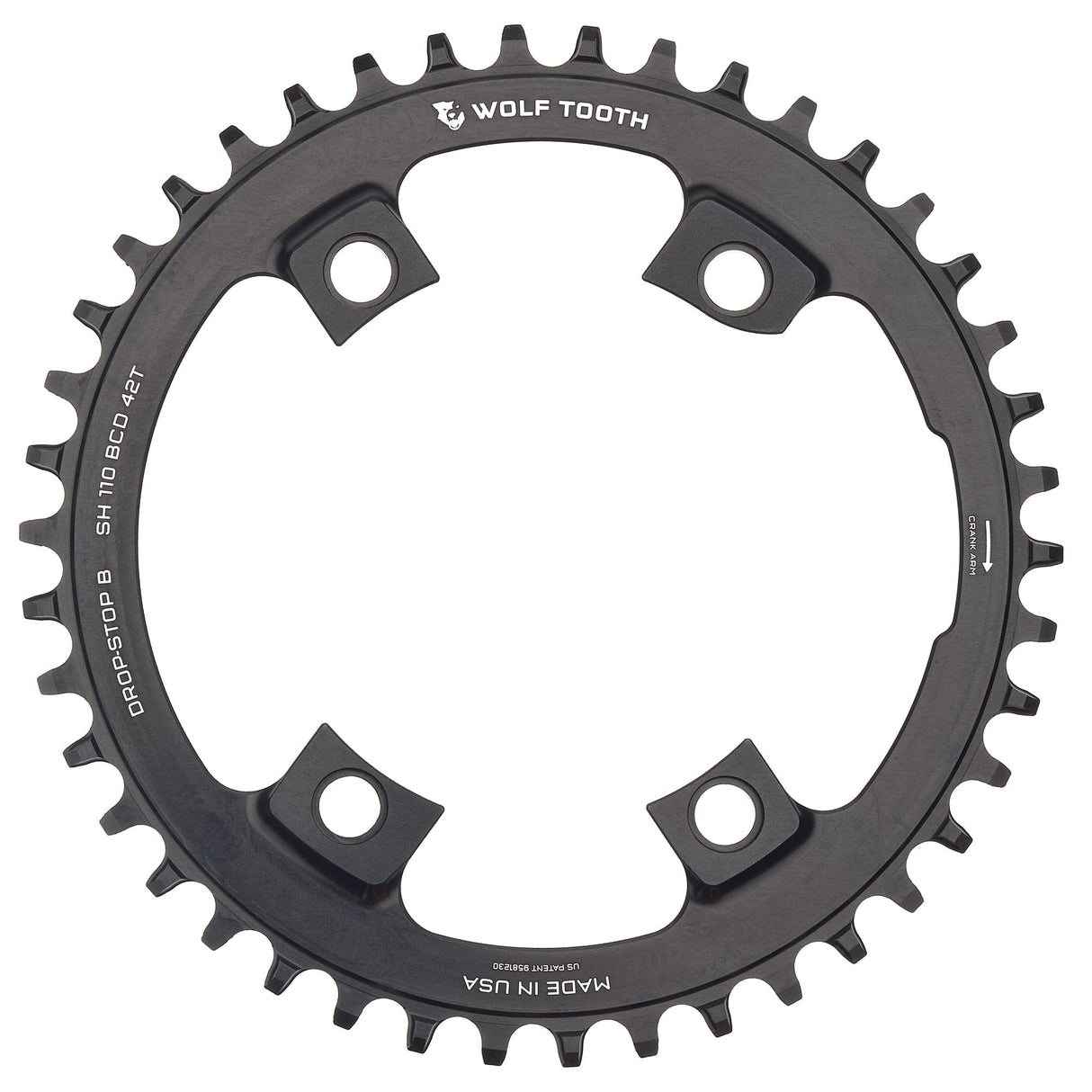

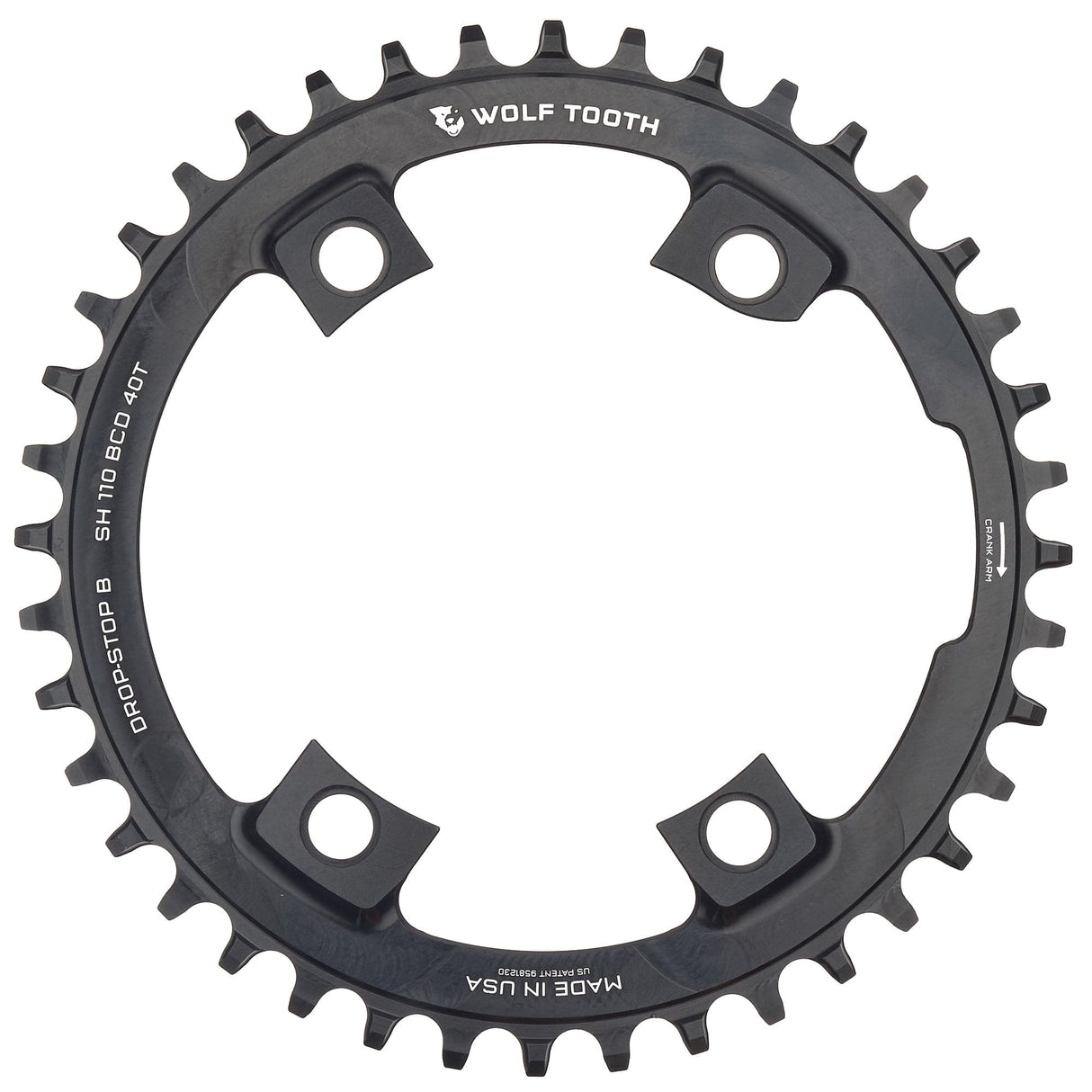

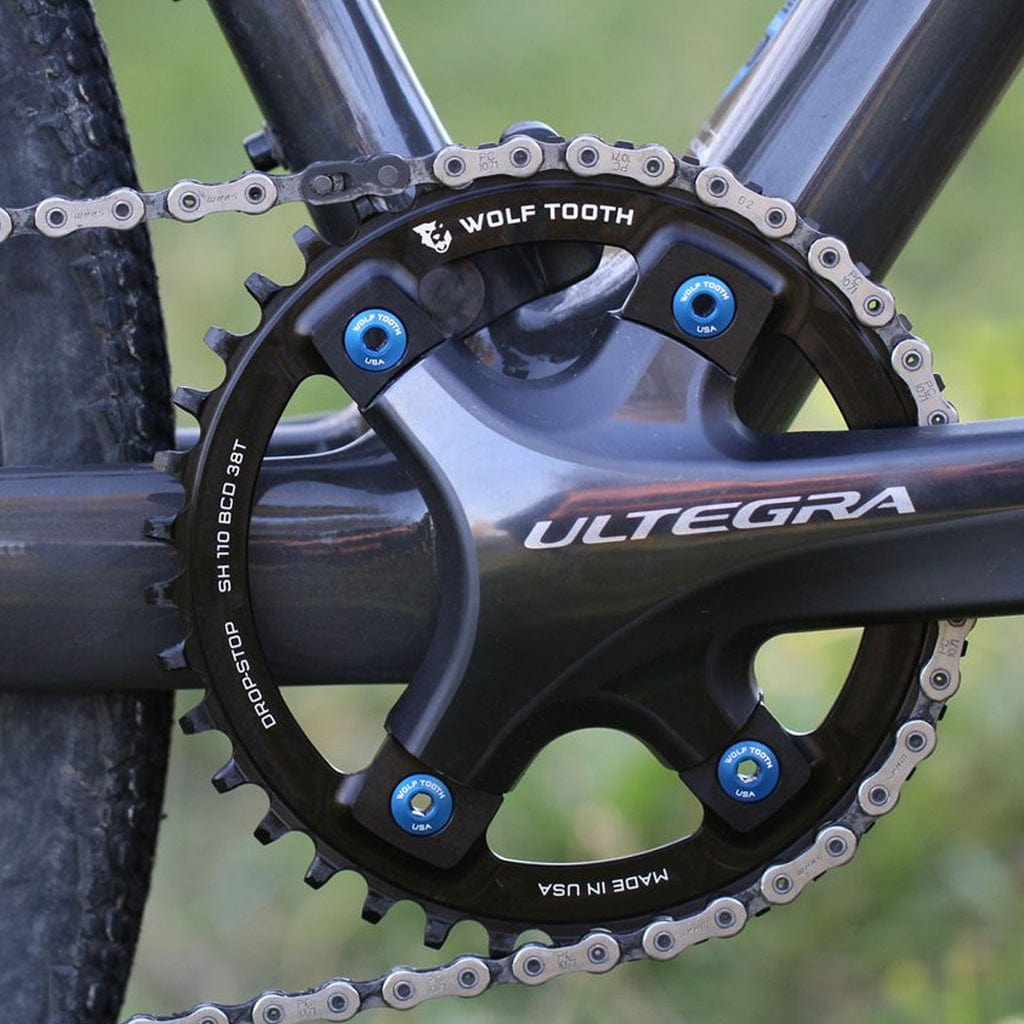

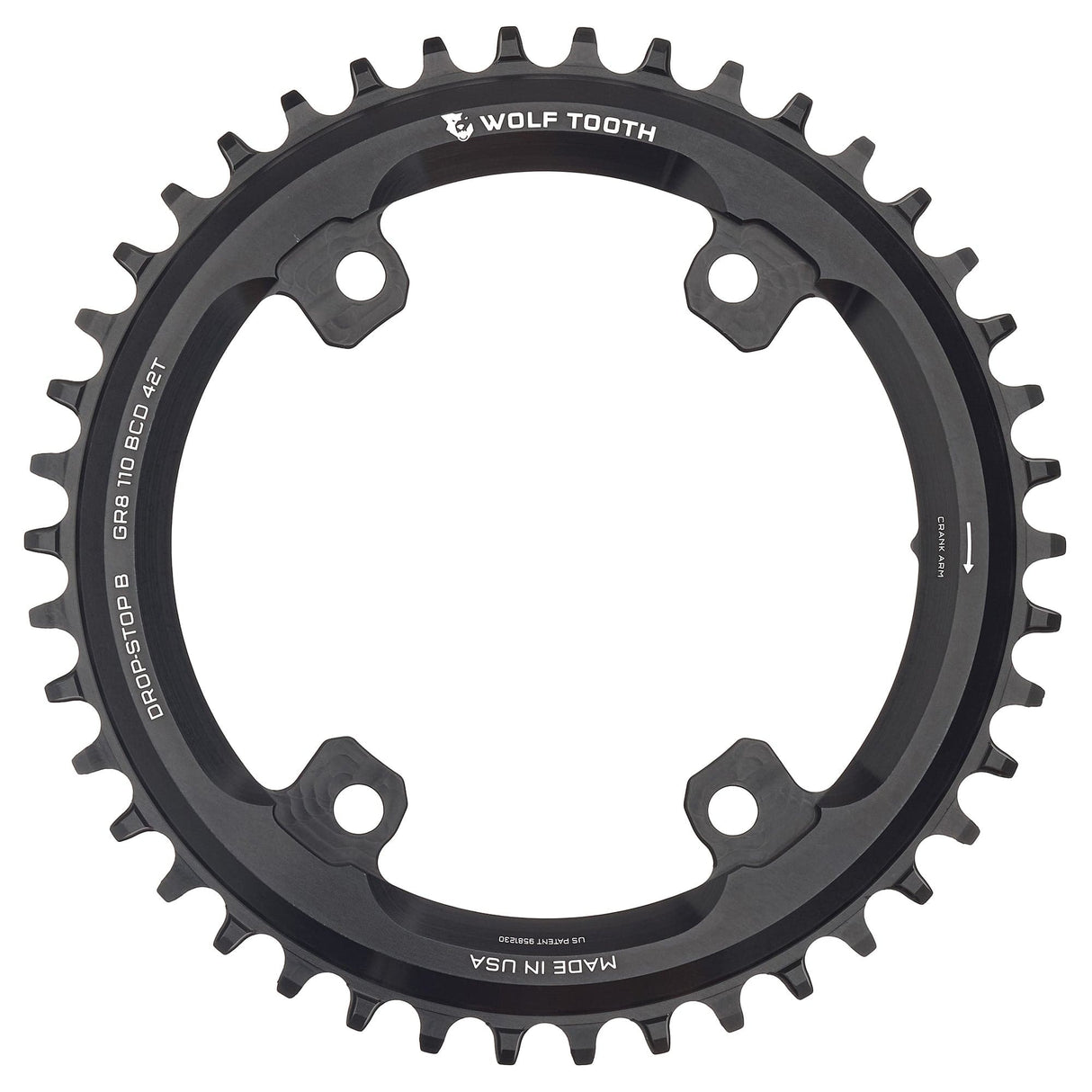

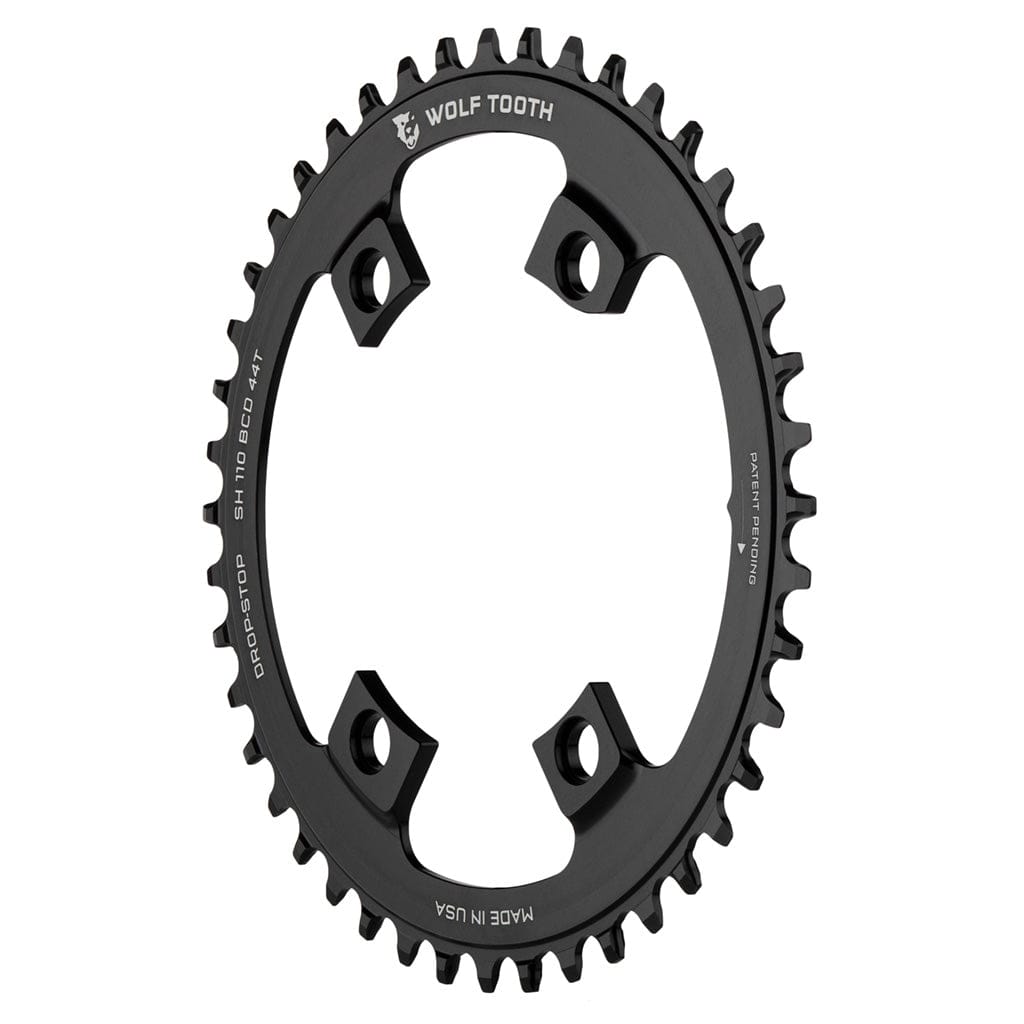

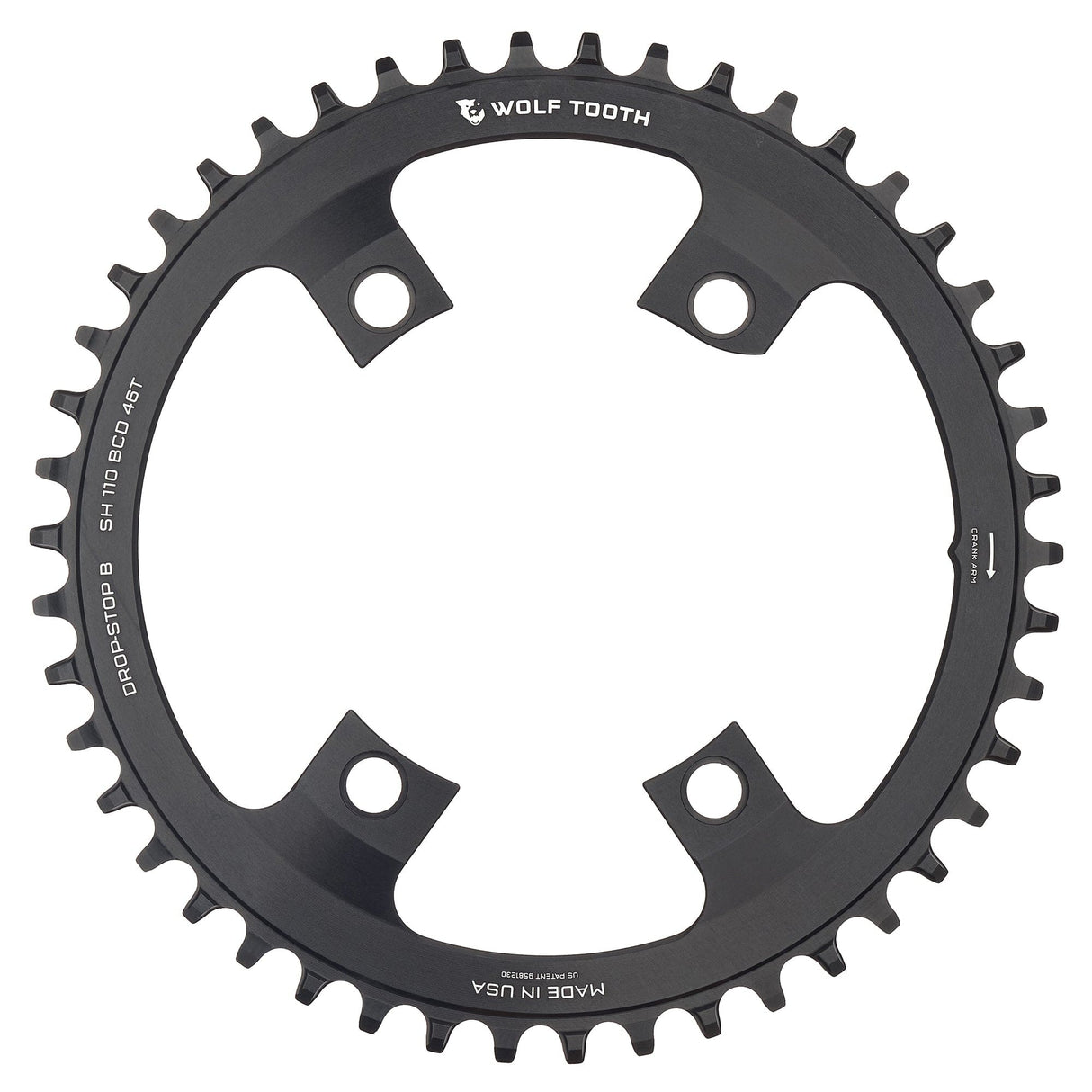

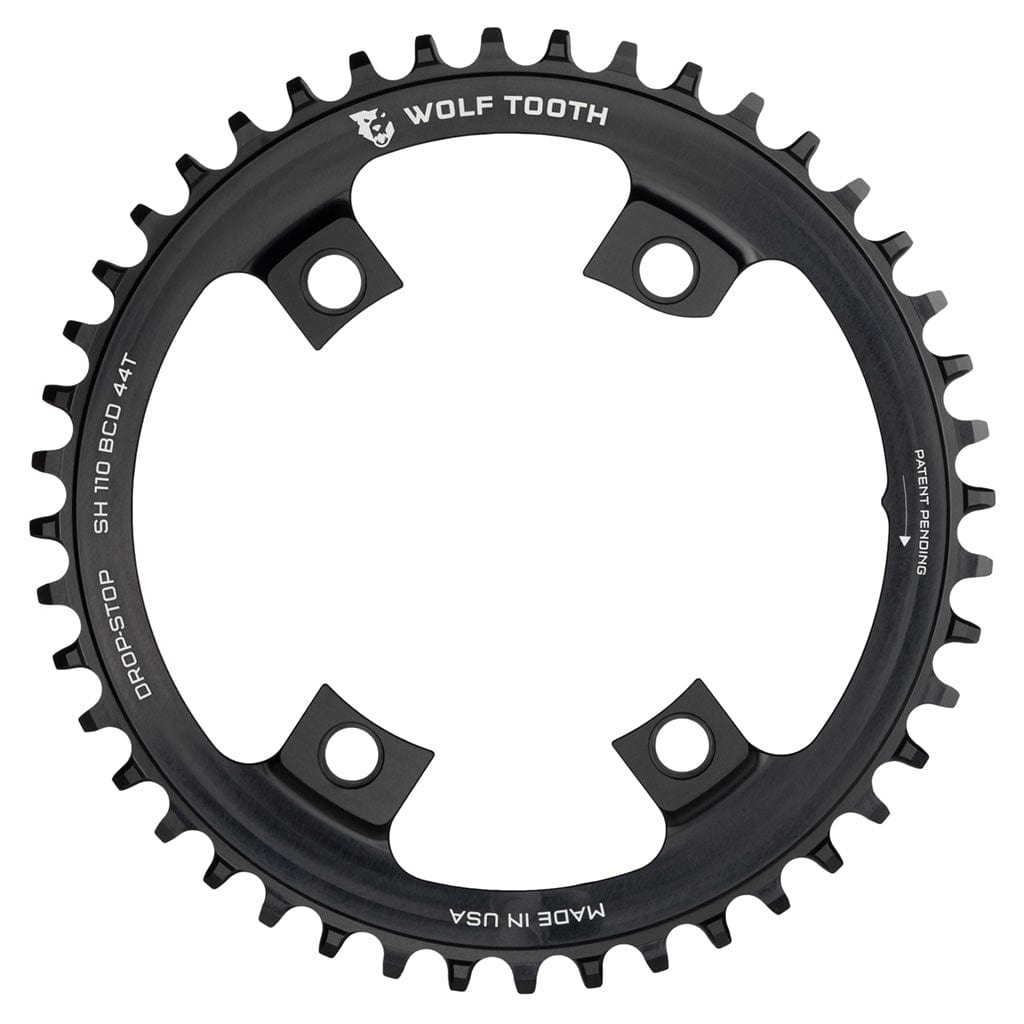

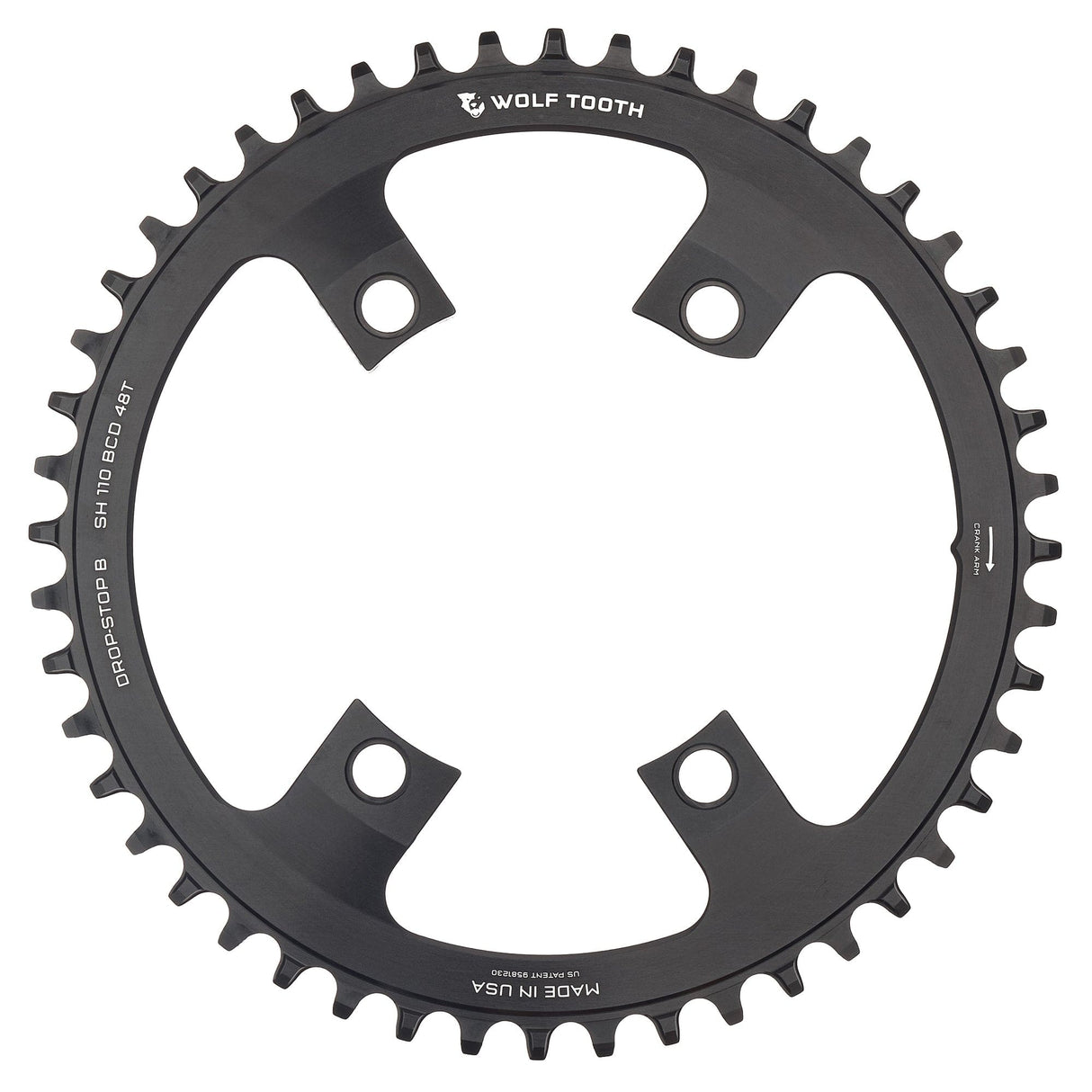

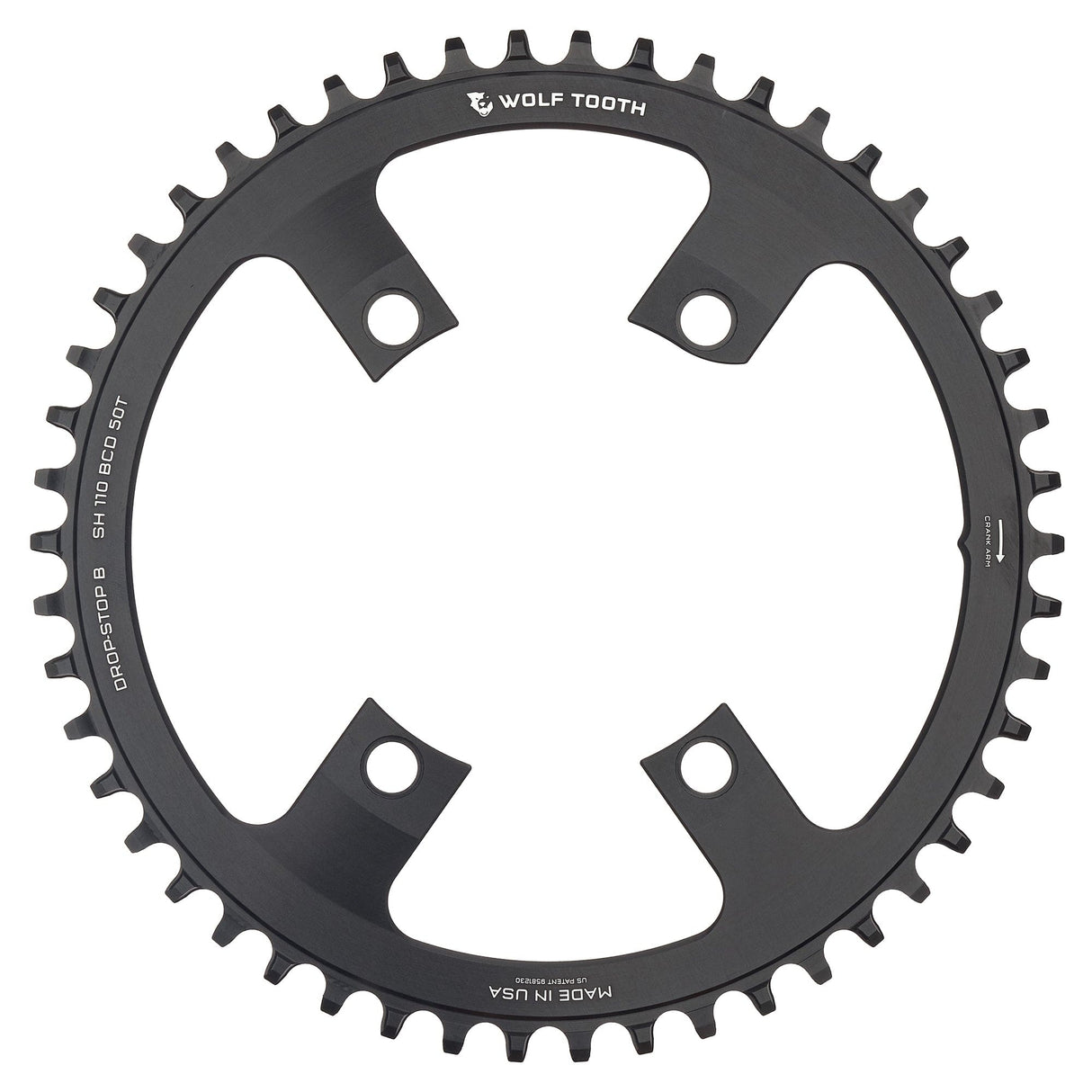

Wolf Tooth 110 BCD Asymmetric 4-Bolt Chainrings for Shimano Cranks

Wolf Tooth 110 BCD Asymmetric 4-Bolt Chainrings for Shimano Cranks Info

Wolf Tooth 110 BCD Asymmetric 4-Bolt Chainrings for Shimano Cranks are purpose-built for riders converting their Shimano road, gravel, or cyclocross drivetrain to a clean and efficient 1x setup. Precision machined in Minnesota from premium 7075-T6 aluminum, this chainring delivers optimized chain retention, ideal chainline, and long-term durability for modern 1x performance builds.

Designed specifically for Shimano’s 110 BCD asymmetric 4-bolt crank standard, this chainring mounts in the big ring position and is offset inward to achieve a 47.5mm chainline—ideal for 1x drivetrains. The result is improved drivetrain alignment, reduced cross-chaining, and smoother overall performance whether you're racing cyclocross or building a streamlined gravel machine.

At the core is Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile. The wide teeth provide maximum chain contact on the drive side to distribute load and increase wear life, while the narrow teeth allow mud and debris clearance. The alternating tooth pattern actively reduces chain derailment—especially important in rough or muddy conditions.

110 BCD Asymmetric 4-Bolt Chainring Specs at a Glance

• BCD: 110mm Asymmetric 4-Bolt (Shimano standard)
• Mount Position: Big ring position (offset inward for 1x)
• Chainline: 47.5mm
• Tooth Profile: Drop-Stop® wide/narrow
• Material: 7075-T6 aluminum
• Weights: 38T – 66g | 40T – 74g | 42T – 81g | 44T – 90g
• Origin: Made in the USA

Compatibility

• Cranks: Shimano 110 BCD Asymmetric 4-bolt
• Compatible Models: Dura-Ace 9000, Ultegra 6800, 105 5800, RS510, Tiagra 4700/4703, Sora R3000/R3030, Claris R2000/R2030
• 38T–50T: Compatible with 105 R7000, Ultegra R8000, Dura-Ace R9100
• 36T: Not compatible with R7000, R8000, R9100
• Not Compatible: Dura-Ace R9200, Ultegra R8100, 105 R7100
• Power Meter: 42T and larger compatible with Dura-Ace R9100 power meter
• Bolts Required: 6mm single-ring chainring bolts (stock 2x bolts will not work)

Drivetrain Notes

• For 9-speed drivetrains, use a 10-speed chain for tighter fit and improved retention.
• Clutch-style rear derailleur recommended for optimal chain security.
• For extremely muddy conditions, consider adding a chainguide or chainkeeper.

Design Benefits

1. Optimized 1x Chainline: Inboard offset improves drivetrain alignment.
2. Enhanced Chain Retention: Drop-Stop® tooth shaping reduces derailment risk.
3. Lightweight Strength: 7075-T6 aluminum balances durability and minimal weight.
4. Precision Fit: Engineered specifically for Shimano’s asymmetric 110 BCD pattern.

Final Take

The Wolf Tooth 110 BCD Asymmetric 4-Bolt Chainrings for Shimano Cranks remain a proven solution for riders moving to a 1x drivetrain on compatible Shimano road and gravel cranks. With optimized chainline, patented wide/narrow tooth design, and precision USA machining, this chainring delivers dependable retention and performance for demanding conditions.
