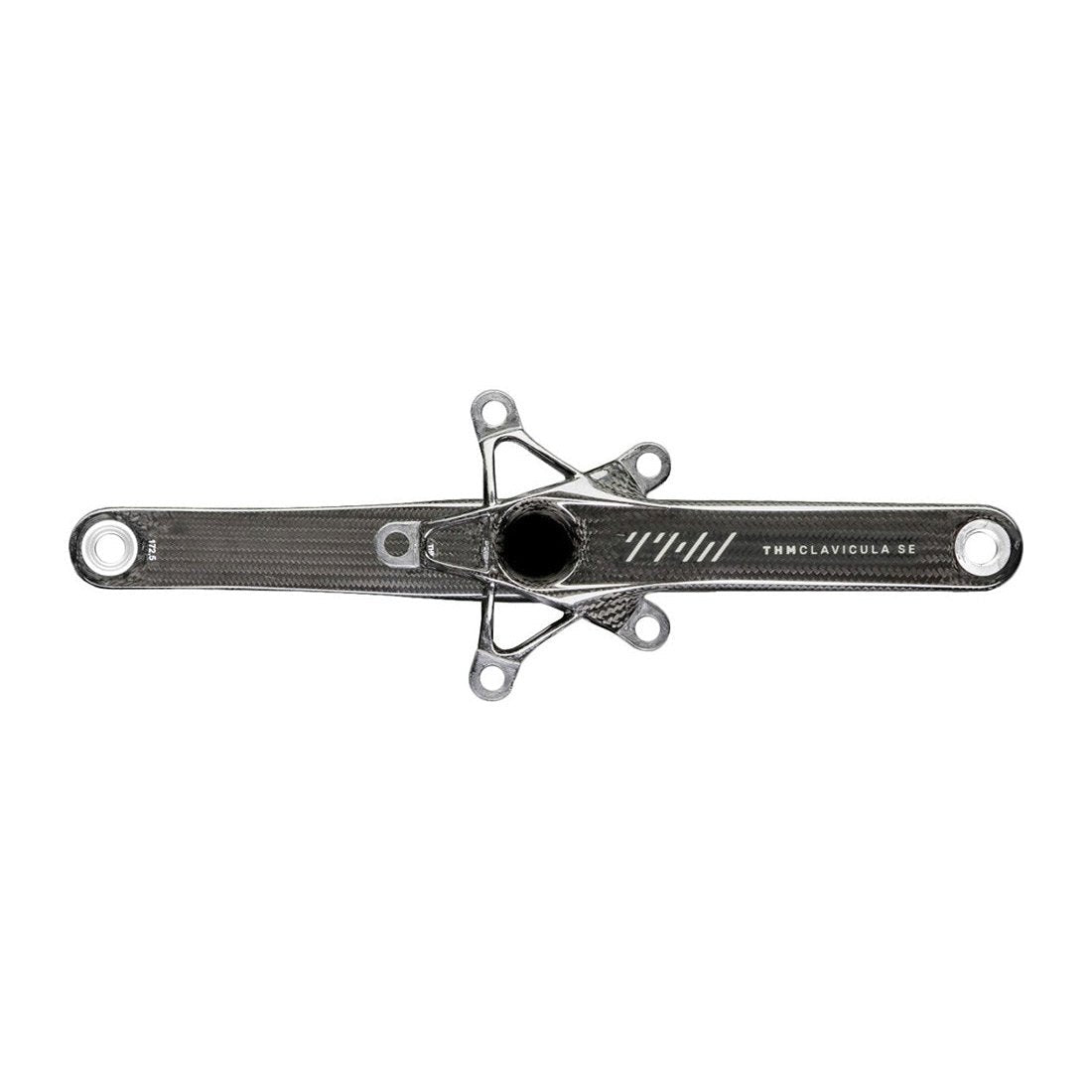

THM Clavicula SE Crankset

$2,199⁰⁰

RA price match promise
Pay later with , and

Typically ships within 5-8 business days.

THM | SKU: 10503101 | Option: 110bcd, Glossy, 170mm

This product is HSA / FSA eligible

Pickup available at RA Cycles - Brooklyn

Usually ready in 24 hours

Questions about this product?

* Product image may vary. Refer to the description for accurate details.

THM Clavicula SE Crankset Info

The name means "no rule without exception" — and the THM Clavicula SE Crankset lives up to that. Built almost entirely from carbon fiber, including a 30mm carbon thru-axle, the only metal you'll find is in the nut, bolt, and pedal threads. The result is a 2x road crankset that weighs 302g in 130mm BCD trim and 293g in 110mm BCD — figures that put it among the lightest production cranksets available.

The 30mm spindle diameter gives THM the stiffness-to-weight ratio they needed while maintaining broad bottom bracket compatibility — threaded English and Italian, BB30, BB30A, PF30, BB86, BB386, BB386EVO, and BBright are all supported with the appropriate bottom bracket or bearing set. Q-factor sits at 148mm with a 43.5mm chainline. For chainring sizing, the 130mm BCD spider works with a minimum of 39 teeth; the 110mm BCD spider accepts rings down to 34 teeth. THM rates the crankset for a maximum combined rider, bike, and gear weight of 120kg.

THM Clavicula SE Crankset Specs at a Glance

Weight: 302g (130mm BCD) / 293g (110mm BCD)
BCD options: 130mm (min. 39t) or 110mm (min. 34t)
Spindle: 30mm carbon thru-axle
Q-Factor / Chainline: 148mm / 43.5mm
Bottom bracket compatibility: English, Italian, BB30, BB30A, PF30, BB86, BB386, BB386EVO, BBright
Crank lengths available: 170mm, 172.5mm, 175mm
Finish options: Glossy or Matte
Max rider + bike + gear weight: 120kg
