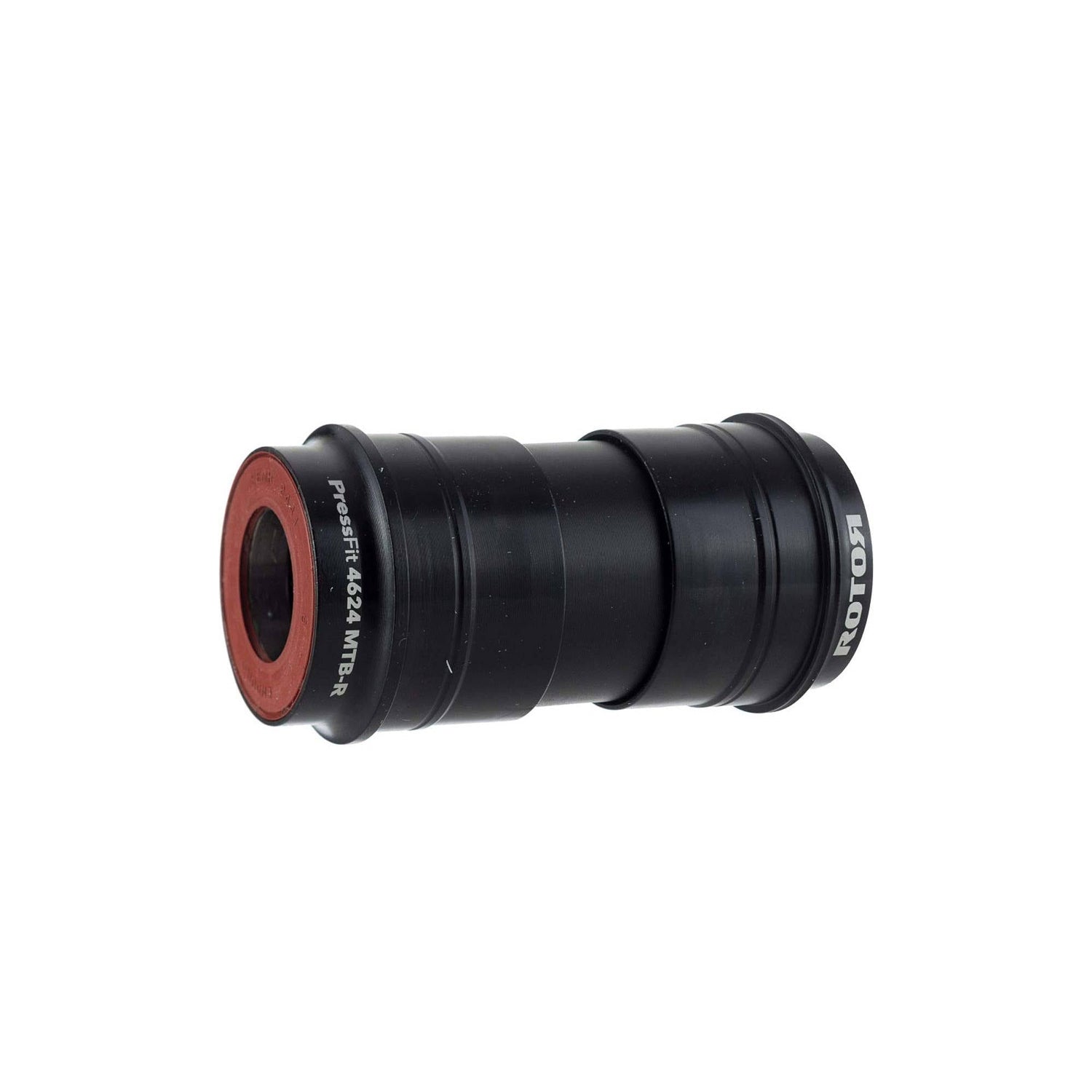

Rotor PF4624 (EVO386) to 24mm Steel Bottom Bracket

Rotor PF4624 (EVO386) to 24mm Steel Bottom Bracket Info

In the world of increasing bottom bracket standards the BB386 EVO is a curiosity. It has the width of a BB86 and the diameter of BB/PF30. Luckily, if you’ve got cranks with a 24mm diameter thru-axle, Rotor has you covered with this Press Fit 4624 bottom bracket.

The shell width is 86.5mm. The inner diameter of the shell is 46mm. This standard precludes the use of BB30 spindles because the shell is too wide, but it provides the width (and stiffness) that BB86 shells give frames and the stiffness and light weight that BB30 cranks offer.

But you’re not here if you have a BB386 EVO crank. You’re here because you have a 24mm thru-axle crank. Like Rotor’s 3D24. Like all Shimano. Like FSA’s Mega-Exo design. And you’ve got a BB386 EVO standard on your frame.

The kit consists of two cups machined 7075-T6 aluminum cups, each with a bearing with an inner diameter of 24mm, and a cylinder for sealing the design. Press in one side, the seal, then the other. And just like that, you can put your standard crank on this non-standard, well, unusual standard.

The weight is 102g for the set.

The Rotor PF4624 bottom bracket for converting BB386 EVO bottom brackets to 24mm thru-axles with super smooth Ceramic balls to roll on makes your bike as fast as its promise.
