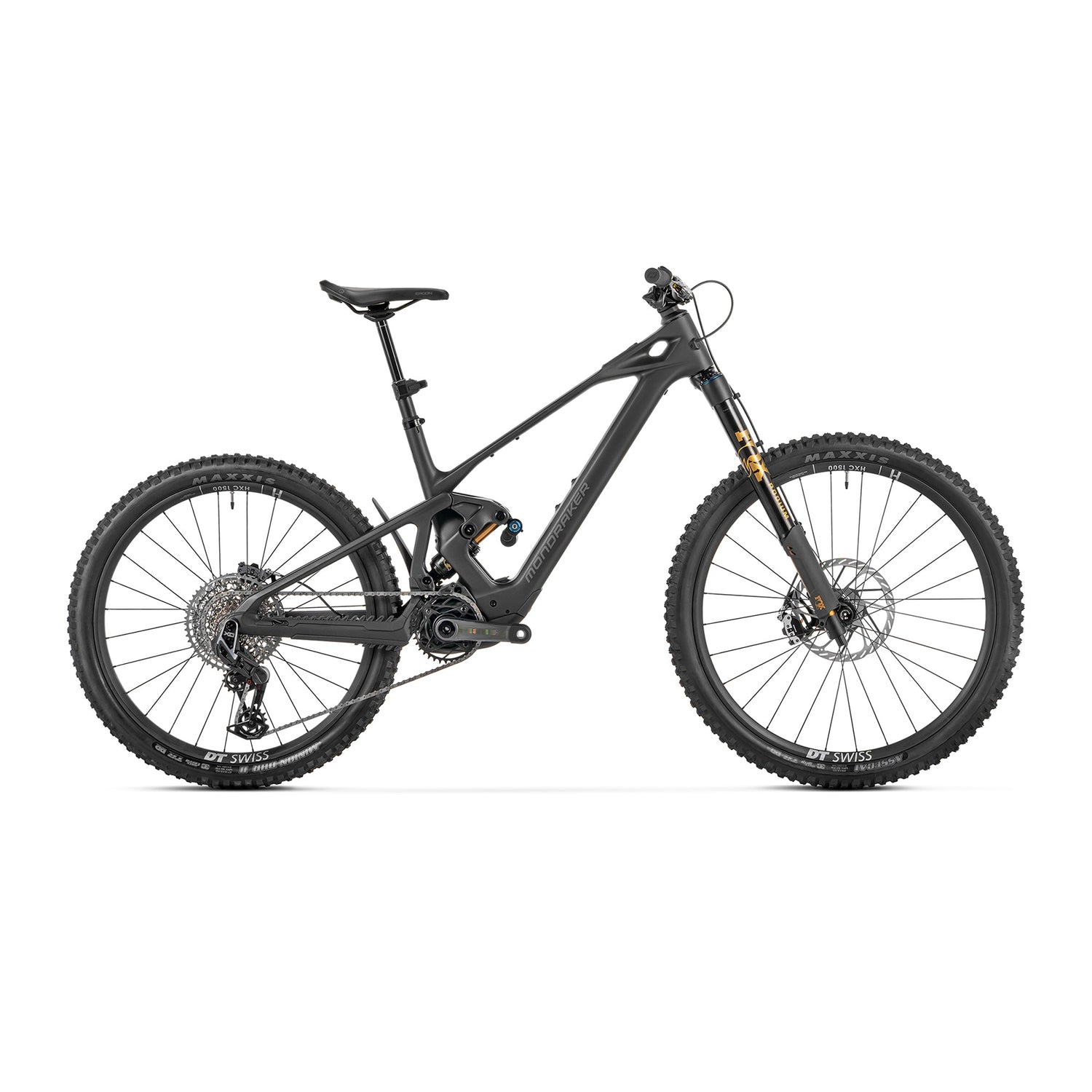

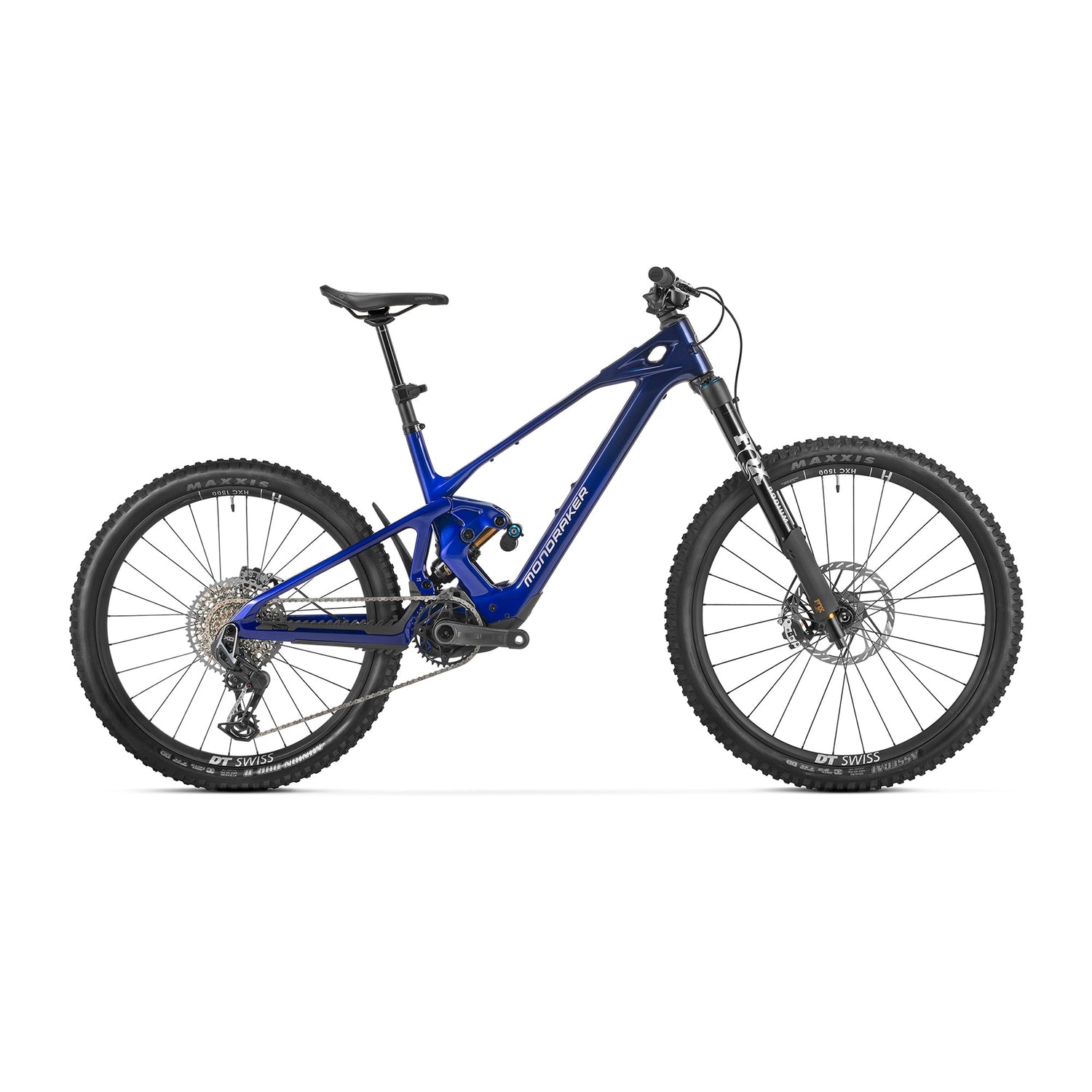

Mondraker Zendit XR Bike
Mondraker Zendit XR Bike Info
The Mondraker Zendit XR Bike is the result of eleven years of e-MTB development distilled into a single machine. Mondraker didn't adapt an existing platform to fit the new Avinox M2S motor — they built the Zendit frame from scratch around it, using 6-Axis CNC machining for precision drilling and finishing, a one-piece Monoblock upper link, and the same MAX-capacity sealed pivot system developed for the Summum DH race frame. The outcome is an e-enduro bike with 165mm of rear travel and 170mm up front, built to handle the steepest and most technical terrain on the planet without compromise.
At the heart of the Zendit XR is the Avinox M2S drive system, Mondraker's own motor platform developed for this generation of bikes. Standard output is 130Nm of torque — already substantial — but the Boost mode takes it to 150Nm with a peak of 1,300 watts for up to 60 seconds, delivering the kind of explosive power that changes what's possible on steep, technical climbs. Five riding modes (Eco, Auto, Trail, Turbo, Boost) give you precise control over how much assistance you draw on, with Auto mode continuously adjusting based on riding resistance. The integrated 800Wh battery is rated to maintain 80% capacity after 500 charge cycles, and the entire system is managed by the Avinox DP100 display and BC100 wireless controller mounted to the bar.
Mondraker's Updated Zero Suspension System was revised specifically to handle what the M2S motor can output. Anti-squat at sag sits at approximately 105% — ideal for a longer-travel application — keeping the bike climbing efficiently without pedal bob interfering with traction. Anti-rise at sag is approximately 99%, maintaining maximum rear wheel contact under braking. The 27% leverage ratio progression pairs with the Fox Float X2 Factory Kashima rear shock, which Mondraker and Fox tuned together specifically for the Zendit's kinematics. Up front, a Fox Podium 29 Float GRIP X2 Factory Kashima fork handles the remaining work, with full high and low-speed compression and rebound adjustment. The mullet wheel configuration — 29" front, 27.5" rear — is standard across all sizes, delivering the rolling efficiency of a larger front wheel combined with the agility of a shorter rear.
Design Benefits
- Purpose-built carbon platform — the Zendit frame was designed from the ground up around the Avinox M2S motor, using 6-Axis CNC machining and DH-derived pivot engineering rather than adapting an existing enduro chassis
- Avinox M2S Boost mode — 150Nm and 1,300W peak for up to 60 seconds gives you a decisive power reserve for the steepest tech climbs, triggered on demand without disrupting normal riding modes
- Fox Factory suspension, Zendit-specific tune — Mondraker and Fox co-developed the shock setup for this frame's kinematics, so the Float X2 Factory Kashima rear shock works with the suspension geometry rather than against it
- Updated Zero Suspension System kinematics — revised anti-squat (105%) and anti-rise (99%) figures keep the bike pedaling efficiently and braking predictably on the most demanding terrain
- Mullet wheel setup standard — the 29/27.5 configuration ships on every size; a flip-chip in the lower link adds 7mm of chainstay length for a full 29" setup without affecting head angle, BB height, or suspension kinematics
- SRAM X0 Eagle AXS T-Type — Mondraker spec the top-tier wireless drivetrain at this level, paired with the e*thirteen Helix Race Carbon crankset and a 36T chainring for optimal e-MTB durability and gear range
Final Take
The Zendit XR is a bike designed to remove the limitations of the terrain. The combination of a full carbon chassis built around a 130Nm motor, Fox Factory suspension tuned specifically for this frame, and a mullet wheel setup that handles both the climb and the descent with equal confidence puts it at the top of the e-enduro category. For riders who demand factory-level performance and are willing to invest in a machine built without compromise, the Zendit XR is the answer.
Mondraker Zendit XR Bike - Specifications
*Specifications are subject to change.
Mondraker Zendit XR Bike Geometry
