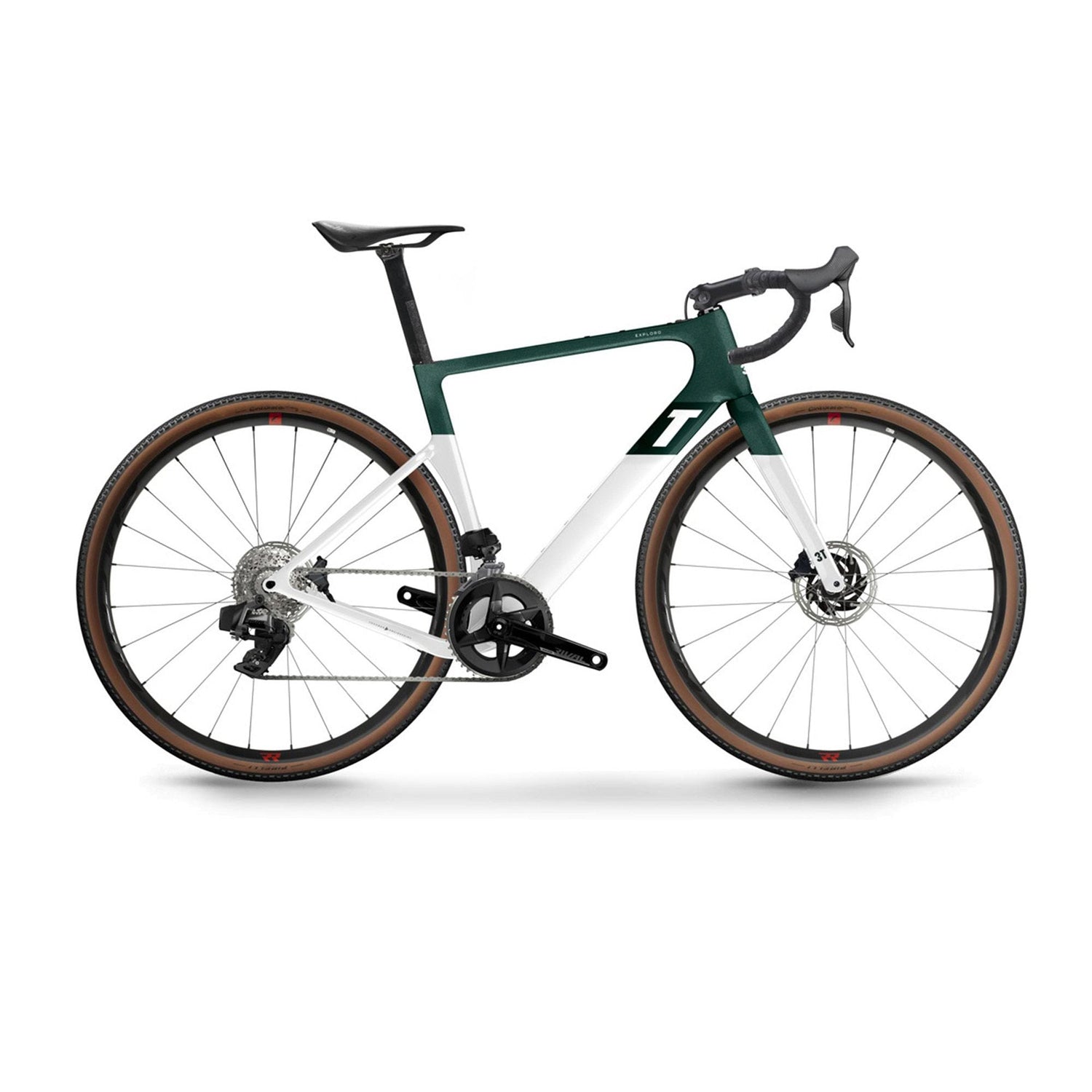

3T Exploro RaceMax Rival AXS 2x Bike - Demo


$5,49900

Color 2
Size
3T  |  SKU: 9250AGDJ33W-D


3T Exploro RaceMax Rival AXS 2x Bike - Demo Info

3T claims the Exploro as the world’s first aero gravel bike. The RaceMax frameset is made to accommodate any riding style with the proper setup. This setup is for the rider who is looking for road-like speed on gravel or tough terrain. It is equipped with a SRAM Rival AXS 2x groupset. This 2x electronic groupset features a 12-speed configuration for a great price. 3T managed to create a frame that has the same reactive feel as a road frame and can handle technical downhills like a mountain bike. Behind this type of versatility and all-around performance, it is no surprise that the Exploro has won multiple design awards in the last few years.

Like the original Exploro, the RaceMax focuses on aerodynamic performance, making it an extremely unique gravel bike. While most riders think of aerodynamics in terms of road bikes, it is important to remember that headwinds and crosswinds are still a factor on gravel and single tracks. With the addition of the “Race” setup on this bike, speed is not hard to come by. 3T calls their gravel aero technology “Squaro.” This derives from the aerodynamic construction that is more square shaped than the typical narrow profile of an aero road bike. Squaro is utilized on the downtube, seat tube, seatpost, and seatstays. This build is also perfect for properly hiding bottle cages and to work well while covered in mud.

The frame of the 3T Exploro RaceMax is made with unidirectional carbon which is both lightweight and stiff. This makes it tough and rigid enough to deal with some of the most daunting terrain off the road. It features a very stiff bottom bracket that helps it remain tough and efficient on a trail. It also allows for internal cable routing which keeps a sleek look and keeps cables safe from the elements. The 3T Exploro RaceMax Rival AXS 2x is for the rider who wants to take on the toughest terrain with aero speed without paying a massive price tag.

3T Exploro RaceMax Rival AXS 2x Bike - Demo Specifications

Frame Material:
Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
Fork:
3T Fango RaceMax w/ compact crown
Headset:
Custom Cane Creek IS42/28.6 + IS 47/38
Seatpost:
3T Charlie Sqaero Team w/ Ritchey WCS Clamp
Front Derailleur:
SRAM Rival AXS
Rear Derailleur:
SRAM Rival AXS 36T Max
Crankset:
SRAM Rival AXS 46/33
Bottom Bracket:
Thread-Together
Brake Calipers:
SRAM Rival AXS Hydraulic Disc
Rotors:
SRAM 160mm
Shifters / Levers:
SRAM Rival AXS eTap
Cassette:
SRAM Rival AXS 12-speed 10-36
Wheel - Front:
Fulcrum Rapid Red 900, 22mm internal width, tubeless ready
Wheel - Rear:
Fulcrum Rapid Red 900, 22mm internal width, tubeless ready
Stem:
3T Apto Stealth
Handlebar:
3T Superergo PRO bar
Pedals:
Not Included

*Specifications are subject to change.

3T Exploro RaceMax Rival AXS 2x Bike - Demo Geometry

3T Exploro RaceMax Rival AXS 2x Bike - Demo Geometry
Size:
51
54
56
58
B. Seat Tube (c-t)
463
490
518
545
C. Top Tube Length
526
546
566
586
D. Head Tube Length
147
161
180
201
E. Chain Stay Length
415
415
415
415
G. Seat Tube Angle
74
73.5
73
72.5
H. Head Tube Angle
69.5
71
72
72
K. Stack
542
564
584
604
L. Reach
366
377
385
393
N/A
3T

3T Exploro RaceMax Rival AXS 2x Bike - Demo

$5,49900

3T claims the Exploro as the world’s first aero gravel bike. The RaceMax frameset is made to accommodate any riding style with the proper setup. This setup is for the rider who is looking for road-like speed on gravel or tough terrain. It is equipped with a SRAM Rival AXS 2x groupset. This 2x electronic groupset features a 12-speed configuration for a great price. 3T managed to create a frame that has the same reactive feel as a road frame and can handle technical downhills like a mountain bike. Behind this type of versatility and all-around performance, it is no surprise that the Exploro has won multiple design awards in the last few years.

Like the original Exploro, the RaceMax focuses on aerodynamic performance, making it an extremely unique gravel bike. While most riders think of aerodynamics in terms of road bikes, it is important to remember that headwinds and crosswinds are still a factor on gravel and single tracks. With the addition of the “Race” setup on this bike, speed is not hard to come by. 3T calls their gravel aero technology “Squaro.” This derives from the aerodynamic construction that is more square shaped than the typical narrow profile of an aero road bike. Squaro is utilized on the downtube, seat tube, seatpost, and seatstays. This build is also perfect for properly hiding bottle cages and to work well while covered in mud.

The frame of the 3T Exploro RaceMax is made with unidirectional carbon which is both lightweight and stiff. This makes it tough and rigid enough to deal with some of the most daunting terrain off the road. It features a very stiff bottom bracket that helps it remain tough and efficient on a trail. It also allows for internal cable routing which keeps a sleek look and keeps cables safe from the elements. The 3T Exploro RaceMax Rival AXS 2x is for the rider who wants to take on the toughest terrain with aero speed without paying a massive price tag.
