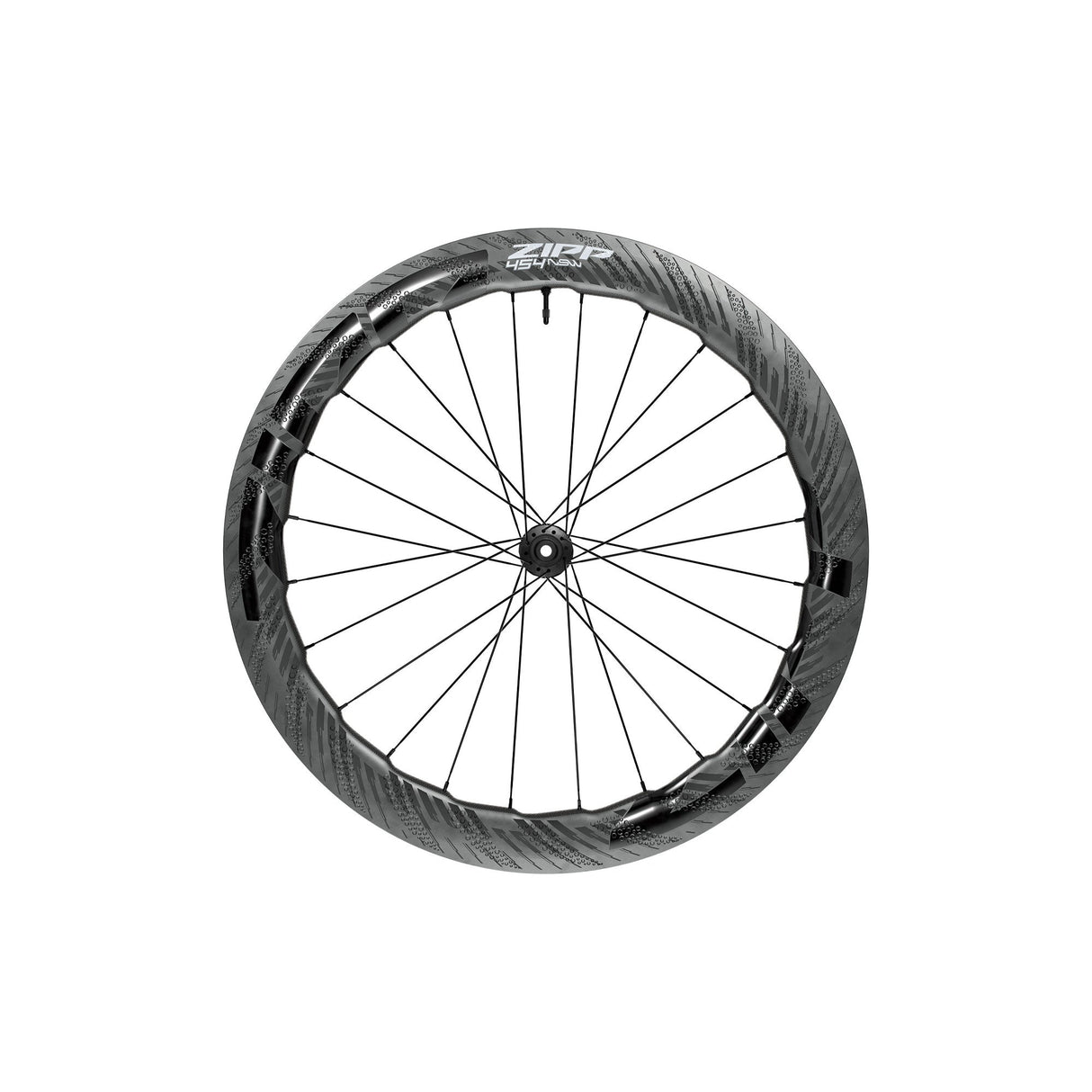

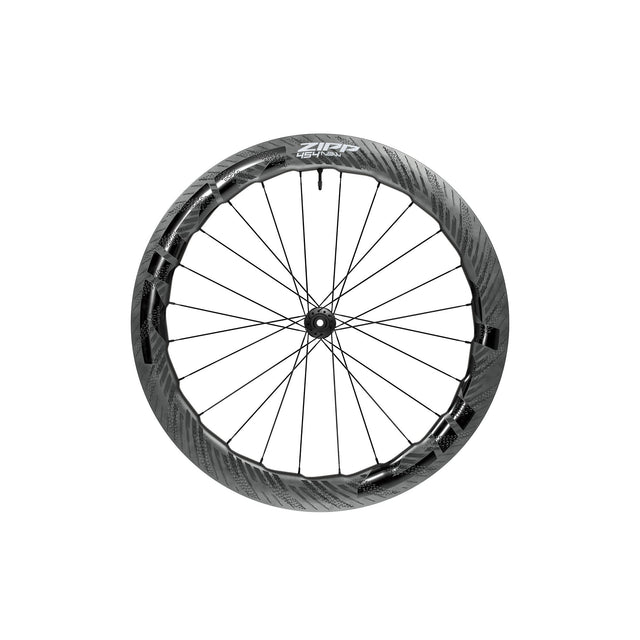

Zipp 454 NSW Tubeless Disc Front Wheel

The Zipp 454 NSW Tubeless Disc Front Wheel is Zipp's most aerodynamically advanced road wheel — built around a carbon rim geometry that does something conventional deep-section designs cannot: simultaneously reduce aerodynamic drag and side force across all wind yaw angles. That balance, which Zipp calls AeroBalance, comes from the Sawtooth rim profile working in combination with Hyperfoil nodes and HexFin ABLC surface dimples. The result is a wheel that's not only faster in a straight line but more predictable when the wind is coming from the side — a distinction that matters on race day and on long descents where crosswinds demand attention. At $1,900 for the front wheel alone, it sits at the top of Zipp's road lineup, representing years of wind tunnel and CFD development compressed into a single carbon hoop.

The foundation is the Sawtooth rim: a patented variable-depth carbon hookless profile that alternates between 53mm and 58mm in depth around the circumference. Zipp developed this shape using biomimicry — drawing on the way natural structures manage airflow — and refined it through extensive wind tunnel and computational testing. The undulating rim geometry breaks up the vortices that build around a conventional straight-walled rim, making the wheel's aerodynamic behavior more consistent as yaw angle changes. Positioned along the inner diameter of the rim, a series of fin-shaped Hyperfoil nodes work in tandem with the Sawtooth profile to increase vortex shedding frequency. More frequent shedding produces smaller, more predictable vortices, and those translate directly to greater wheel stability in gusting crosswinds — saving the energy a rider would otherwise spend correcting their line. Each Hyperfoil node is equipped with HexFin ABLC dimples: hexagonally shaped depressions arranged in variable-sized clusters that increase boundary layer mixing and help airflow stay attached to the rim surface. Together, these three systems address drag and side force as a unified problem rather than isolated variables.

The hub is the ZR1 SL, a refined version of Zipp's previous NSW hub that comes in 30 grams lighter without compromising engagement precision or bearing longevity. It uses a custom hybrid ceramic bearing configuration — 61803 and 61803+61903 pairings — that reduces friction below what standard steel bearings deliver and extends service life in real-world riding conditions. The freehub engages at 66 points, which is precise enough that out-of-the-saddle sprinting efforts and micro-surges in technical riding feel immediately responsive. Driver body compatibility covers SRAM XDR and SRAM/Shimano Road out of the box; Campagnolo riders will need to purchase the appropriate body separately. The 12mm thru-axle mount ships with both front and rear end caps, making it compatible across the current range of disc brake road frames.

The 454 NSW uses hookless rim construction, and the advantages there extend past weight and manufacturing simplicity. A hookless profile creates a more seamless tire-to-rim transition at the bead seat — an aerodynamic improvement that contributes to the wheel's overall drag profile. It also allows Zipp's engineers to distribute carbon fiber layup more efficiently, producing a rim that's structurally stronger with less material. The wheel is tubeless-only and accepts tires from 28–35c at a maximum of 73 psi, with 28mm tires as the optimal pairing based on the 23mm internal and 28mm external rim width. At that configuration, tire and rim work as a single aerodynamic system — a principle at the core of Zipp's TSE (Total System Efficiency) framework, which treats wind resistance, rolling resistance, gravity, and vibration losses as interconnected variables rather than separate targets. ImPress graphics technology prints directly on the rim surface rather than applying decals, keeping the HexFin ABLC dimple geometry fully exposed and aero-clean.

The 454 NSW is a centerlock disc brake wheel with a lifetime warranty and a maximum system weight rating of 253 lbs / 115 kg. It's built for riders who race seriously or train with intent — and want a front wheel that performs predictably in varied wind conditions, not just optimal ones. The 24-spoke count keeps rotational mass down while maintaining the structural integrity needed for disc brake loads. For anyone building a dedicated race setup where front-end aerodynamic stability is the priority, the 454 NSW is where Zipp's engineering is most fully expressed.
