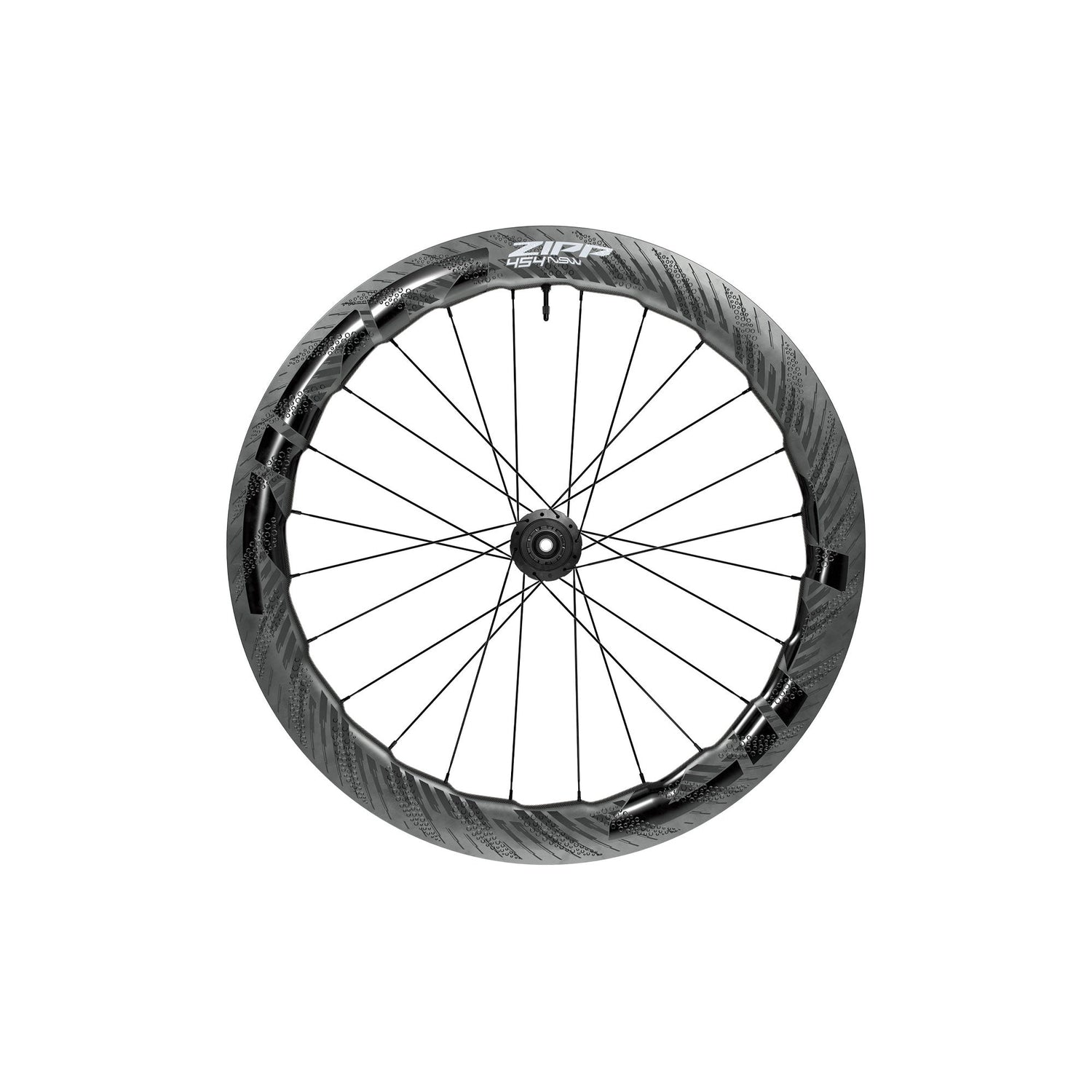

Zipp 454 NSW Tubeless Disc Rear Wheel

The Zipp 454 NSW Tubeless Disc Rear Wheel is built around a question most wheel designers avoid asking: what if you optimized everything at once? Not just aerodynamics, not just weight, but every source of energy loss on the road — wind, rolling resistance, vibration, gravity. That's the thinking behind Zipp's Total System Efficiency (TSE) philosophy, and the 454 NSW is where it comes to life most completely. This is a wheel that earns its place in the peloton through engineering depth, not marketing shorthand.

The rim profile tells the story before you even roll out. Zipp's 58mm deep Sawtooth rim doesn't follow a conventional arc — it undulates with Hyperfoil nodes that mirror the leading edge of a humpback whale's fin. Those nodes are designed to manage airflow across a wider range of yaw angles, so the wheel stays predictable when crosswinds hit mid-corner or out on exposed roads. Layered over that is Zipp's HexFin ABLC dimple pattern, which works with the Sawtooth profile to reduce drag and manage turbulence across the rim's surface. The result is a 58mm wheel that doesn't behave like one in a headwind — it's stable in conditions where deeper rims can become a liability.

The hookless rim design is another deliberate choice. By removing the bead hook, Zipp creates a cleaner aero transition between tire and rim — and opens the door to running lower pressures without the risk of tire squirm. Optimized for 28mm tires, the 454 NSW's wide internal channel improves tire shape for both aerodynamics and comfort. Lower pressure means more road compliance, and more compliance means less energy lost to vibration over long or rough roads. This generation is also 30 grams lighter than its predecessor, a meaningful reduction at the rim where rotational weight matters most.

Zipp 454 NSW Tubeless Disc Specs at a Glance

• Rim Depth: 58mm
• Rim Profile: Sawtooth with Hyperfoil nodes
• Aerodynamic Treatment: HexFin ABLC dimple pattern
• Rim Type: Hookless, tubeless-ready
• Optimized Tire Width: 28mm
• Hub: ZR1 SL with ceramic bearings
• Points of Engagement: 66
• Axle Standard: 12mm thru-axle
• Rotor Interface: Centerlock with lockring included
• Driver Compatibility: HG11 (Shimano/SRAM 11-speed) or XDR
• Weight Reduction vs. Previous Gen: 30g lighter
• Design Philosophy: Total System Efficiency (TSE)

Design Benefits

1. Crosswind Stability Through Biomimicry: The Sawtooth rim profile, shaped with Hyperfoil nodes inspired by humpback whale fins, is designed to smooth airflow across a wide range of real-world yaw angles. Rather than performing narrowly at zero degrees of yaw — a condition rarely encountered outside a wind tunnel — the 454 NSW is intended to stay composed when the wind comes at you from the side. For riders tackling exposed climbs, open roads, or criterium courses with variable wind, that stability translates directly to confidence.
2. Hookless Rim and Lower Pressure Running: The hookless bead design enables a tighter, more consistent tire-to-rim interface and allows you to run lower pressures than a traditional hooked rim at equivalent tire sizes. Lower pressure increases the tire's contact patch and absorbs road irregularities, reducing the high-frequency vibration that adds up over the course of long group rides or punishing road surfaces. It's a systemic gain — the wheel and tire work together rather than against each other.
3. ZR1 SL Hub with Ceramic Bearings and 66-Point Engagement: The hub is not an afterthought. The ZR1 SL uses ceramic bearings for reduced friction and long-term durability, and its 66 points of engagement mean the freehub picks up your power in under six degrees of crank rotation. That near-instant engagement is felt most on accelerations out of corners or when you need to snap onto a wheel in a fast group — moments where hesitation costs real ground.
4. Tubeless-Ready for Rolling Resistance and Ride Quality: Running tubeless removes the inner tube from the equation, eliminating the friction between tube and tire casing that contributes to rolling resistance. Combined with the lower pressures the hookless rim enables, the 454 NSW tubeless setup is designed to roll faster with less energy expenditure — while also providing a degree of puncture resistance that a tubed setup simply can't match on training rides or race day.
5. Disc-Specific Construction and Thru-Axle Compatibility: Built for disc brake systems, the 454 NSW uses a 12mm thru-axle interface and centerlock rotor mounting for a stiff, precise braking platform. The thru-axle design improves wheel tracking under hard braking and eliminates the flex that can cause brake rub with quick-release systems. Whether you're managing speed on a technical descent or modulating through a wet corner, the braking response is consistent and predictable.

Final Take

The Zipp 454 NSW Tubeless Disc Rear Wheel is built for road riders who want a deep-section wheel that doesn't ask them to compromise on crosswind handling, tire compatibility, or braking performance. It suits the rider who races on open circuits one weekend and puts in long training kilometers the next — someone who wants a wheel that works across conditions, not just in ideal ones. This is a serious piece of equipment for riders who have earned the right to demand that level of specificity from their gear.
