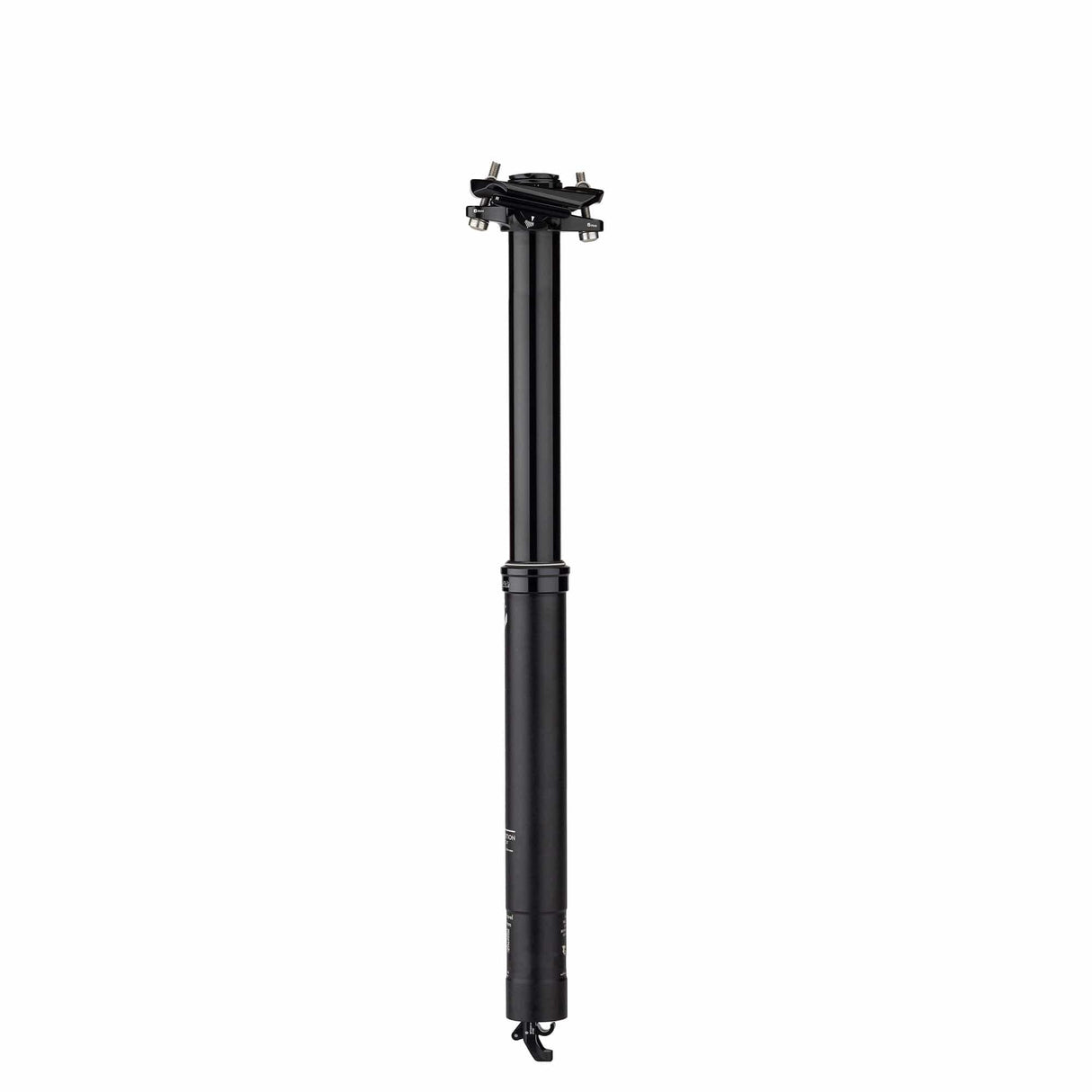

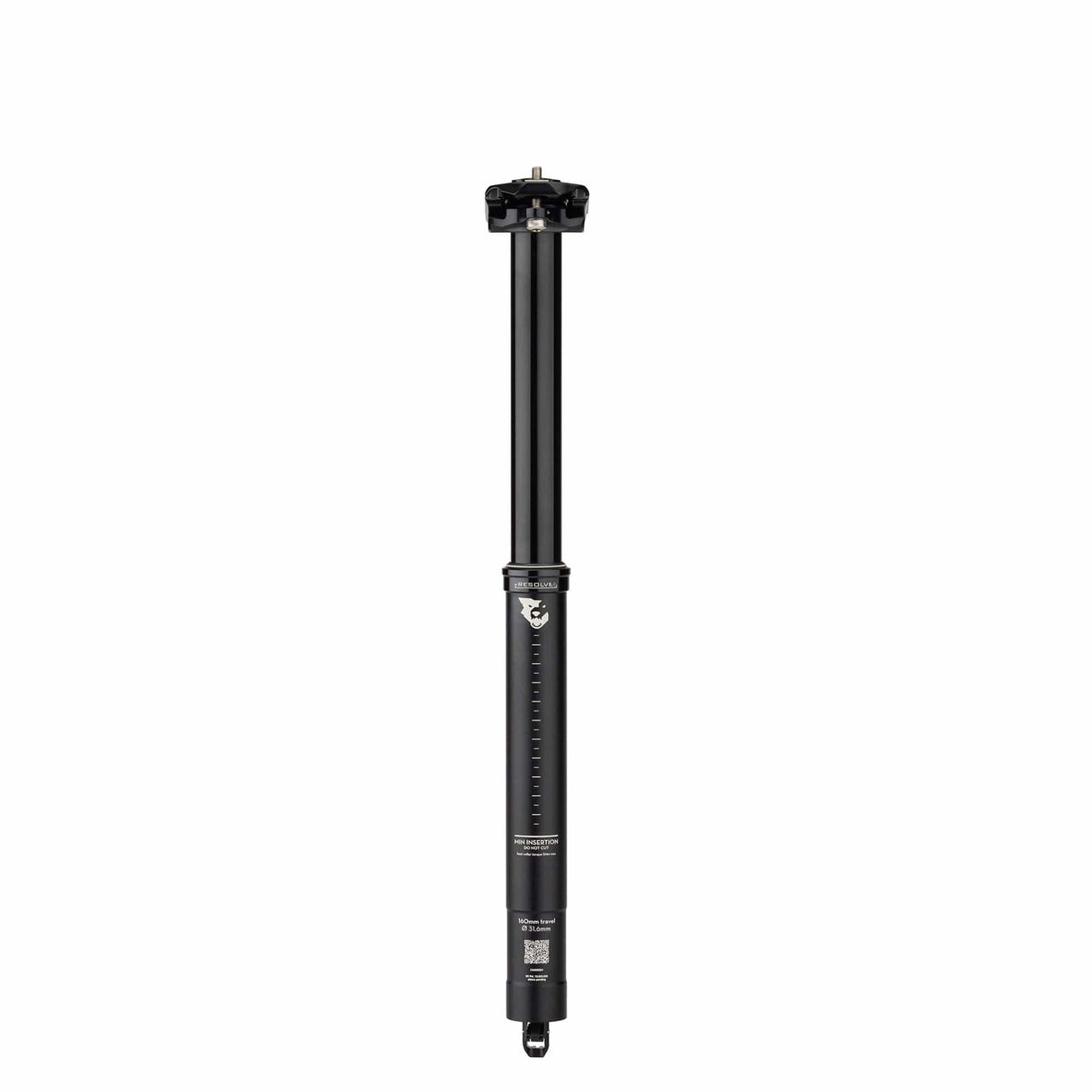

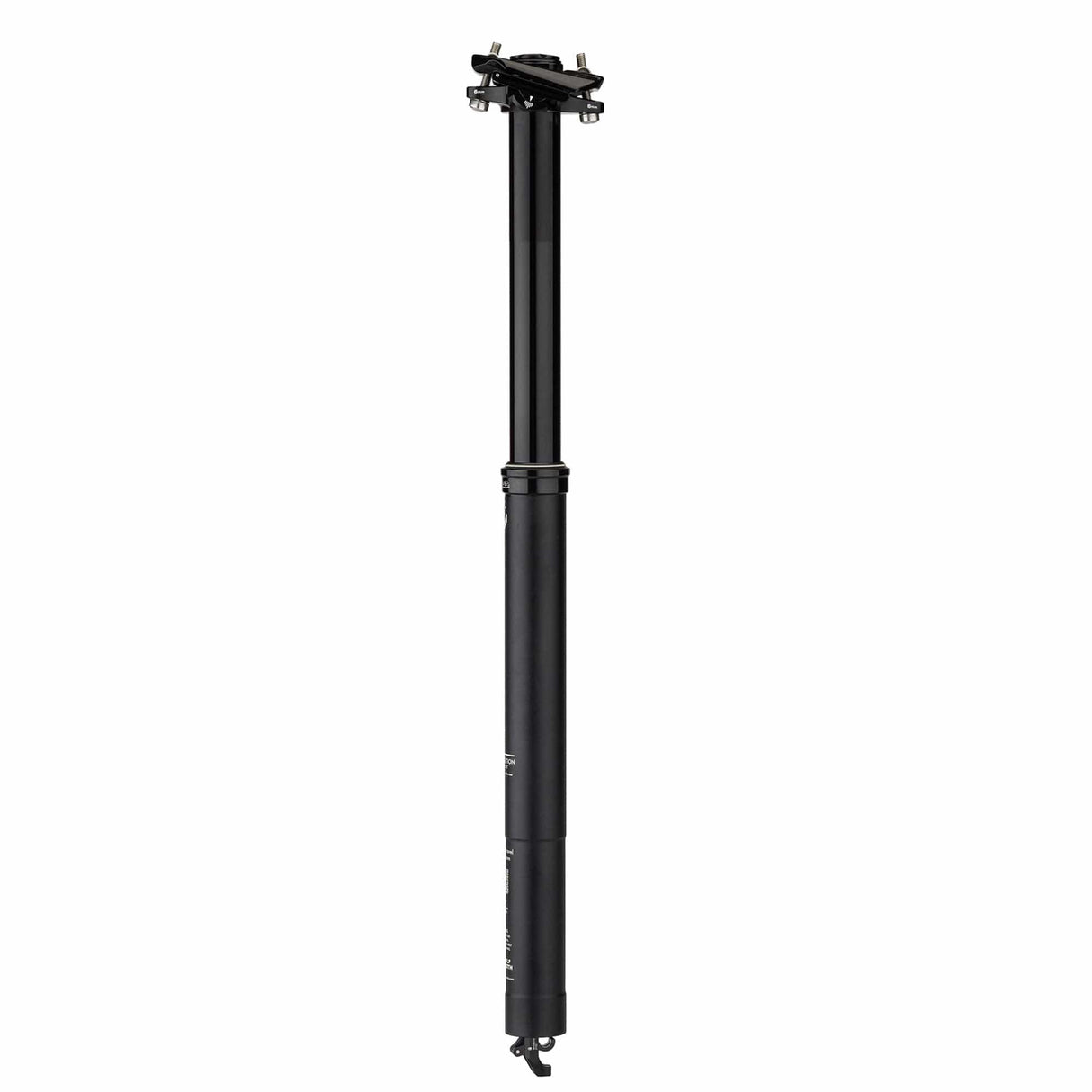

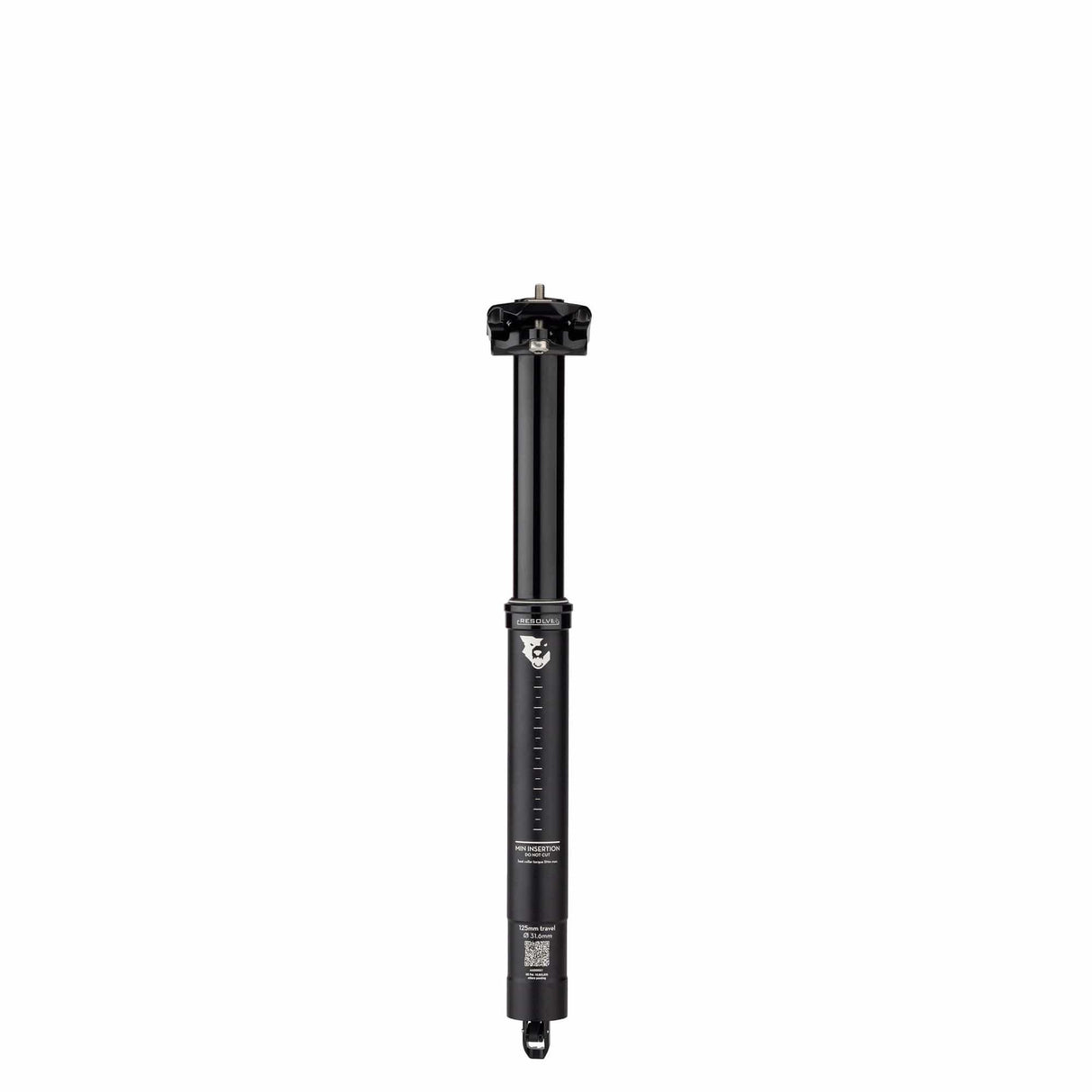

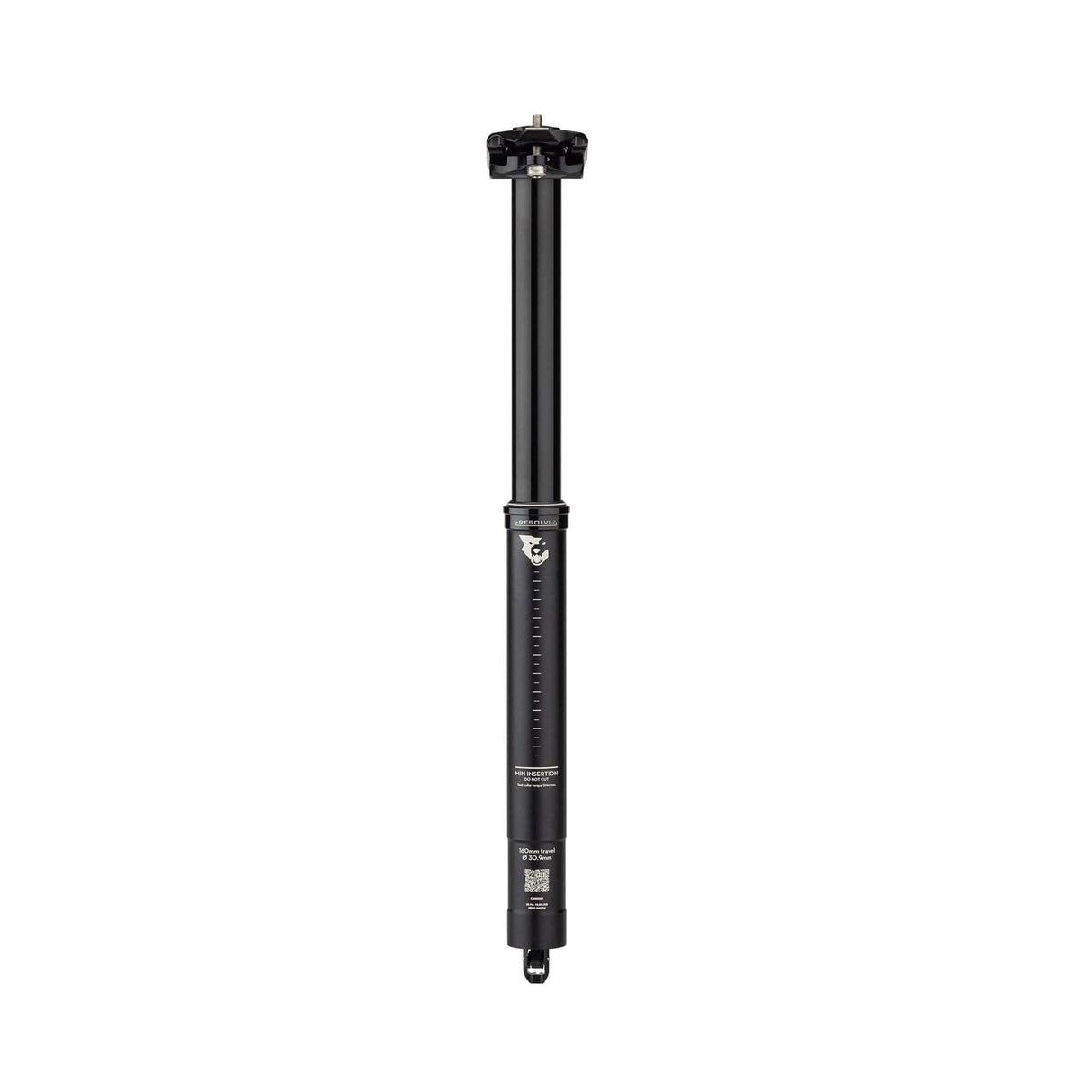

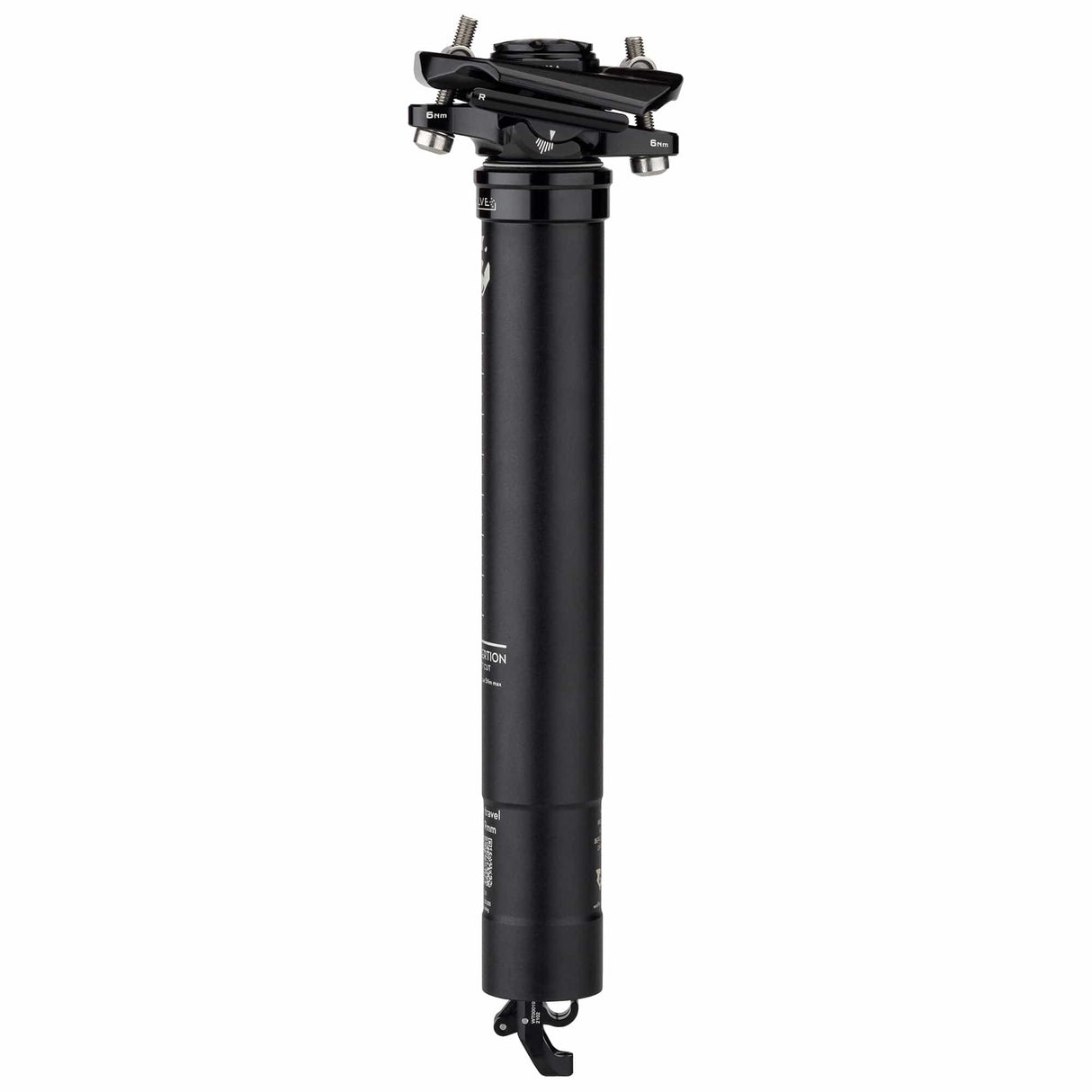

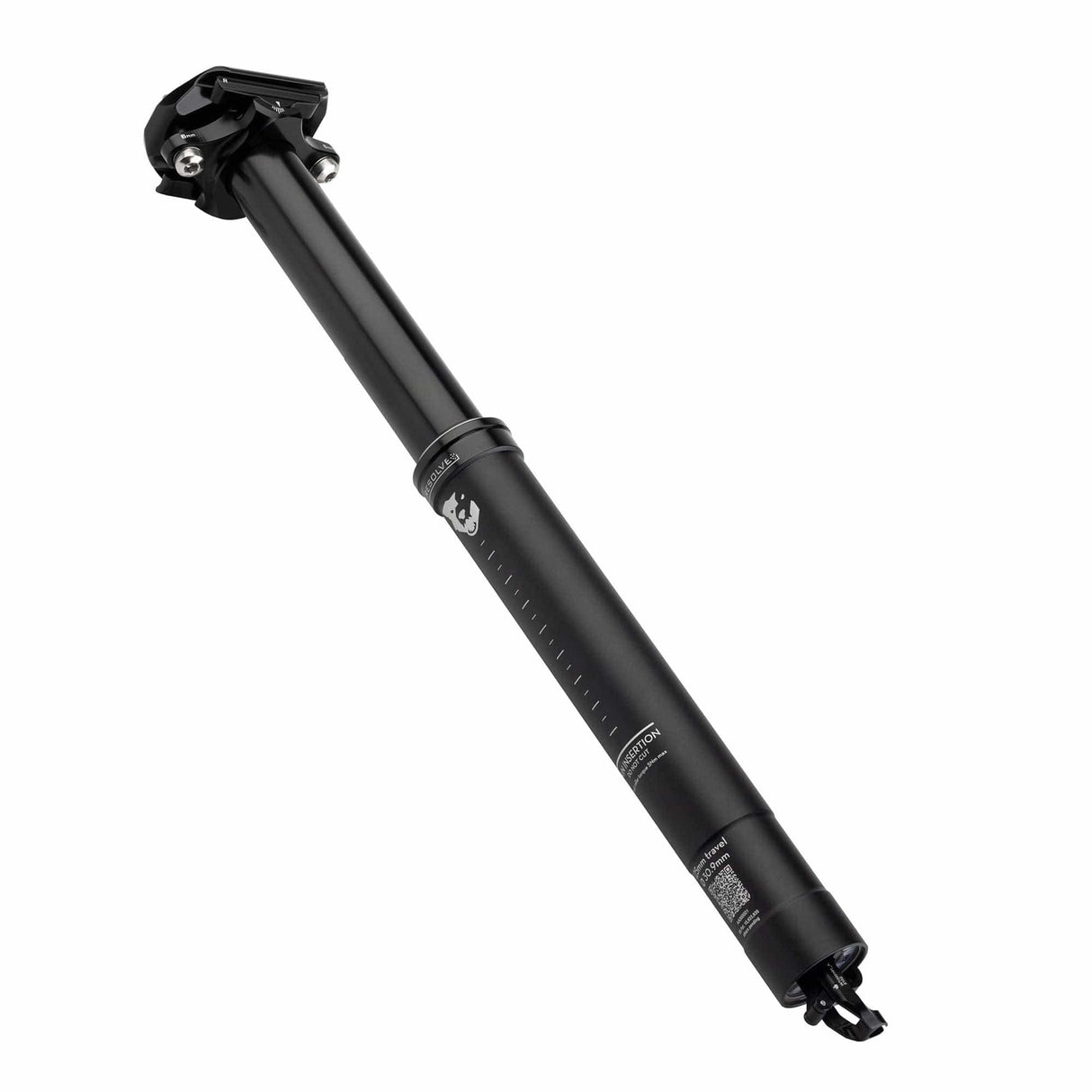

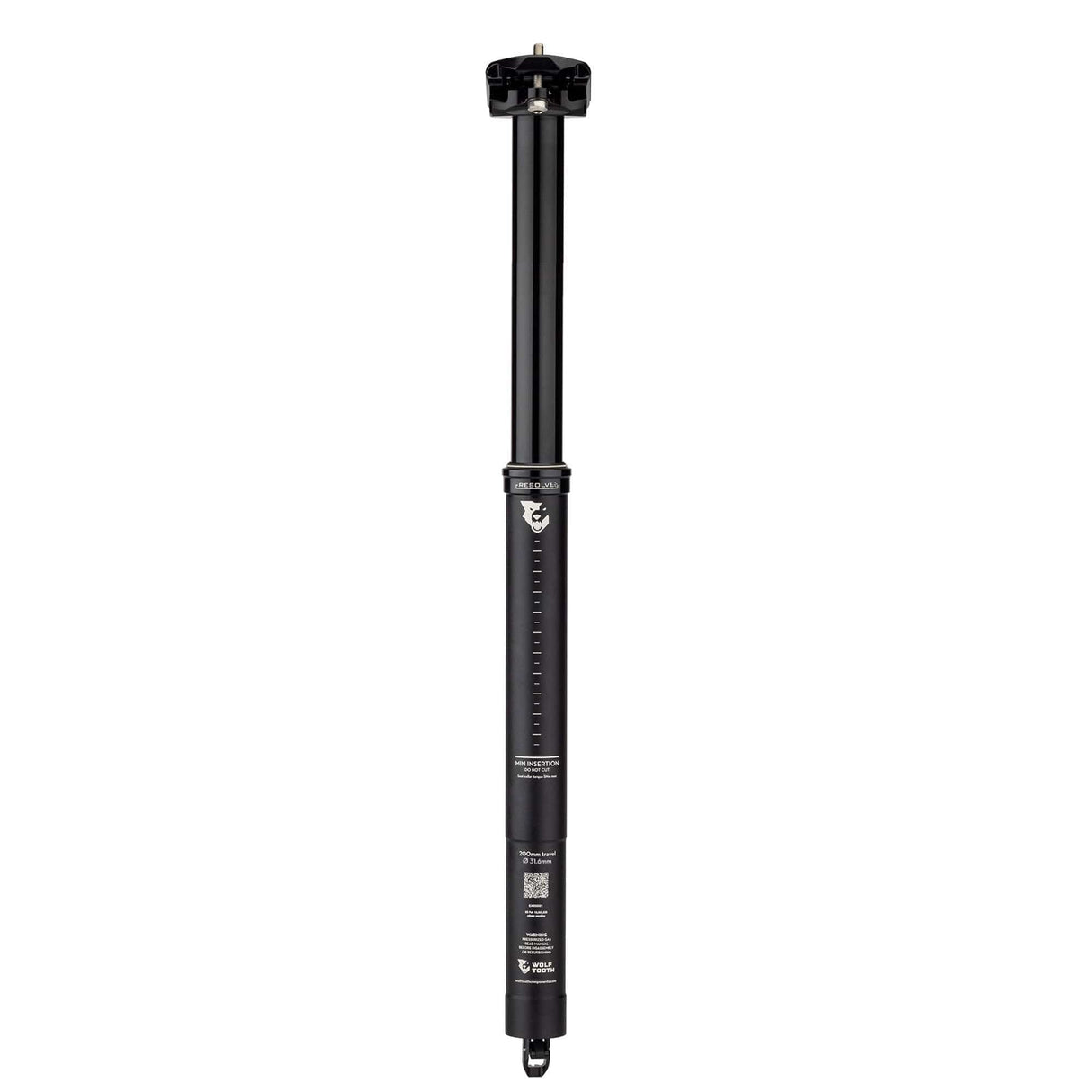

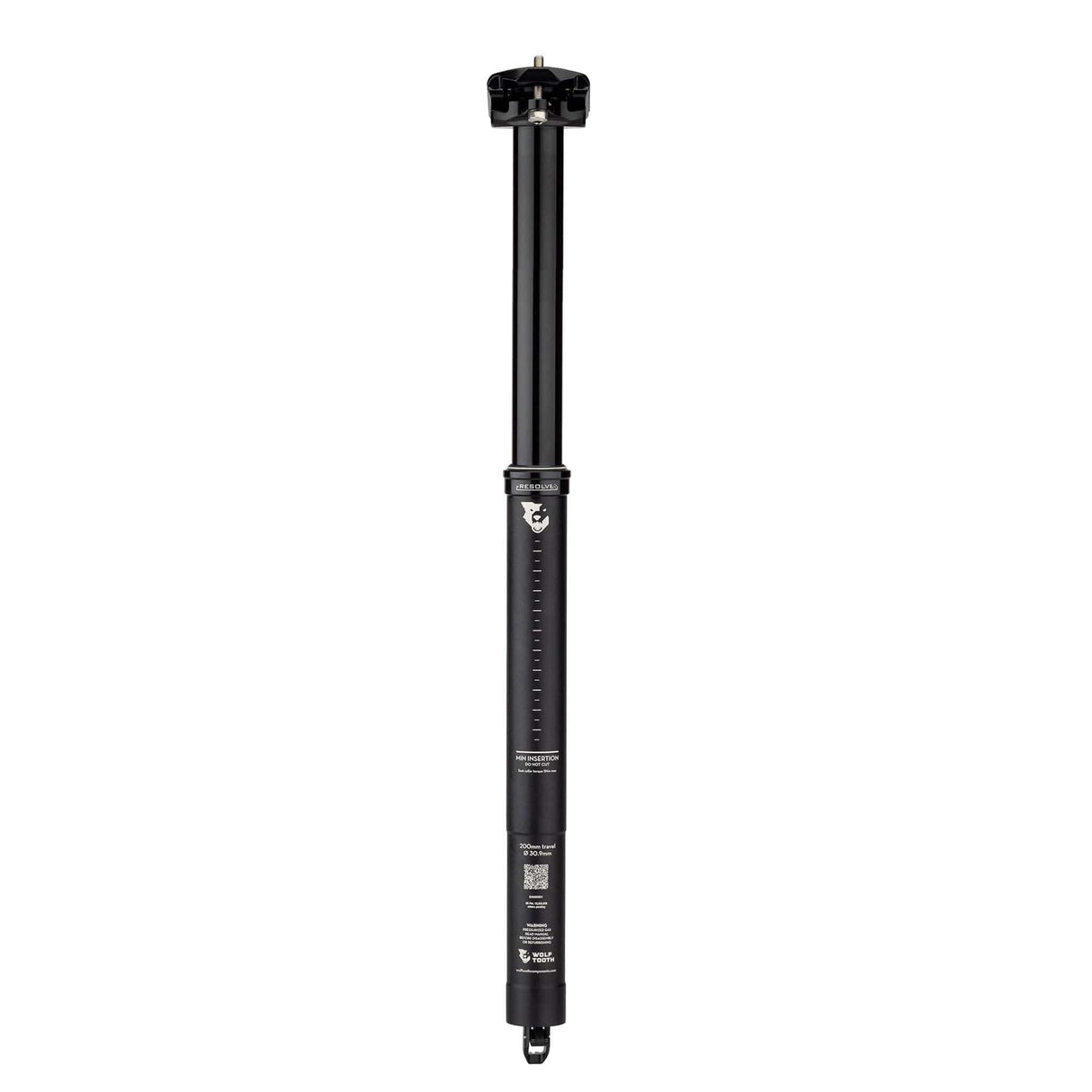

Wolf Tooth Resolve Dropper Post rev1

Wolf Tooth Resolve Dropper Post rev1 Info

Wolf Tooth Resolve Dropper Post rev1 is a precision-engineered, internally routed dropper designed for riders who demand consistent performance, low maintenance, and long-term serviceability. Built around Wolf Tooth’s self-bleeding cartridge system, the Resolve is engineered to deliver reliable actuation and automatic air purging without complicated servicing procedures.

The defining feature of the Resolve Dropper Post rev1 is its self-bleeding cartridge, which automatically resets internal air and oil separation each time the post fully bottoms out. This design minimizes the spongy feel common to traditional droppers and helps maintain consistent return speed and firmness over time. For proper function, the post must be allowed to fully retract—limiting downward travel can reduce the effectiveness of the self-bleeding system.

Available in multiple travel and diameter options, the Resolve Dropper Post rev1 is compatible with modern trail, enduro, and e-MTB frames that use internal cable routing. Travel adjust spacers can be installed to reduce extension travel if needed, and custom configurations are available with spacers pre-installed from the factory.

Compatibility

• Seatpost Diameters: 30.9mm and 31.6mm
• Routing: Internal cable routing required
• Shim Option: 31.6mm post with shim can fit 34.9mm frames (shim not included)
• E-Bike Compatible: Works with conventional dropper mounting and actuation systems
• Insertion Depth: Minimum insertion marked on lower tube (varies 90–140mm depending on travel)
• Important: Follow frame manufacturer’s minimum insertion depth if greater than post marking

Wolf Tooth Resolve Dropper Post rev1 Specs at a Glance

• Travel Options: 125mm | 160mm | 200mm
• Weight (Post Only): 125 x 30.9 – 440g | 125 x 31.6 – 456g
  160 x 30.9 – 490g | 160 x 31.6 – 513g
  200 x 30.9 – 544g | 200 x 31.6 – 563g
• Stack Height: 32mm (Extended Length – Travel)

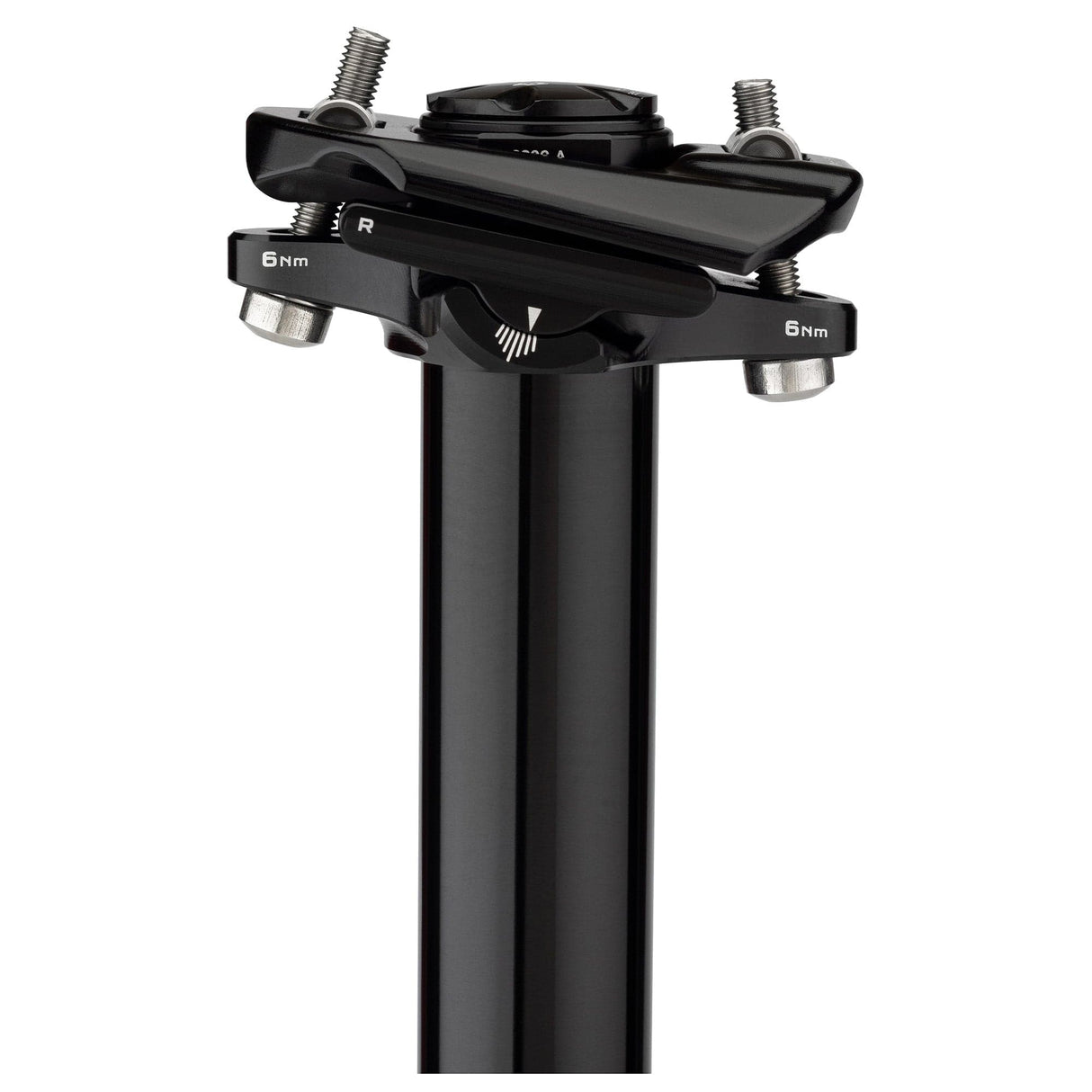

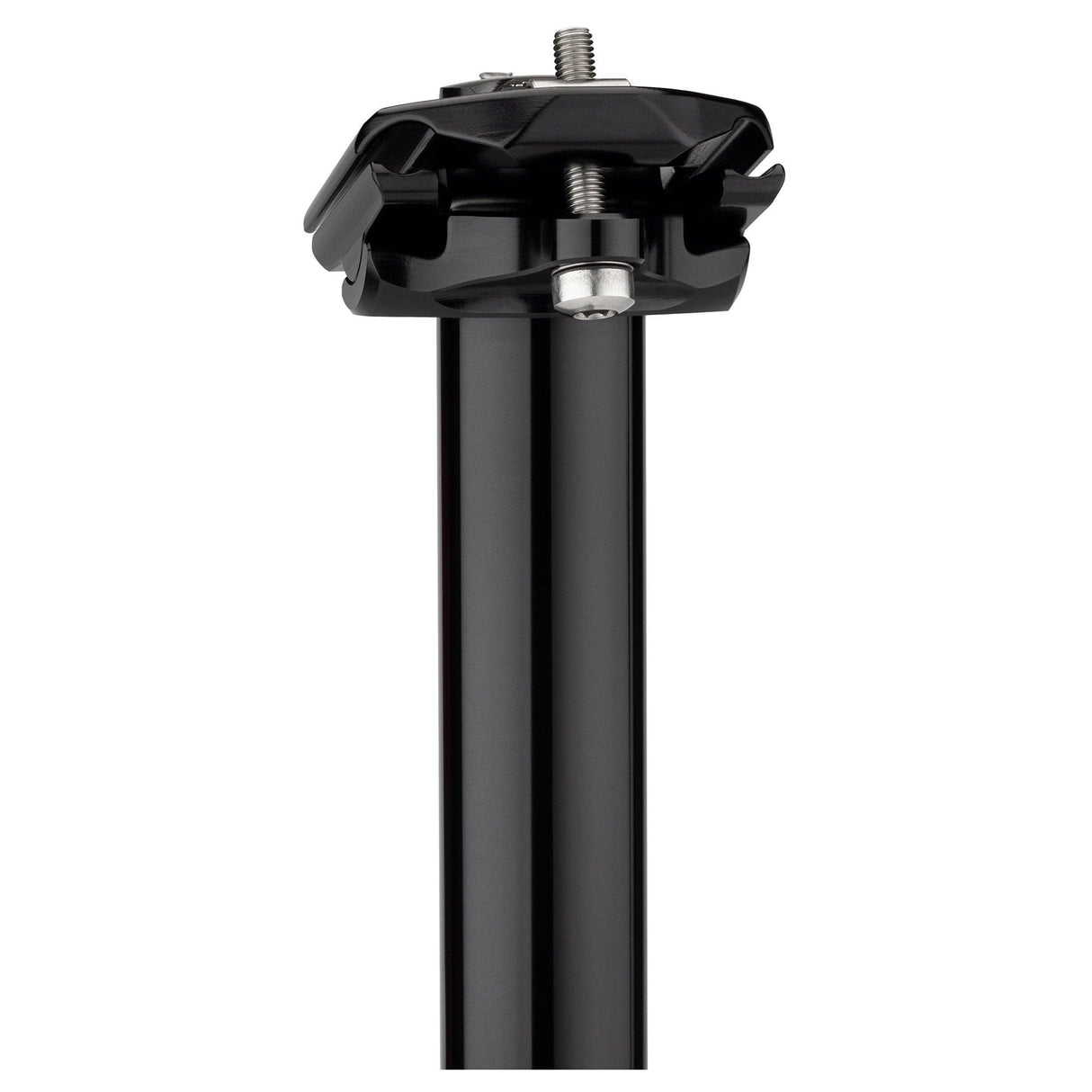

• Saddle Rail Clamp Torque: 6 Nm
• Seatpost Clamp Max Torque: 4 Nm
• Rider Weight Limit: 120 kg / 264 lbs
• Included: Dropper post, cable and housing kit, cable barrel
• Not Included: XZN-16 socket tool required for service

Design Benefits

1. Self-Bleeding Cartridge: Automatically maintains consistent performance by purging air when fully bottomed out.
2. Travel Adjustability: Spacers allow reduction of extension travel for precise bike fit.
3. Serviceable Construction: Fully rebuildable with available replacement parts and factory service support.
4. Precise Actuation: Optimized for smooth cable-driven control with compatible dropper levers.

Recommendations & Notes

• Recommended Lever: Wolf Tooth ReMote Pro Dropper Lever
• Important: Do not limit downward travel; full bottom-out is required for proper self-bleeding function.
• Service Tool: XZN-16 socket required for disassembly (sold separately)

Final Take

The Wolf Tooth Resolve Dropper Post rev1 stands out for its innovative self-bleeding design and long-term serviceability. For riders who want dependable dropper performance without constant maintenance headaches, this post delivers smooth operation, adjustable travel, and workshop-level rebuildability—all built with the precision Wolf Tooth is known for.
