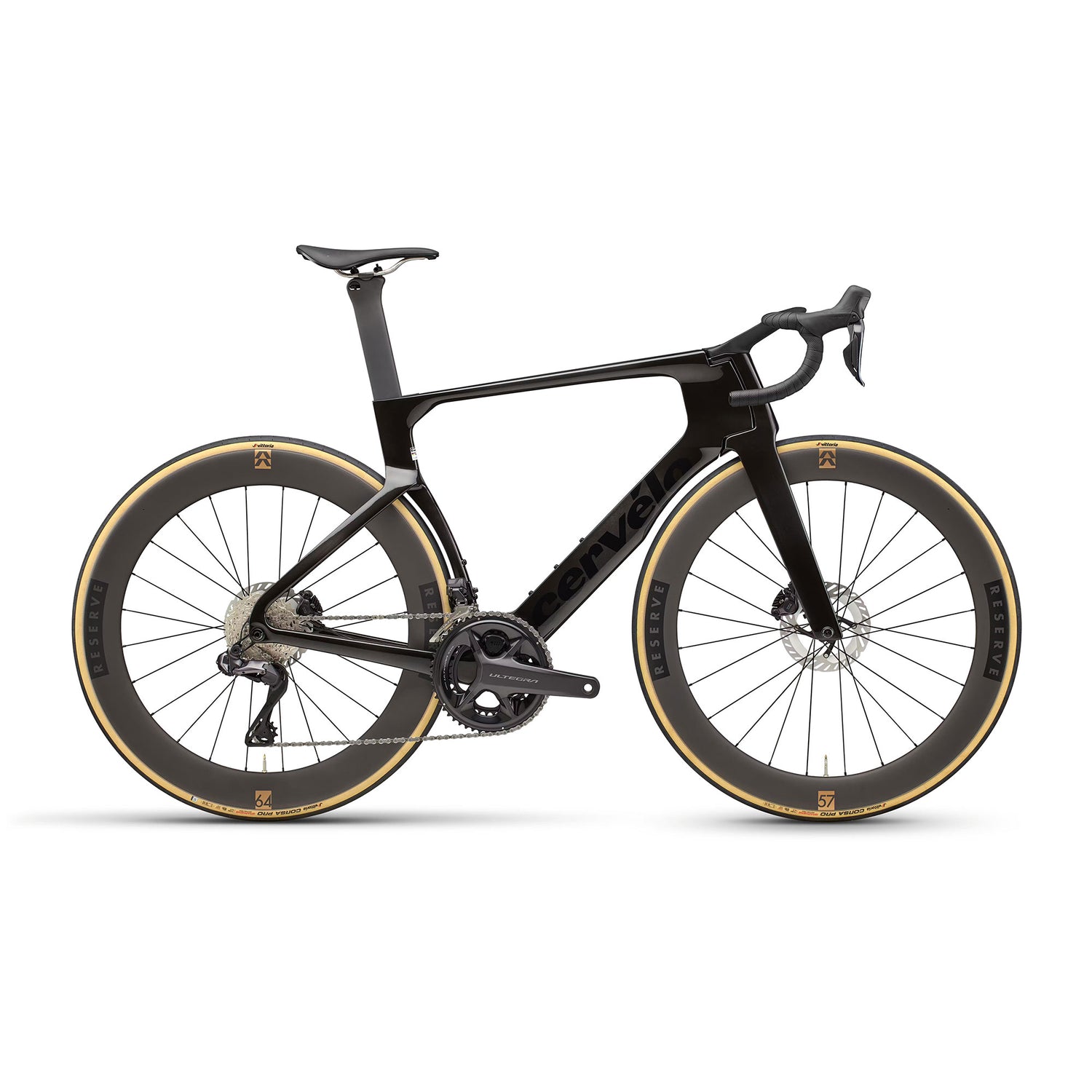

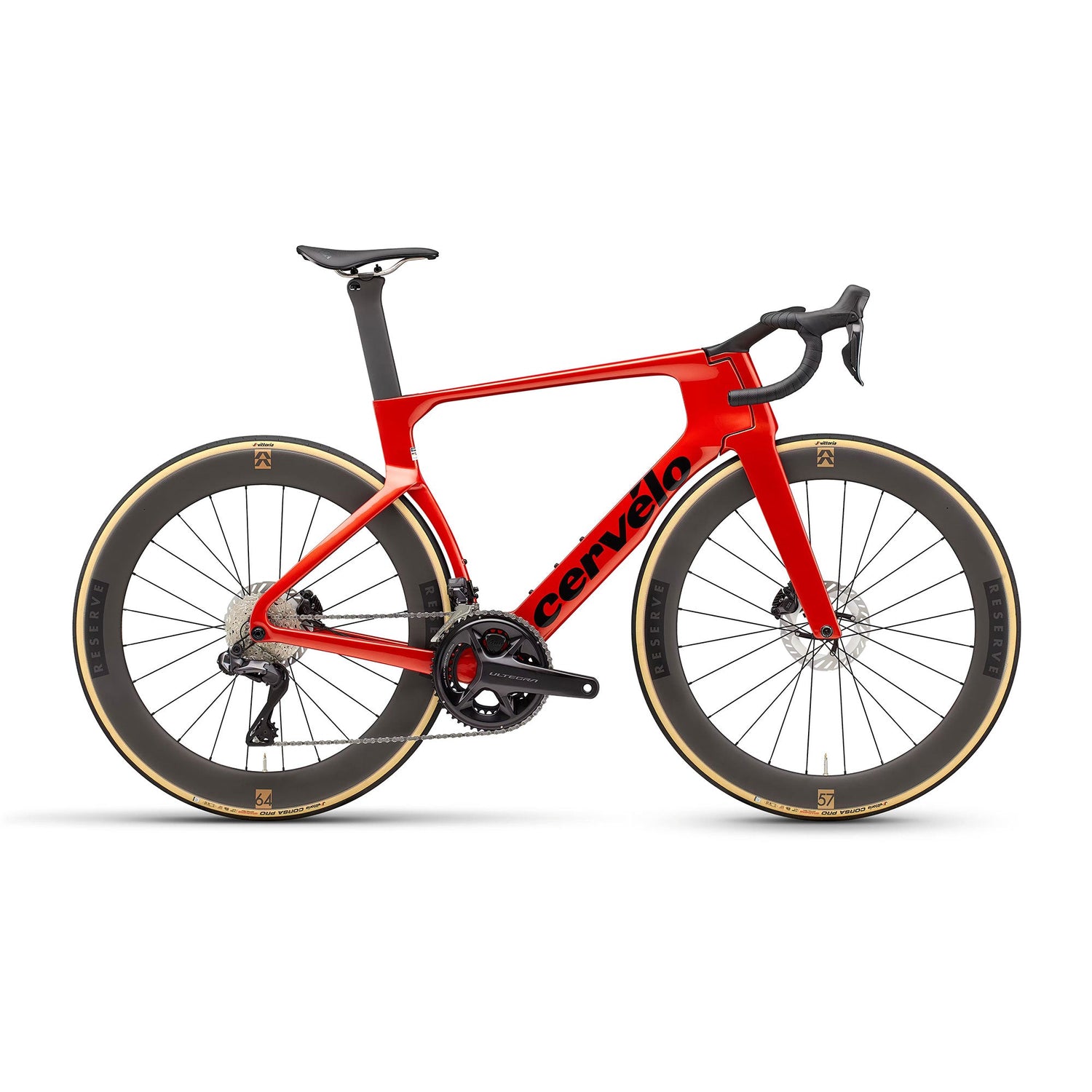

Cervelo S5 Ultegra Di2 Bike
$9,95000
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Cervelo | SKU: 0L0S5GUI2C48
| Option:
In-store pickup only for this product.
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Cervelo S5 Ultegra Di2 Bike
$9,95000
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Cervelo S5 Ultegra Di2 Bike - Specifications
Frame Material:
Carbon
Fork:
Cervelo All-Carbon Bayonet S5 Fork
Headset:
FSA SL IS2 1-1/8, 36 x 45 / 1-3/8, 36 x 45
Seatpost:
Cervelo SP34 Carbon
Front Derailleur:
Shimano Ultegra Di2 R8150
Rear Derailleur:
Shimano Ultegra Di2 R8150
Crankset:
Shimano Ultegra R8100 w/4iiii Precision Pro GEN3+ Dual Sided Power Meter
Chainrings:
52/36
Bottom Bracket:
FSA BBright thread together for 24mm spindle
Brake Calipers:
Shimano Ultegra R8170 Hydraulic Disc
Rotors:
Shimano CL800 Centerlock
Shifters / Levers:
Shimano Ultegra Di2 R8170
Cassette:
Shimano Ultegra R8100 12-speed 11-34
Chain:
Shimano M8100 12-speed
Wheel - Front:
Reserve 57TA / DT Swiss 240 / Tubeless Compatible / 12x100mm
Wheel - Rear:
Reserve 64TA / DT Swiss 240 / Tubeless Compatible / 12x142mm
Stem:
Cervelo HB19 Carbon
Handlebar:
Cervelo HB19 Carbon
Saddle:
Selle Italia NOVUS BOOST EVO SuperFlow Ti
Tires:
Vittoria Corsa Pro TLR G2.0 700x29
Pedals:
Not Included
*Specifications are subject to change.
Cervelo S5 Ultegra Di2 Bike Geometry
Size:
48
51
54
56
58
61
C. Top Tube Length
520
535
550
565
581
595
D. Head Tube Length
64
82
104
125
152
173
E. Chain Stay Length
405
405
405
405
405
405
F. BB Drop
74.5
74.5
72
72
69.5
69.5
G. Seat Tube Angle
73
73
73
73
73
73
H. Head Tube Angle
71
72
73
73.5
73.5
73.5
I. Stand Over Height
712
734
758
781
804
822
J. Wheel Size
700c
700c
700c
700c
700c
700c
K. Stack
496
519
542
565
588
608
L. Reach
367
376
384
392
401
409
Stem Length
80mm
90mm
100mm
100mm
110mm
120mm
Bar Width
36cm
38cm
40cm
40cm
40cm
40cm
M. Crank Length
165mm
165mm
170mm
170mm
172.5mm
172.5mm
