BMC Teammachine R 01 Frameset
BMC Teammachine R 01 Frameset Info

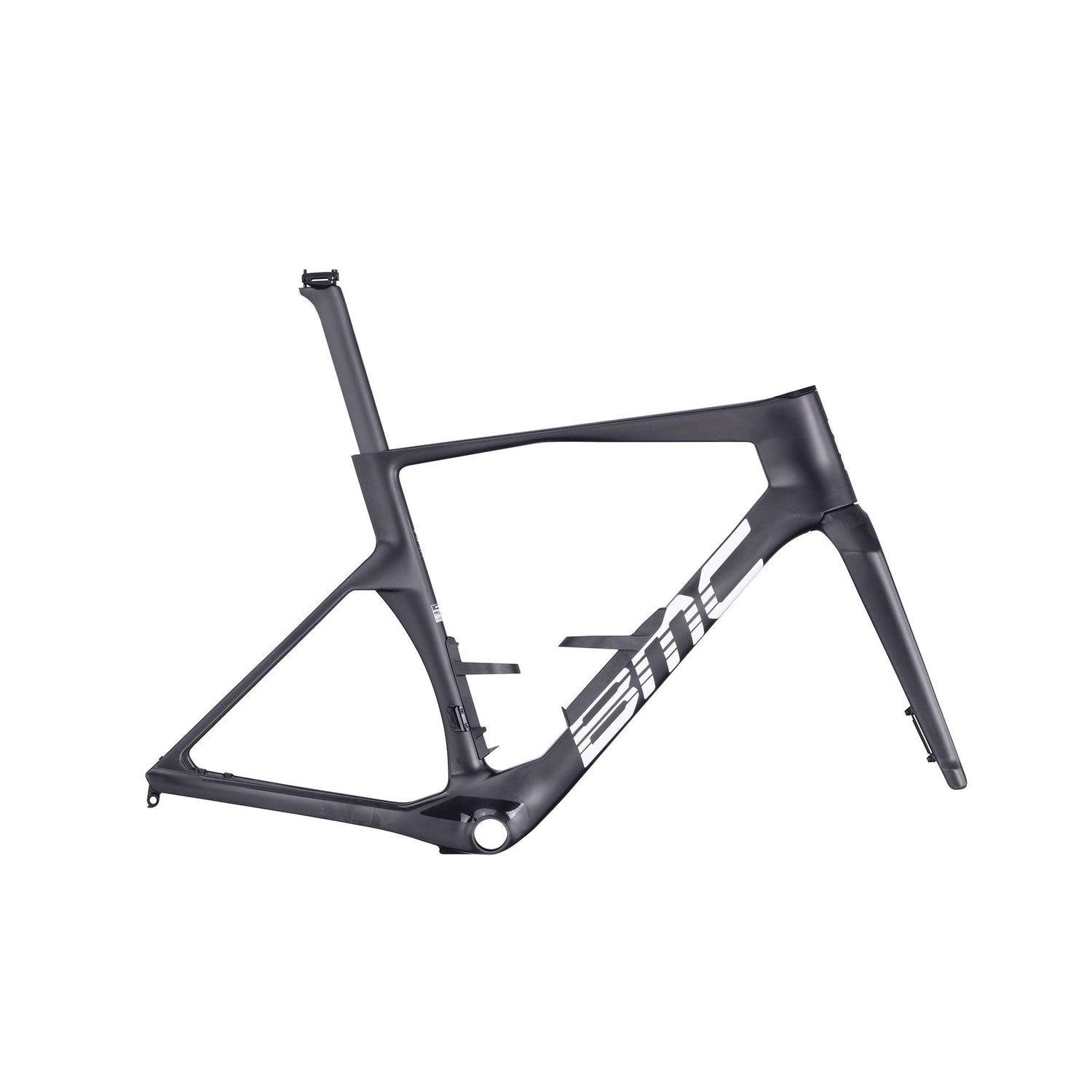

The BMC Teammachine R 01 Frameset is the foundation of one of the most technically ambitious race bikes in cycling. BMC developed the Teammachine R 01 at their Impec Lab in partnership with Red Bull Advanced Technologies — the engineering team behind Formula One race cars — with a brief to produce a frame that balanced weight, aerodynamics, stiffness, and handling at the highest level simultaneously. The result sits near the top of BMC's road lineup: only fractionally heavier than their lightest SLR frame, aerodynamically optimized across the entire chassis, and built with the pro-level stiffness that WorldTour racing demands. The VAR0 frameset RA Cycles carries is the uncolorized clear coat version — the lightest cosmetic finish BMC offers, and the starting point for a custom paint project or a minimalist build that lets the carbon speak for itself.
Halo Fork and the Mariana Bottom Bracket
Two aerodynamic innovations define the Teammachine R 01's engineering character. The Halo Fork uses ultrawide fork legs — unlike anything else in the peloton — that redirect turbulent air generated by the front wheel away from the frame rather than channeling it into the down tube junction. Traditional fork blades run close together and funnel front-wheel turbulence directly into the frame's high-drag zone. The Halo Fork spreads wide enough that this turbulence diverts around the bike instead. At the lower frame, BMC built the deepest bottom bracket profile they've ever used on a road bike and called it the Mariana Bottom Bracket — named for the deepest point in the ocean. That depth optimizes the surface area around the lower frame junction for cleaner airflow where the chainstays, seat tube, and BB shell converge. Both features were developed with the same aero data-driven methodology that Red Bull Advanced Technologies applies to F1 chassis design.
ICS Technology and the New Seatpost
The frame uses ICS Technology — Integrated Cockpit System — routing cables invisibly through the headset and steerer for a clean external appearance. The ICS system is compatible with BMC's full ICS cockpit, letting a builder achieve a completely cable-free look from bars to rear axle without any external housing. The seatpost is redesigned for this generation: slimmer, with a deeper profile that increases vertical compliance over the previous version, and lighter overall. The clamp mechanism has been updated for easier service access, and it incorporates an integrated number plate holder for race day. The frameset arrives with Aerocore bottle cages, Shimano Direct Mount and Classic SRAM/Shimano rear derailleur hangers, high and low ICS top cones, and a set of spacers — everything a builder needs to start the assembly.
Geometry, Specs, and Build Considerations
The Teammachine R 01 uses a BB86 press-fit bottom bracket shell — a requirement driven by the frame's structural geometry at the Mariana BB area. Riders planning a build should factor this into crankset and bottom bracket selection. Tire clearance is 30mm measured, which positions this as a road-only race platform with no all-road or endurance ambitions. The geometry is consistent with WorldTour race standards throughout: 410mm chainstays across all six sizes, 69mm BB drop, and head tube angles running 71.5° in the smaller sizes and 72.3° for sizes 54 through 61. The frameset weighs 1,780g in size 54 with all accessories included — a competitive figure for a complete aero race frameset at this price. System weight limit is 110kg, ASTM Level 1 classification.
A Frameset for the Intentional Builder
The BMC Teammachine R 01 frameset is the right starting point for a rider who knows exactly what they want on their race bike and doesn't want to accept a complete bike's component compromises. RA Cycles offers a custom build program specifically for the Teammachine R, pairing this frameset with groupset, wheels, and cockpit matched to the rider's spec and budget. Six sizes are available — 47, 51, 54, 56, 58, and 61cm — covering a range of road racing positions. The VAR0 finish is both the lightest cosmetic option in the lineup and the cleanest surface for custom paint. For the builder who wants a chassis that Red Bull Advanced Technologies helped BMC engineer, this is where that build starts.
BMC Teammachine R 01 Frameset - Specifications
*Specifications are subject to change.
BMC Teammachine R 01 Frameset Geometry
