Wolf Tooth B-RAD Bottle Shift

Wolf Tooth B-RAD Bottle Shift Info

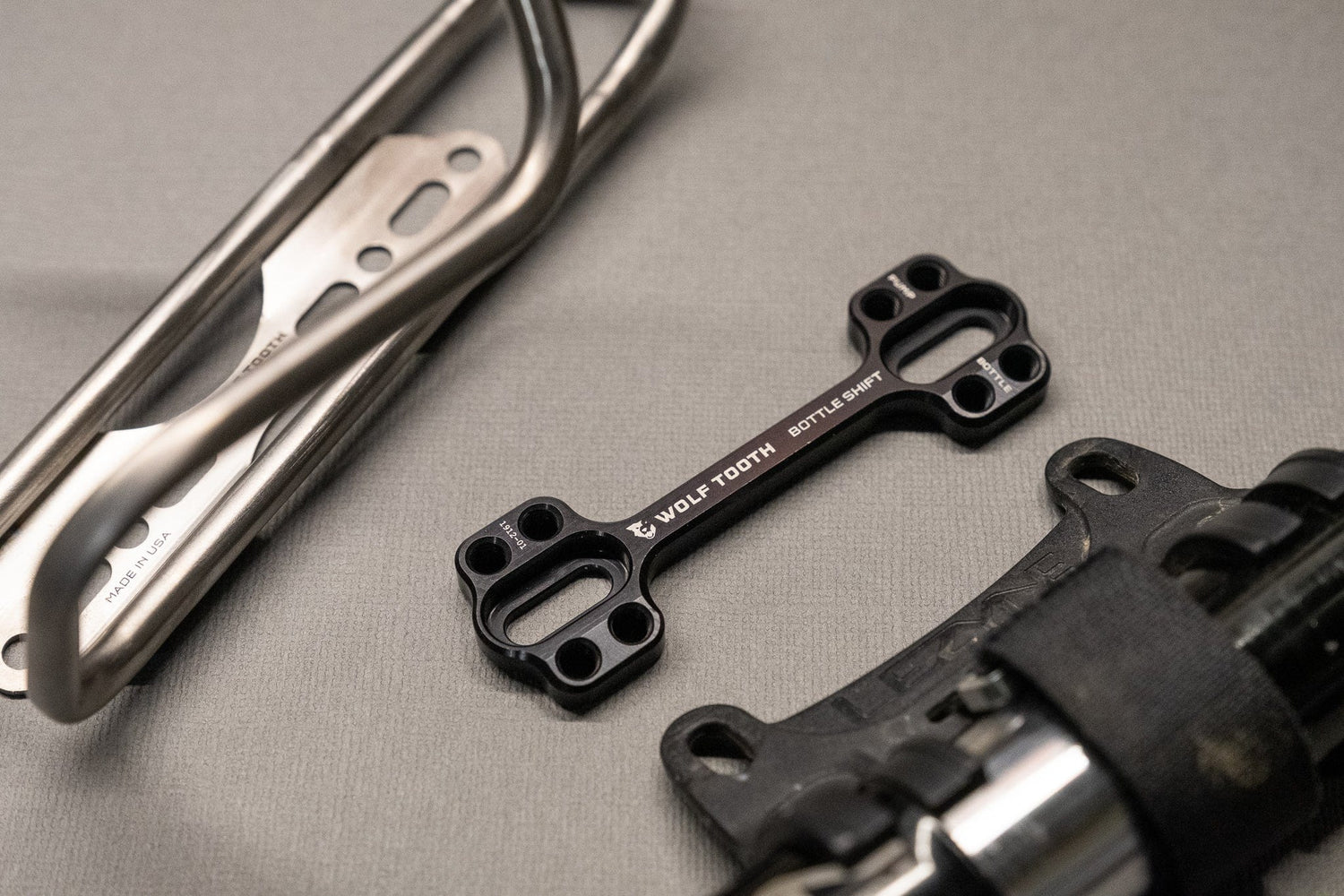

Wolf Tooth B-RAD Bottle Shift is a precision-machined mounting bracket designed to reposition your water bottle for improved clearance and accessibility. Whether you’re running a full suspension mountain bike with tight shock clearance or a gravel frame with oversized tubing, Bottle Shift creates space where standard bottle mounts fall short.

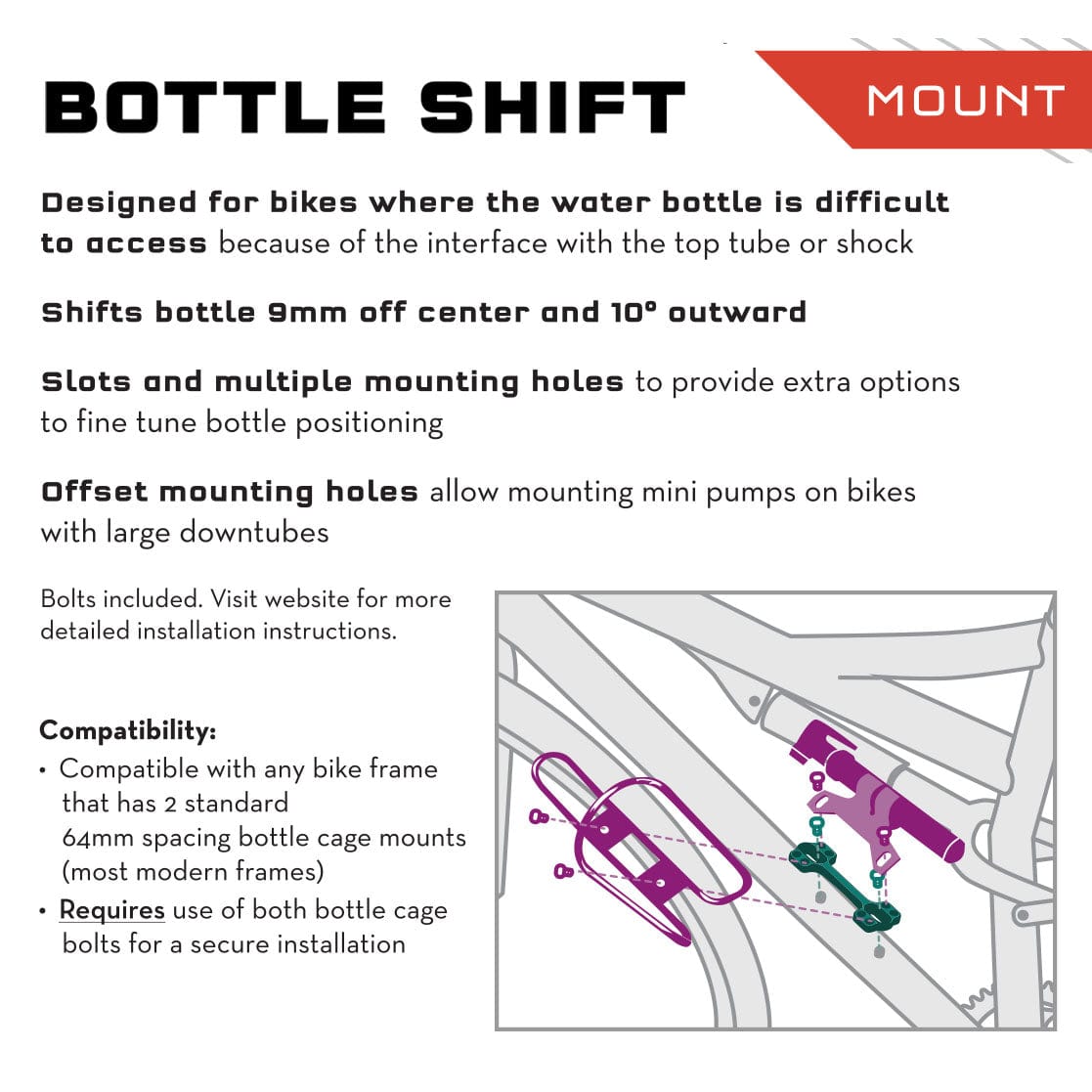

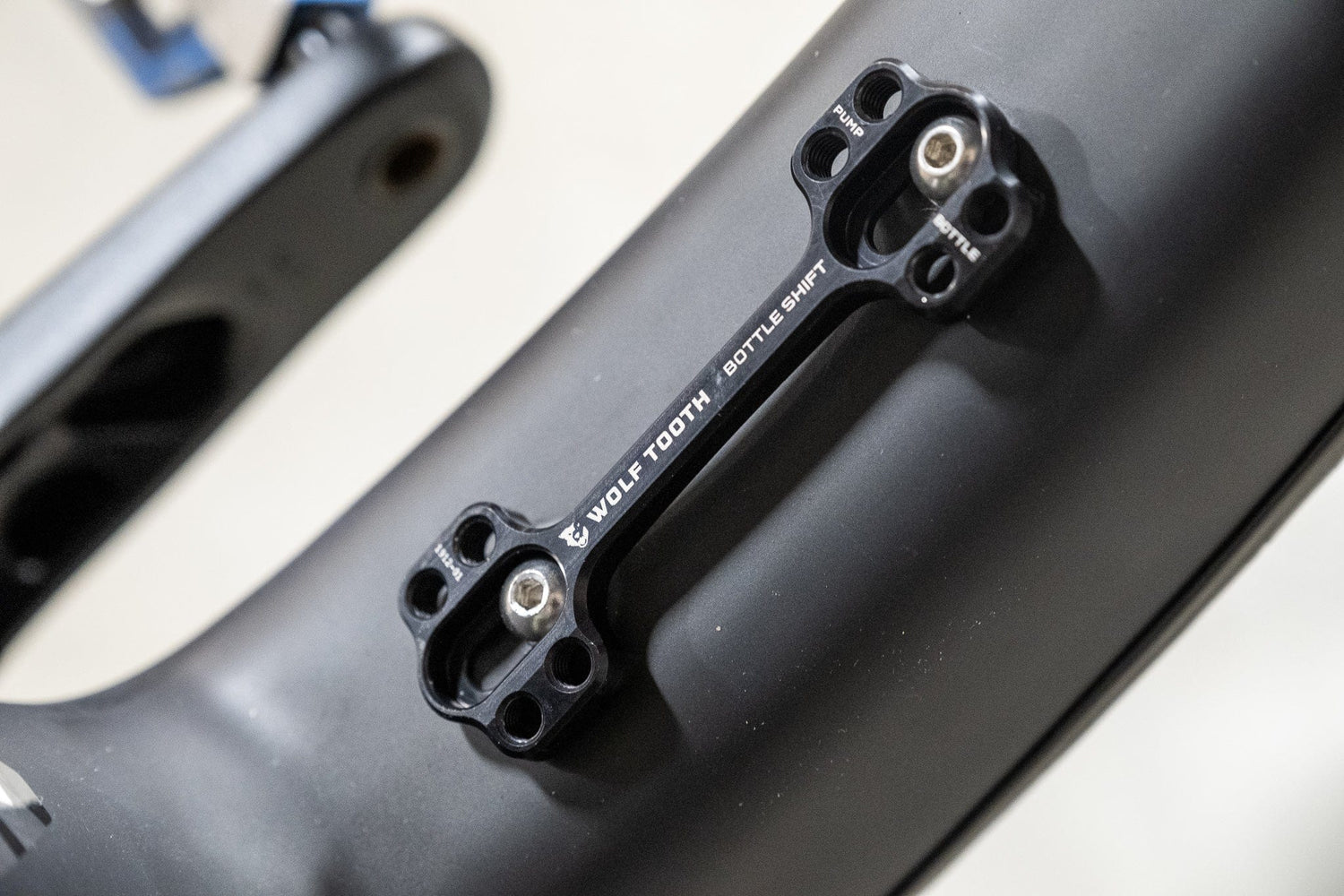

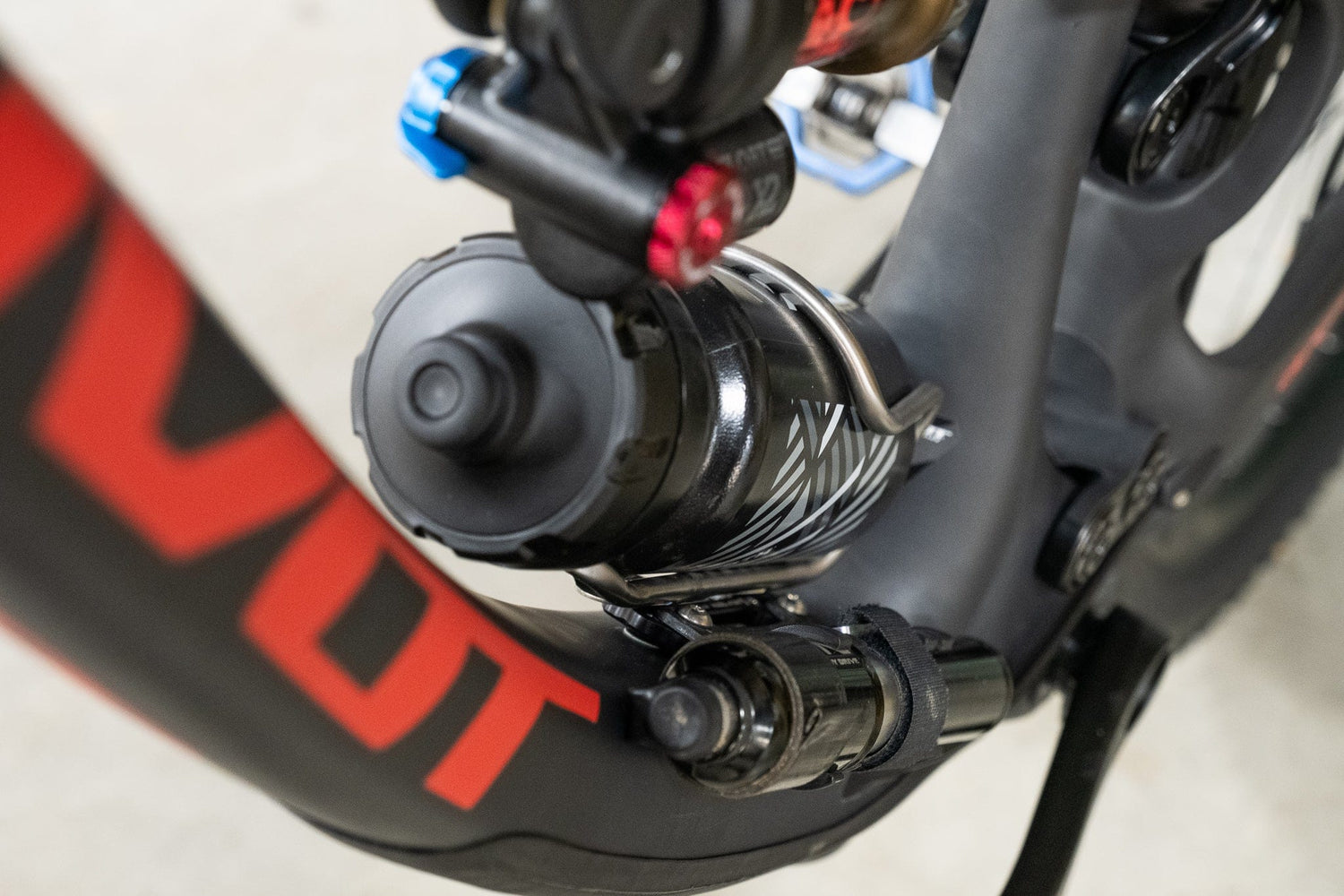

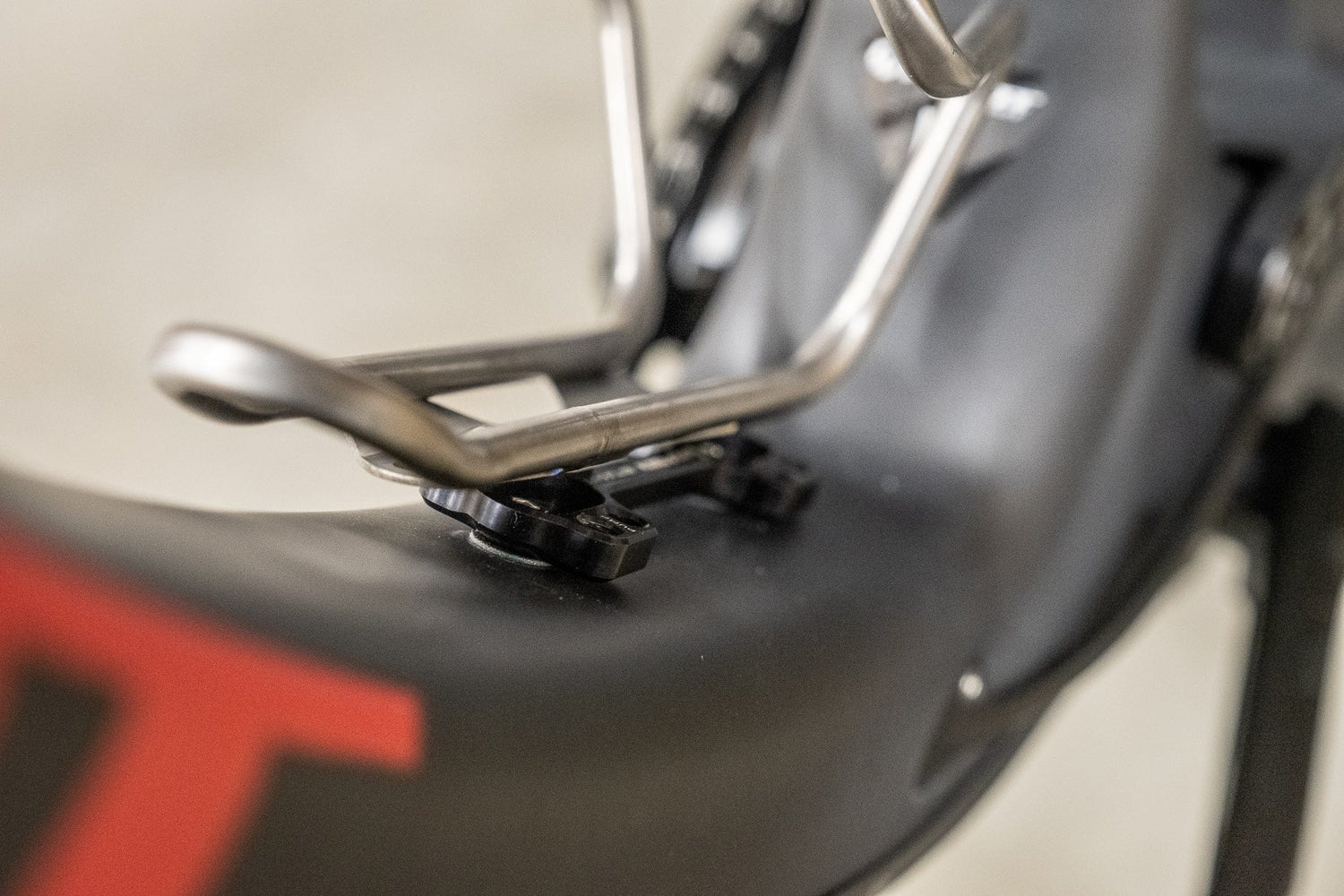

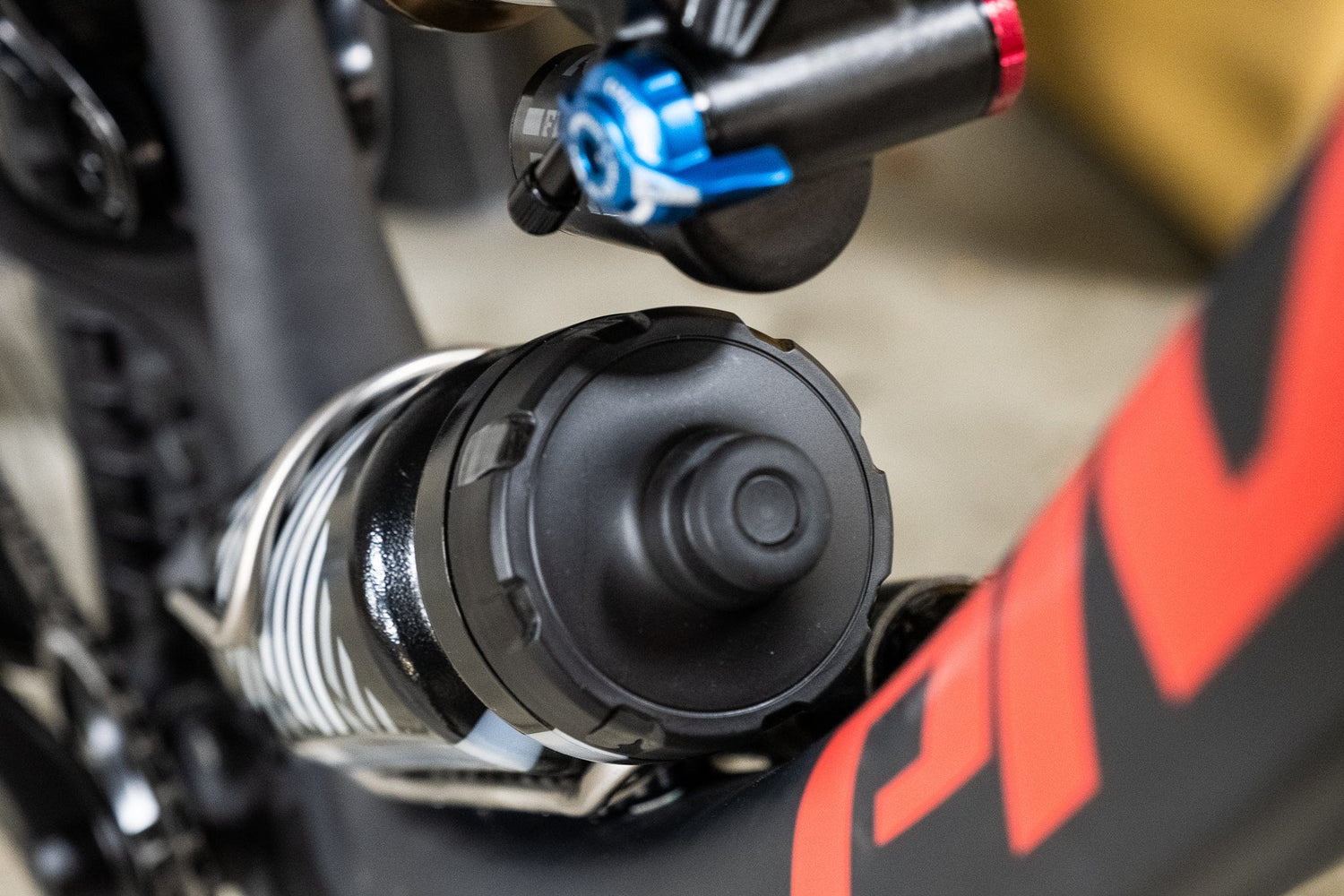

By offsetting the bottle slightly off center and incorporating a 10-degree outward tilt, the system moves the bottle’s centerline up to 18mm, dramatically improving access. This makes it easier to reach your bottle on compact full suspension frames and helps avoid interference with top tubes, shocks, or large downtubes. The slotted design and additional tapped holes provide 18mm of vertical adjustment, allowing you to position the bottle lower for clearance or higher for easier reach.

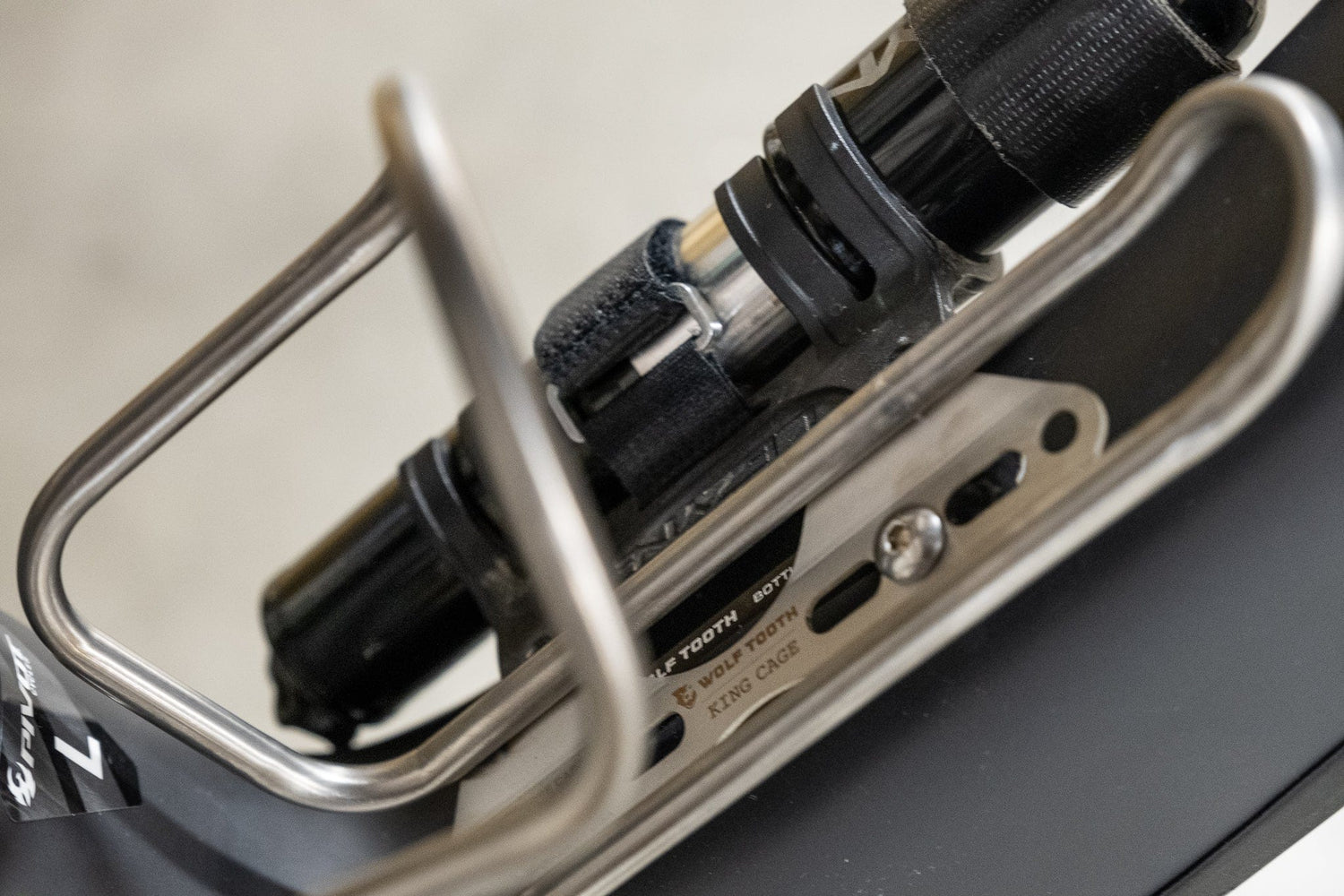

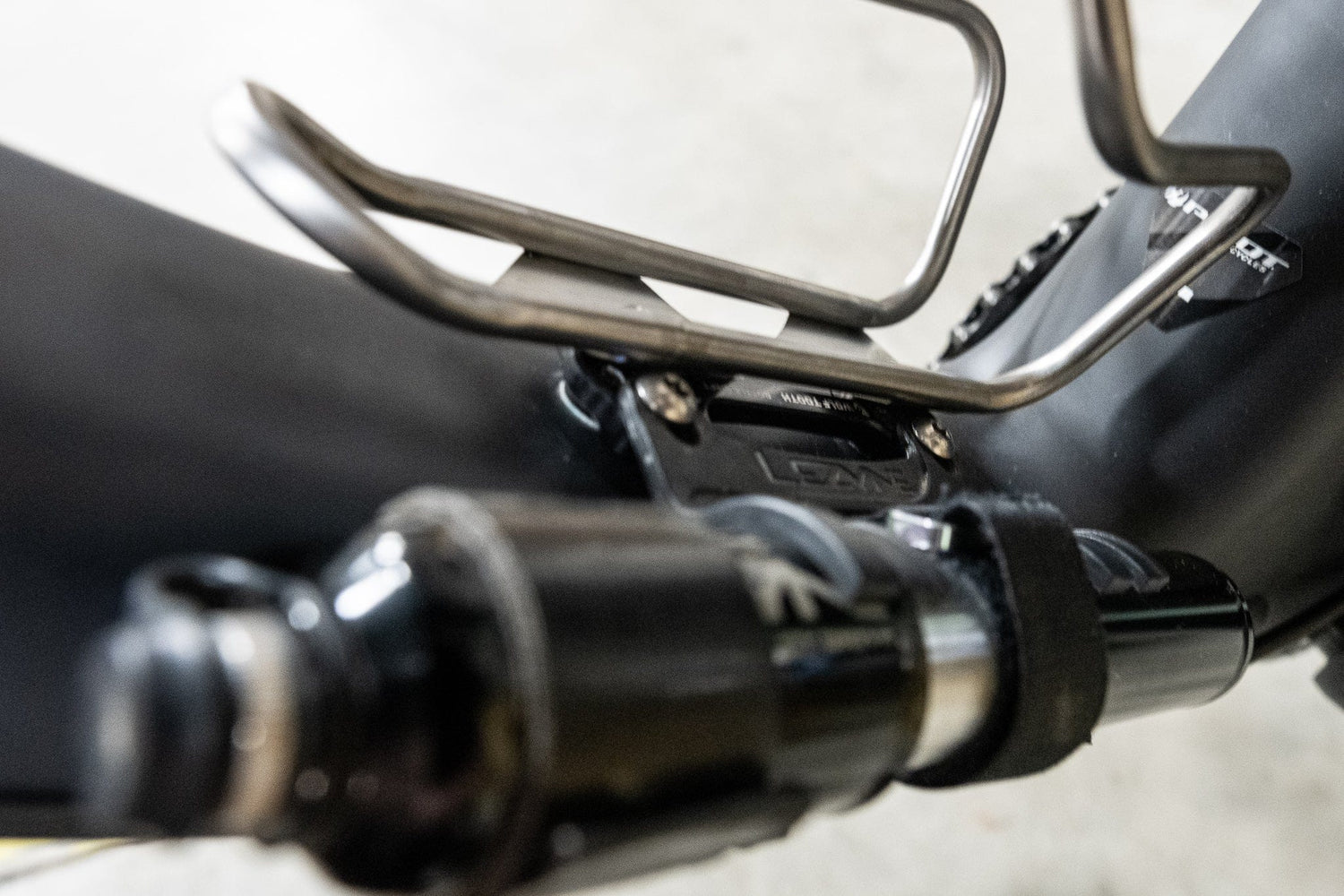

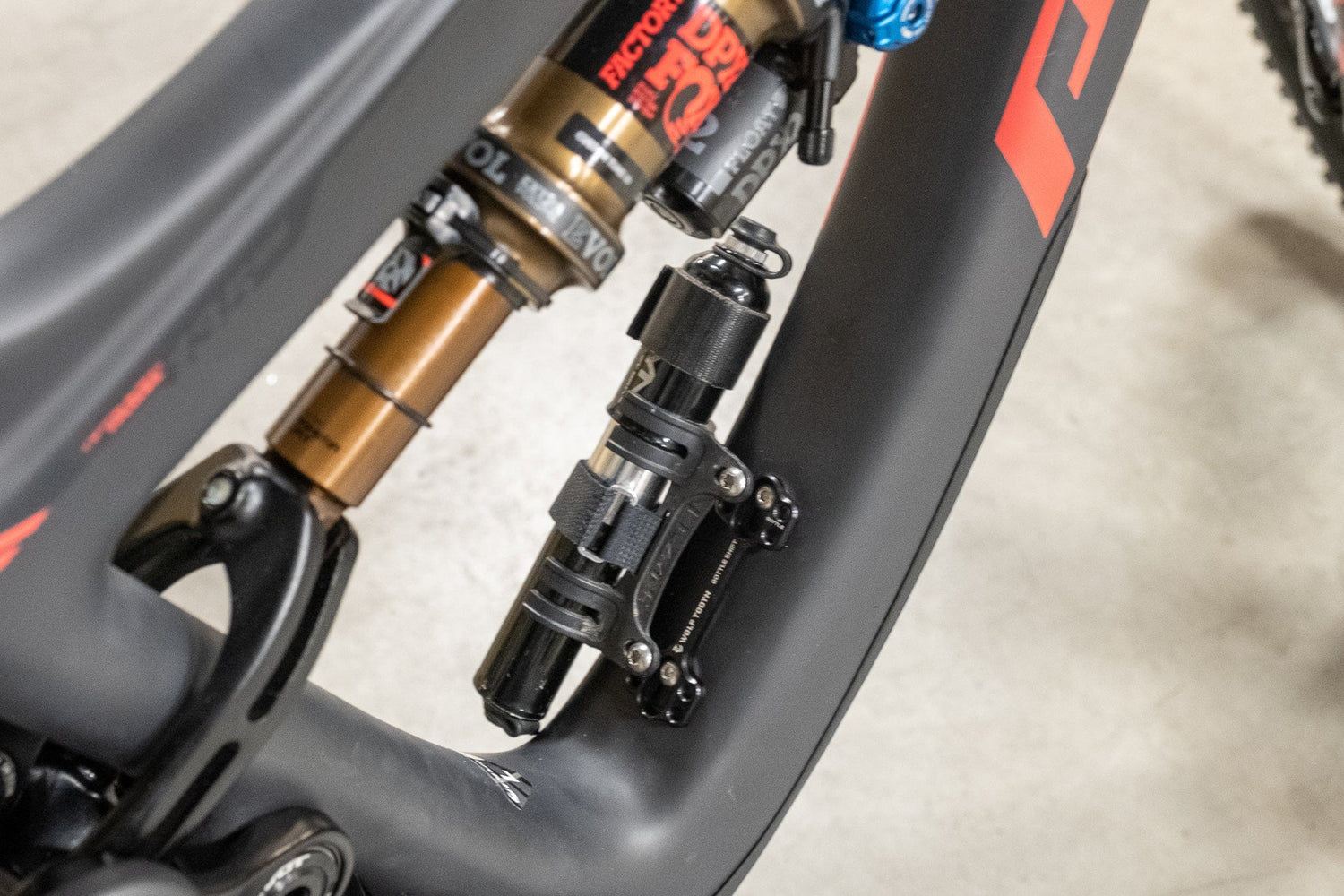

In addition to improving bottle placement, the Wolf Tooth B-RAD Bottle Shift features offset pump mounting holes that allow mini pump brackets to clear bulky mountain bike frames—solving a common fitment issue on modern designs.

B-RAD Bottle Shift Specs at a Glance

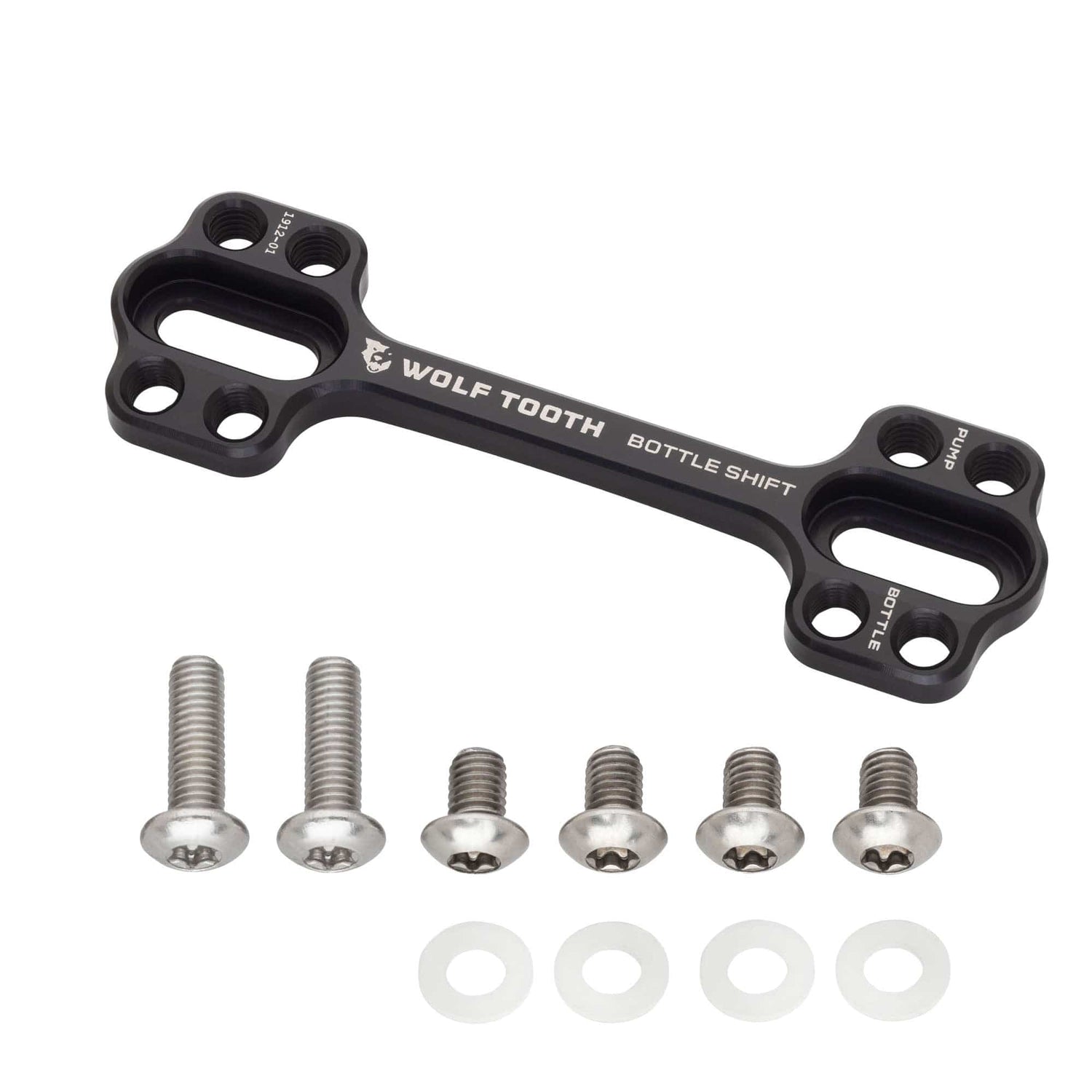

• Material: 6061-T6 aluminum bracket
• Hardware: Stainless steel (T25 Torx head)
• Weight: 24g (including hardware)
• Adjustment Range: 18mm vertical adjustment
• Offset: 9mm lateral offset with 10° tilt
• Maximum Load: 1700g
• Torque Spec: 3–4 Nm
• Origin: Made in the USA

Compatibility

• Frame Requirement: Standard 64mm bottle cage mount spacing
• Mount Orientation: Flippable for left- or right-hand bottle access
• Use Case: Road, gravel, hardtail, and full suspension mountain bikes

Design Benefits

1. Improved Bottle Access: Offset and tilt design increases clearance and reachability.
2. Frame Compatibility Solution: Helps fit bottles on tight full suspension frames.
3. Pump Mount Integration: Offset holes allow mini pump brackets to clear large downtubes.
4. Adjustable Positioning: Slots and threaded holes provide vertical tuning options.
5. Lightweight & Durable: CNC-machined aluminum balances strength and minimal weight.

About the B-RAD System

B-RAD™ (Bottle Relocation & Accessory Device) is Wolf Tooth’s modular storage system designed to optimize on-bike organization:

• B-RAD Base: Attaches to bottle cage mounts and provides a mounting platform.
• B-RAD Mount: Secures accessories to the base.
• Accessory Options: Configure storage for bottles, pumps, and ride essentials.

Final Take

The Wolf Tooth B-RAD Bottle Shift is a simple but highly effective solution for improving bottle clearance and accessibility on modern frames. Lightweight, adjustable, and modular within the B-RAD system, it’s an essential upgrade for riders who want clean organization and better on-bike functionality.
