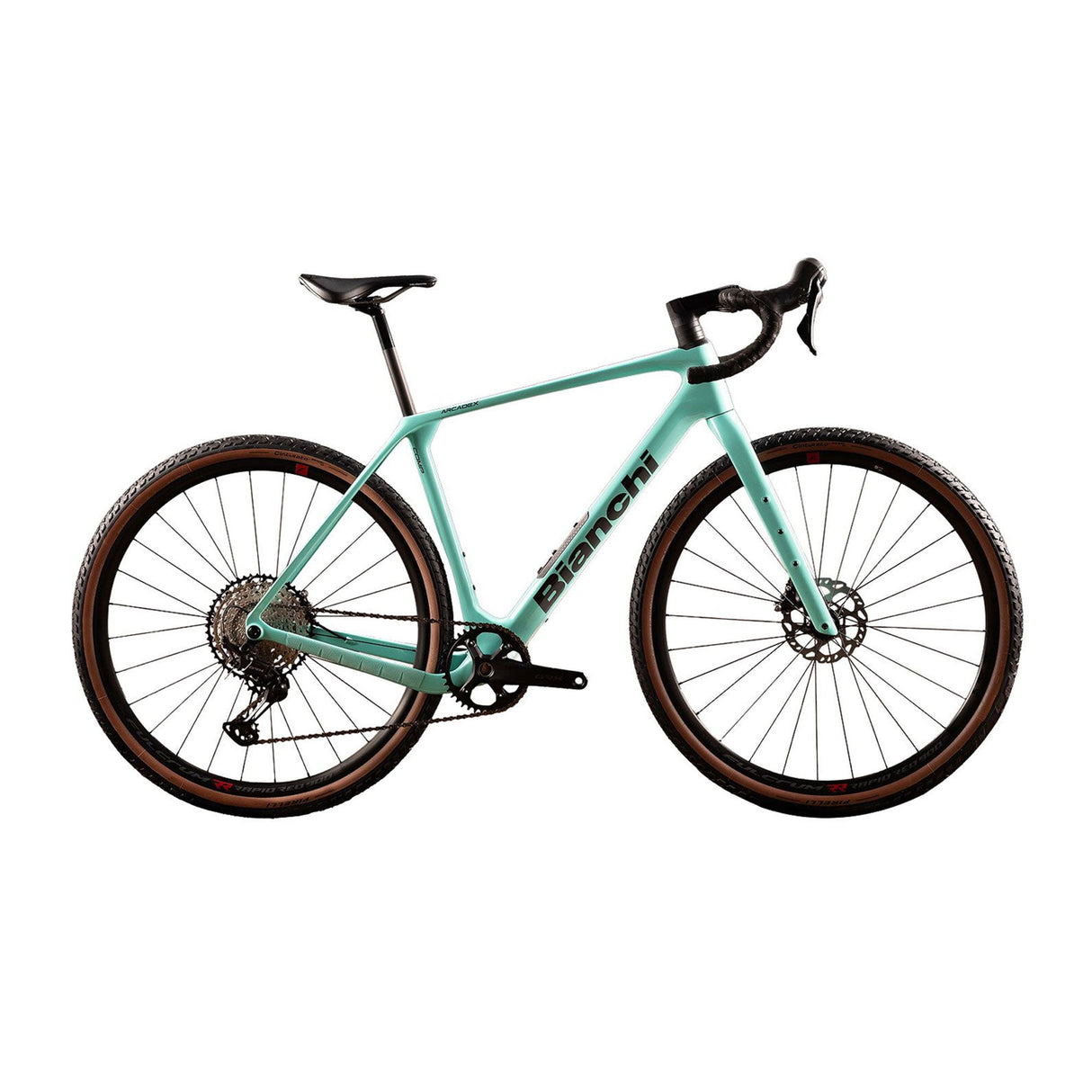

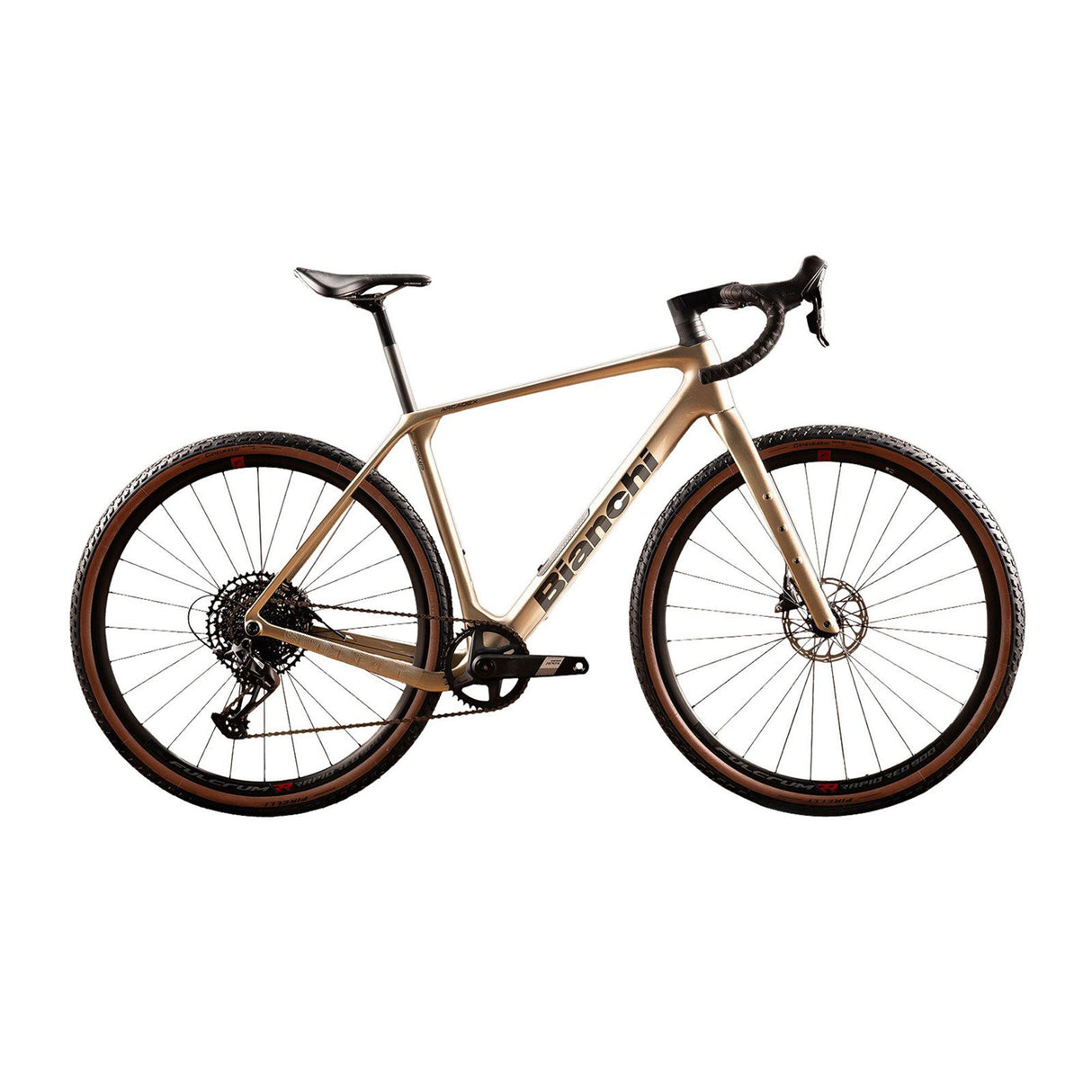

Bianchi Arcadex Comp GRX 610/822 1x


$2,90000

Color 2
Size

Bianchi Arcadex Comp GRX 610/822 1x - AZ - Sabblia / Graphite Glossy / XS - Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Bianchi  |  SKU: YTB87IXSAZ


Bianchi Arcadex Comp GRX 610/822 1x Info

In modern gravel riding, there are typically two styles that diverge when it comes time to buy a bike. Some riders want speed on standard gravel terrain, while others want to push their adventure as far as possible. The Bianchi Arcadex is for the latter. This version has a traditional carbon fork rather than a suspension to help balance adventure and speed. It also has Velomann Terbium aluminum wheels which are designed to take on rugged terrain. If you are the type of rider who likes bikepacking, adventuring, and going off the beaten path, the Arcadex is the right Bianchi for you.

The frame of the Bianchi Arcadex is made entirely of carbon fiber to assure speed and low weight but keeps an endurance geometry for optimal comfort on any terrain. The Comp version also includes partial internal cable routing. This version is equipped with a Shimano GRX 610/822 groupset for affordable 12-speed shifting that thrives on gravel. Every part of the frame is made to accommodate all-terrain riding like 50mm tire clearance and mounts for fenders and mudguards. You can also get bags specifically made for the Arcadex for your longest adventures.

Another convenient feature for adventure lovers is the Internal Frame Storage Module which is integrated into the downtube for small items to be stored inside. It has a protective case that prevents movement during a ride. With space for two bottle cages within the main frame, water for your longest rides is always at the ready. At the rear axle, you will find a 4, 5, and 6mm hex key for on the go repairs and adjustment. The Velomann Integrated Cockpit will help you remain comfortable and perform at a high level. The Bianchi Arcadex is one of the most capable gravel bikes on the market.

Bianchi Arcadex Comp GRX 610/822 1x Specifications

Frame Material:
SM Carbon Fiber Composite
Fork:
SM Carbon Fiber Composite
Headset:
Bianchi Custom Acros ICR
Seatpost:
Velomann Carbon UD
Front Derailleur:
None
Bottom Bracket:
Shimano SM-BB72-41B
Rotors:
Shimano RT70 Centerlock 160mm
Chain:
Shimano M7100 12-speed
Wheel - Front:
Fulcrum Rapid Red 900 / 12x100mm
Wheel - Rear:
Fulcrum Rapid Red 900 / 12x142mm
Stem:
Velomann AICR Alloy
Handlebar:
Velomann Gravel ICR Alloy/ 16-degree Flare / 70mm Reach / 130mm Drop
Saddle:
Velomann Mitora 149 H3 / Open Flow / Steel Rails / 149mm Width / 250mm Length
Tires:
Pirelli Cinturato Gravel M Classic 700x45
Bar Tape:
La Spirale Ribbon Cork
Pedals:
Not Included

*Specifications are subject to change.

Bianchi Arcadex Comp GRX 610/822 1x Geometry

Bianchi Arcadex Comp GRX 610/822 1x Geometry
Size:
XS
M
L
XL
B. Seat Tube (c-t)
410
485
515
550
C. Top Tube Length
527
564
583
605
D. Head Tube Length
90
130
155
185
E. Chain Stay Length
430
430
430
432
G. Seat Tube Angle
74.5
73.5
73.5
73
H. Head Tube Angle
70.5
71
71.5
71.5
J. Wheel Size
700c
700c
700c
700c
K. Stack
544
584
610
638
L. Reach
376
391
402
410
