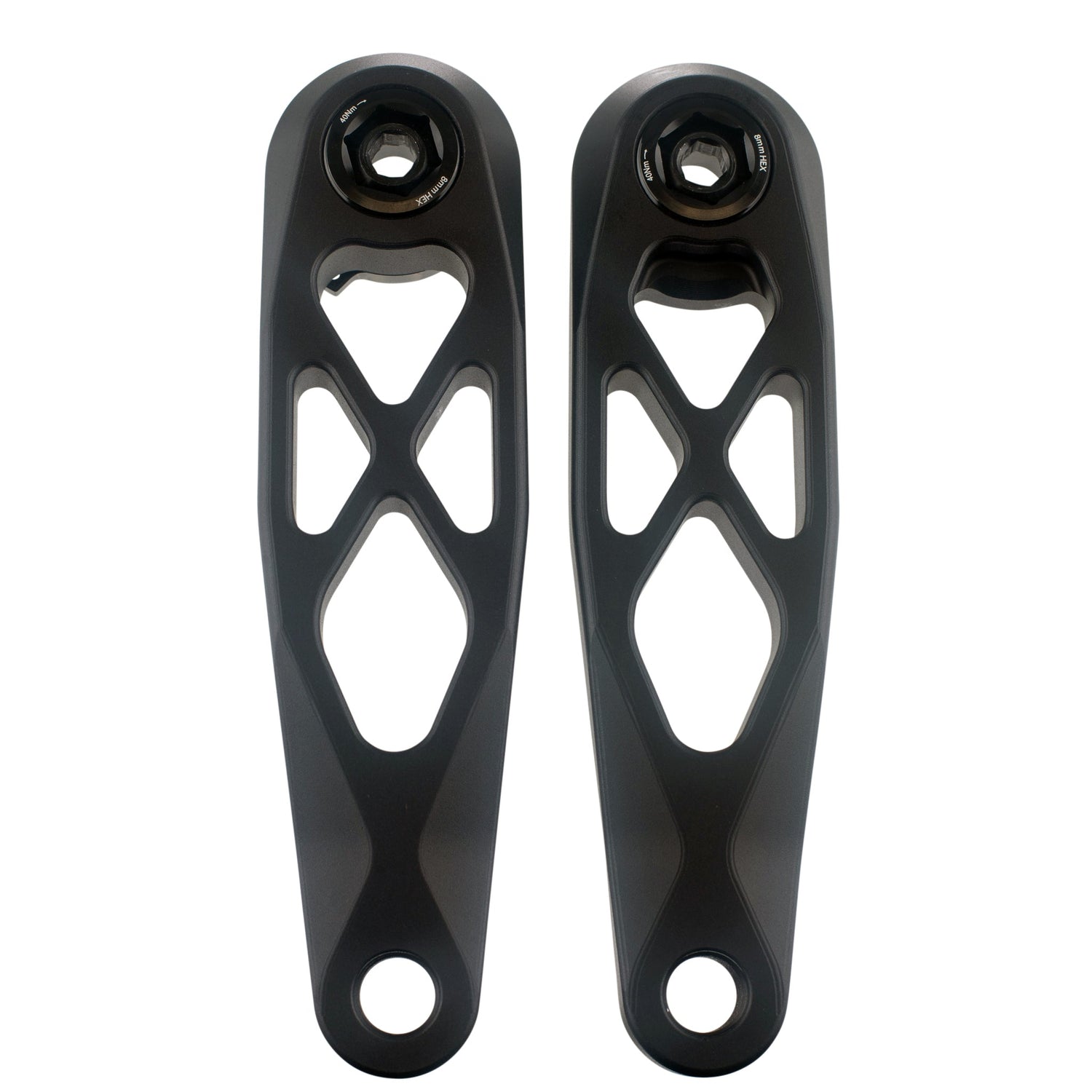

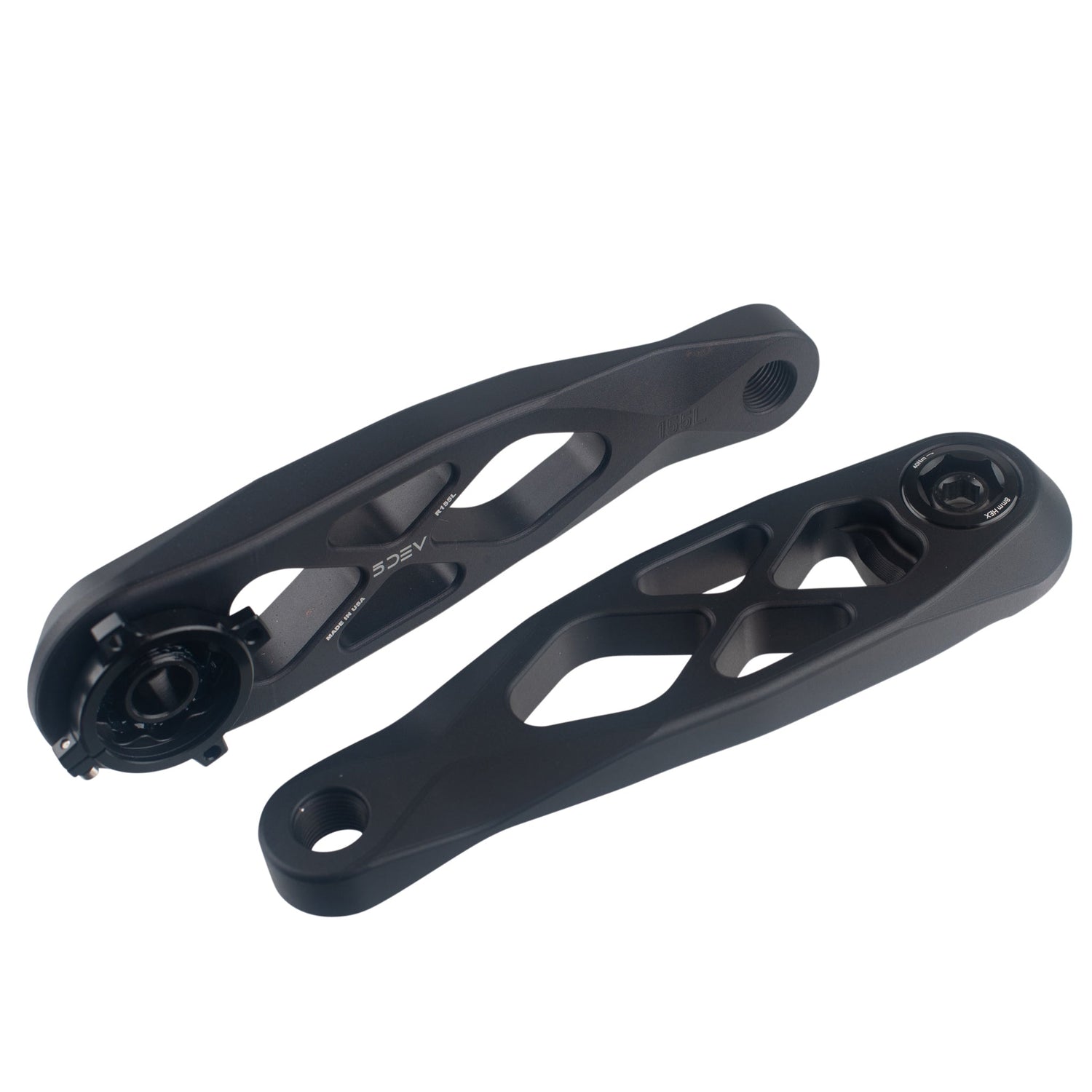

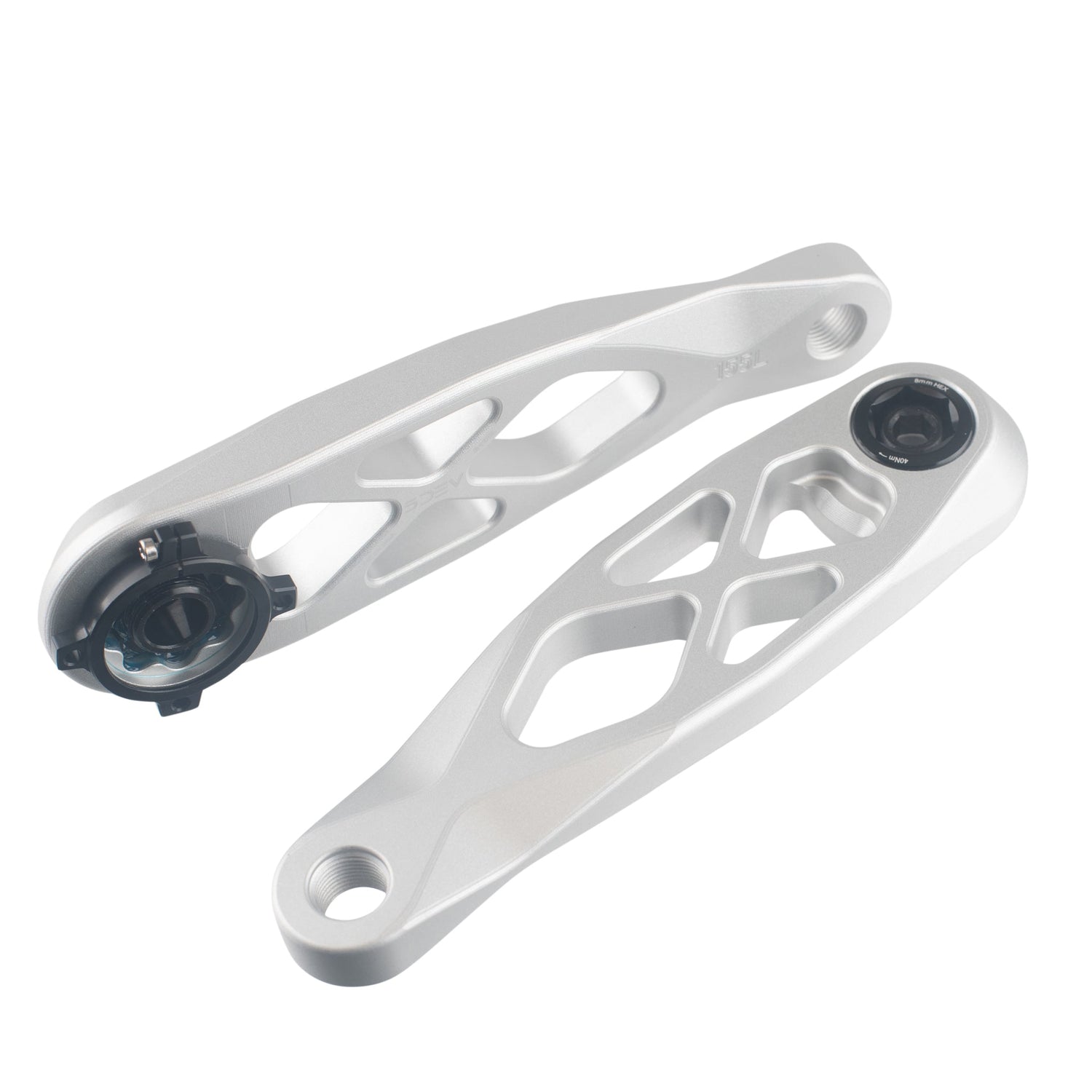

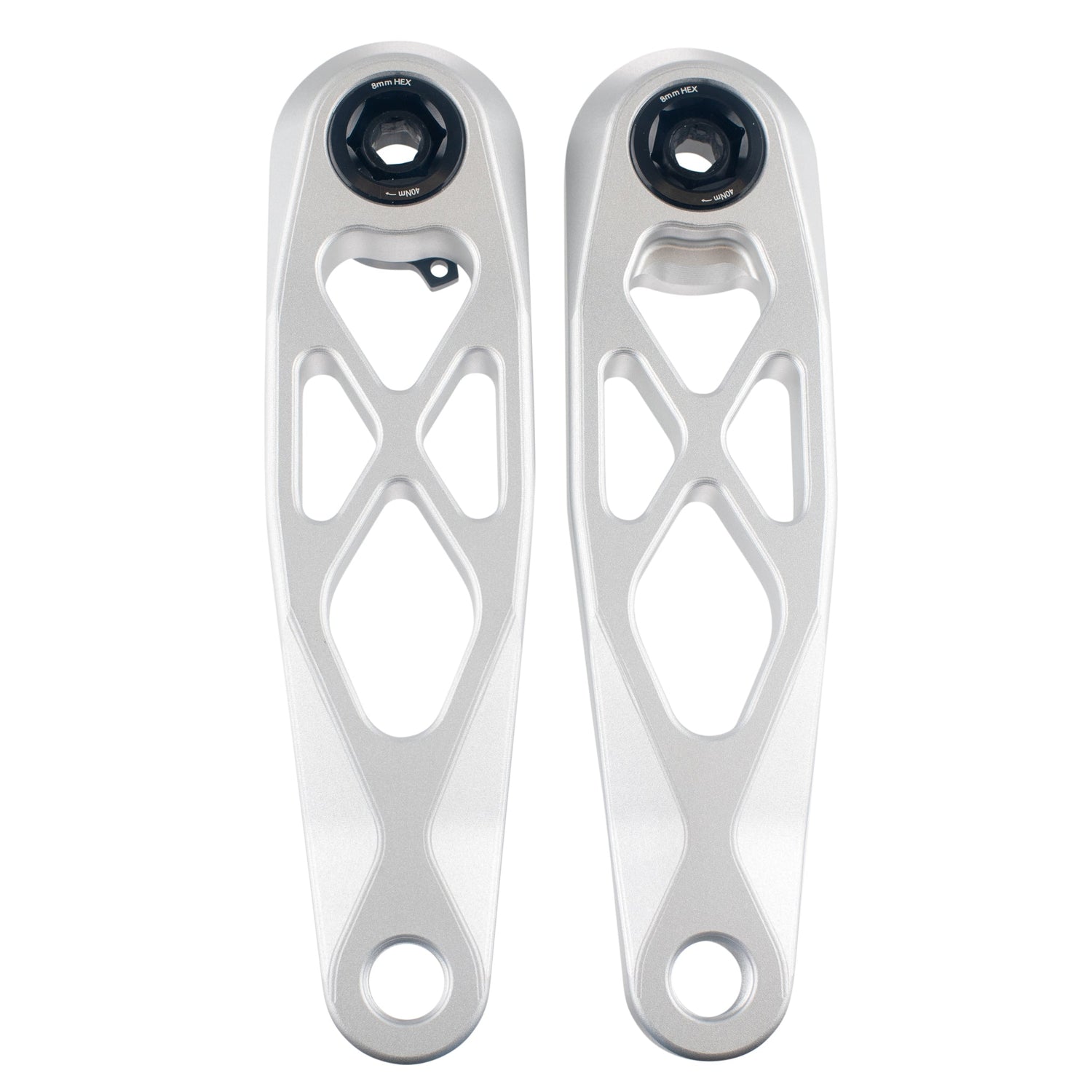

5DEV R-SPEC Trail Enduro Cranks

5DEV R-SPEC Trail Enduro Cranks Info

5DEV R-SPEC Trail Enduro Cranks represent the top tier of 5DEV’s crank lineup—engineered to exceed conventional standards for strength, precision, and race-level performance. The R-SPEC designation isn’t cosmetic; it reflects a design and testing process informed by elite-level racing across downhill, enduro, and gravity disciplines worldwide.

Machined from 7050 billet aluminum in San Diego, California, these cranks are built to handle the sustained loads, impacts, and torque demands of modern trail and enduro riding. From bike park laps to full-length enduro stages, the R-SPEC Trail Enduro Cranks deliver a stiff, composed ride feel with the durability required for aggressive use.

A wide range of crank lengths and spindle options allows riders to fine-tune clearance, stance, and drivetrain setup. Compatibility with 5DEV’s interchangeable spindle system makes these cranks adaptable across Boost and SuperBoost configurations, while SRAM 3-bolt direct mount chainring compatibility keeps drivetrain integration clean and simple.

5DEV R-SPEC Trail Enduro Cranks Specs at a Glance

• Intended Use: Trail, Enduro
• Material: CNC-machined 7050 billet aluminum
• Available Lengths: 135 mm, 145 mm, 155 mm, 160 mm, 165 mm, 170 mm
• Q-Factor: 167 mm (Boost), 176 mm (SuperBoost+)
• Chainline: 52 mm with standard Boost spindle (29 x 130 / 30 x 130)
• Wide Chainline Option: 55 mm with DUB Wide spindle (29 x 136)
• Bottom Bracket Width: 68–73 mm (Boost); SuperBoost available in select sizes
• Spindle Compatibility: Compatible with all 5DEV spindles
• Chainring Interface: SRAM 3-bolt direct mount
• Crank Bolts: Chromoly steel
• Hardware: Self-extracting system with CNC-machined 7075 aluminum preloader
• Weight: 610 g (165 mm length with 29 mm spindle)
• Warranty: 5-year warranty
• Manufacturing: Made in San Diego, California, USA

Design Benefits

1. Race-Informed Engineering: Developed with input from top-level competition and real-world abuse.
2. Billet Strength: 7050 aluminum delivers exceptional stiffness and impact resistance.
3. Highly Configurable: Multiple crank lengths and spindle options for precise fit and clearance tuning.
4. Serviceable & Adaptable: Interchangeable spindle system supports multiple frame and drivetrain standards.

Final Take

The 5DEV R-SPEC Trail Enduro Cranks are built for riders who demand proven performance and long-term durability from their drivetrain. With race-level design input, extensive configurability, and billet construction throughout, they’re a dependable choice for aggressive trail and enduro builds.
