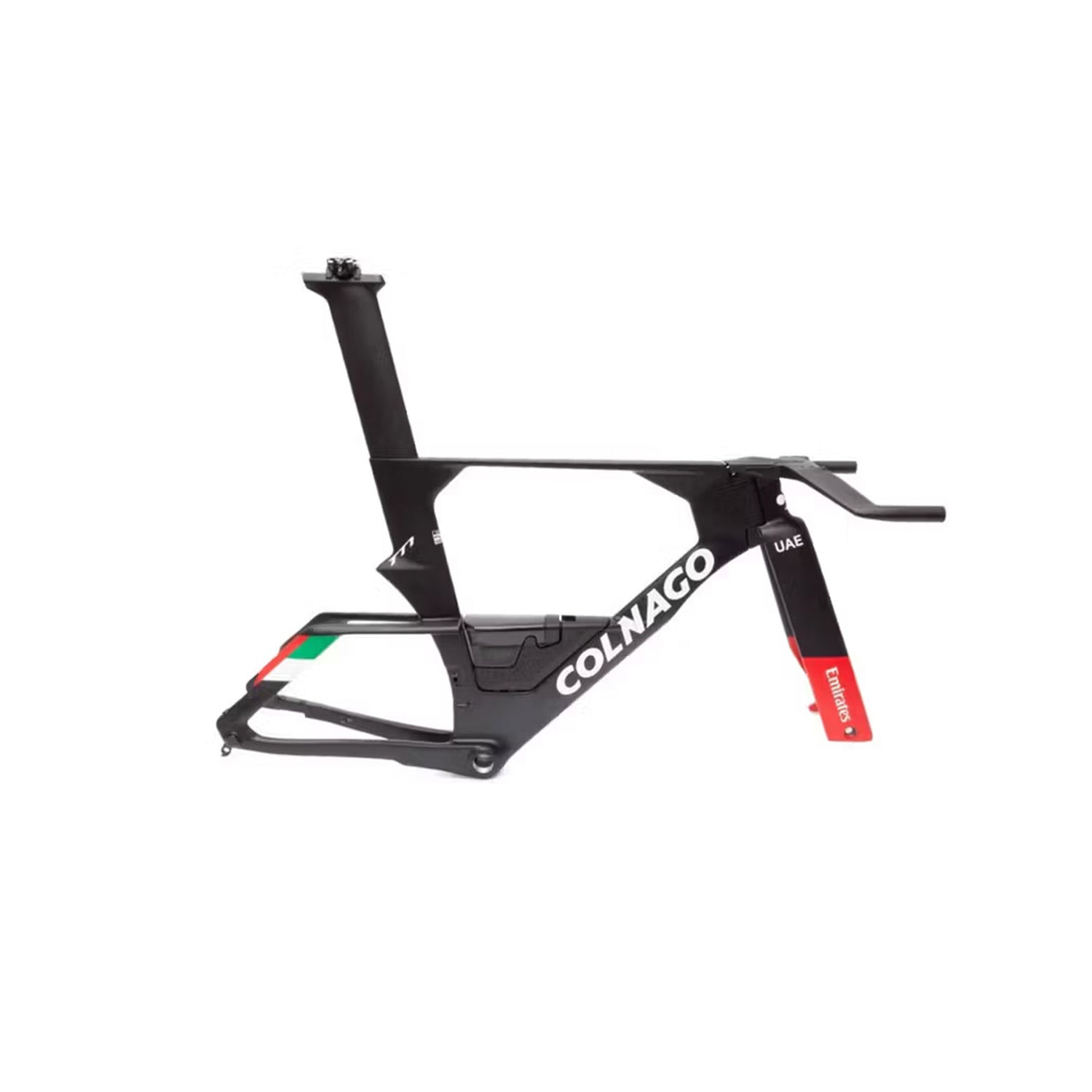

Colnago TT1 Frameset


$7,50000

Color 1
Size
Colnago  |  SKU: COLTT1FSSDM3L-25 | Option: SDM3, L

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Colnago TT1 Frameset: Product image may vary. Refer to the description for accurate details.

Colnago TT1 Frameset Info

The Colnago TT1 Frameset is engineered for top-level time trial and triathlon performance and is the first Colnago TT bike to feature disc brakes. It can be seen helping Team UAE Emirates hit their fastest times on the World Tour. Disc brake use allows full integration of the hydraulic lines for improved aerodynamics, enhanced braking power, and increased frame stiffness thanks to the use of thru-axles. While the overall weight remains nearly unchanged from the previous K.One model, the TT1 delivers greater control and safety without compromising on speed. The monocoque carbon construction also allows for an aggressive tube design in line with current UCI regulations, optimizing airflow and minimizing drag.

Aerodynamically refined throughout, the TT1 incorporates a drastically reduced frontal area with a thinner head tube and vertically rigid fork blades that slice through the wind. Lowered, horizontally aligned chainstays add to the aerodynamic profile while increasing stiffness and preserving rider comfort. Colnago’s in-house base bar is both lightweight and rigid, complementing the bike’s aggressive positioning and direct handling. Every element of the TT1, from frame shapes to integration points, has been optimized for efficiency at speed.

Attention to detail extends to hydration with a fully integrated, 3D-printed bottle cage designed to fit a proprietary Colnago bottle. This system maintains the frameset’s clean lines and aerodynamic function while ensuring secure grip and ease of access during high-speed efforts. The Colnago TT1 will be seen with Tadej Pocagar and his team on the World Tour and is ready to help any triathlete or time trialist reach their goals.

Colnago TT1 Frameset - Specifications

Frame Material:
Monocoque Carbon
Fork:
Carbon bayonet fork for disc brakes
Headset:
Bearings 19x30x6,5; 36x45°
Seatpost:
Colnago Aero Carbon / Adjustable offset
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BSA 68mm
Stem:
Colnago TT1 handlebars + Stem cover included
Handlebar:
Colnago TT1 handlebars + Stem cover included
Aerobars:
Aerobars not included
Bottle Cages:
Integrated water bottle holder / Aerodynamic water bottle
Accessories:
12x100mm / 12x142mm Thru Axles

*Specifications are subject to change.

Colnago TT1 Frameset Geometry

Colnago TT1 Frameset Triathlon Bike Geometry
Size:
L
M
S
B. Seat Tube (c-t)
528
528
508
E. Chain Stay Length
400
400
400
F. BB Drop
70
70
70
G. Seat Tube Angle
77
77
77
H. Head Tube Angle
72
72
72
K. Stack
490.75
490.75
471.73
L. Reach
426.55
406.55
396.55
