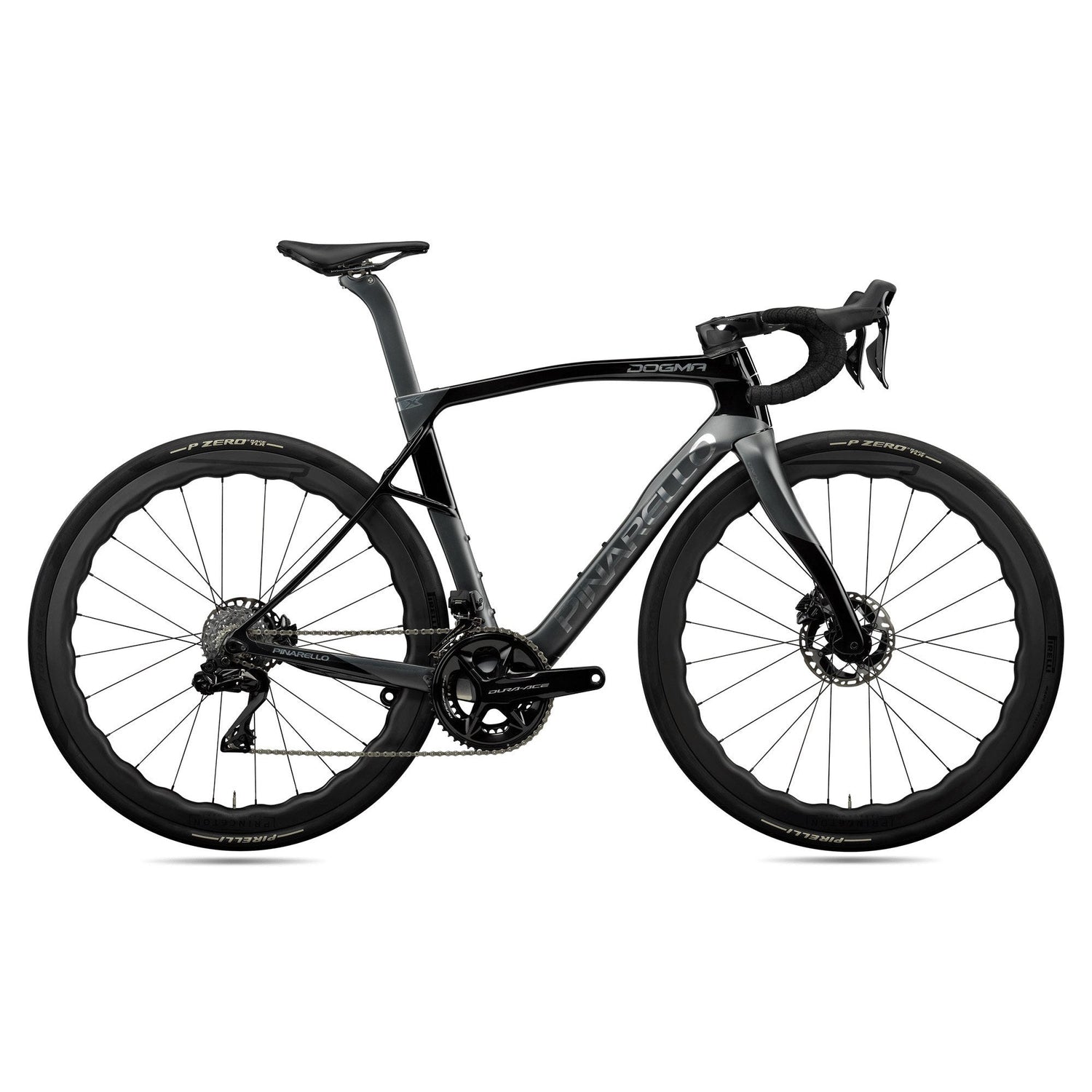

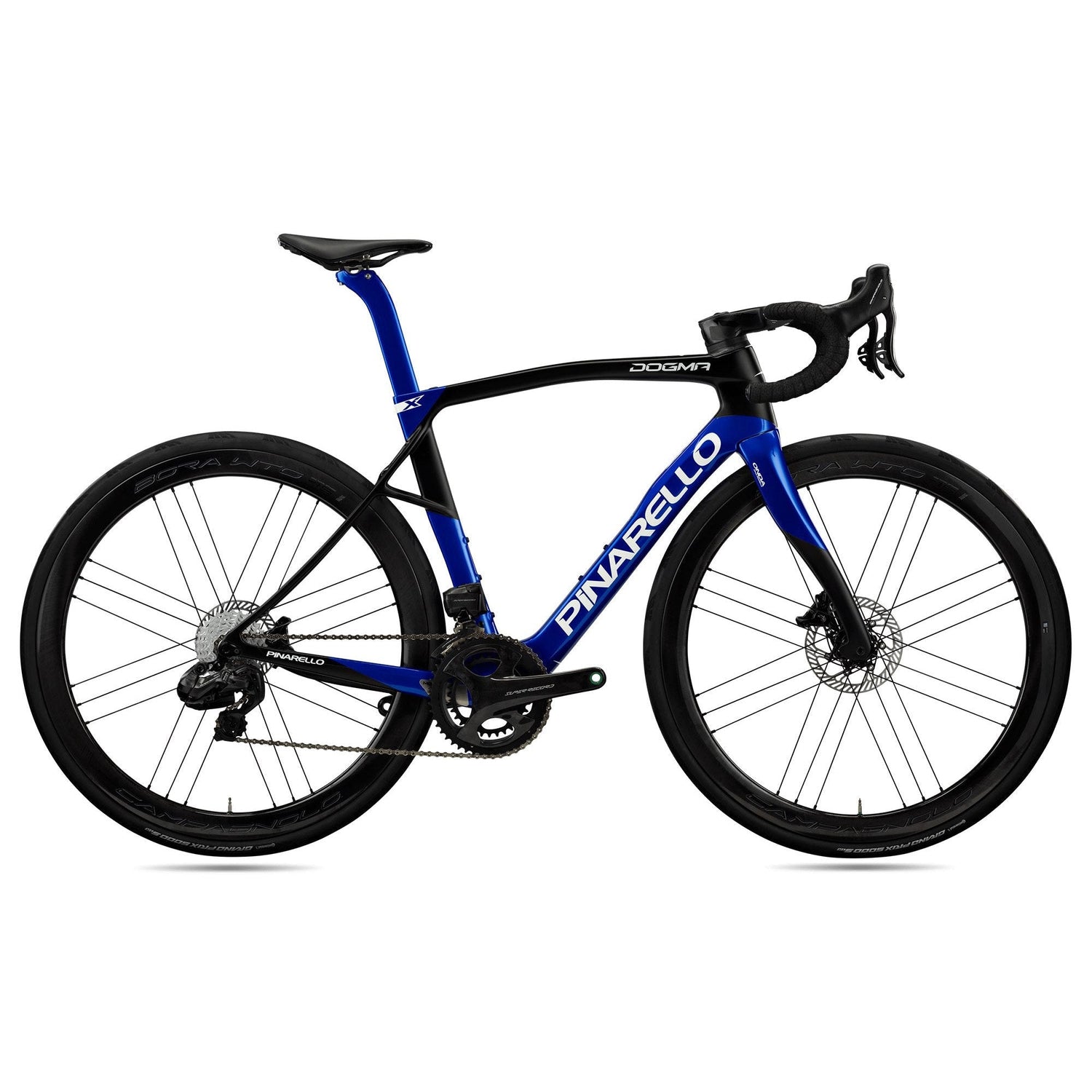

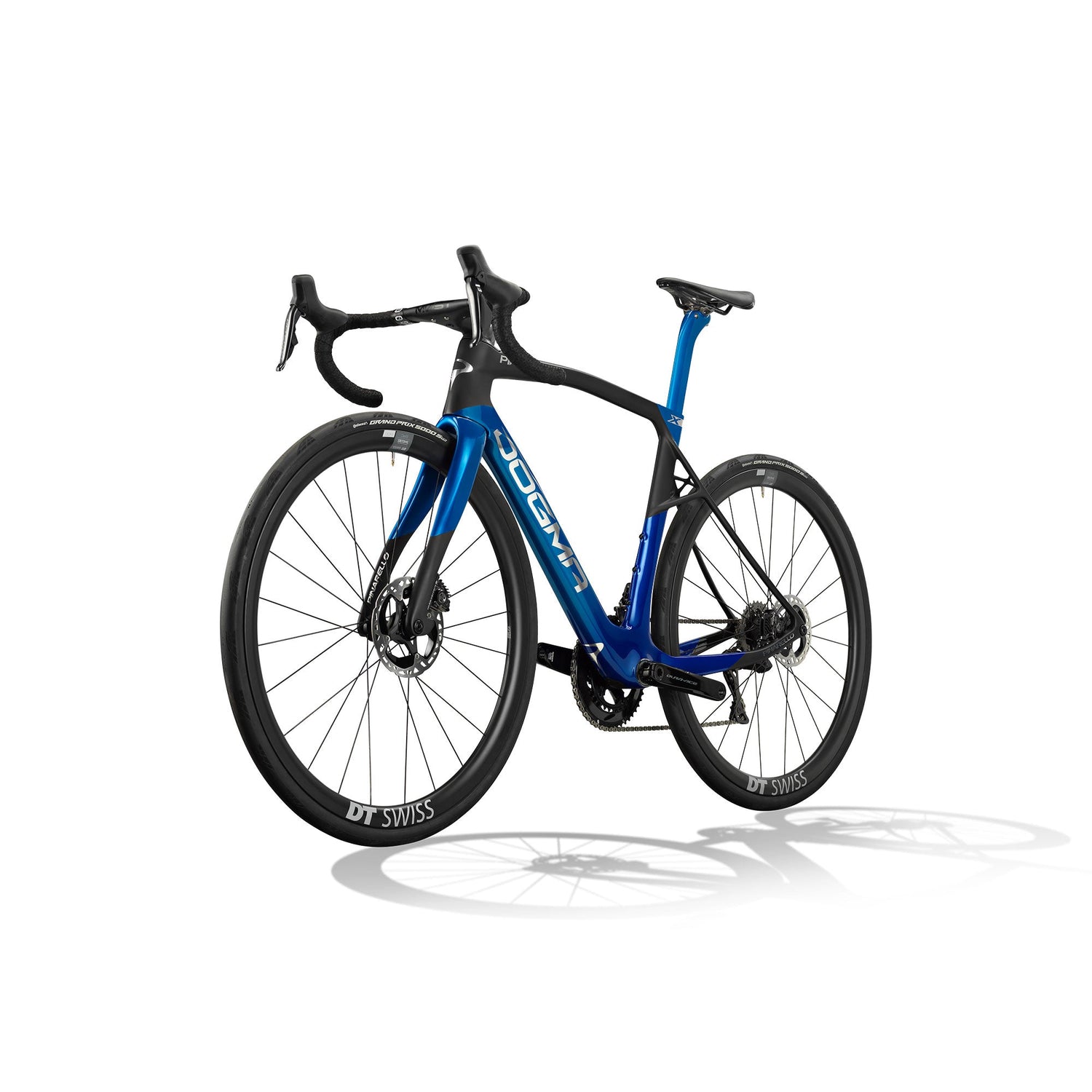

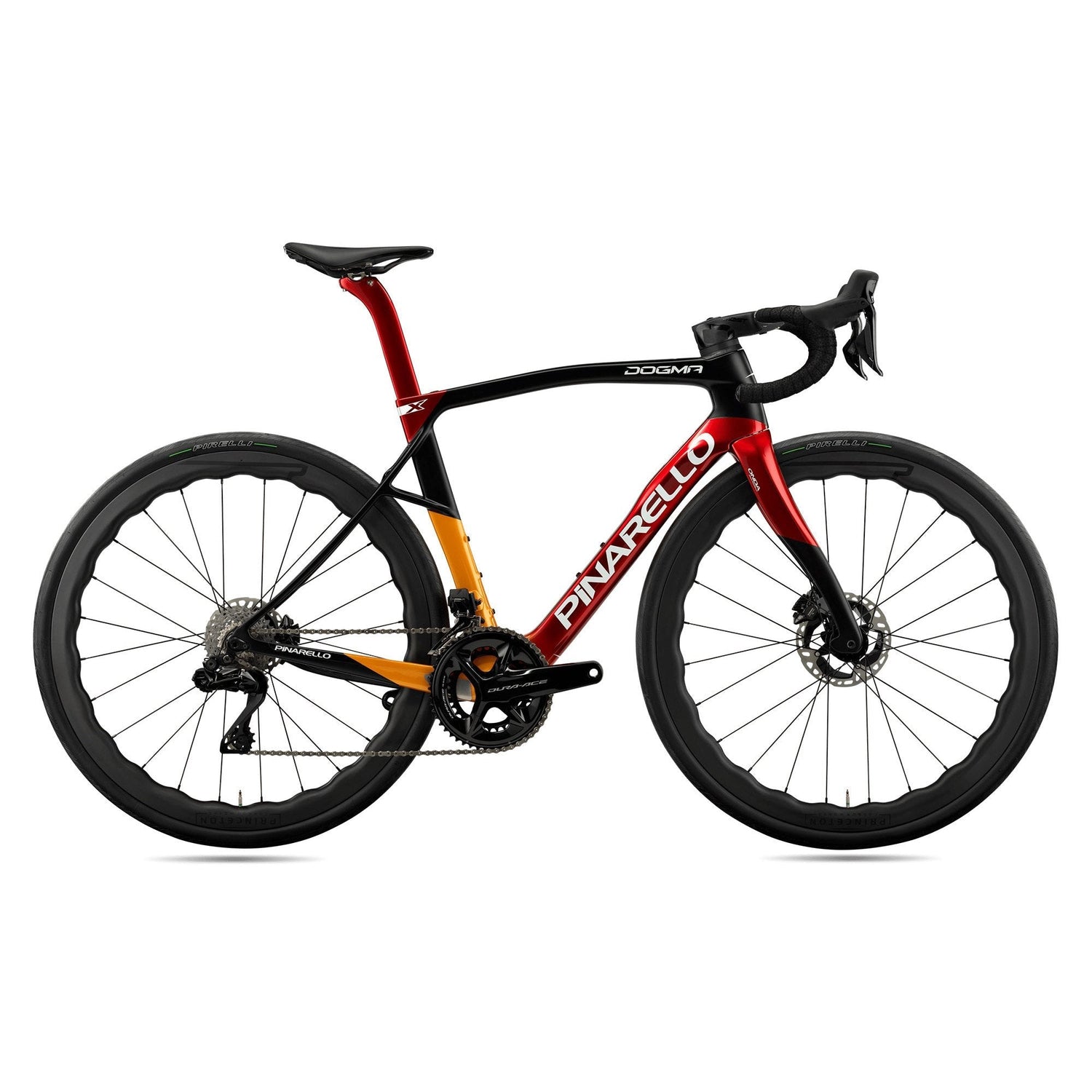

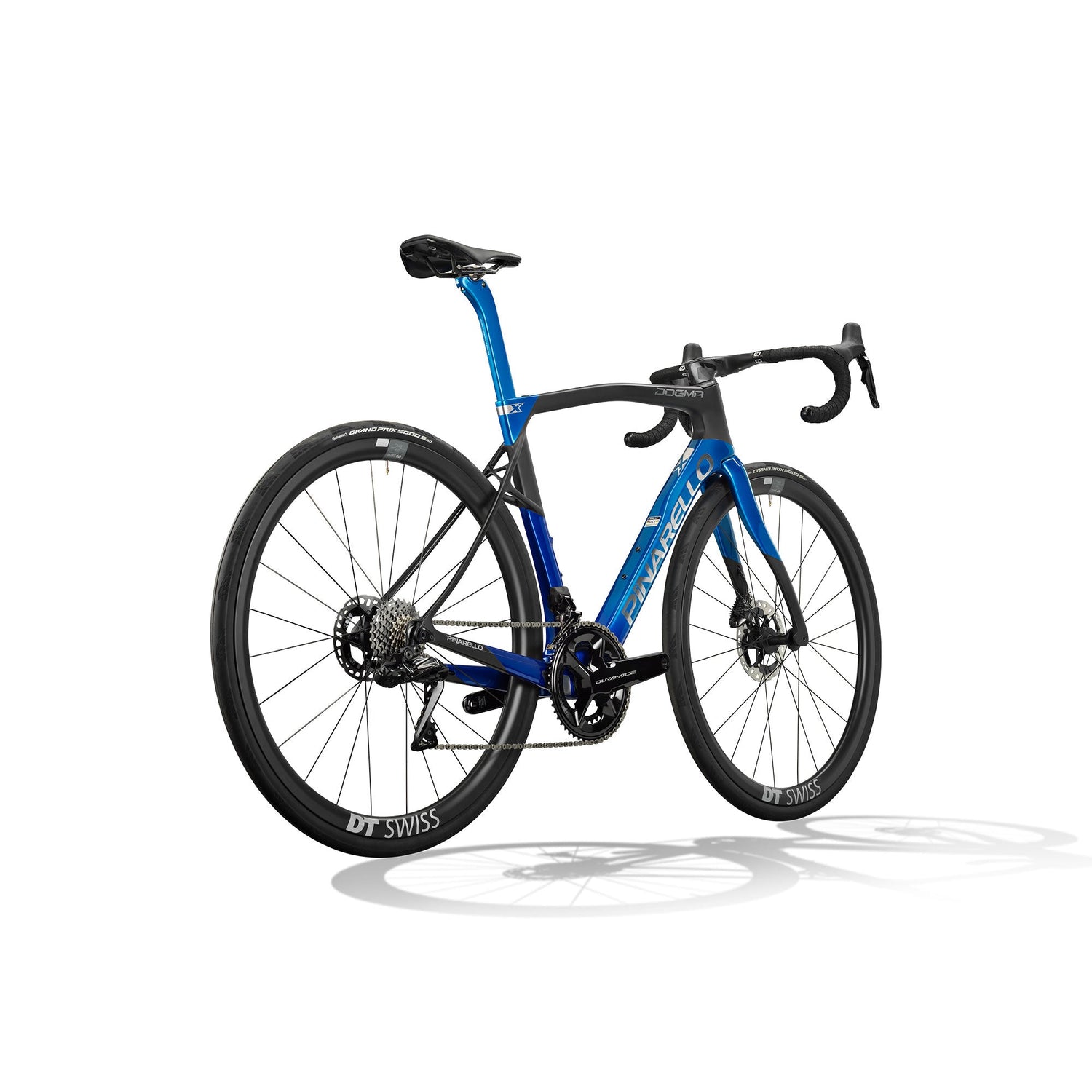

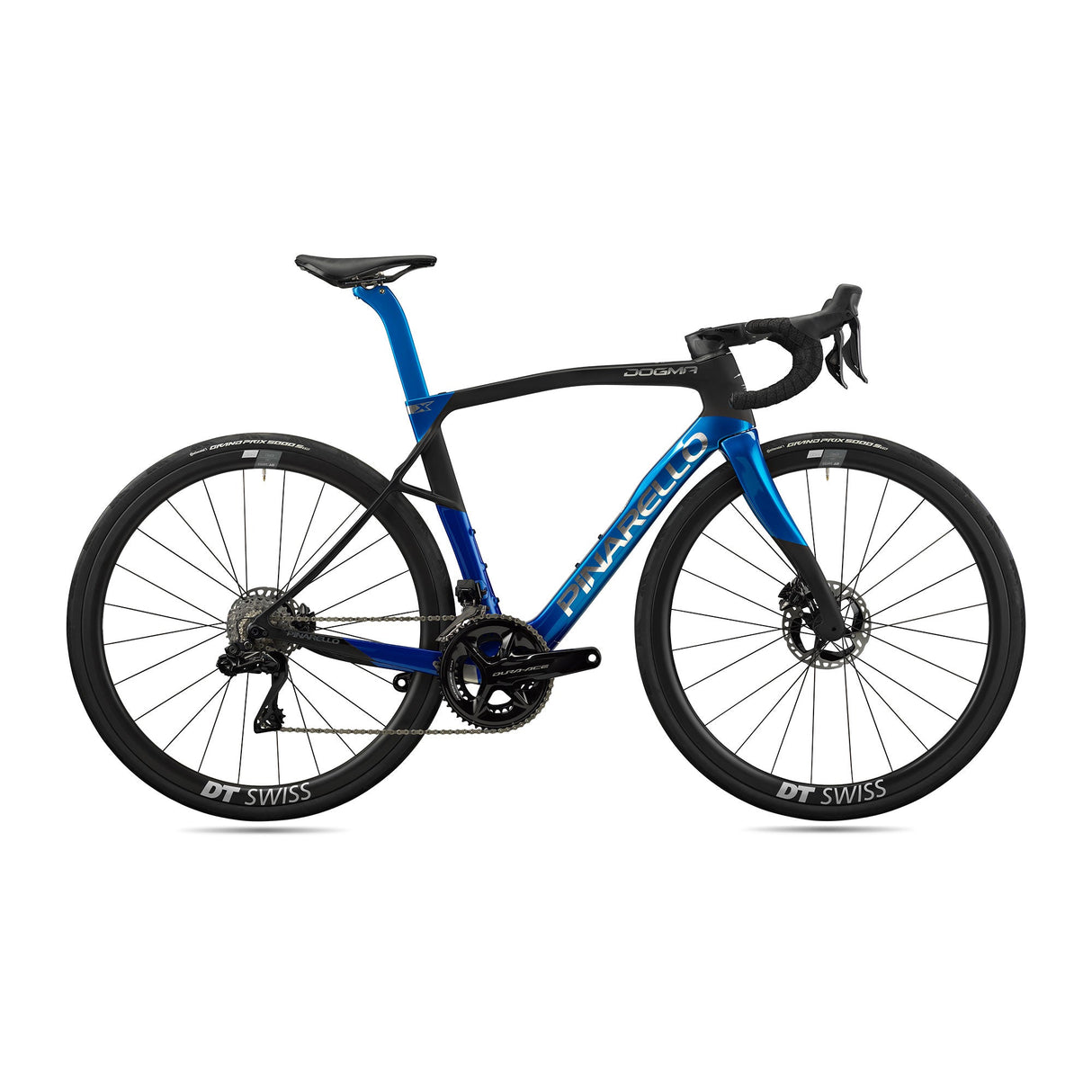

Pinarello Dogma X Disc Dura-Ace Di2 Bike Info

The Pinarello Dogma X Disc Dura-Ace Di2 Bike is what happens when one of road cycling's most storied race bike makers turns its full attention to endurance riding without compromising on speed. Built on the same TorayCa T1100 1K Dream Carbon that defines the Dogma line, the Dogma X introduces a fundamentally different approach to ride quality — one that lets you push harder, longer, without the accumulated fatigue that comes from hours in the saddle on rough roads.

The centerpiece of that approach is X-Stays, Pinarello's proprietary seatstay design. Where a traditional seatstay connects frame to dropout in a single arc, the X-Stays use two supporting struts that meet the seat tube in an X-shaped junction — a structural solution engineered to absorb road vibration at the rear while keeping the bottom bracket area rigid and responsive under power. It's not compliance for its own sake; it's compliance that doesn't cost you watts. That balance is the whole point of this bike.

Paired with Pinarello's asymmetric frame construction — which builds the drive side stiffer to compensate for the unbalanced chain-pull forces of pedaling — the Dogma X delivers a ride that feels planted and precise even on rough tarmac. Endurance geometry brings a slightly higher stack and more relaxed reach than the Dogma F, supporting a sustainable position for long rides without pushing you into a passive, upright posture. Up to 35mm of tire clearance means you can run wider rubber for additional compliance and grip, and the included Pirelli P ZERO Race TLR 35-622 tires take full advantage of that.

Specs at a Glance

Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
Key Technology: X-Stays vibration damping; asymmetric frame design
Geometry: Endurance-specific — relaxed stack and reach versus Dogma F
Tire Clearance: Up to 35mm
Groupset: Shimano Dura-Ace Di2 R9200 12-speed electronic (FD-9200 / RD-R9200)
Crankset / Power Meter: Shimano Dura-Ace with integrated power meter
Cassette: Shimano Dura-Ace CS-R9200 12-speed
Brakes: Shimano Dura-Ace BR-R9200 hydraulic disc — 160mm front / 140mm rear rotors
Wheels: Princeton Grit 4540 DB with ultra-light custom thru-axles (12x100 / 12x142)
Tires: Pirelli P ZERO Race TLR 35-622 (tubeless-ready)
Handlebar: MOST Talon Ultra Light
Seatpost: Pinarello Aero with 3D-printed titanium top clamp
Saddle: Most Lynx Ultrafast Superflow Carbon 145mm
Colors: Xolar Sea, Xolar Sun, Xolar Blue, Xolar Black, Xolar Green
Sizes: 43cm to 62cm (11 sizes)

Design Benefits

X-Stays absorb the road without absorbing your power. The X-shaped seatstay architecture reduces high-frequency road buzz at the rear of the bike while preserving lateral stiffness at the bottom bracket. You stay fresher on long rides without losing the snappy power transfer you'd expect from a Dogma.
Shimano Dura-Ace Di2 with integrated power meter. The R9200 Di2 system delivers precise electronic shifting across all 12 gears with no cable tension to manage. Having power data built into the crank — rather than bolted on as an afterthought — keeps the setup clean and gives you accurate output figures from the first pedal stroke.
Princeton Grit 4540 DB wheelset. A 45mm front / 40mm rear carbon disc wheel that balances aerodynamic efficiency with enough lightness to climb well. The 4540 DB is a strong all-day wheel — deep enough to cut through crosswinds on open roads, composed enough not to drag on extended climbs.
Endurance geometry that still handles like a race bike. The Dogma X sits higher and slightly shorter than the Dogma F, giving you a position that's sustainable for big days in the saddle without pushing you into the upright posture of a sportive bike. The handling stays sharp and confident, especially descending.
35mm tubeless tire clearance. Running tubeless at lower pressures meaningfully increases comfort and traction on rough roads. The Pirelli P ZERO Race TLR tires ship on the bike ready to run tubeless, and the extra volume absorbs surface irregularities that no frame flex can fully address on its own.

Final Take

The Dogma X Disc is built for riders who want Pinarello's engineering and build quality without committing to a position designed for 90-minute crits. It's a bike that takes endurance riding seriously — not by softening the frame into something vague, but by engineering specific solutions to the specific problems of riding hard and riding long. With Dura-Ace Di2, a power meter, and Princeton Grit 4540 wheels already in place, it arrives as a complete, race-ready road bike at an endurance geometry that actually lets you use every bit of it.

Pinarello Dogma X Disc Dura-Ace Di2 Bike - Specifications

Frame Material:

TORAYCA T1100 1K Dream Carbon w/Nanoalloy Technology

Fork:

Pinarello Onda Carbon

Headset:

MOST 1.5" Bearing Kit (for TiCR)

Seatpost:

Dogma X Aero

Front Derailleur:

Shimano Dura-Ace Di2 9250

Rear Derailleur:

Shimano Dura-Ace Di2 9250

Crankset:

Shimano Dura-Ace 9200 w/Power Meter

Bottom Bracket:

Shimano R9100 Italian Thread

Brake Calipers:

Shimano Dura-Ace 9270 Hydraulic Disc

Rotors:

Shimano 160mm

Shifters / Levers:

Shimano Dura-Ace Di2 9270

Cassette:

Shimano Dura-Ace 9200 12-speed

Chain:

Shimano M9100 12-speed

Wheel - Front:

Princeton Grit 4540 Disc

Wheel - Rear:

Princeton Grit 4540 Disc

Stem:

Talon Ultra Light

Handlebar:

Talon Ultra Light

Saddle:

MOST Lynx Ultrafast Superflow Carbon

Tires:

Pirelli P-Zero Race 700x26

Bar Tape:

MOST Ultragrip EVO 3mm

Pedals:

Not Included

*Specifications are subject to change.

Pinarello Dogma X Disc Dura-Ace Di2 Bike Geometry

Size:

43

46.5

50

51.5

53

54

55

56

57.5

59.5

62

B. Seat Tube (c-t)

425

450

465

485

500

510

520

525

540

560

600

C. Top Tube Length

505

515

525

535

545

552

557

565

575

595

620

D. Head Tube Length

107

119

124

129

138

146

167

165

178

214

254

E. Chain Stay Length

422

F. BB Drop

77

G. Seat Tube Angle

74.4

74

73.7

73.4

73

72.4

72

H. Head Tube Angle

70

70.5

71

71.5

72

72.5

72.8

73

J. Wheel Size

700c

K. Stack

524.2

535.5

542.1

548.6

559

568.4

578.9

588.4

601.7

632

670.3

L. Reach

349.3

358.1

365.4

371.7

379.4

381.2

383

384.6

390.8

395.3

403.8

The RA Perspective

The Dogma X comes up often when customers are weighing whether to go full race bike or something they can actually sustain for a big day out. Our honest take: this is the bike we'd reach for if we had one shot to cover serious miles and still wanted to feel good at the end.

The X-Stays are the reason. It's subtle when you read about it on paper, but after a few hours on rough tarmac the difference adds up. High-frequency road buzz — the kind that works its way into your hands and sits in your lower back — is noticeably reduced compared to a stiffer race setup. Importantly, the bike doesn't feel soft or vague because of it. The bottom bracket area is stiff the way a Dogma should be, and the power transfer is immediate.

The Dura-Ace Di2 build is exactly what you'd want at this price. Reliable, fast shifting, and the power meter integration is clean — no separate unit to calibrate or battery to track independently. Princeton Grit 4540 wheels are a smart choice for this bike: deep enough for aerodynamic gains on open roads, manageable in crosswinds and on climbs.

One thing worth noting on fit: the Dogma X comes in 11 sizes from 43cm to 62cm, which is an unusually wide range, and getting the right size matters because the geometry still rides closer to a race bike than a sportive. We'd recommend a fit consultation before purchasing if you're between sizes. For anyone serious about a road bike they can actually ride to its limits over long miles, the Dogma X has our full confidence.

The Pinarello Dogma X

Most riders think of race bikes as stiff, aggressive, and built for raw speed—but they rarely consider what their bodies actually need for the long haul. The Pinarello Dogma X flips the script by blending race-ready performance with endurance-focused comfort. It's a race bike designed to go the distance without sacrificing speed.
