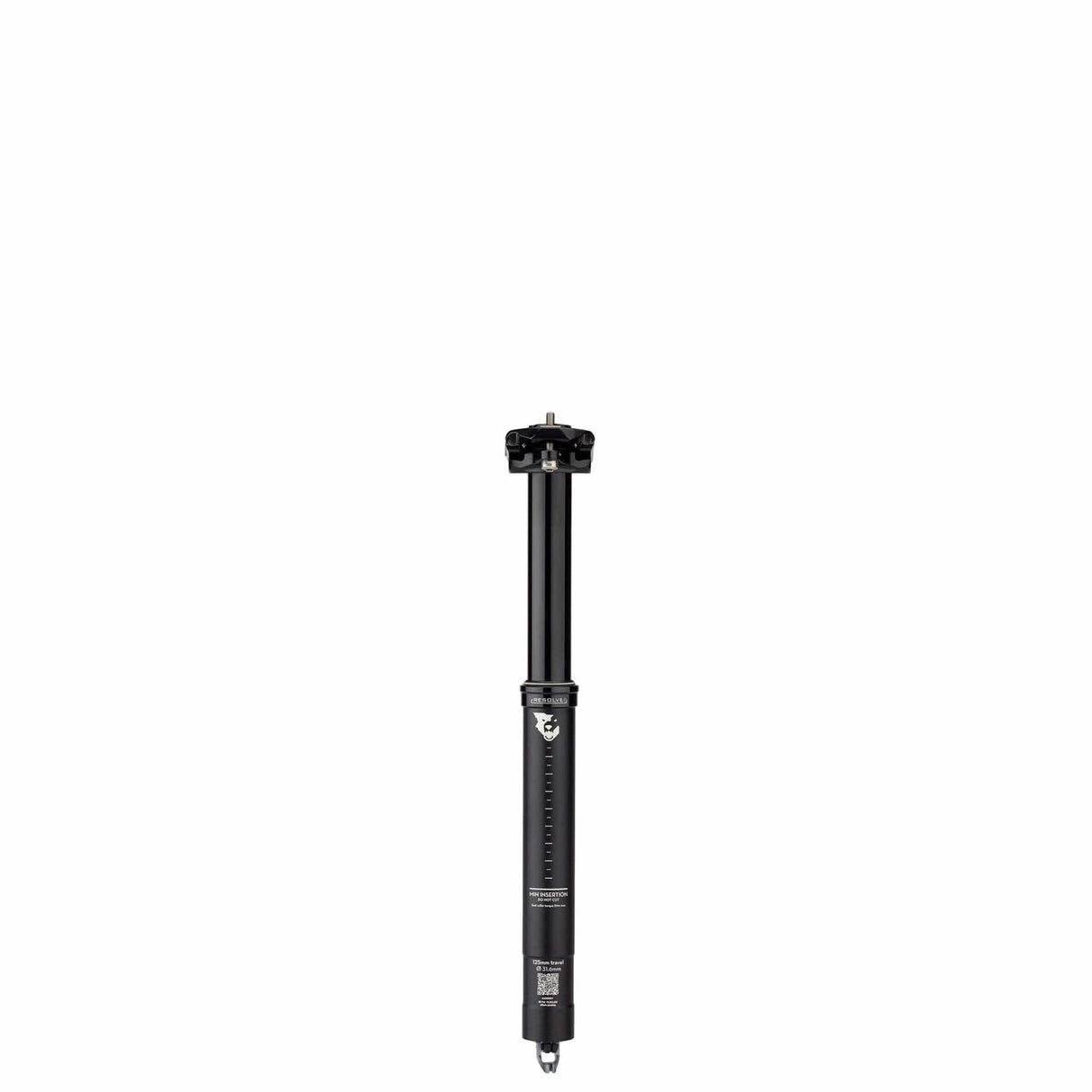

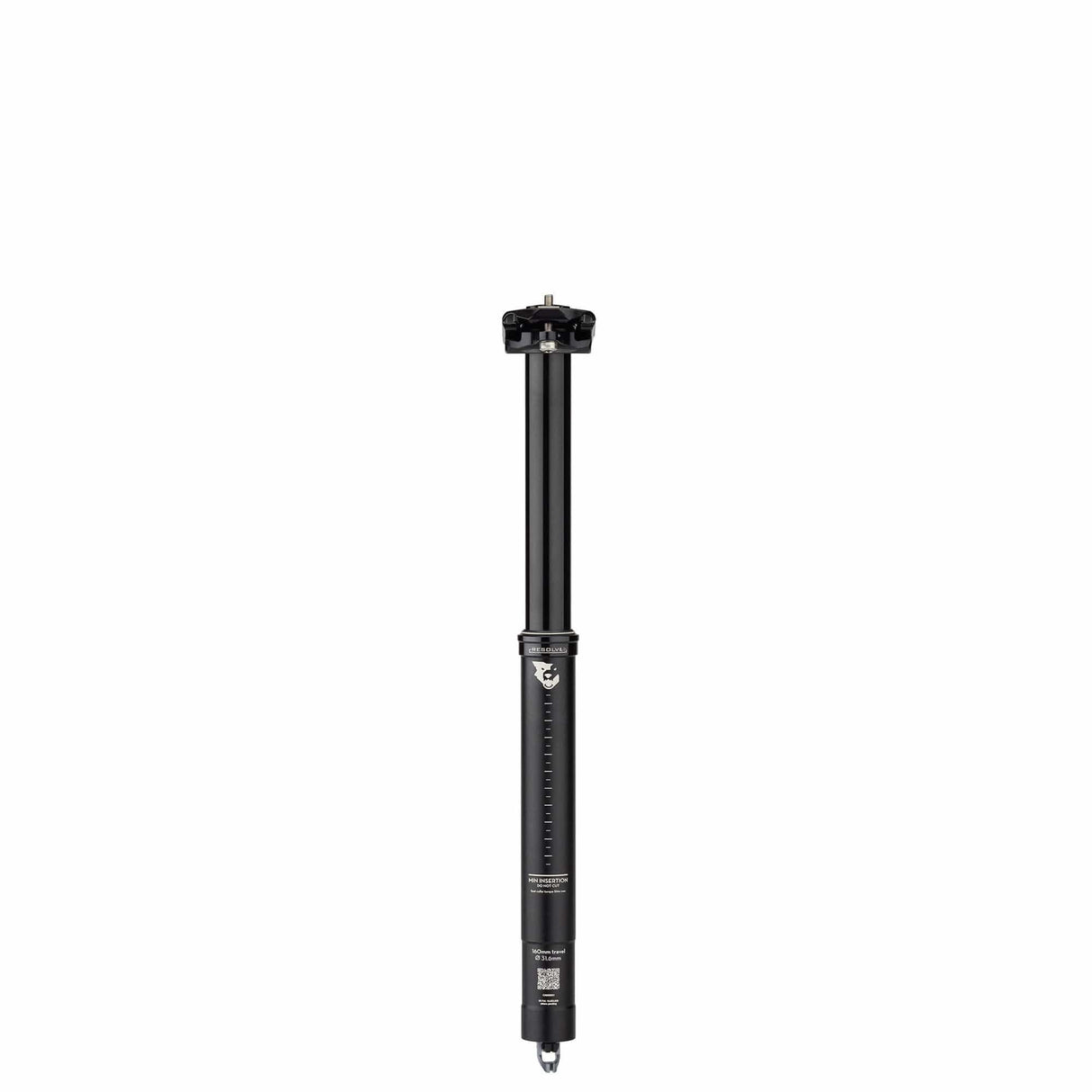

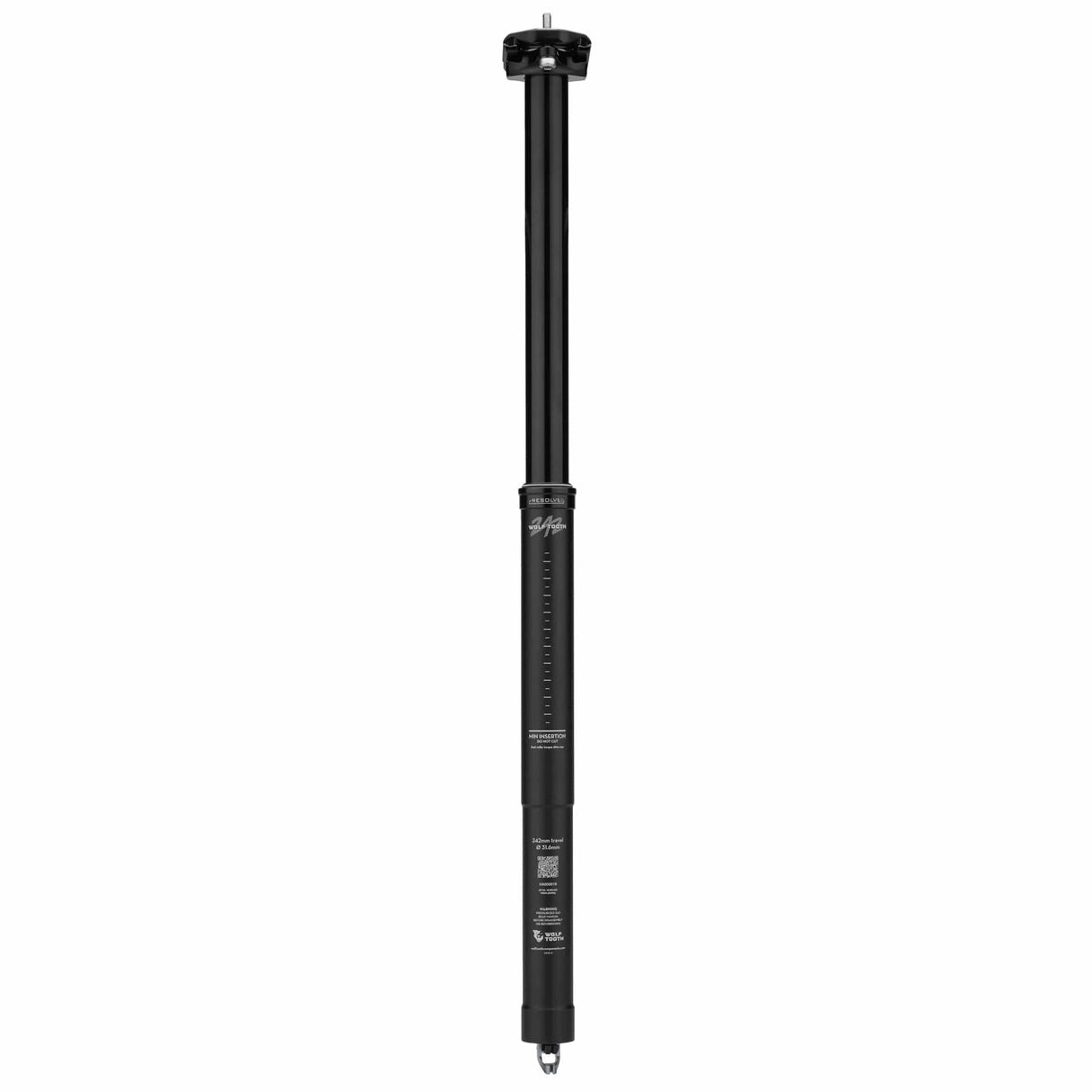

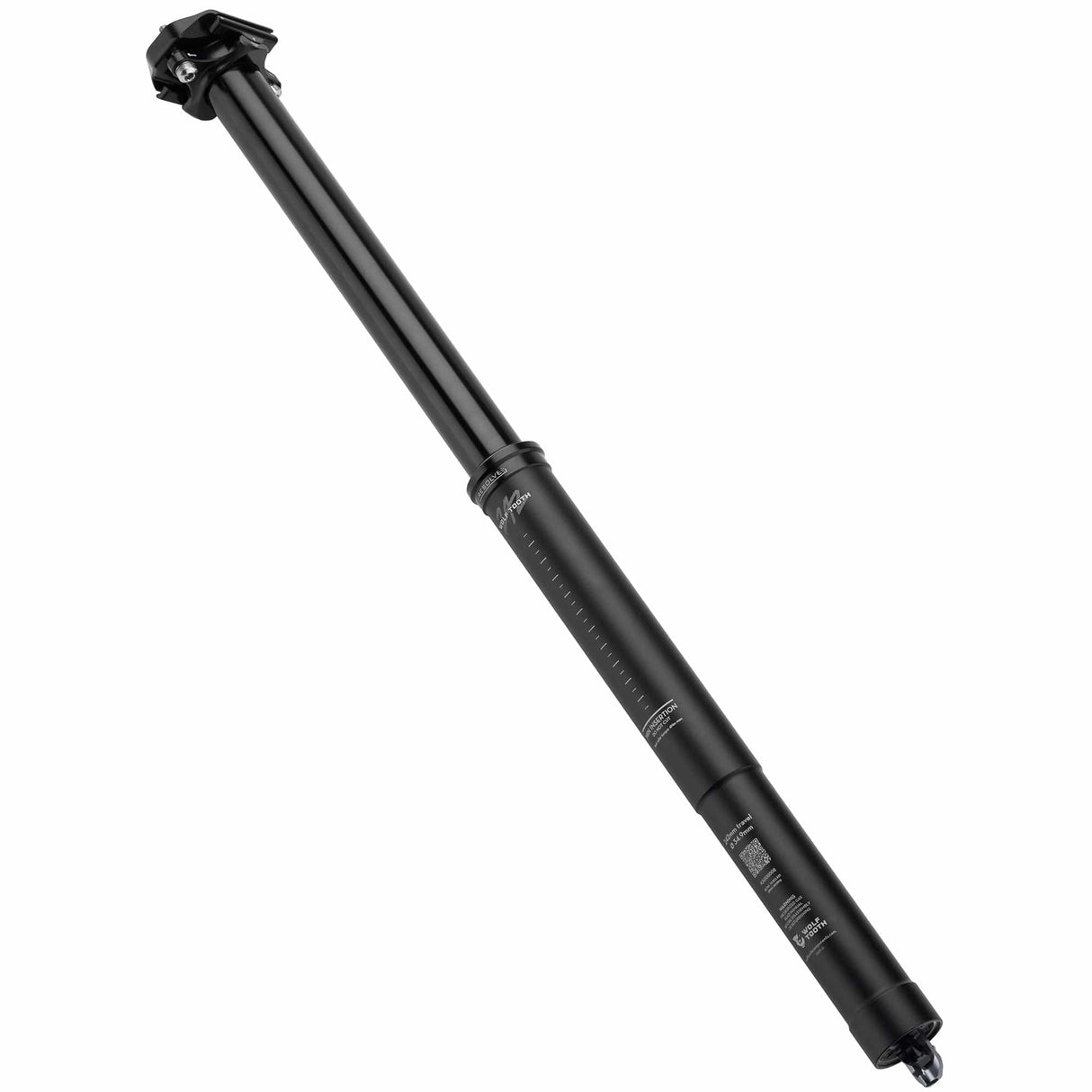

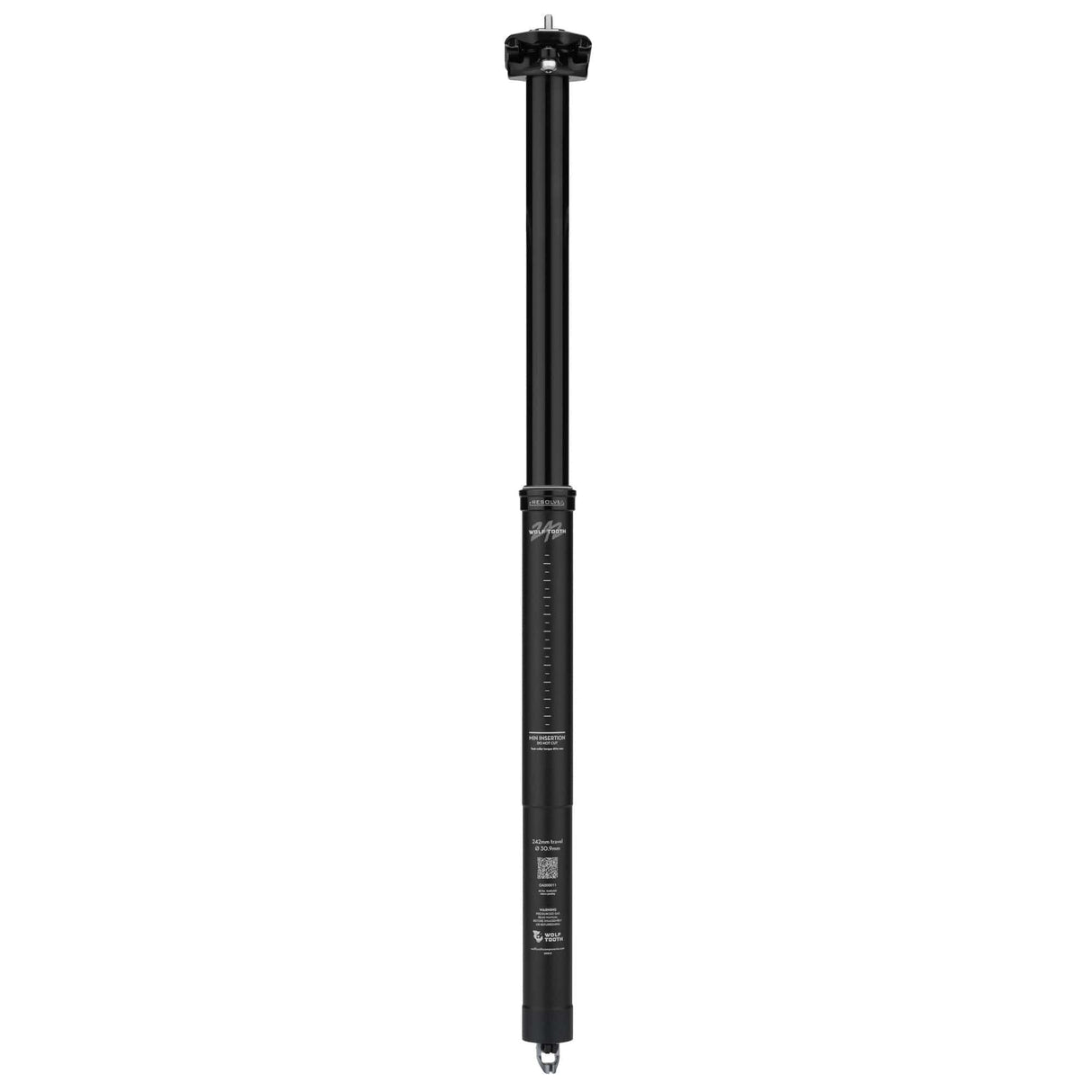

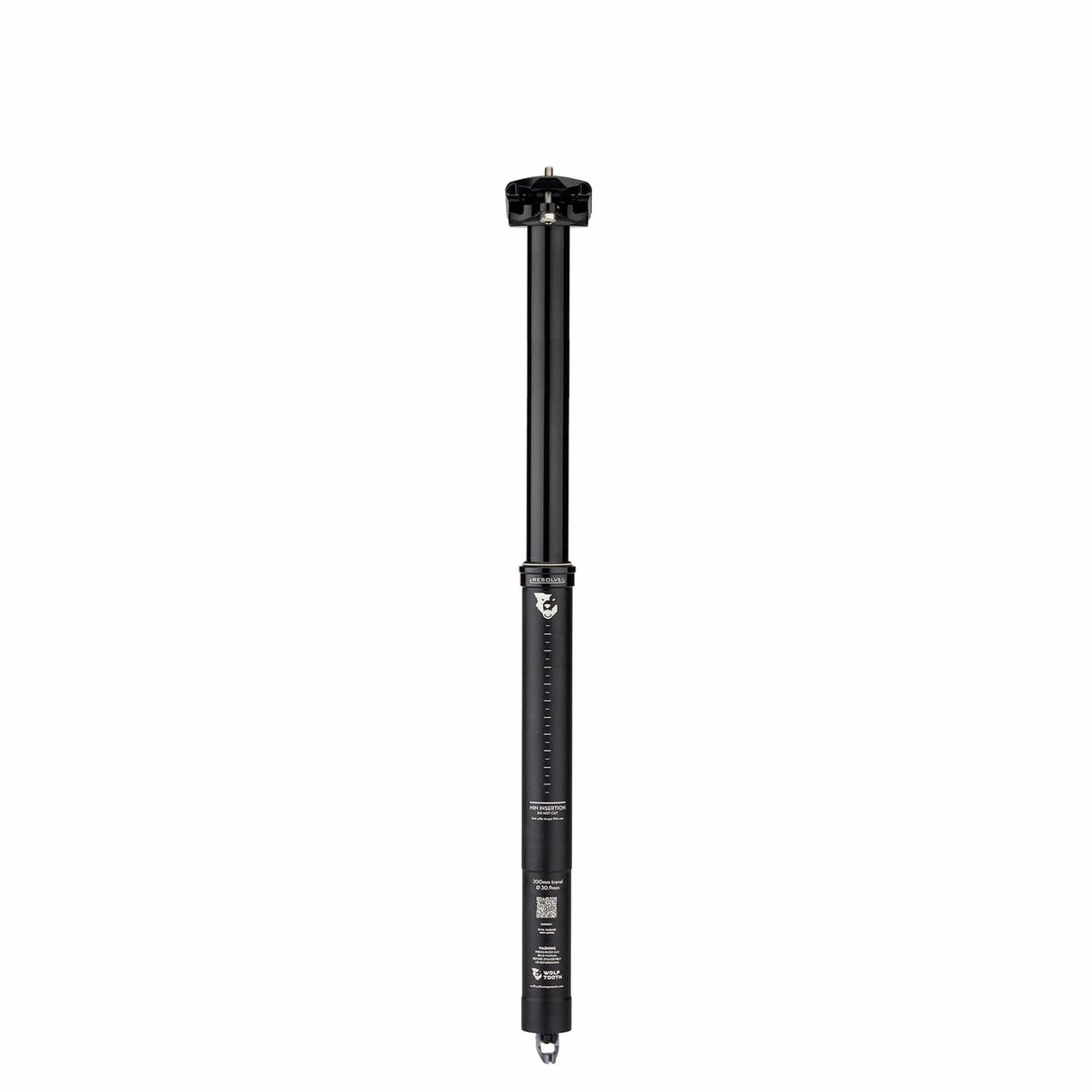

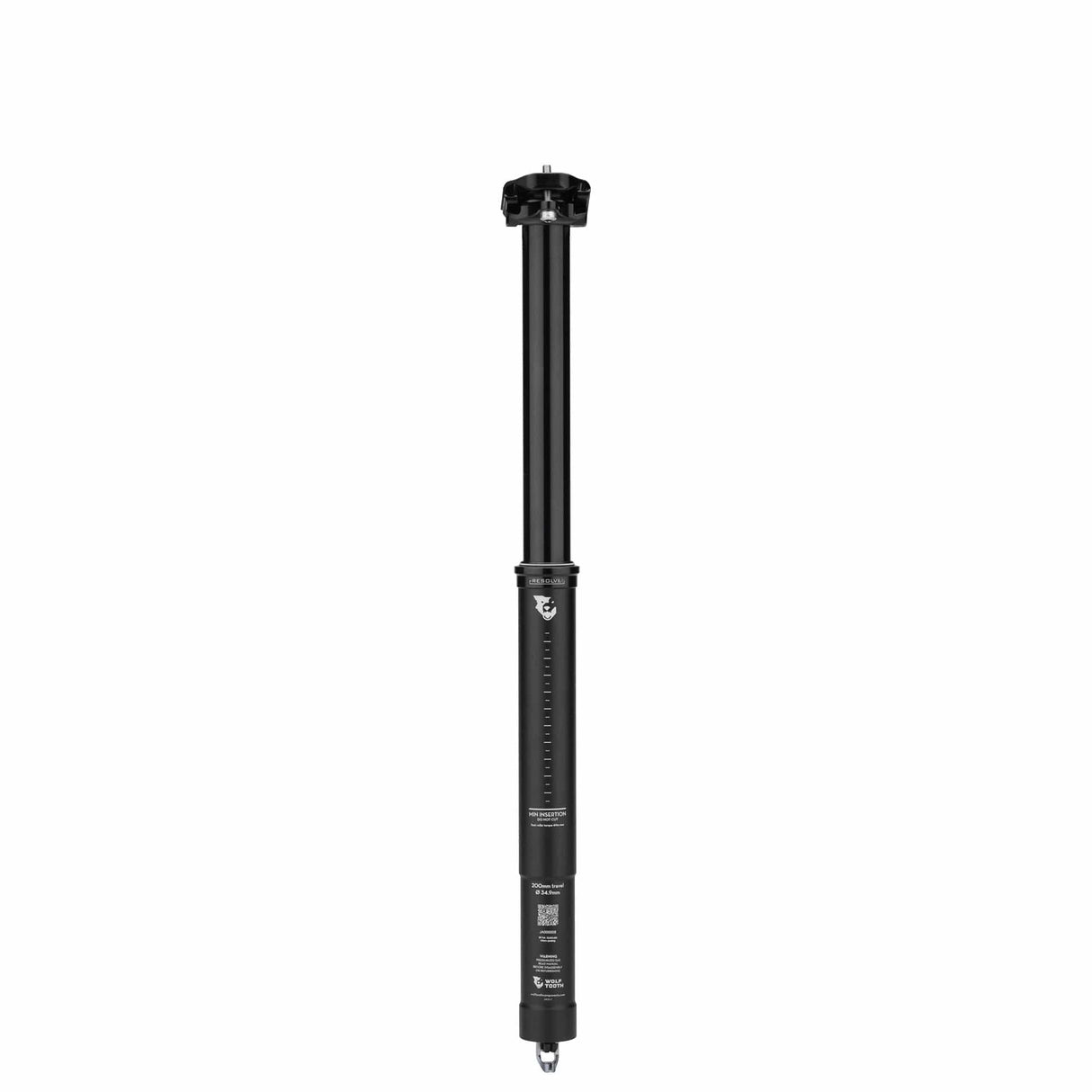

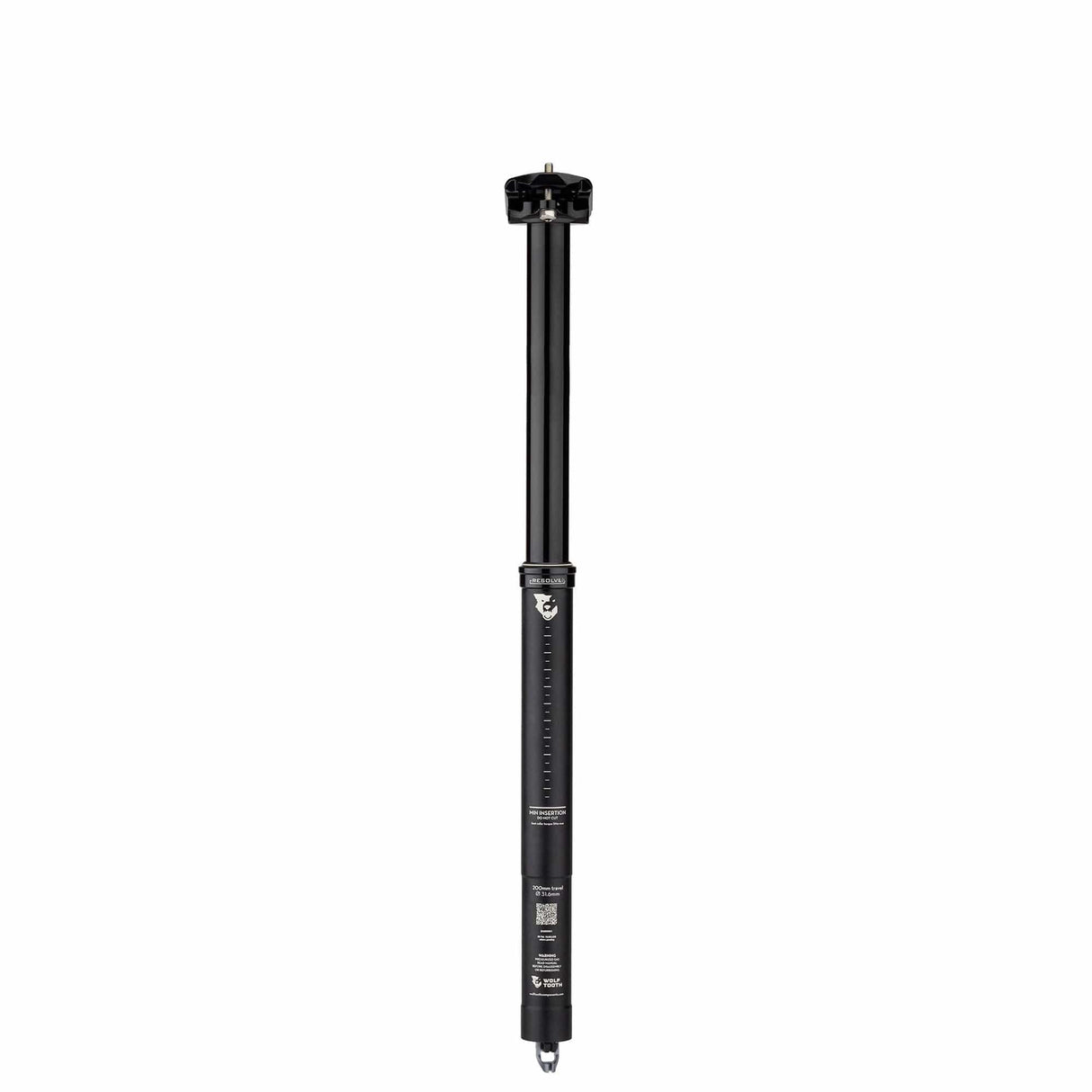

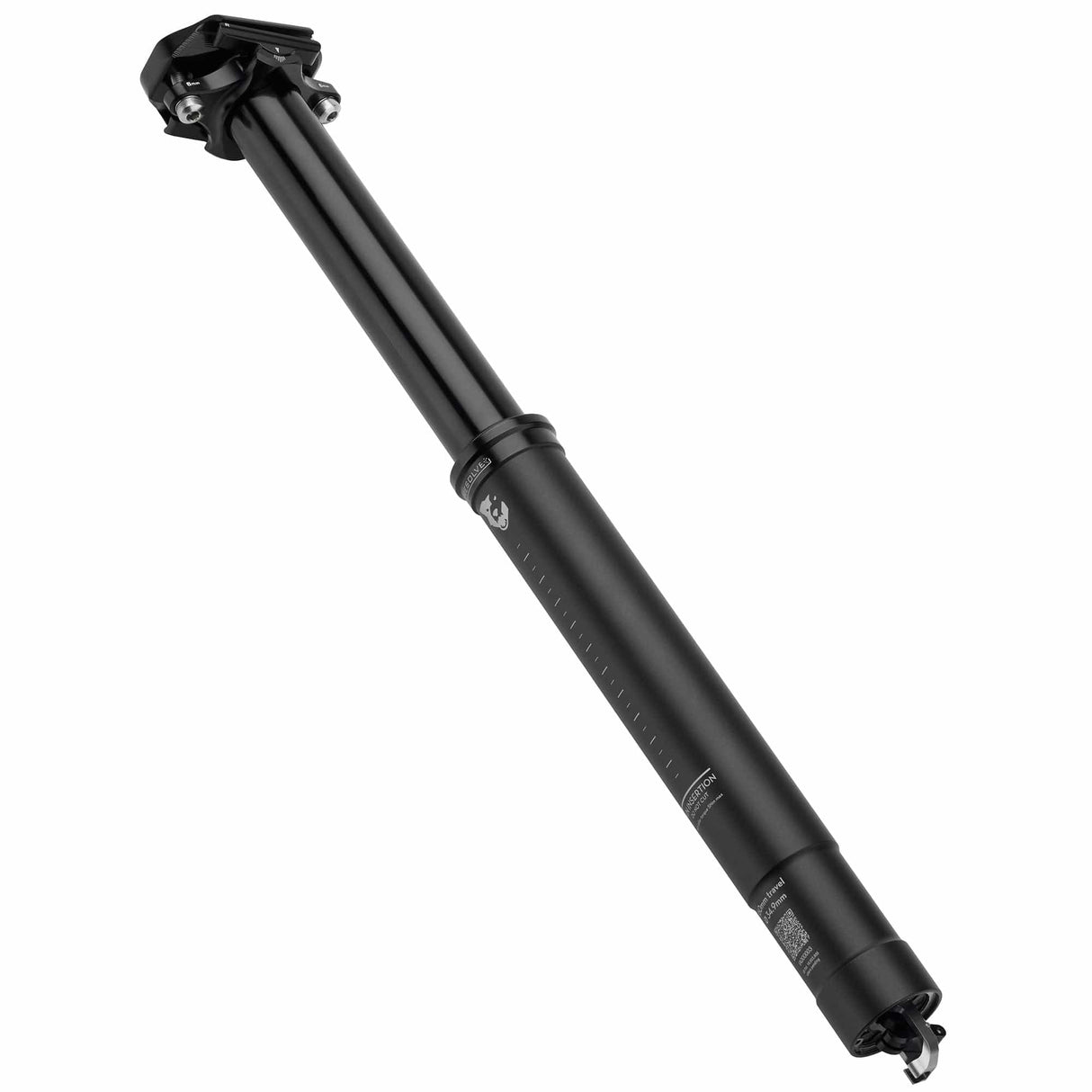

Wolf Tooth Resolve Dropper Post rev2

Wolf Tooth Resolve Dropper Post rev2 Info

Wolf Tooth Resolve Dropper Post rev2 is a precision-engineered, self-bleeding dropper post designed for riders who demand long-term reliability, smooth actuation, and fully serviceable performance. Built around Wolf Tooth’s innovative cartridge system and supported by their Right to Repair philosophy, the Resolve rev2 delivers consistent function in demanding trail, enduro, and eMTB applications.

Available in 30.9mm, 31.6mm, and 34.9mm diameters with internal routing, the Resolve Dropper Post rev2 is compatible with modern frames that accept internally actuated droppers. Travel options range from 125mm up to 242mm, allowing riders to maximize saddle drop while maintaining proper insertion depth. Travel adjustment spacers can be installed to reduce extension, and custom builds are available with factory-installed spacers.

The self-bleeding cartridge automatically purges air during full compression, maintaining smooth, consistent performance over time. For proper operation, the post must be able to fully bottom out—products that limit downward travel are not recommended. Extension limiting is acceptable and can be achieved using Wolf Tooth travel adjust spacers.

Resolve Dropper Post rev2 Specs at a Glance

• Diameters: 30.9mm | 31.6mm | 34.9mm
• Travel Options: 125mm | 160mm | 200mm | 242mm
• Routing: Internal cable routing
• Stack Height: 32mm (Extended Length – Travel)
• Saddle Rail Clamp Torque: 6 Nm
• Seatpost Clamp Max Torque: 4 Nm
• Rider Weight Limit: 120 kg / 264 lbs

Weights (Post Only)

• 125mm: 30.9 – 441g | 31.6 – 457g
• 160mm: 30.9 – 491g | 31.6 – 511g | 34.9 – 584g
• 200mm: 30.9 – 545g | 31.6 – 564g | 34.9 – 648g
• 242mm: 30.9 – 601g | 31.6 – 621g | 34.9 – 711g

Compatibility

• Compatible with frames designed for internal cable routing droppers.
• Minimum insertion depth is marked on the lower tube and varies by travel length (90–182mm).
• Always follow the frame manufacturer’s minimum insertion recommendation if greater.
• Compatible with e-bikes using conventional dropper mounting and actuation systems.
• If your dropper lever routes the cable head at the handlebar, a knarp cable barrel is required (sold separately).

Included & Service Notes

• Included: Dropper post, cable and housing kit, cable barrel
• Not Included: XZN-16 socket tool (required for service)
• Self-bleeding function requires full compression of the post.
• Compatible with Wolf Tooth ReMote Pro and ReMote 360 dropper levers.

Design Benefits

1. Self-Bleeding Cartridge: Maintains consistent performance by automatically purging air during full compression.
2. Travel Flexibility: Wide range of travel options with adjustable spacers.
3. Serviceable Design: Replacement parts and rebuild instructions available for long-term ownership.
4. Wide Compatibility: Multiple diameters and e-bike compatibility support modern builds.

Final Take

The Wolf Tooth Resolve Dropper Post rev2 is a highly refined, fully serviceable dropper solution built for riders who expect reliability and adjustability. With self-bleeding cartridge technology, broad travel options, and precise engineering, it delivers smooth actuation and dependable performance across trail, enduro, and eMTB platforms.
