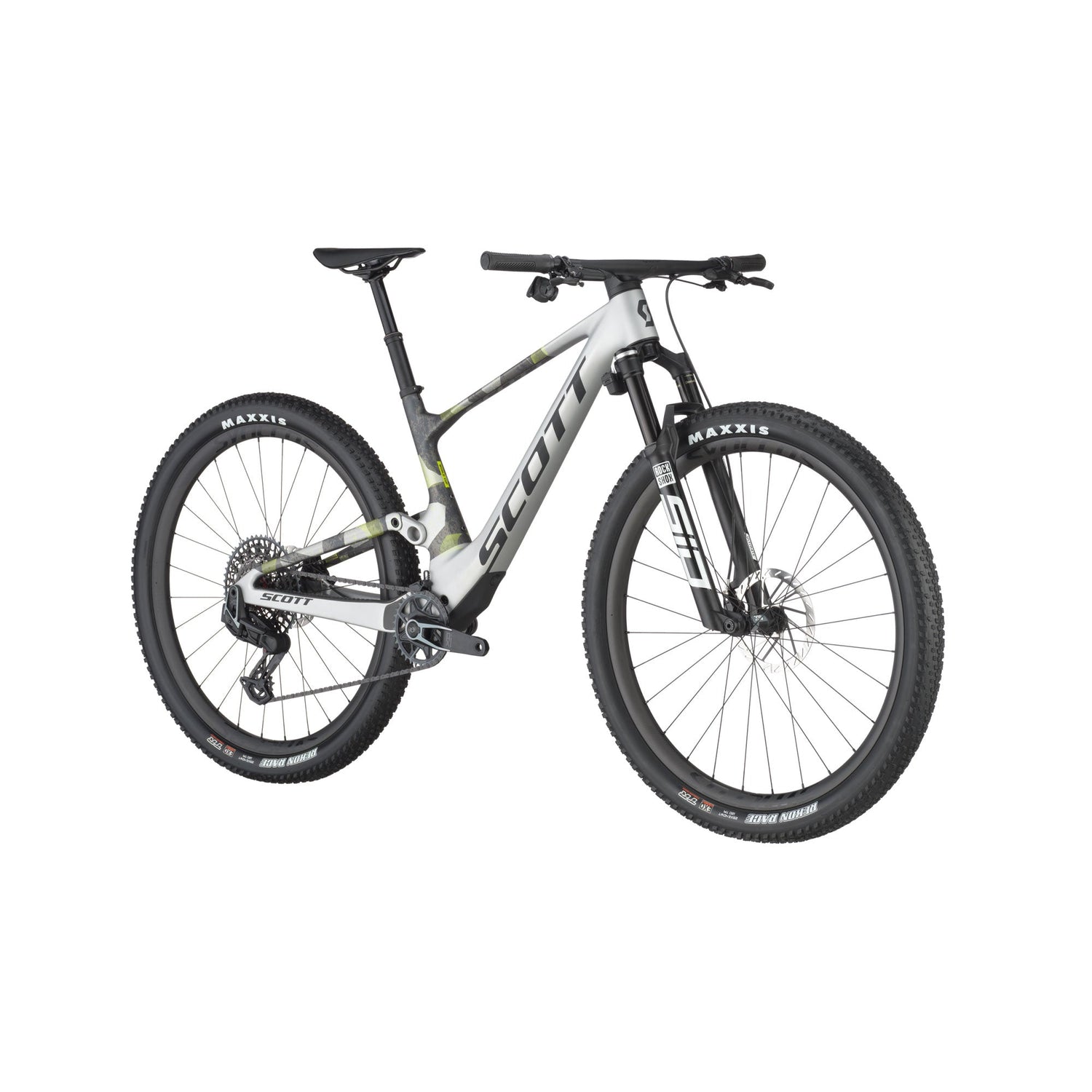

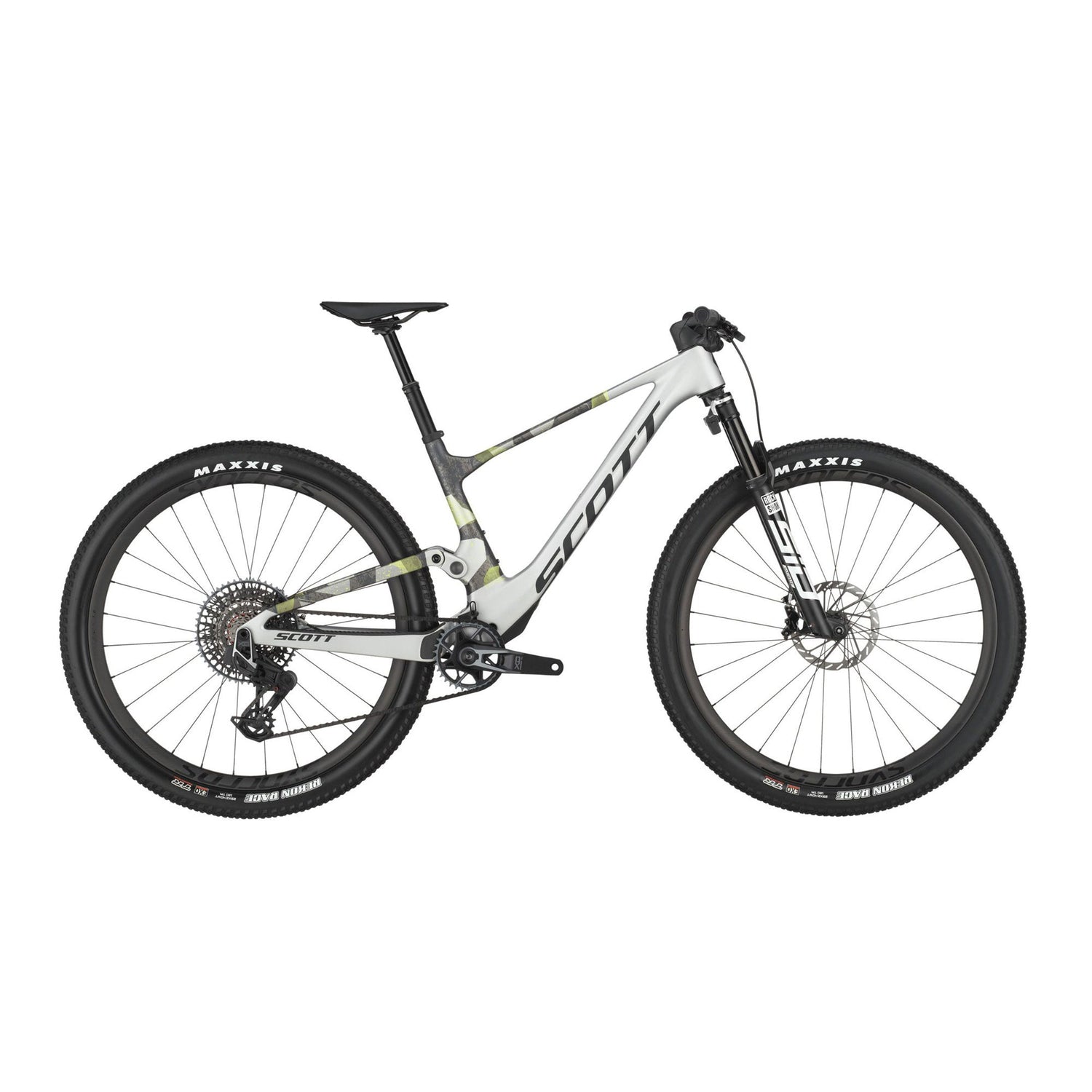

Scott Spark RC World Cup Bike
$9,99999
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
and
Scott | SKU: 4231287960006
| Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Scott Spark RC World Cup Bike
$9,99999
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Scott Spark RC World Cup Bike Specifications
Frame Material:
Spark RC Carbon HMF
Fork:
RockShox SID Ultimate Flight Attendant / Electronically controlled suspension / FA Race Day damper 3 Modes / 15x110mm Maxle Stealth / 44mm offset / Lockout / Reb. Adj. / 120mm travel
Rear Suspension:
RockShox SIDLuxe Ultimate Flight Attendant Custom / Electronically controlled suspension / 3 Modes Lockout-Pedal-Descend / Solo Air / Reb. Adj./ Lockout / Travel 120mm / T165X45mm
Headset:
Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment / ZS56/28.6 – ZS56/40 MTB
Seatpost:
Syncros Duncan Dropper Post 1.5XC / 31.6mm / 100mm (All Sizes)
Rear Derailleur:
SRAM X0 Eagle AXS Transmission
Crankset:
SRAM X0 Eagle Transmission DUB w/Power Meter
Chainrings:
34T
Bottom Bracket:
SRAM DUB PF92 MTB Wide / Shell 41x92mm
Brake Calipers:
SRAM Level Silver Stealth 4-Piston
Brake Levers:
SRAM Level Silver Stealth 4-Piston
Rotors:
SRAM HS2 6-Bolt 180mm (Front), 160mm (Rear)
Shifters:
SRAM AXS Rocker Pod Controller
Cassette:
SRAM XS1295 12-speed 10-52
Chain:
SRAM X0 Eagle Transmission 12-speed
Wheel - Front:
Syncros Silverton 1.0-30 / 6 Bolt / Tubeless Ready
Wheel - Rear:
Syncros Silverton 1.0-30 / 6 Bolt / Tubeless Ready
Stem:
Syncros Fraser iC SL XC Carbon / -12° rise / Back sweep 8° / 740mm
Handlebar:
Syncros Fraser iC SL XC Carbon / -12° rise / Back sweep 8° / 740mm
Saddle:
Syncros Belcarra Regular 1.5 Titanium rails
Tires:
Maxxis Rekon Race 29x2.4"
Grips:
Syncros Performance XC Lock-on
Pedals:
Not Included
Travel:
120mm/120mm
*Specifications are subject to change.
Scott Spark RC World Cup Bike Geometry
Size:
S
M
L
XL
B. Seat Tube (c-t)
415
440
490
540
C. Top Tube Length
562
590
614
642
D. Head Tube Length
90
90
105
115
E. Chain Stay Length
437.5
437.5
437.5
437.5
F. BB Drop
45
45
45
45
G. Seat Tube Angle
75.9
76.1
76.6
76.9
H. Head Tube Angle
67.2
67.2
67.2
67.2
I. Stand Over Height
758
765
776
799
J. Wheel Size
29''
29''
29''
29''
K. Stack
602.5
602.5
616
625
L. Reach
411
441
471
501
Stem Length
50mm
60mm
70mm
80mm
Bar Width
740mm
740mm
740mm
740mm
M. Crank Length
170mm
175mm
175mm
175mm
