Rotor 3D+ MAS Road Crank

$199⁹⁹ $520⁰⁰

RA price match promise
Pay later with , and

Bolt Pattern

110bcd

Color

Black

Crank Length

170mm 175mm

In Stock Ships Immediately

Rotor | SKU: C02-058-21010-001 | Option: 110bcd, Black, 175mm

This product is HSA / FSA eligible

This item is "Final Sale" and cannot be returned or exchanged

This item is "Final Sale" and cannot be returned or exchanged. Once the order is processed, labeled, or shipped, the order cannot be canceled.

Every item goes through quality control prior to shipping. If there are any imperfections or issues, you will be notified prior to the order being processed.

Items on "Final Sale" are for online only. These items are not at our physical stores for purchase.

Pickup currently unavailable at RA Cycles - Brooklyn

Questions about this product?

* Product image may vary. Refer to the description for accurate details.

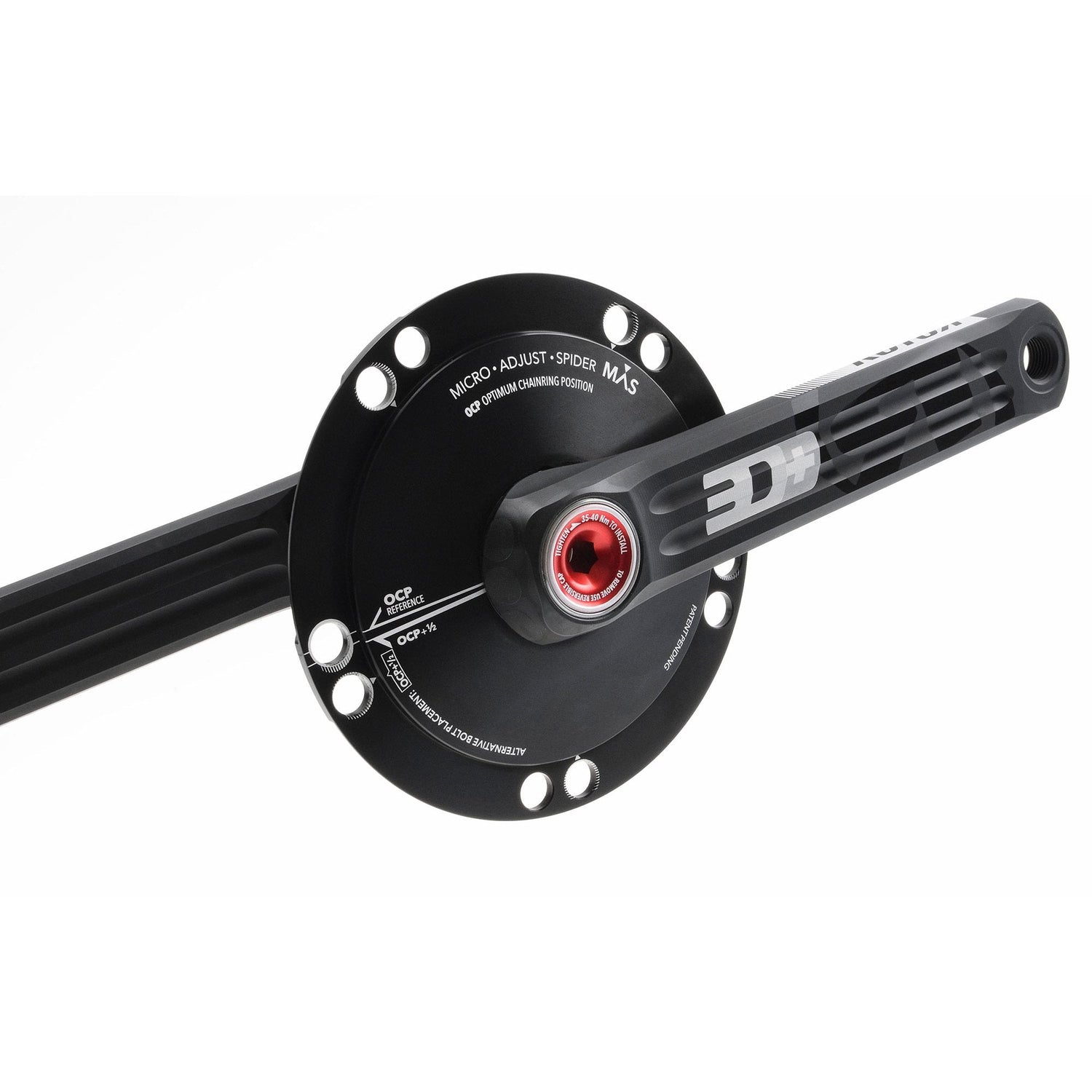

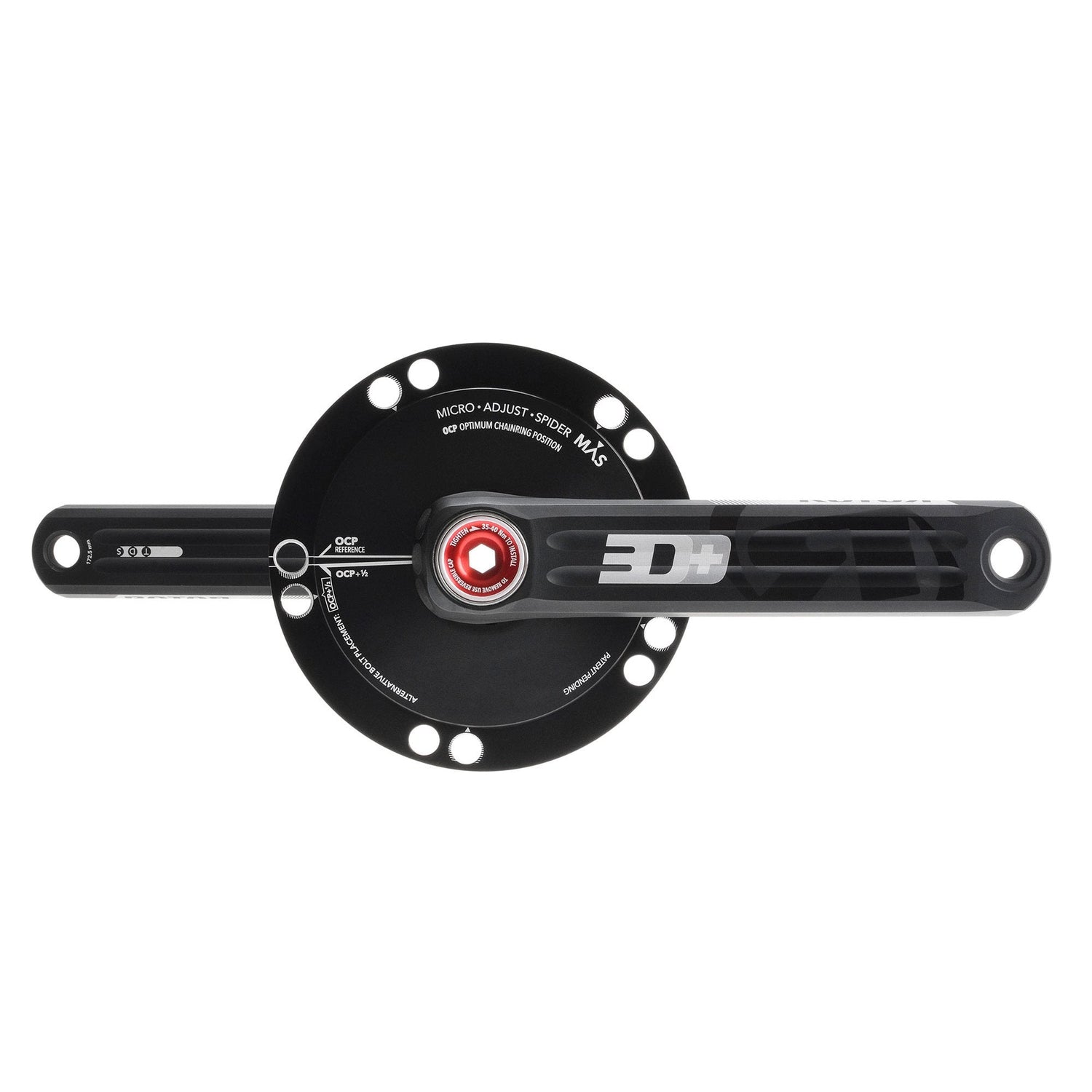

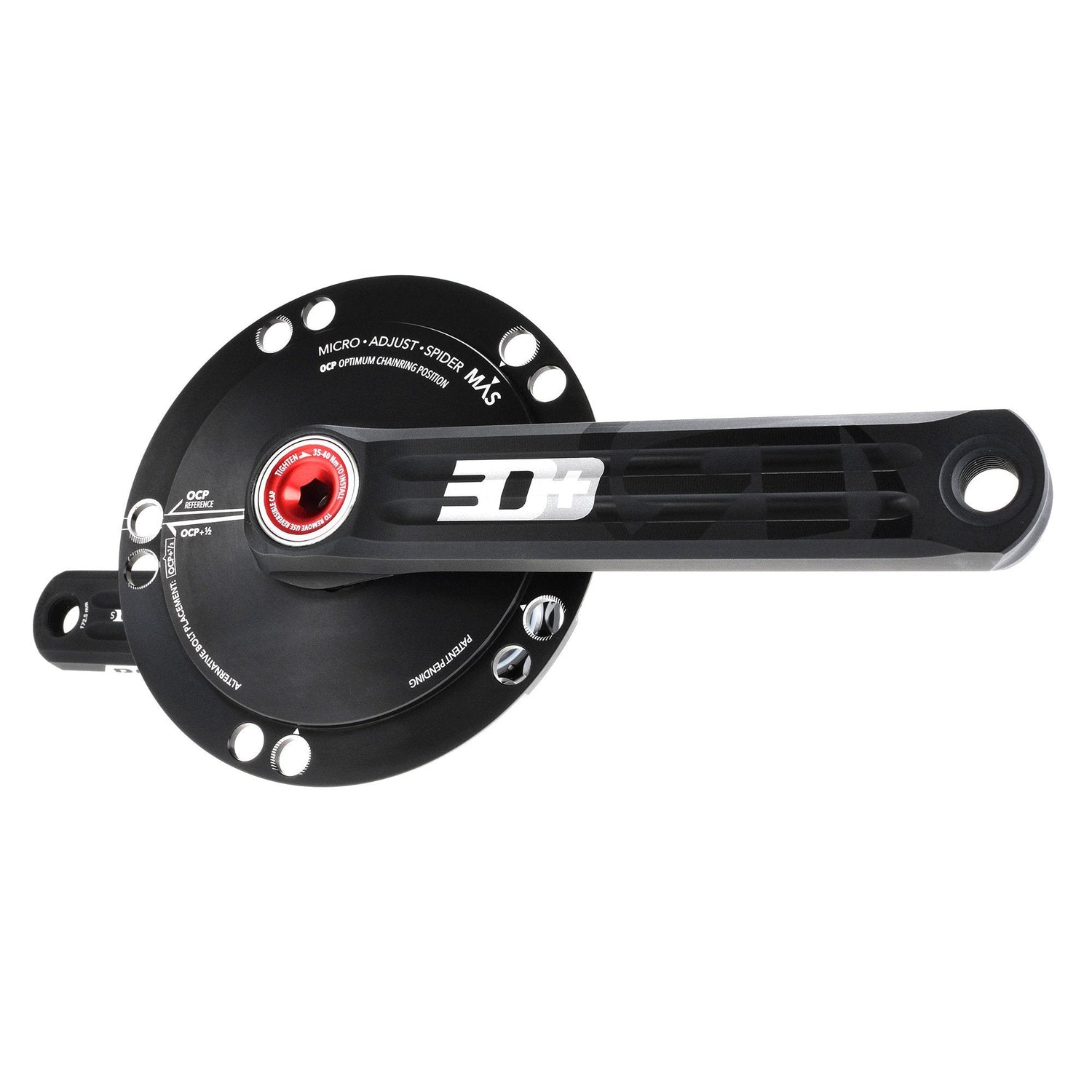

Rotor 3D+ MAS Road Crank Info

The Rotor 3D+ MAS Road Crank was built for riders who want precise control over their chainring positioning — specifically those running Rotor's oval Q or QXL rings. MAS stands for Multiple Adjust Spider, and it's what makes this crank distinct: the five-arm spider is drilled with multiple mounting positions, giving you more OCP (Optimum Chainring Position) adjustment options than a fixed spider allows. If you're dialing in an oval ring setup, that flexibility matters.

The arms are forged from 7055 aluminium alloy, then CNC-milled on both the exterior and interior. Rotor's Trinity Drilling System runs three hollow channels through the length of each arm — a design that strips weight without sacrificing the lateral stiffness you need when you're putting real power down. The 30mm thru-axle is compatible with Rotor's UBB system, which spans English-threaded, Italian, BB30, PF30, BBright, BB386EVO, and BB86 bottom bracket standards. One crank, multiple frames — no standard-chasing required. The spider is available in 110mm BCD, suited to compact double chainring setups.

Rotor 3D+ MAS Road Crank Specs at a Glance

Material: Forged 7055 aluminium alloy, CNC-milled interior and exterior
Spider: 5-arm, 110mm BCD
Crank arm lengths: 170mm, 175mm
Bottom bracket compatibility: UBB system — English, Italian, BB30, PF30, BBright, BB386EVO, BB86
Axle diameter: 30mm thru-axle
