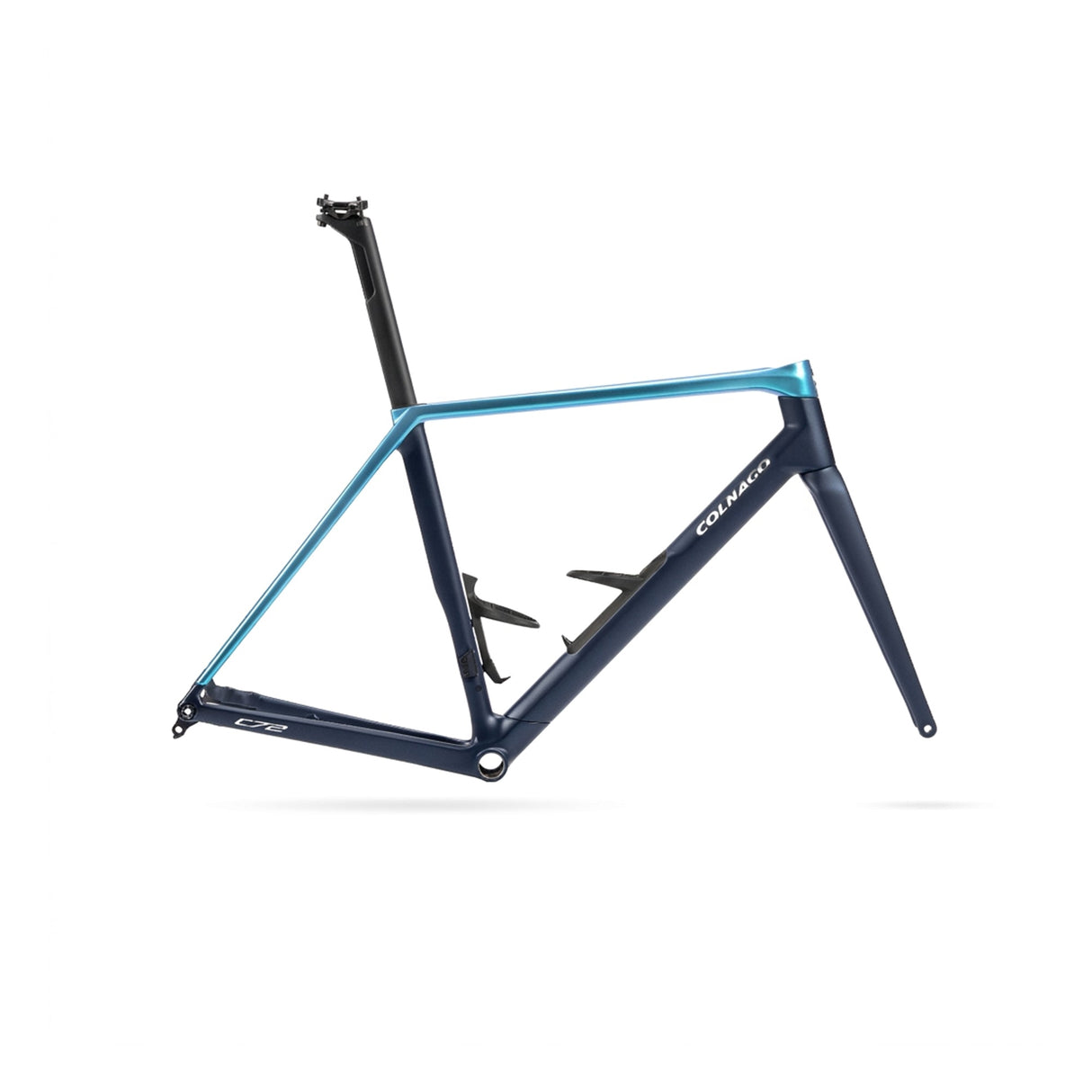

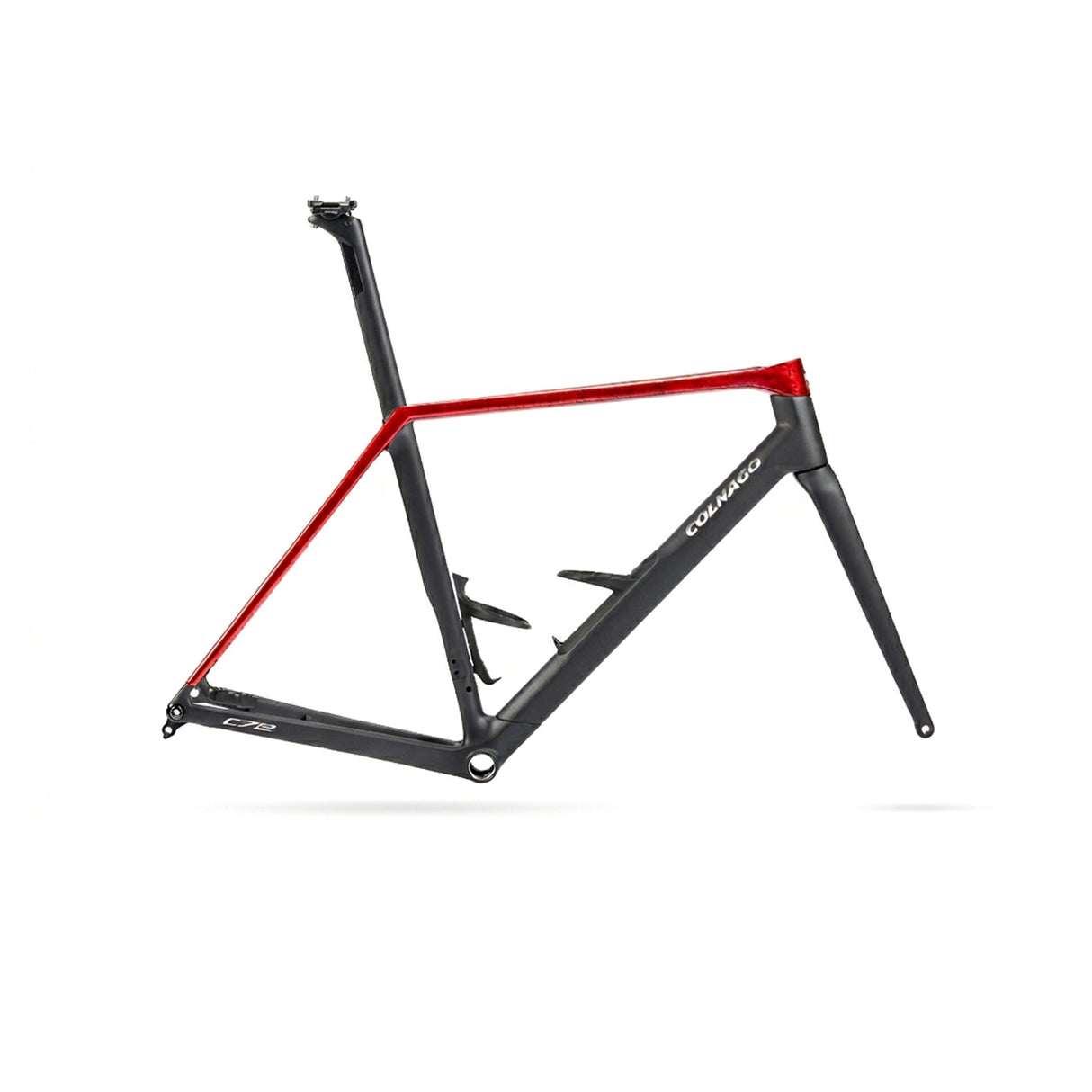

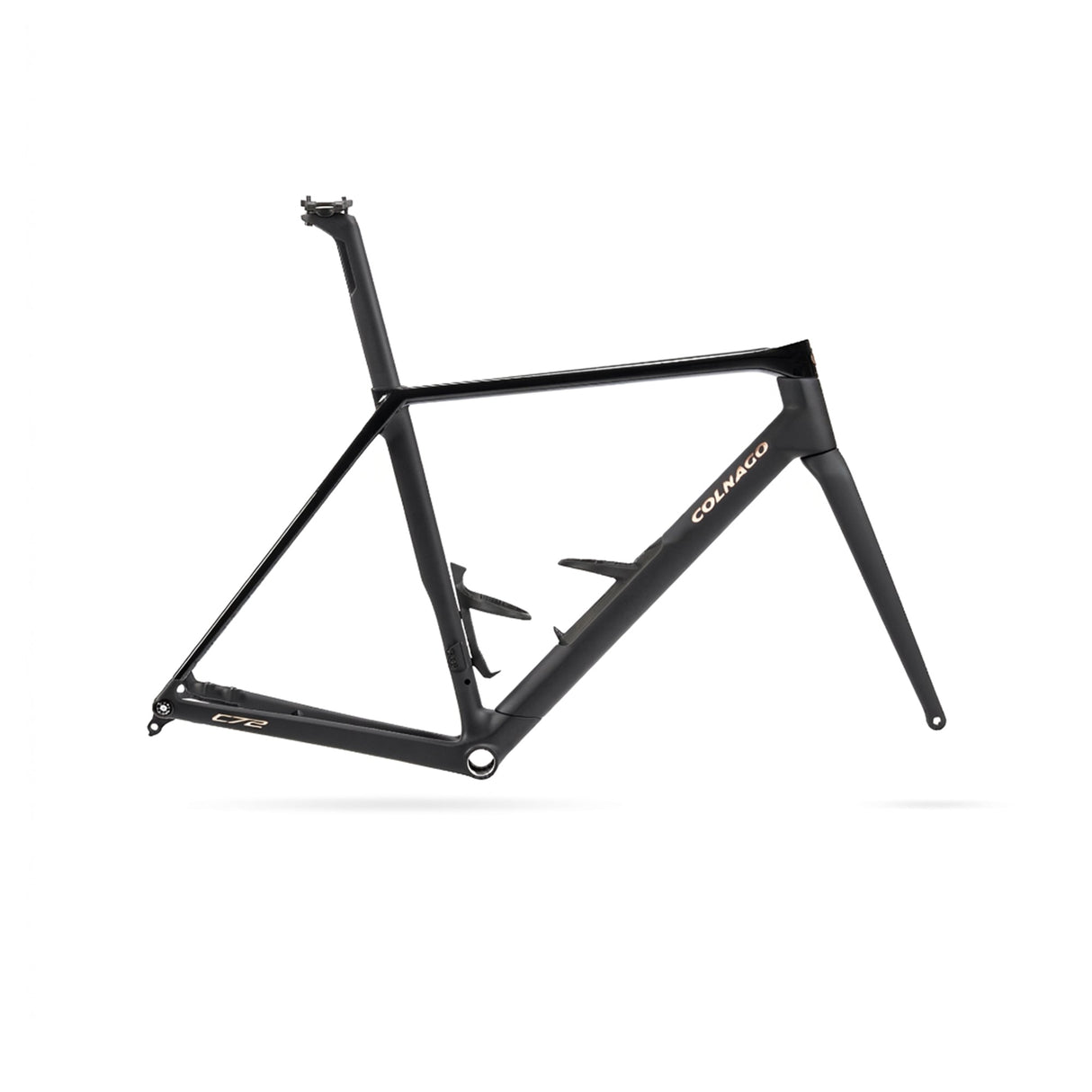

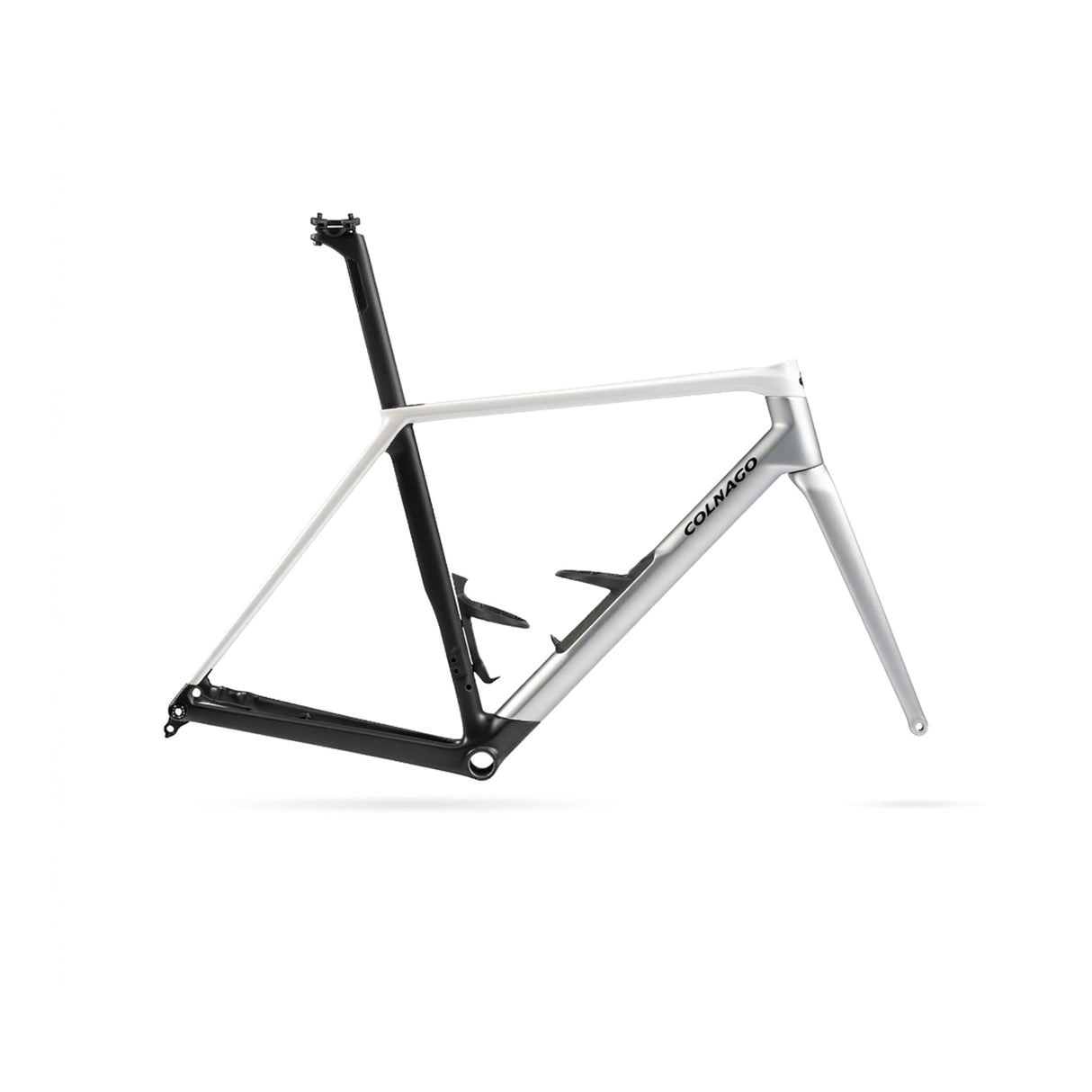

Colnago C72 Frameset
Regular price
$6,75000
Unit price
-
RA price match promise
-
Pay later with
,
and
Colnago | SKU: 1KTF.R72.0TU.420.HFRD | Option:
Pickup available at RA Cycles - Brooklyn
Usually ready in 24 hours
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Colnago C72 Frameset
Regular price
$6,75000
Unit price
* Product image may vary. Refer to the description for accurate details.
Colnago C72 Frameset - Specifications
Frame Material:
Modular carbon frame construction: 7 carbon parts
Fork:
Carbon fork for disc brakes, integrated cables, 1"1/8 section
Headset:
Integrated
Seatpost:
Carbon / 15mm offset / D-Shape section
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BSA 68mm Required
Bottle Cages:
Colnago Matte Black (2x)
Brake Type:
Flat Mount Required
Max Rider Weight:
264lbs (Rider and Equipment)
Max Tire Width:
35mm (nominal width)
*Specifications are subject to change.
Colnago C72 Frameset Geometry
Size:
42
45.5
48.5
51
53
55
57
B. Seat Tube (c-t)
420
455
485
510
530
550
570
C. Top Tube Length
505
514
526
543
563
577
591
D. Head Tube Length
101
112
129.5
148
167
187
207
E. Chain Stay Length
408
408
408
410
410
412
412
F. BB Drop
74
74
72
72
72
72
72
G. Seat Tube Angle
75.5
75.3
74.8
74.5
73.8
73.5
73.3
H. Head Tube Angle
70.8
71.6
72.5
72.9
72.9
72.9
72.9
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
K. Stack
512
525
543
562
580
599
619
L. Reach
370
375
382
387
394
402
409
