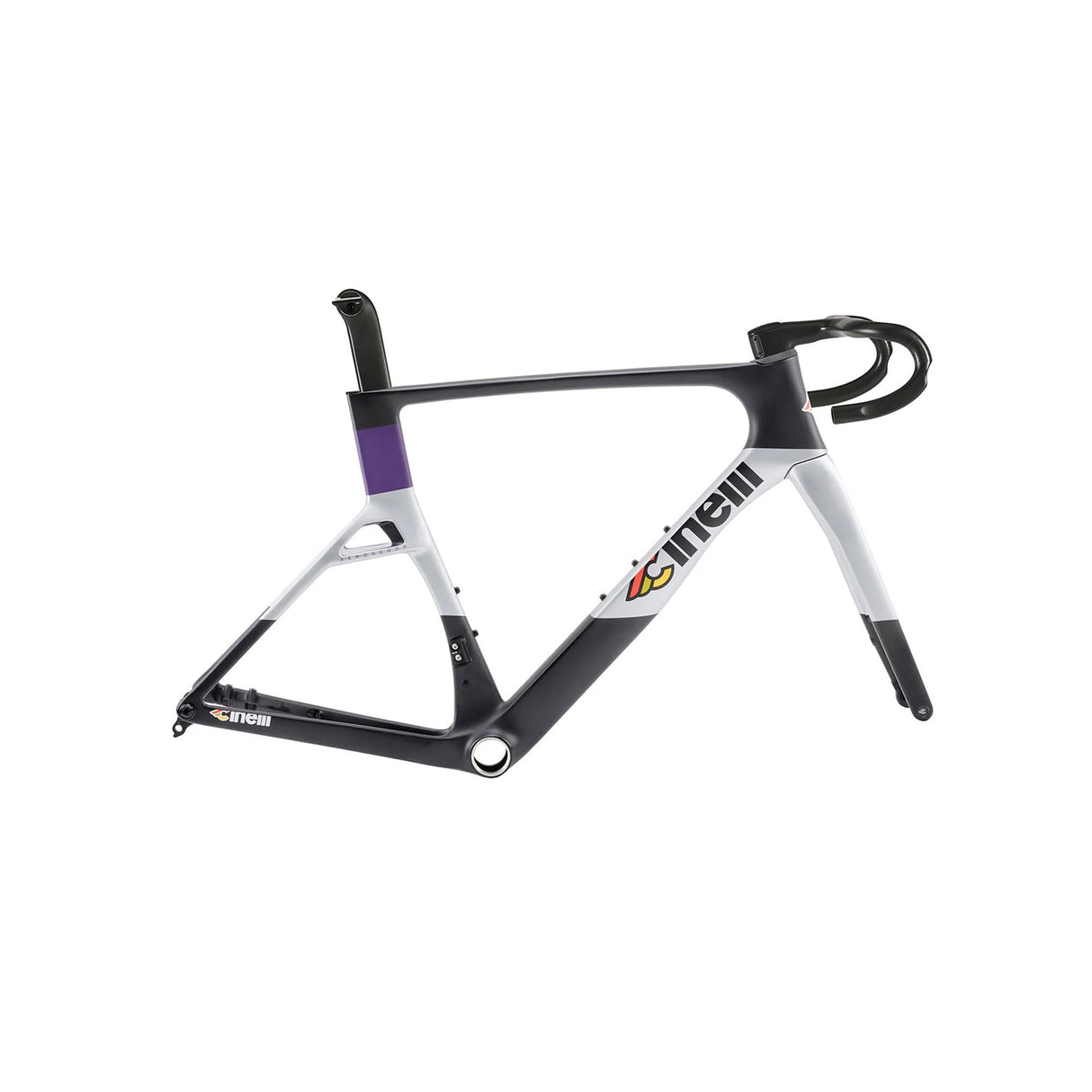

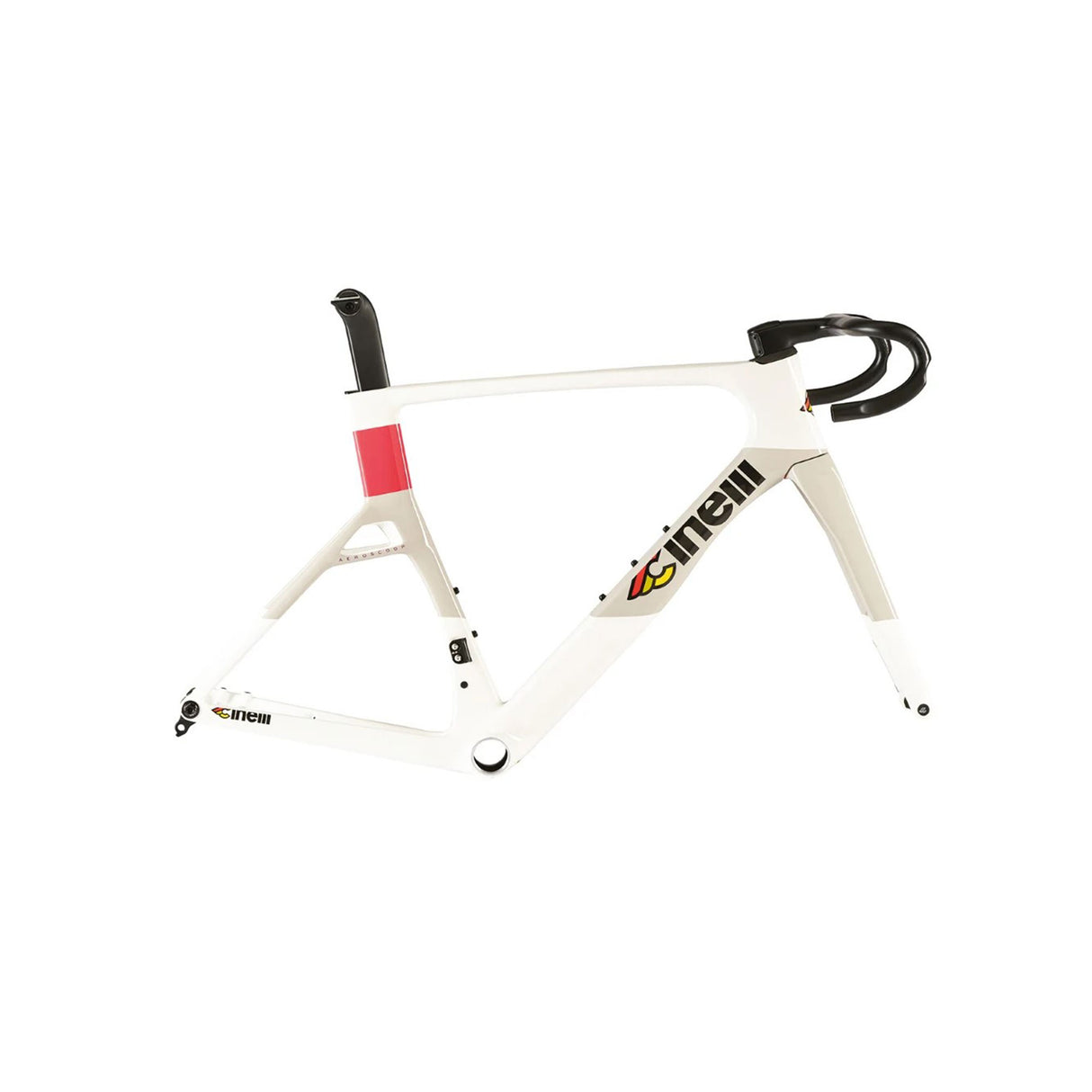

Cinelli Aeroscoop Frameset
$7,49000
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Cinelli
| SKU: 11APD1540FCW | Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Cinelli Aeroscoop Frameset
$7,49000
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Cinelli Aeroscoop Frameset - Specifications
Frame Material:
Columbus Carbon Monocoque T1100 / UDH Derailleur Hanger
Fork:
Full carbon monocoque 1-1/8" - 1-1/2" / Full internal cable routing
Headset:
IS52/28.6 - IS52/40
Seatpost:
Full carbon aero / 0/10mm offset / Carbon rail compatible
Bottom Bracket:
T47/86 Threaded Ceramic Bearings Included
Brake Calipers:
Flat Mount Required
Rotors:
Fits up to 160mm
Stem:
One-Piece Bar/Stem w/Computer Mount
Handlebar:
One-Piece Bar/Stem w/Computer Mount
Accessories:
12x100mm/12x142mm Thru Axles
Max Tire Width:
700x34 (Width as Measured)
*Specifications are subject to change.
Cinelli Aeroscoop Frameset Geometry
Size:
L
M
S
XL
XS
B. Seat Tube (c-t)
540
520
490
560
460
C. Top Tube Length
560
545
530
575
518
D. Head Tube Length
162
140
129
182
114
E. Chain Stay Length
410
410
410
410
410
F. BB Drop
68
68
68
68
68
G. Seat Tube Angle
73.5
73.5
73.5
73.5
73.5
H. Head Tube Angle
72.5
72
71.5
73
71
J. Wheel Size
700c
700c
700c
700c
700c
K. Stack
562
539
527
583
511
L. Reach
394
385
375
402
366
Stem Length
110mm
100mm
100mm
120mm
90mm
Bar Width
38cm
38cm
38cm
41cm
36cm
