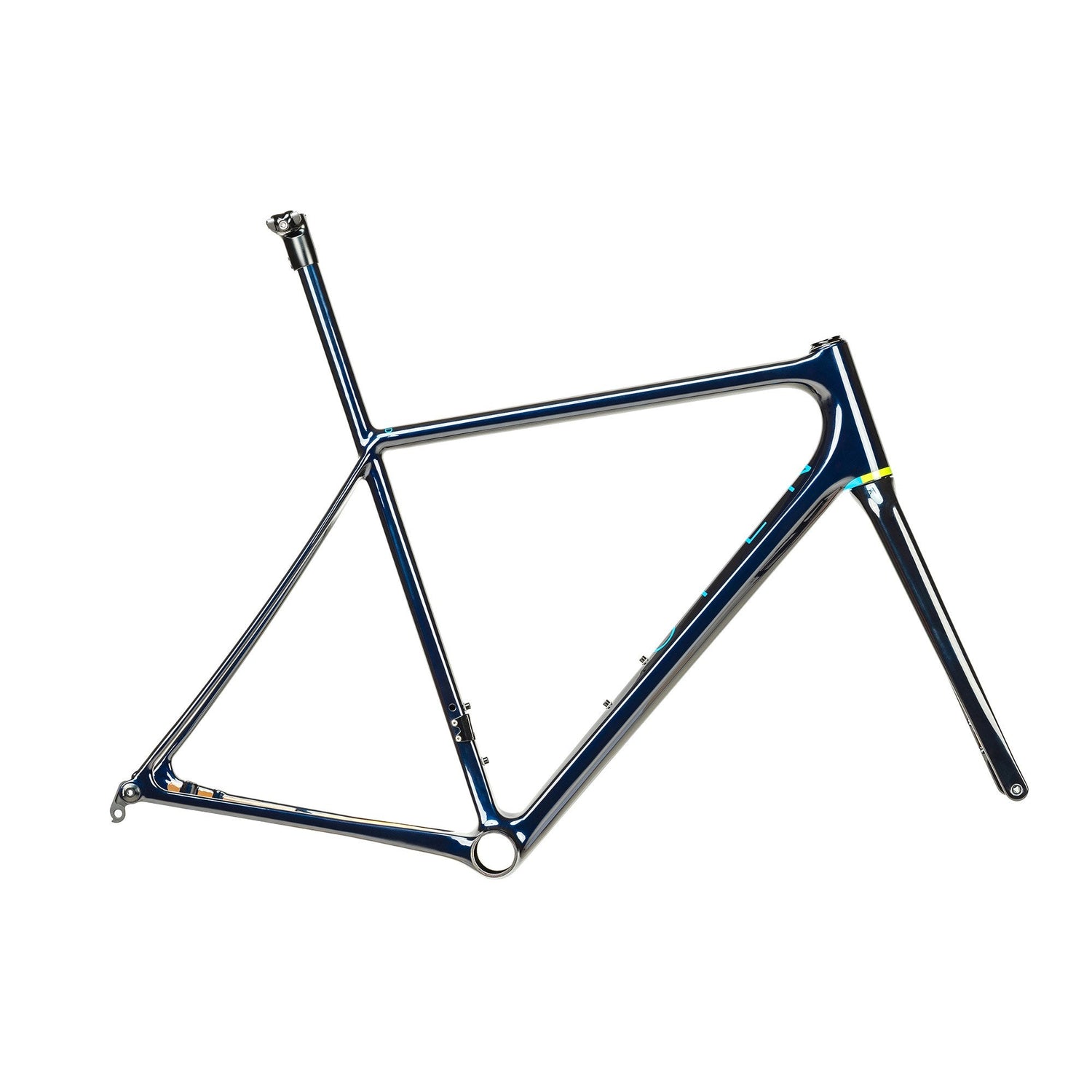

OPEN MIN.D. Frameset for 1x Info

Typically known for their gravel bikes, OPEN decided to transfer some of their off-road innovation into a performance road machine. The result was the OPEN MIN.D, one of the most user friendly road bikes ever to hit the market. OPEN designed this as the road bike that they would want to ride. The frame balances a low weight with top of the line power transfer, and the best possible comfort in the performance road category. OPEN was sure to keep the OPEN MIN.D as simple as possible in terms of design. They simply wanted to make a road bike that would cover all bases for an enthusiastic rider who wants performance in all areas. Keeping with that theme, the MIN.D has the simple yet sleek aesthetic that riders have come to expect from OPEN, giving them yet another powerhouse frame for riders to enjoy.

When it comes to comfortable performance, no one does it better than OPEN. The OPEN MIN.D. The integrated seat tube has a diameter of just 25mm, creating one of the most comfortable saddle experiences available. The tube and post blend uninterrupted, removing overlap between the two, making the compliance of the frame more effective. The seat to bar reach combines comfort and speed while also blending solid stability with quick agility. As one would expect from an OPEN bike, the MIN.D has the ability to veer off the road. With room for 32mm tires, there is no challenge too big for the OPEN MIN.D.

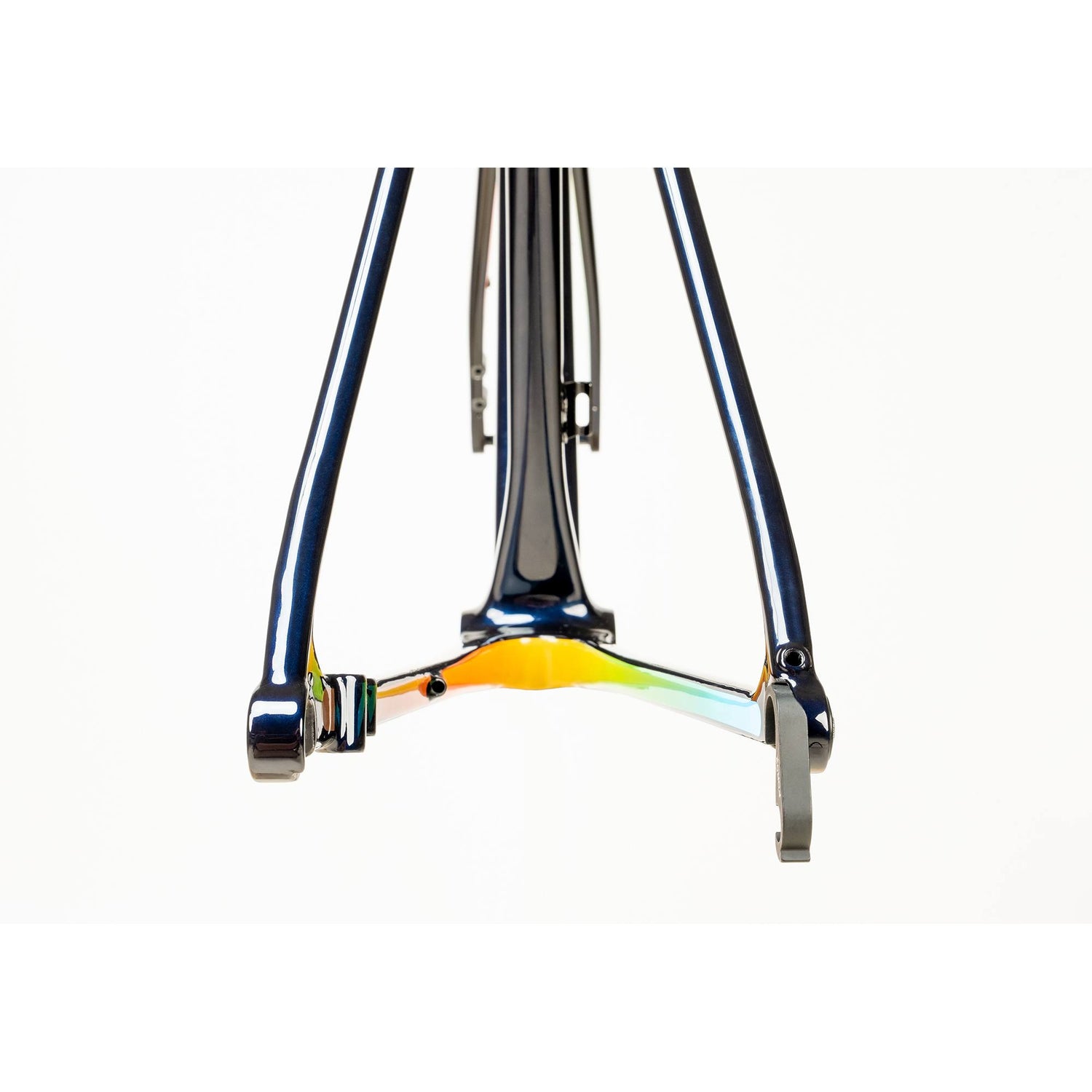

Years of experience experimenting with gravel bikes were considered when dialing in the pure road bike geometry of the OPEN MIN.D. This resulted in testing various headtube and chainstay lengths before settling on what OPEN feels is a new generation of road handling. They also found an incredibly efficient tube shape which resulted in low weight and high strength. This leads to incredible power transfer and speed, making the OPEN MIN.D far more than just a comfortable road bike. The Wire Thin chainstays are extremely narrow, providing unbeatable vertical compliance and powerful forward propulsion. With the new OPEN MIN.D riders will never have to choose between feeling good and going fast again.

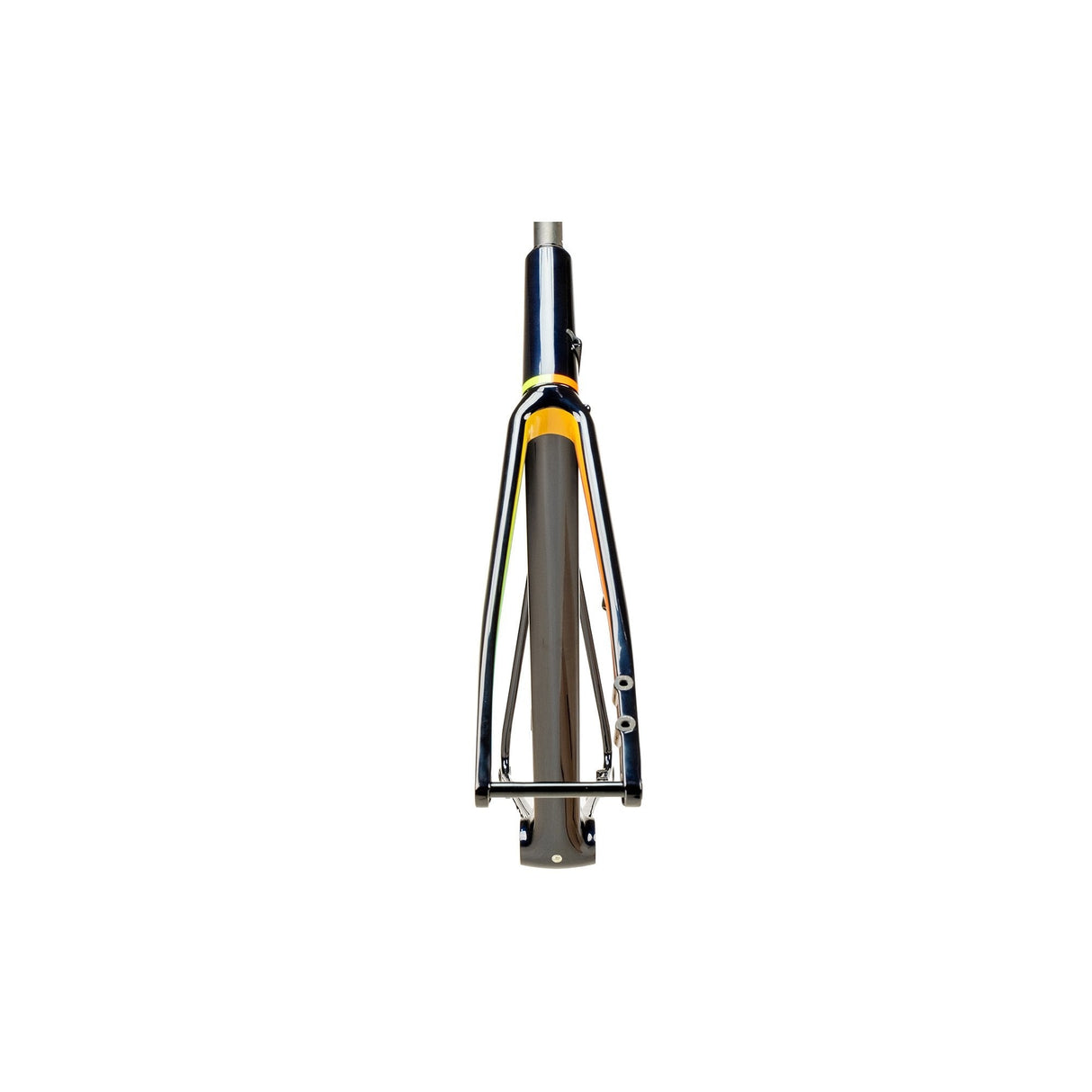

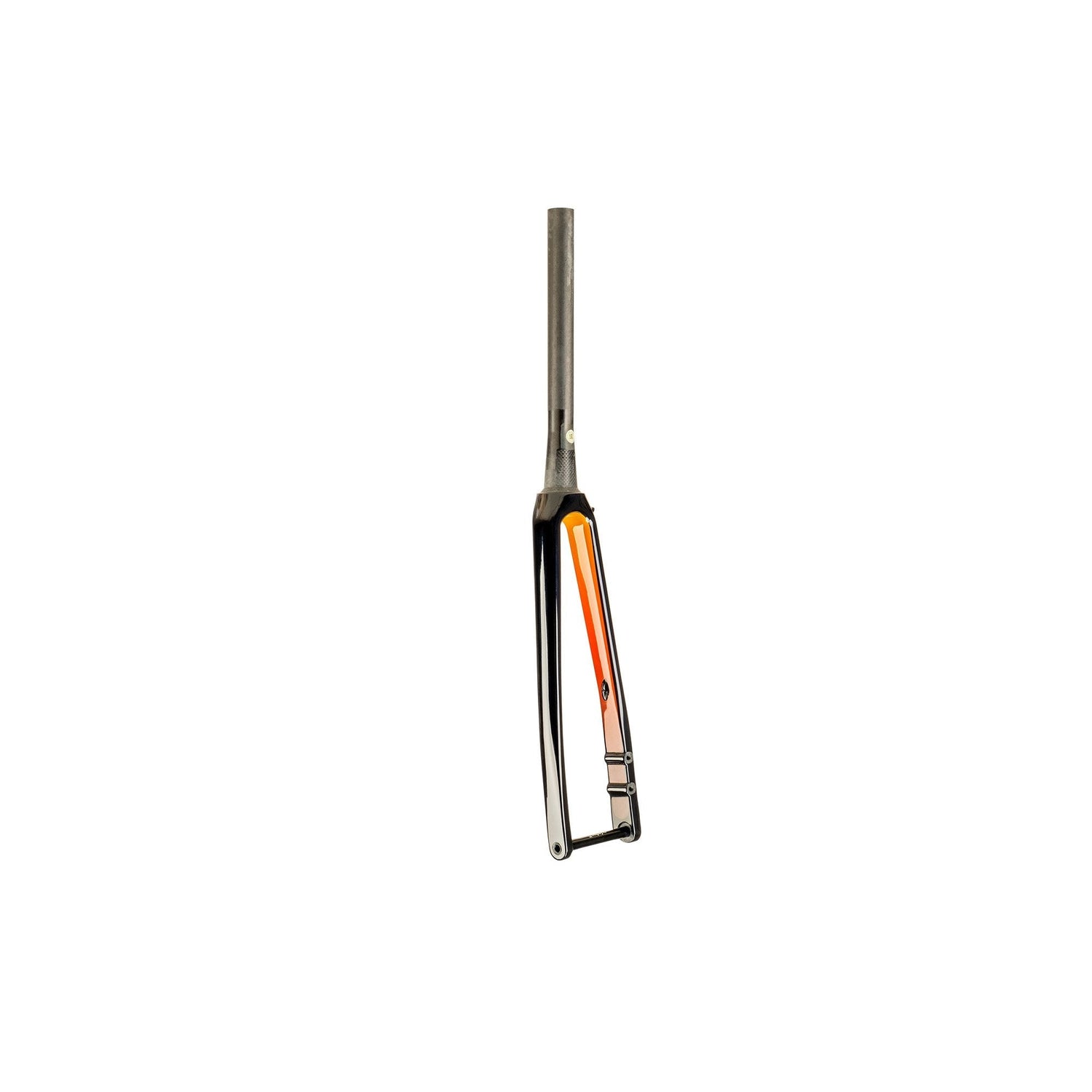

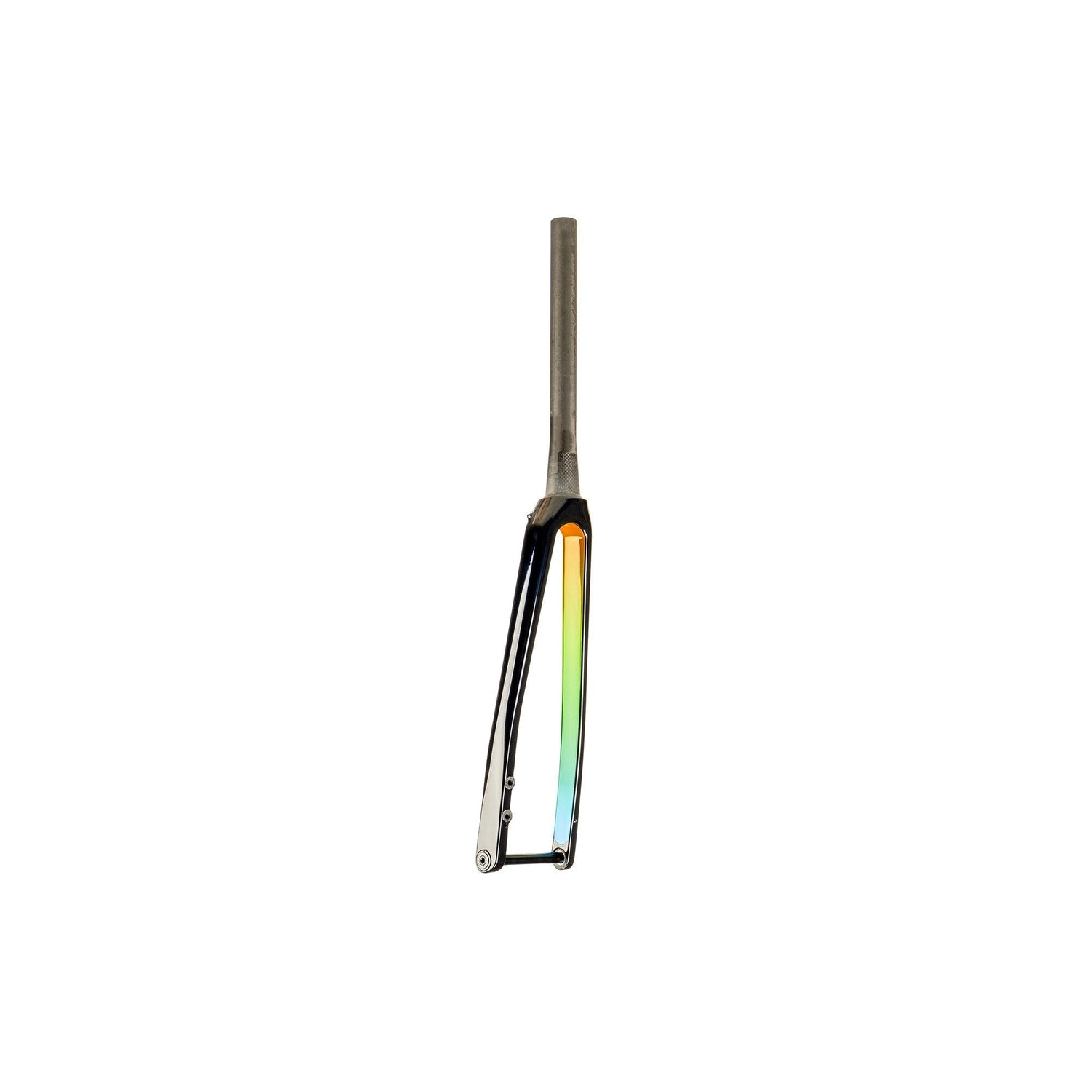

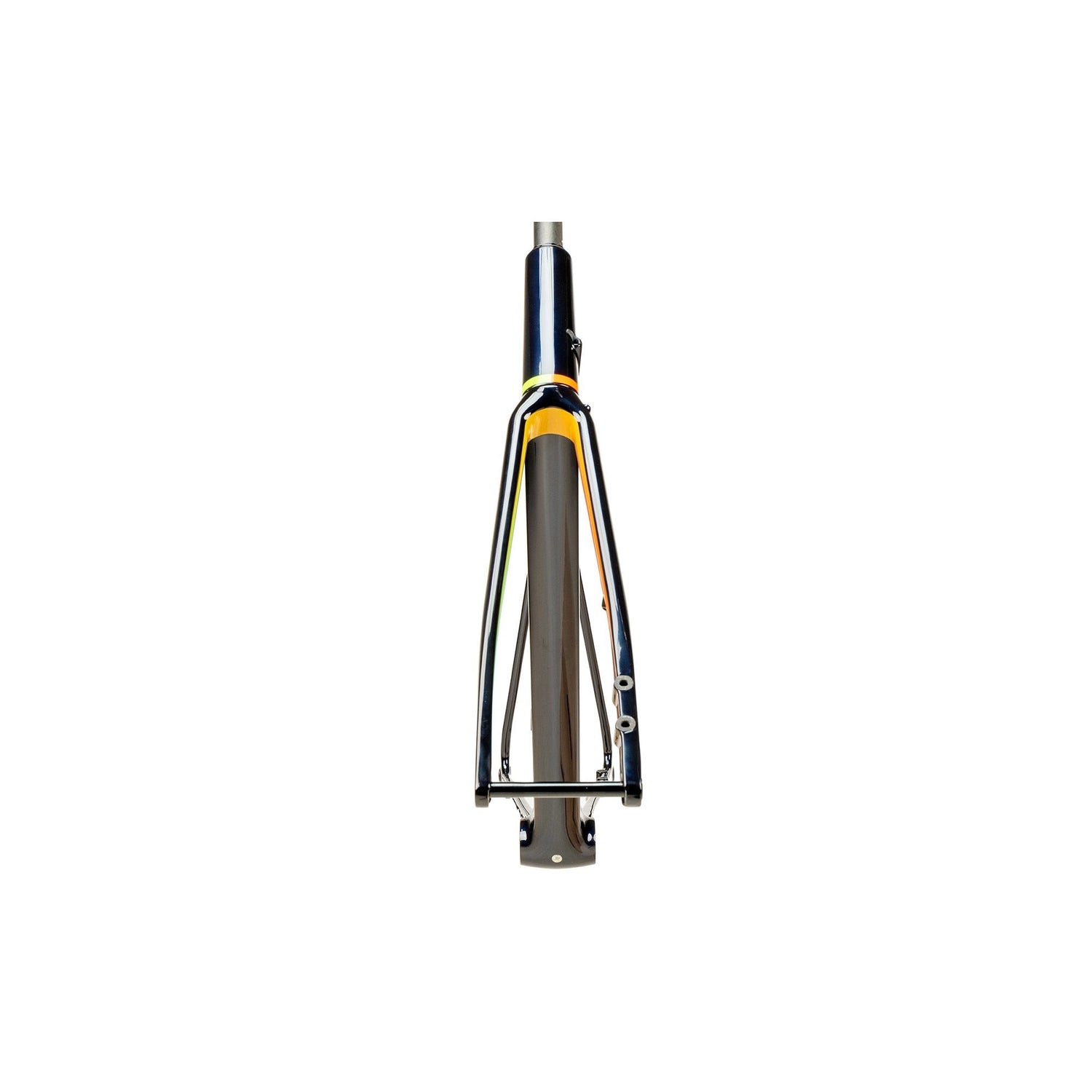

An evolution of the OPEN U-Turn Fork, this bike utilizes the R-Turn Fork. This fork takes away any need for an adapter when switching between 140mm and 160mm rotors, taking away unnecessary weight and adding to the control of the bike. It is also designed specifically to accommodate 1x groupsets, a favorite of endurance riders. This frameset can help you make the best all-around bike in your arsenal. Incredibly low weight, excellent power, and unmatched comfort are all an option with the OPEN MIN.D.

OPEN MIN.D. Frameset for 1x - Specifications

Frame Material:
Monocoque Carbon, Flat Mount, 12x142mm Superlight Carbon-Ti X-12
Fork:
OPEN R-Turn Carbon, 12x100mm Superlight Carbon-Ti X-12
Headset:
Cane Creek IS42/28.6 | IS47/38 Integrated
Seatpost:

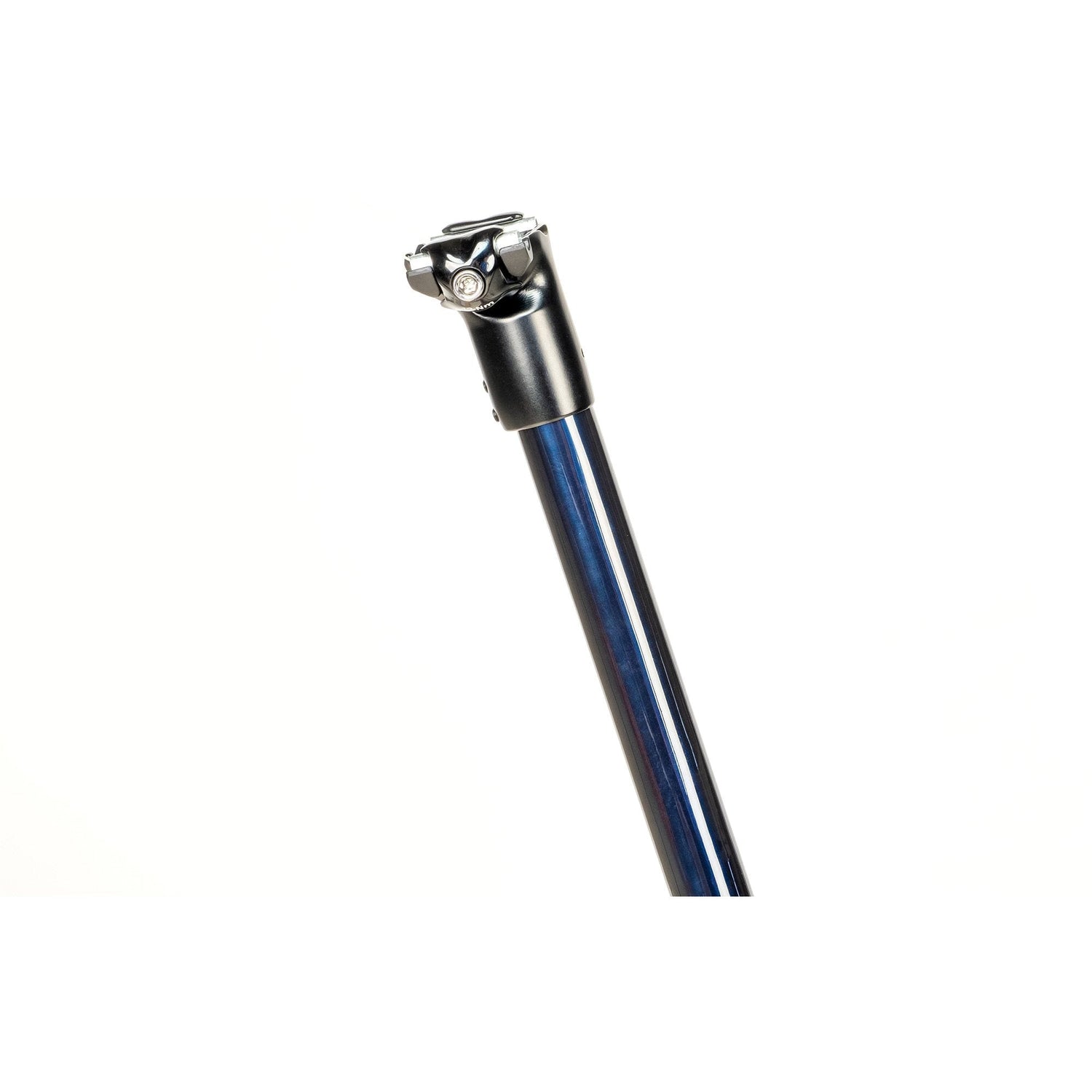

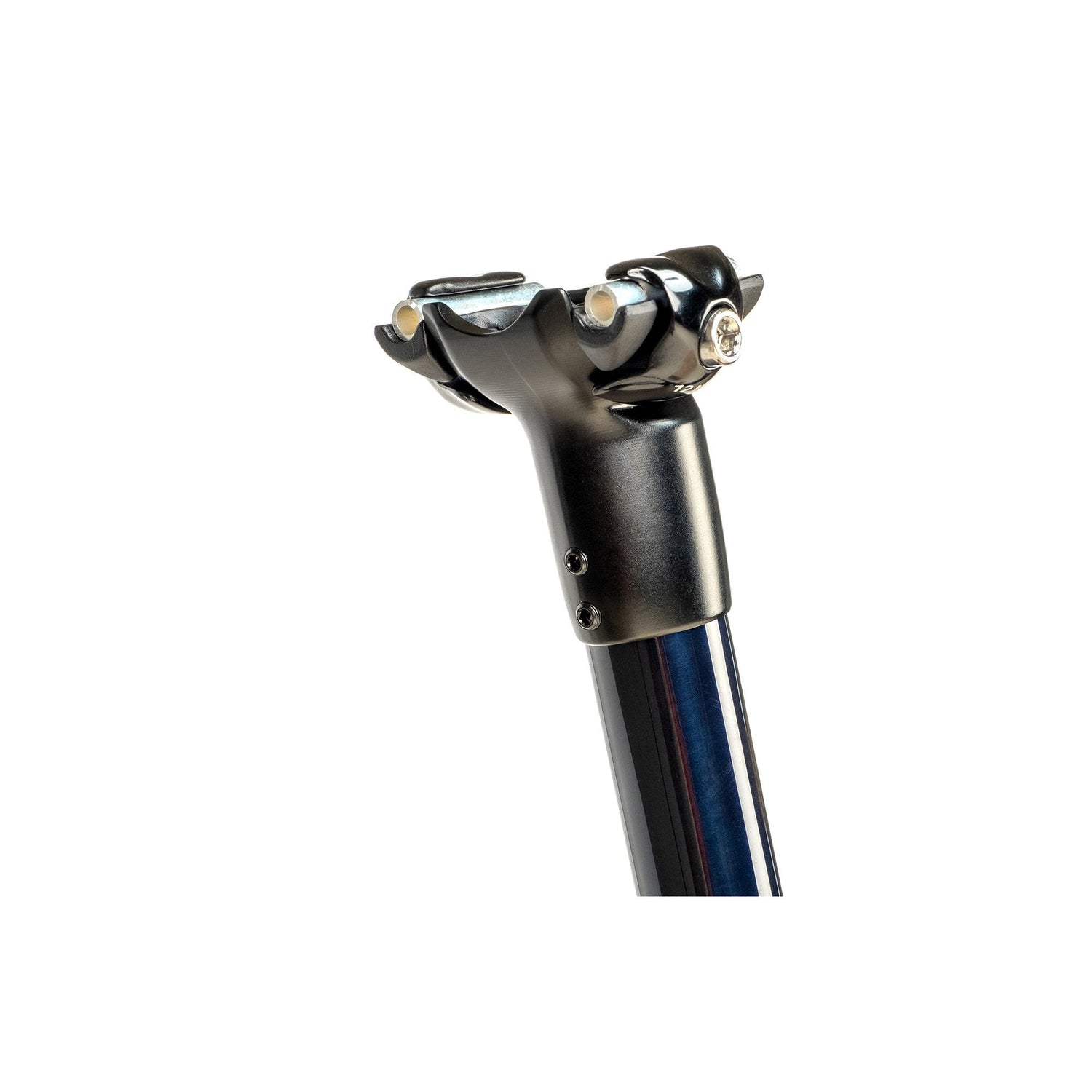

Integrated Mast, Ritchey Rail Clamp
Bottom Bracket Type:
386EVO Required

*Specifications are subject to change.

OPEN MIN.D. Frameset for 1x Geometry

OPEN MIN.D. Frameset for 1x Geometry
Size:
S
M
L
XL
C. Top Tube Length
530
550
569
589
D. Head Tube Length
135
158
184
210
E. Chain Stay Length
405
405
405
405
G. Seat Tube Angle
72.5
72.5
72.5
72.5
H. Head Tube Angle
71
72.5
72.5
72.5
I. Stand Over Height
743
769
792
816
J. Wheel Size
700c
700c
700c
700c
K. Stack
535
560
585
610
L. Reach
361
373
385
397
