Pinarello F1 105 Bike


$3,50000

Color 1
Size
Pinarello  |  SKU: D1997120149-00001 | Option: G241 Formula Blue, 43cm

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242

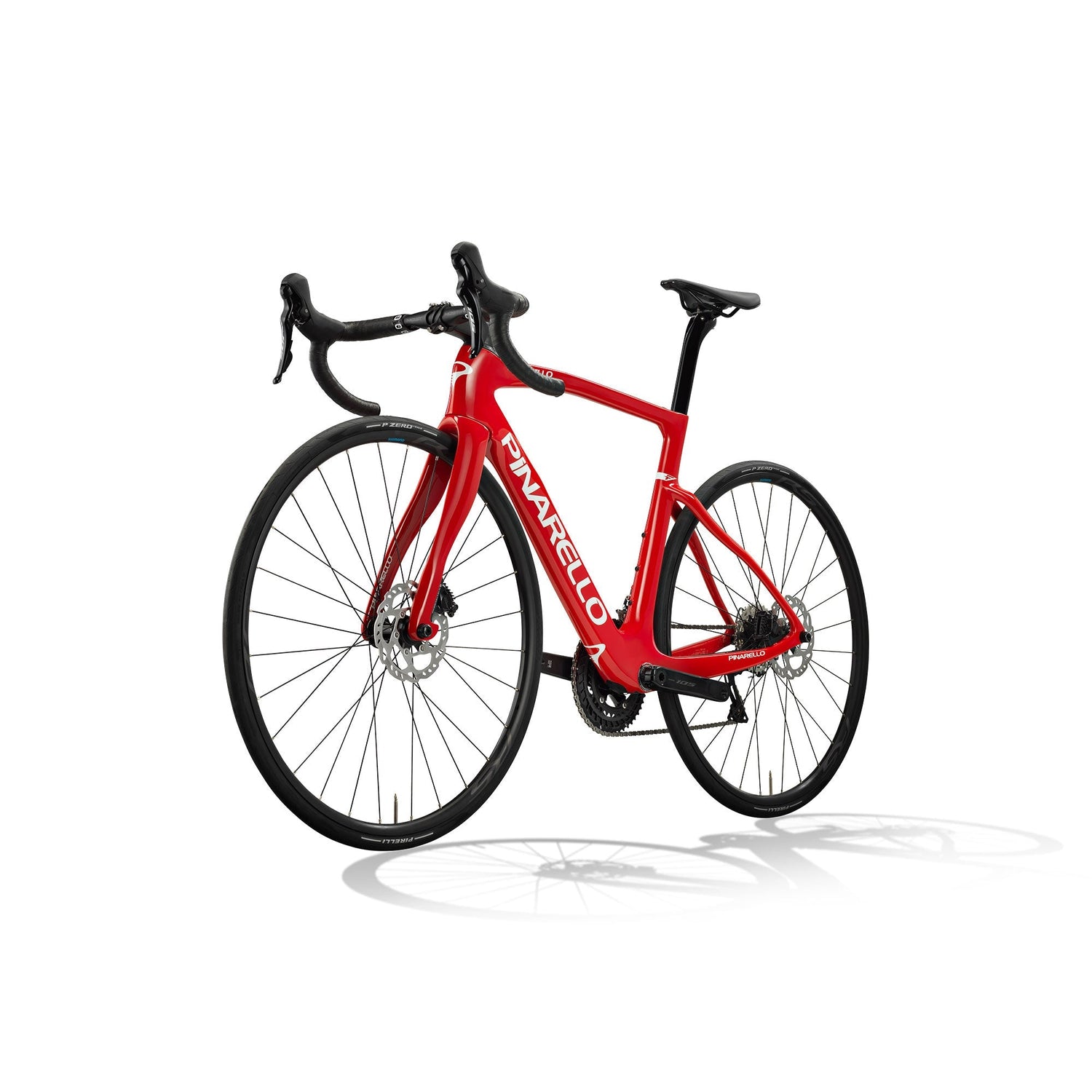

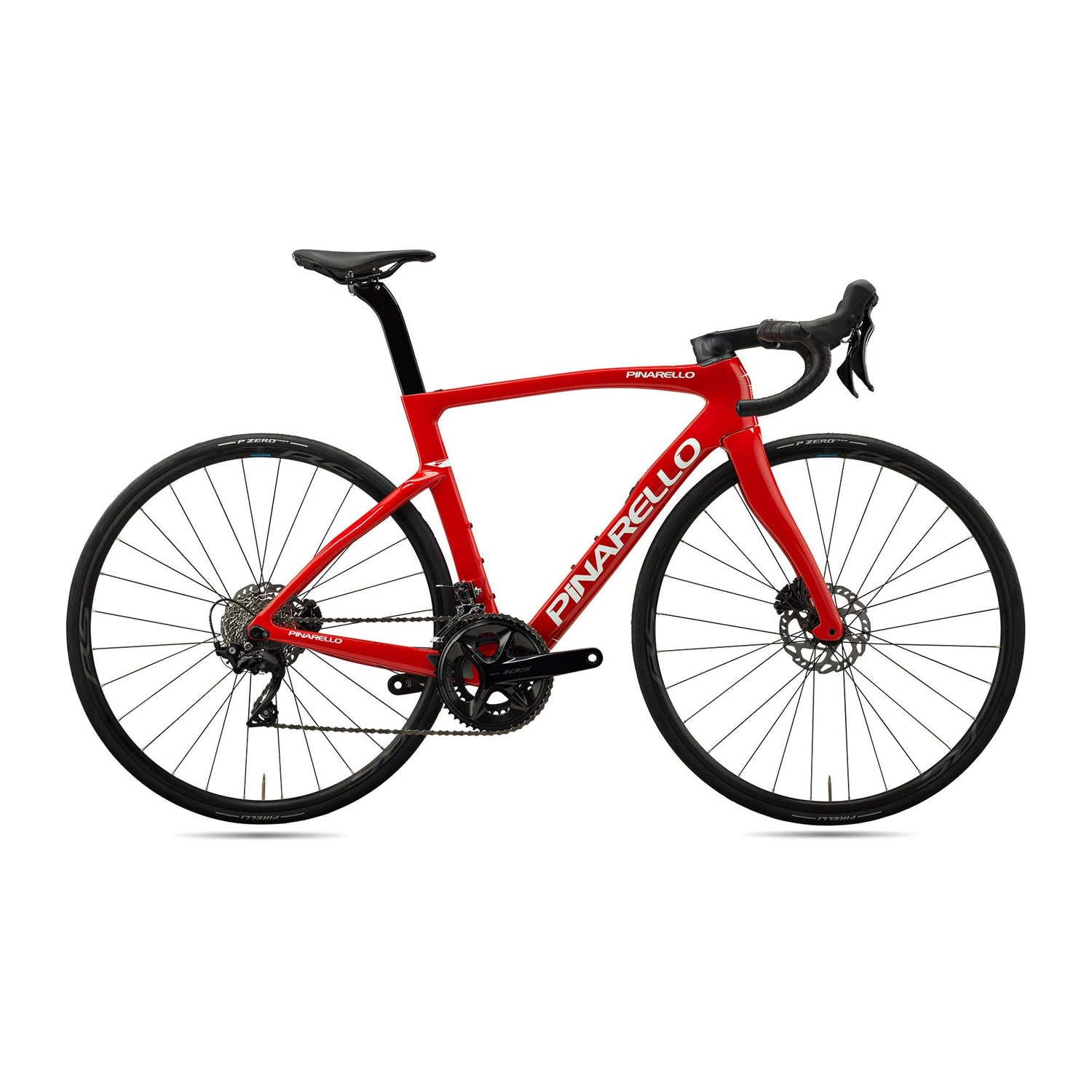

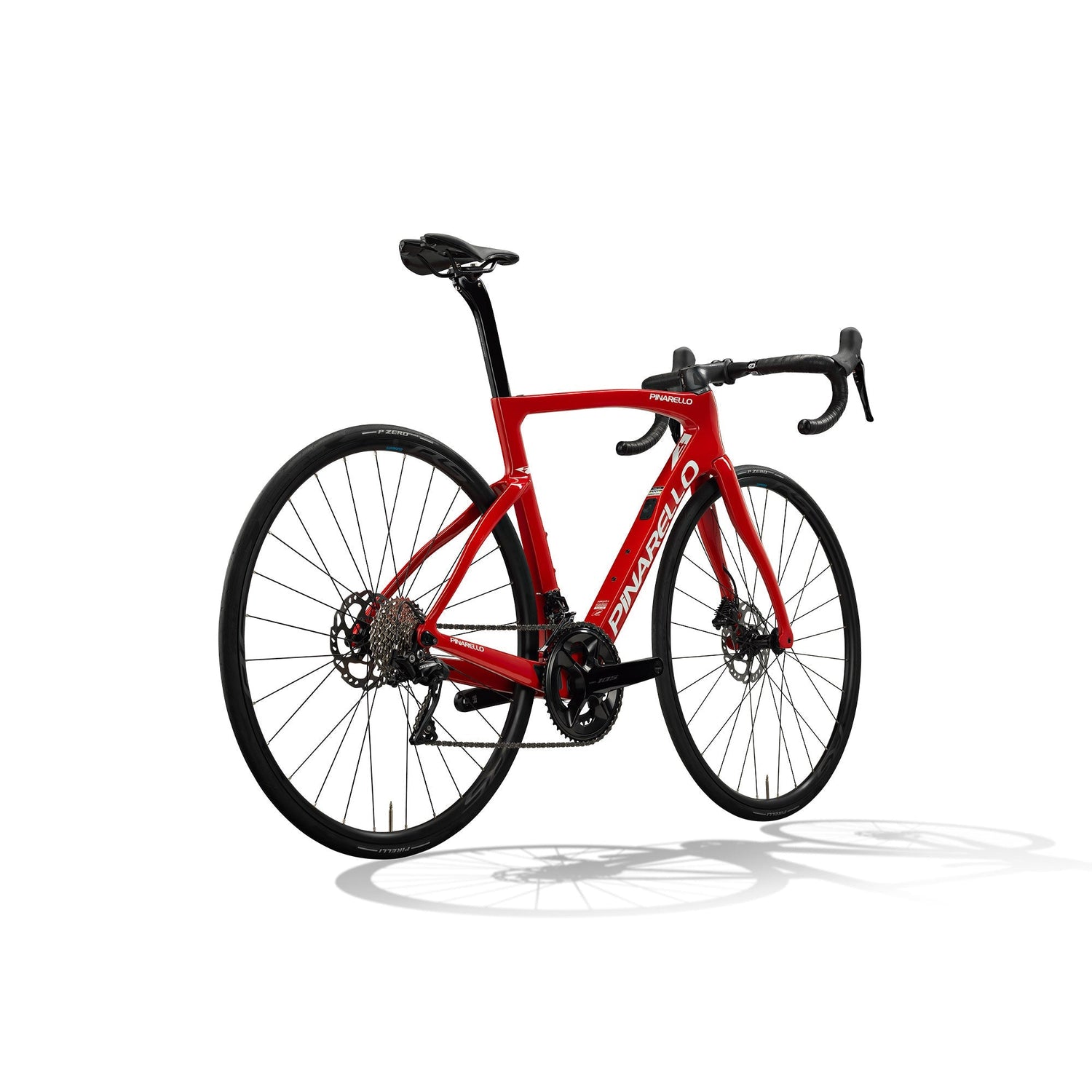

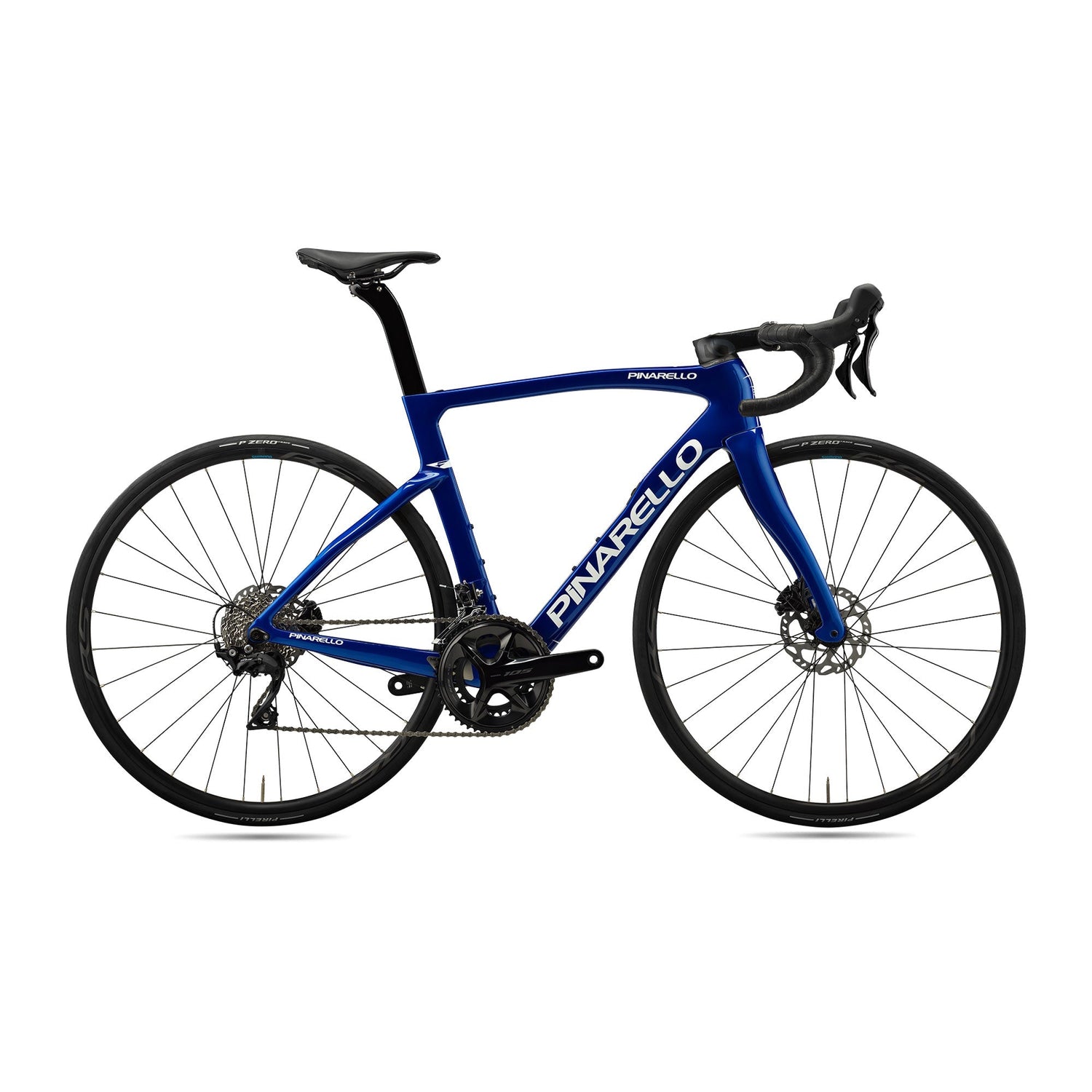

* Pinarello F1 105 Bike: Product image may vary. Refer to the description for accurate details.

Pinarello F1 105 Bike Info

The Pinarello F1 is an affordable road bike with a world class geometry. It comes in at a much lower price than the Tour-winning Dogma but still packs plenty of speed to compete at a high level. The F1 is not a climbing bike, an aero bike, or an endurance bike; it is an all-around performance bike with no compromise. This bike is for the rider who wants to climb with ease, sprint ahead of the pack, and descend with confidence. Compared to the X, the F is more speed focused and less of an endurance bike but can still be ridden for miles on end. Pinarello knows that most F-Series models will never be raced, but they made sure that your daily ride will be had with race-level speed.

The frame of the F1 is made with T600 carbon fiber. Pinarello teamed up with world class carbon manufacturer Toray to create a carbon layup that is lightweight but designed mostly to dissipate road vibrations for a fun and comfortable ride. This type of carbon is more affordable than their higher end ones but still very light. T600 is still reactive and performance-oriented so you can get that Pinarello ride quality. With its ability to dampen vibrations, longer rides are a great choice on the F1. Pairing a carbon frame with Shimano RS171 alloy wheels balance that performance with a great price point.

Like most of Pinarello’s high-end bikes, the F1 features an asymmetric frame. The thrust from pedaling applies equally to both sides, but the pull of the chain applies only to the right side. With asymmetry in the power of your drivetrain, it is up to the shape of the frame to balance those forces. The geometry of the frame is centered around the core values of Pinarello racing frames. The company is responsible for over 30 Grand Tour victories and about 70 years of elite performance. The F1 delivers the classic Pinarello race geometry to keep you at your fastest.

At the front of the F1, you will find the classic Onda Fork. This fork has been featured on tons of Pinarello race bikes since 2000 and is always improving. Its unique shape provides precise turning ability as well as stability. It also reduces the amount of shock from the road, both laterally and longitudinally. The F1 also supports internal cable routing with its TiCR system. This version is equipped with a Shimano 105 groupset for a great price on 12-speed mechanical shifting. The Pinarello F1 is a high-level performance road bike that will make you feel race ready on your daily ride.

Pinarello F1 105 Bike - Specifications

Frame Material:
Torayca T600 UD Carbon
Fork:
F-Series Onda Carbon
Headset:
Integrated
Seatpost:
F-Series Carbon
Front Derailleur:
Shimano 105 R7100
Rear Derailleur:
Shimano 105 R7100
Crankset:
Shimano 105 R7100
Brake Calipers:
Shimano 105 R7170 Hydraulic Disc
Rotors:
Shimano 160mm
Shifters / Levers:
Shimano 105 R7120
Cassette:
Shimano 105 R7100
Chain:
Shimano M7100 12-speed
Wheel - Front:
Shimano RS171
Wheel - Rear:
Shimano RS171
Stem:
Most Tiger TiCR
Handlebar:
Most Jaguar XA TiCR
Saddle:
Most Aircross
Pedals:
Not Included

*Specifications are subject to change.

Pinarello F1 105 Bike Geometry

Pinarello F1 105 Bike Geometry
Size:
43
46.5
50
51.5
53
54.5
56
57.5
59.5
B. Seat Tube (c-t)
425
450
465
485
500
515
525
560
580
C. Top Tube Length
500
515
525
535
545
555
565
578
600
D. Head Tube Length
97
104
109
114
123
138
149.5
178
220
E. Chain Stay Length
406
406
408
408
408
410
410
410
410
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73
73
72.4
H. Head Tube Angle
69.5
70.5
71.4
72
72.5
72.8
73.2
73.7
73.4
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
502.5
517.7
525.5
532.3
542.6
557.9
570.3
599.3
633.5
L. Reach
351.3
365.2
372.1
378.1
385.6
388.3
390.8
395.4
400.3
