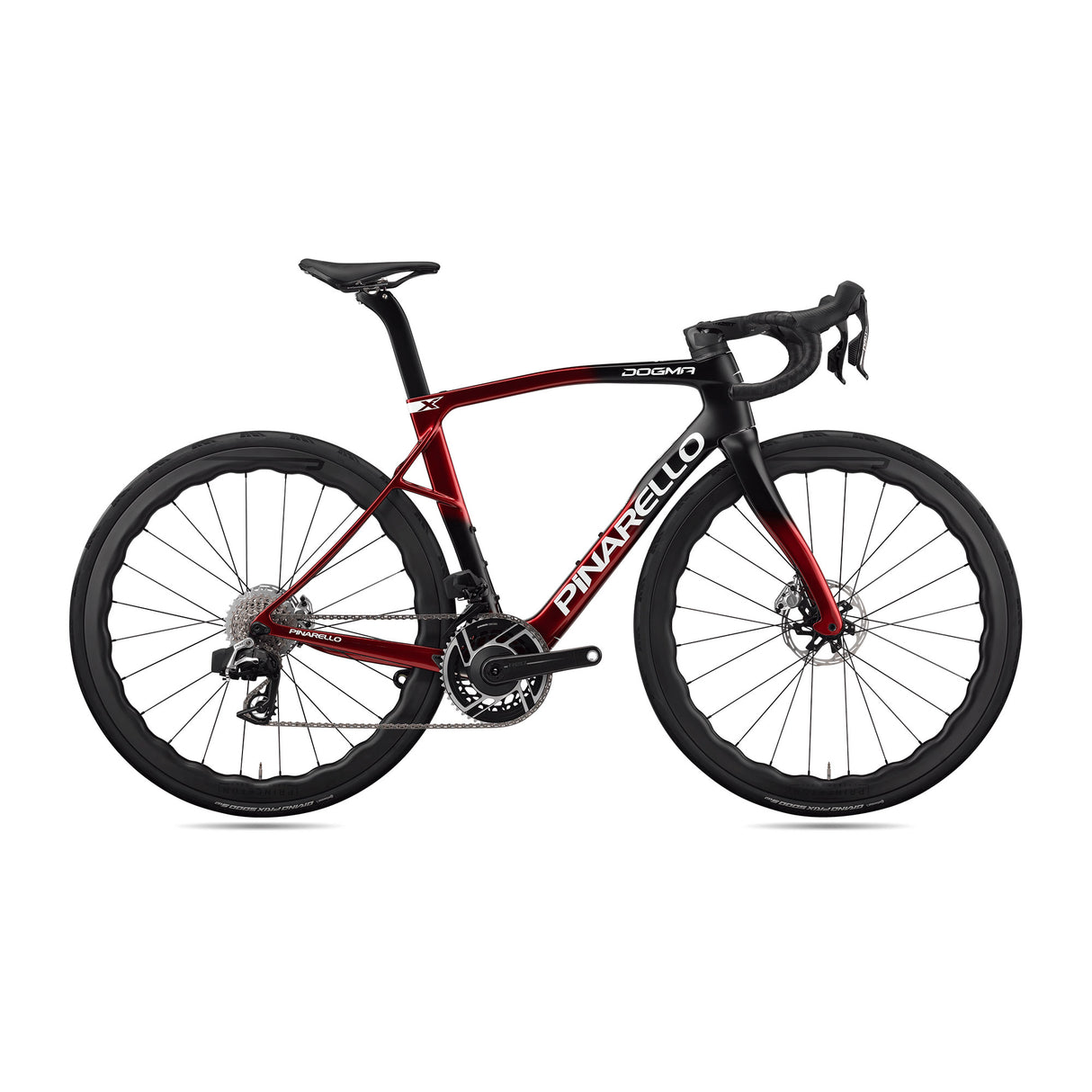

Pinarello Dogma X Red AXS Bike


$15,50000

Color
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Pinarello  |  SKU: C1861295179-S0001 | Option: H120 Starry Red Shiny, 43cm

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Pinarello Dogma X Red AXS Bike Info

The Pinarello Dogma X Red AXS Bike redefines endurance performance, bringing Pinarello’s racing pedigree to a more comfortable, long-distance geometry while maintaining the brand’s signature speed and precision.

Handcrafted from Torayca T1100 1K carbon with Nanoalloy technology, the Dogma X frame integrates Pinarello’s Asymmetric X design and X-Stay rear structure to damp vibrations and increase comfort on rough pavement. The endurance-inspired geometry offers a slightly taller stack and longer wheelbase for stability without dulling responsiveness. SRAM’s 12-speed Red AXS wireless drivetrain provides crisp, fully electronic shifting with exceptional efficiency and lightweight performance. Clearance for tires up to 35 mm expands versatility for mixed-surface rides, and fully internal routing maintains the sleek aero silhouette that defines the Dogma family.

Specs at a Glance

  • Frame material: Torayca T1100 1K carbon with Nanoalloy reinforcement
  • Geometry style: Endurance-tuned “X Series” for comfort and control
  • Tire clearance: Up to 35 mm
  • Drivetrain: SRAM Red eTap AXS 12-speed wireless electronic system
  • Brake type: SRAM Red hydraulic disc
  • Cockpit integration: MOST one-piece aero bar/stem with internal routing
  • Compliance design: X-Stay vibration-damping rear triangle
  • Wheelset compatibility: 700c, tubeless-ready

Design Benefits

  1. Endurance comfort meets race DNA: Tuned geometry and X-Stay compliance absorb fatigue-inducing vibration.
  2. Wireless precision: SRAM Red AXS delivers lightning-fast, cable-free shifts with customizable gearing options.
  3. Wider capability: 35 mm tire clearance expands traction and comfort across variable road surfaces.
  4. Aerodynamic integration: Clean cable routing and aero tube shaping preserve speed and style.
  5. Balanced stiffness: Asymmetric design maximizes power transfer while maintaining predictable handling.

Final Take

For riders seeking a high-endurance road machine without compromising on performance, the Pinarello Dogma X Red AXS Bike blends comfort, control, and technology. It’s equally at home on fast group rides or all-day adventures where efficiency and elegance matter most.

Pinarello Dogma X Red AXS Bike - Specifications

Frame Material:
TORAYCA T1100 1K Dream Carbon w/Nanoalloy Technology
Fork:
Pinarello Onda Carbon
Headset:
MOST 1.5" Bearing Kit (for TiCR)
Seatpost:
Dogma X Aero
Front Derailleur:
SRAM Red AXS E1
Rear Derailleur:
SRAM Red AXS E1
Crankset:
SRAM Red AXS E1 w/Power Meter
Chainrings:
48/35
Bottom Bracket:
SRAM DUB Italian Threaded
Brake Calipers:
SRAM Red AXS E1 Hydraulic Disc
Rotors:
SRAM 160mm
Shifters / Levers:
SRAM Red AXS E1
Cassette:
SRAM Red E1 12-speed 10-33
Chain:
SRAM Red E1 12-speed
Wheel - Front:
Princeton Grit 4540 EVO
Wheel - Rear:
Princeton Grit 4540 EVO
Stem:
MOST Talon Ultra Light
Handlebar:
MOST Talon Ultra Light
Saddle:
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Tires:
Pirelli P ZERO Race TLR 700x35
Pedals:
Not Included
Bottle Cages:
Bottlecage Trap PACF 74mm, Fly Bottle Pinarello Bottle 550ml Black
Max Tire Width:
700x35

*Specifications are subject to change.

Pinarello Dogma X Red AXS Bike Geometry

Pinarello Dogma X Red AXS Bike Geometry
Size:
43
46.5
50
51.5
53
54
55
56
57.5
59.5
62
B. Seat Tube (c-t)
425
450
465
485
500
510
520
525
540
560
600
C. Top Tube Length
505
515
525
535
545
552
557
565
575
595
620
D. Head Tube Length
107
119
124
129
138
146
167
165
178
214
254
E. Chain Stay Length
422
422
422
422
422
422
422
422
422
422
422
F. BB Drop
77
77
77
77
77
77
77
77
77
77
77
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73.4
73
73
72.4
72
H. Head Tube Angle
70
70
70.5
71
71.5
72
72
72.5
72.8
73
73
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
524.2
535.5
542.1
548.6
559
568.4
578.9
588.4
601.7
632
670.3
L. Reach
349.3
358.1
365.4
371.7
379.4
381.2
383
384.6
390.8
395.3
403.8
Stem Length
80mm
90mm
90mm
100mm
100mm
100mm
100mm
110mm
110mm
110mm
120mm
Bar Width
42mm
42mm
42mm
42mm
44cm
44cm
44cm
46cm
46cm
46cm
46cm
M. Crank Length
165mm
165mm
170mm
170mm
172.5mm
172.5mm
172.5mm
172.5mm
175mm
175mm
175mm
