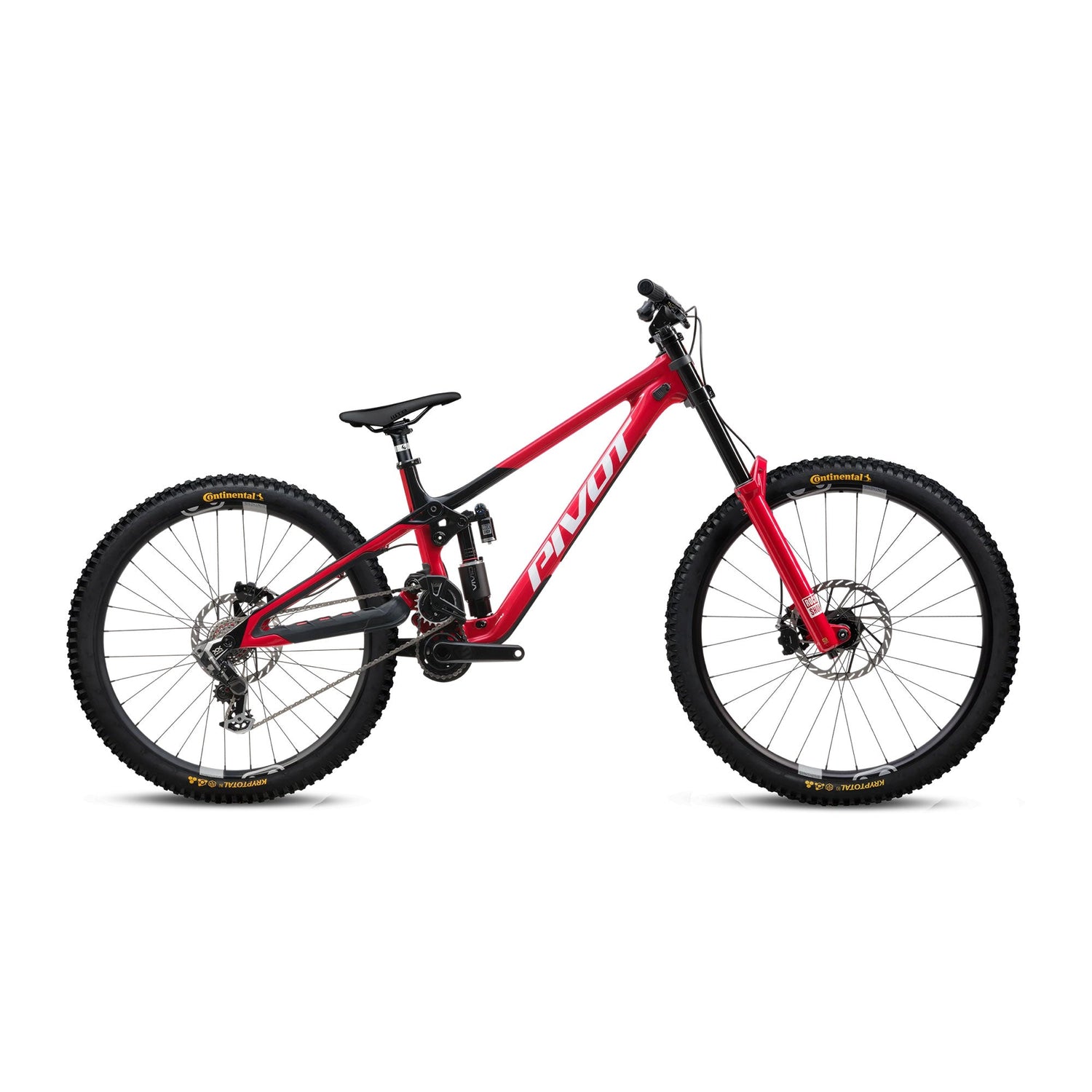

Pivot Phoenix Team XX DH AXS Bike


Regular price $10,49900

Color
Size

Coming soon! Reserve your Pivot Phoenix Team XX DH AXS Bike today and a sales associate will contact you within 24 hours with the shipping date.

Pivot   |   SKU: 00PHXV5MXAXXDH-REDS1STDPN  |   Option: Electric Red, S1

In-store pickup only for this product.

Pickup available at RA Cycles - Brooklyn

Usually ready in 24 hours


Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Pivot Phoenix Team XX DH AXS Bike - Specifications

Frame Material:
Carbon
Fork:
RockShox Boxxer Ultimate / 52mm Offset / Charger 3.2 RC2 w/Butter Cups / 200mm travel
Rear Suspension:
RockShox Vivid Ultimate DH
Headset:
Pivot Precision Sealed Cartridge - DH
Seatpost:
Phoenix Race Aluminum
Rear Derailleur:
SRAM XX DH AXS 7-speed
Crankset:
Praxis DH9-73 M30
Chainrings:
27t
Brake Calipers:
SRAM Maven Ultimate Stealth Black Edition
Brake Levers:
SRAM Maven Ultimate Stealth Black Edition
Rotors:
SRAM HS2 220mm (front), 200mm (rear)
Shifters:
SRAM AXS Pod Ultiamte Controller
Cassette:
SRAM CS797 DH 7-speed 11-24
Chain:
SRAM XX Eagle 12-speed
Wheel - Front:
Crank Brothers Synthesis DH
Wheel - Rear:
Crank Brothers Synthesis DH
Stem:
Phoenix Team DH / 45mm
Handlebar:
Phoenix Team Low Rise Carbon / 800mm wide
Saddle:
Phoenix WTB Ride High Tail Trail
Tires:
Continental Kryptotal F / Super Soft / DH Casing / 29x2.4 | Continental Kryptotal R / Super Soft / DH Casing / 27.5x2.4
Grips:
Phoenix Factory Lock-On
Pedals:
Not Included
Travel:
200mm (front) / 210mm (rear)

*Specifications are subject to change.

Pivot Phoenix Team XX DH AXS Bike Geometry

Pivot Phoenix Team XX DH AXS Bike Mountain Bike Geometry
Size:
S1
S2
S3
S4
B. Seat Tube (c-t)
410
410
410
410
C. Top Tube Length
577-578
602-603
622-623
657-658
D. Head Tube Length
106
106
106
106
E. Chain Stay Length
440-443
440-443
440-443
440-443
F. BB Drop
85
85
85
85
G. Seat Tube Angle
77.3-77.73
77.3-77.73
77.3-77.73
77.3-77.73
H. Head Tube Angle
62.5-62.93
62.5-62.93
62.5-62.93
62.5-62.93
I. Stand Over Height
697-702
702-707
702-707
702-707
J. Wheel Size
29" (F) / 27.5" (R)
29" (F) / 27.5" (R)
29" (F) / 27.5" (R)
29" (F) / 27.5" (R)
K. Stack
631-635
631-635
631-635
631-635
L. Reach
435-440
460-465
480-485
515-520
Stem Length
45mm
45mm
45mm
45mm
Bar Width
800mm
800mm
800mm
800mm
M. Crank Length
160mm
160mm
160mm
160mm
