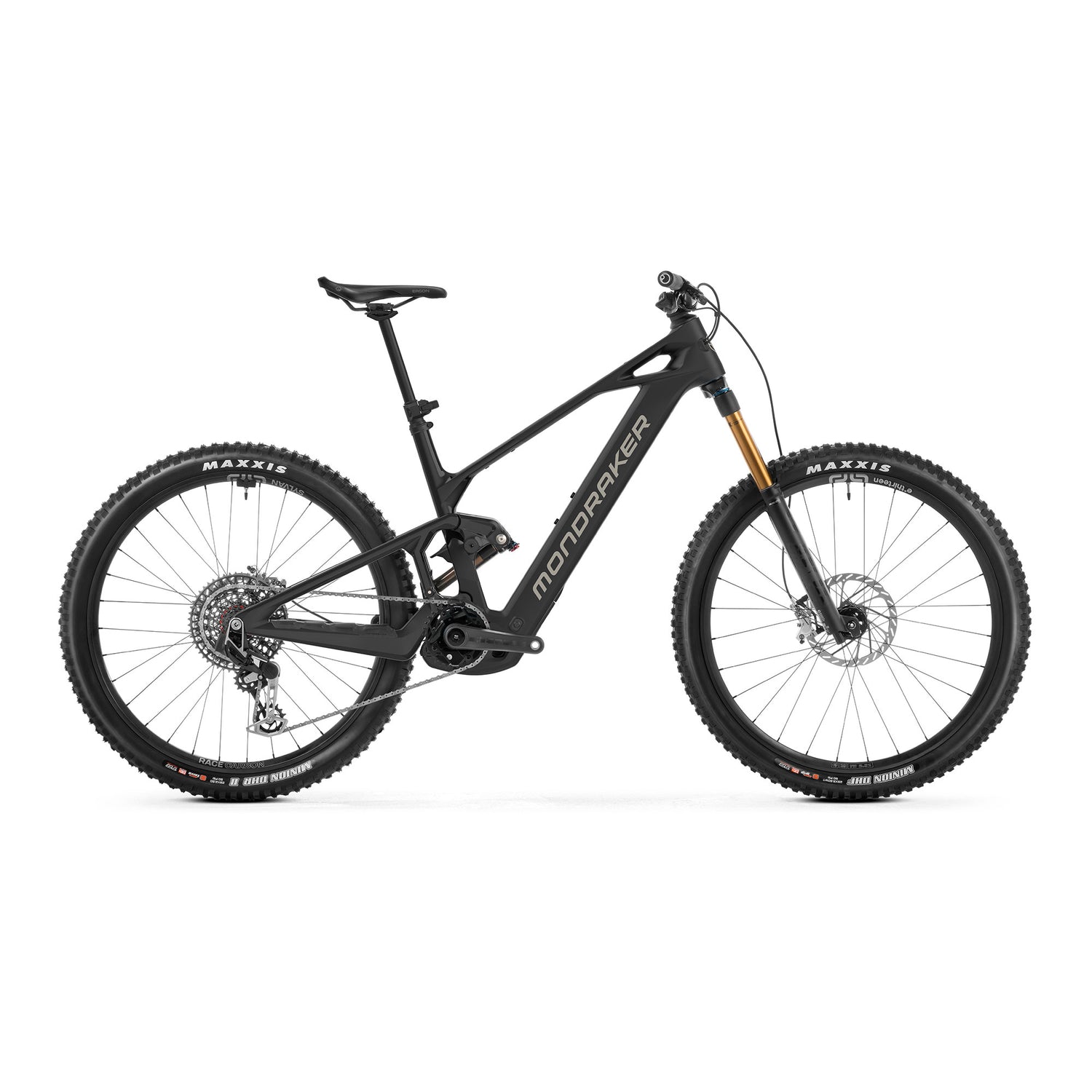

Mondraker Crafty Carbon RR SL Bike
$13,99900
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Mondraker
| SKU: 010.26US319 | Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Mondraker Crafty Carbon RR SL Bike
$13,99900
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Mondraker Crafty Carbon RR SL Bike - Specifications
Frame Material:
Carbon / 150mm Travel / UDH / 12x148mm
Fork:
Fox 36 29 Float GRIPX2 Factory Kashima / 160mm Travel / Settings: high and low-speed compression, high and low-speed rebound, air preload / 44mm Offset / 15x110mm Kabolt axle
Rear Suspension:
Fox Float Factory Kashima EVOL 185x55mm / Settings: 2-position compression (Open/Firm), rebound, air preload / Trunnion top mount
Headset:
Acros custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs with blocklock
Seatpost:
RockShox Reverb Stealth AXS / 31.6mm / S: 398.2x125mm, M: 448.2x150mm, ML: 498.2x175mm, L: 548.2x200mm, XL:548.2x200mm
Rear Derailleur:
SRAM XX Eagle AXS T-Type
Crankset:
E.13 Helix Race Carbon E*Spec Plus
Chainrings:
SRAM XX Eagle 34T T-Type / Direct mount / Steel / CL55
Brake Calipers:
SRAM Maven Ultimate 4-piston Hydraulic Disc
Brake Levers:
SRAM Maven Ultimate
Rotors:
SRAM HS2 6-Bolt 200mm
Shifters:
SRAM Eagle AXS Pod MMX
Cassette:
SRAM XS-1295 12-speed 10-52
Chain:
SRAM XX Eagle T-Type 12-speed
Battery:
Bosch Powertube 600Wh
Motor:
Bosch Performance Line CX RACE (25Km/h) SMART SYSTEM (BDU386Y)
Display:
Kiox 400C / Bosch Mini Remote
Wheel - Front:
e*thirteen Sylvan Race Carbon / Hookless / 30mm Internal Width / Tubeless ready
Wheel - Rear:
e*thirteen Sylvan Race Carbon / Hookless / 30mm Internal Width / Tubeless ready
Stem:
Onoff S9 30mm 0-degree / Full CNC / 31.8mm
Handlebar:
Onoff S9 1.0 Carbon / S, M, ML: 25mm rise, L, XL size: 38mm rise / Width: 800mm / 8-degree backsweep / 5-degree upsweep / 31.8mm
Saddle:
Fizik Vento Argo 00 Carbon 150mm
Tires:
Front: Maxxis Minion DHF 29x2.5 / Tubeless ready / 3C Maxx Grip / EXO+ Protection Rear: Maxxis Minion DHR II 29x2.5 / Tubeless ready / 3C Maxx Grip / EXO+ Protection
Grips:
Onoff Desert Pro / CNC lock-on / 135mm / L and XL: Thicker size
Pedals:
Not Included
Travel:
160mm/150mm
*Specifications are subject to change.
Mondraker Crafty Carbon RR SL Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
380
410
435
460
490
C. Top Tube Length
581/582
596/597
618/619
640/641
662/663
D. Head Tube Length
120
120
130
140
150
E. Chain Stay Length
455/456
455/456
455/456
465/466
465/466
F. BB Drop
25/30
25/30
25/30
25/30
25/30
G. Seat Tube Angle
73/72.65
73/72.65
73/72.65
73/72.65
73/72.65
H. Head Tube Angle
64.5/64.15
64.5/64.15
64.5/64.15
64.5/64.15
64.5/64.15
J. Wheel Size
29"
29"
29"
29"
29"
K. Stack
638/641
638/641
647/650
656/659
665/668
L. Reach
445/441
460/456
480/476
500/496
520/516
Stem Length
30mm
30mm
30mm
30mm
30mm
Bar Width
800mm
800mm
800mm
800mm
800mm
M. Crank Length
160mm
160mm
160mm
160mm
160mm
