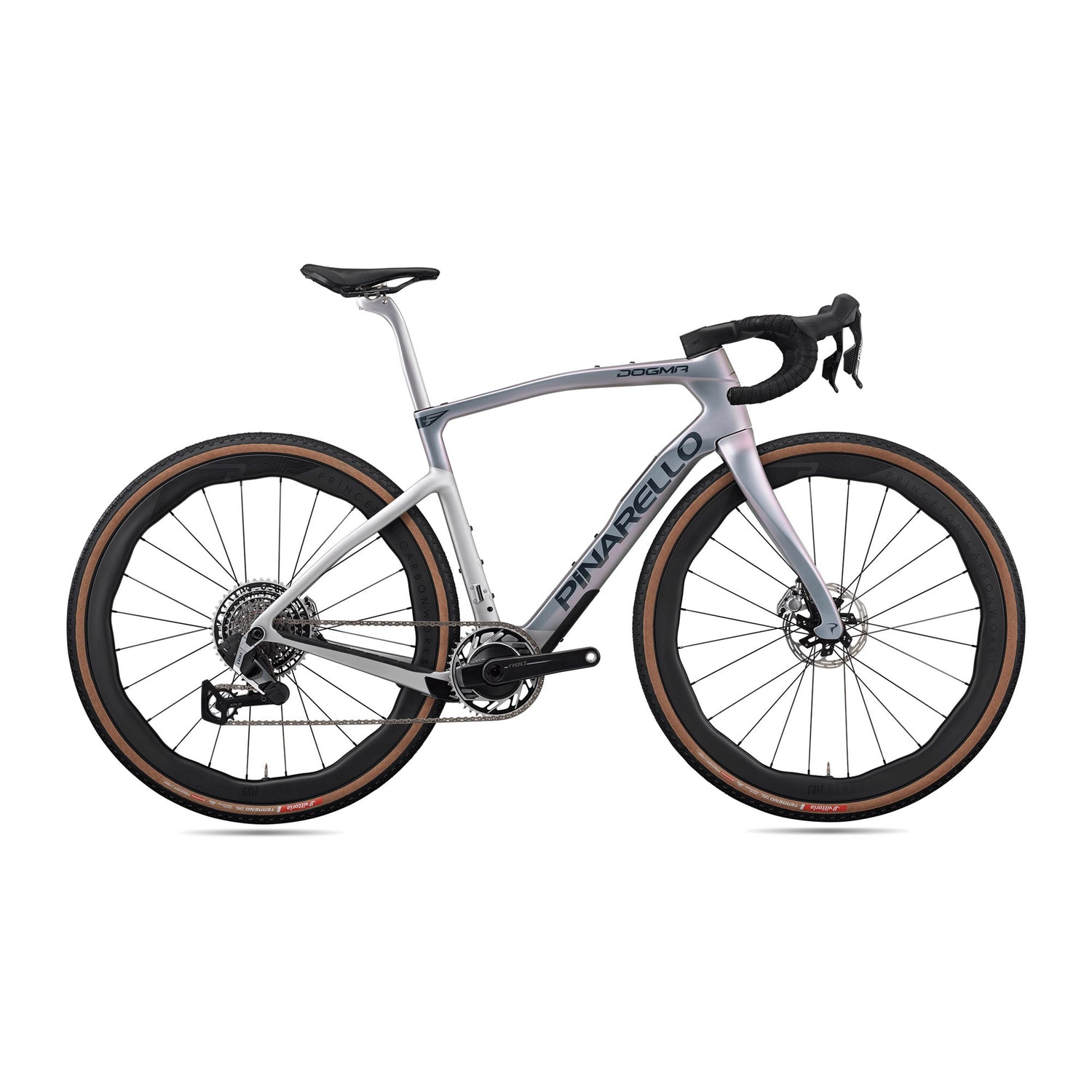

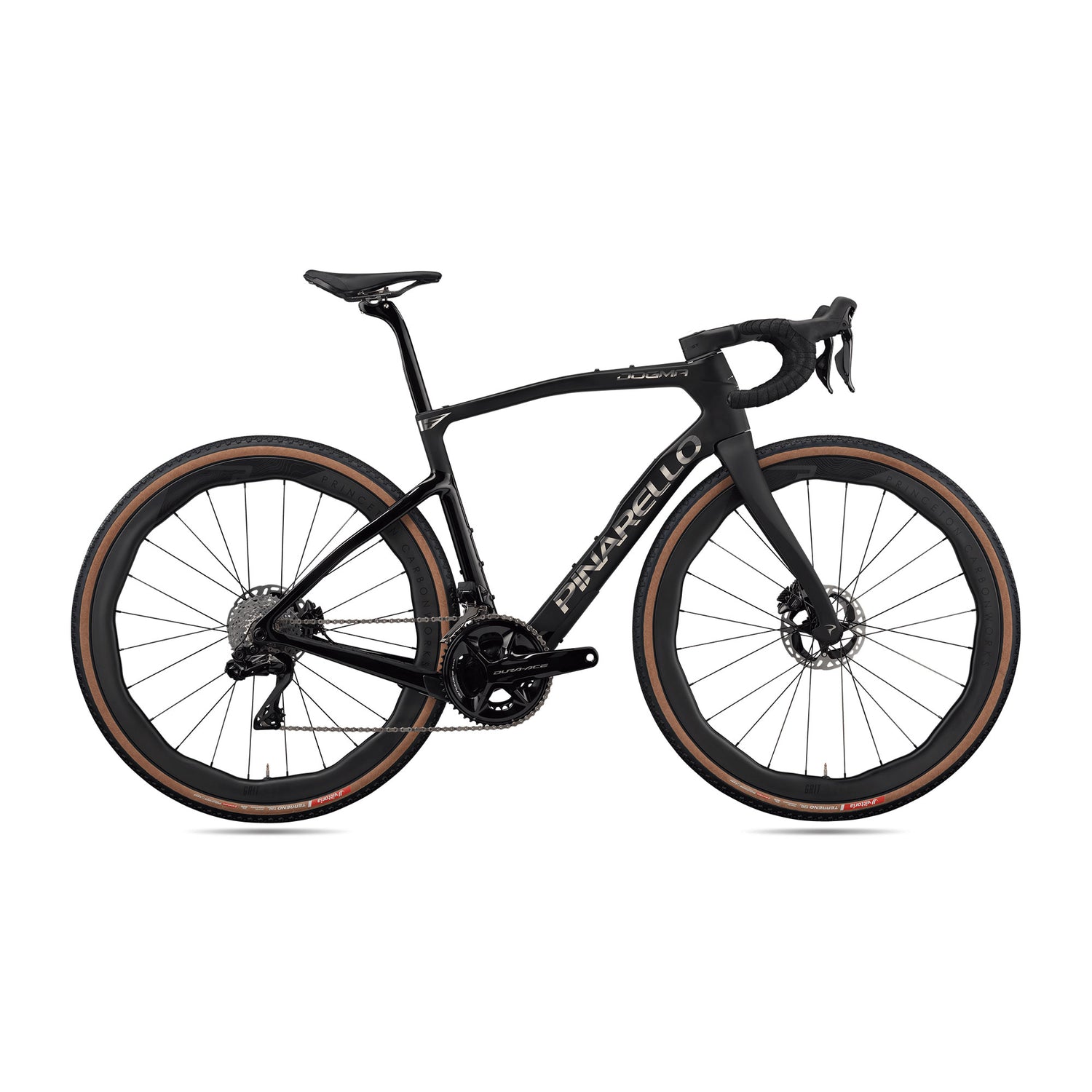

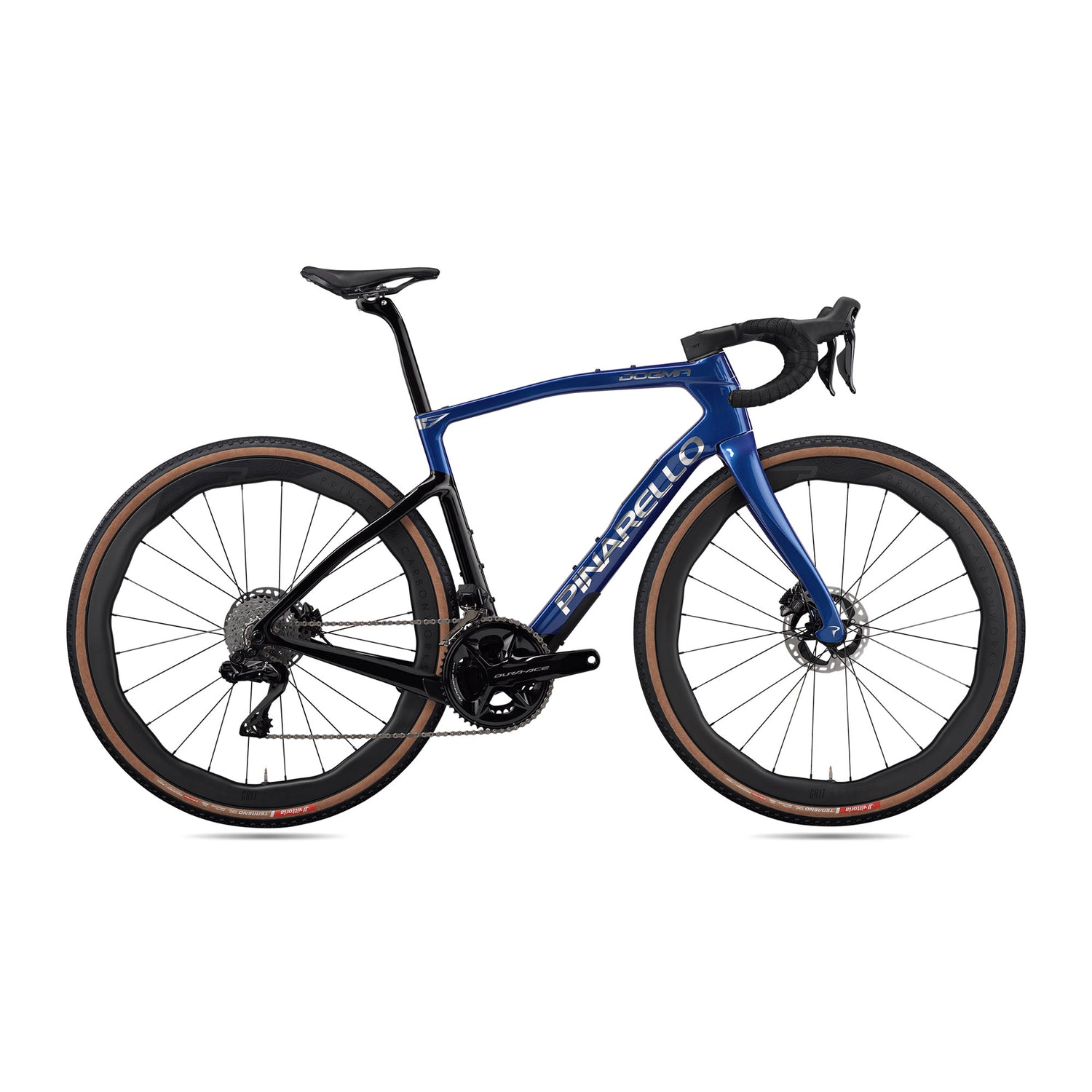

Pinarello Dogma GR Red AXS Bike
Pinarello Dogma GR Red AXS Bike Info
The Pinarello Dogma GR Red AXS Bike is Pinarello’s answer to what happens when the engineering philosophy of the Dogma F meets the demands of gravel racing. Built around the same TorayCa M40X high-modulus carbon and eTICR Onda fork that define the Dogma F road platform, the GR takes those foundations and re-engineers them for mixed surfaces — adding 45mm of front tire clearance, gravel-specific geometry, vibration-damping seatpost design, and integrated frame storage for the kind of self-sufficient riding that gravel racing requires. The “GR” designation is Pinarello’s signal that this isn’t a road bike adapted for gravel. It was built for it.
The frame is constructed from TorayCa M40X carbon, the same fiber specification found in the Dogma F — a high-modulus layup that prioritizes stiffness-to-weight without sacrificing the dynamic compliance that rough terrain demands. Fully integrated TiCR cable routing keeps the exterior clean and reduces drag, while the Italian-threaded bottom bracket shell accepts the SRAM DUB Road Wide 70mm unit directly. The eTICR Onda fork — Pinarello’s iconic wavy fork profile adapted for disc brakes — includes internal cable routing and the ForkFlap aerodynamic detail at the crown. The Pinarello Aero seatpost is fitted with a 3D-printed titanium top clamp and titanium bolts, mirroring the same detail found on the Dogma F Dura-Ace build. Pinarello’s Adaptive seatpost design balances vibration damping with pedaling stiffness — absorbing trail chatter without flexing under power. Maximum tire clearance is 45mm front and 42mm rear, with 700x40 Vittoria Terreno T30 tires installed.
The drivetrain is SRAM Red AXS XPLR — the gravel-specific version of SRAM’s flagship wireless electronic groupset, updated to 13-speed with the E1 generation. A single 42t chainring pairs with the SRAM Red E1 13-speed 10-46 cassette, delivering a gear range that handles sustained paved climbs and technical gravel descents without any front derailleur to manage. The SRAM Red AXS E1 hydraulic disc brakes and levers provide consistent modulation in all conditions. Princeton Carbon Works Grit 4540 wheels — a gravel-optimized asymmetric carbon wheelset with 45mm front and 40mm rear depths — are paired with the Vittoria Terreno T30 tires for a rolling setup that’s fast on hardpack and composed on loose surfaces. The MOST Talon Ultra Fast GR integrated cockpit features 7 degrees of flare and an inward bend that places your hands in a more natural position for technical terrain, with built-in attachment points for TT gravel bars and an integrated bento box and tool storage system.
Design Benefits
- TorayCa M40X Carbon with eTICR Onda Fork: The Dogma GR inherits the Dogma F’s primary carbon specification and its most recognizable structural element — the wavy Onda fork with fully integrated cable routing. This is the same high-modulus fiber and fork concept that underpins Pinarello’s WorldTour race bikes, applied to a frame geometry and clearance envelope designed specifically for gravel.
- SRAM Red AXS XPLR E1 — 13-Speed 1x: SRAM’s XPLR groupset is the gravel-optimized expression of the Red AXS platform, with a 13-speed cassette spanning 10-46t and a 42t single chainring. The 13-speed architecture was achieved without widening the rear axle standard, providing closer steps through the range while the cassette width handles everything from steep paved climbs to sustained gravel grinding.
- Princeton Carbon Works Grit 4540 Wheels: Princeton’s Grit 4540 is designed for fast gravel riding — 45mm front and 40mm rear carbon depths with an asymmetric profile that manages crosswind behavior while providing meaningful aerodynamic benefit on long smooth sections. The asymmetric depth pairing — deeper front for stability, shallower rear for compliance — is a deliberate gravel racing choice.
- Adaptive Seatpost and Integrated Storage: Pinarello’s Adaptive seatpost design addresses the gravel-specific challenge of vibration management without sacrificing the pedaling stiffness that hard efforts on pavement require. The downtube tool port and MOST cockpit’s integrated bento and tool bag system keep essential gear accessible and aerodynamic on longer unsupported rides.
- MOST Talon Ultra Fast GR Cockpit with Gravel Geometry: The 7-degree flare and inward bend of the GR handlebar position your hands in a wider, more natural grip for off-road handling, while the integrated carbon construction keeps weight and front-end clutter minimal. Built-in attachment points for TT gravel bars add optional versatility for time trial stages or ultra-distance events.
Final Take
The Pinarello Dogma GR Red AXS is what the Dogma F becomes when the design brief is gravel racing rather than road racing. The M40X carbon, Onda fork, and titanium-detailed seatpost carry forward the Dogma’s engineering heritage; the 13-speed XPLR drivetrain, Princeton Grit wheels, and 40mm tire clearance reorient it entirely toward mixed-surface performance. It’s the most comprehensively engineered gravel bike in Pinarello’s history, built for the rider who wants Dogma-level quality on terrain that tests everything the Dogma road bikes never had to face.
Pinarello Dogma GR Red AXS Bike - Specifications
*Specifications are subject to change.
