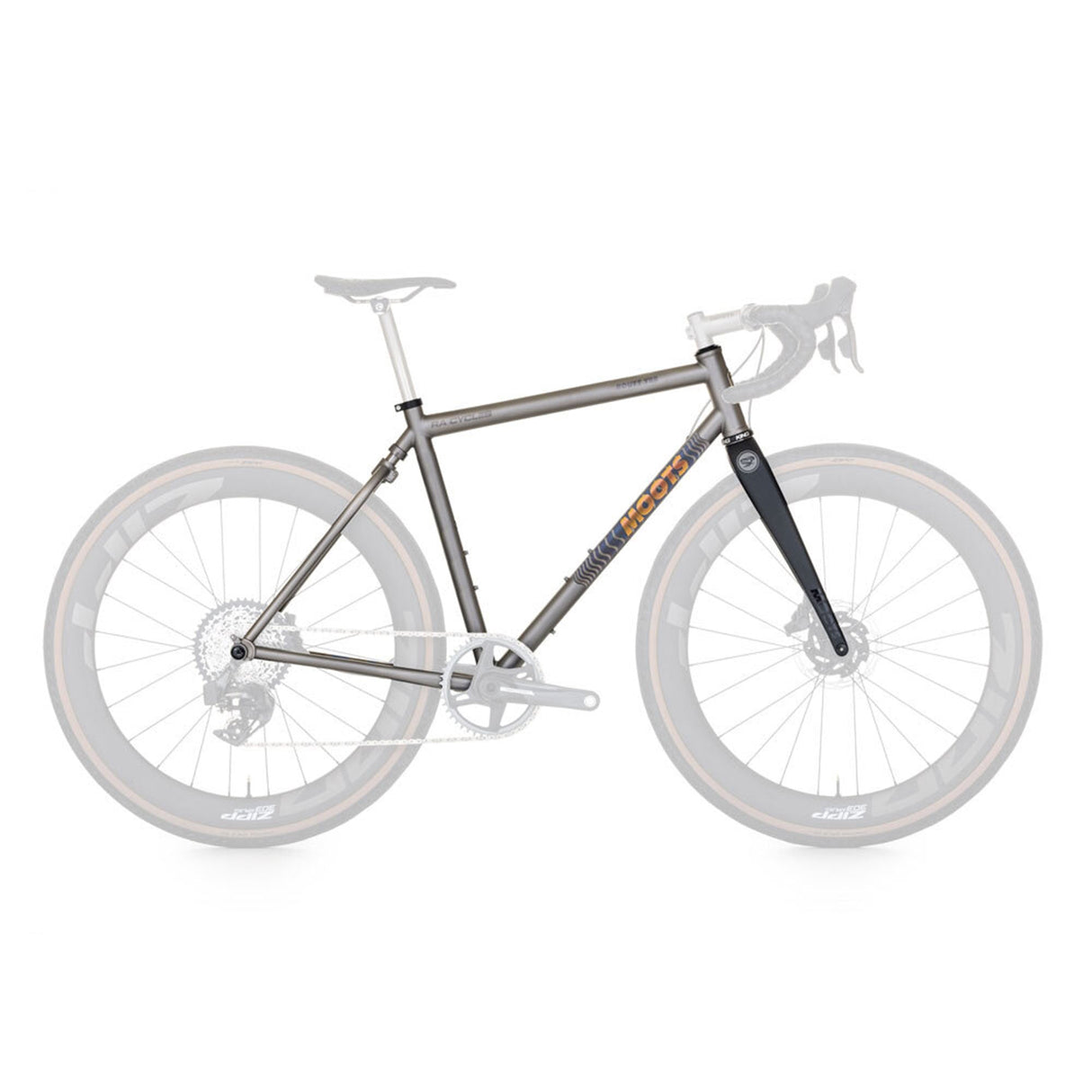

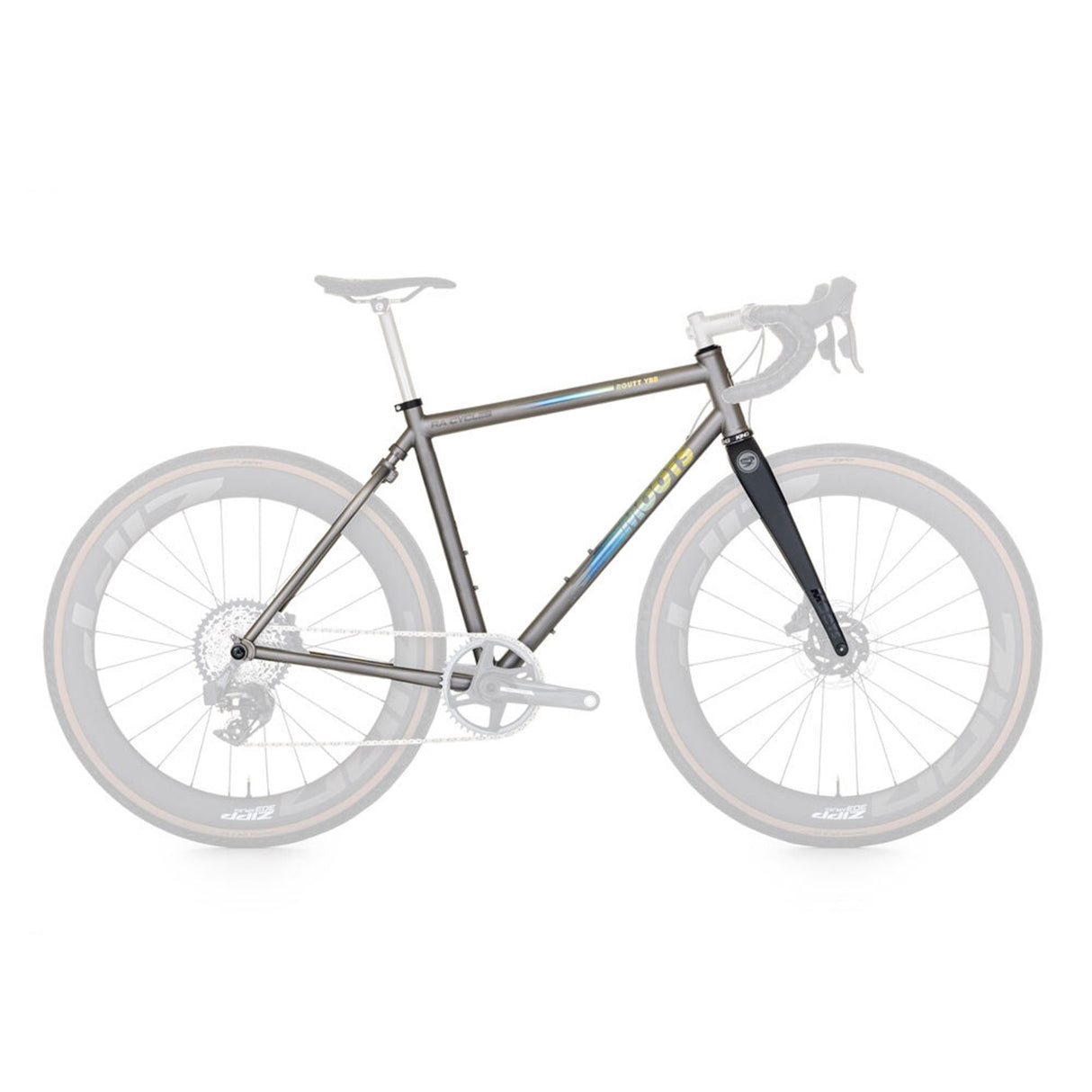

Moots Routt YBB Frameset
Moots Routt YBB Frameset Info
The Moots Routt YBB Frameset is a titanium gravel frameset built around one of cycling's most distinctive engineering choices: the YBB microsuspension system. "YBB" stands for Why Be Beat — a provocation from a brand that has been handbuilding titanium frames in Steamboat Springs, Colorado since 1981. The Routt YBB is not simply a rigid titanium gravel bike with a clever name. It is a soft-tail design, where the rear triangle flexes on a controlled pivot to absorb trail chatter and small road irregularities before they reach the rider. The result is a frame engineered for one specific thing: making long, demanding gravel days feel shorter.
The YBB system provides approximately 20mm of rear travel through Moots' microsuspension design. The pivot is calibrated to be soft enough to take the edge off continuous surface noise — the kind of vibration that accumulates over 100+ miles and produces fatigue in the hands, lower back, and hips — while remaining firm enough to stay efficient under pedaling load. This balance is the product of decades of refinement; Moots has been building YBB frames since the 1990s. The system does not require maintenance in the way a traditional rear shock does, and it adds minimal weight. What it adds is ride quality that a rigid titanium frame, however well-tuned, cannot replicate on genuinely rough terrain.
The frame material is Grade 9 titanium — 3al/2.5v, the alloy that combines 3% aluminum and 2.5% vanadium for high strength, low weight, and the natural compliance that distinguishes titanium from aluminum and carbon. This build uses straight gauge tubing, sourced in the US. The Routt RSL and CRD models step up to internally butted tubing for a lighter, more responsive ride character; the YBB uses straight gauge in keeping with its endurance and comfort intent. Both are the same alloy, both are hand-welded in the same Steamboat Springs facility. The YBB is not a lesser bike — it is a differently specified one, optimized for miles over metrics.
Frame Details and Geometry
Moots designed the Routt YBB around modern endurance gravel geometry. Stack ranges from 579mm (52cm) to 647mm (60cm) with reach running 364mm to 403mm — numbers that favor an upright, sustainable position over an aggressive race tuck. The head tube angle is 70.25° to 71.5° across the size run, providing the kind of stable steering that matters on loose descents and loaded touring. The 437mm chainstay is consistent across all six sizes (52 through 60cm), which ensures that handling character doesn't shift as the frame scales. The BB shell uses the 68mm English threaded standard — proven, serviceable, and broadly compatible. The rear axle is 142×12mm thru-axle with UDH (Universal Derailleur Hanger) dropouts, which are compatible with SRAM's T-Type and Transmission drivetrain systems and any UDH-compatible rear derailleur.
Tire clearance is 50c, and the frame runs three water bottle mounts plus fender eyelets at the lower stays and chainstay bridge. Optional rack mounting makes the Routt YBB viable for fully loaded touring. The flat-mount disc brake interface is 3D-printed in titanium — a Moots manufacturing detail that improves brake caliper alignment by building the mount geometry directly into the frame rather than using an adapter. The 44mm head tube accepts standard tapered fork steerers. Seatpost diameter is 27.2mm, which is notable: at this diameter, a titanium or carbon seatpost contributes meaningfully to vertical compliance, complementing what the YBB system does at the rear.
Included Components
The frameset ships with Moots' own carbon gravel fork, a Chris King Inset 7 headset, a Chris King TF30 bottom bracket (threaded 30mm, for BSA 68mm shells), and titanium stack spacers. The Chris King components are not incidental spec — they represent Moots' standard practice of including premium, serviceable parts that match the lifetime expectations of the frame itself. Chris King headsets and bottom brackets are rebuilable and routinely outlast the bikes they're installed on.
Finish Options
Moots offers the Routt YBB in a wide range of finish options, from the natural brushed titanium look through anodized colorways (Blue Ano, Gold Ano, Green Ano, Matte Blue Ano, Pink Ano) and etched finishes to named premium colors including Apex, Frostbite, Groundswell, Hunter, Stanley, and Trans Am. Anodized and etched finishes add to the base frameset price; premium finishes carry a higher upcharge. All frames are finished at the Steamboat Springs facility. In 2026, Moots is also marking its 45th anniversary with a commemorative emblem on the seat tube, included on all bikes produced this year.
Moots backs every frame with a limited lifetime warranty. For riders who want to build once and ride indefinitely — through multiple drivetrains, wheel upgrades, and changing riding styles — the Routt YBB is a frame designed to remain relevant. The YBB microsuspension, the titanium construction, and the endurance geometry are not trends. They are the considered choices of a brand that has spent four decades making the same thing, incrementally better.
Moots Routt YBB Frameset - Specifications
*Specifications are subject to change.
Moots Routt YBB Frameset Geometry
