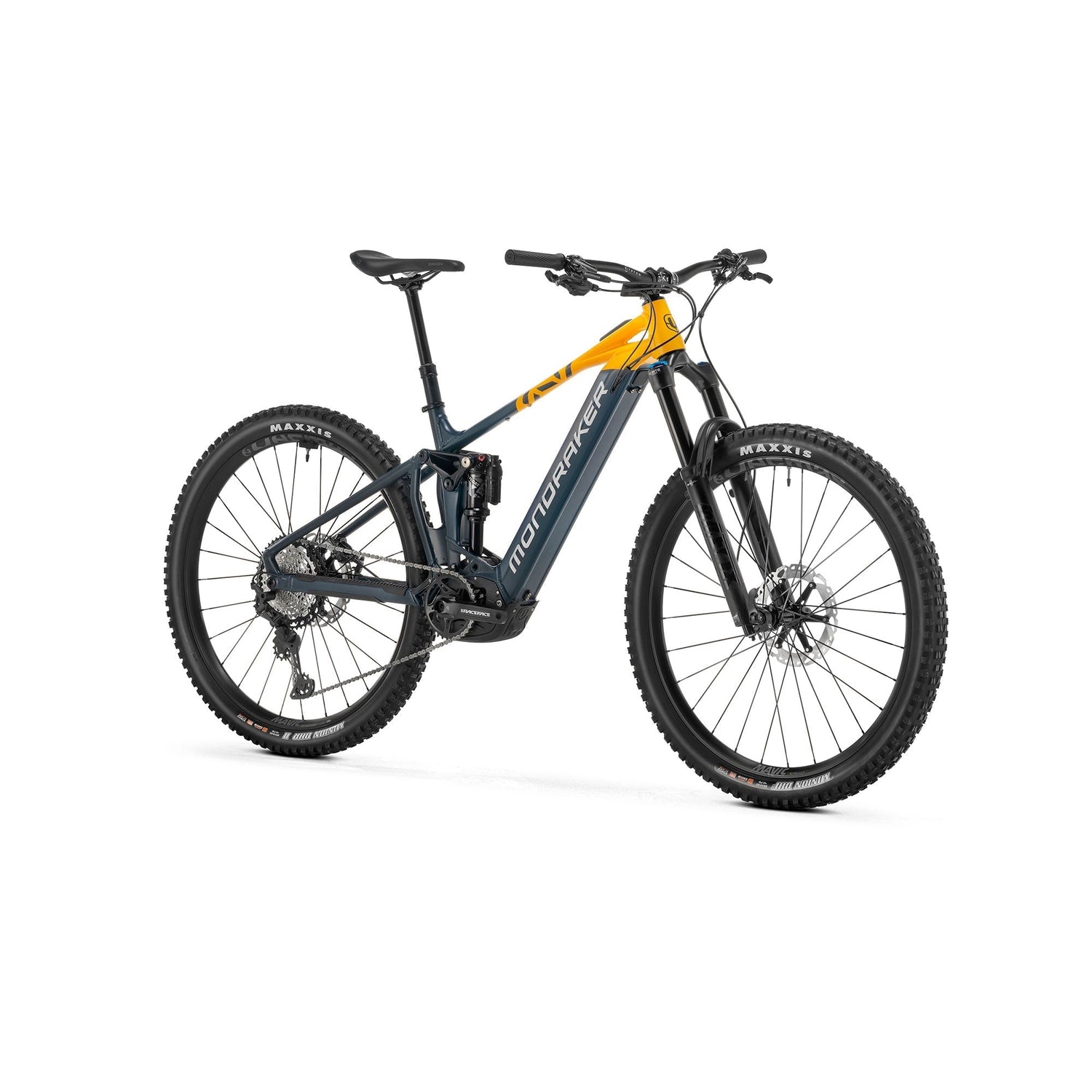

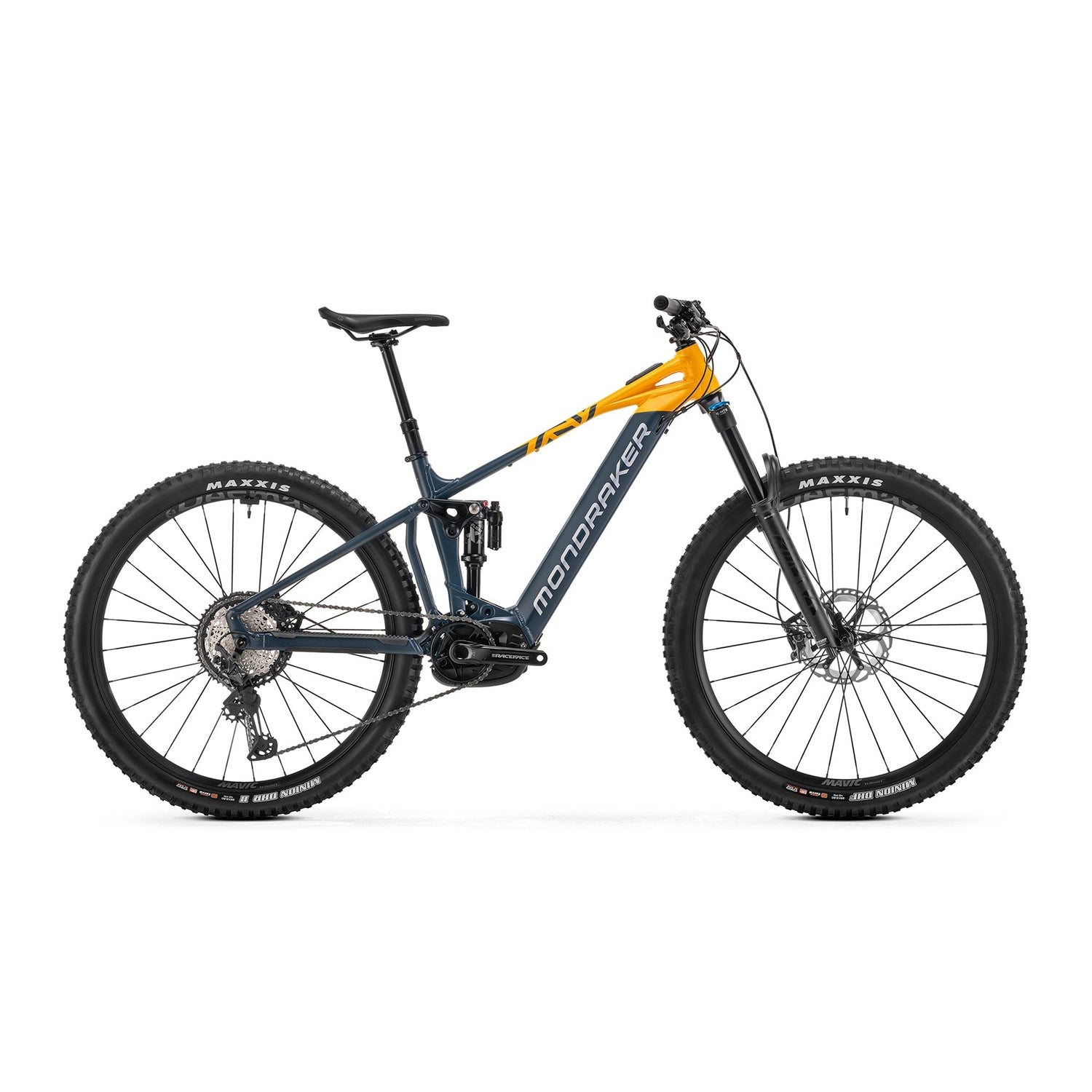

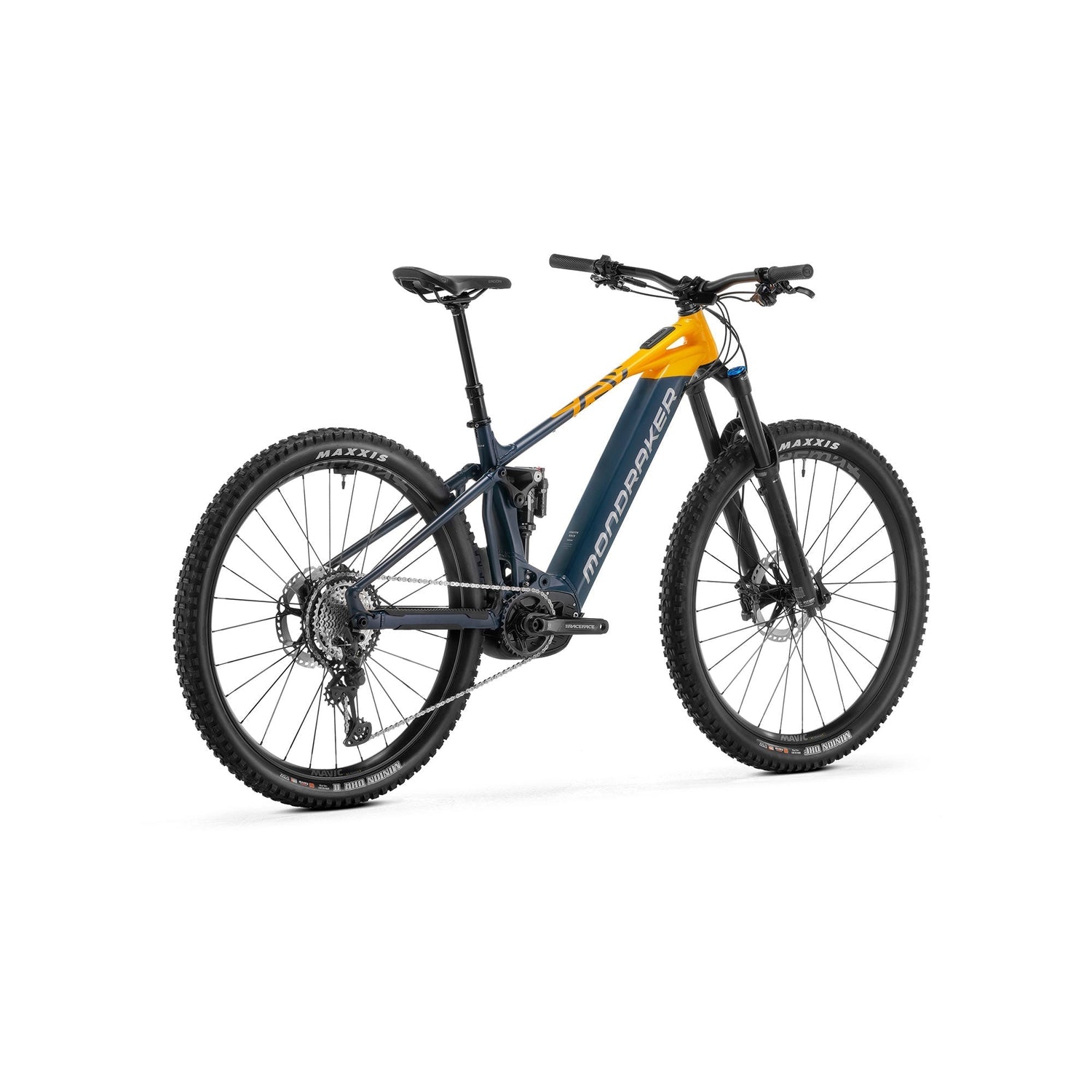

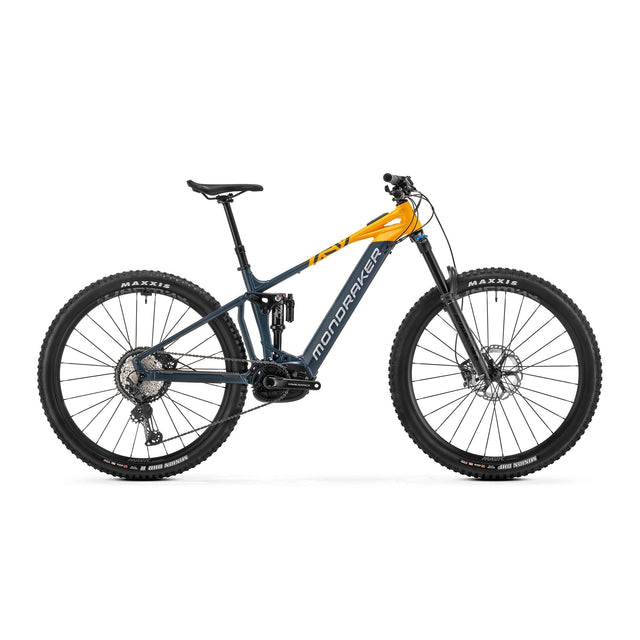

Mondraker Crafty Race Bike

The Mondraker Crafty Race Bike is the aluminum entry point into Mondraker's Crafty eMTB platform, and "entry point" carries an asterisk at this price. The Crafty Race arrives with a Bosch Performance Line CX Race motor, Fox 38 and Float-X LV suspension, Shimano XT M8100 throughout, and Mavic E-Deemax 29 wheels — all of it anchored by the same Forward Geometry and Zero Suspension kinematics that define the carbon Crafty models. The frame is alloy. The rest of the build makes no concessions.

Mondraker's Forward Geometry is the design principle around which the entire Crafty platform is built, and it shapes how the bike rides more than any individual component. A 65.5° head angle combined with reach measurements running from 450mm (S) to 510mm (XL) creates a long, stable front end that tracks confidently at speed on technical terrain. Mondraker pairs this with a steep 73.5° seat tube angle that keeps the rider over the pedals on climbs, and 455mm chainstays consistent across the size run — short enough to maintain rear-end responsiveness, long enough for stability at eMTB speeds. A geometry flip chip allows adjustment to head angle, bottom bracket height, and saddle position for different terrain preferences. Every size ships with a 30mm stem, matched to the extended reach to keep steering precise without being nervous.

The motor is Bosch's Performance Line CX Race, the high-output variant of the Gen 4 Smart System. It delivers 85Nm of torque and 600W of peak power, with power delivery tuned to feel natural and responsive under load rather than intrusive. The 750Wh Powertube battery is fully integrated into the down tube and removable for charging. The compact Purion 400 display handles mode selection and battery monitoring from a 1.6" color screen. For longer days, the system accepts Bosch's 250Wh Powermore range extender.

Suspension is Fox at both ends. The Fox 38 Float GRIP Performance runs 160mm of eMTB-tuned travel through 38mm stanchions — the added chassis stiffness matters on an e-bike carrying extra load into rough terrain at speed. Out back, the Fox Float-X LV Performance manages 150mm of travel through Mondraker's Zero Suspension System, a linkage designed for the specific weight and inertia characteristics of e-bike riding, balancing pedaling efficiency against descending compliance.

The drivetrain is Shimano XT M8100 throughout — rear derailleur, shifter, and 10-51T cassette — matched to a Race Face Aeffect-R eBike-rated crankset with a 34T chainring and 160mm crank arms across all sizes. Shimano XT M8120 4-piston hydraulic brakes with 203mm MT800 ICE-Tech Centerlock rotors provide the stopping power that an eMTB of this weight and capability requires. Mavic E-Deemax 29 wheels with 30mm internal width run tubeless-ready, wrapped in Maxxis Minion DHF 29x2.6 up front and Minion DHR II 29x2.6 at the rear. The Onoff cockpit package — 800mm bar, 30mm stem, size-specific Pija dropper post — rounds out a build that reflects the bike's intent at every point.

Design Benefits

1. Forward Geometry with flip chip: A 65.5° head angle and reach measurements of 450–510mm across sizes deliver stable, confident handling on technical terrain — the same geometry specification as the carbon Crafty models.
2. Bosch Performance Line CX Race motor: 85Nm and 600W peak power with tuned response that mirrors the feel of an unassisted drivetrain, paired with a removable 750Wh battery for full-day range.
3. Fox 38 and Float-X LV suspension: 160/150mm of eMTB-specific Fox suspension manages the added load and aggression this platform invites, front and rear.
4. Shimano XT M8120 4-piston brakes: Four-piston calipers and 203mm rotors provide consistent, controllable stopping power appropriate for the bike's weight and intended speed range.
5. Zero Suspension System kinematics: Mondraker's eMTB-optimized linkage design balances pedaling efficiency and descending compliance around the specific inertia characteristics of an e-bike platform.

Final Take

The Mondraker Crafty Race is for riders who want the full Crafty experience — Forward Geometry, top-tier Bosch motor, Fox suspension, Shimano XT — and would rather put the savings over the carbon models toward components, a second wheelset, or a fit investment. The aluminum frame carries the same design intent and riding character as the rest of the lineup. It's a fully specified enduro eMTB that earns its price on componentry and geometry, not material prestige.
