Wolf Tooth CAMO BashSpider for SRAM 3-Bolt Cranks

Wolf Tooth CAMO BashSpider for SRAM 3-Bolt Cranks Info

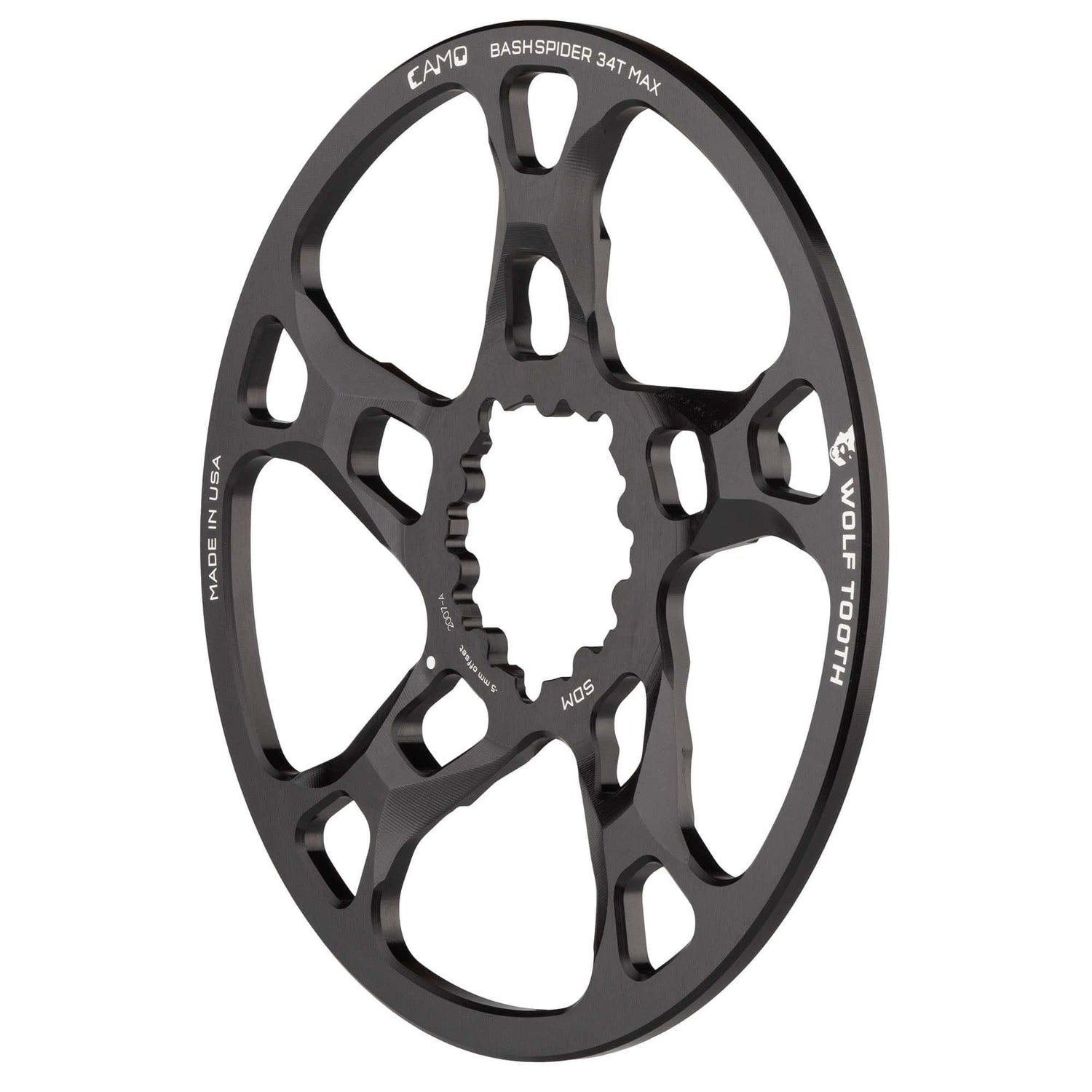

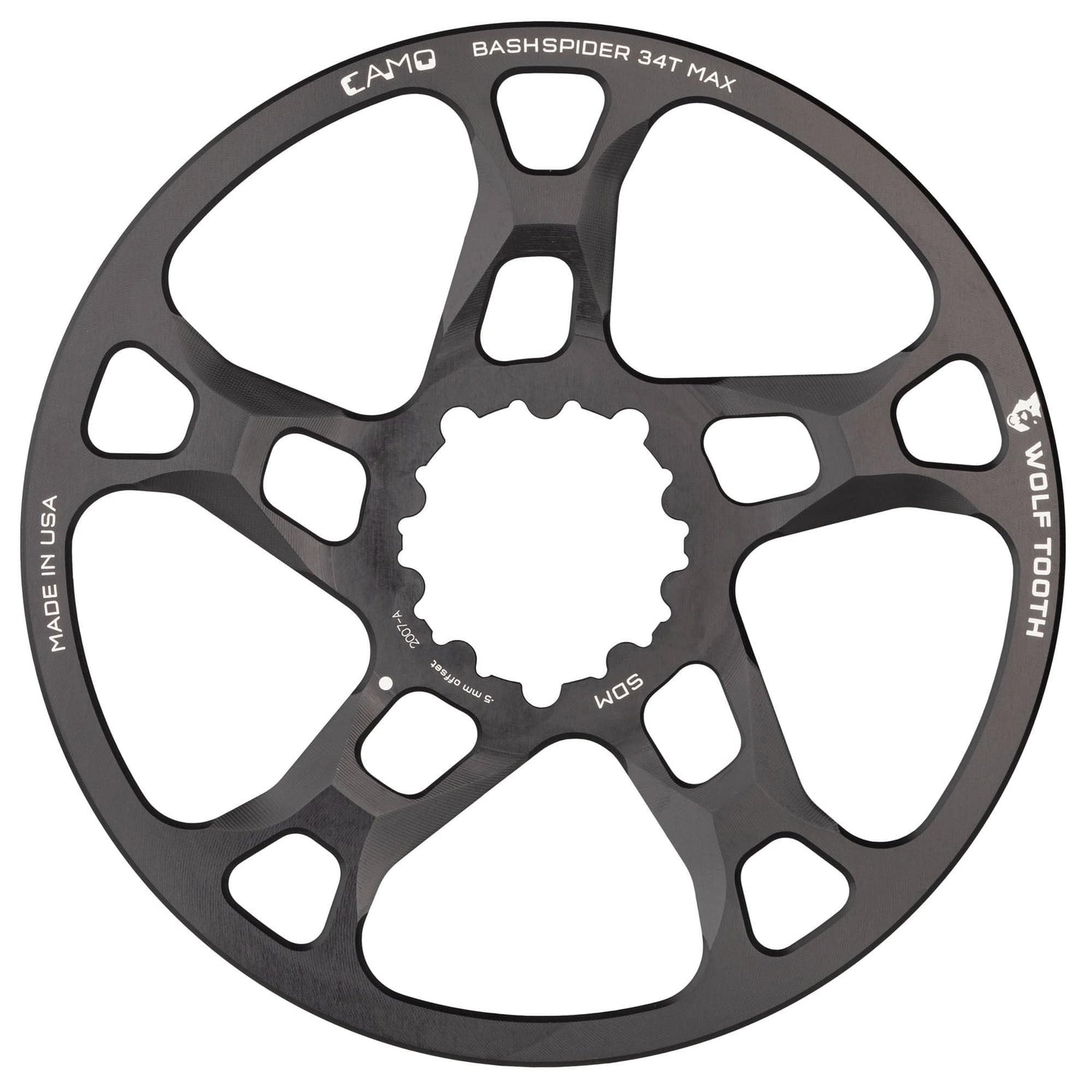

Wolf Tooth CAMO BashSpider for SRAM 3-Bolt Cranks is a crankset-mounted spider with an integrated bash ring, engineered specifically for SRAM direct mount cranksets with a removable spider. Designed as part of the CAMO (Chainline And Material Optimization) system, this BashSpider delivers drivetrain protection and optimized chainline in one clean, efficient solution.

Important: This is the CAMO BashSpider only. A compatible CAMO chainring is required to complete the system.

Unlike frame- or ISCG-mounted bash guards, the CAMO BashSpider mounts directly to the crankset, providing superior support and alignment while avoiding potential frame warranty concerns. The integrated bash ring is shaped for a smooth “rolling” interface over rocks and trail obstacles, helping riders maintain momentum through technical terrain.

As part of the CAMO system, the spider works with CAMO chainrings to allow fast and simple chainring swaps using five small bolts—no nuts required. This modular design allows riders to fine-tune chainline, material choice, and tooth count without replacing the entire direct mount chainring assembly.

CAMO BashSpider Specs at a Glance

• Crank Interface: SRAM 3-bolt direct mount (removable spider only)
• Offset: M5 (–5mm Boost), dished toward frame
• Optimized For: Boost spacing
• Compatible Chainrings: CAMO 28T–34T round or 30T–32T elliptical
• Material: 7075-T6 aluminum
• Weight: 103g (M5)
• Included: ED-coated steel CAMO mounting bolts
• Origin: Made in the USA

Compatibility

• Works With: SRAM cranksets featuring removable 3-bolt spiders
• Offset Reference: M5 (Boost) – 5mm inward from mounting face
• Also Used By: Praxis Works MTB cranks using DM-A offset
• Not Compatible: 5DEV cranks or SRAM SX cranks
• Note: Requires a CAMO chainring to complete setup

Installation Notes

• Align the dot on the chainring with the dot on the spider during installation.
• Ensure spider bosses fully seat into the chainring interface.
• All bolts are accessible without removing the spider.
• Torque bolts to 4–5 Nm using blue threadlocker.

Design Benefits

1. Crank-Mounted Protection: Better structural support than frame- or ISCG-mounted bash solutions.
2. Obstacle Deflection: Integrated bash ring designed to glide over trail impacts.
3. Modular Flexibility: Part of the CAMO system for easy chainring swaps and optimized chainline.
4. Precision Machining: CNC-machined 7075-T6 aluminum balances durability and low weight.

Final Take

The Wolf Tooth CAMO BashSpider for SRAM 3-Bolt Cranks is a refined solution for riders running Boost setups who want drivetrain protection without compromising chainline or serviceability. As part of the CAMO system, it delivers modular versatility, reliable impact defense, and clean integration for modern SRAM direct mount cranksets.
