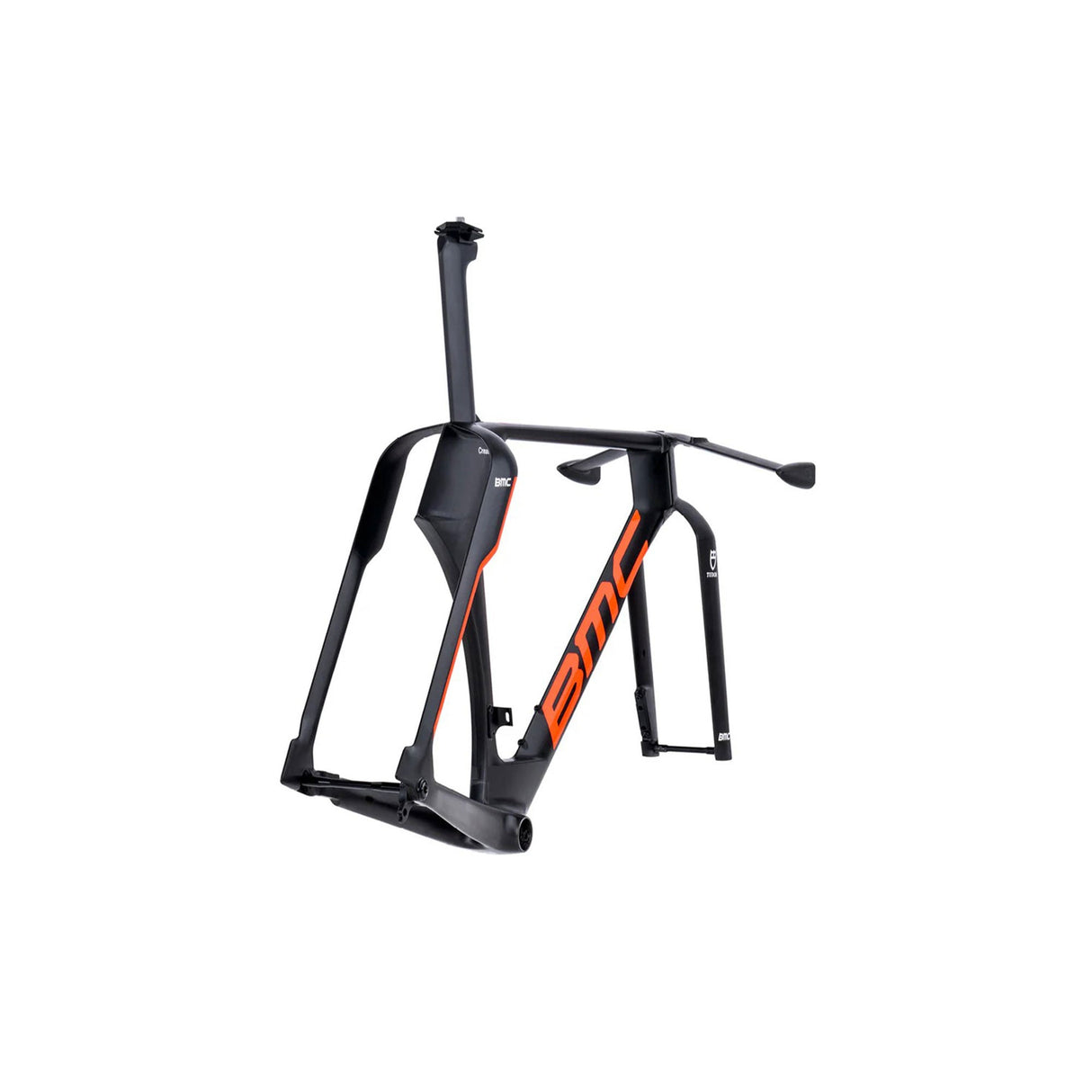

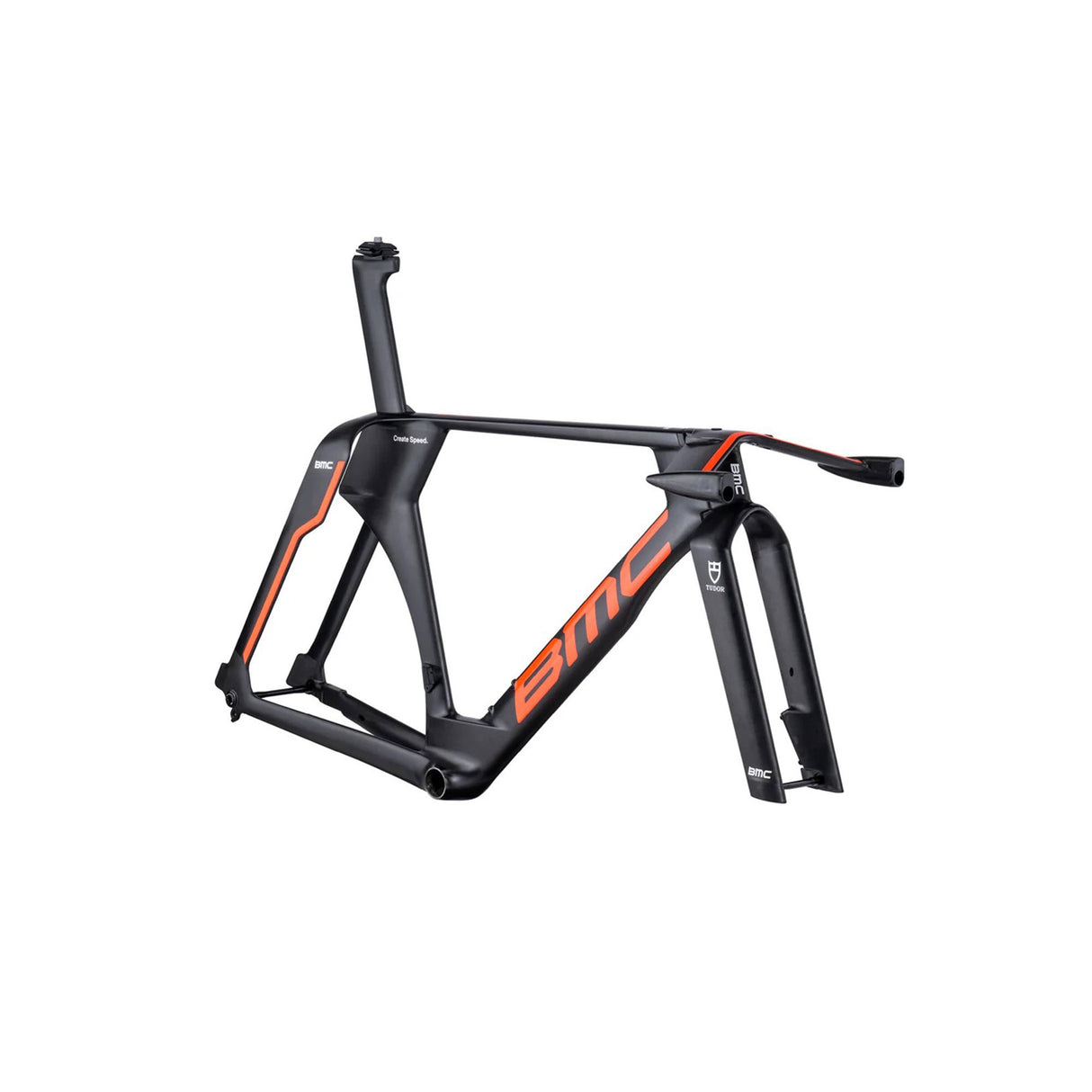

BMC Timemachine Mpc. Frameset
Regular price
$21,29900
Unit price
* Product image may vary. Refer to the description for accurate details.
BMC Timemachine Mpc. Frameset - Specifications
Frame Material:
Timemachine Mpc. | Mpc. Premium Carbon | Full Mount - UDH | Flat Mount Disc | Bottle cage compatible | 142x12mm Thru-Axle
Fork:
Timemachine Mpc. | Mpc. Premium Carbon | Halo+ bayonet front fork | Stealth Dropout Design | Flat Mount Disc | 100 x 12mm Thru-Axle
Headset:
Integrated
Seatpost:
Timemachine Mpc. | Mpc. Premium Carbon | forward: -5.5mm / -18mm / -30.5mm / -43mm offsets (compatible with optional "standard" version: -18mm / 0mm / +18mm / +36mm offsets)
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
Press-Fit 86.5mm Road Required
Rotors:
Rotor compatibility: 160mm front | 140mm or 160mm rear

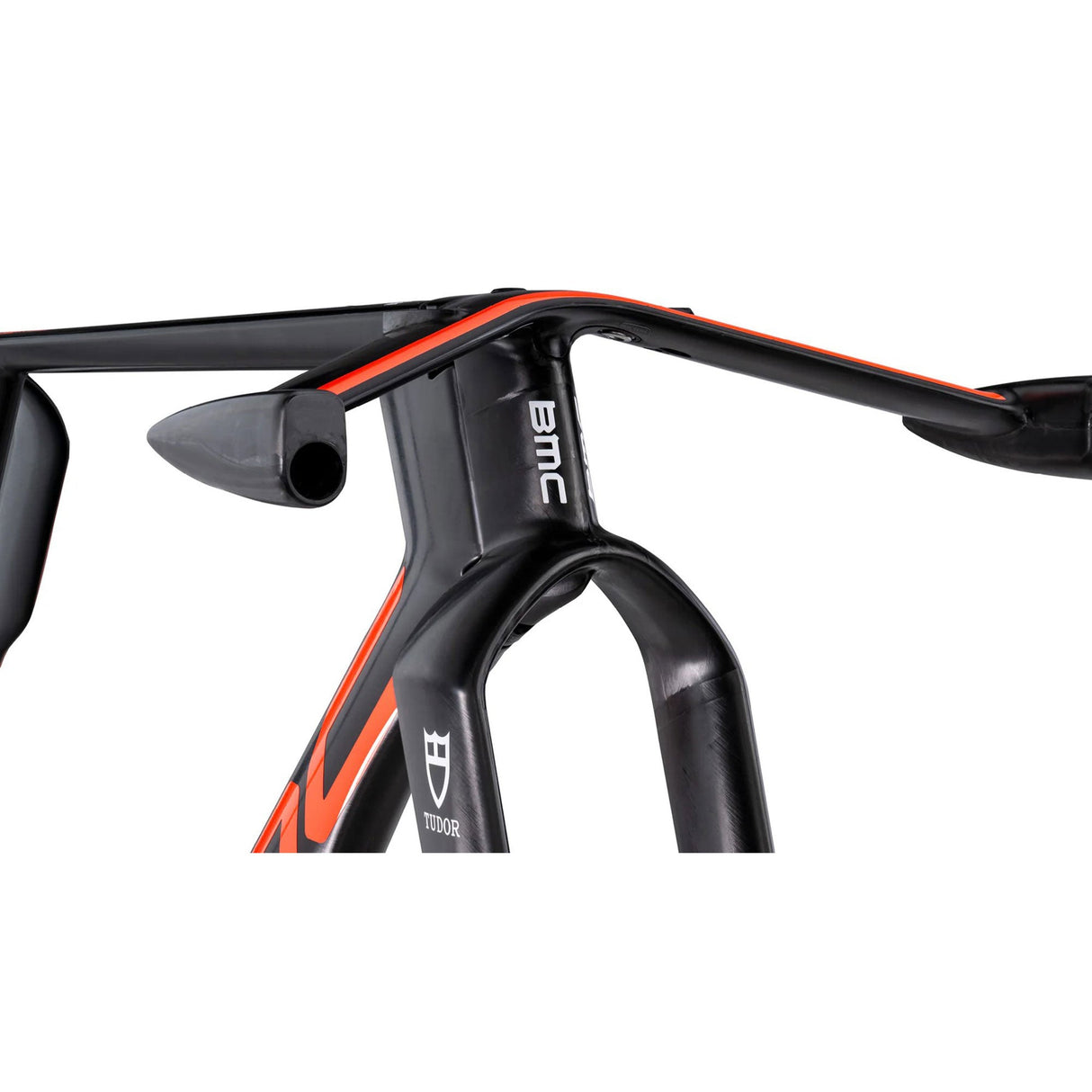

Aero Basebar:
BMC Timemachine Mpc. Flat Cockpit integrated within the Halo+ fork | Compatible with Custom extensions or Profile Design Aeria 1
Max Rider Weight:
242 lbs (System Weight)
Max Tire Width:
30mm (Measured Tire)
*Specifications are subject to change.
BMC Timemachine Mpc. Frameset Geometry
Size:
S
M-L
B. Seat Tube (c-t)
507
537
E. Chain Stay Length
410
410
F. BB Drop
80
80
G. Seat Tube Angle
75.2
75.2
I. Stand Over Height
756
784
J. Wheel Size
700c
700c
Bar Width
353mm (O to O), 328mm (C to C)
353mm (O to O), 328mm (C to C)
