Mondraker Arid S Alloy Bike
$2,49900
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Mondraker | SKU: 010.26US124
| Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242

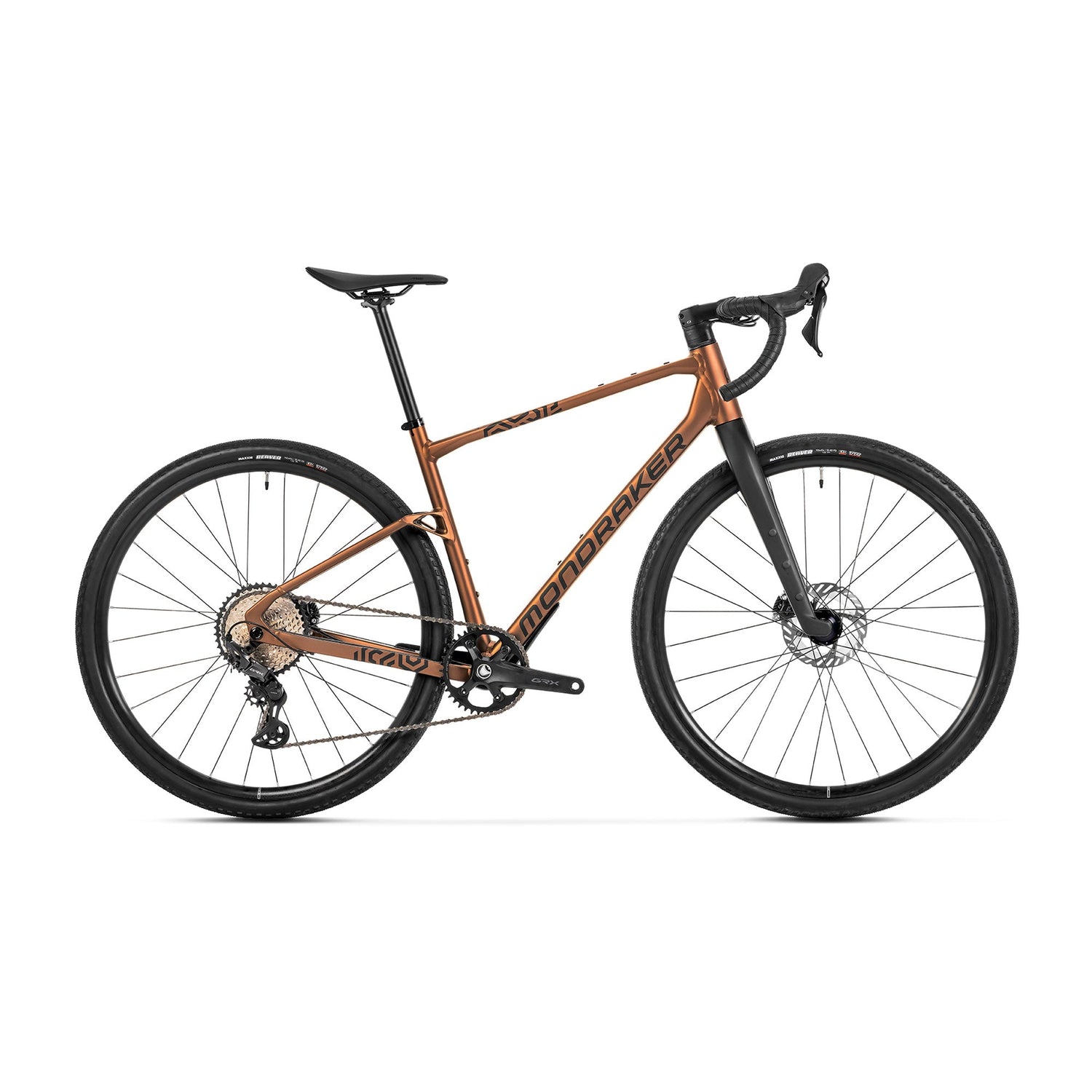

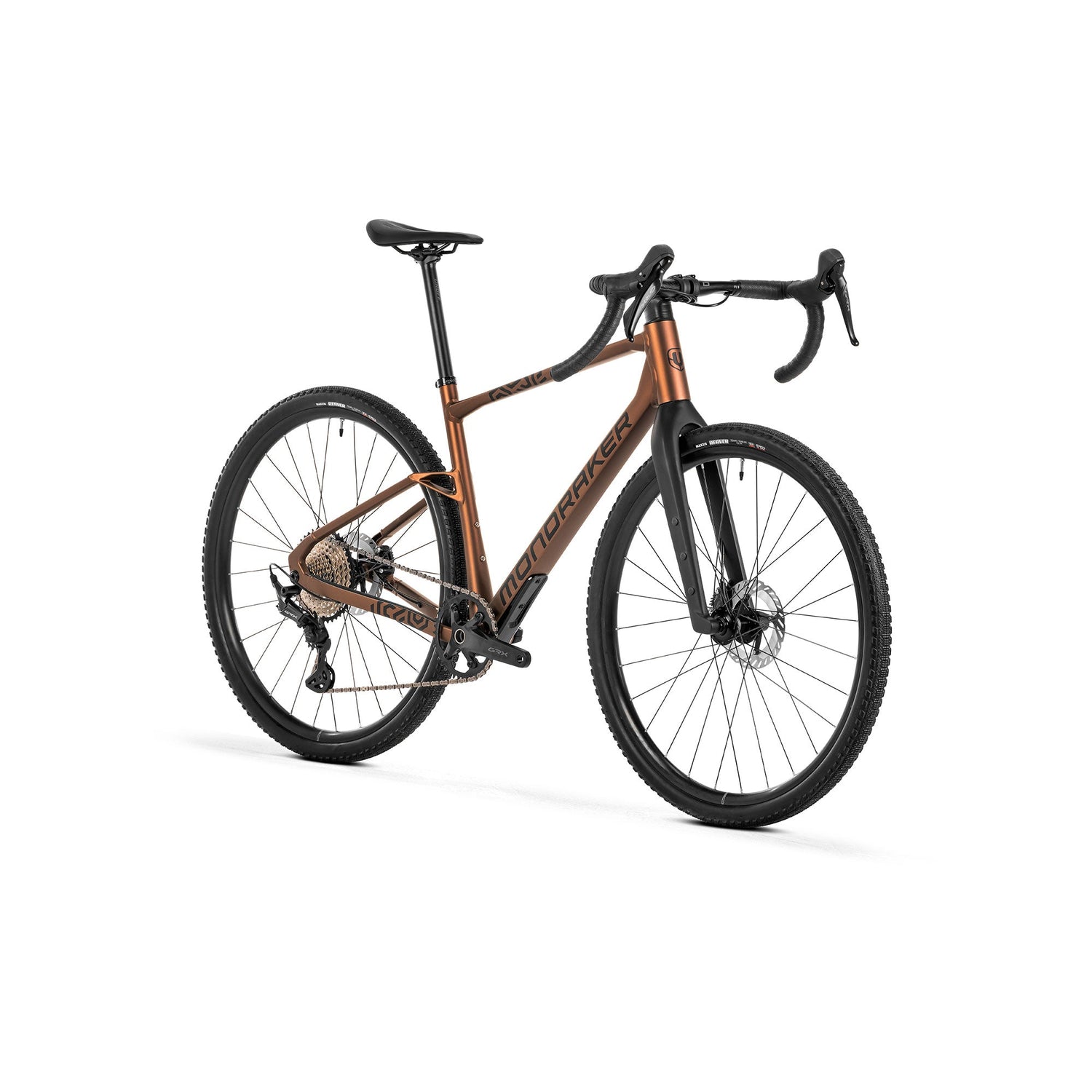

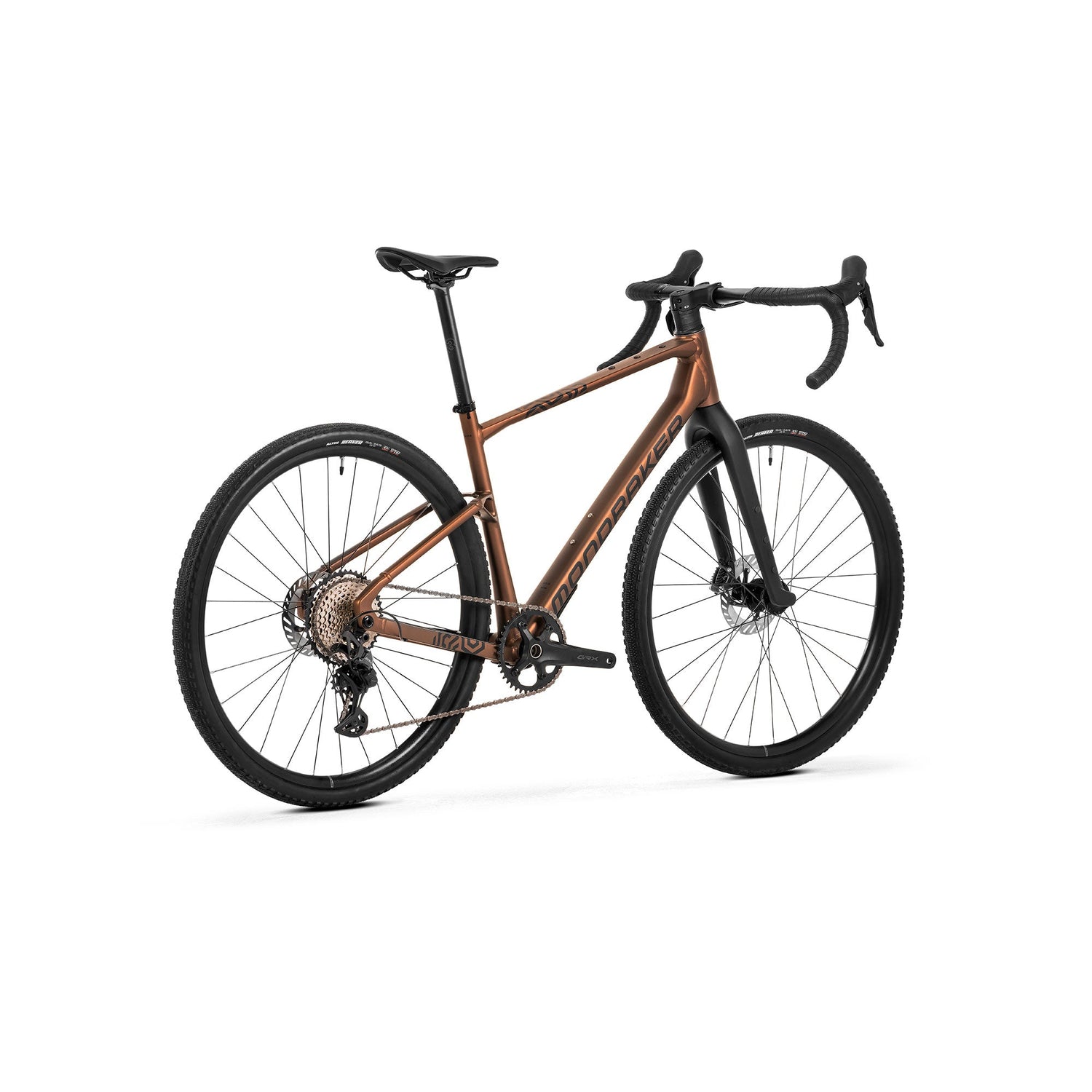

Mondraker Arid S Alloy Bike
$2,49900
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Mondraker Arid S Alloy Bike - Specifications
Frame Material:
Arid Alloy / T47 bottom bracket / 12x142mm
Fork:
Stealth Air Carbon
Headset:
Onoff IS52/IS52 / Sealed bearings / Internal cable routing
Seatpost:
Onoff S9 Carbon 0-R / 27.2mm / 400mm
Rear Derailleur:
Shimano GRX RX822
Crankset:
Shimano GRX RX610
Chainrings:
40t
Bottom Bracket:
Token T47
Brake Calipers:
Shimano GRX RX400 Hydraulic Disc
Rotors:
Shimano CL800 Centerlock 160mm
Shifters / Levers:
Shimano GRX RX610
Cassette:
Shimano SLX M7100 12-speed 10-45
Chain:
Shimano M7100 12-speed
Wheel - Front:
Mavic Allroad Disc / UST / 25mm IW / Hookless
Wheel - Rear:
Mavic Allroad Disc / UST / 25mm IW / Hookless
Stem:
Onoff 6061 T6 Alloy / 31.8mm clamp / -7º rise
Handlebar:
OnOff S3 GR / 16º bar flare
Saddle:
Fizik Terra Argo X5 140mm
Tires:
Maxxis Reaver / Tubeless Ready / 700x45
Bar Tape:
OnOff HEX
Pedals:
Not Included
*Specifications are subject to change.
Mondraker Arid S Alloy Bike Geometry
Size:
L
M
ML
S
XL
B. Seat Tube (c-t)
510
450
480
410
540
C. Top Tube Length
600
550
580
520
630
D. Head Tube Length
175
125
145
100
200
E. Chain Stay Length
425
425
425
425
425
F. BB Drop
75
75
75
75
75
G. Seat Tube Angle
73
73
73
73
73
H. Head Tube Angle
70
70
70
70
70
J. Wheel Size
700c
700c
700c
700c
700c
K. Stack
619
572
591
548
642
L. Reach
423
386
411
363
446
Stem Length
80mm
70mm
70mm
60mm
90mm
Bar Width
46cm
44cm
46cm
44cm
46cm
M. Crank Length
172.5mm
170mm
172.5mm
170m
175mm
