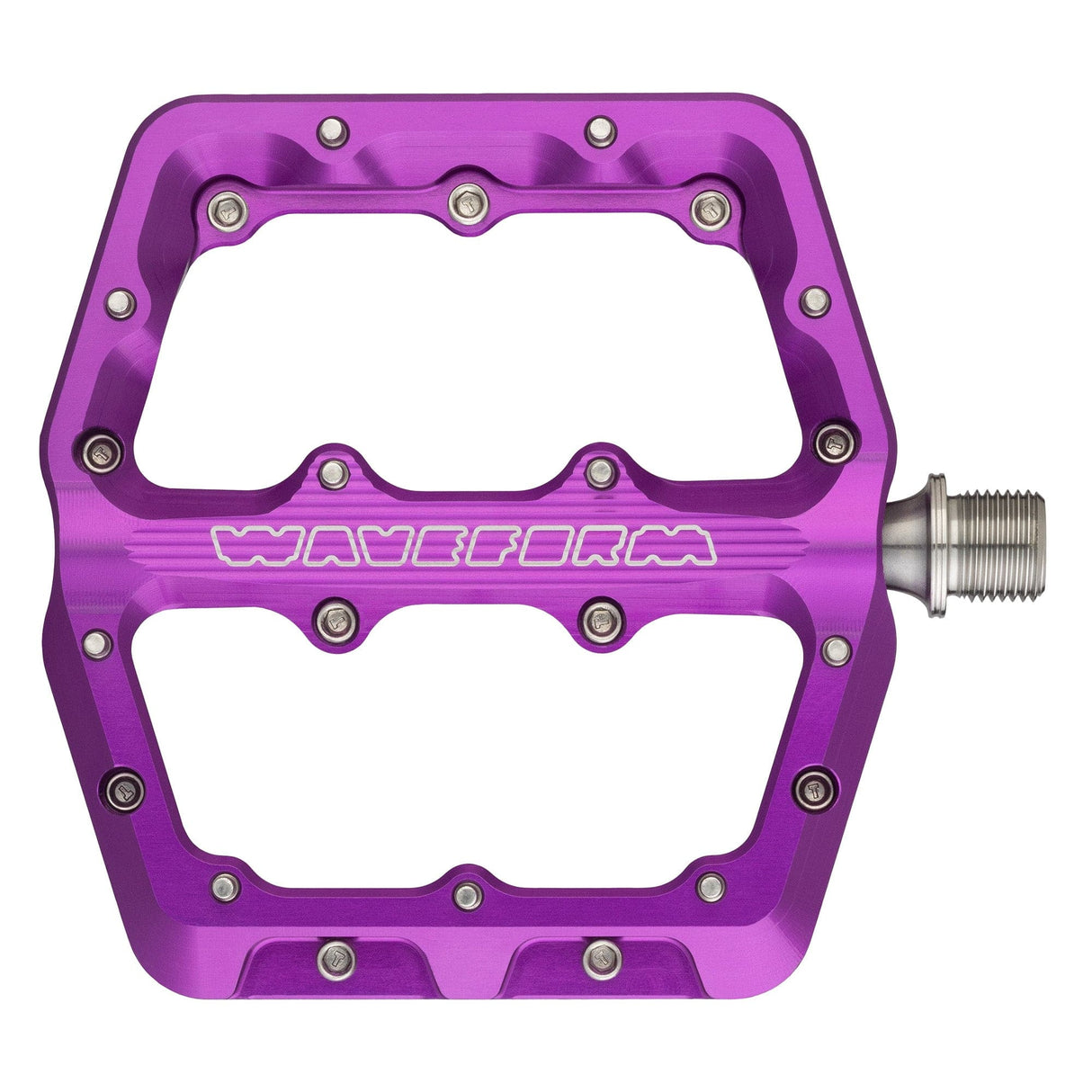

Wolf Tooth Waveform Aluminum Pedals

Wolf Tooth Waveform Aluminum Pedals Info

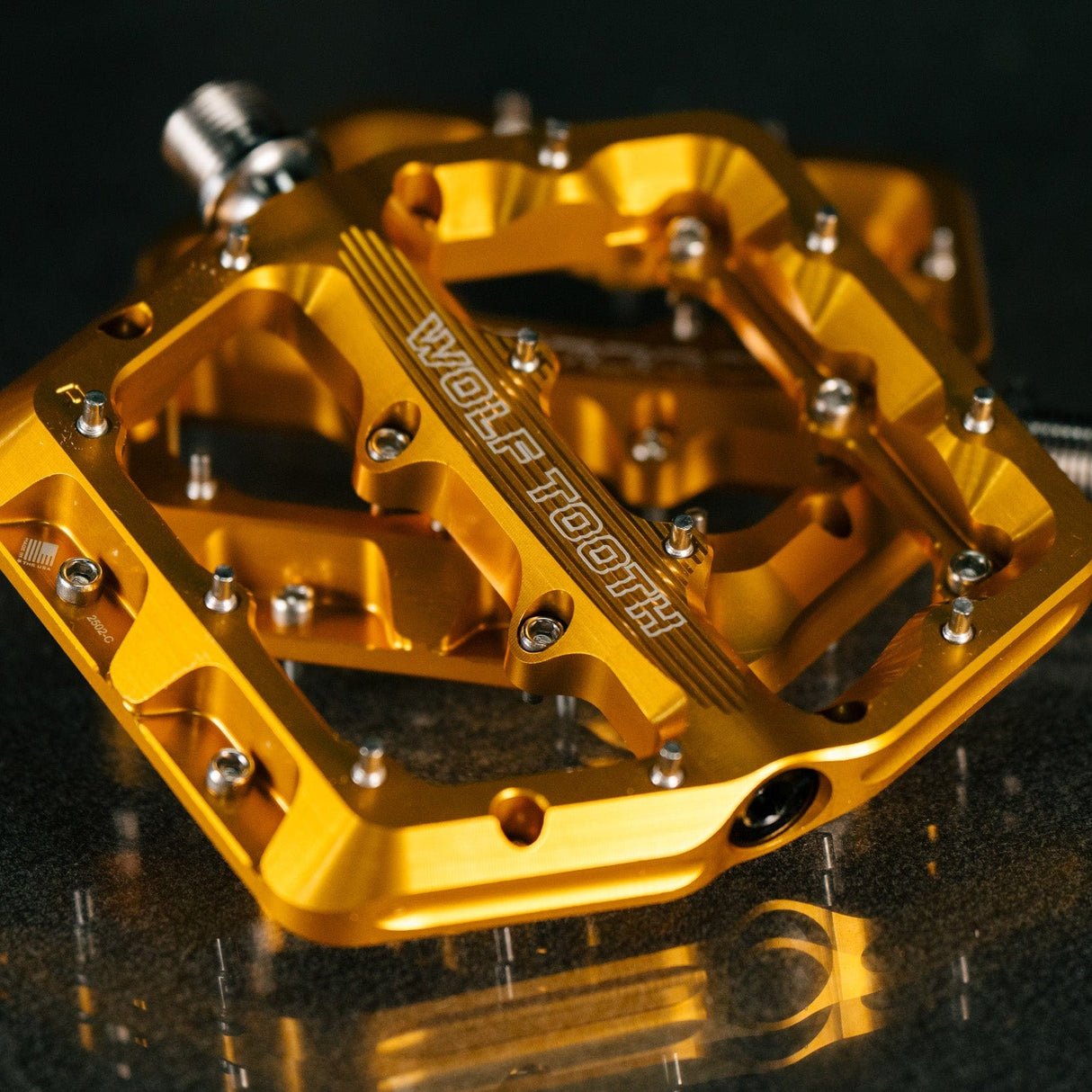

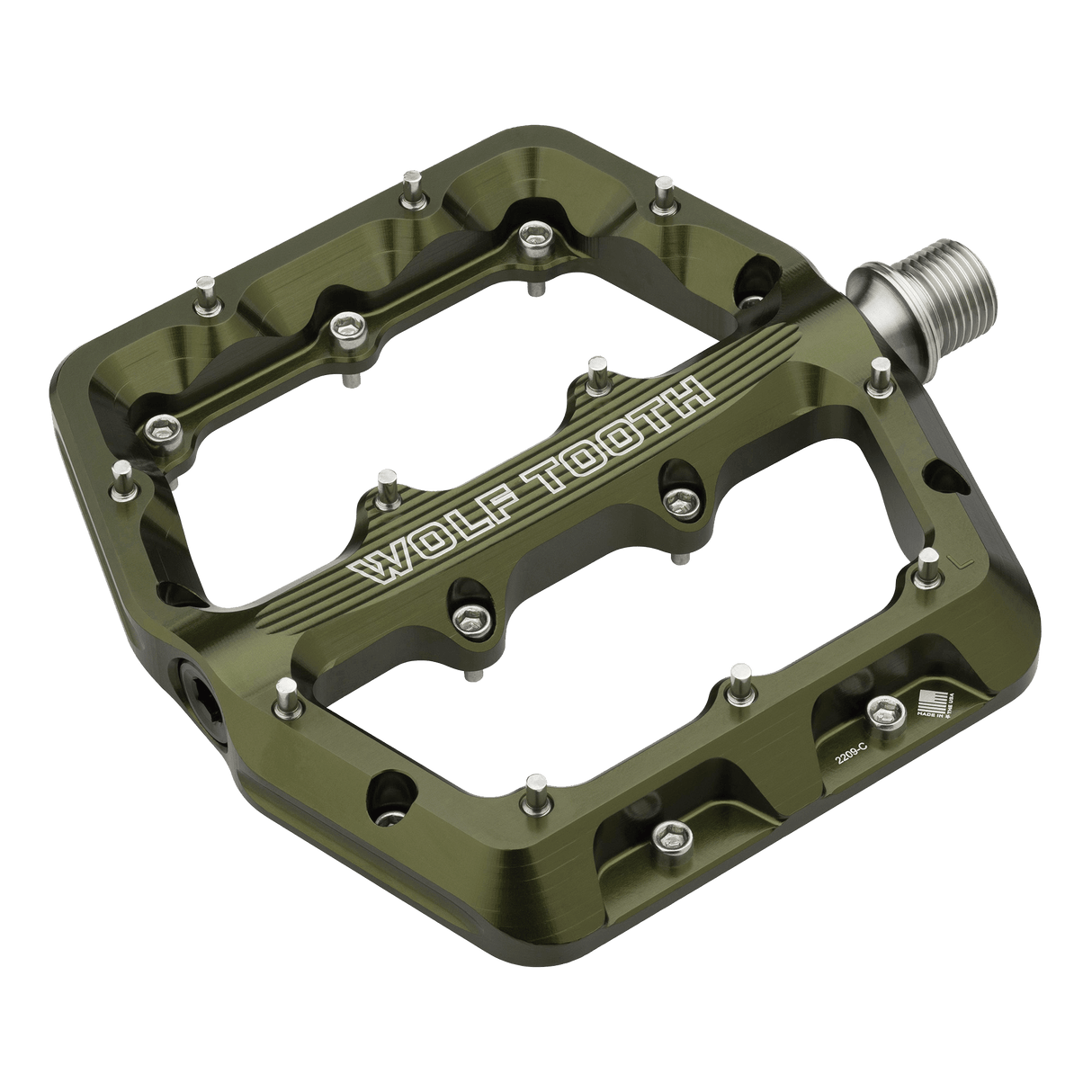

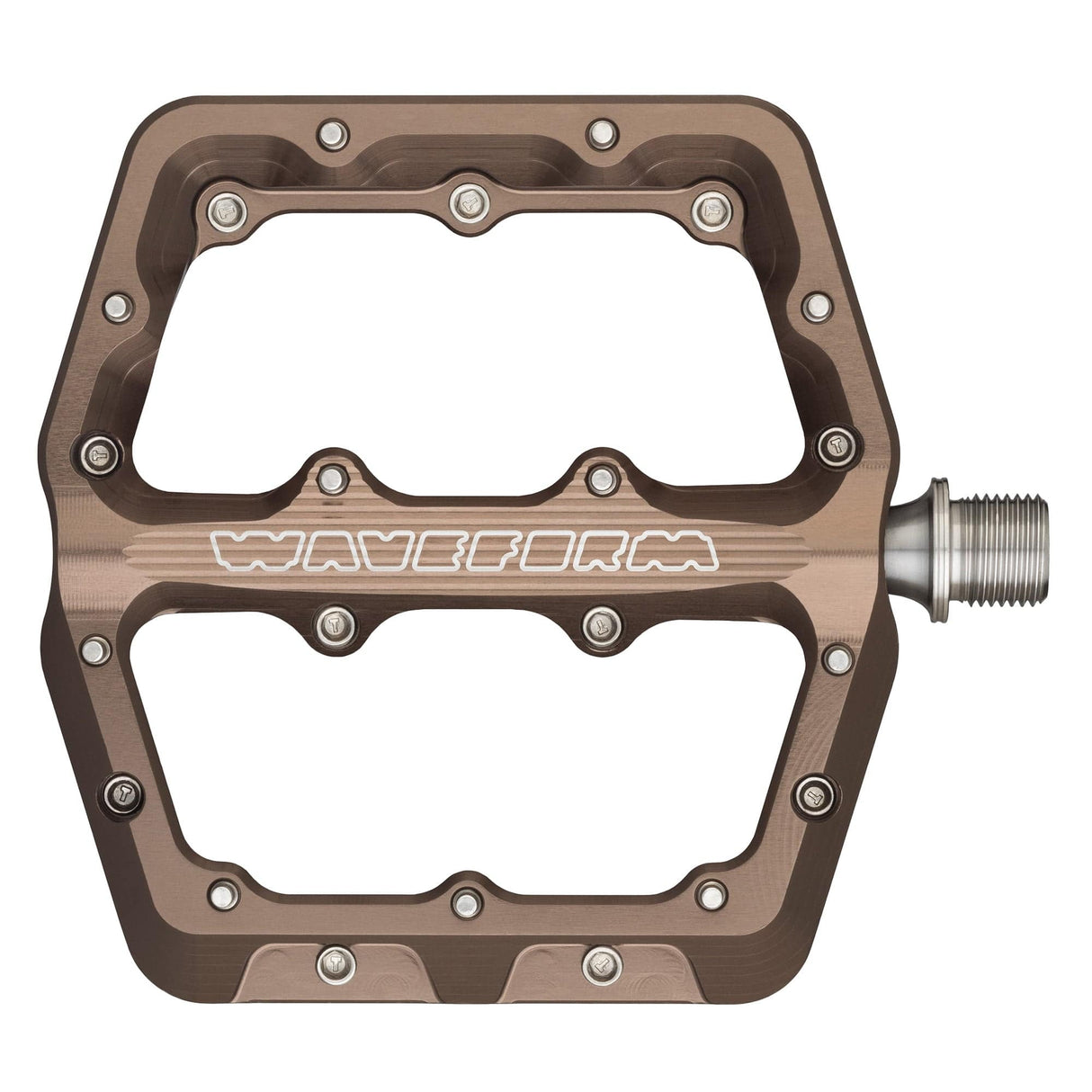

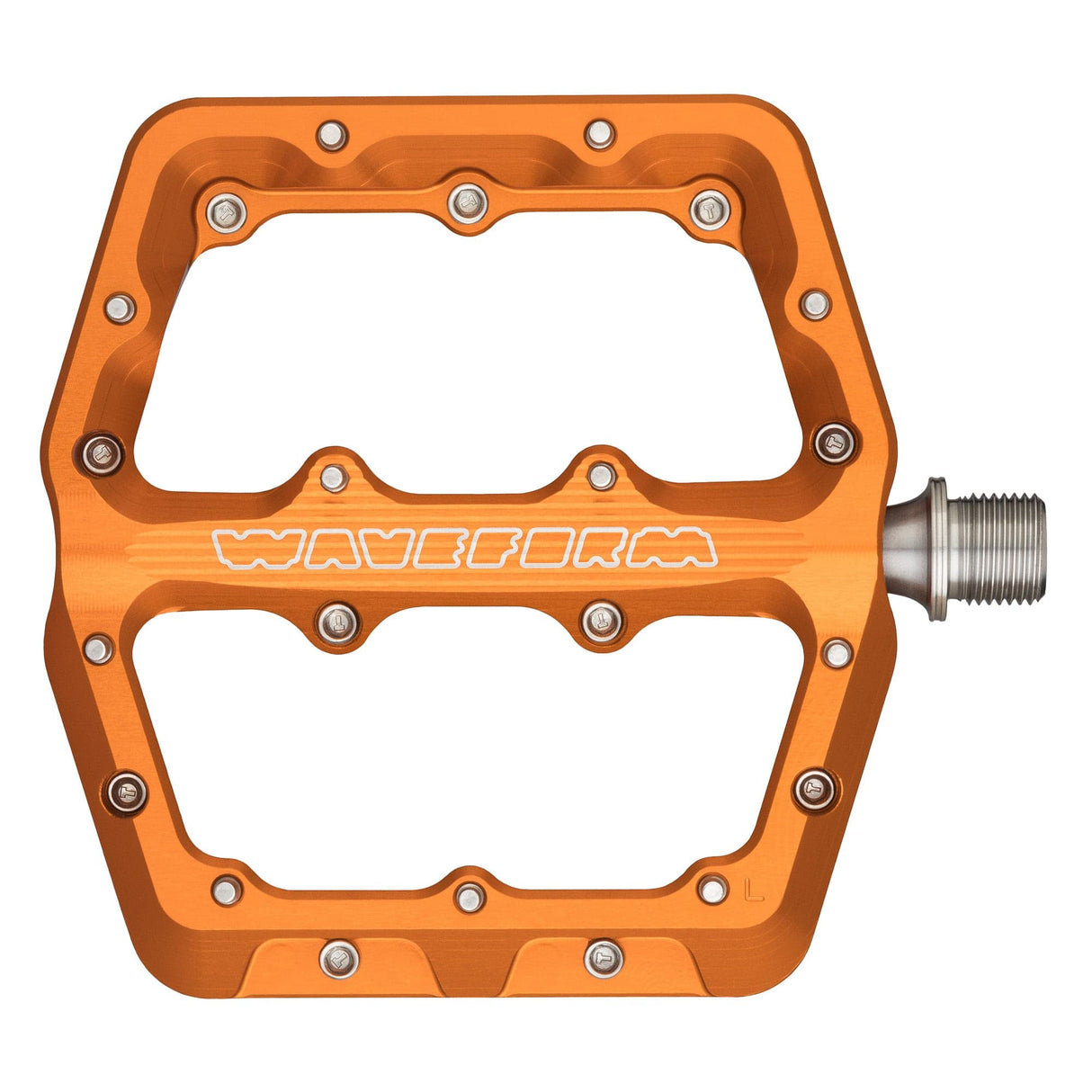

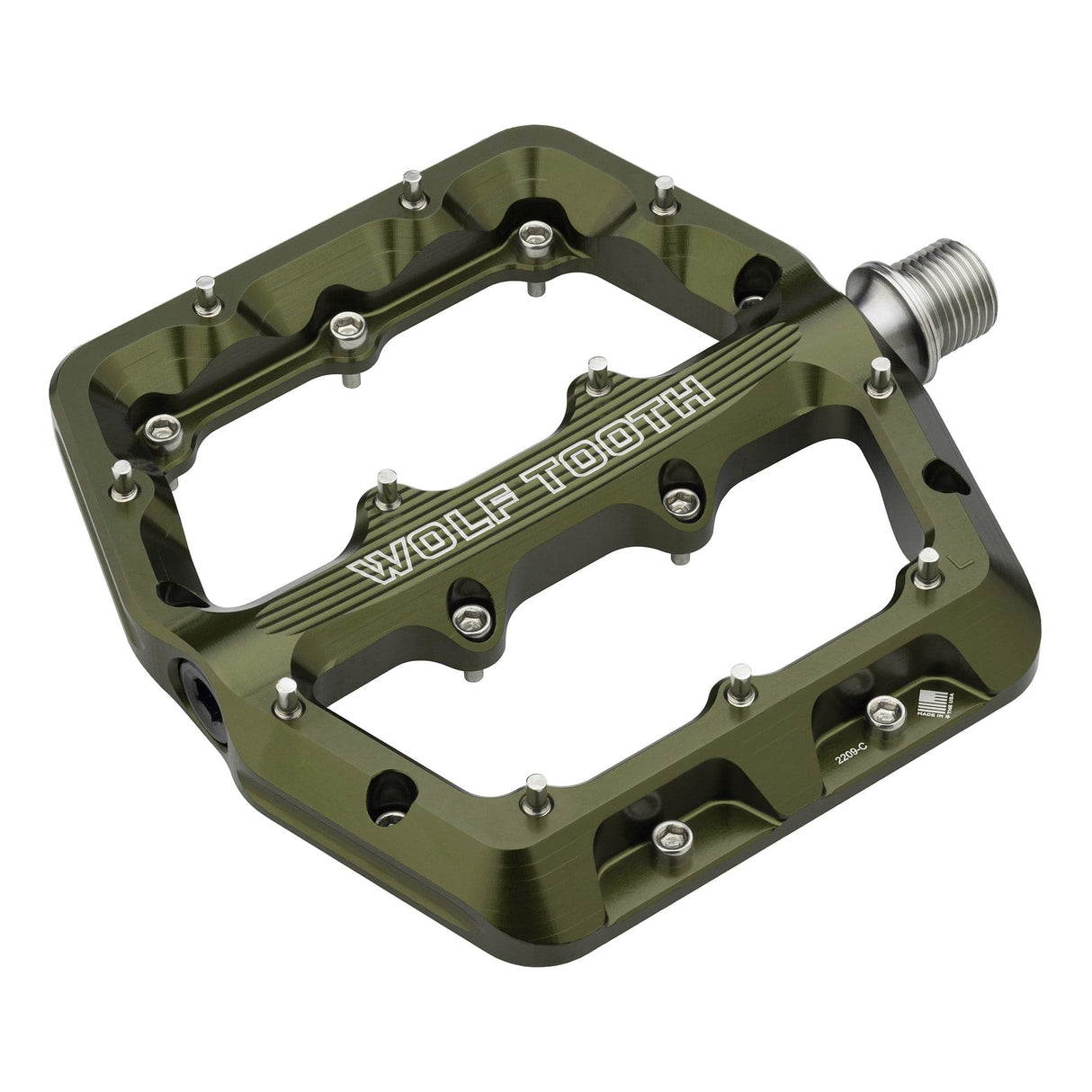

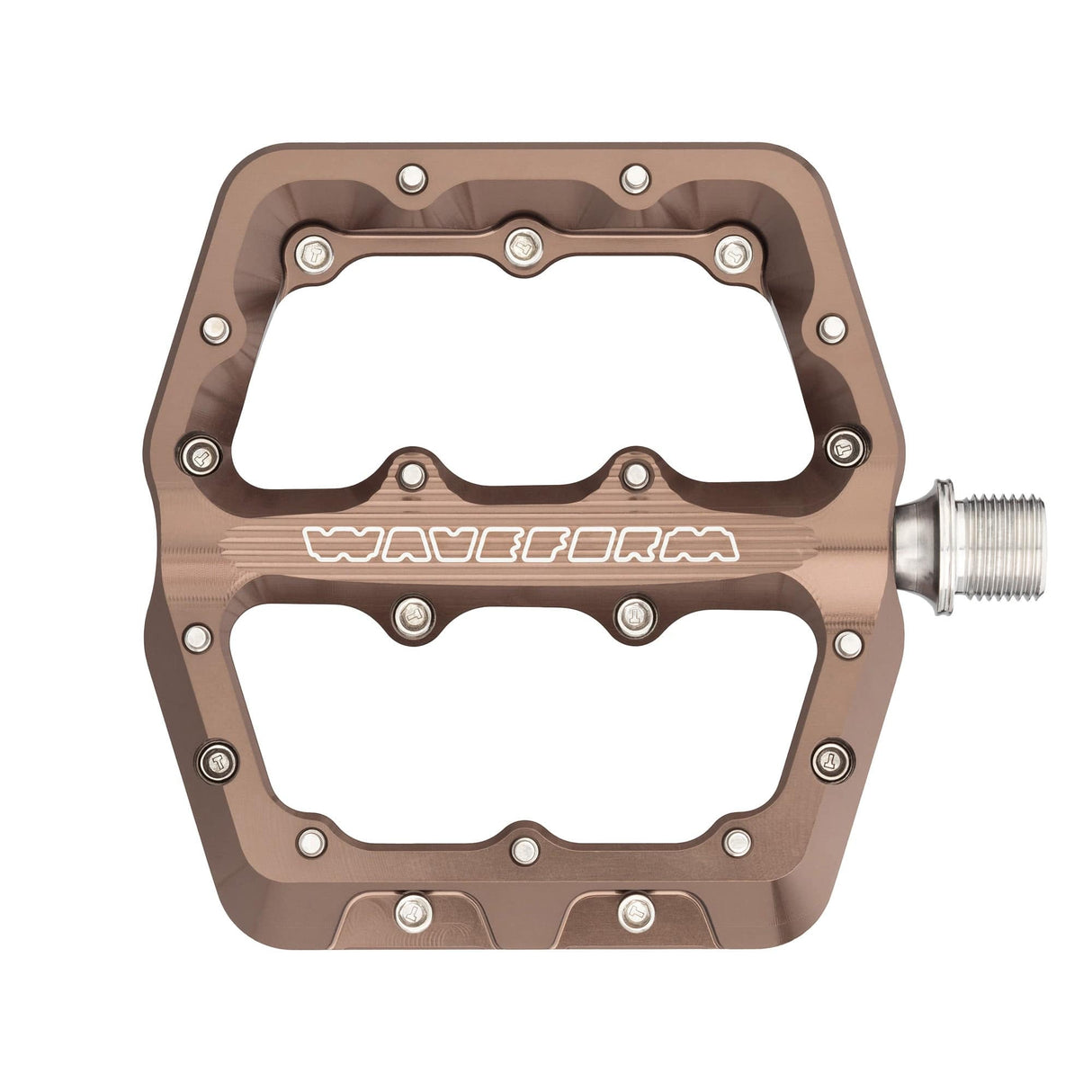

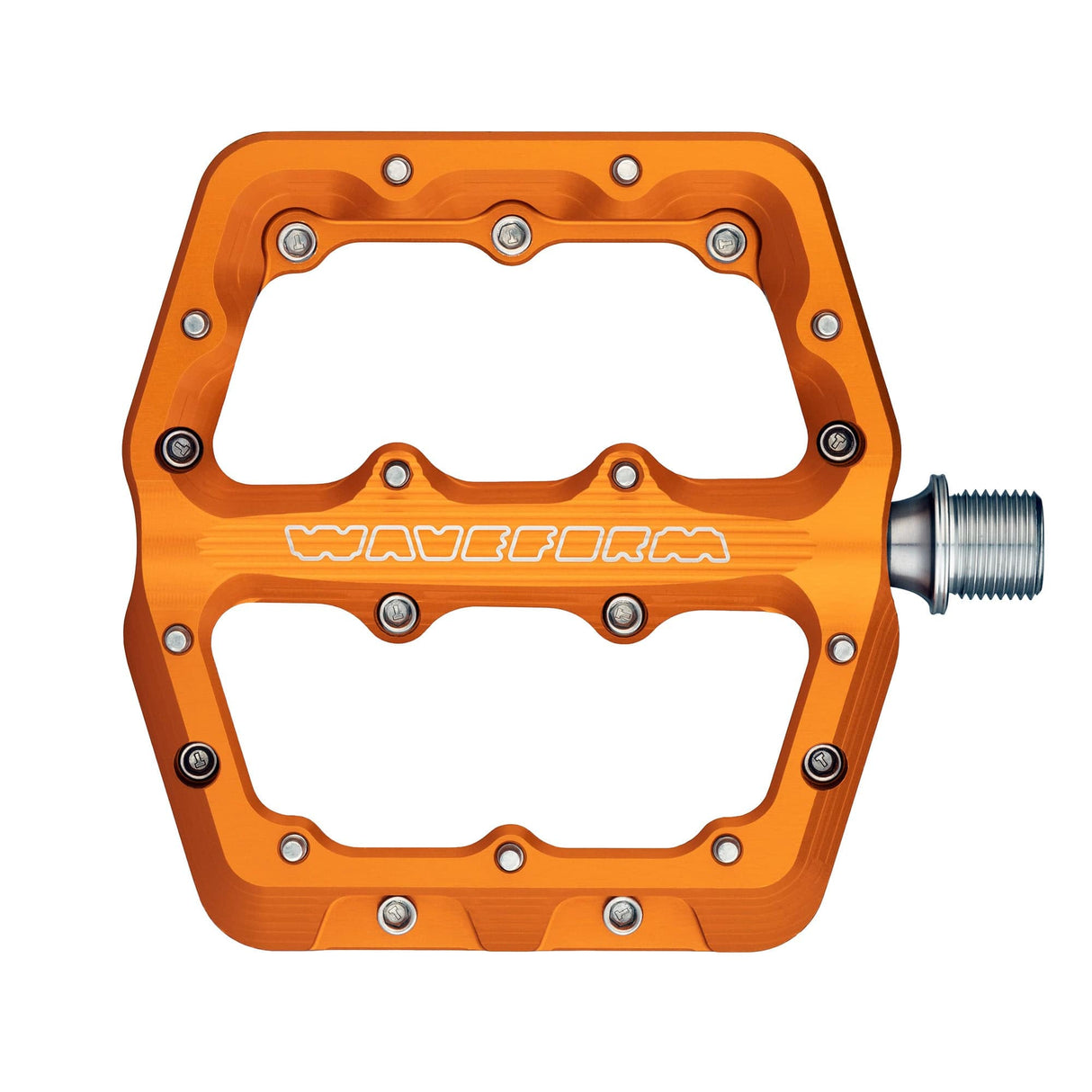

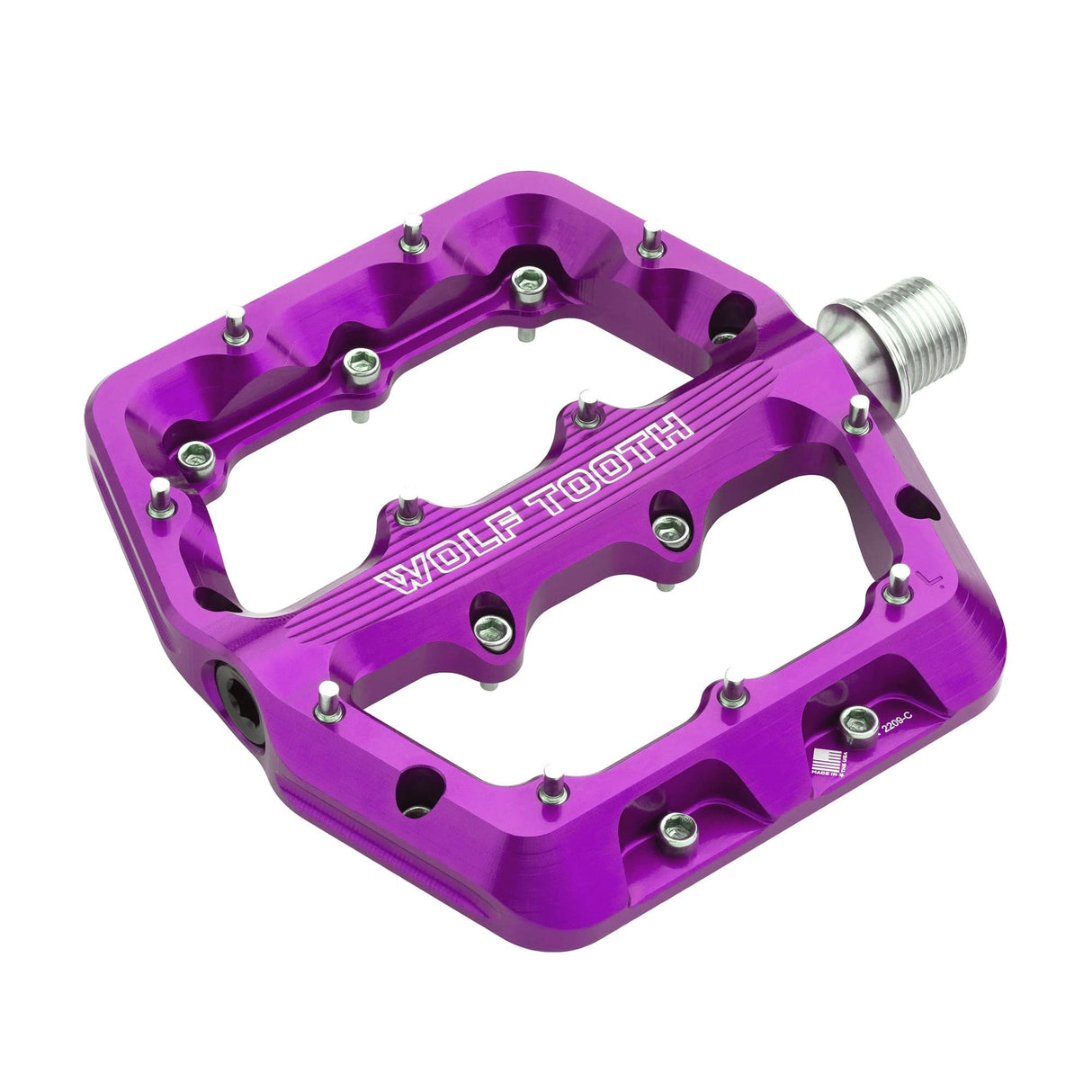

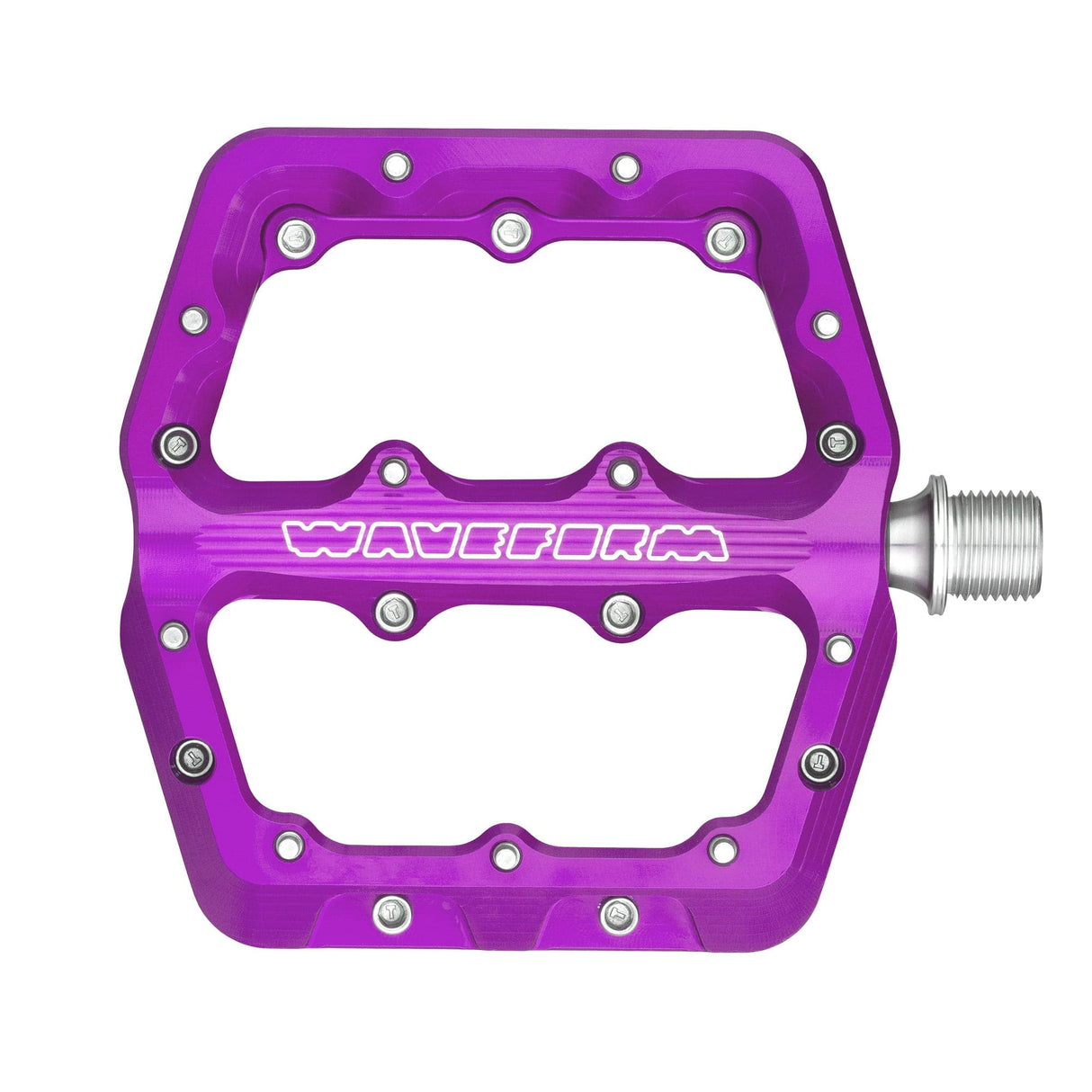

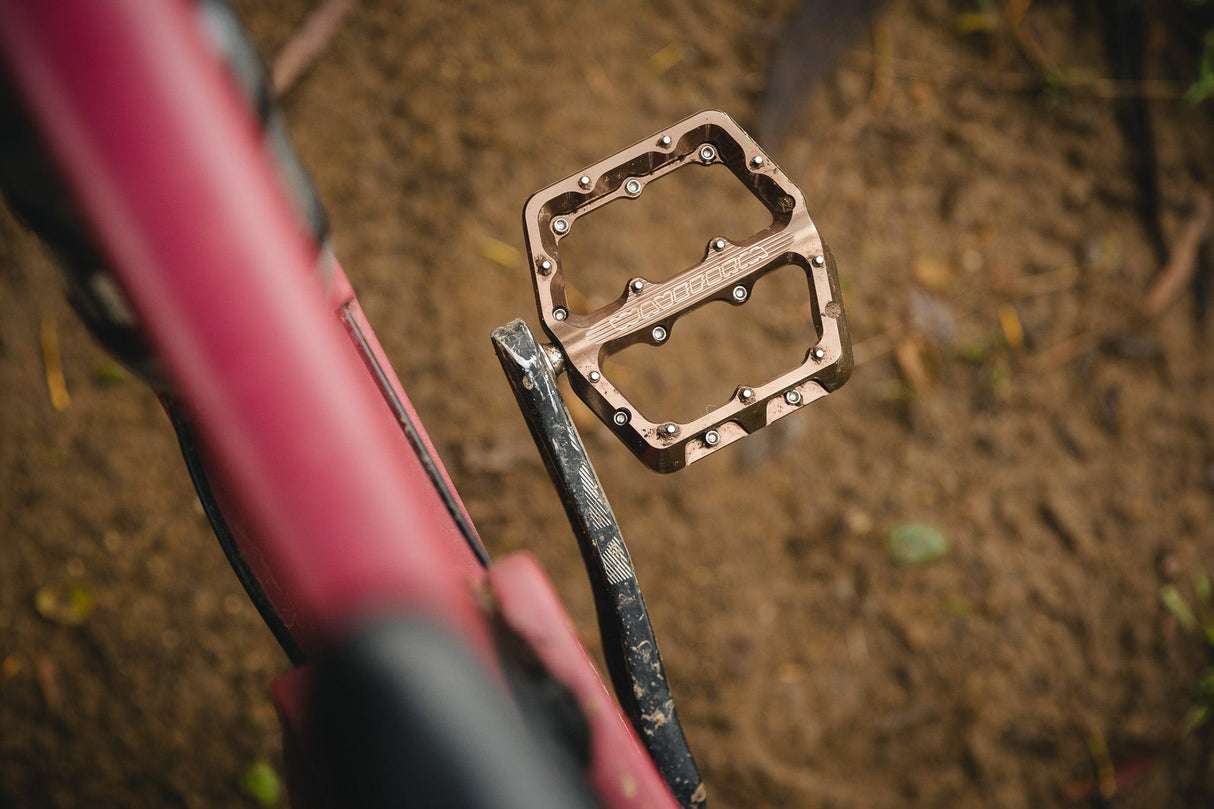

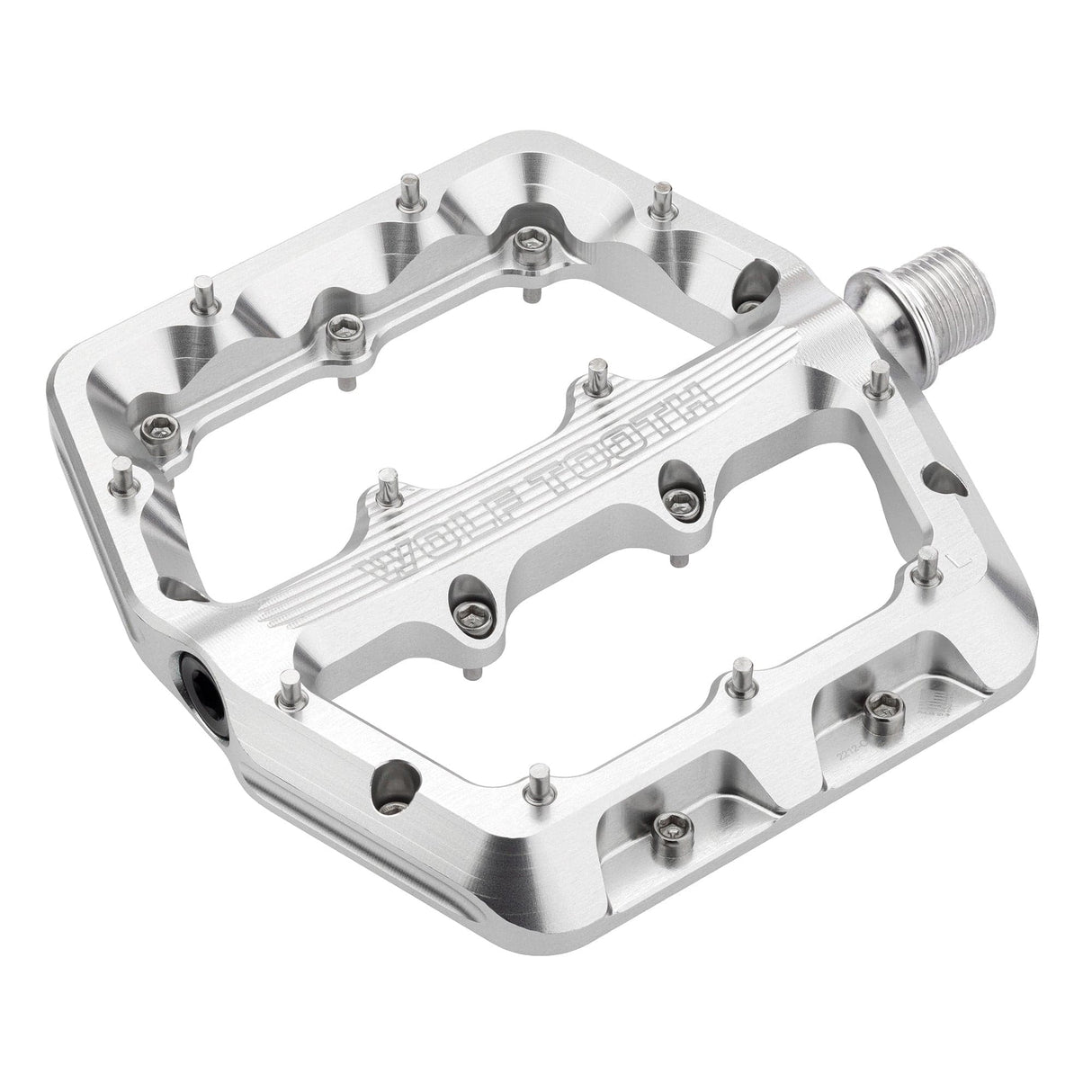

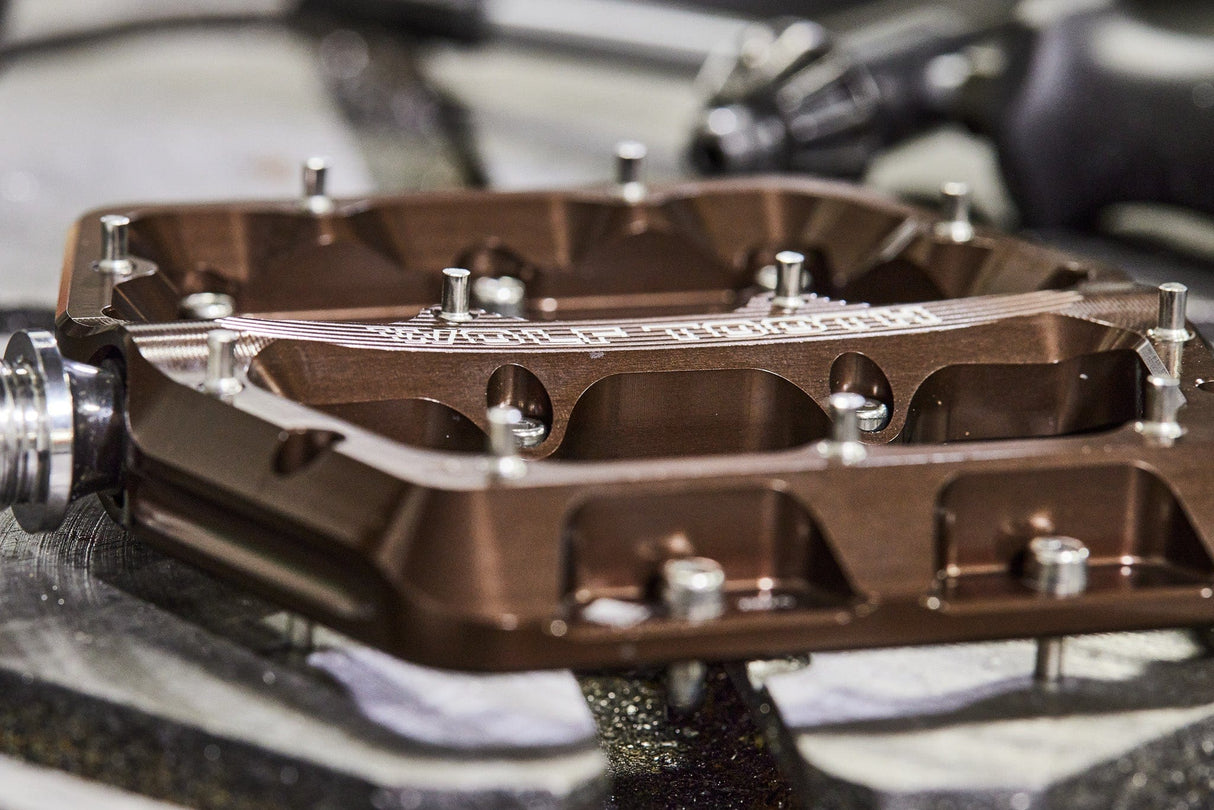

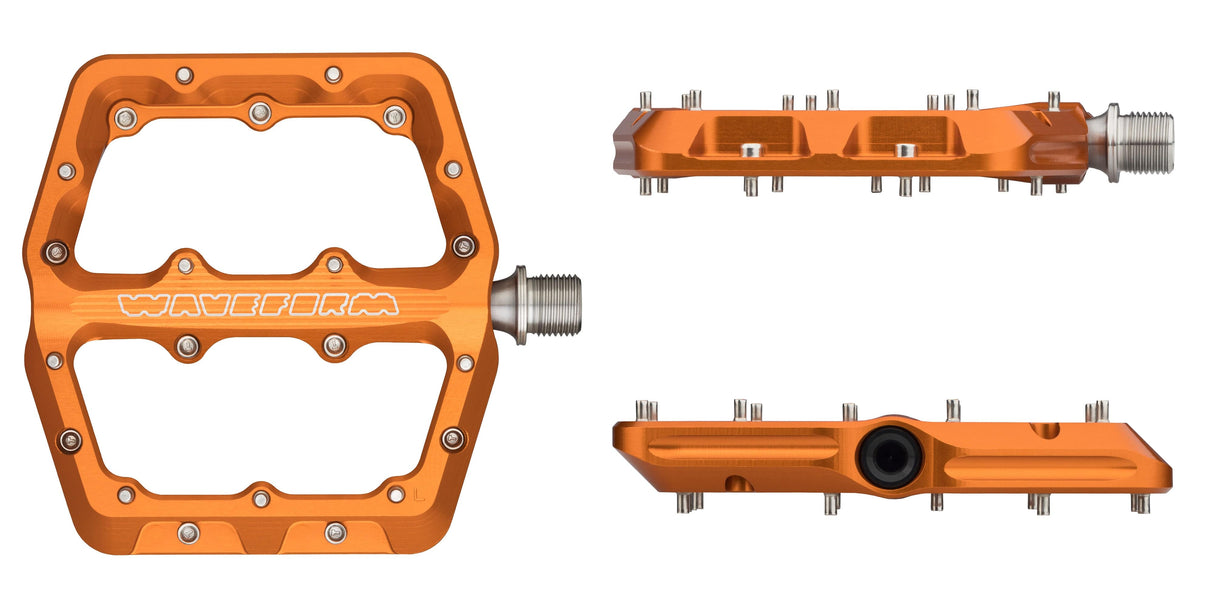

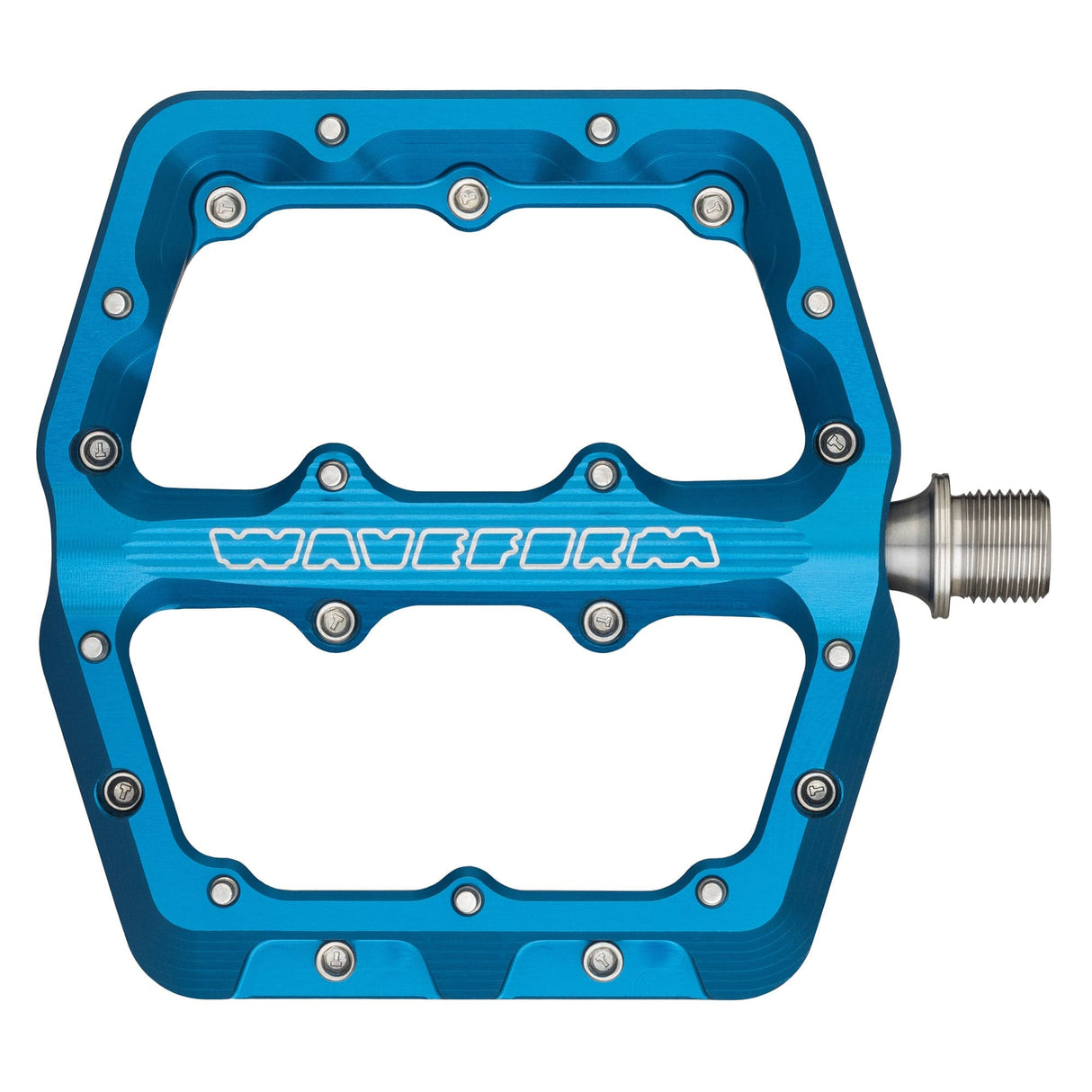

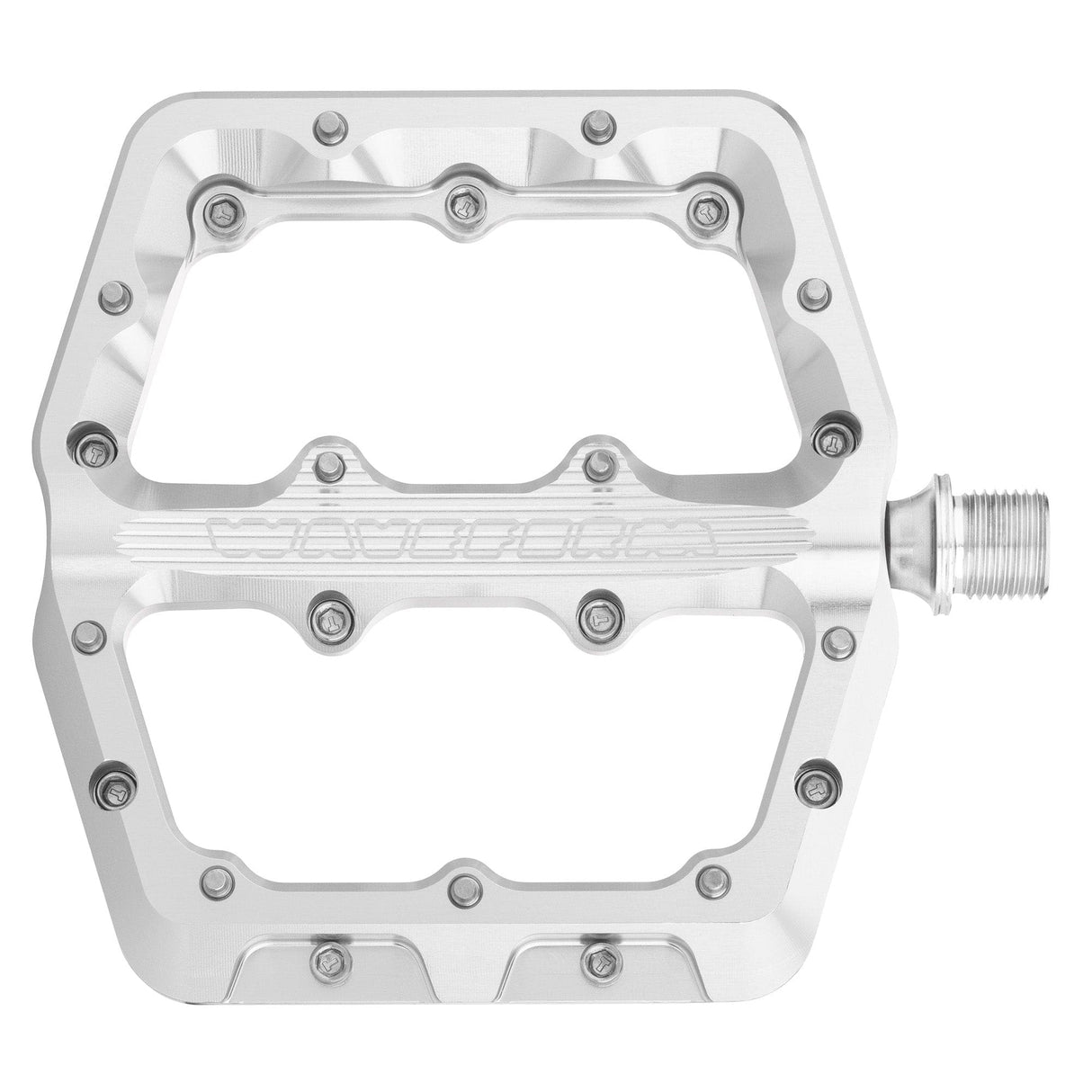

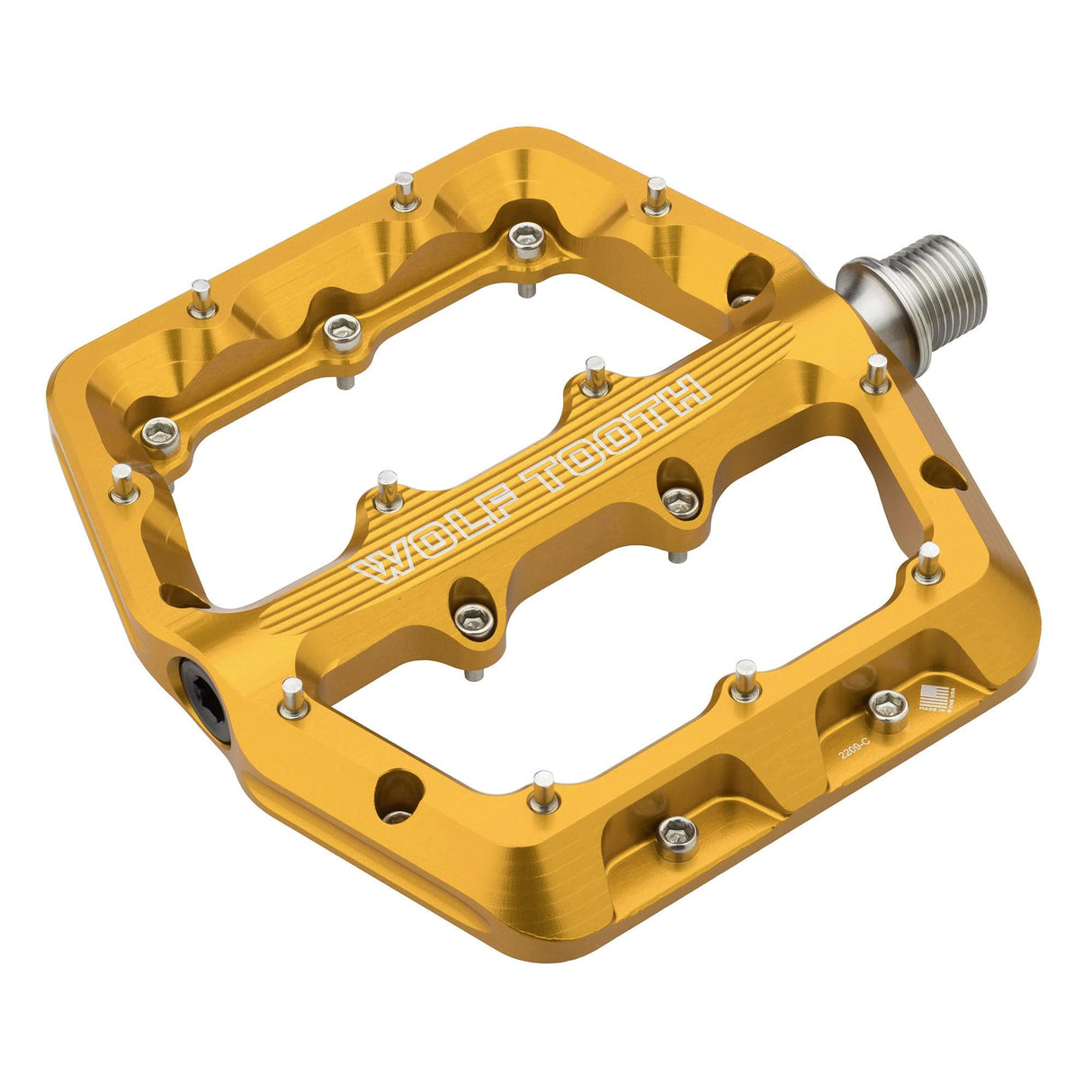

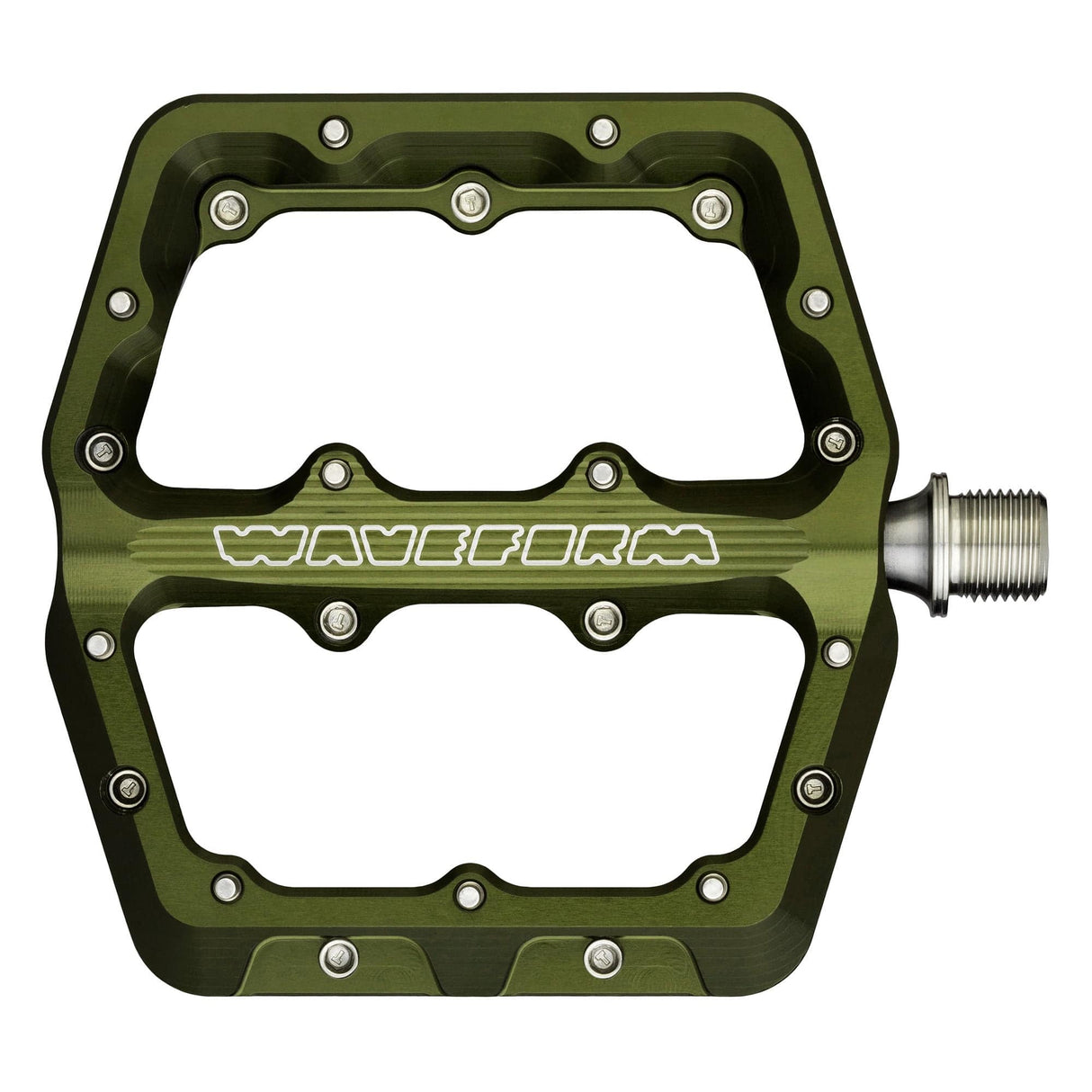

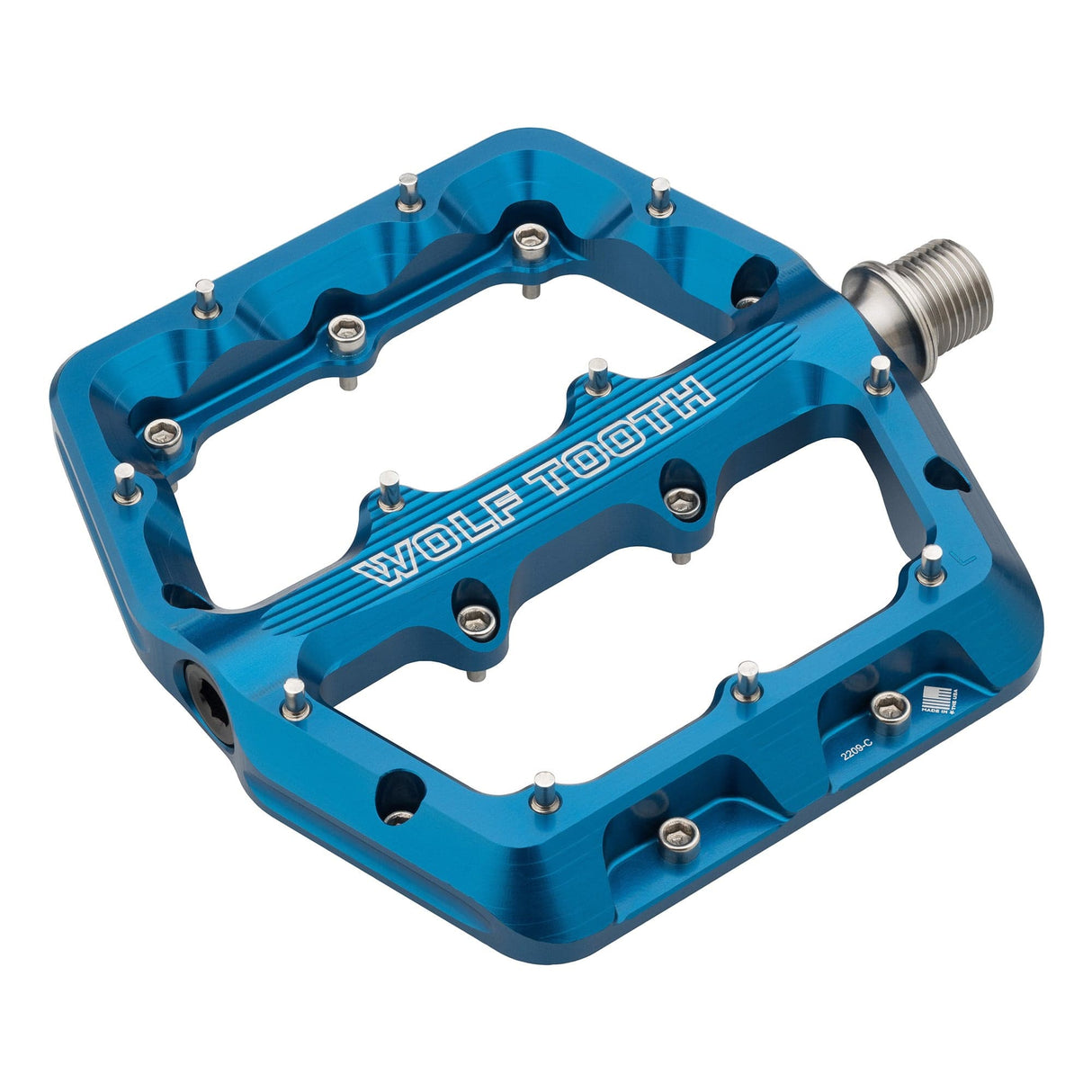

Wolf Tooth Waveform Aluminum Pedals are purpose-built flat pedals engineered for aggressive trail, enduro, and downhill riding. Designed and machined in Minnesota, these pedals combine precise CNC shaping, intelligent concavity, and proven bearing durability to deliver a planted, confidence-inspiring connection between rider and bike.

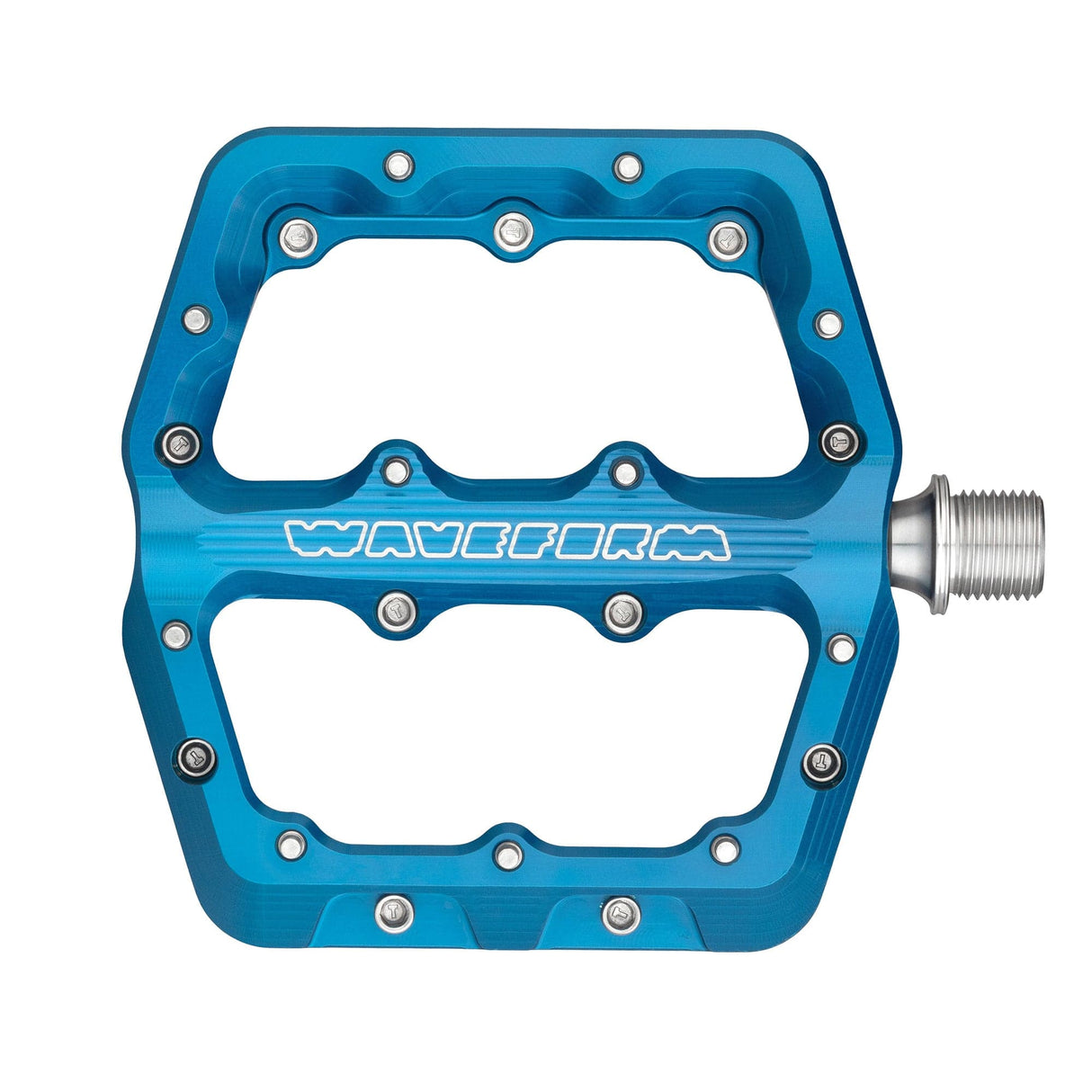

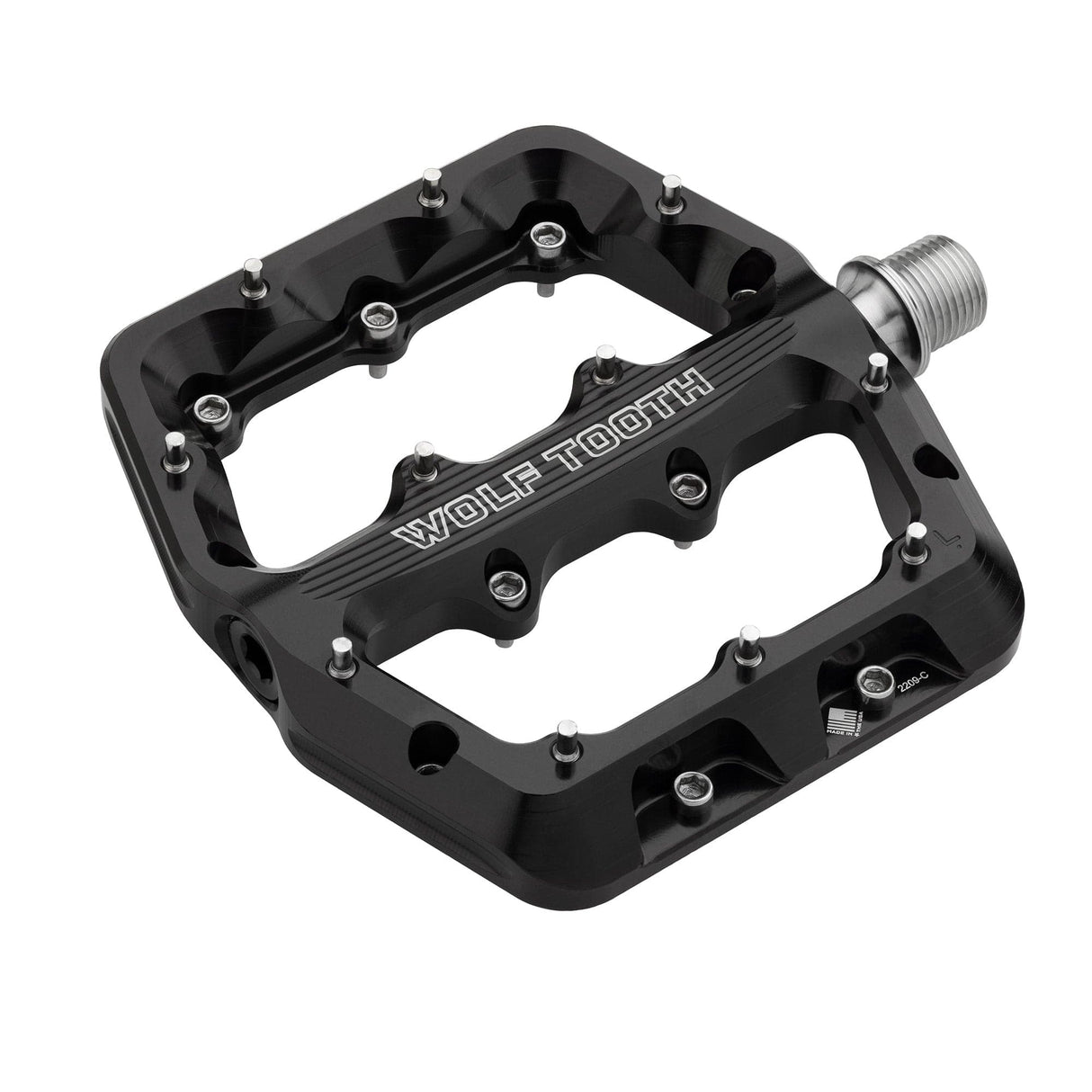

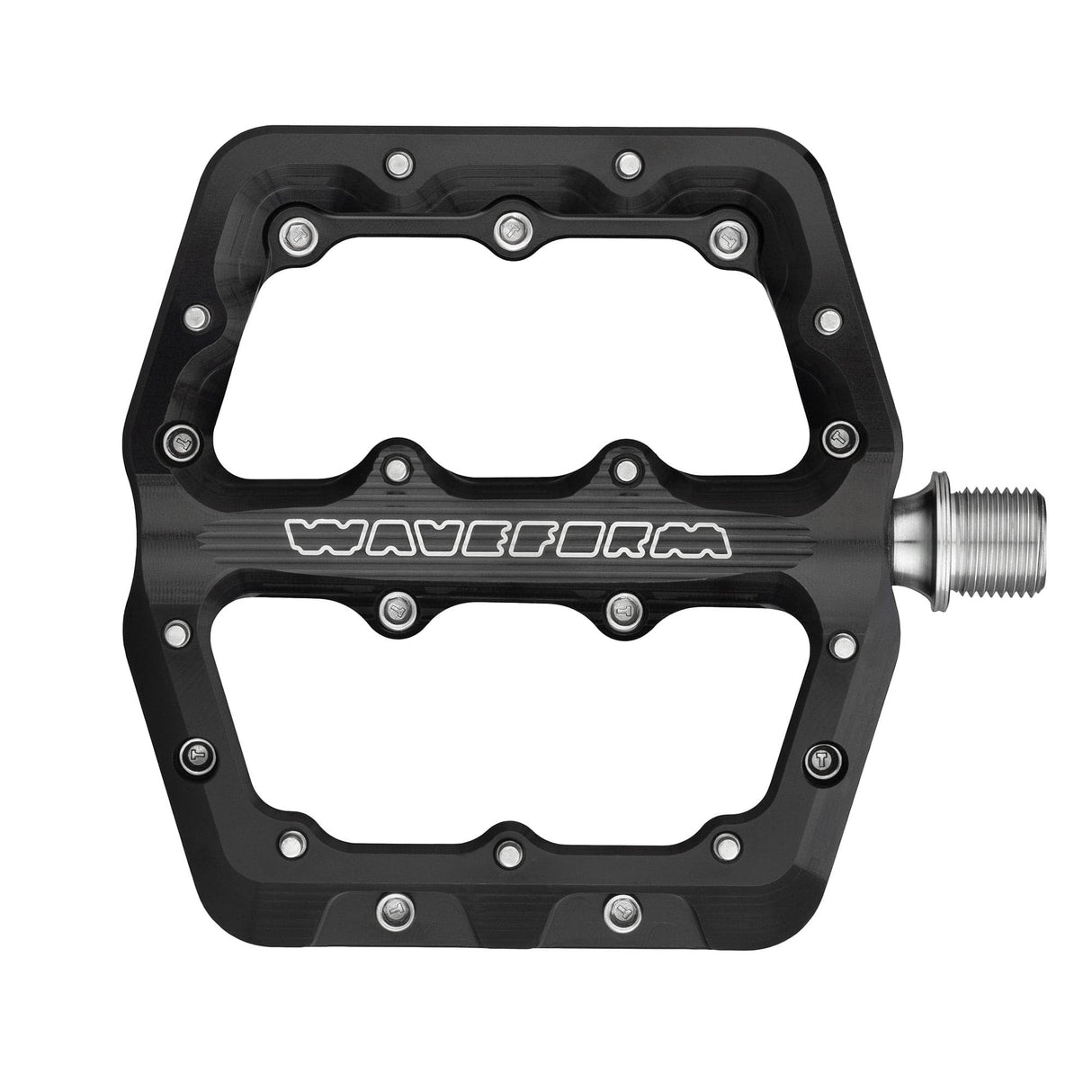

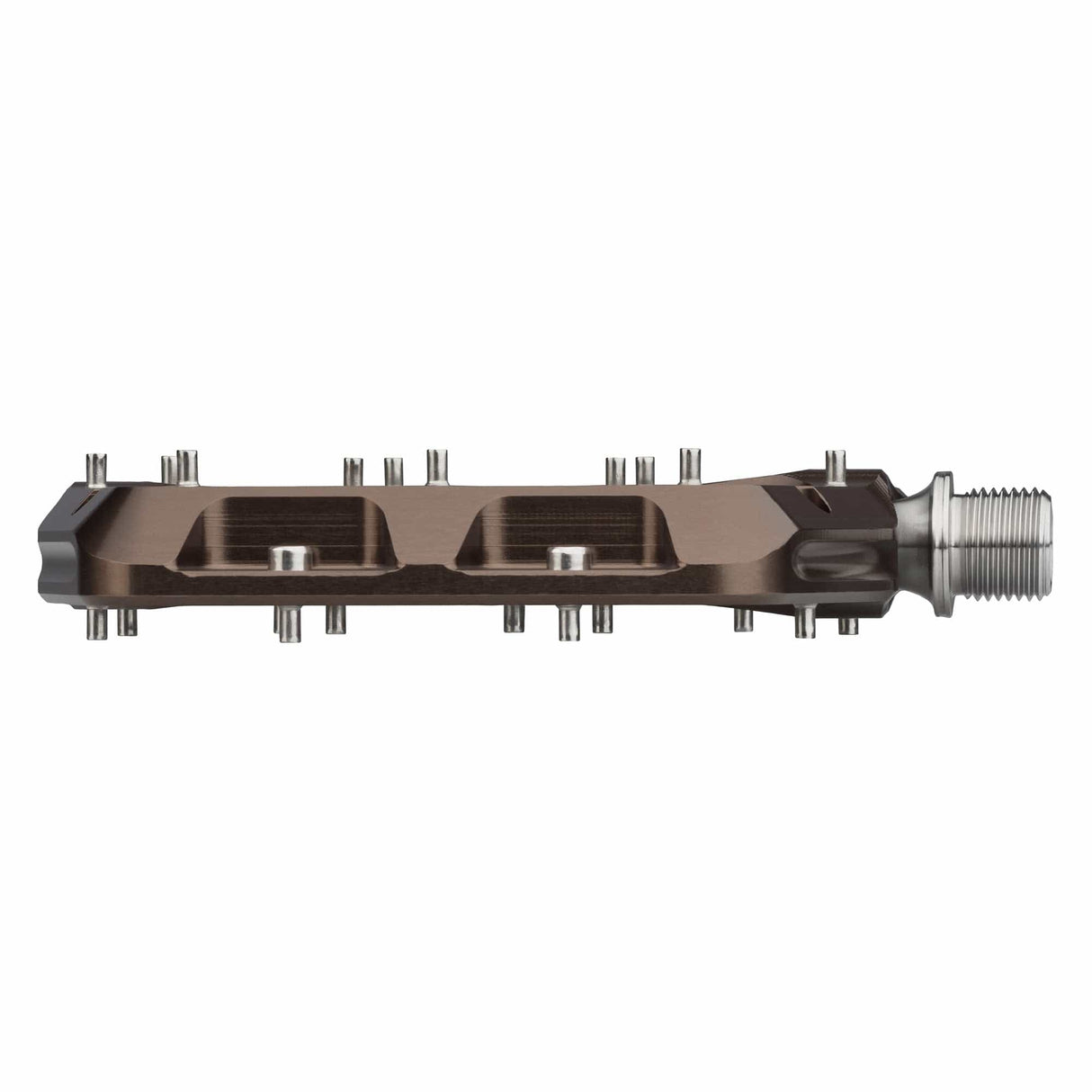

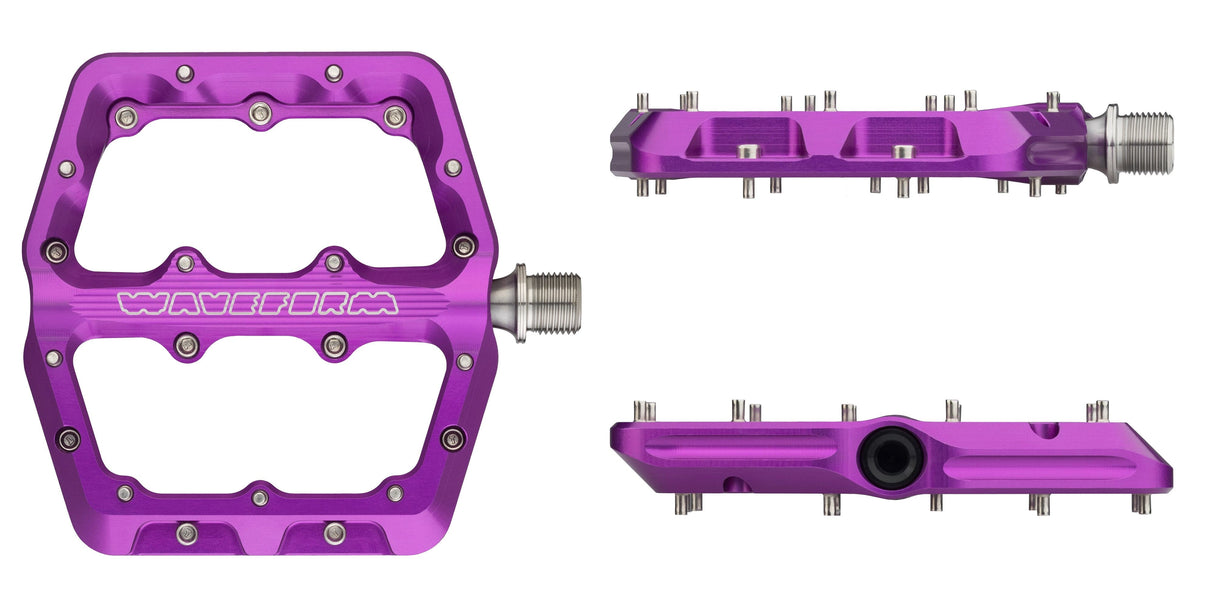

The Waveform Aluminum Pedals are offered in two proportionally scaled sizes, ensuring the platform truly matches your shoe footprint. This isn’t a one-size compromise. Whether you choose Small or Large, you get a supportive surface designed to cradle your foot with a dual-concave profile that measures just 14mm at the perimeter and 12.5mm at the center. The result is a locked-in feel both front-to-back and side-to-side—exactly what you want when terrain turns technical.

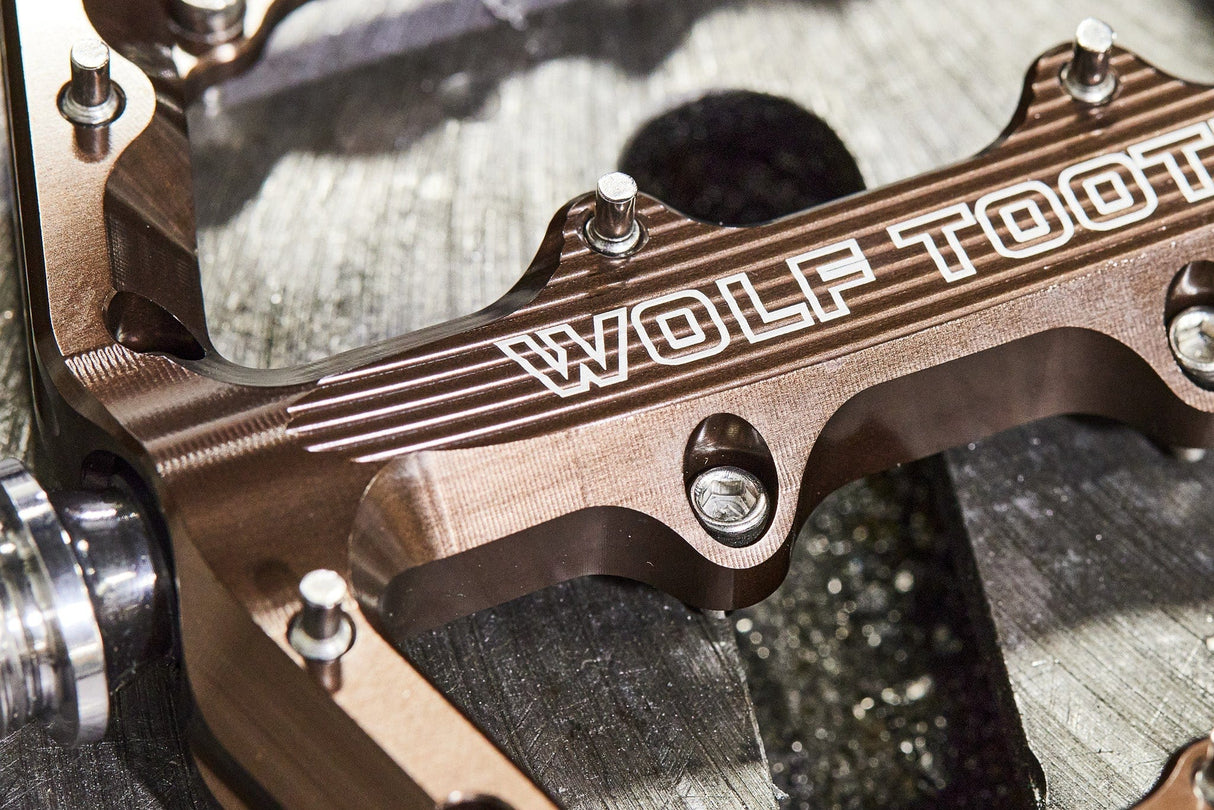

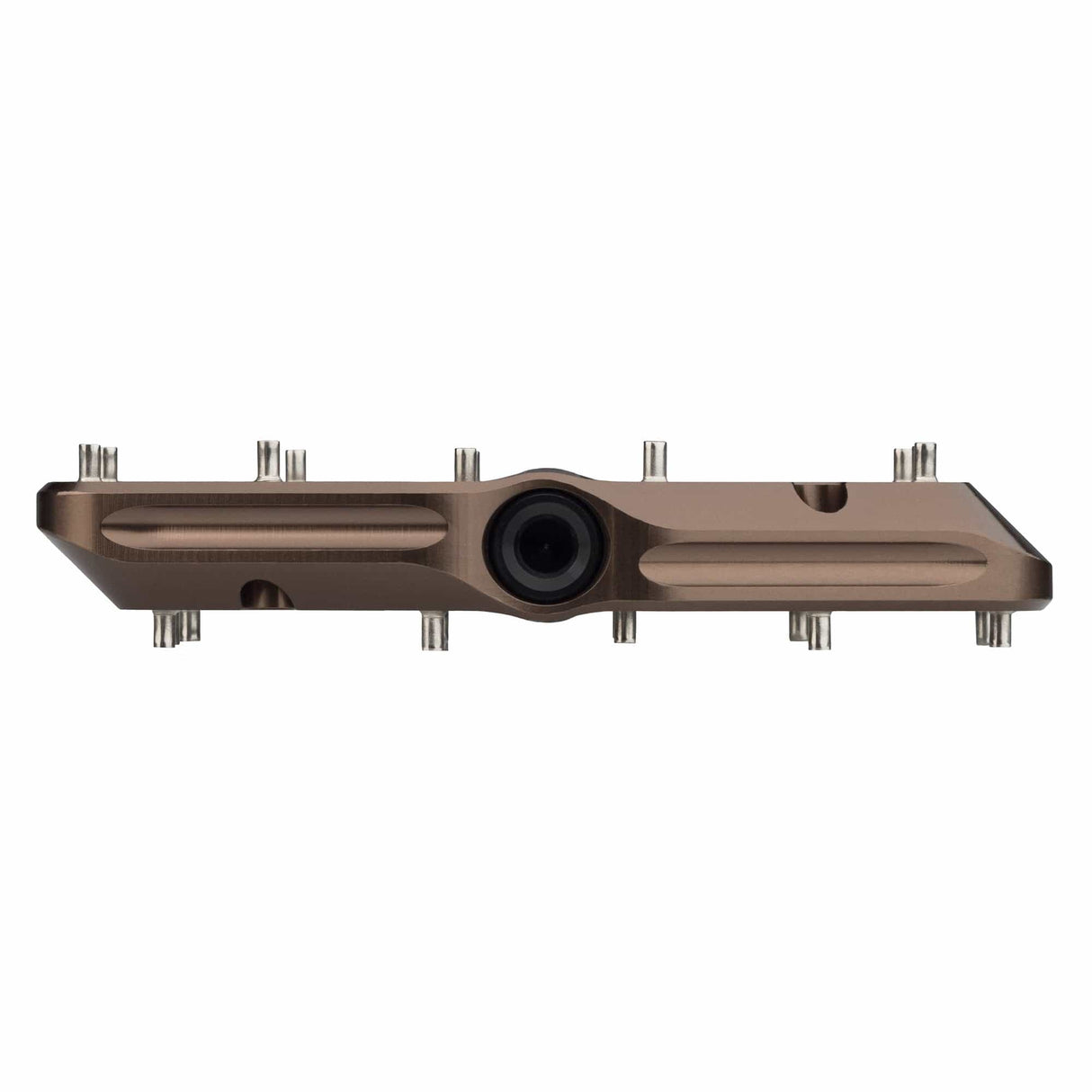

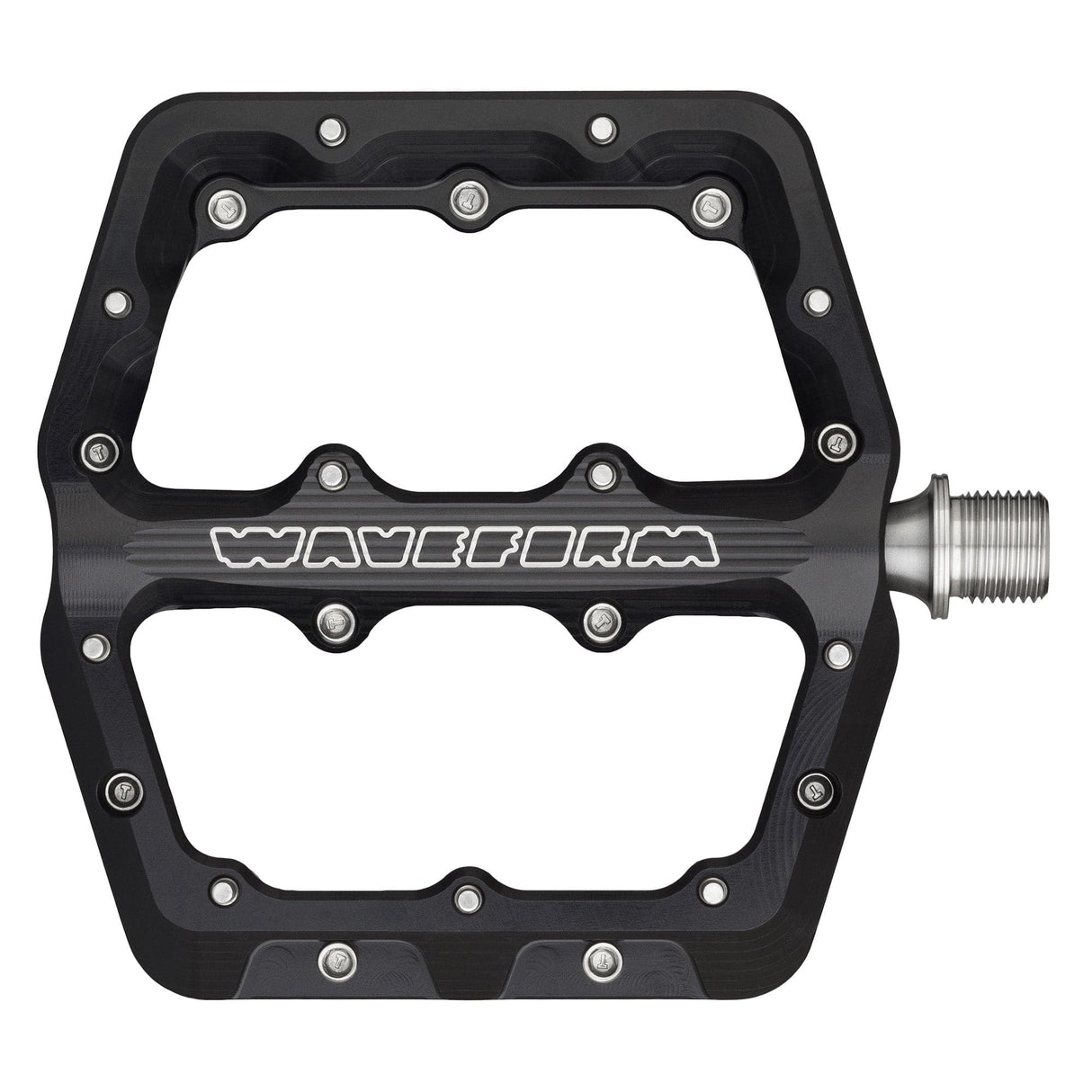

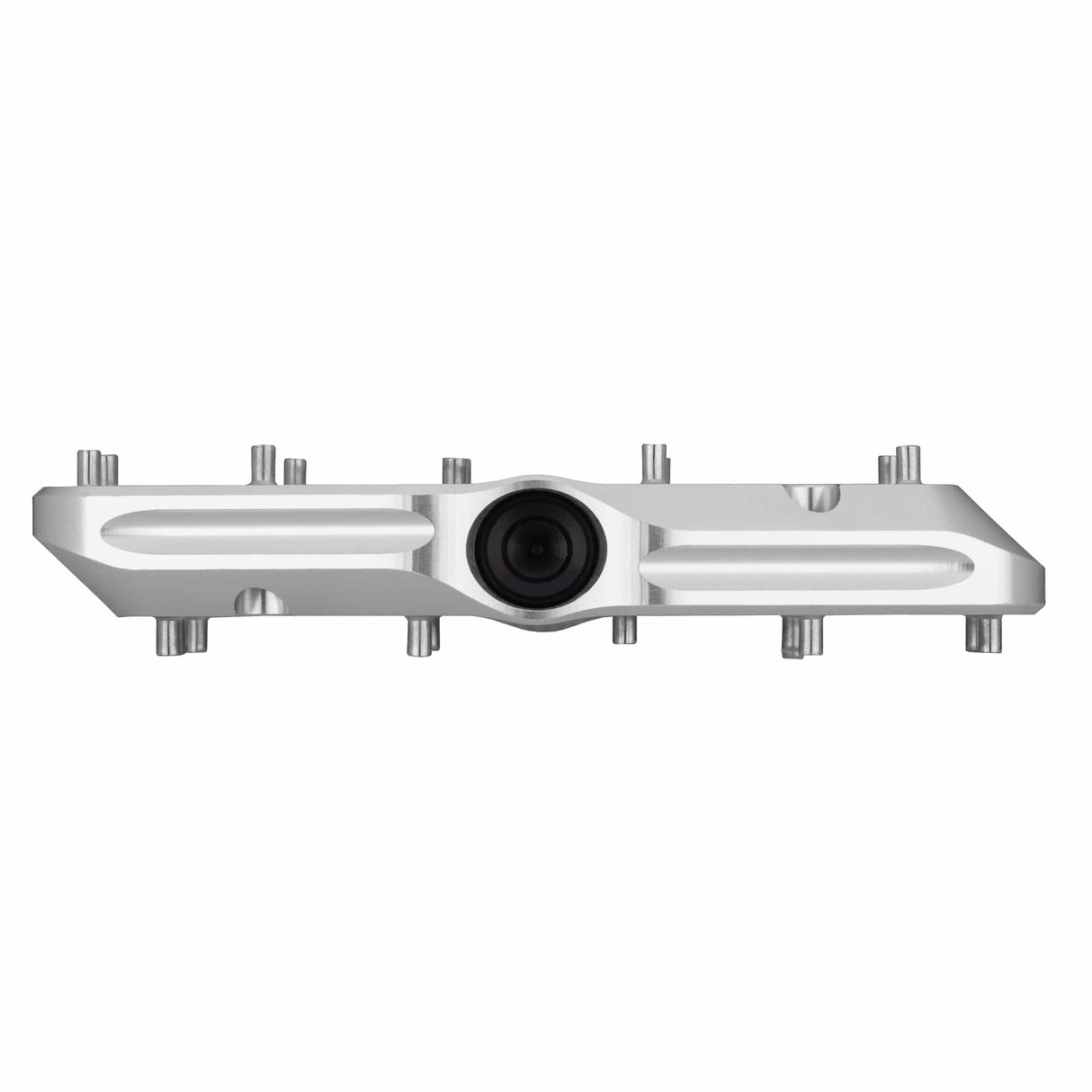

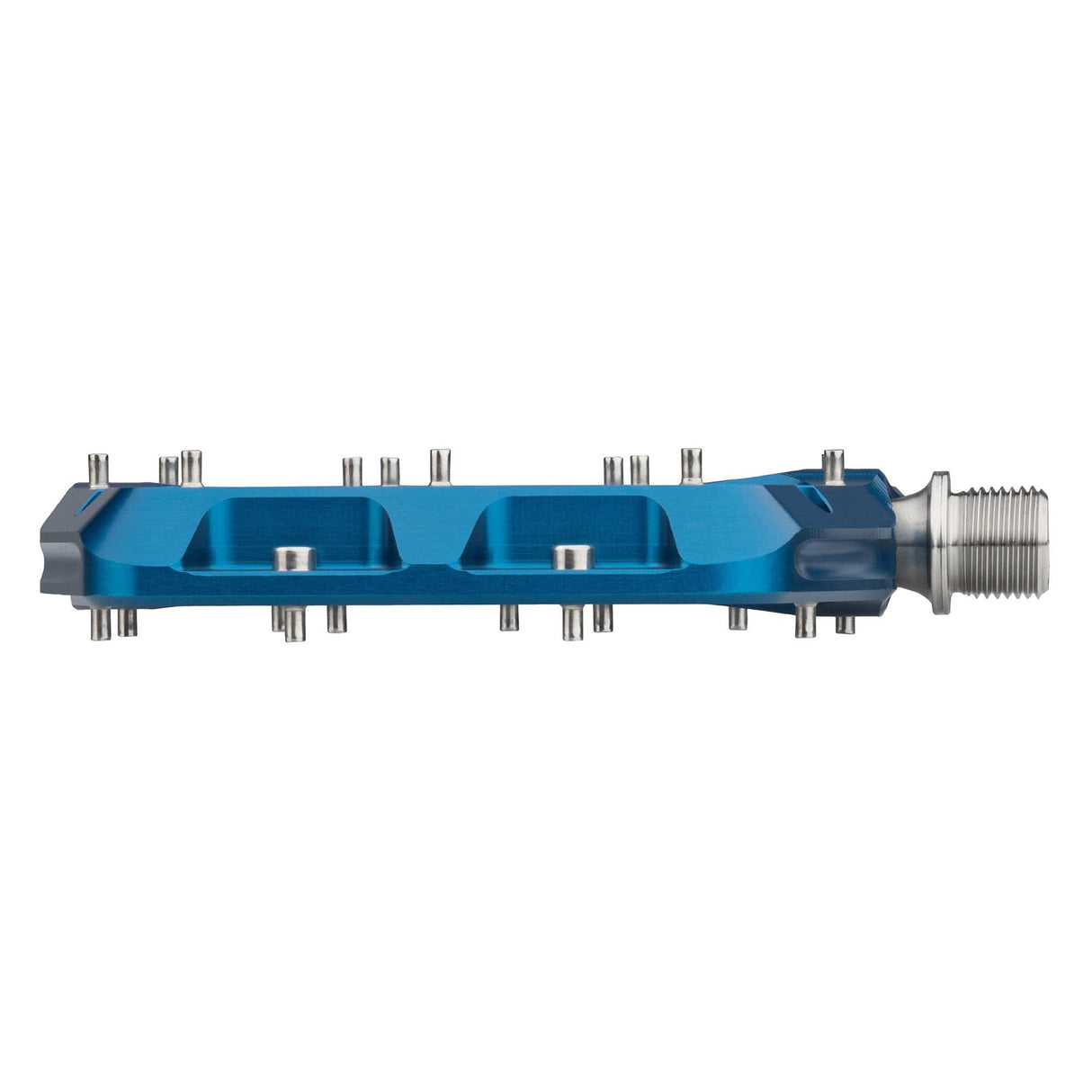

Each side features eleven rear-loading stainless steel pins, delivering consistent, adjustable traction without complicating maintenance. The large, tapered leading edge is purposefully shaped to deflect pedal strikes, reducing hang-ups on rocks and roots while keeping momentum intact. Inside, three fully sealed cartridge bearings and an igus bushing are protected by a custom radial seal, ensuring smooth, low-friction performance in wet, dusty, and demanding conditions.

Waveform Aluminum Pedals Specs at a Glance

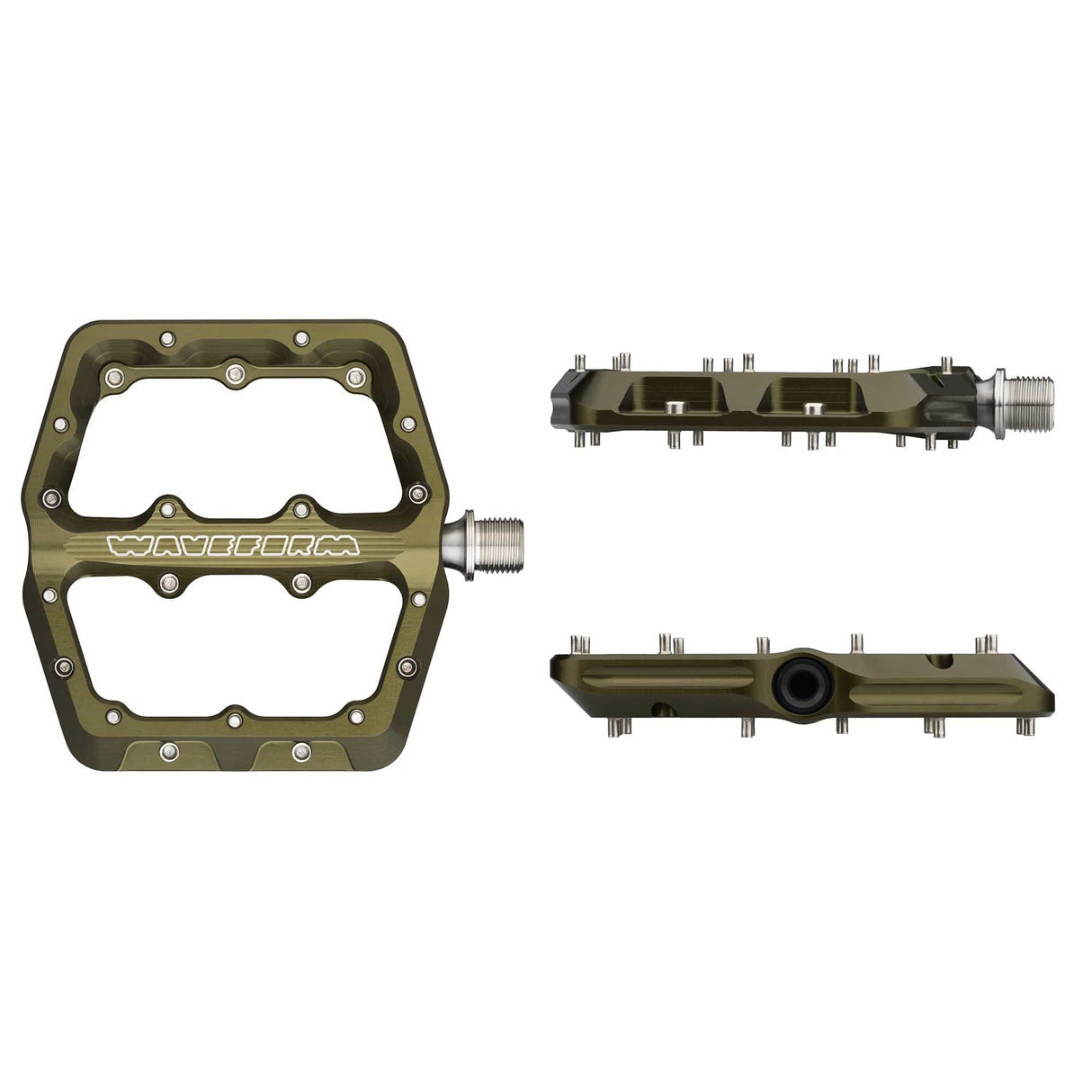

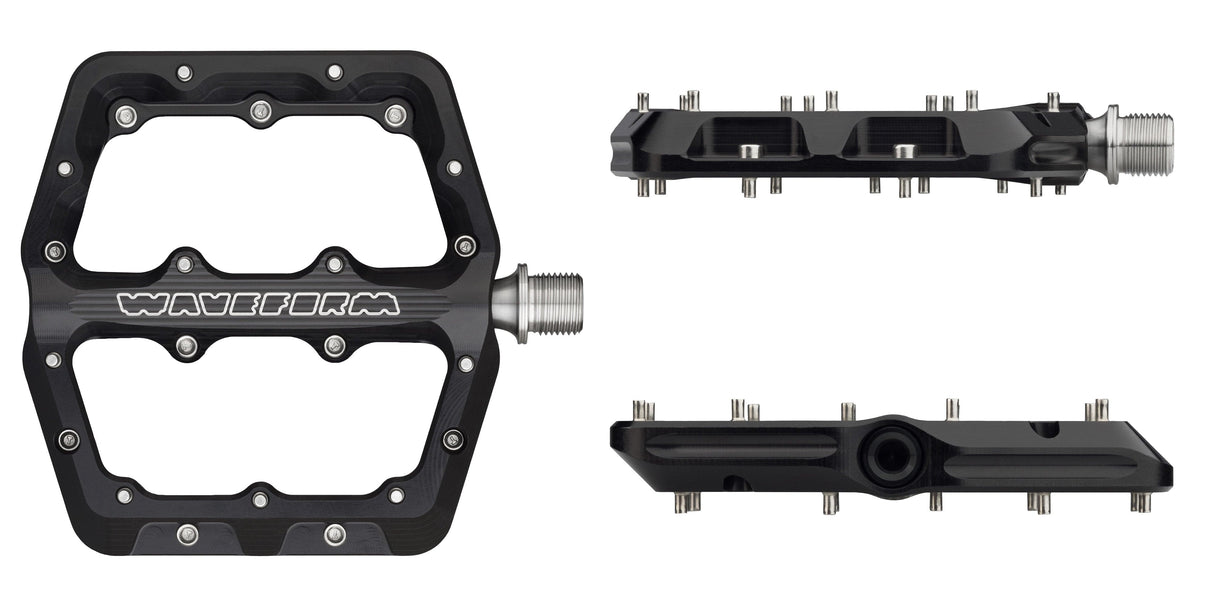

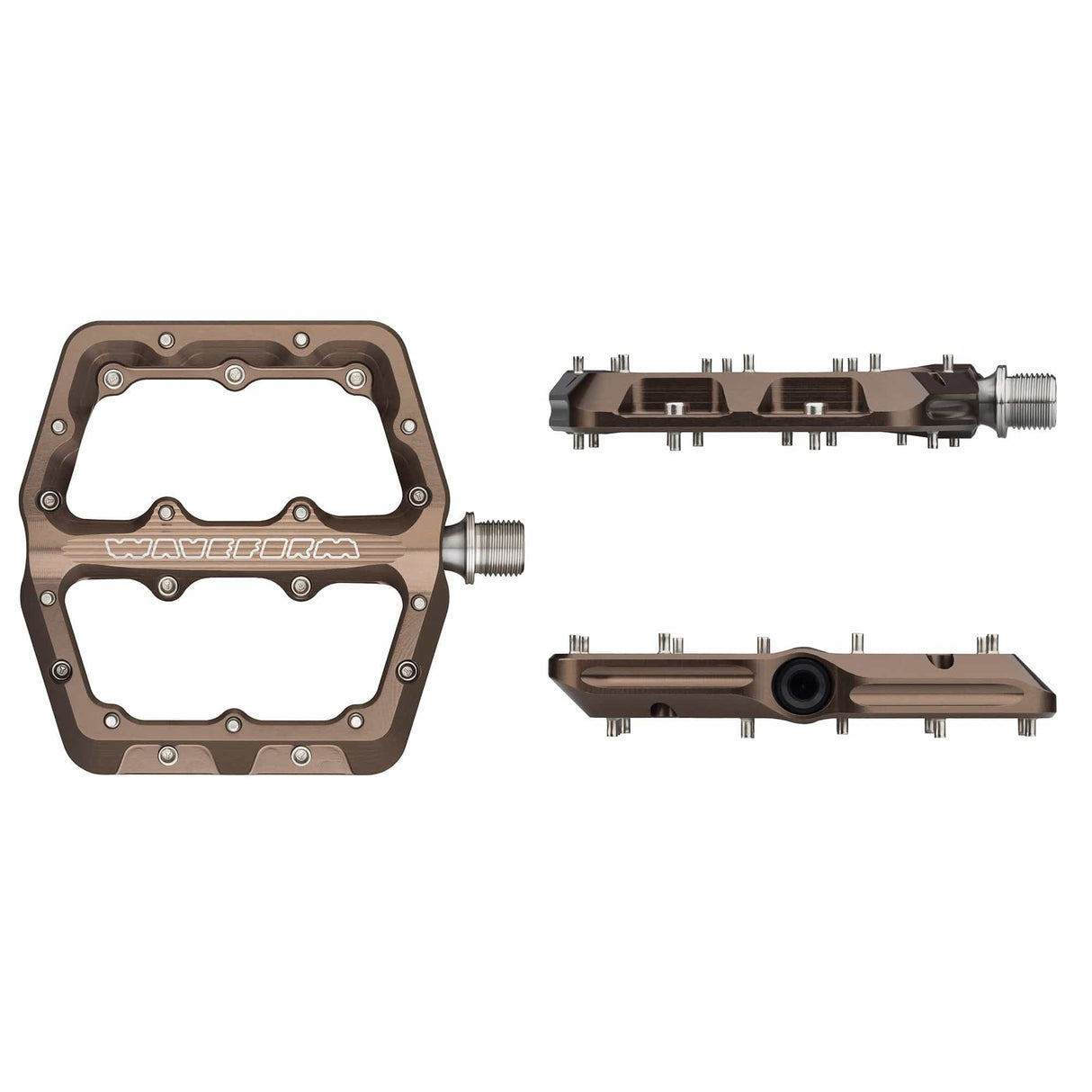

• Platform Sizes: Large 112mm x 106mm | Small 105mm x 99mm

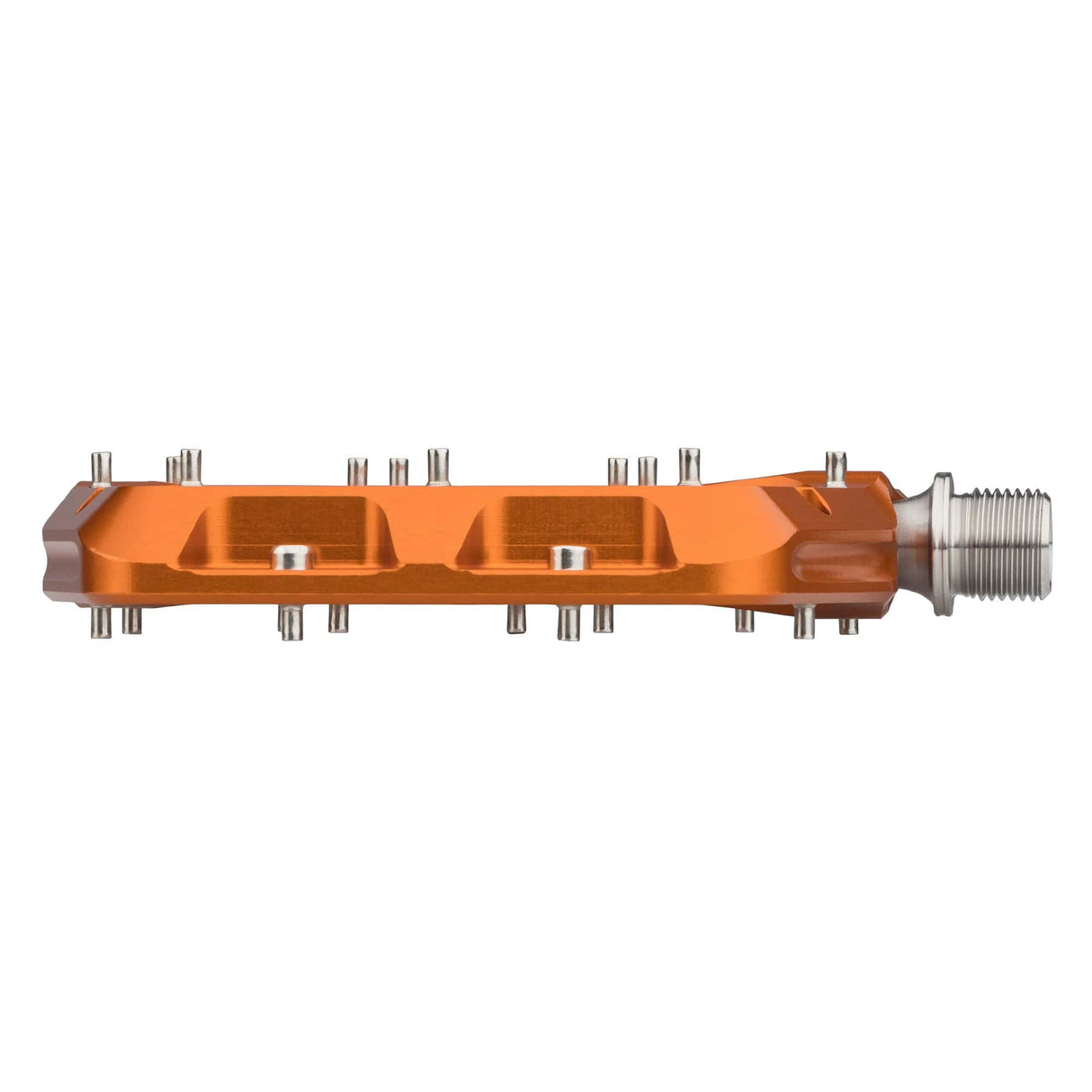

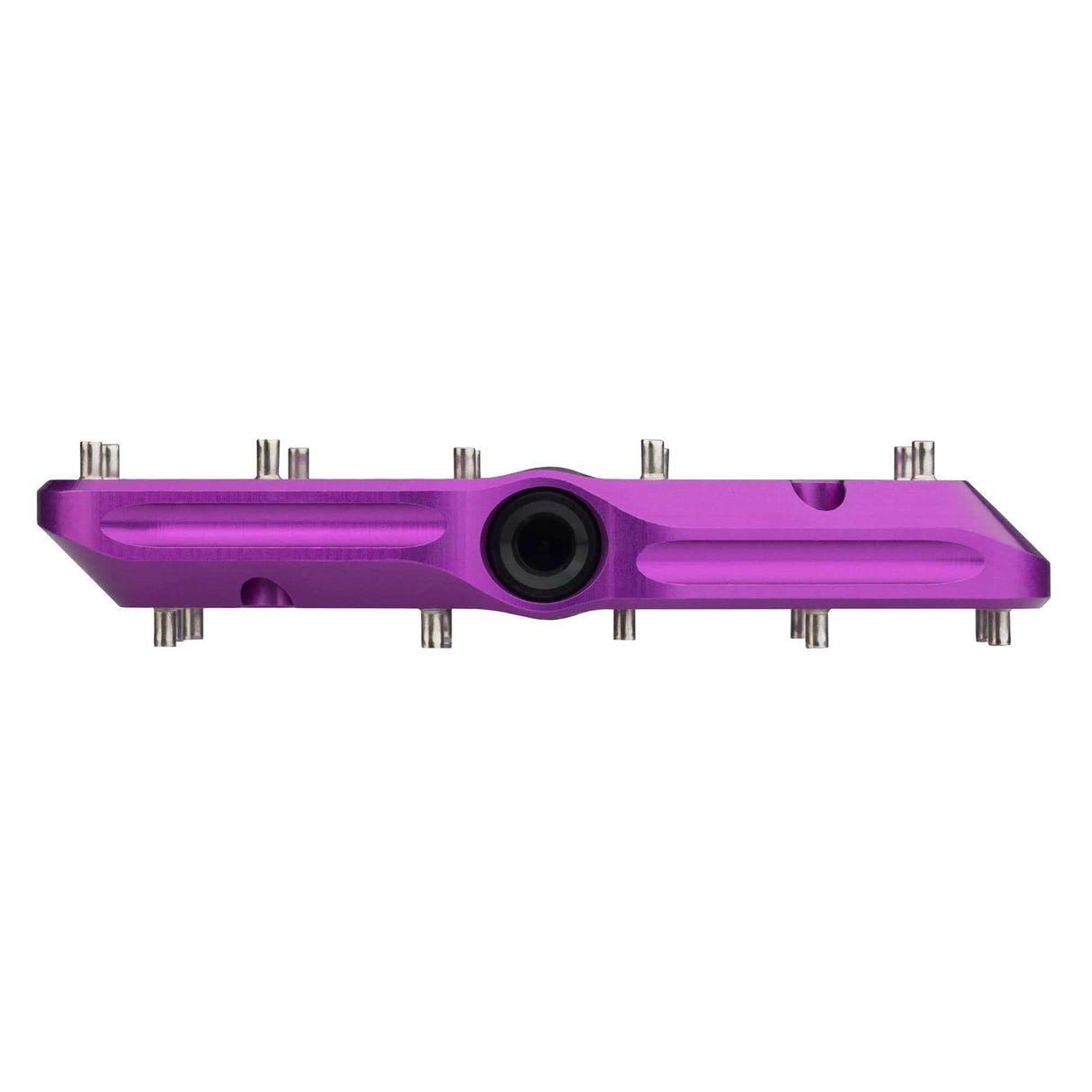

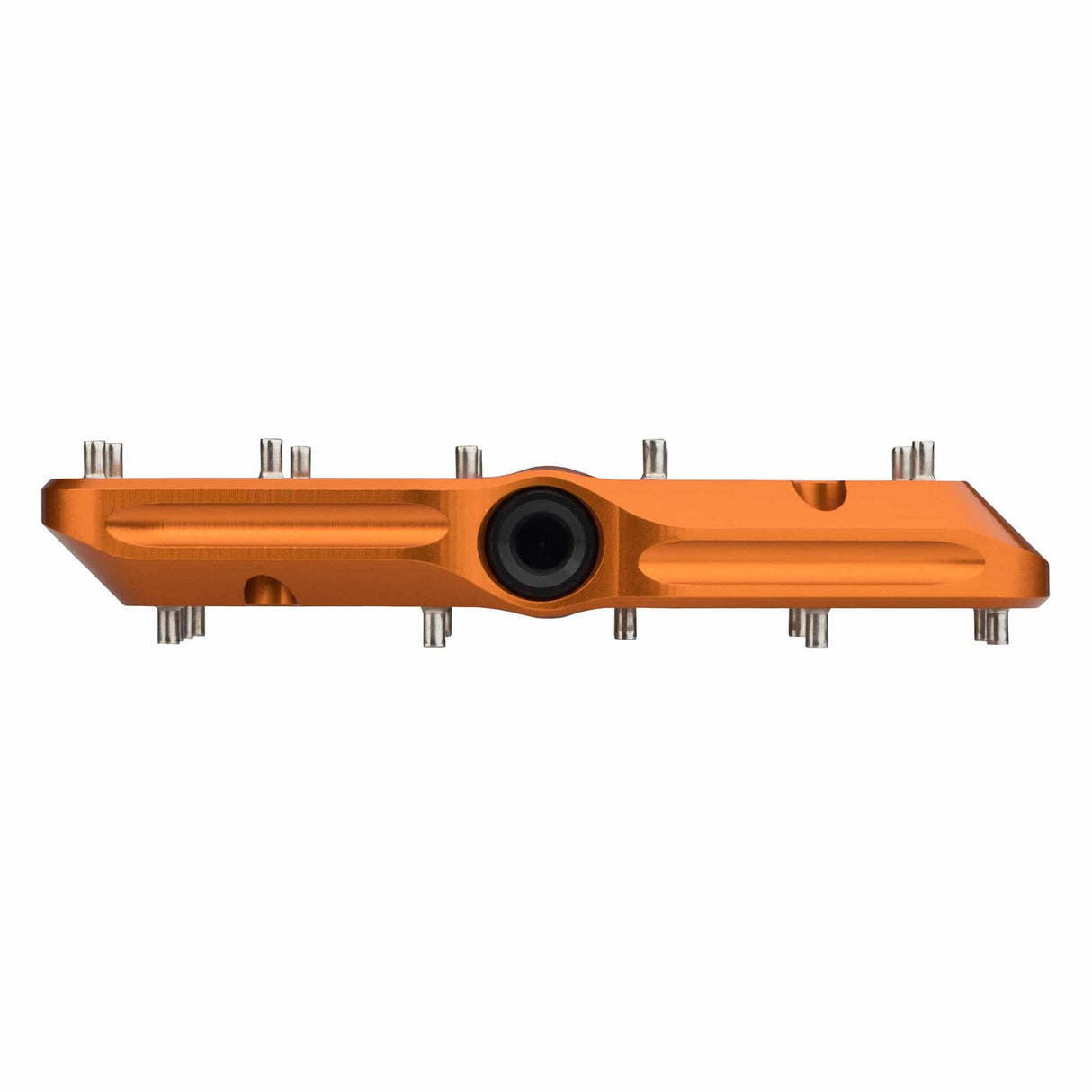

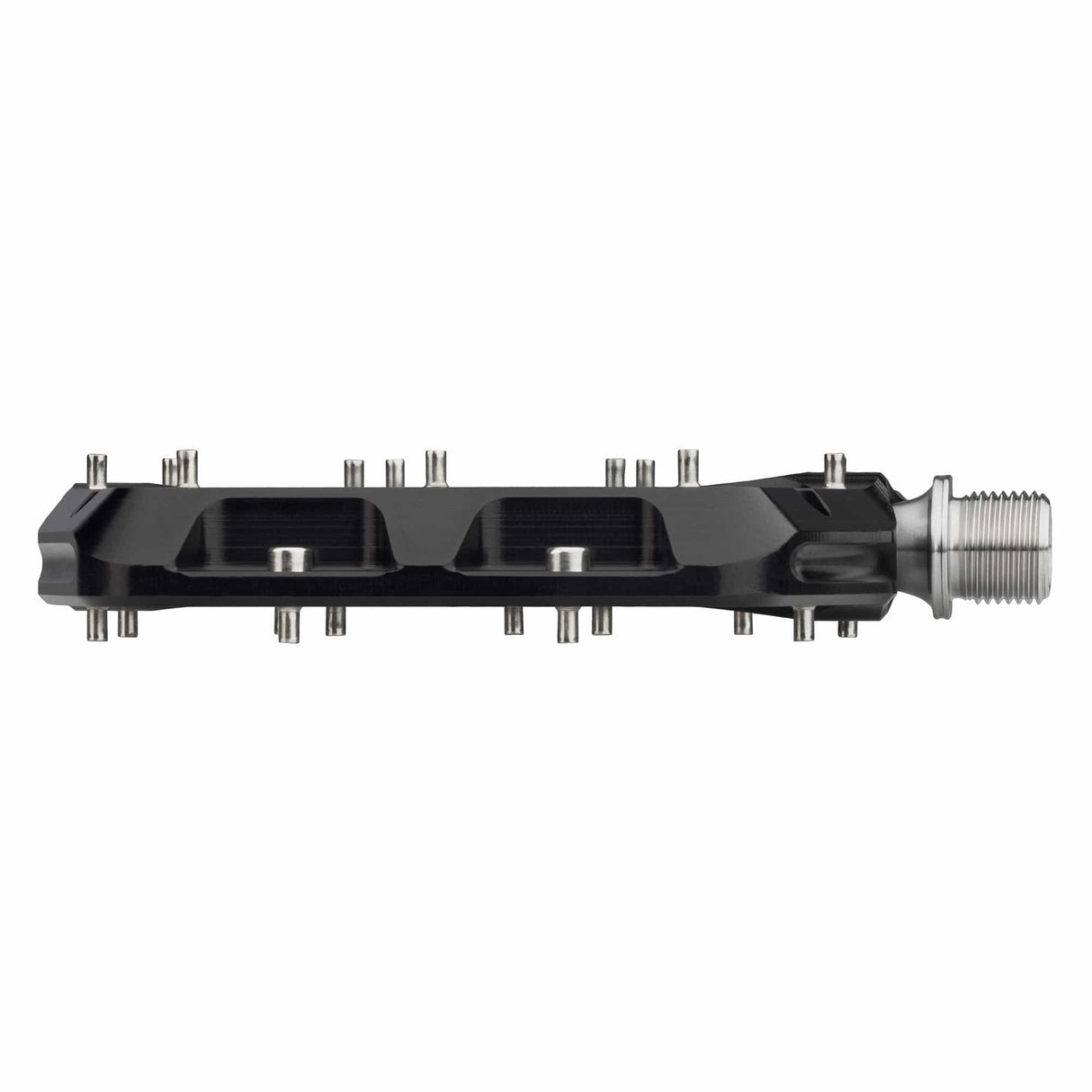

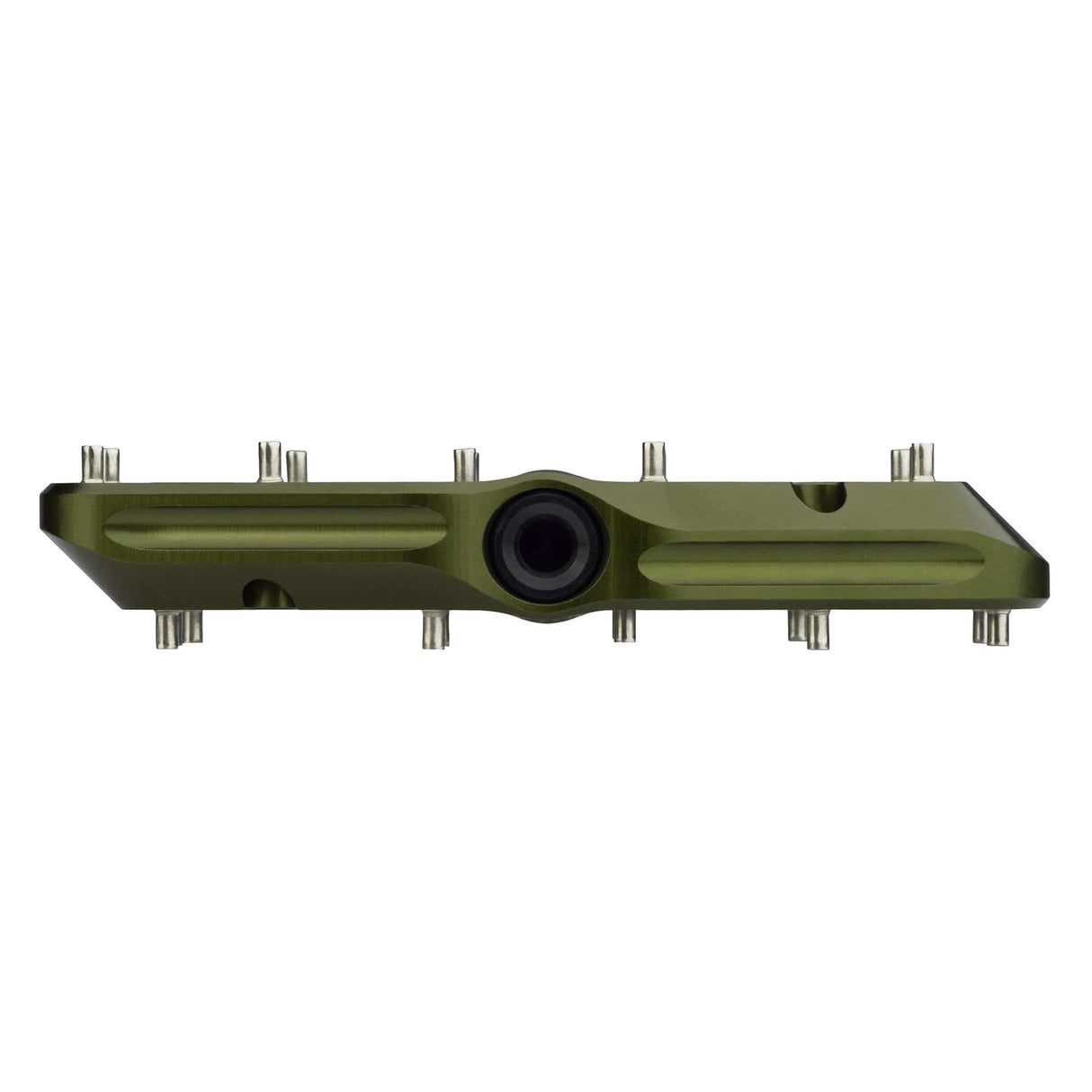

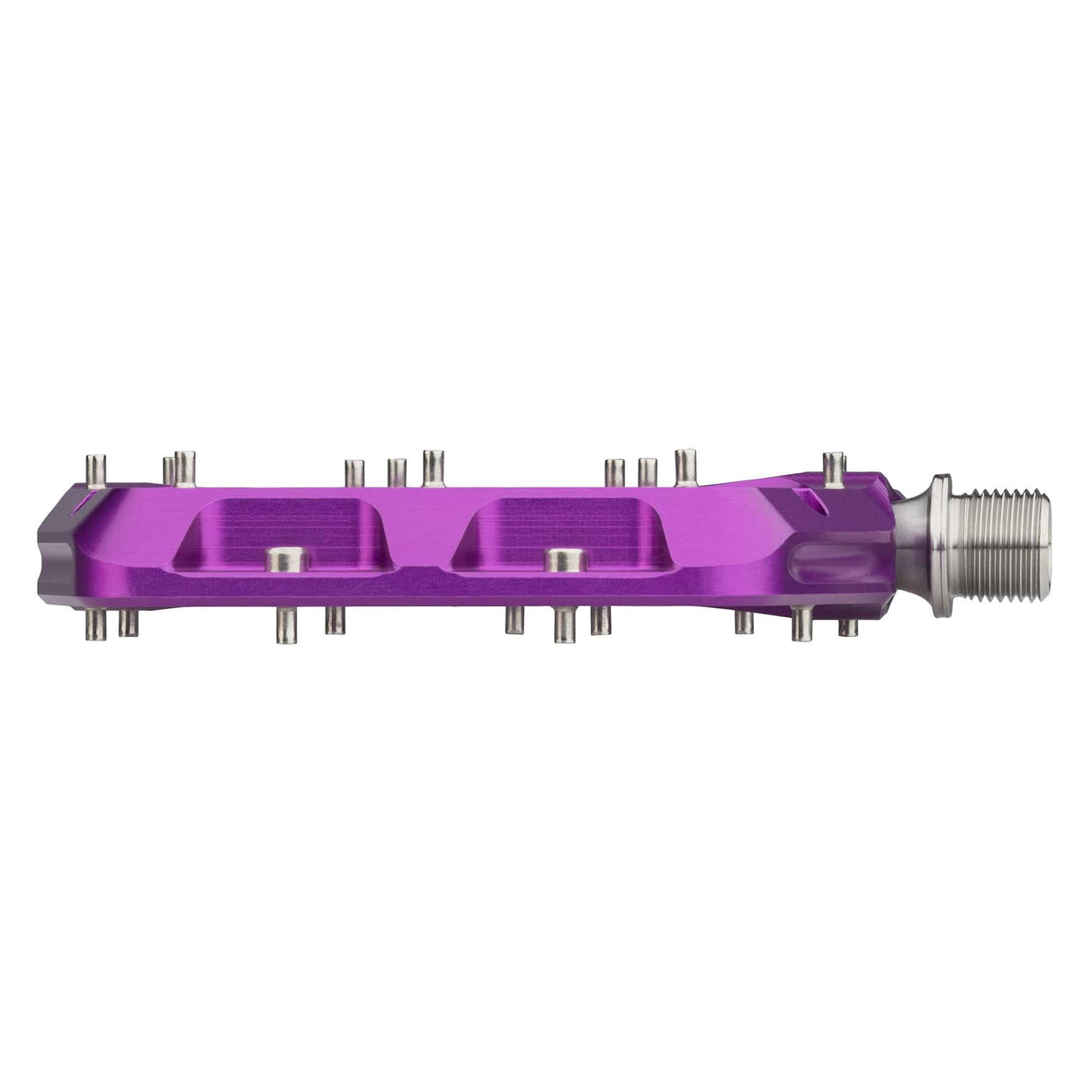

• Profile Thickness: 14mm at perimeter | 12.5mm at center
• Concavity: Dual-concave design for enhanced foot security
• Pin Configuration: 11 stainless steel rear-loading pins per side (4.5mm height)
• Bearings: Three sealed cartridge bearings + one igus bushing
• Seal: Custom radial seal for water and debris protection
• Material: 6061-T6 aluminum platform | 17-4 PH stainless steel axle | 304 stainless steel pins
• Weight: Large set 384g | Small set 373g
• Threads: 9/16"-20 tpi standard crank compatibility
• Included: Six extra grip pins
• Origin: Machined in the USA

Design Benefits

1. Foot Stability: Dual concavity and proportional sizing keep your foot centered and supported through aggressive riding.
2. Impact Resilience: Tapered leading edges help deflect trail impacts, preserving speed and reducing pedal strikes.
3. Serviceable Performance: Rear-loading pins, sealed bearings, and available replacement parts make long-term ownership straightforward.
4. All-Conditions Reliability: Custom sealing protects internal hardware from mud, dust, and moisture.

Compatibility & Installation

The Wolf Tooth Waveform Aluminum Pedals fit all standard cranks with 9/16"-20 tpi right- and left-hand threads. As with any premium pedal system, we recommend applying precision grease to the pedal threads before installation. Pin height can be tuned by removing pins with a 3mm hex tool for riders who prefer a slightly less aggressive interface.

Final Take

For riders who demand traction, durability, and refined pedal feel, the Waveform Aluminum Pedals deliver. The thoughtful shaping, scalable sizing, and sealed bearing system elevate these flat pedals beyond generic platforms. Whether you’re climbing technical singletrack or charging downhill at speed, they provide the stability and reliability serious mountain riders expect.
