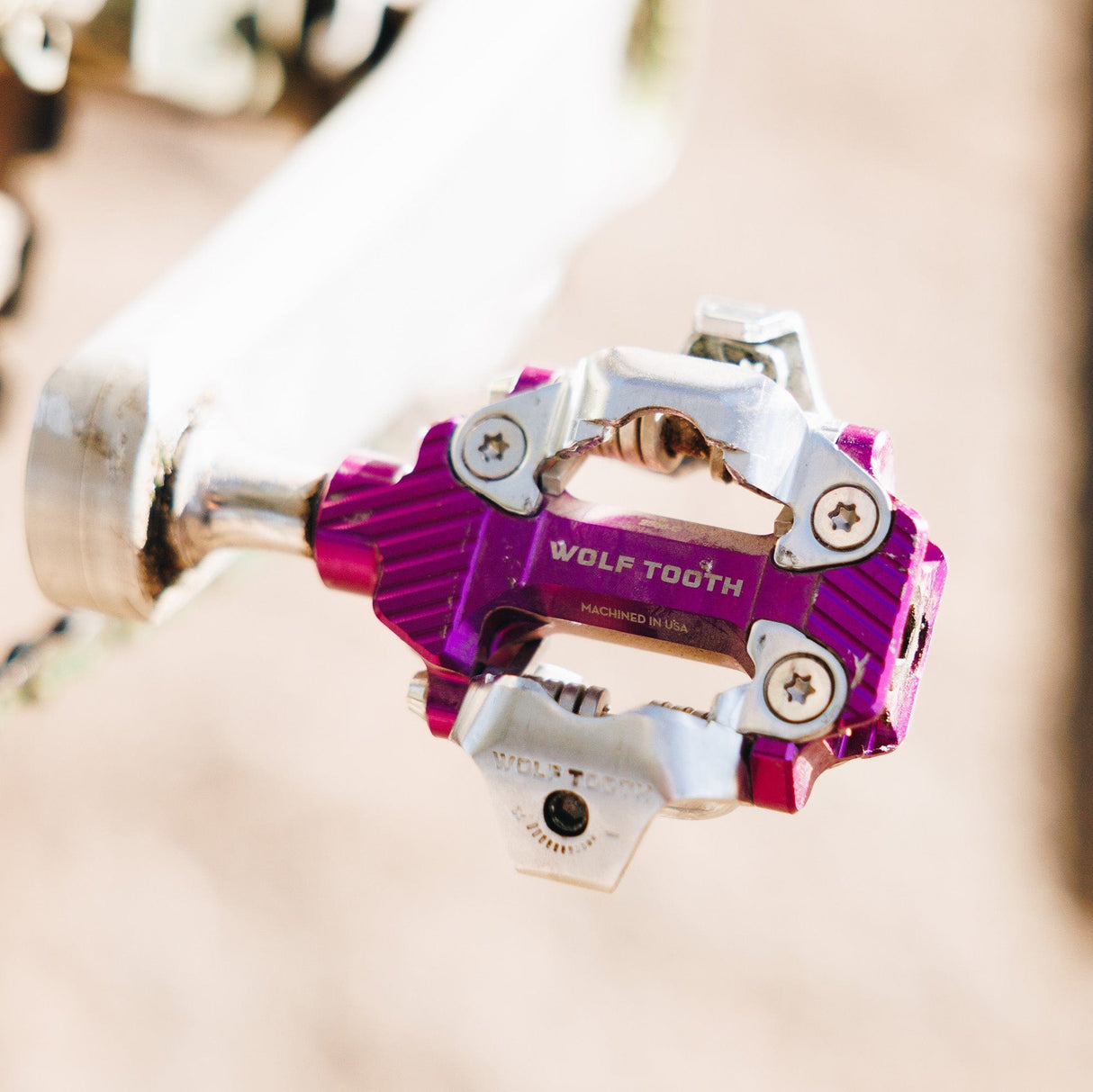

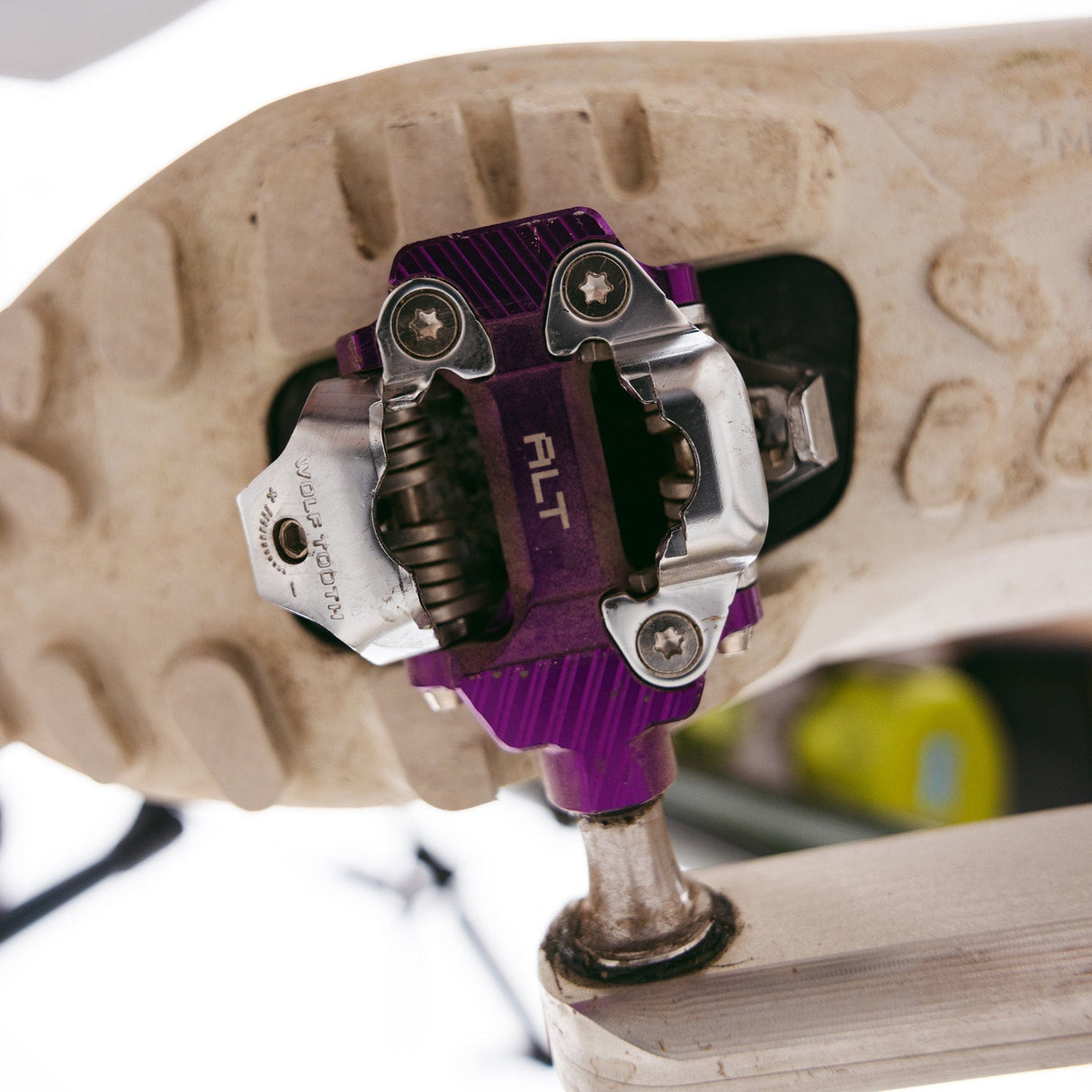

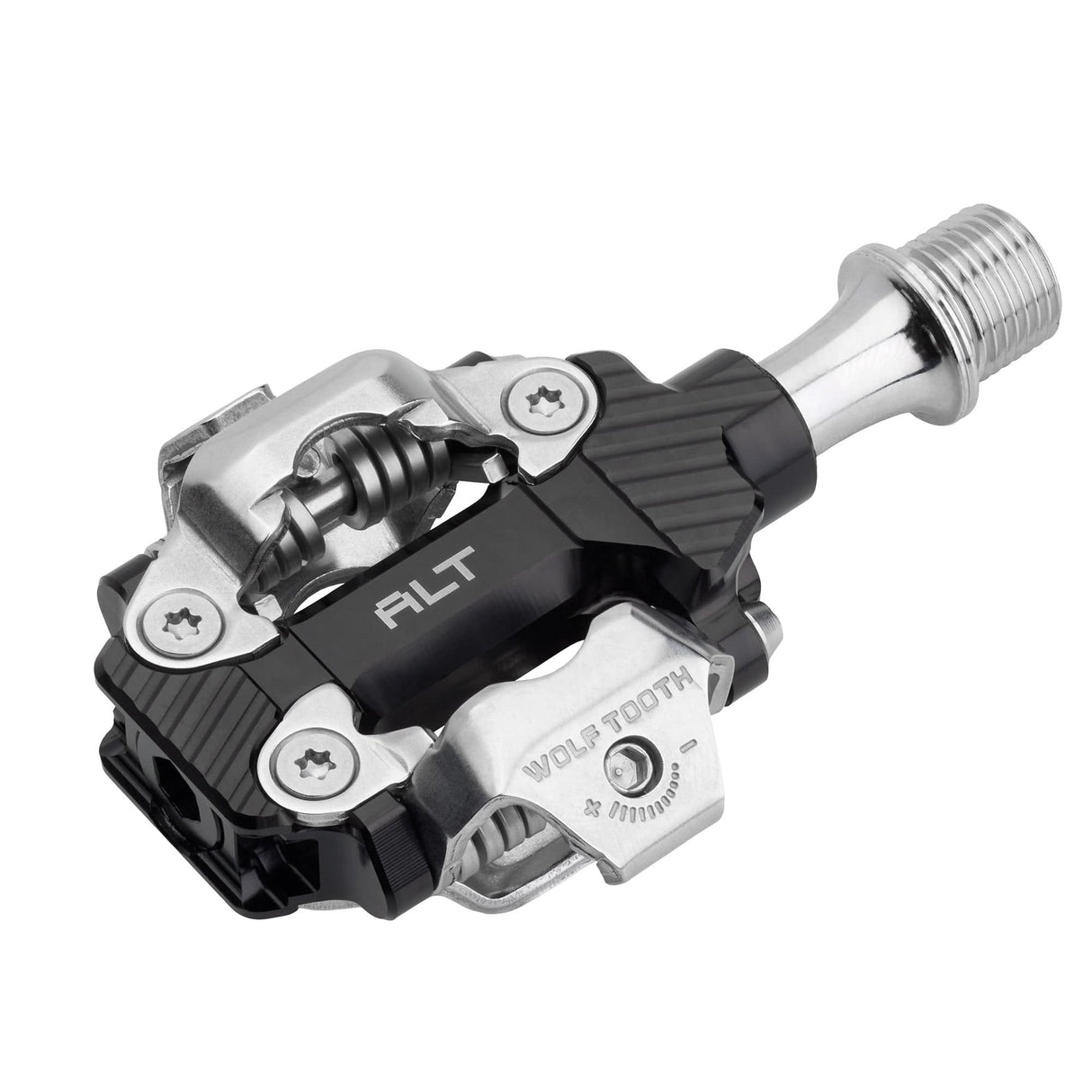

Wolf Tooth ALT XC Clipless Pedal

Wolf Tooth ALT XC Clipless Pedal Info

Wolf Tooth ALT XC Clipless Pedal is engineered for riders who demand lightweight efficiency, precise engagement, and confident control across XC trails and fast gravel terrain. Designed, tested, and machined in Minnesota, the ALT XC delivers a refined SPD-compatible interface with an impressively low stack height and a supportive platform that enhances both power transfer and stability.

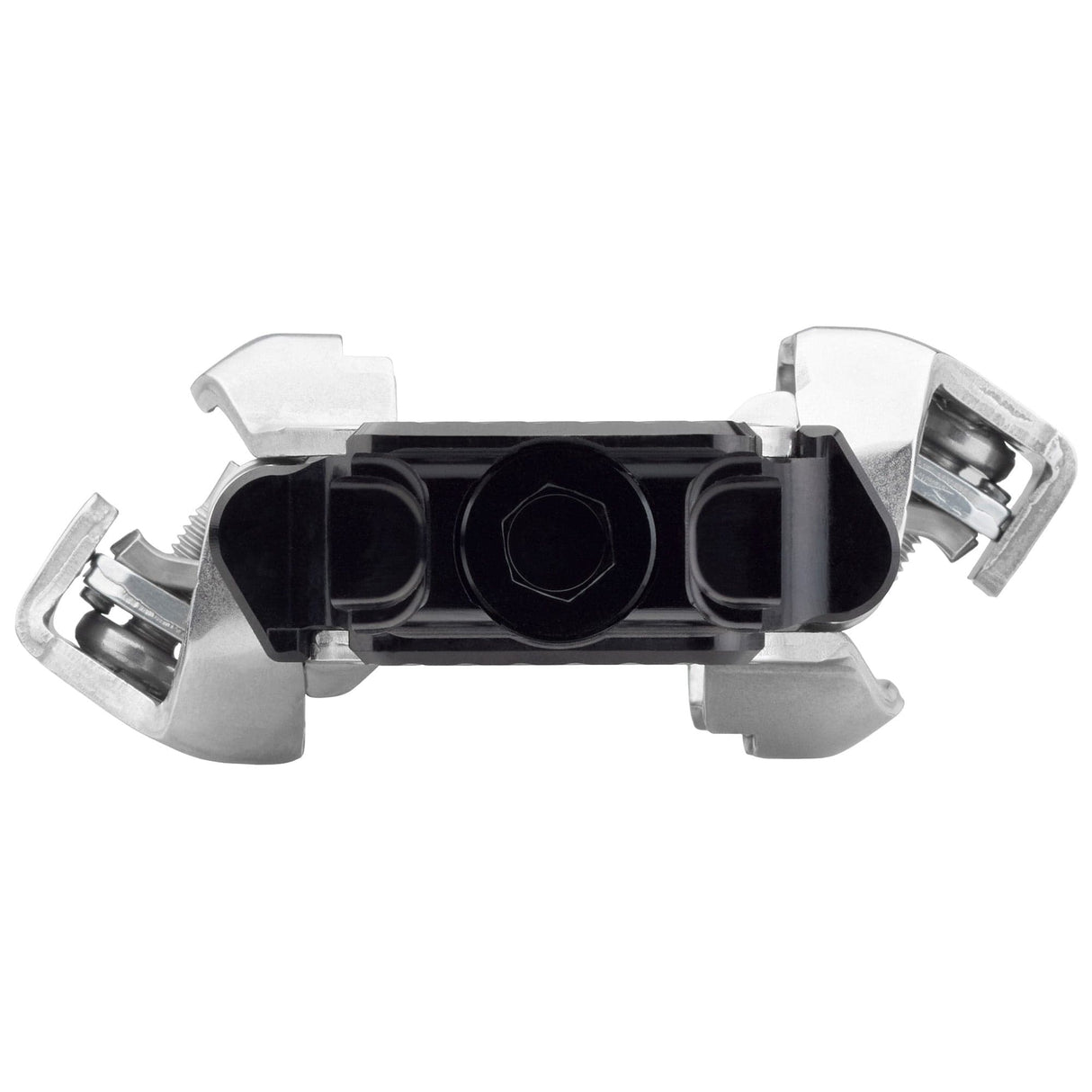

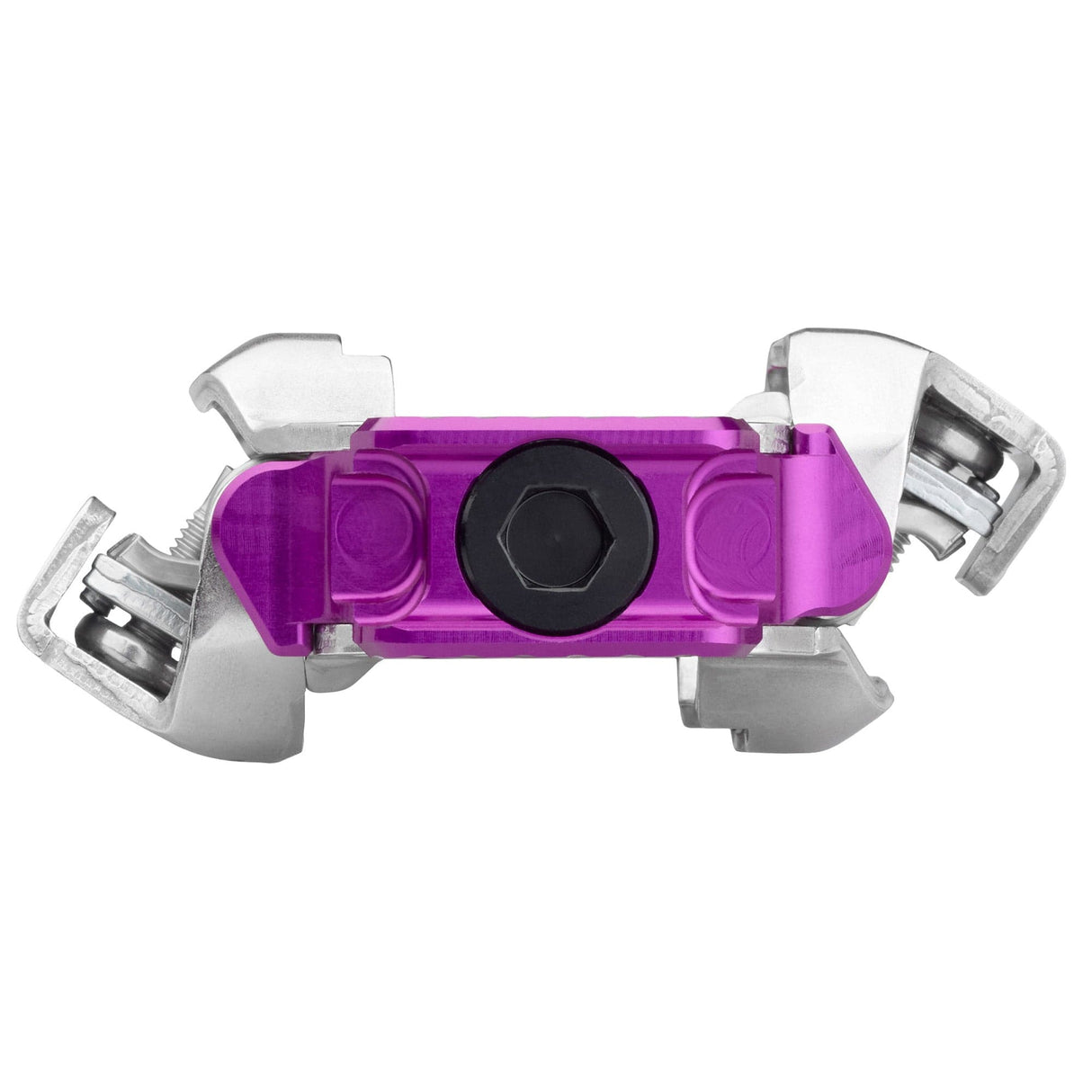

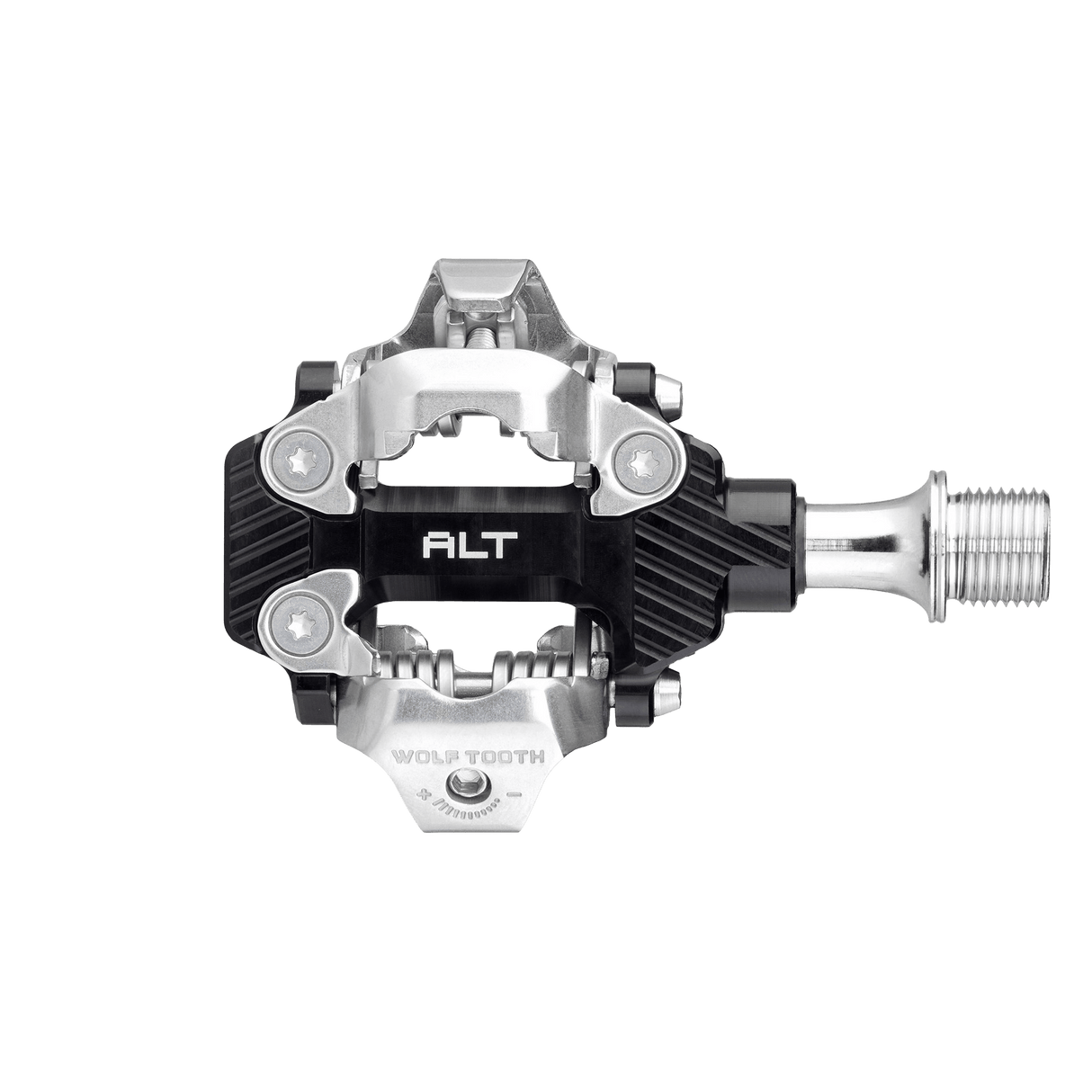

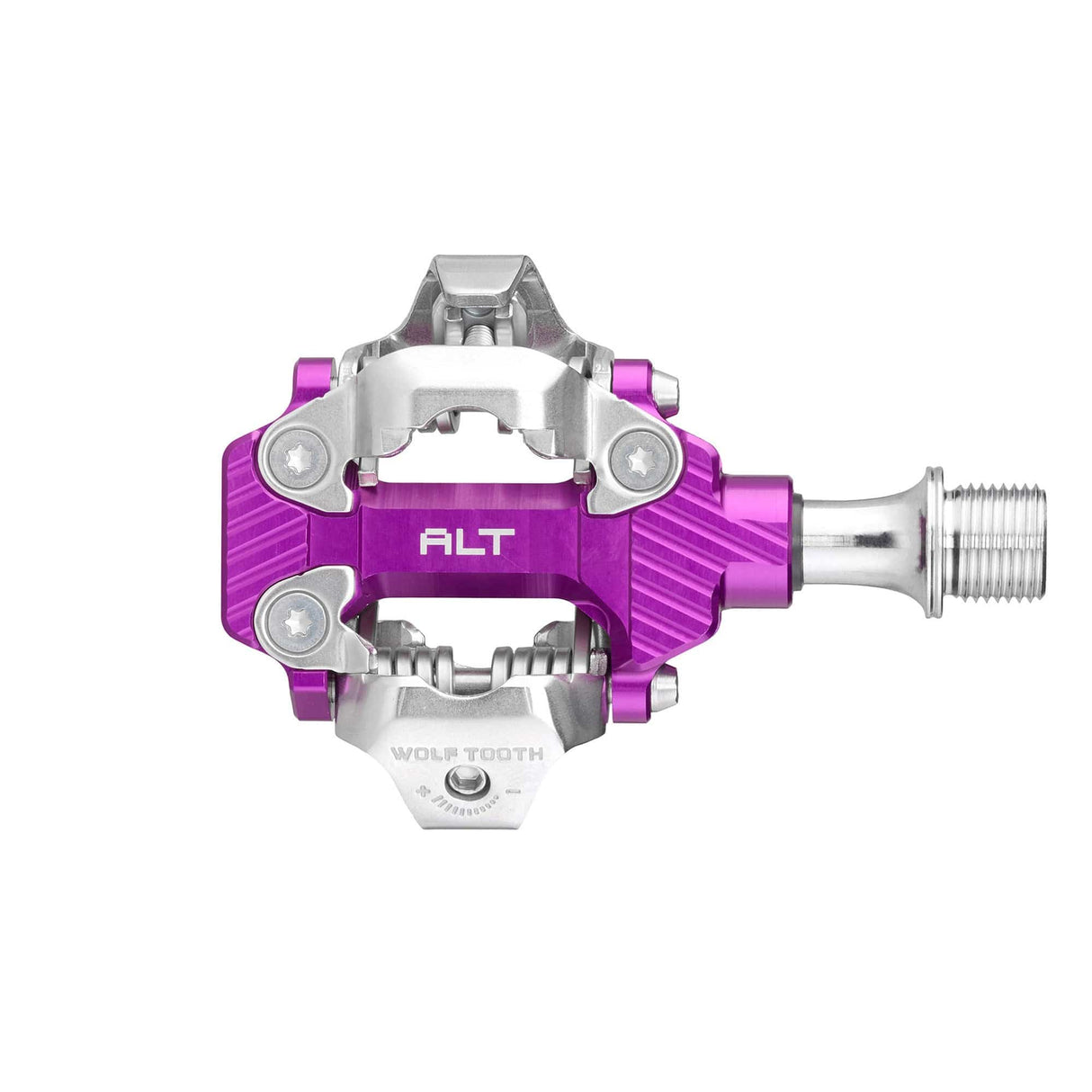

At just 15mm thin, the ALT XC Clipless Pedal reduces stack height for a more direct connection to the bike, improving pedaling efficiency and cornering feel. Despite its slim profile, the pedal body provides a generous 345mm² platform area—supporting your shoe under load and delivering better control in technical terrain. An open-center body design promotes effective mud clearance, ensuring consistent engagement in mixed and wet conditions.

The clip-in and release action is crisp and predictable, with 5 degrees of float and 12 degrees of release for a natural pedaling motion. Wolf Tooth cleats are included, and the system remains fully compatible with SPD cleats.

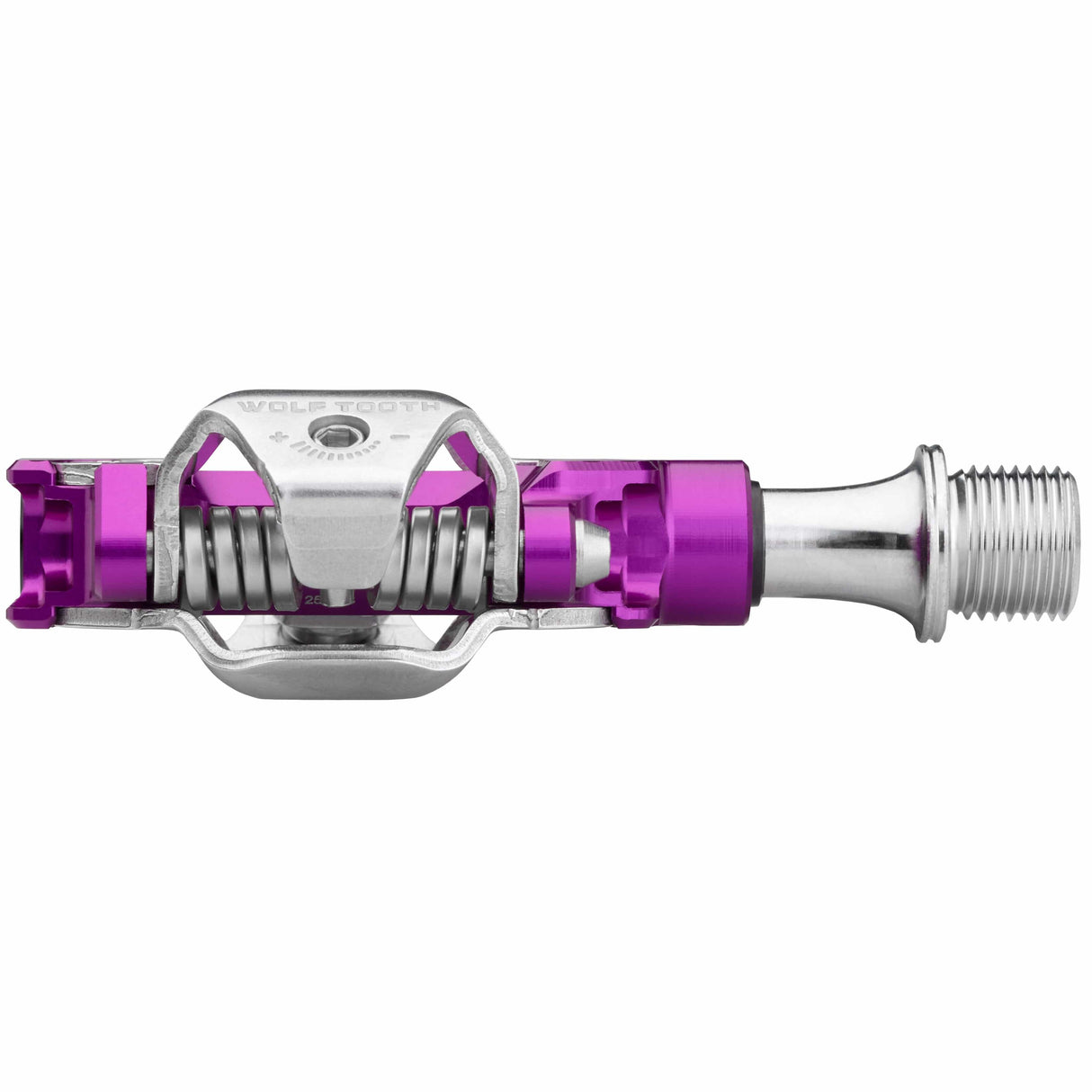

Inside, a heat-treated 17-4 PH stainless steel axle, three sealed bearings, and a dual-spacer system provide long-term durability and smooth rotation. The ALT XC Clipless Pedal features an adjustable Q factor in 4mm increments, allowing riders to configure spacing to 51mm, 55mm, or 59mm. Pedals ship in the 55mm configuration, and adjustments can be completed at home with basic tools.

ALT XC Clipless Pedal Specs at a Glance

• Stack Height: 15mm
• Platform Area: 345mm²
• Weight: 294g (pair)
• Float: 5°
• Release Angle: 12°
• Adjustable Q Factor: 51mm, 55mm, or 59mm (ships at 55mm)
• Body Material: CNC-machined 6061-T6 aluminum
• Axle: Heat-treated 17-4 PH stainless steel
• Binding Cage & Hardware: Stainless steel
• Threading: 9/16"-20 tpi

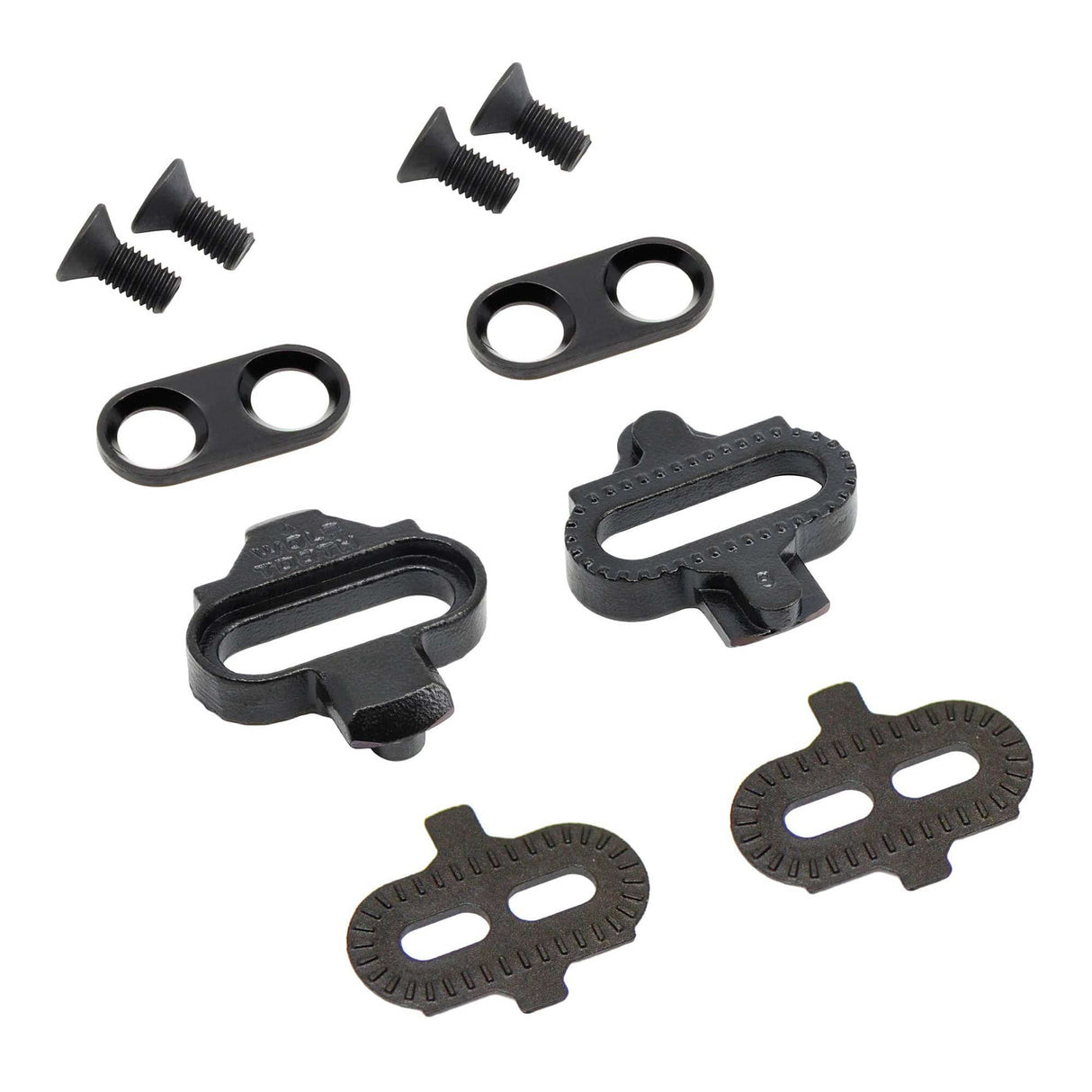

• Included: Pedals, SPD-compatible cleats, shims, and bolts
• Origin: Machined in the USA

Compatibility

• Cleat Compatibility: SPD cleats (Wolf Tooth cleats included)
• Crank Compatibility: Standard 9/16"-20 tpi right- and left-hand threads

Design Benefits

1. Low Stack Efficiency: 15mm thickness enhances pedaling feel and stability.
2. Supportive Platform: Broad body improves control and power transfer.
3. Mud-Shedding Design: Open-center body maintains consistent engagement.
4. Adjustable Fit: Q factor tuning accommodates rider biomechanics and stance preferences.
5. Serviceable Construction: Replacement parts and guides available through Wolf Tooth’s Right to Repair program.

Installation Recommendation

Apply precision bike grease to pedal threads prior to installation. Torque pedals appropriately for your crank manufacturer’s specification.

Final Take

The Wolf Tooth ALT XC Clipless Pedal stands out as a lightweight, thin, and highly tunable SPD-compatible pedal for XC and gravel riders who value performance and adjustability. With low stack efficiency, generous platform support, and adjustable Q factor, it delivers a purposeful blend of speed, control, and long-term reliability.
