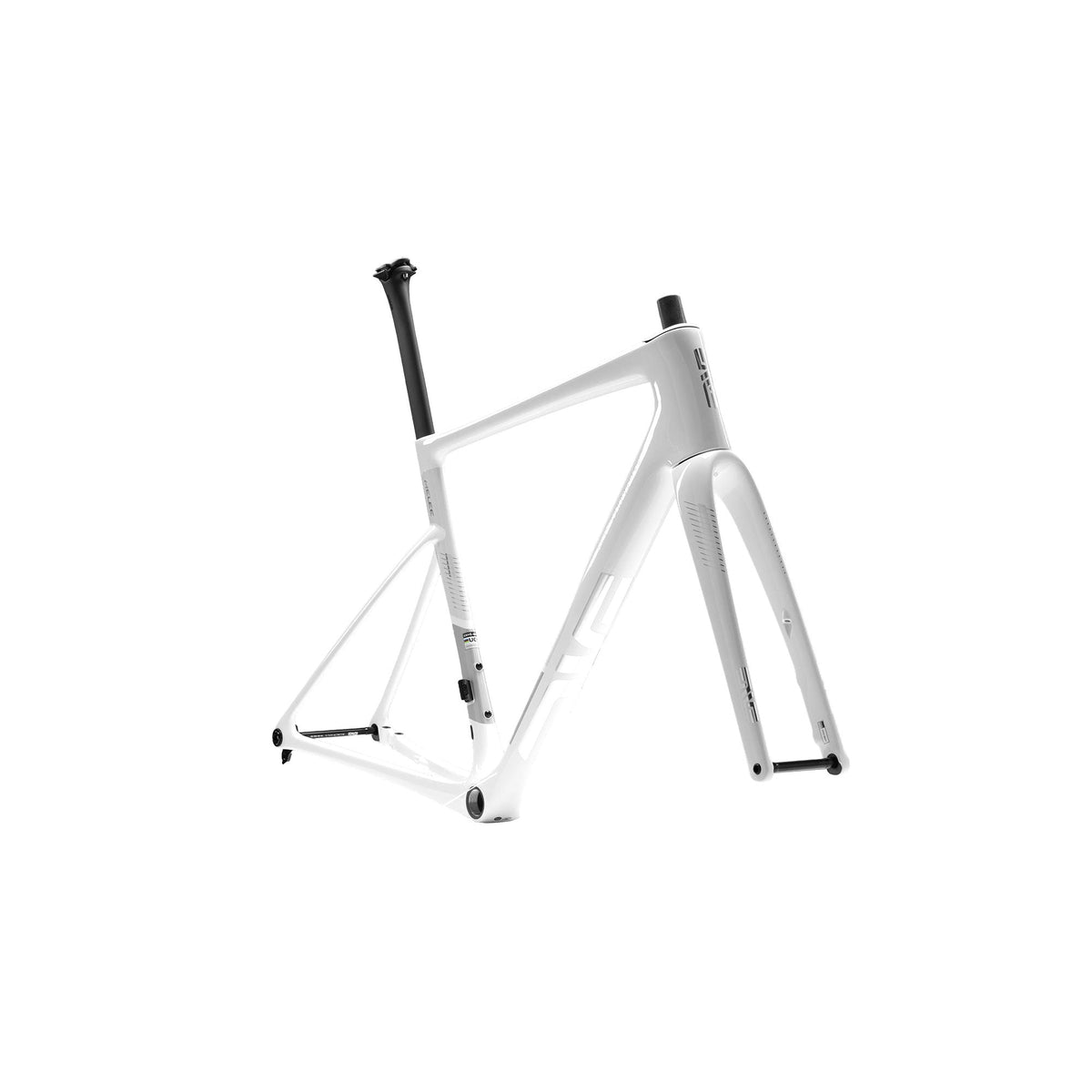

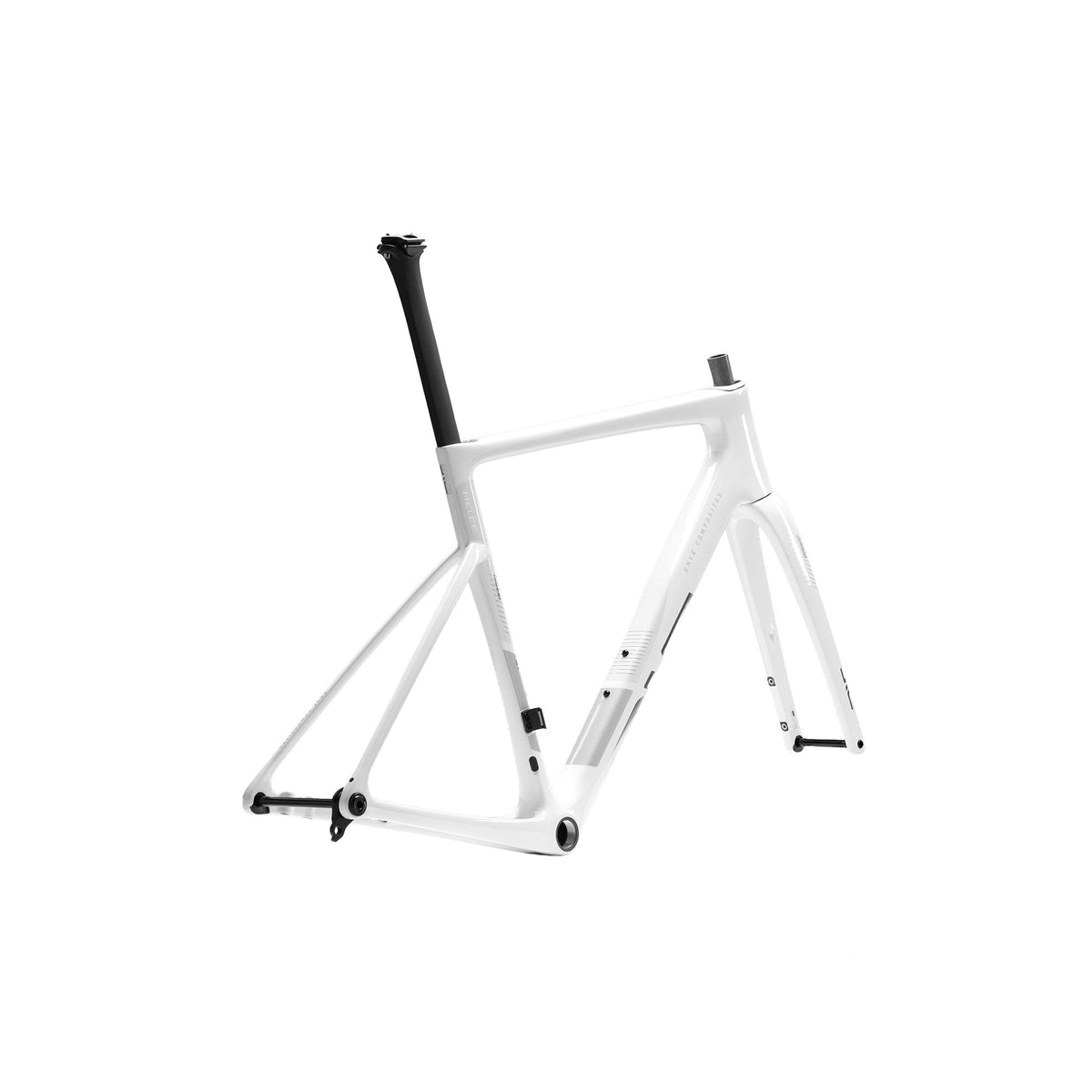

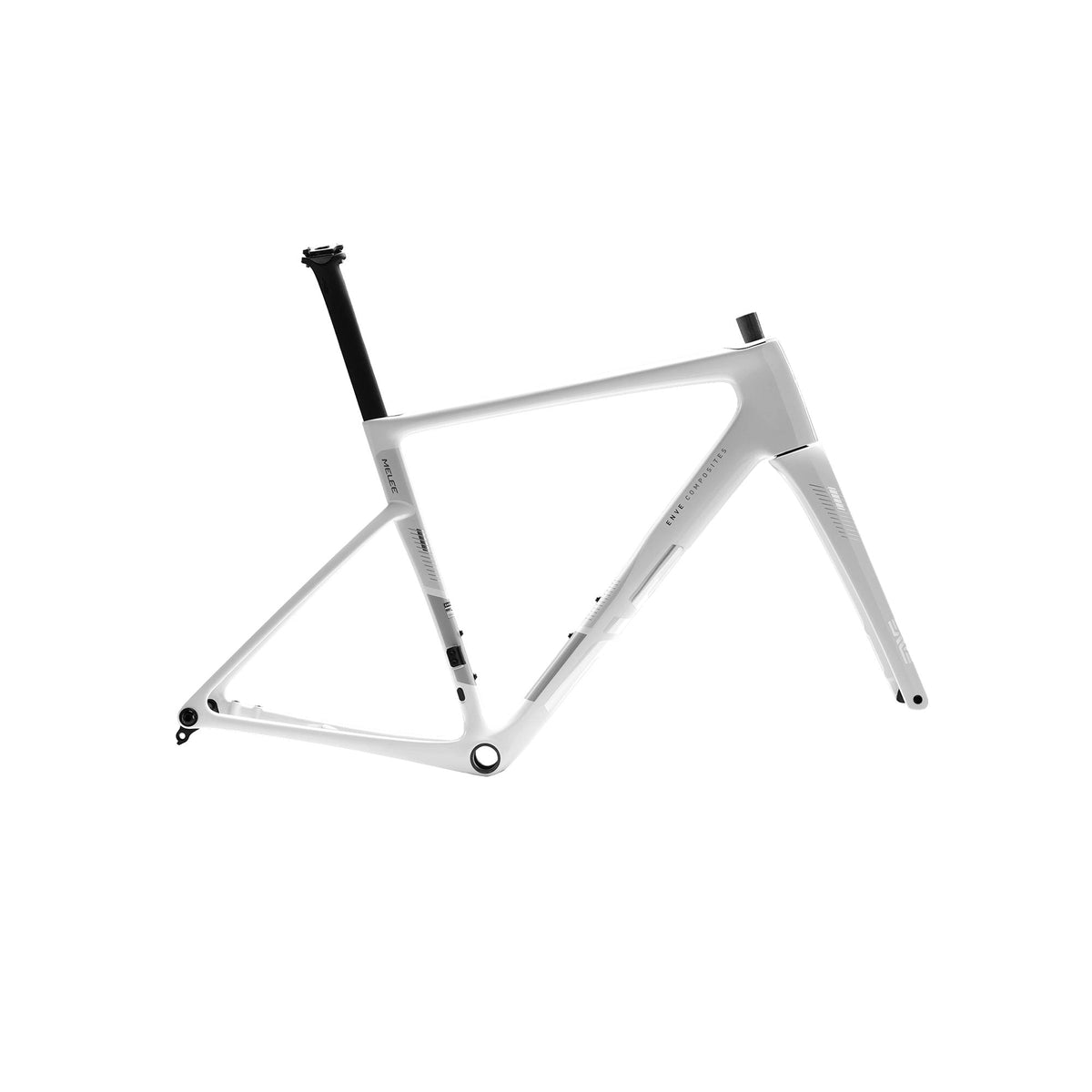

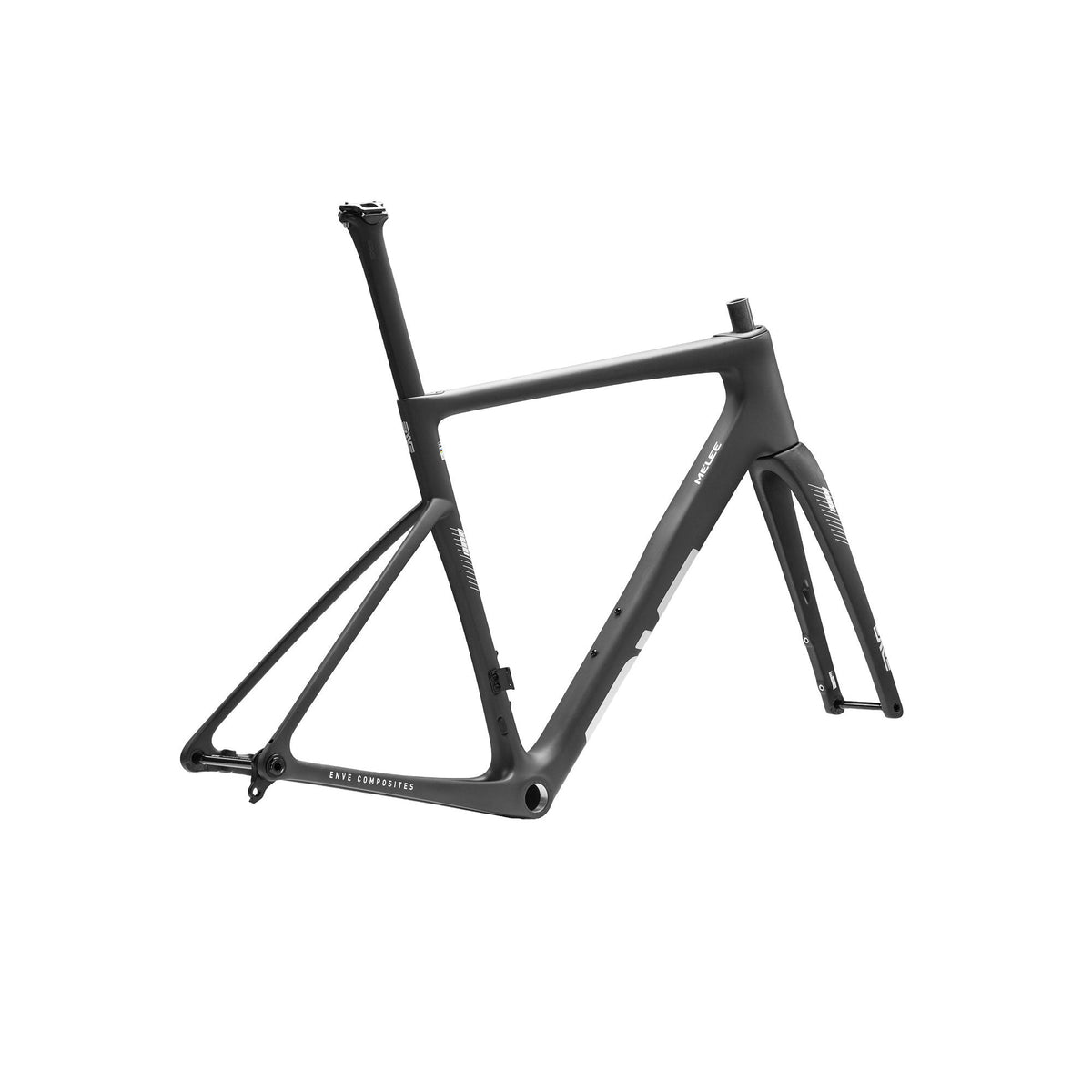

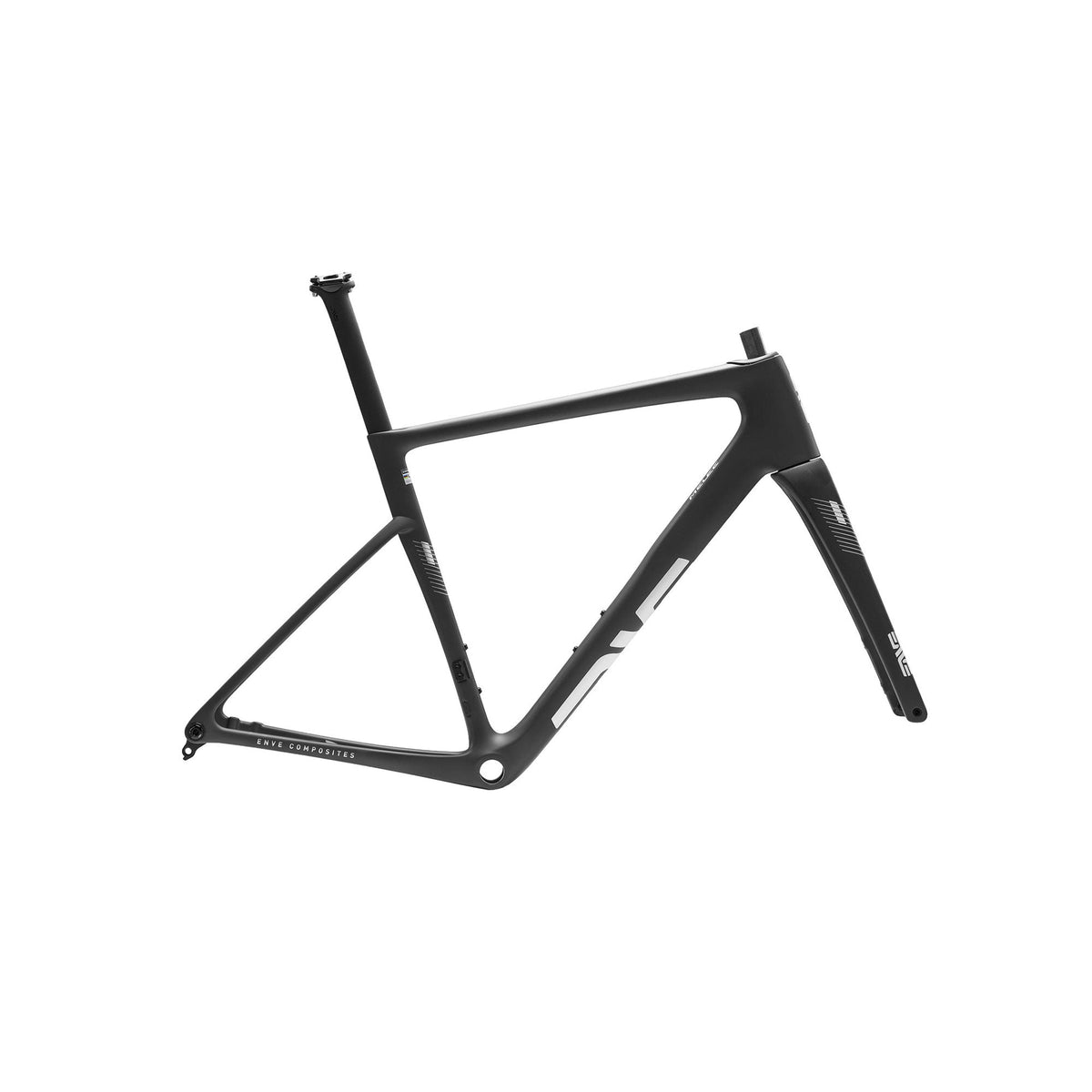

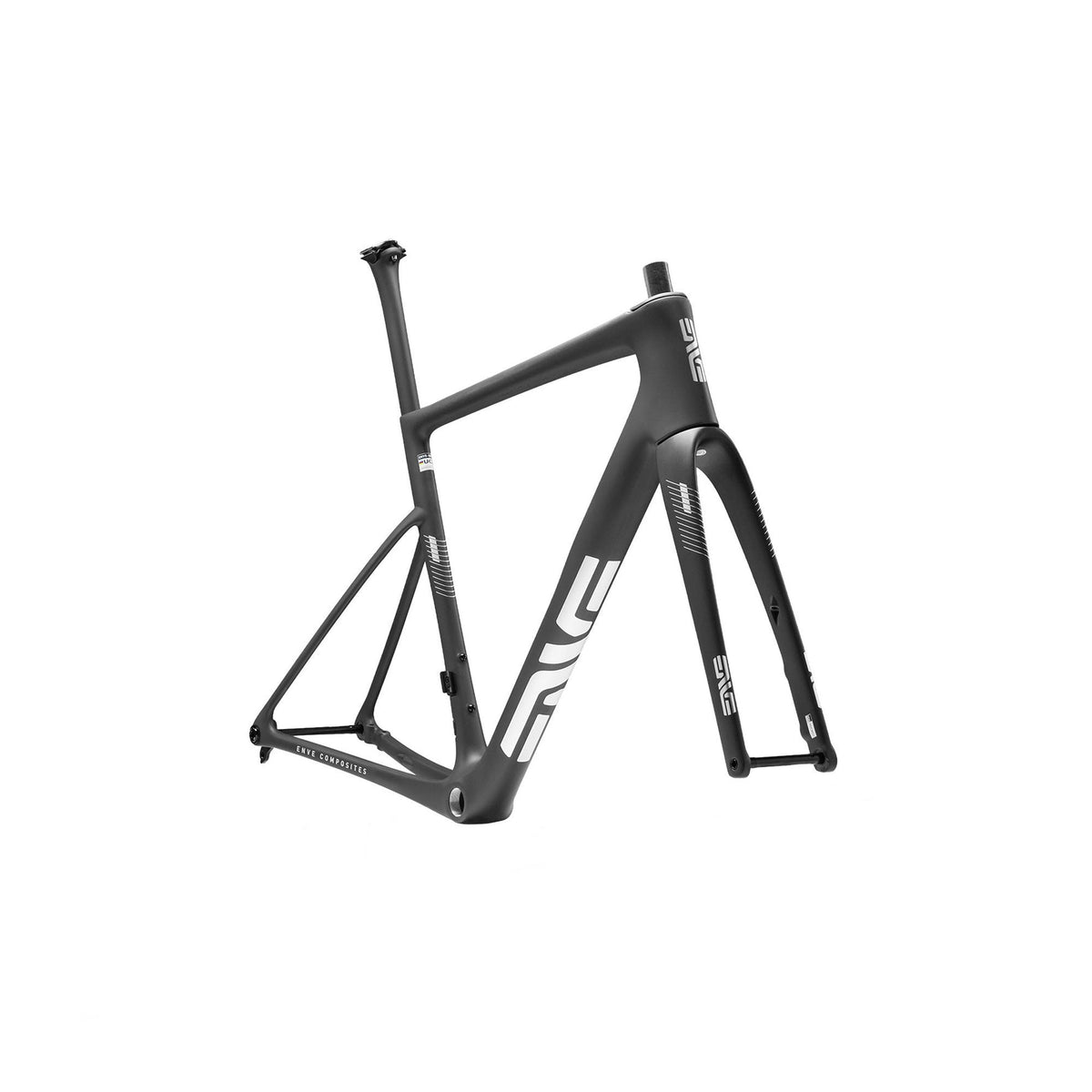

ENVE Melee V2 Frameset
Precio normal
$5,00000
Precio unitario
-
RA price match promise
-
Pay later with
,
and
Prices subject to change. How pricing works →
ENVE | SKU: 100-5008-147 | Option:
Recogida disponible en RA Cycles - Brooklyn
Normalmente está listo en 24 horas
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
ENVE Melee V2 Frameset
Precio normal
$5,00000
Precio unitario
* Product image may vary. Refer to the description for accurate details.
ENVE Melee V2 Frameset - Specifications
Frame Material:
ENVE M.O.D. Carbon
Fork:
ENVE M.O.D. Carbon
Headset:
ENVE In-Route / Aluminum Compression Ring / -49.5mm Bearings
Seatpost:
Melee V2 Proprietary Aero
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BSA Required
Brake Type:
Flat Mount Disc Required
Axle Type:
12x100mm / 12x142mm Thru Axle
Max Tire Width:
33mm (31mm Optimal)
*Specifications are subject to change.
ENVE Melee V2 Frameset Geometry
Size:
47
50
52
54
56
58
60
B. Seat Tube (c-t)
421.4
442.1
464.5
479.7
502.9
522.4
554.2
C. Top Tube Length
502.1
518.1
533.5
546.2
560.6
576.7
597.1
D. Head Tube Length
97.5
110.1
122.2
138.8
153.3
176.5
197.5
E. Chain Stay Length
410
410
410
410
410
412
412
F. BB Drop
75
75
75
73
73
71
71
G. Seat Tube Angle
75
74.5
74
73.8
73.5
73.2
72.8
H. Head Tube Angle
70.8
71.5
72.3
72.5
73.2
73.2
73.8
I. Stand Over Height
717.7
735.4
754
770.4
790.3
811.5
839.4
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
K. Stack
501.7
517.4
532.9
547.4
564.7
584.9
610.4
L. Reach
367.6
374.6
380.7
386.7
393.3
400.1
407.5
