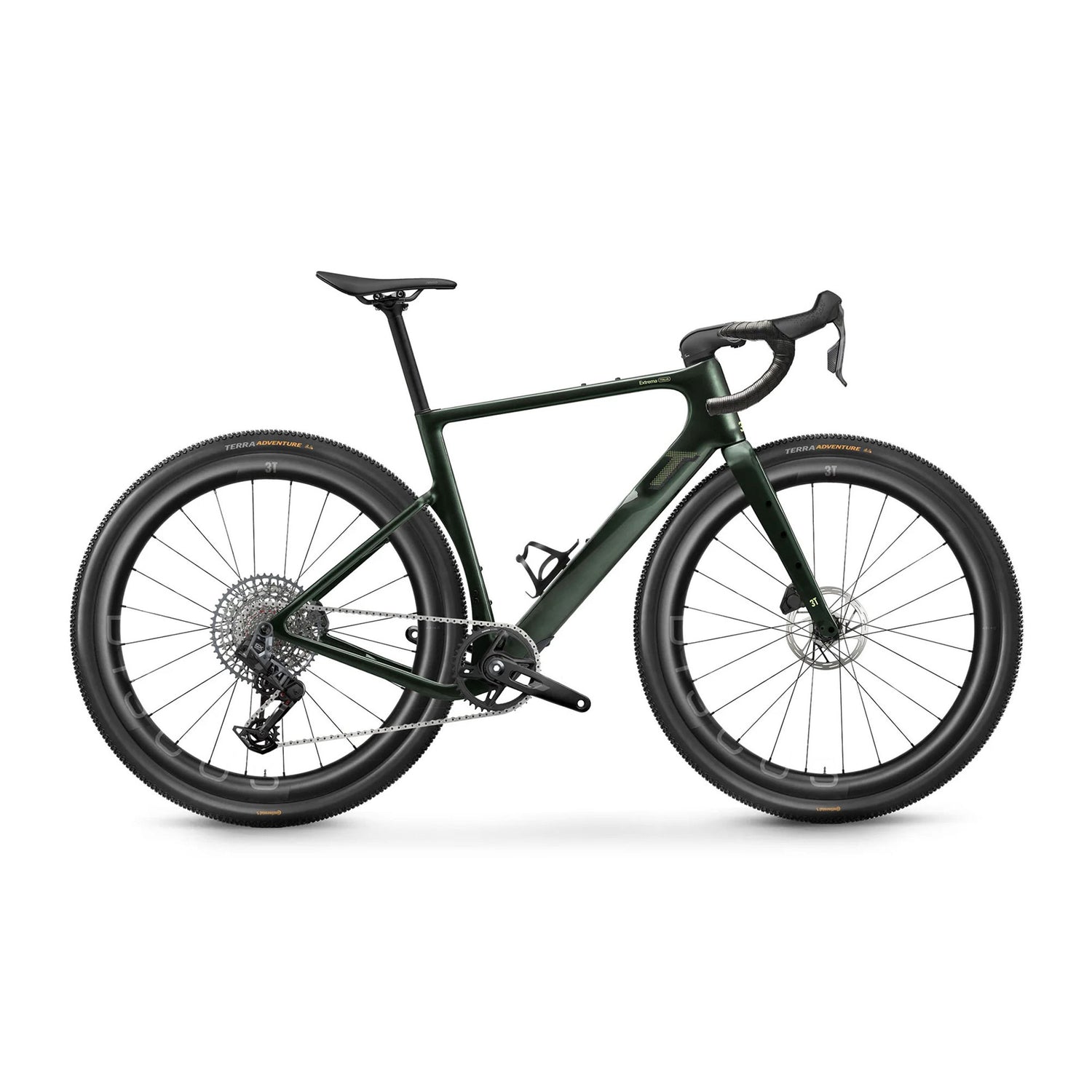

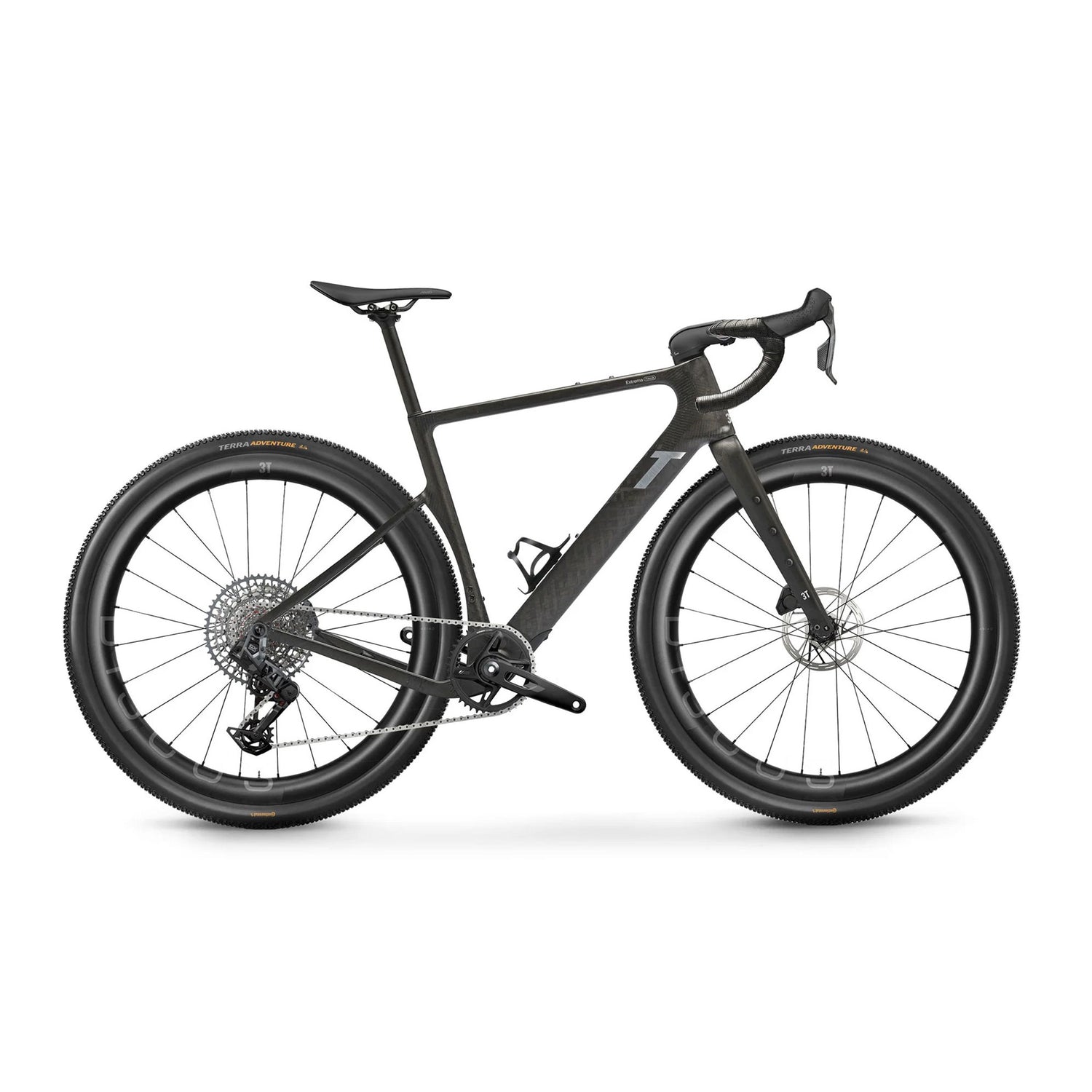

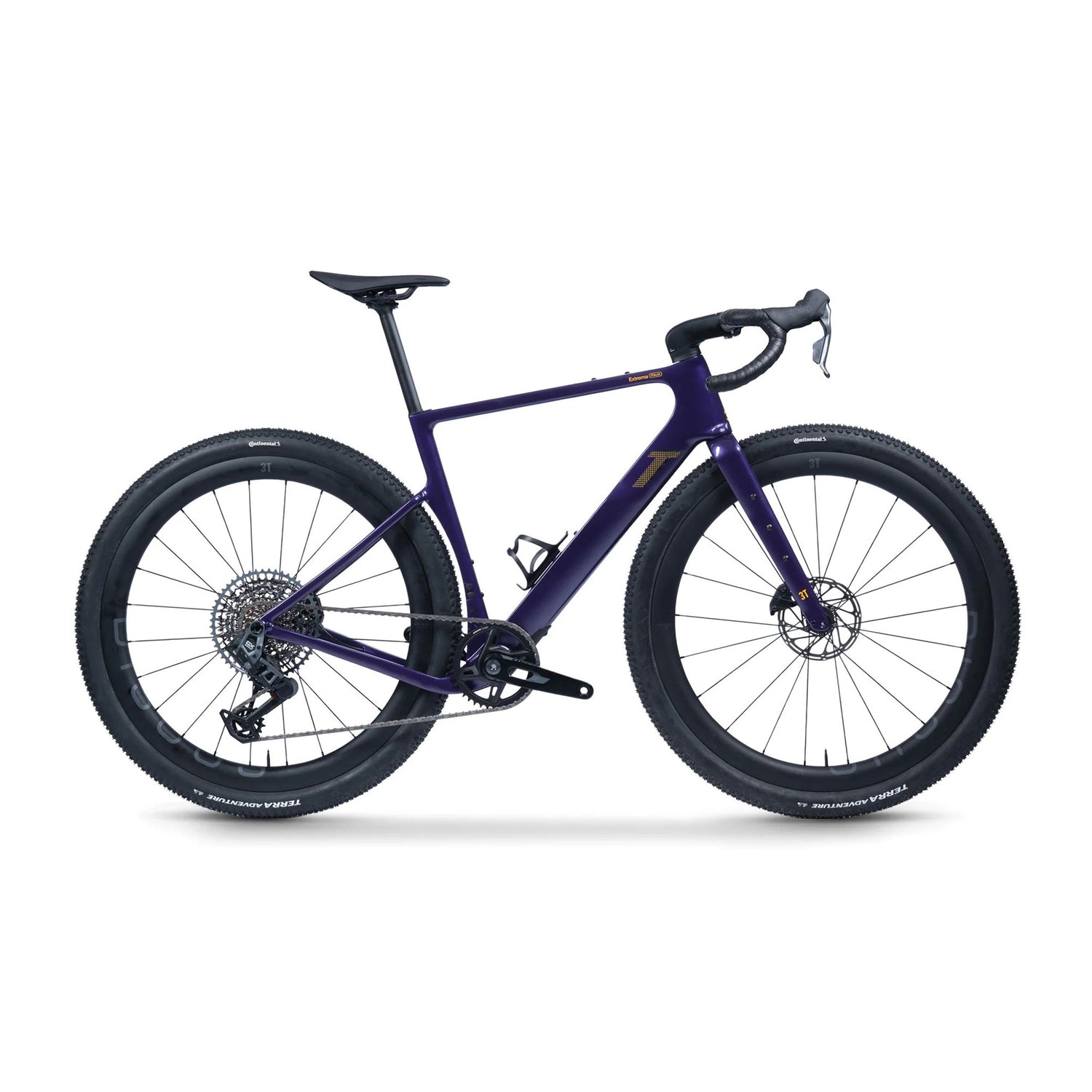

3T Extrema Italia Rival/GX Eagle Transmission AXS Bike

The 3T Extrema Italia Rival/GX Eagle Transmission AXS Bike is 3T's most capable gravel platform — a bike that deliberately blurs the line between gravel and mountain biking by accepting that serious off-road riding requires serious tires. "Italia" is not a trim level; it means the frame is handcrafted at 3T's factory in Presezzo, Italy using a proprietary filament-winding and resin transfer molding process. The Sqaero frame architecture was developed specifically for aerodynamics around big knobby tires — producing roughly 7 watts of drag savings at 20 mph compared to round tube profiles, an engineering insight that only makes sense once you've accepted 50-plus millimeter gravel rubber as the starting point. At $9,999, the Extrema Italia arrives with 700x55mm Continental Terra Adventure tires mounted, a 3T Discus 45|40 LTD carbon wheelset on Carbon-Ti hubs, and a mixed SRAM drivetrain that pairs road-level shifter ergonomics with a 10-52T mountain cassette — 520% of total gear range on a drop-bar gravel bike.

The frame is built through filament winding combined with RTM (Resin Transfer Molding): dry carbon filaments are wound around mandrels, then resin is injected under pressure rather than relying on pre-preg sheet layup. This process gives 3T superior control over fiber orientation throughout the tube walls and produces 50% less material waste than conventional pre-preg construction. The Sqaero tube shapes are the visual signature — a 50mm-wide downtube and 25mm seat tube with squared-off aerodynamic profiles engineered in a wind tunnel around oversized gravel tires rather than road-bike cross-sections. The geometry is built around 57mm tire clearance on 700c wheels, which covers everything from fast gravel racing to legitimate trail riding. Integrated downtube storage with a Fidlock mini-hook closure and a Missgrape neoprene internal bag holds a spare tube, multitool, and CO2 cartridge without adding a frame bag. The 3T Fango Extrema Integrale carbon fork (420g, 395mm axle-to-crown) runs triple cargo mounts rated at 3kg per side for bikepacking loads and routes all cables through the D-shaped steerer. A UDH (Universal Derailleur Hanger) on the frame allows direct-mount compatibility with SRAM's Transmission derailleur systems — and future-proofs the bike for whatever SRAM develops next in the T-Type ecosystem.

The Rival/GX Eagle Transmission drivetrain is the most distinctive feature on this bike. SRAM's Rival E1 AXS road shifters and hydraulic brake levers provide the ergonomics of a road cockpit — clean drop-bar shifting buttons, one-finger braking, Reach Adjust for hand fit — while the rear derailleur is a SRAM GX Eagle Transmission T-Type mountain derailleur mounted directly to the frame's UDH with no traditional hanger. The GX Eagle Transmission is a crash-robust, hangerless design with cassette-mapping logic that handles intelligent shifting under load. Behind it sits a SRAM GX Eagle Transmission 10-52T cassette — 12 speeds across 520% of gear range, which is meaningfully broader than SRAM's own XPLR gravel-specific drivetrain (10-44T, 440%). On a bike that spec's 700x55mm tires for mixed terrain, having genuine bailout gearing for technical climbs while still offering reasonable top-end on paved descents is what makes the mixed drivetrain approach make sense rather than just being a novelty. The SRAM T-Type chain completes the Eagle Transmission compatibility. A 40T chainring on the SRAM Rival Wide AXS crankset (3T Torno Wide 40T also available) drives the 1x setup, and SRAM Rival E1 hydraulic disc brakes with 160mm flat-mount rotors handle all stopping.

The 3T Discus 45|40 LTD wheelset is a purpose-built carbon gravel setup: 45mm deep, 40mm externally wide, 29mm internal width hooked tubeless rims on Carbon-Ti X-Hub SP Disc Centerlock hubs, laced with 24 Sapim CX-Ray bladed aero spokes per wheel to chrome-plated brass nipples. The total wheelset weight is 1,665g — appropriate for the rim width and intended use, and the Carbon-Ti hub reputation for durability under load earns its place on a bikepacking-capable build. Continental Terra Adventure 700x55mm tires with Trail Casing (E25) puncture protection come fitted tubeless-ready, sized to fill the frame's tire clearance and matched to the 29mm internal rim width. The 3T Superghiaia Integrale LTD carbon handlebar runs a progressive flare — more relaxed through the tops, steeper in the drops for control on rough terrain — at 40, 42, or 44cm widths, with full internal cable routing. The 3T MORE Integrale stem's hollow design allows hose swaps without disconnecting or bleeding the hydraulic brakes, a meaningful service detail on a bike designed for remote riding. The 27.2mm round carbon seatpost accepts any standard dropper post for riders who want to add one later.

Design Benefits

1. Sqaero tubes designed for big tires. The aerodynamic advantage of Sqaero tube shapes (~7W at 20 mph vs. round tubes) is specifically calculated around the airflow disruption of wide knobby tires — the kind of aero engineering that reflects 3T's actual intended use case rather than optimizing for a road-tire cross-section on a gravel bike.
2. Filament-winding + RTM Italian construction. The combination of filament winding and resin transfer molding at 3T's Presezzo factory gives consistent fiber orientation through complex tube geometries, 50% less material waste than pre-preg, and the quality control of in-house Italian manufacturing rather than outsourced production.
3. Mixed SRAM Rival/GX Eagle Transmission drivetrain. Road shifter ergonomics with a 10-52T mountain cassette: 520% gear range on a drop-bar bike. For riders who want to cover paved descents and 20%+ dirt climbs in the same ride without mechanical compromise, this is the drivetrain combination that makes it work.
4. GX Eagle Transmission UDH direct-mount rear derailleur. The hangerless direct-mount setup is significantly more crash-resilient than a conventional derailleur hanger. On remote mixed-terrain rides where a bent hanger can end a ride, this is a meaningful reliability upgrade.
5. 57mm tire clearance on 700c. Room for tires that are within reach of 29er mountain bike territory — traction and compliance on rough ground that no conventional gravel bike geometry can match.
6. 3T Discus 45|40 LTD on Carbon-Ti hubs. A premium custom carbon wheel build with aero rim depth, wide internal section for the intended tire size, and Carbon-Ti hubs known for durability under bikepacking loads — not a value-spec wheelset on a premium frame.
7. Integrated storage and triple fork mounts. The downtube storage and fork cargo mounts (3kg/side) are built into the frame and fork, not added as afterthought. This is designed as a go-anywhere bike, not one that becomes a bikepacking rig via bolt-on additions.

Final Take

The 3T Extrema Italia is for the rider who has decided that gravel riding means riding anything — and wants equipment built around that decision rather than compromised toward it. The Italian-made Sqaero carbon chassis, the 57mm tire clearance, and the Rival/GX Eagle mixed drivetrain are coherent answers to specific problems: aerodynamics with big rubber, gear range for genuine mixed terrain, and road-bike ergonomics without sacrificing mountain-bike capability. At $9,999, it's a complete build that doesn't ask for upgrades before it's ready to go anywhere.
