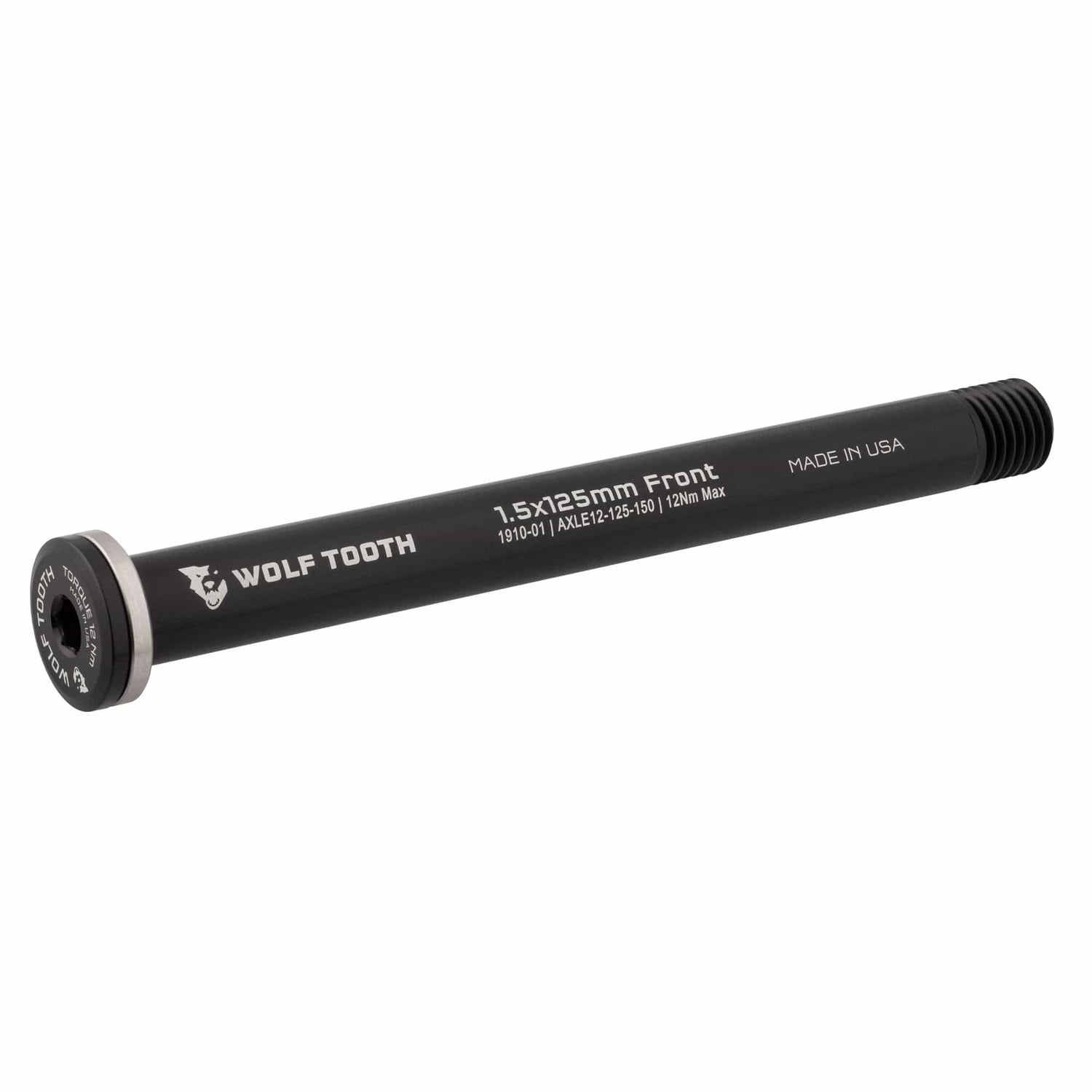

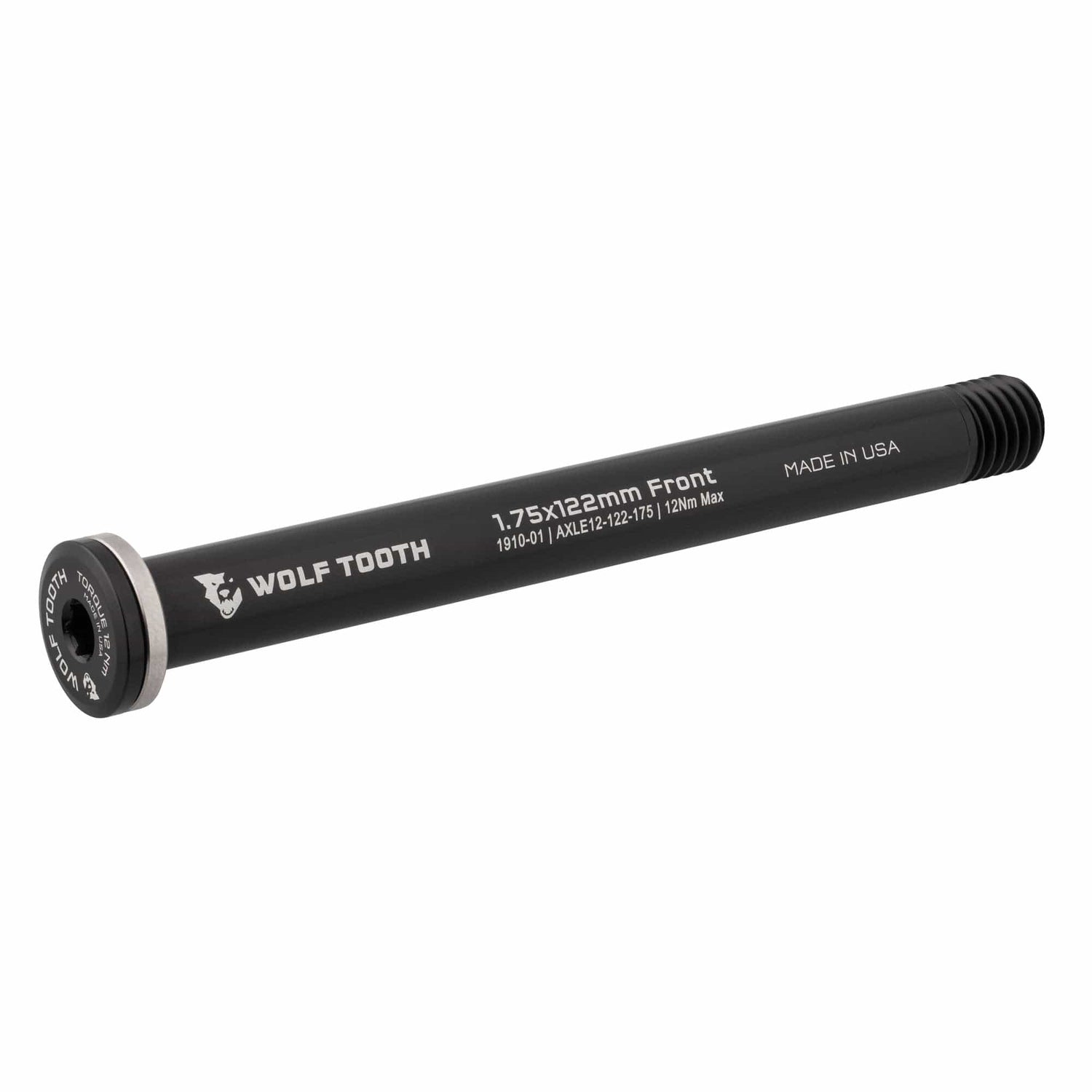

Wolf Tooth Front Axle for Road Forks

Wolf Tooth Front Axle for Road Forks Info

Wolf Tooth Front Axle for Road Forks is a precision-machined thru axle designed to deliver secure clamping, easy installation, and long-term durability for modern road and cyclocross forks. Built from high-strength 7075-T6 aluminum and engineered with thoughtful details, this axle improves both performance and serviceability.

A key feature is the captive stainless steel washer beneath the axle head. This washer protects the fork dropout surface, reduces friction during tightening, and transfers more torque into clamping load for a stiffer interface. It also helps prevent sticking or galling when removing the axle—especially important for riders frequently transporting or servicing their bikes.

Available in multiple thread pitch and length configurations, the Wolf Tooth Front Axle for Road Forks supports standard 100mm hub spacing in both 12mm and 15mm thru axle formats.

Front Axle for Road Forks Specs at a Glance

• Hub Spacing: 100mm
• Axle Diameters: 12mm or 15mm (model dependent)
• Material: 7075-T6 aluminum axle with stainless steel washer
• Tool Interface: 5mm or 6mm hex key (model dependent)
• Torque Spec: 12 Nm maximum
• Weights:
  1.5 x 125mm – 32g
  1.75 x 122mm – 31.5g
  1.5 x 120mm – 32g
• Origin: Made in the USA

Compatibility

• Compatible with road and cyclocross forks using 100mm hubs.
• Available in multiple thread pitch and length options—verify fork specifications before ordering.

Installation Recommendation

• Apply a small amount of grease to threads and washer before installation.
• Tighten to a maximum of 12 Nm using the appropriate hex key.

Design Benefits

1. Fork Protection: Captive stainless washer reduces friction and protects dropout surfaces.
2. Improved Clamping: Efficient torque transfer enhances front-end stiffness.
3. Lightweight Construction: 7075-T6 aluminum balances strength and low weight.
4. Service-Friendly Design: Smooth installation and removal without binding.

Final Take

The Wolf Tooth Front Axle for Road Forks is a high-quality replacement or upgrade for 100mm thru axle road and cyclocross forks. With refined machining, a protective stainless washer, and lightweight aluminum construction, it offers improved clamping performance and reliable serviceability for modern performance bikes.
