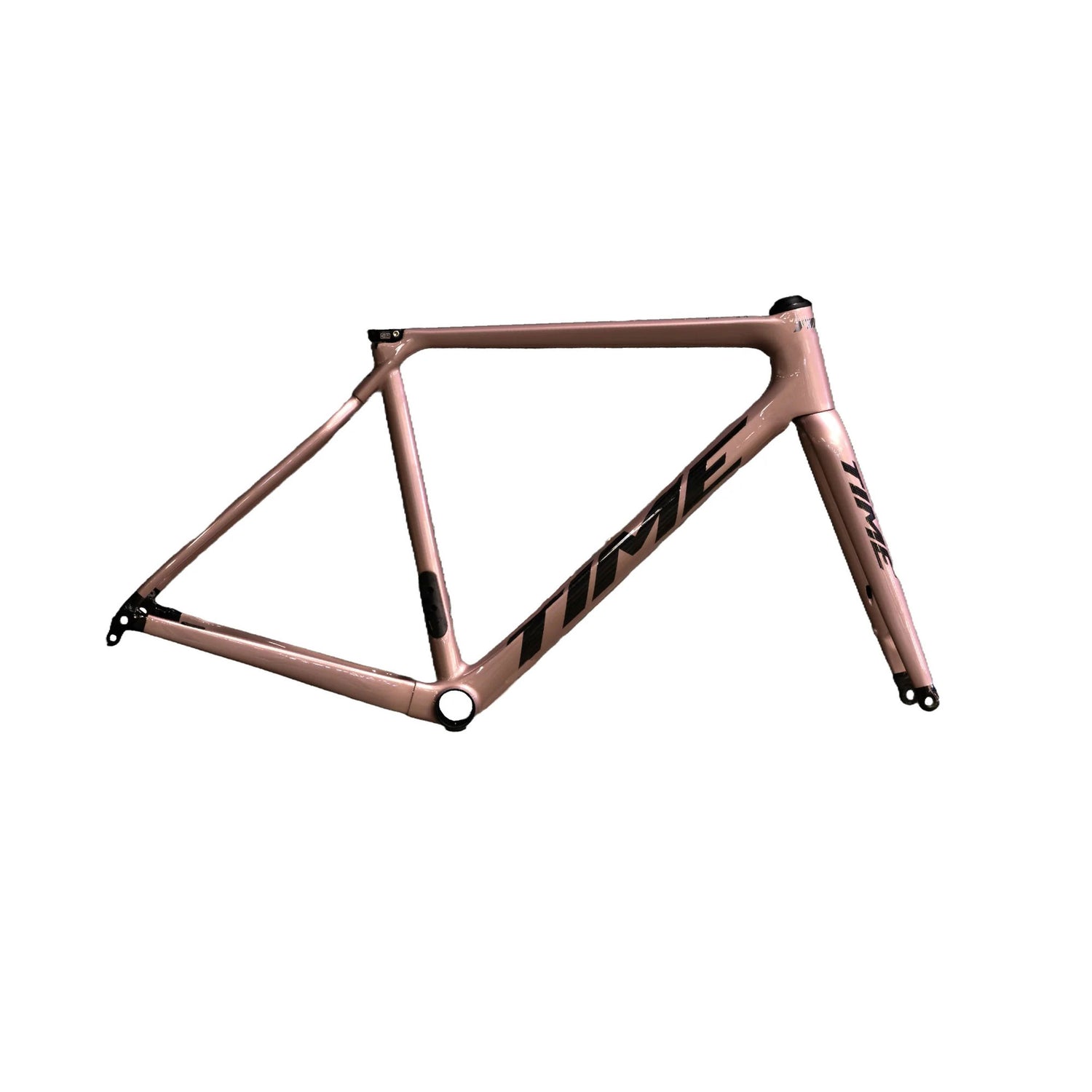

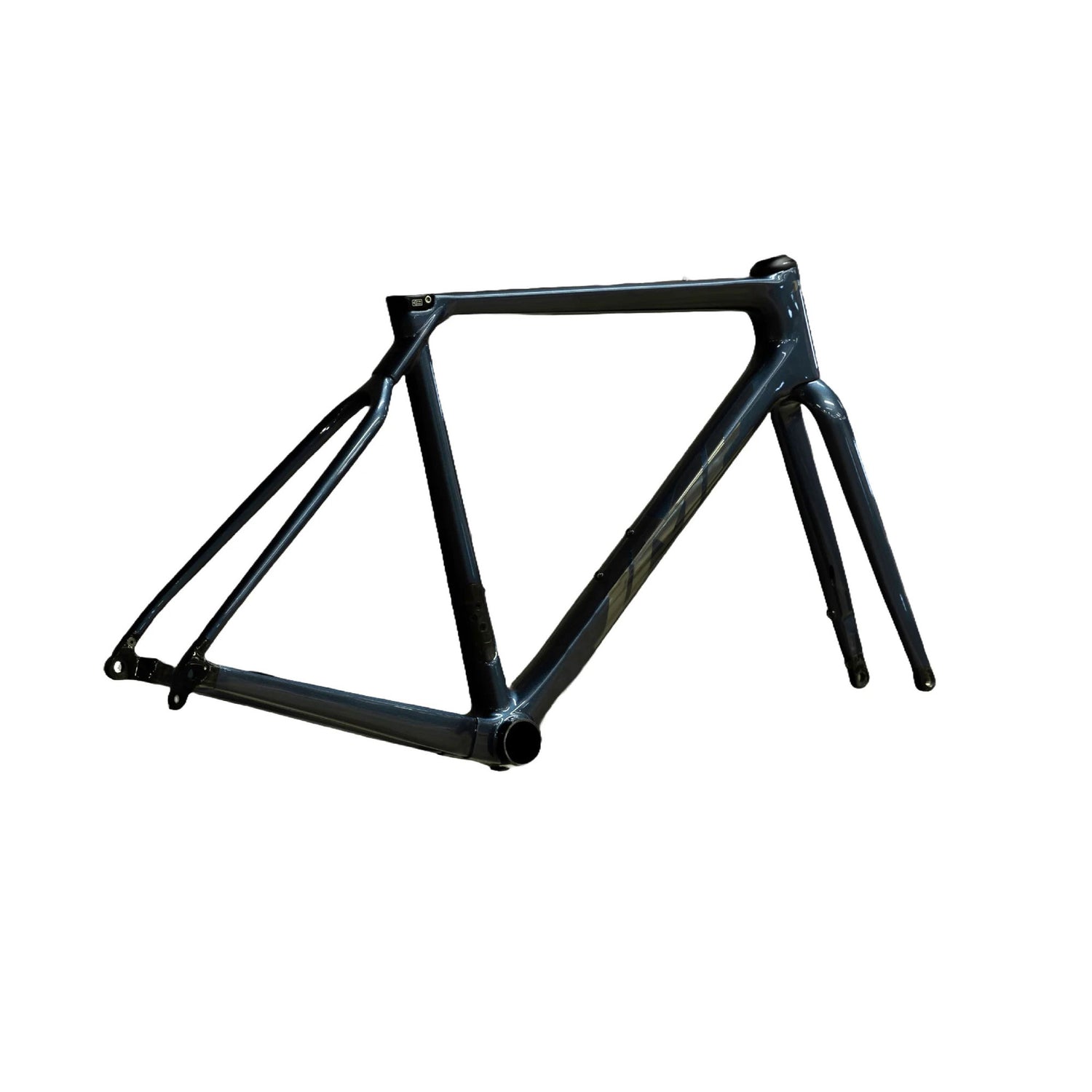

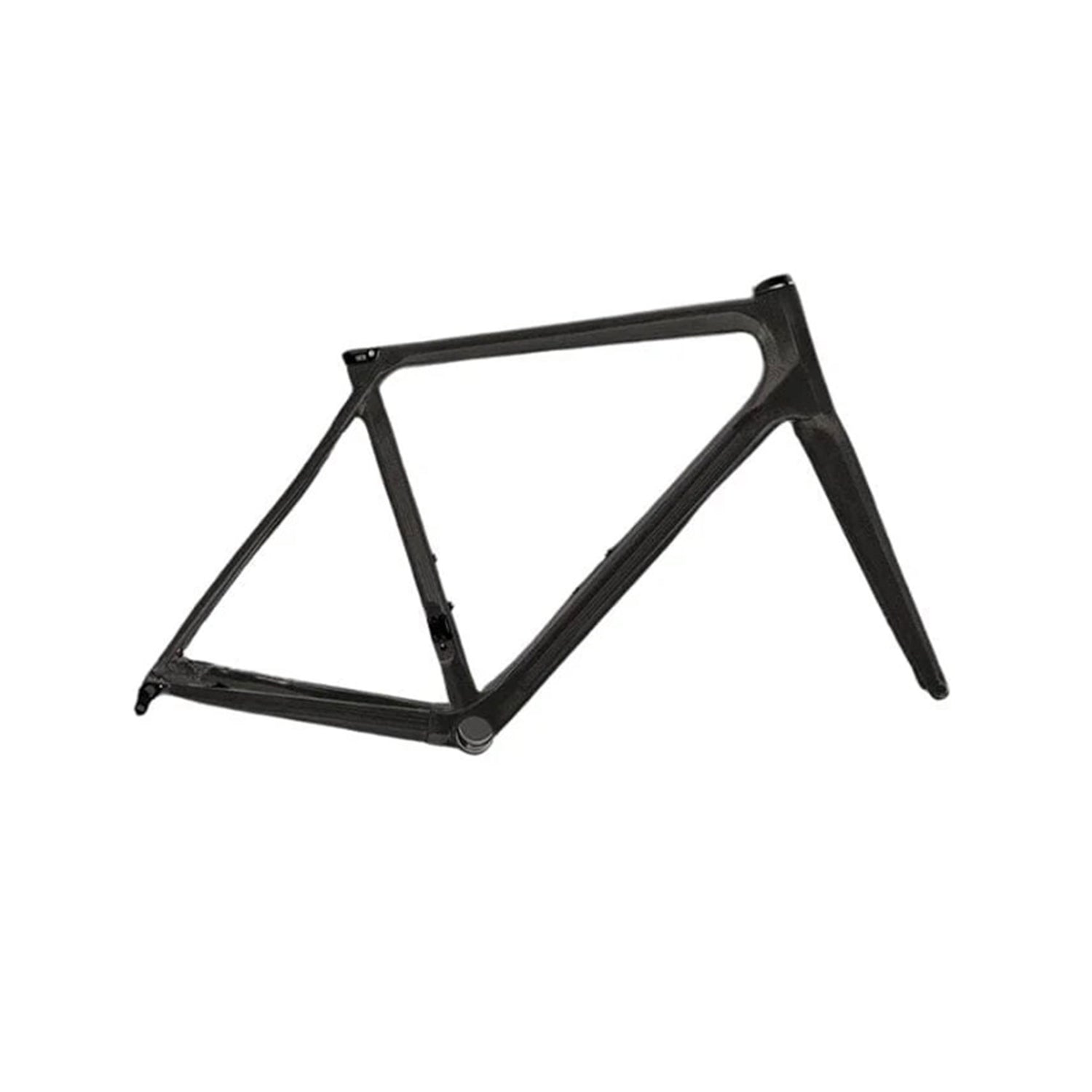

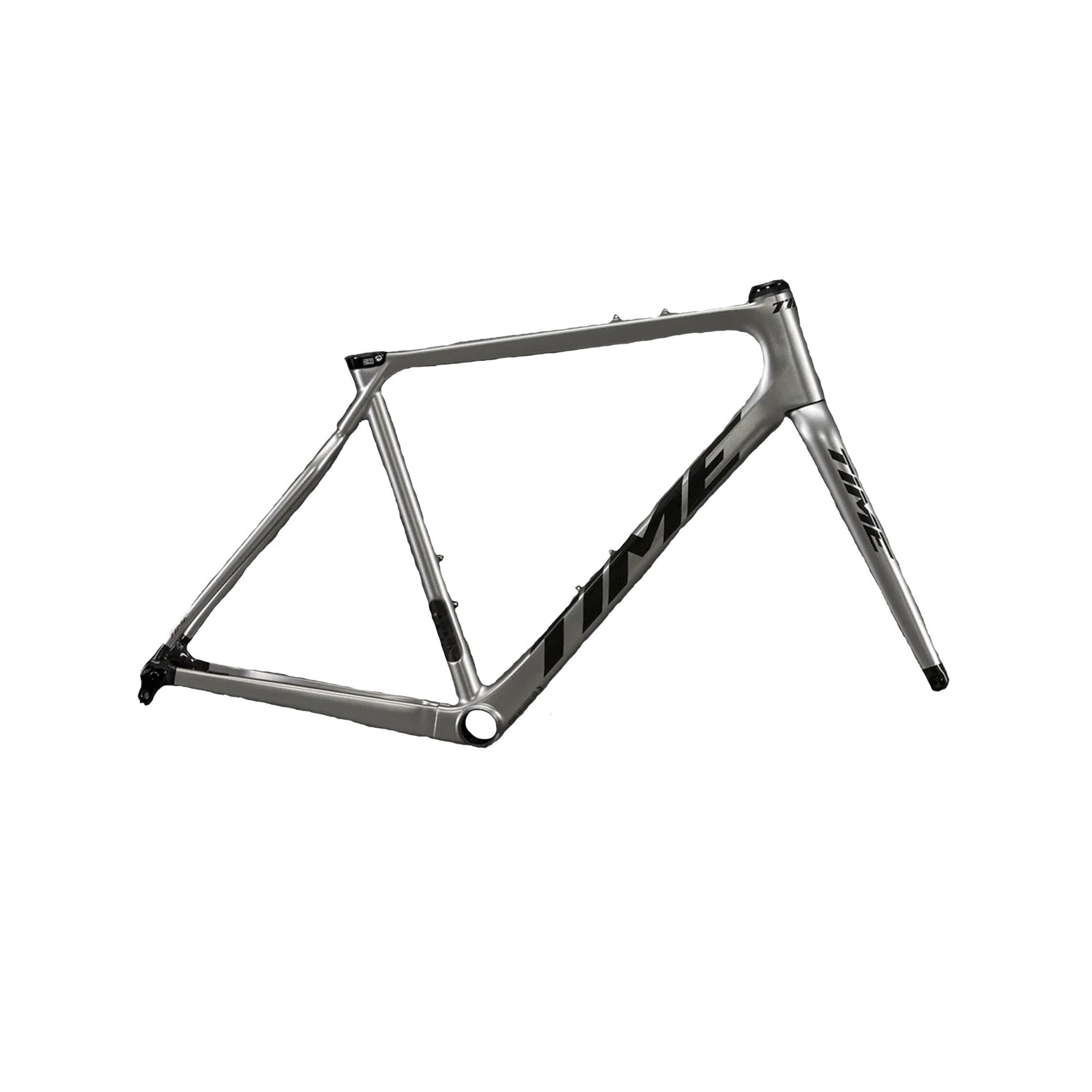

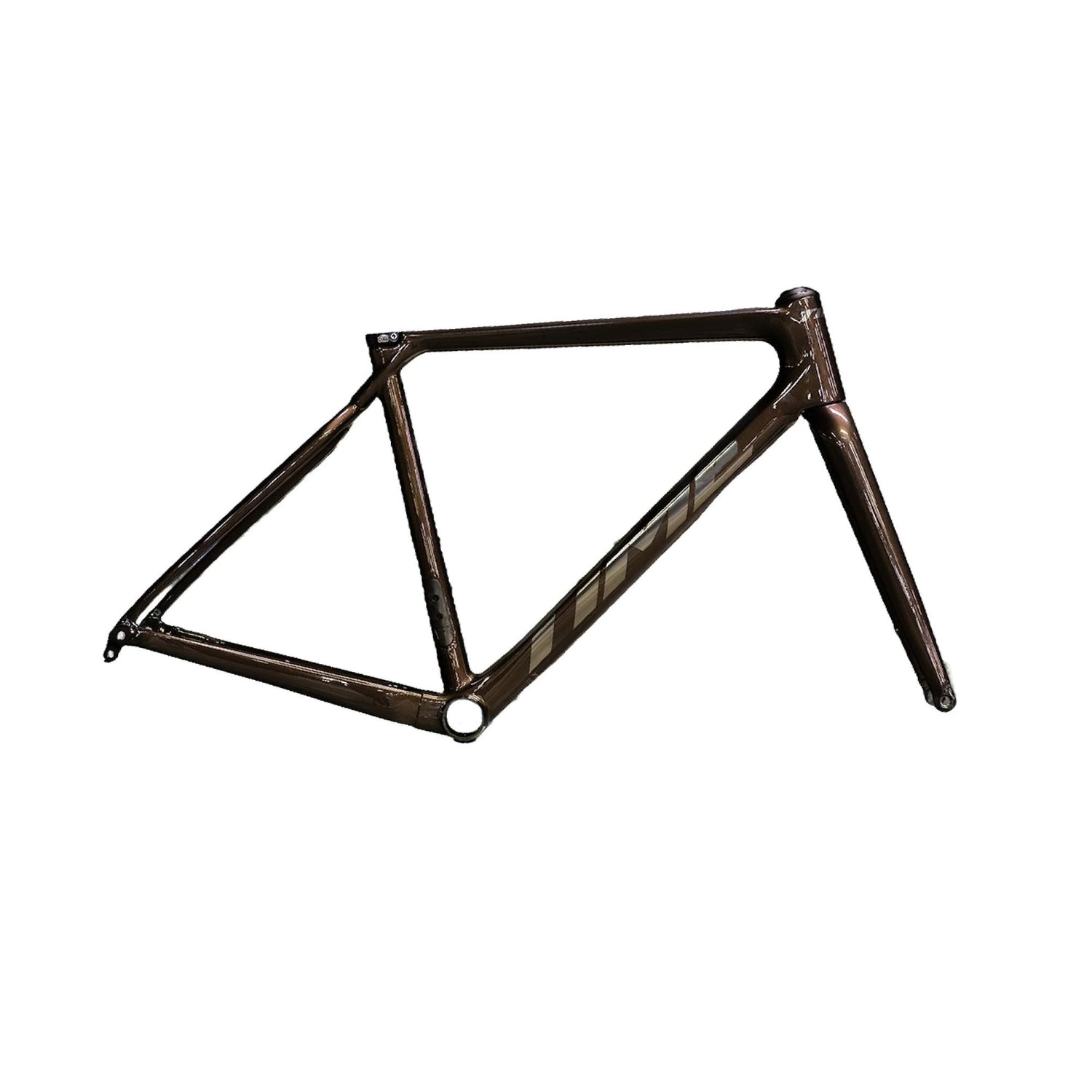

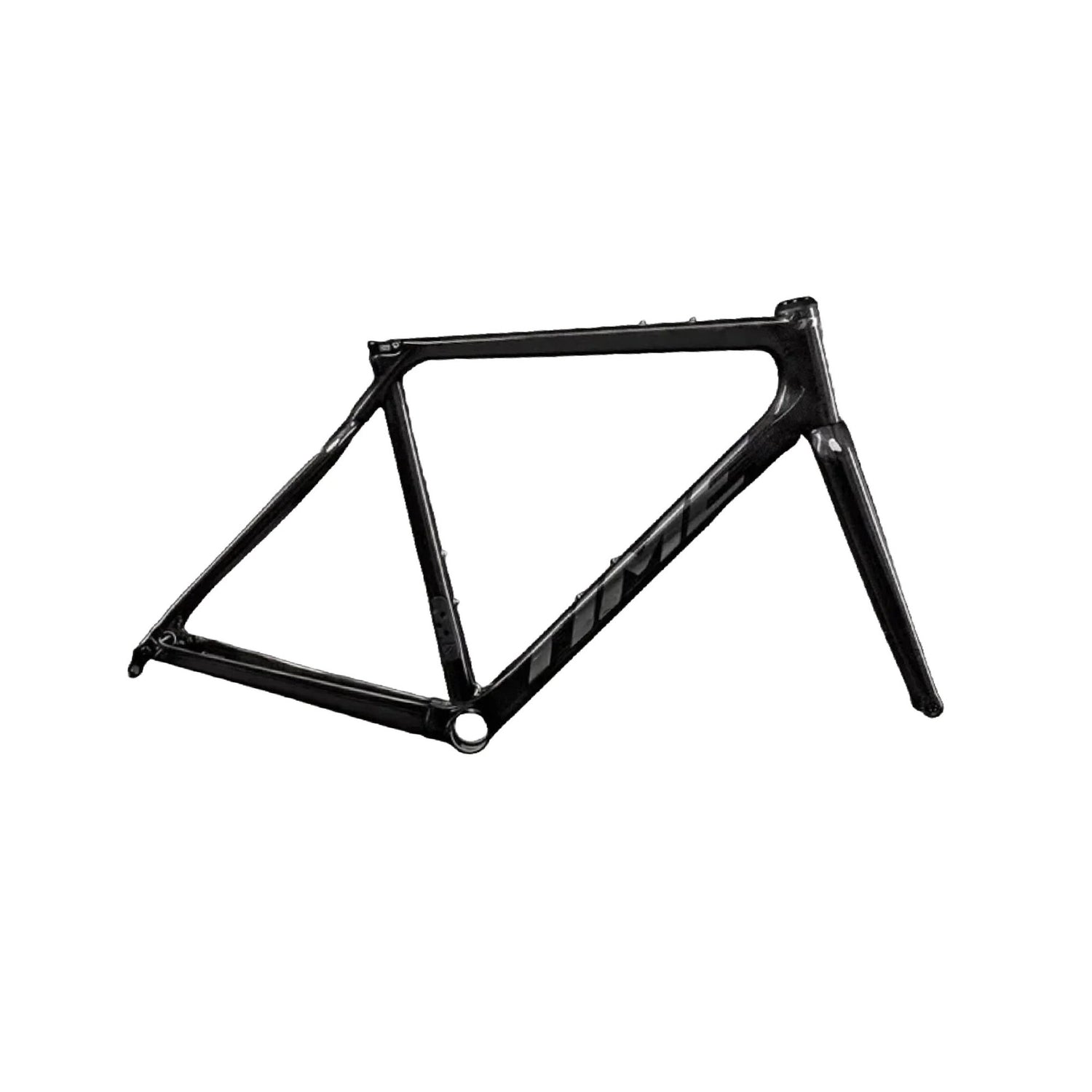

Time ADHX 45 UDH Frameset
Time ADHX 45 UDH Frameset Info
Time ADHX 45 UDH Frameset — Peak Gravel Performance
Why Ride the ADHX 45?
Experience the thrill of confident, high-speed gravel riding. The ADHX 45 is engineered to be smooth, stable, and uncommonly durable—yet when you ask it to, it rips. Ride with confidence, backed by TIME's Lifetime Warranty and precision Swiss craftsmanship.
Cutting-Edge Carbon Construction
Built using TIME's unique Braided Carbon Structure (BCS) with Resin Transfer Molding (RTM), this frameset incorporates 16 types of carbon fibers, reinforced with Kevlar, Vectran, and Dyneema®. The result? Outstanding vibration damping, enhanced impact resistance, and a lively, responsive ride.
UDH Compatibility
Now featuring a Universal Derailleur Hanger (UDH), the ADHX 45 offers improved drivetrain durability, industry-standard part support, and easier replacements—simplifying maintenance and protection.
Geometry Built for Gravel
- Longer wheelbase & 430 mm chainstays optimize stability and tire clearance for aggressive terrain.
- Intended for 700x45 c gravel tires (or 650x50 c), with clearance for 32-45 c tires—versatile enough to swap between gravel and road setups.
- Relaxed geometry (e.g., 72.3° head tube on size M) inspires cornering confidence even when fatigue sets in.
Specs at a Glance
- Frame material: BCS Carbon Fiber w/ Dyneema®
- Thru-axles: 12x100 mm front, 12x142 mm rear
- Bottom bracket: PF BB386
- Brake mounts: Flat-mount disc (rotor 140/160 mm)
- Seatpost: ø27.2 mm
- Fork steerer: 1¼″ tapered to 1½″, reinforced with Kevlar/Vectran
- Sizes: XS, S, M, L, XL
- Included: Frame, carbon fork, DEDA S-DCR headset, thru-axles, bottle bolts, integrated seatpost-clamp, UDH hanger, single-cover conversion kit
Design Benefits
- Unmatched comfort & control —Dyneema-enhanced carbon soaks up rough terrain, delivering a smooth, planted ride.
- Exceptional durability —Forged carbon dropouts can be re-drilled or threaded without cracking, plus braided fibers reduce stress points for a long-lasting frame.
- All-road versatility —Tire clearance and geometry allow tire swaps that transition smoothly between gravel chops and daily commutes.
- Future-proof performance —UDH hanger and broad drivetrain compatibility ensure your build evolves with tech over time.
Final Take
The Time ADHX 45 UDH is the ultimate high-performance gravel frameset for riders chasing adventures on rough roads and fast dirt stages. Its advanced materials and thoughtful features—like UDH compatibility, vibration-dampening Dyneema reinforcement, and gravel-optimized geometry—make it a long-lasting, adaptable cornerstone for any custom build.
Time ADHX 45 UDH Frameset - Specifications
*Specifications are subject to change.
Time ADHX 45 UDH Frameset Geometry
