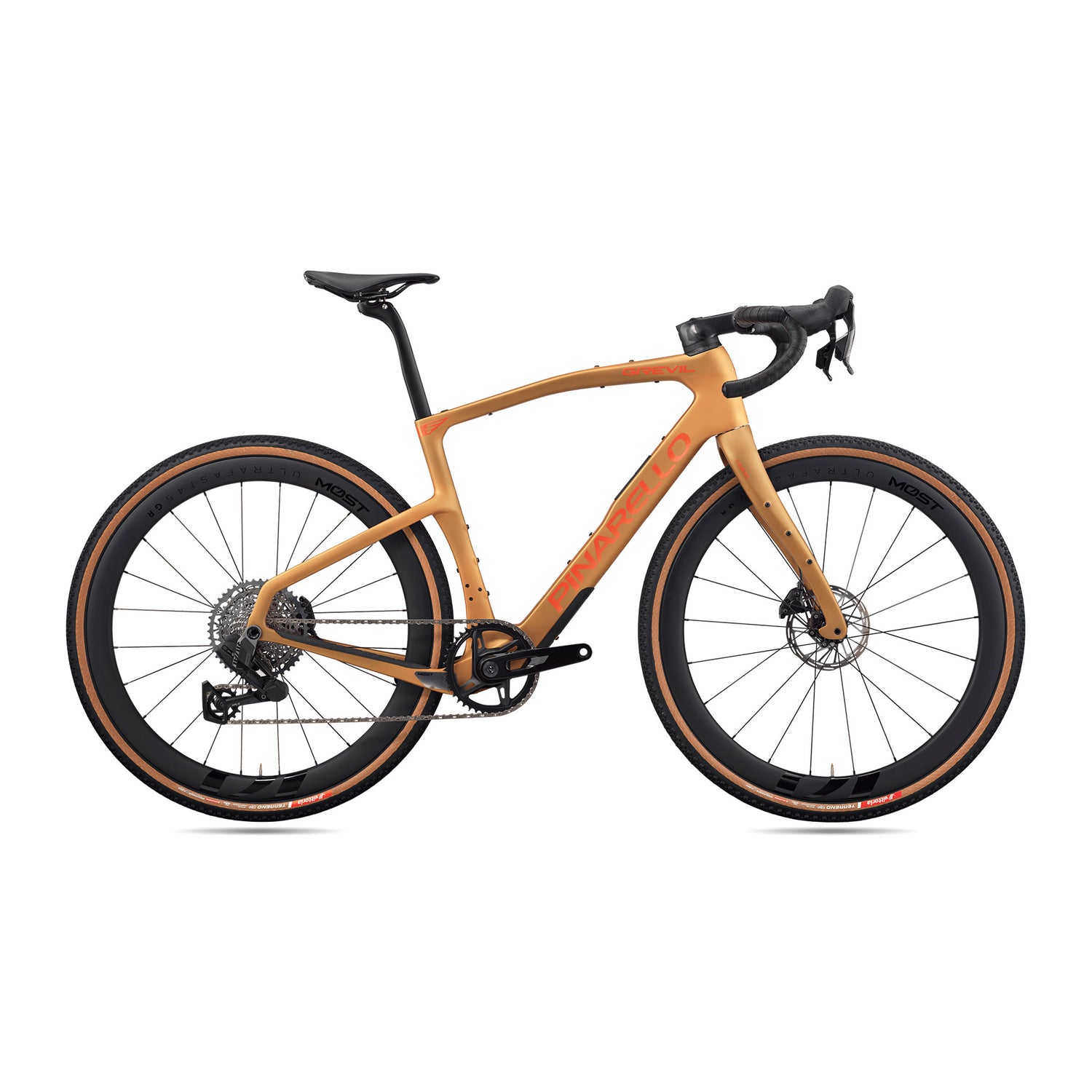

Pinarello Grevil F5 Rival AXS Bike


$5,00000

Color
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Pinarello  |  SKU: D2161253223-00001 | Option: Namib Brown Matt, 47cm

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Pinarello Grevil F5 Rival AXS Bike Info

The Pinarello Grevil F is a world class gravel bike built to handle everything from high-speed solo races to extended off-road adventures. Its aerodynamic design is optimized for racing efficiency with a unique downtube that fights turbulence. These tubes use Toray T700 carbon which balances weight and strength at a lower price point. Even practical features like integrated tool storage and frame bag are all shaped to minimize drag. The new Onda fork enhances ride quality with improved compliance and reduced weight, contributing to confident handling across technical surfaces. This is the F5 version of the Grevil, complete with a SRAM Rival AXS E1 groupset for 13-speed gravel-focused shifting at a lower price.

Pinarello developed an integrated system of race-ready accessories to support long-distance solo efforts. The Racing Bento and tool bag are aerodynamically shaped and centrally mounted to reduce wind resistance and maintain stability on rough descents. The integrated down tube port houses a compact toolkit with a mini pump, CO₂, tire levers, and a TPU inner tube, eliminating the need for a saddle bag. The Fidlock-attached frame bag offers fast, secure access for nutrition or tools without compromising balance or speed. The optional TT gravel bars and rack bag expand the bike’s utility for longer ultra-distance events.

Comfort and control are further refined through the Grevil F’s Adaptive seatpost and Twin Arms seatstays. The seatpost delivers 10mm of longitudinal flex to smooth vibrations, while the seatstay design improves traction over uneven ground. The Grevil F accepts tire widths from 32mm to 50mm on 700c wheels, allowing riders to tailor traction and comfort for any terrain. This version comes with a MOST Gravel Carbon 45 wheelset, adding to its aero gravel theme. The Pinarello Grevil F keeps the Pinarello spirit where the only thing that truly matters is speed.

Pinarello Grevil F5 Rival AXS Bike - Specifications

Frame Material:
Toray T700 UD
Fork:
F Onda Fork with ForkFlap
Headset:
Integrated
Seatpost:
Pinarello D-Shape
Rear Derailleur:
SRAM Rival AXS E1
Crankset:
SRAM Rival AXS E1
Chainrings:
40t
Bottom Bracket:
SRAM DUB Road Wide Italian 70mm
Brake Calipers:
SRAM Rival AXS E1 Hydraulic Disc
Rotors:
SRAM 160mm
Shifters / Levers:
SRAM Rival AXS E1
Cassette:
SRAM Rival E1 13-speed 10-46
Chain:
SRAM Rival E1 13-speed
Wheel - Front:
MOST Gravel Carbon 45
Wheel - Rear:
MOST Gravel Carbon 45
Stem:
MOST Tiger ALU Aero TICR
Handlebar:
MOST Jaguar XA GR TICR
Saddle:
MOST Lynx
Tires:
Vittoria Terreno T50 700x45
Bar Tape:
MOST Ultragrip Evo 3mm
Pedals:
Not Included

*Specifications are subject to change.

Pinarello Grevil F5 Rival AXS Bike Geometry

Pinarello Grevil F5 Rival AXS Bike Geometry
Size:
47
50
53
55
57.5
60
B. Seat Tube (c-t)
470
500
530
550
575
600
C. Top Tube Length
530
545
558
570
587
607
D. Head Tube Length
115
130
150
160
175
195
E. Chain Stay Length
430
430
430
430
430
430
F. BB Drop
72
72
67
67
67
67
G. Seat Tube Angle
74.5
74
73.75
73.5
73
72.5
H. Head Tube Angle
70.25
70.5
70.75
71.75
72
72.25
J. Wheel Size
700c
700c
700c
700c
700c
700c
K. Stack
553.2
568.3
583.2
598.4
613.6
633.7
L. Reach
368.4
376.1
383.7
390.4
398.2
406.9
Stem Length
80mm
80mm
90mm
90mm
100mm
110mm
Bar Width
42cm
42cm
42cm
44cm
44cm
44cm
M. Crank Length
170mm
170mm
170mm
170mm
172.5mm
175mm
