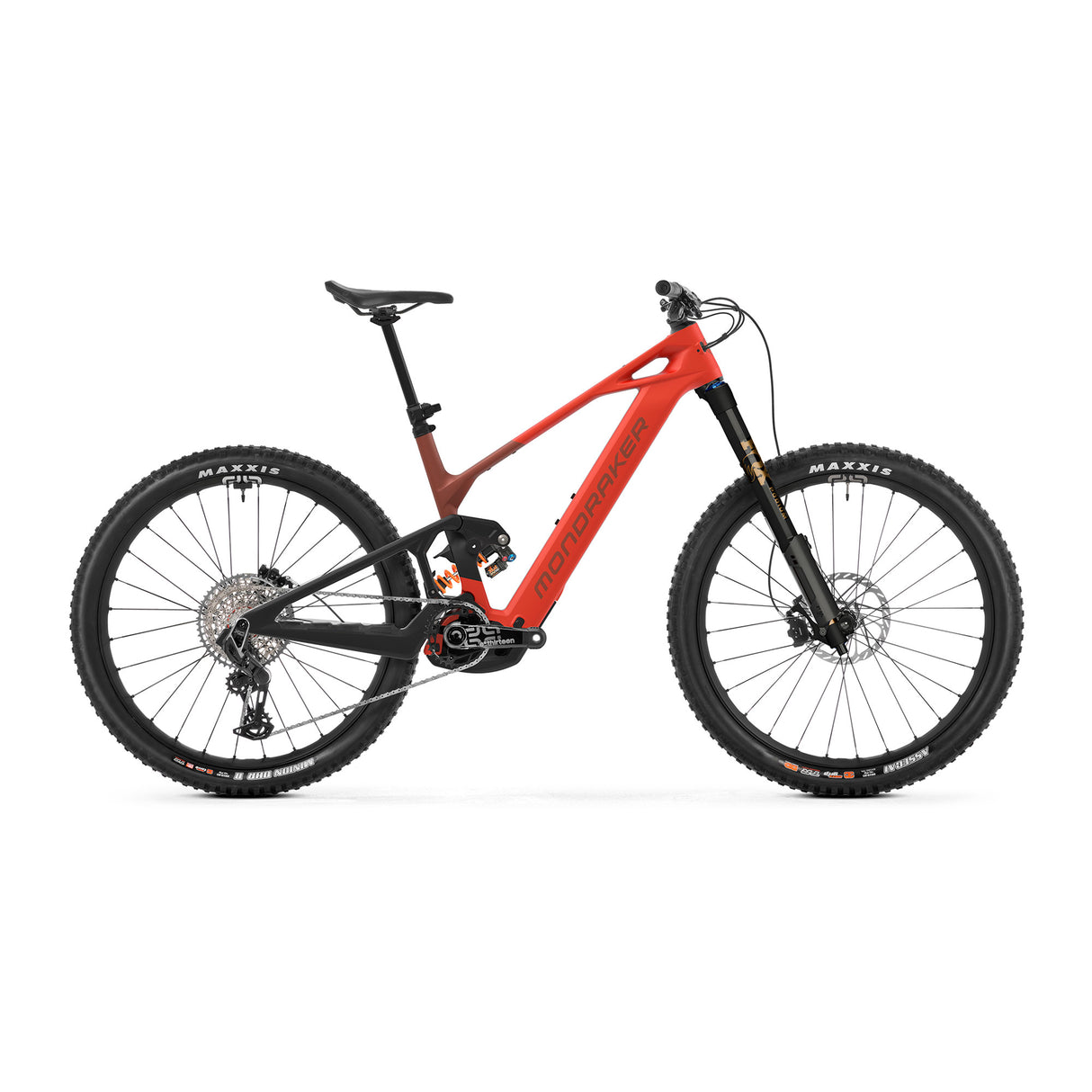

Mondraker Crafty Carbon XR Bike
$12,49900
Precio unitario
/
Agotado
-
RA price match promise
-
Pay later with
,and
Mondraker
| SKU: 010.26US324 | Option:
No se ha podido cargar la disponibilidad de recogida
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Mondraker Crafty Carbon XR Bike
$12,49900
Precio unitario
/
Agotado
* Product image may vary. Refer to the description for accurate details.
Mondraker Crafty Carbon XR Bike - Specifications
Frame Material:
Carbon / 150mm Travel / UDH / 12x148mm
Fork:
Fox Podium 29 Float GRIPX2 Factory Kashima / 170mm Travel / Settings: high and low-speed compression, high and low-speed rebound, air preload / 44mm Offset / 20x110mm Kabolt axle
Rear Suspension:
Fox DHX2 Factory Kashima 185x55mm / Settings: high and low-speed compression, high and low-speed rebound, spring preload / Super light steel (SLS) spring / Trunnion top mount / 30x8mm bottom bushings
Headset:
Acros custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs with blocklock
Seatpost:
RockShox Reverb Stealth AXS / 31.6mm / S: 398.2x125mm, M: 448.2x150mm, ML: 498.2x175mm, L: 548.2x200mm, XL:548.2x200mm
Rear Derailleur:
SRAM X0 Eagle AXS T-Type
Crankset:
E.13 Helix Race Carbon E*Spec Plus
Chainrings:
SRAM XX Eagle 34T T-Type / Direct mount / Steel / CL55
Brake Calipers:
SRAM Maven Silver 4-piston Hydraulic Disc
Brake Levers:
SRAM Maven Silver
Rotors:
SRAM HS2 6-Bolt 200mm
Shifters:
SRAM Eagle AXS Pod MMX
Cassette:
SRAM XS-1275 12-speed 10-52
Chain:
SRAM GX Eagle T-Type 12-speed
Battery:
Bosch Powertube 800Wh
Motor:
Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
Display:
Kiox 400C / Bosch Mini Remote
Wheel - Front:
e*thirteen Grappler Flux / Hookless / 6069 Welded Aluminum / 30mm Internal Width / Tubeless ready
Wheel - Rear:
e*thirteen Grappler Flux / Hookless / 6069 Welded Aluminum / 30mm Internal Width / Tubeless ready
Stem:
Onoff S9 30mm 0-degree / Full CNC / 31.8mm
Handlebar:
Onoff S9 1.0 Carbon / S, M, ML: 25mm rise, L, XL size: 38mm rise / Width: 800mm / 8-degree backsweep / 5-degree upsweep / 31.8mm
Saddle:
Ergon SM-10
Tires:
Front: Maxxis Minion Assegai 29x2.5 WT / Tubeless ready / 3C Maxx Grip / EXO+ Protection Rear: Maxxis Minion DHR II 29x2.5 WT / Tubeless ready / 3C Maxx / DD Protection
Grips:
Onoff Desert Pro / CNC lock-on / 135mm / L and XL: Thicker size
Pedals:
Not Included
Travel:
170mm/150mm
*Specifications are subject to change.
Mondraker Crafty Carbon XR Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
380
410
435
460
490
C. Top Tube Length
582/583
597/598
619/620
641/642
663/664
D. Head Tube Length
120
120
130
140
150
E. Chain Stay Length
455/456
455/456
455/456
465/466
465/466
F. BB Drop
22/27
22/27
22/27
22/27
22/27
G. Seat Tube Angle
72.6/72.25
72.6/72.25
72.6/72.25
72.6/72.25
72.6/72.25
H. Head Tube Angle
64.1/63.75
64.1/63.75
64.1/63.75
64.1/63.75
64.1/63.75
J. Wheel Size
29"
29"
29"
29"
29"
K. Stack
641/644
641/644
650/653
659/662
668/671
L. Reach
440/436
455/451
475/471
495/491
515/511
Stem Length
30mm
30mm
30mm
30mm
30mm
Bar Width
800mm
800mm
800mm
800mm
800mm
M. Crank Length
160mm
160mm
160mm
160mm
160mm
