Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motor

Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motor Info

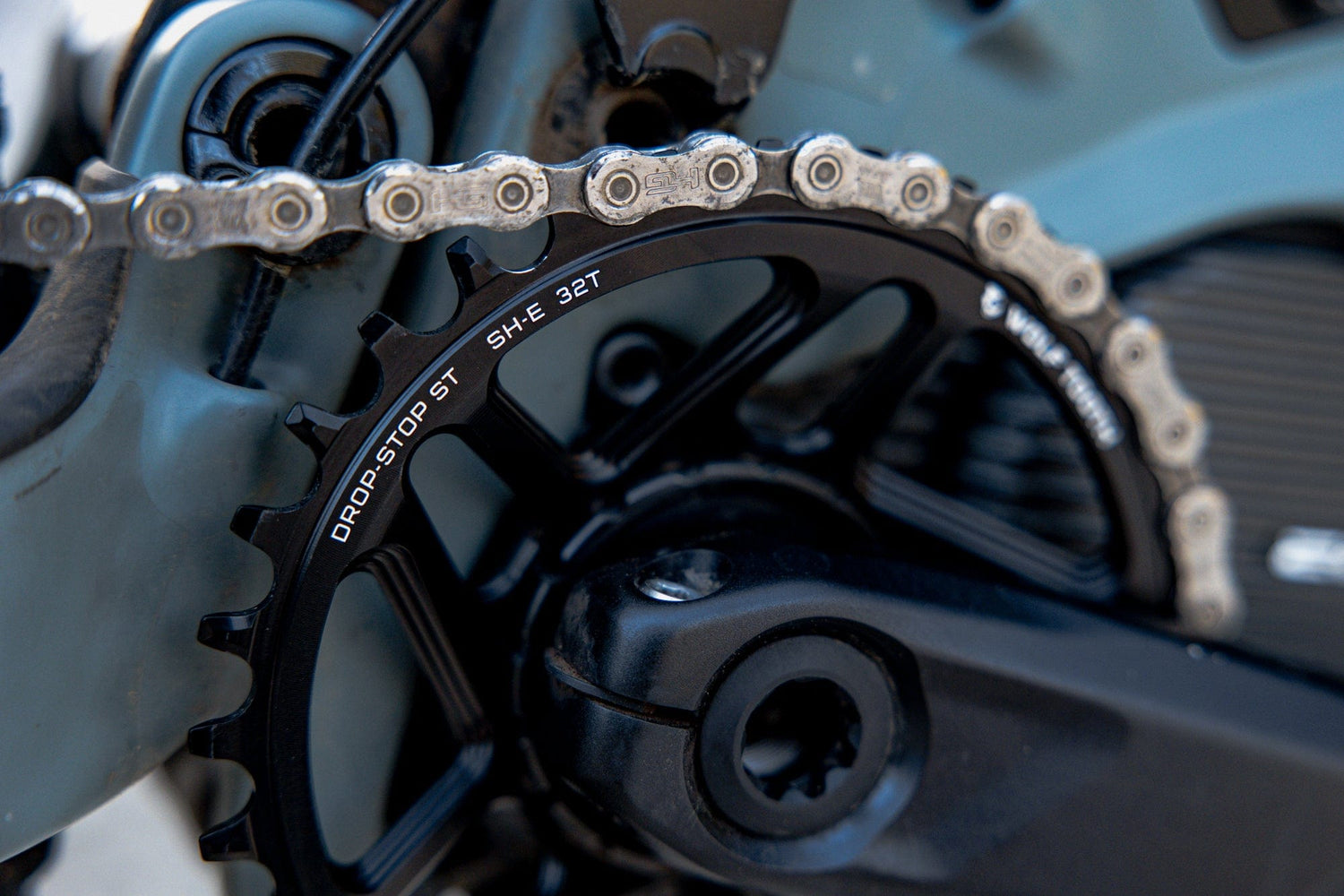

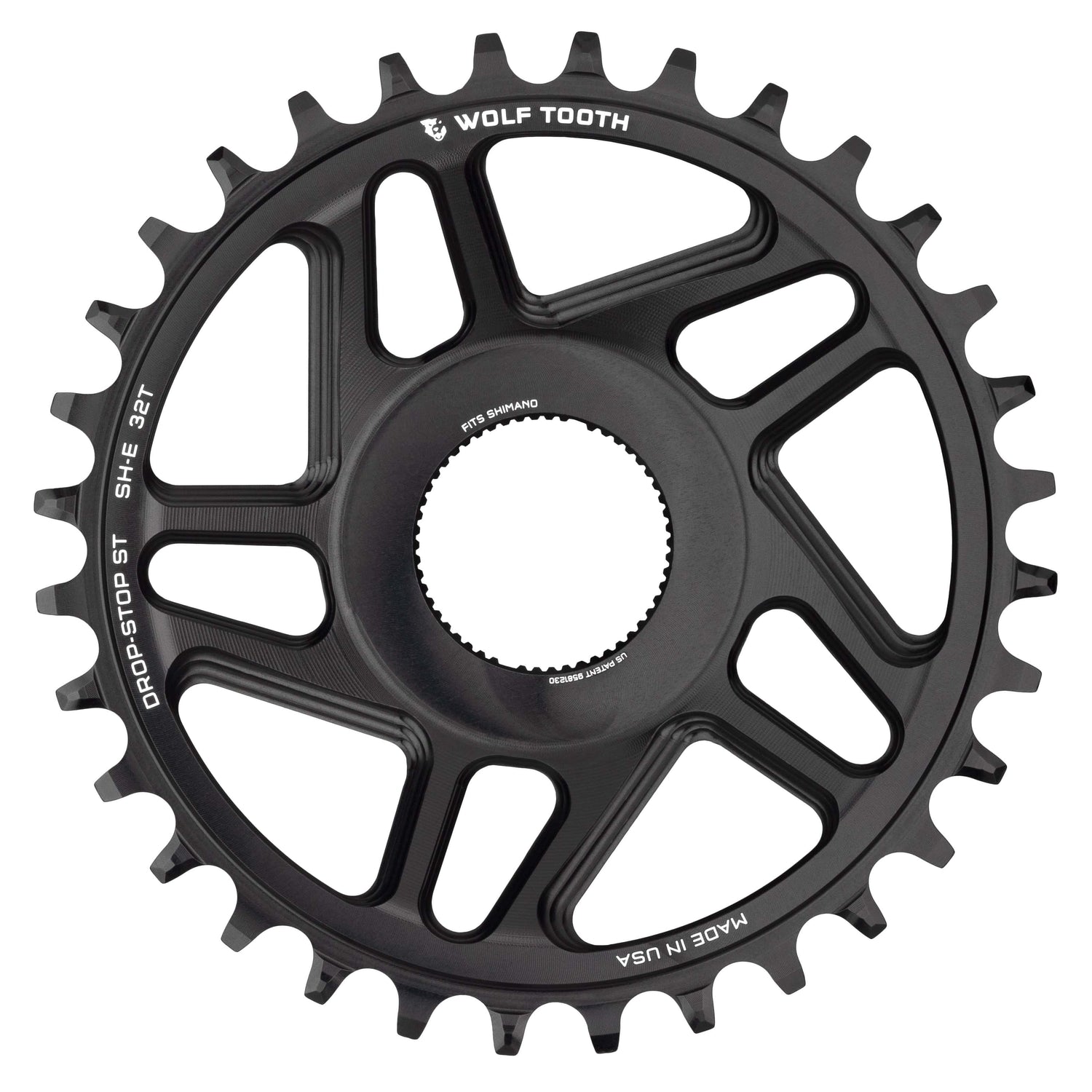

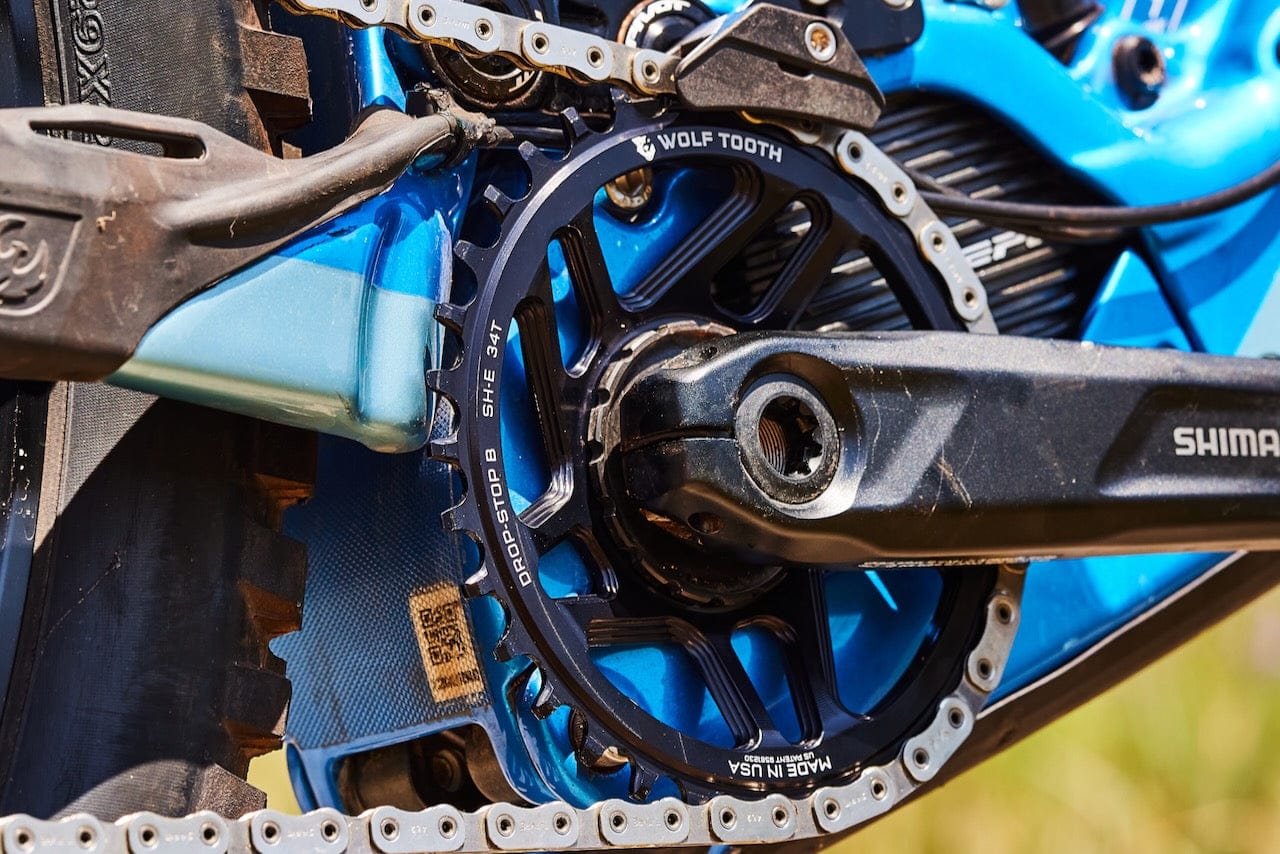

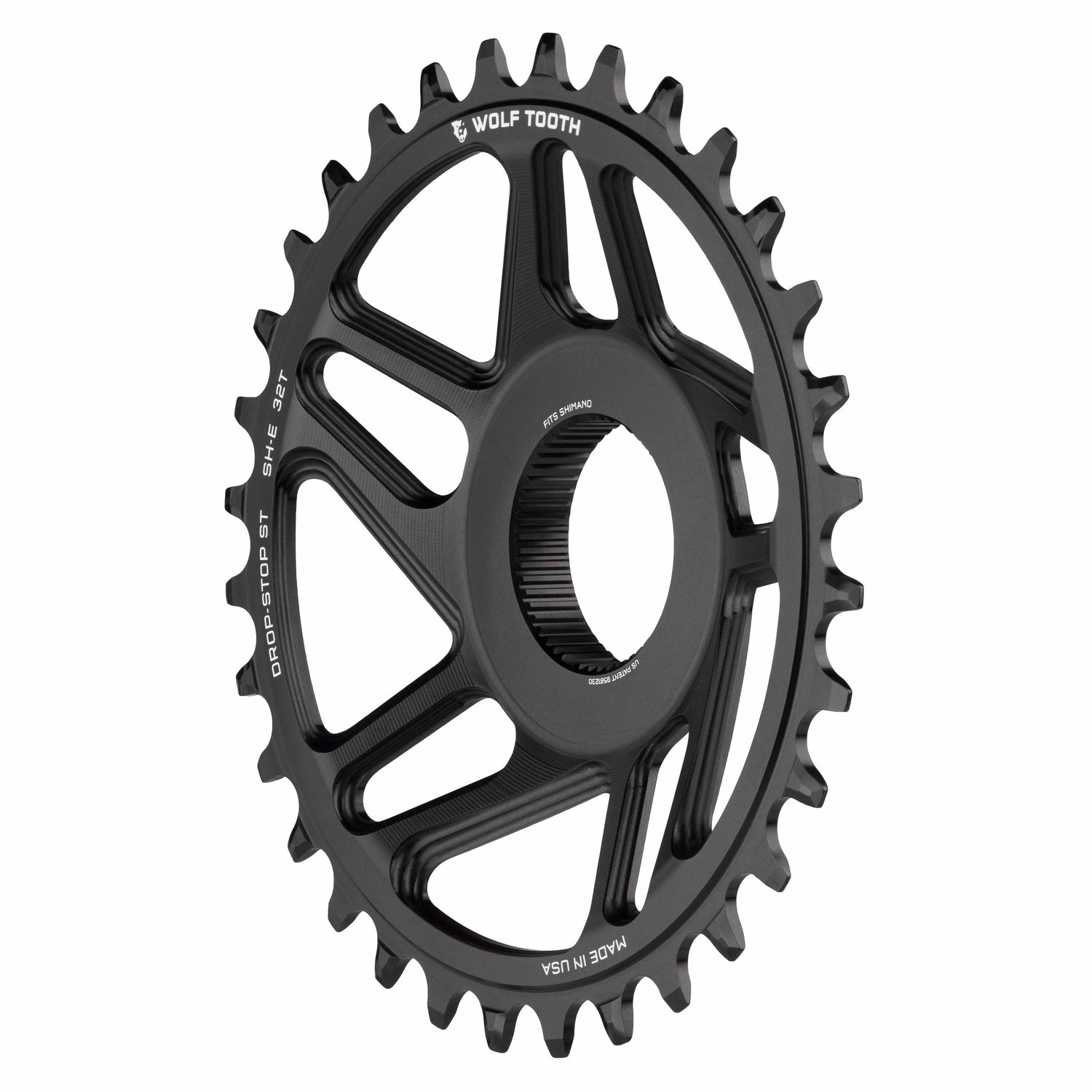

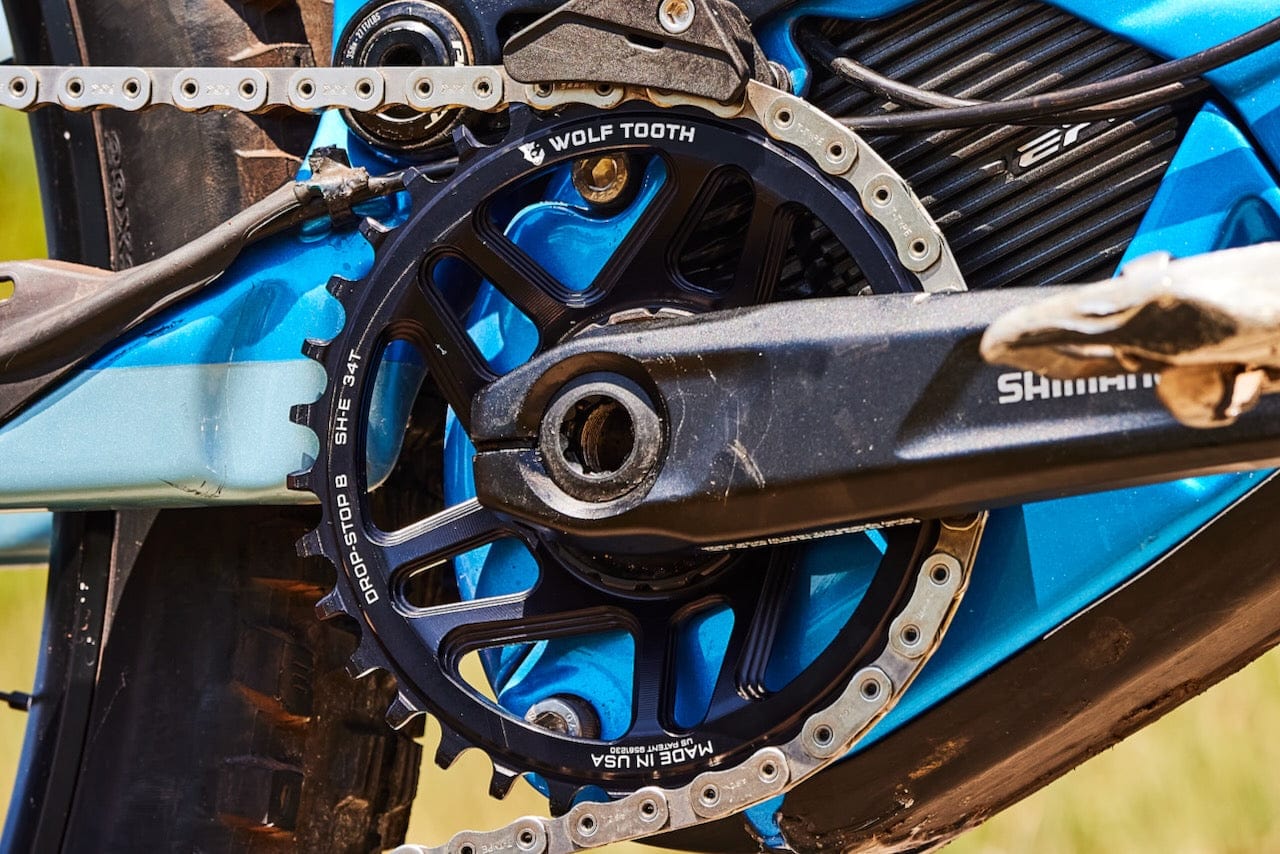

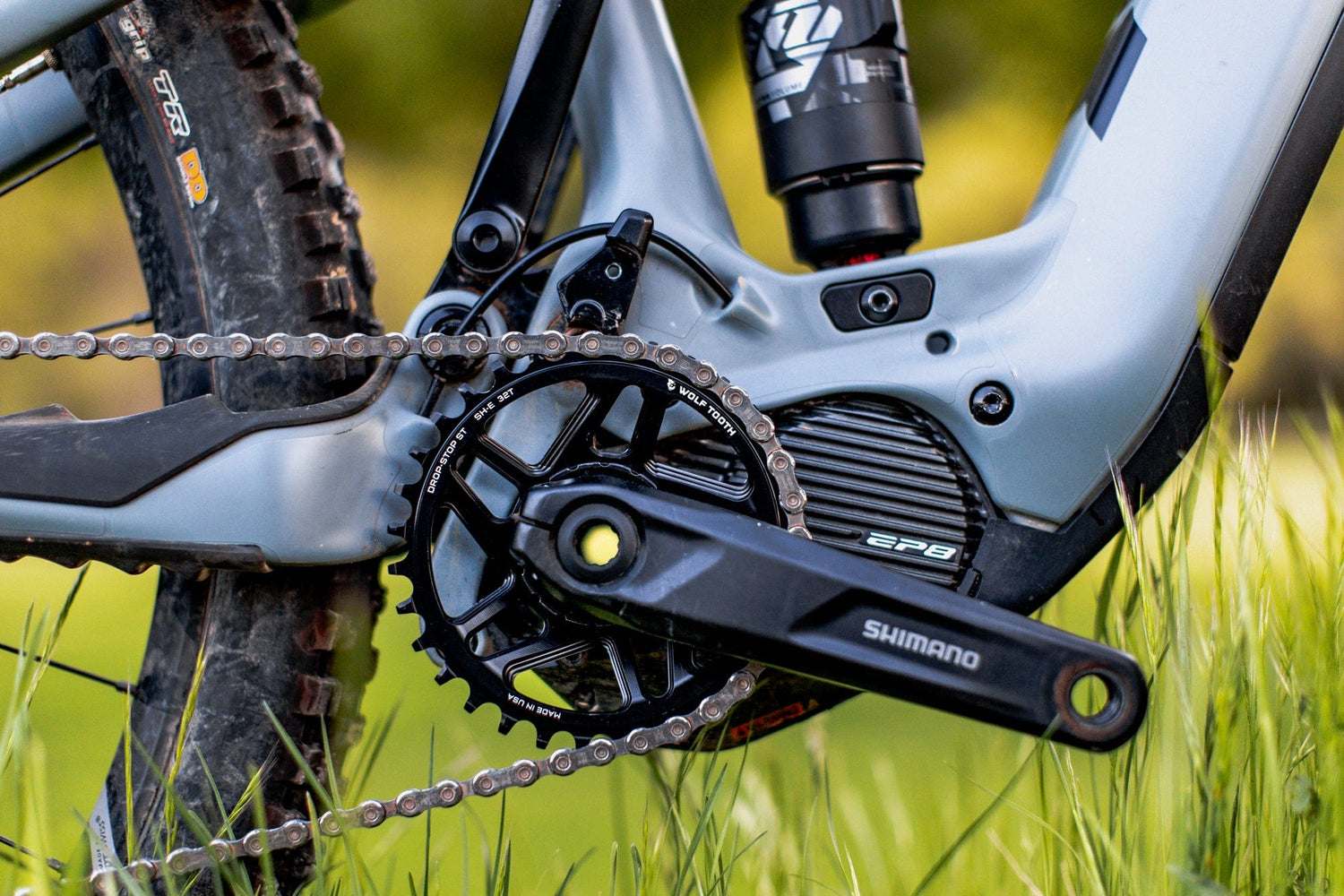

Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motor are engineered specifically for Shimano EP8, E8000, and E7000 drive units, delivering optimized chainline and durable performance for modern e-MTB platforms. Designed around a 55mm chainline, these chainrings are compatible with Boost and Super Boost frames that use Shimano’s motor spline interface.

Precision machined from 7075-T6 aluminum in Minnesota, these chainrings are built to handle the increased torque loads of electric-assist systems while maintaining lightweight efficiency. The direct mount interface provides a secure, clean connection to the motor, ensuring consistent power transfer under demanding trail conditions.

Two optimized tooth profiles are available to match your drivetrain:

• Drop-Stop B: Compatible with most 9-, 10-, 11-, and 12-speed chains (excluding Shimano Hyperglide+)
• Drop-Stop ST: Specifically designed for Shimano Hyperglide+ chains

By selecting the correct tooth profile, riders can ensure proper chain engagement, improved retention, and reliable shifting performance across a wide range of drivetrain setups.

Compatibility

• Motor Systems: Shimano EP8, E8000, and E7000
• Chainline: 55mm
• Frame Standards: Boost and Super Boost (not compatible with Pivot bikes using Super Boost chainline)
• Chain Compatibility: Based on selected tooth profile

Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motor Specs at a Glance

• Tooth Counts & Weight: 32T – 107g | 34T – 116g
• Material: 7075-T6 aluminum
• Tooth Profiles: Drop-Stop B or Drop-Stop ST
• Manufacturing: Made in the USA

Design Benefits

1. E-Bike Specific Design: Built to manage higher torque loads from Shimano motor systems.
2. Optimized Chainline: 55mm alignment for Boost and Super Boost compatibility.
3. Improved Chain Retention: Drop-Stop tooth shaping enhances engagement and mud shedding.
4. Precision Machining: Lightweight yet durable 7075-T6 aluminum construction.

Final Take

The Wolf Tooth Direct Mount Chainrings for Shimano E-Bike Motor offer a performance-focused upgrade for Shimano-powered e-MTB riders. With precise chainline alignment, durable construction, and drivetrain-specific tooth profiles, these chainrings are built to withstand the demands of electric-assist trail riding.
