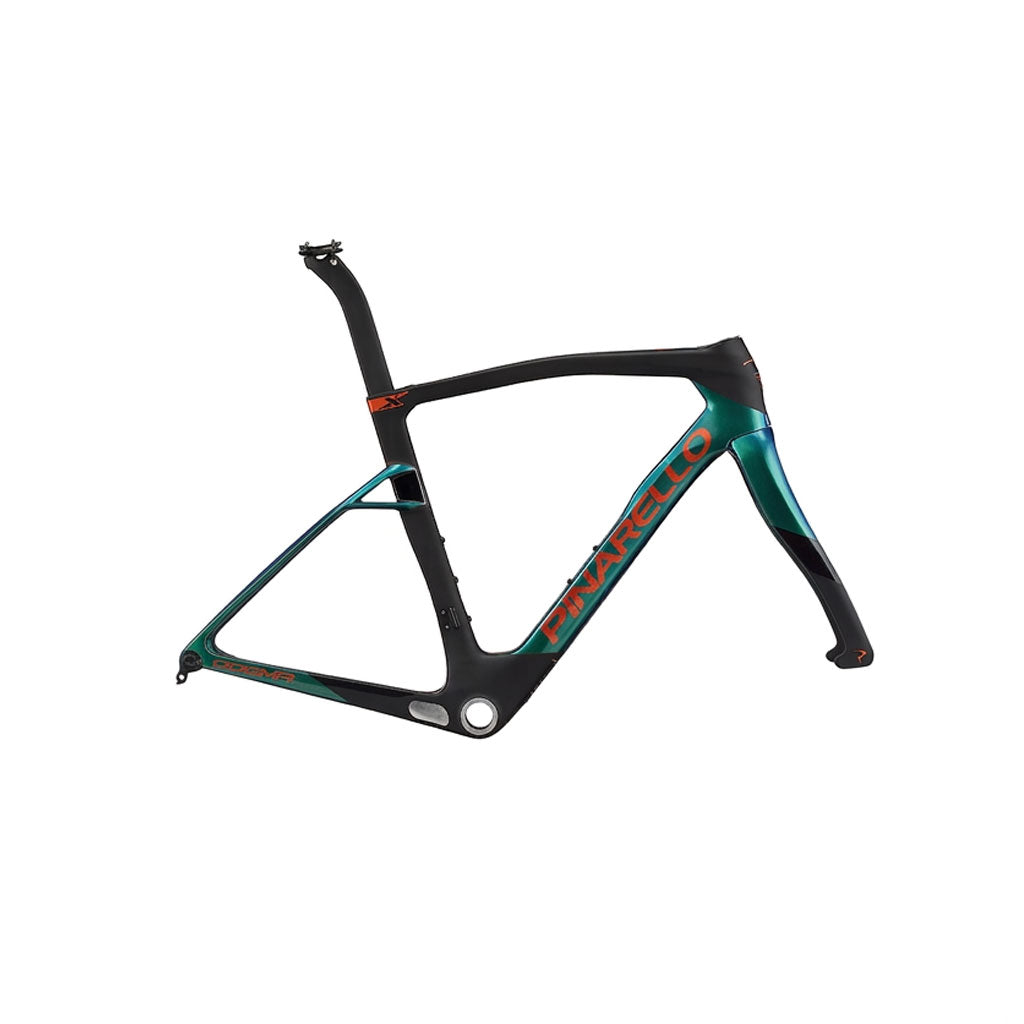

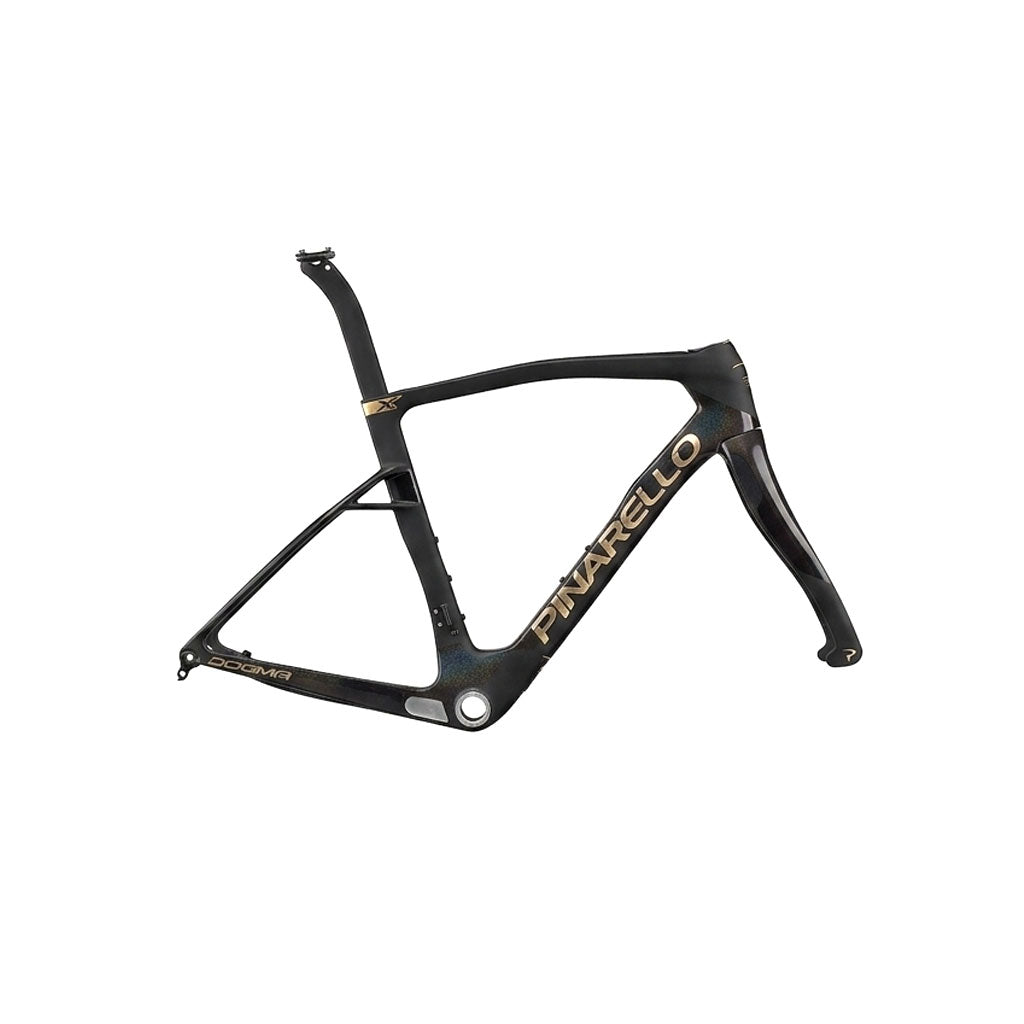

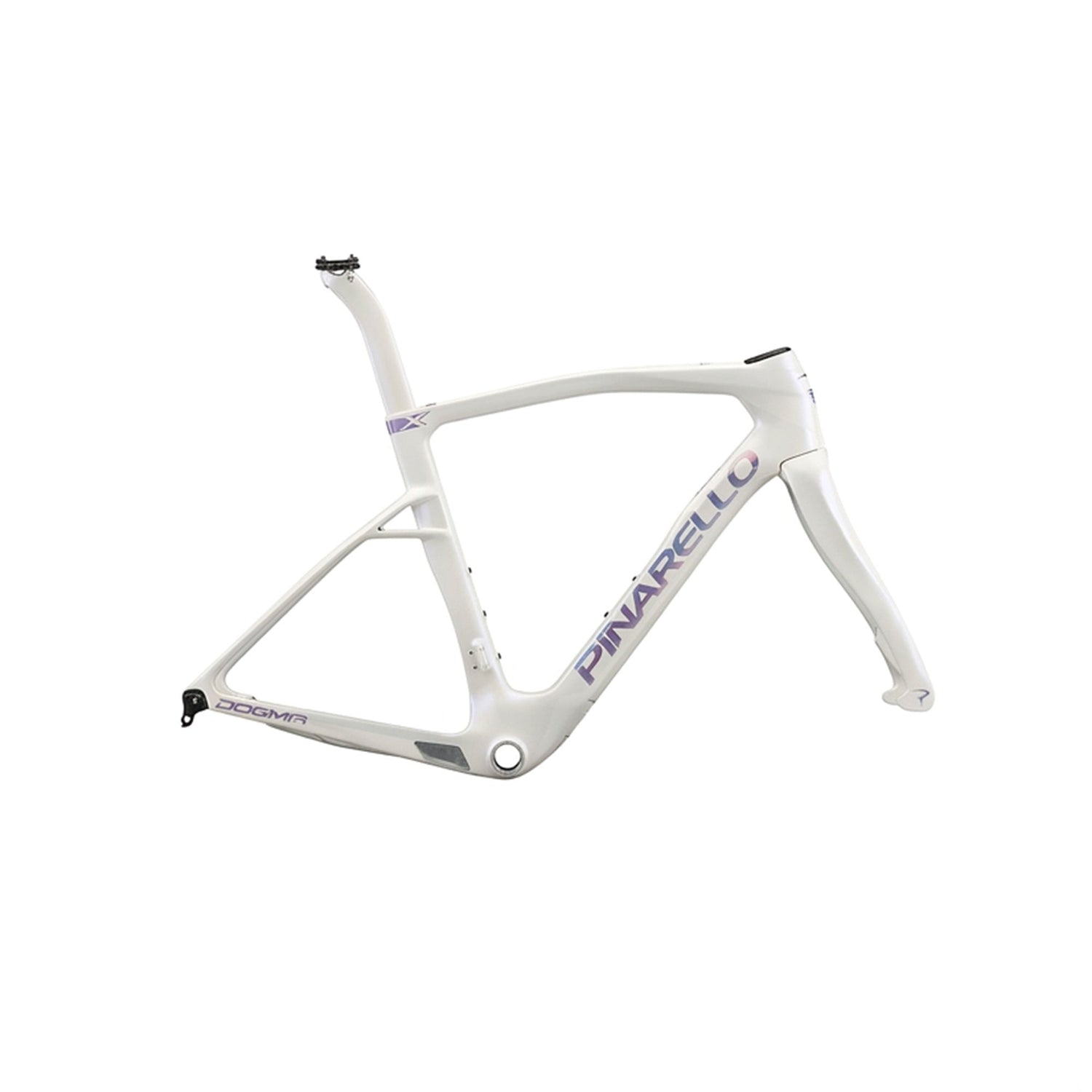

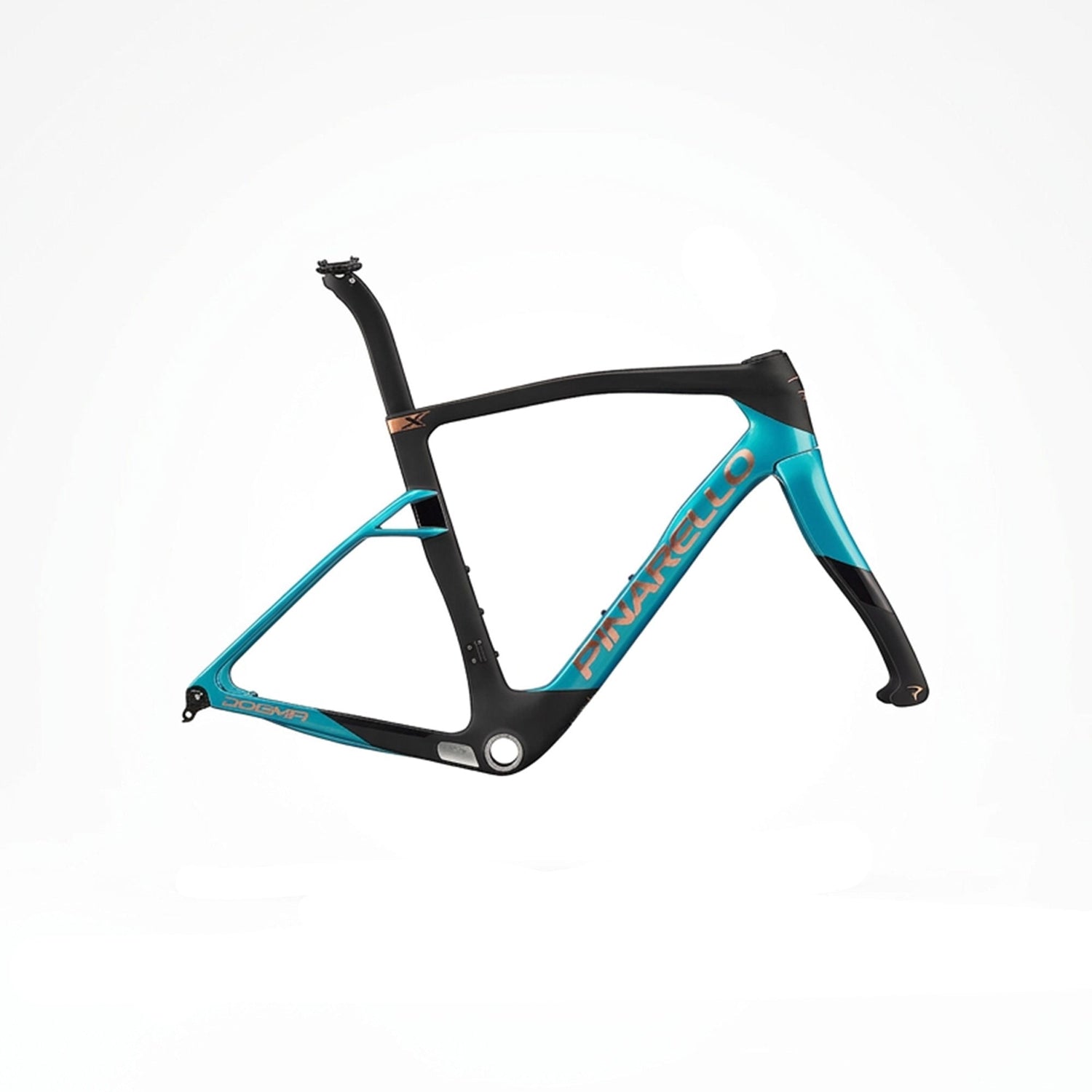

Pinarello Dogma X Frameset
Precio normal
$7,25000
Precio unitario
-
RA price match promise
-
Pay later with
,
and
Pinarello | SKU: F225-36798 | Option:
Recogida disponible en RA Cycles - Brooklyn
Normalmente está listo en 24 horas
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Pinarello Dogma X Frameset
Precio normal
$7,25000
Precio unitario
* Product image may vary. Refer to the description for accurate details.
Pinarello Dogma X Frameset - Specifications
Frame Material:
TorayCa M40X
Fork:
Pinarello Onda Carbon eTICR w/Fork Flap
Headset:
Included
Seatpost:
Pinarello Aero Seatpost 3D Titanium Clamp
Bottom Bracket:
Italian Threaded Required
Accessories:
12x100mm / 12x142mm Thru Axles
Max Tire Width:
700x35
*Specifications are subject to change.
Pinarello Dogma X Frameset Geometry
Size:
43
46.5
50
51.5
53
54
55
56
57.5
59.5
62
B. Seat Tube (c-t)
415
425
450
470
495
510
520
525
540
560
600
C. Top Tube Length
505
515
525
535
545
552
557
565
575
595
620
D. Head Tube Length
111
123
128
133
142
150
161
169
182
218
258
E. Chain Stay Length
422
422
422
422
422
422
422
422
422
422
422
F. BB Drop
77
77
77
77
77
77
77
77
77
77
77
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73.4
73
73
72.4
72
H. Head Tube Angle
70
70
70.5
71
71.5
72
72
72.5
72.8
73
73
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
524.2
535.5
542.1
548.6
559
568.4
578.9
588.4
601.7
632
670.3
L. Reach
349.3
358.1
365.4
371.7
379.4
381.2
383
384.6
390.8
395.3
403.8
