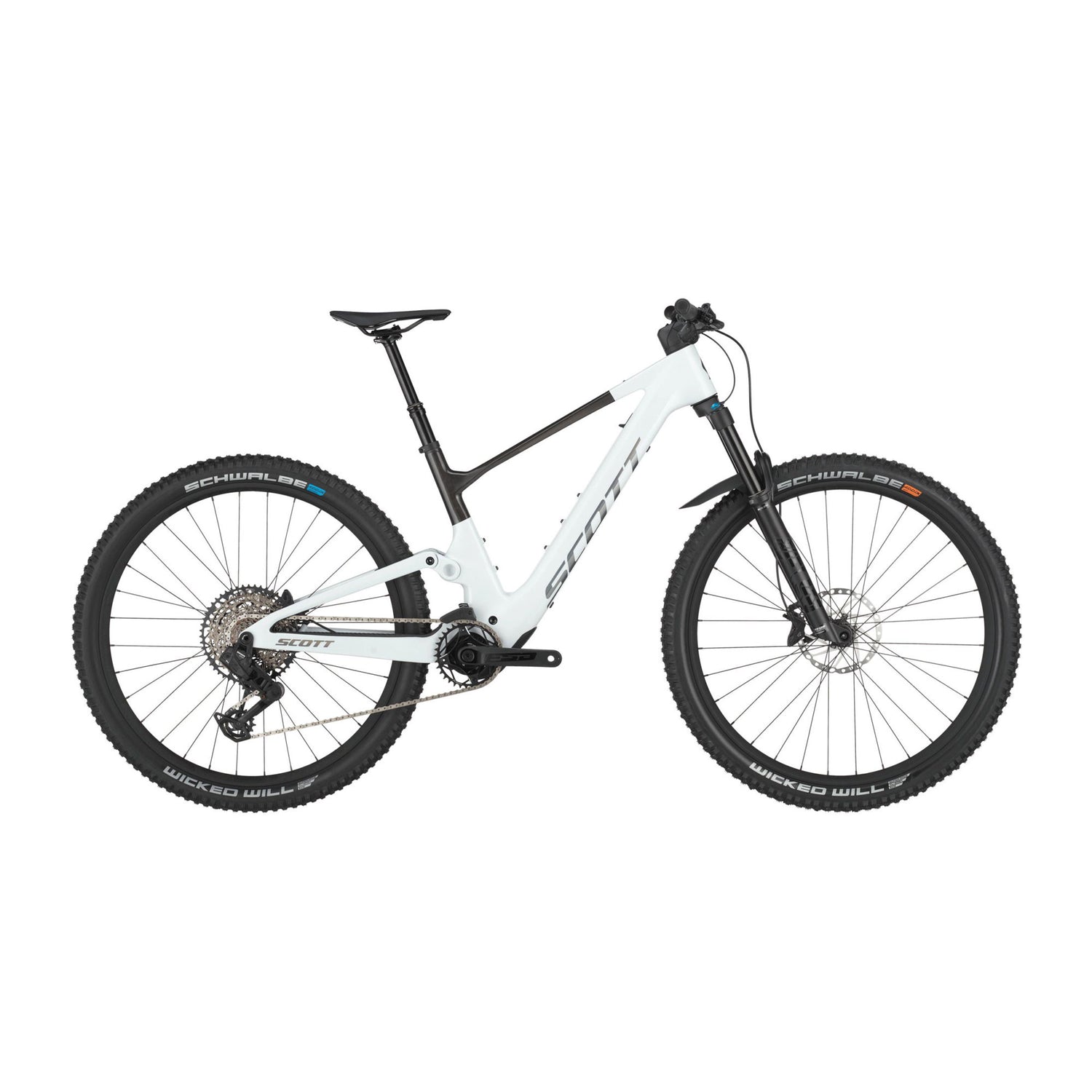

Scott Lumen eRIDE 905 Bike


$7,49999

Color 1
Size
Scott  |  SKU: 4233658086010 | Option: Cumulus White / Carbon Black, L

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Scott Lumen eRIDE 905 Bike Info

The Scott Lumen eRide is a high-level eMTB that is very lightweight and gives you a natural ride feel. It can perform equally as well on cross country or trail terrain thanks to adjustable features and unique integration. The Lumen was built with the inspiration of some of Scott’s highest performing mountain bikes with the addition of a near-silent motor for assisted performance. It performs like a standard mountain bike, so no need to worry about increased braking distance, pedal drag, or heavy pedaling. In fact, you can turn the assistance off and ride it like a regular mountain bike. The Scott Lumen eRide takes trail riding to the next level, allowing you to access every part of the toughest trails.

The frame of the Lumen eRide is made with Scott’s HMX carbon fiber. This is their lightest material that is used on their professional level race bikes. For the Lumen, the frame was separated into two areas: the lightweight zone, and the stiffness zone. This allows for the Lumen to be lighter than the huge majority of eBikes while remaining strong and stiff enough for powerful sprinting. Overall, the bike comes in at just over 15.5kg. The frame maintains a low center of gravity as well to account for the extra weight of the motor, allowing you to feel just as balanced as you would on a typical trail bike.

Scott incorporated a powerful motor with a minimalist design into the Lumen. The German company TQ provided the HPR50 motor to Scott, offering an unheard of weight to power ratio of 1.8kg for 50Nm. With near silent function, this motor offers high power in a compact and balanced package. It is powered by a 360Wh internal battery which can be enhanced with a separate 160Wh external range extender. No matter how much battery life is left, you will experience maximum performance. The whole system is controlled with a minimalistic handlebar remote which is integrated with the top tube display. It is placed in a spot that is easy to reach while riding or walking.

The Scott Lumen eRide is a full suspension mountain bike that falls into the category of mid-travel. This version is equipped with a Fox Nude 6T suspension for up to 130mm of rear travel. Its TwinLoc suspension system allows you to cycle through three modes depending on riding conditions. Descend, traction control, and lockout modes change the bike’s geometry to best suit your ride. At the front there is a Fox 34 Float Rhythm Air Grip Fork for an additional 140mm of front travel, also coming with three modes. The Lumen eRide is complete with all the compliance you would expect from a versatile mountain bike.

An integrated setup brings everything in the Scott Lumen eRide together. Cables can be routed internally assuring a clean cockpit where everything is safe from the elements of the trail. This version is equipped with a SRAM S1000/GX Eagle AXS Transmission groupset for durable and efficient electronic shifting. It is very easy to mount a computer which then connects to the TQ App. The app allows you to fully customize your system, including your screens, power output, and more with ANT+ connectivity. Even the bottle cages can be properly integrated with mounts that allow room for a bottle cage and a range extender. The Scott Lumen eRide is a new way to ride any trail with confidence.

Scott Lumen eRIDE 905 Bike Specifications

Frame Material:
Carbon HMX / UDH Interface / 12x148mm
Fork:
FOX 34 Float Rhythm Air Grip / 3-Modes / Reb. Adj. / Lockout / 140mm travel / Kabolt 15x110mm
Rear Suspension:
FOX NUDE 6T EVOL Trunnion / Scott custom w/travel and geo adj. / 3 modes: Lockout-Traction Control-Descend / Low Speed Adj. / Custom large Air volume / Reb. Adj. / Travel 130-90-Lockout
Headset:
Syncros - Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment / ZS56/28.6 – ZS56/40 MTB
Seatpost:
Syncros Duncan Dropper Post 2.0 / 31.6mm / 125mm (S, M) / 150mm (L) / 170mm (XL)
Rear Derailleur:
SRAM S1000 Eagle AXS Transmission
Crankset:
FSA Alloy
Chainrings:
34T
Bottom Bracket:
Included w/Drive Unit
Brake Calipers:
Shimano Deore M6120 4 Piston Hydraulic Disc
Brake Levers:
Shimano Deore M6120 4 Piston Hydraulic Disc
Rotors:
Shimano RT64 180mm (Front) / Shimano EM600 180mm )Rear)
Shifters:
SRAM AXS Pod Controller
Cassette:
SRAM XS1270 12-speed 10-52
Chain:
SRAM GX Eagle Transmission 12-speed
Battery:
TQ Internal 360Wh
Motor:
TQ HPR50 Mid Motor drive 50Nm max torque / EU: 25kmh / US: 20mph
Display:
TQ HPR / Bluetooth / ANT+ / Dedicated Smartphone app
Wheel - Front:
Syncros X-30S / 30mm / Tubeless Ready
Wheel - Rear:
Syncros X-30S / 30mm / Tubeless Ready
Stem:
Syncros DC 2.0 / Syncros Cable Integration System / 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Handlebar:
Syncros Fraser 2.0 DC Alloy / Mini Rise / Back sweep 8° / 760mm
Saddle:
Syncros Tofino 2.0 Regular / CRMO rails
Tires:
Schwalbe Wicked Will 29x2.4" EVO / Super Race / TLE / Addix Speed Soft (Front), Schwalbe Wicked Will 29x2.4" EVO / Super Race / TLE / Addix Speed Grip (Rear)
Grips:
Syncros Performance XC lock-on grips
Pedals:
Not Included
Travel:
140mm/130mm

*Specifications are subject to change.

Scott Lumen eRIDE 905 Bike Geometry

Scott Lumen eRIDE 905 Bike Mountain Bike Geometry
Size:
L
M
S
XL
B. Seat Tube (c-t)
480
440
415
520
C. Top Tube Length
620
589
562
645
D. Head Tube Length
120
110
110
135
E. Chain Stay Length
450
450
450
450
F. BB Drop
38.5
38.5
38.5
38.5
G. Seat Tube Angle
77.2
77
76.8
77.5
H. Head Tube Angle
65.5
65.5
65.5
65.5
I. Stand Over Height
780
767
765
800
J. Wheel Size
29''
29''
29''
29''
K. Stack
625
615
615
638
L. Reach
476
446
416
501
Stem Length
70mm
60mm
50mm
70mm
Bar Width
760mm
760mm
760mm
760mm
M. Crank Length
175mm
170mm
170mm
175mm

Scott Lumen eRIDE 905 Bike Video
