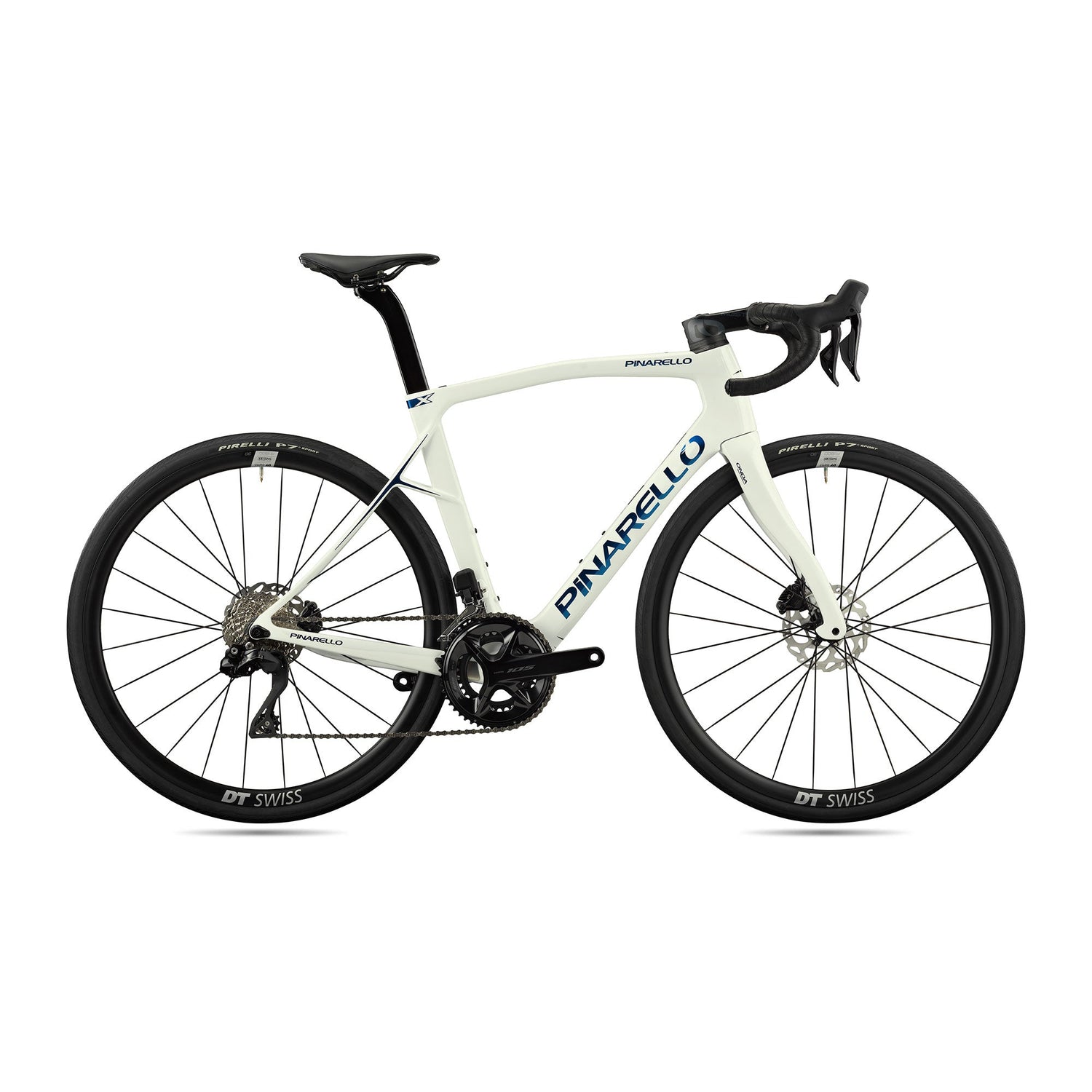

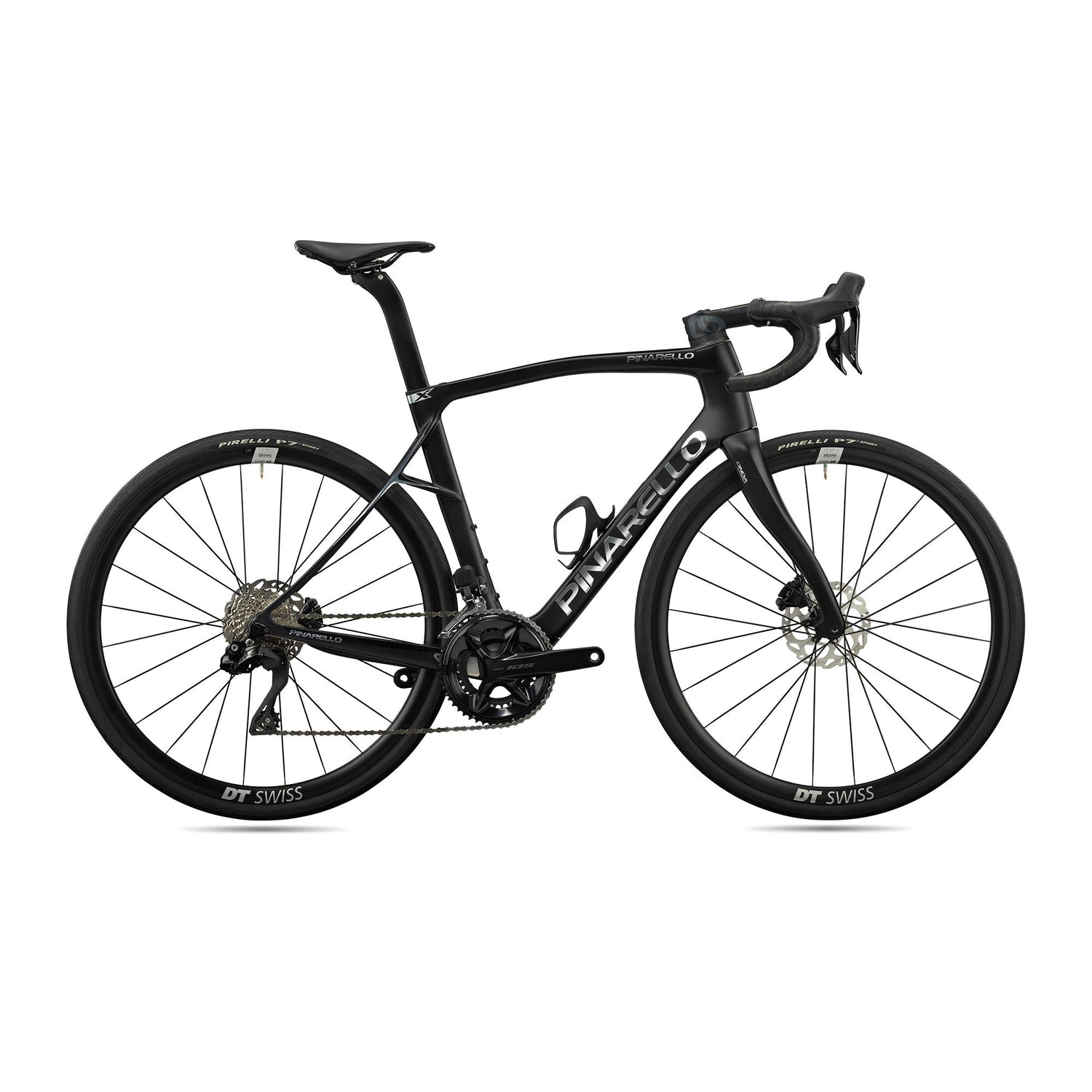

Pinarello X5 105 Di2 Bike Info

Pinarello is known for its racing bikes, but the vast majority of cyclists are simply looking for a bike that is a joy to ride day in and day out. The X5 strikes the perfect balance of comfort and performance so you can feel that Pinarello speed while still having a blast riding. It takes the pillars of Pinarello performance frames and adjusts them for more comfort over long distances. A special endurance geometry puts riders in a more relaxed position. Still, they use a carbon frame and general Pinarello tactics to make sure you have a fast bike. All of this comes in at a great price. The Pinarello X5 Disc is an endurance road bike that you will never want to stop riding.

The frame of the Pinarello X5 is made with Toray’s T700 carbon fiber. This balances affordability with low weight and stiffness. It is also the perfect carbon choice for an endurance frame due to its vibration dampening capability along with low weight and responsiveness. Special X-Stays are designed to dissipate road vibration as well for a more comfortable ride. An asymmetric frame accounts for the unbalanced torsion due to the chain only being on one side. This gives you a more stable and powerful ride. The X5 also features the classic Onda fork which is known for its aero qualities as well as its flawless control and shock dissipation.

The Pinarello X5 is the kind of bike that stays comfortable regardless of where you take it. A unique rear triangle blends pedaling comfort, precise handling, and responsive performance. X-Stays absorb a lot of vibration while keeping low weight, reactivity, and bottom bracket stiffness. It is simply fast no matter where you take it. With clearance for tires up to 35mm wide, encouraging riders to test their speed on more than smooth tarmac. This version of the X5 is equipped with a Shimano 105 Di2 groupset, giving riders a great price on 12-speed electronic shifting. The Pinarello X5 is perfect for riders who want to have fun but still need speed.

Pinarello X5 105 Di2 Bike - Specifications

Frame Material:
TORAYCA T700 Carbon
Fork:
X-Series Onda Carbon
Headset:
TiCR Integrated (1.5" upper and lower)
Seatpost:
F Aero
Front Derailleur:
Shimano 105 Di2 R7150
Rear Derailleur:
Shimano 105 Di2 R7150
Crankset:
Shimano 105 R7100
Bottom Bracket:
Shimano BBR60 Italian Thread
Brake Calipers:
Shimano 105 R7170 Hydraulic Disc
Rotors:
Shimano 160mm
Shifters / Levers:
Shimano 105 Di2 R7170
Cassette:
Shimano 105 R7100 12-speed
Chain:
Shimano 105 R7100 12-speed
Wheel - Front:
DT Swiss A1800 / Tubeless Compatible
Wheel - Rear:
DT Swiss A1800 / Tubeless Compatible
Stem:
MOST Tiger Alu Aero TiCR
Handlebar:
MOST Jaguar XA Aero TiCR
Saddle:
MOST Lynx Aircross
Tires:
Pirelli P7 700x35
Bar Tape:
MOST Ultragrip EVO 3mm
Pedals:
Not Included

*Specifications are subject to change.

Pinarello X5 105 Di2 Bike Geometry

Pinarello X5 105 Di2 Bike Geometry
Size:
43
46
49
51.5
53
54.5
56
58
60
B. Seat Tube (c-t)
425
450
470
495
510
525
540
560
590
C. Top Tube Length
492
509
525
536
545
555
565
577
590
D. Head Tube Length
123
128
140
149
159
171
185
209
230
E. Chain Stay Length
422
422
422
422
422
422
422
422
422
G. Seat Tube Angle
75.25
74.5
74
73.75
73.5
73.25
73
72.75
72.5
H. Head Tube Angle
70
70.5
71
71.5
72
72.25
72.5
72.5
72.5
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
527.5
539.2
552.4
564.4
575.8
588.2
602.4
620.3
640.4
L. Reach
341.9
352.1
361.9
368.5
372.5
376.7
380.2
384.1
388.1
