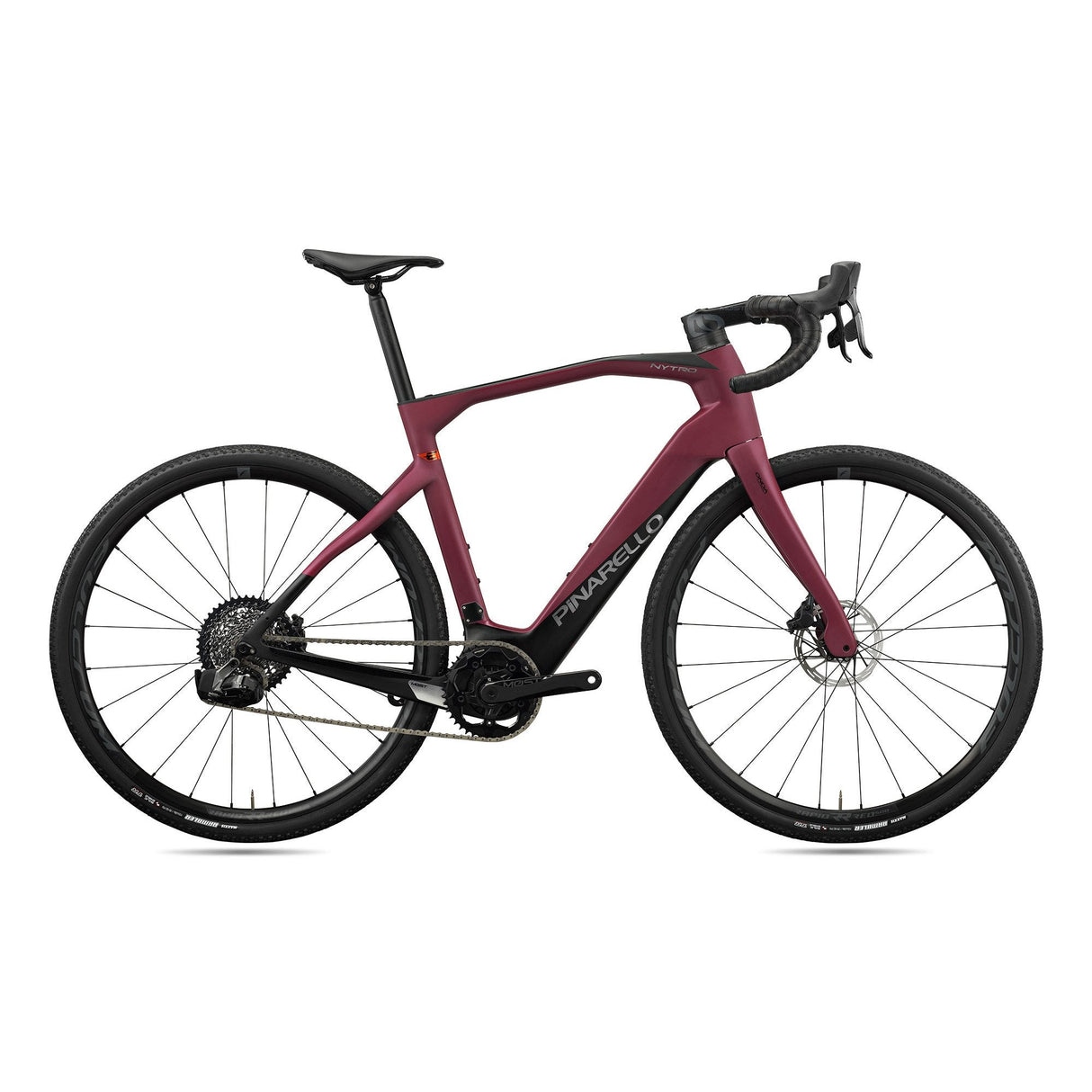

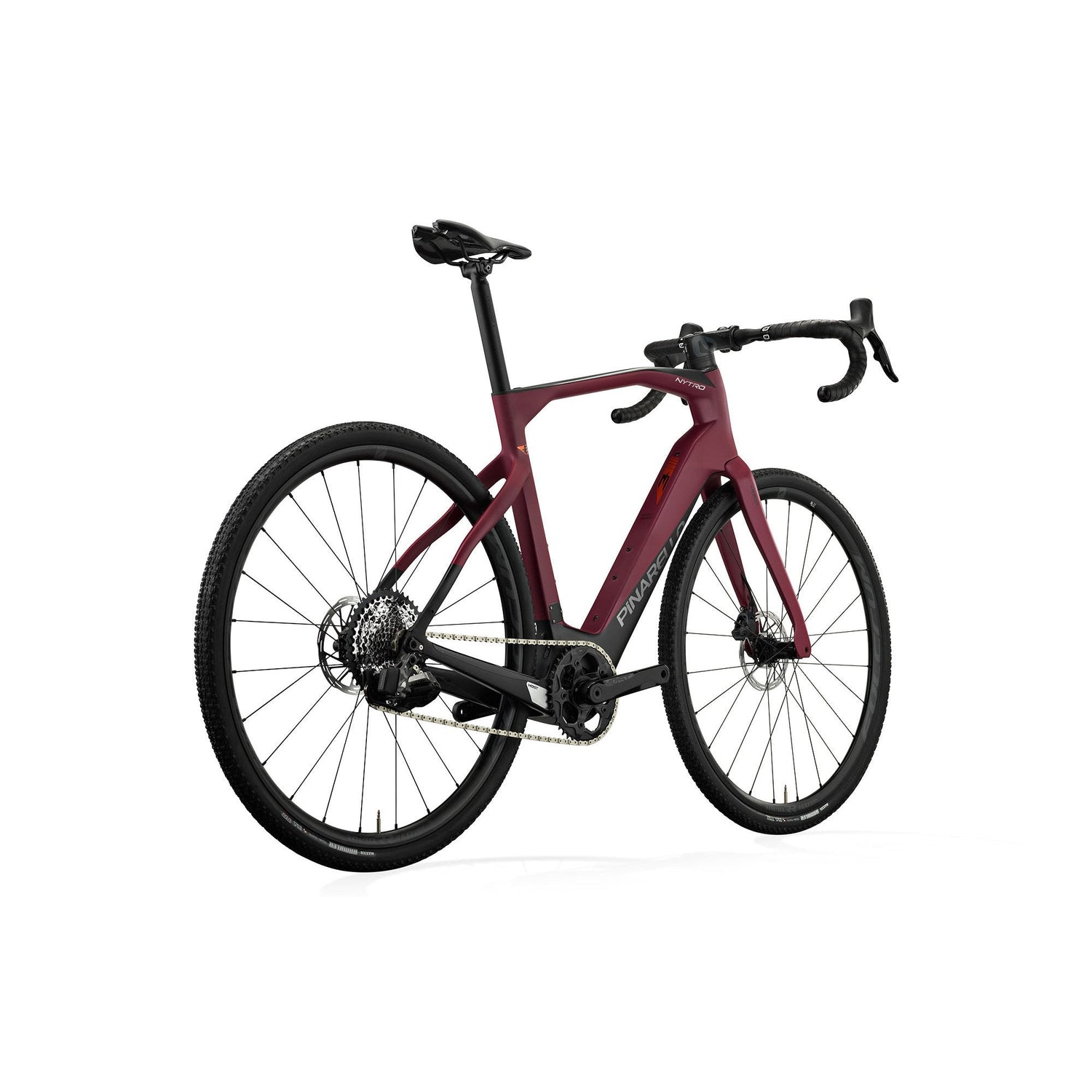

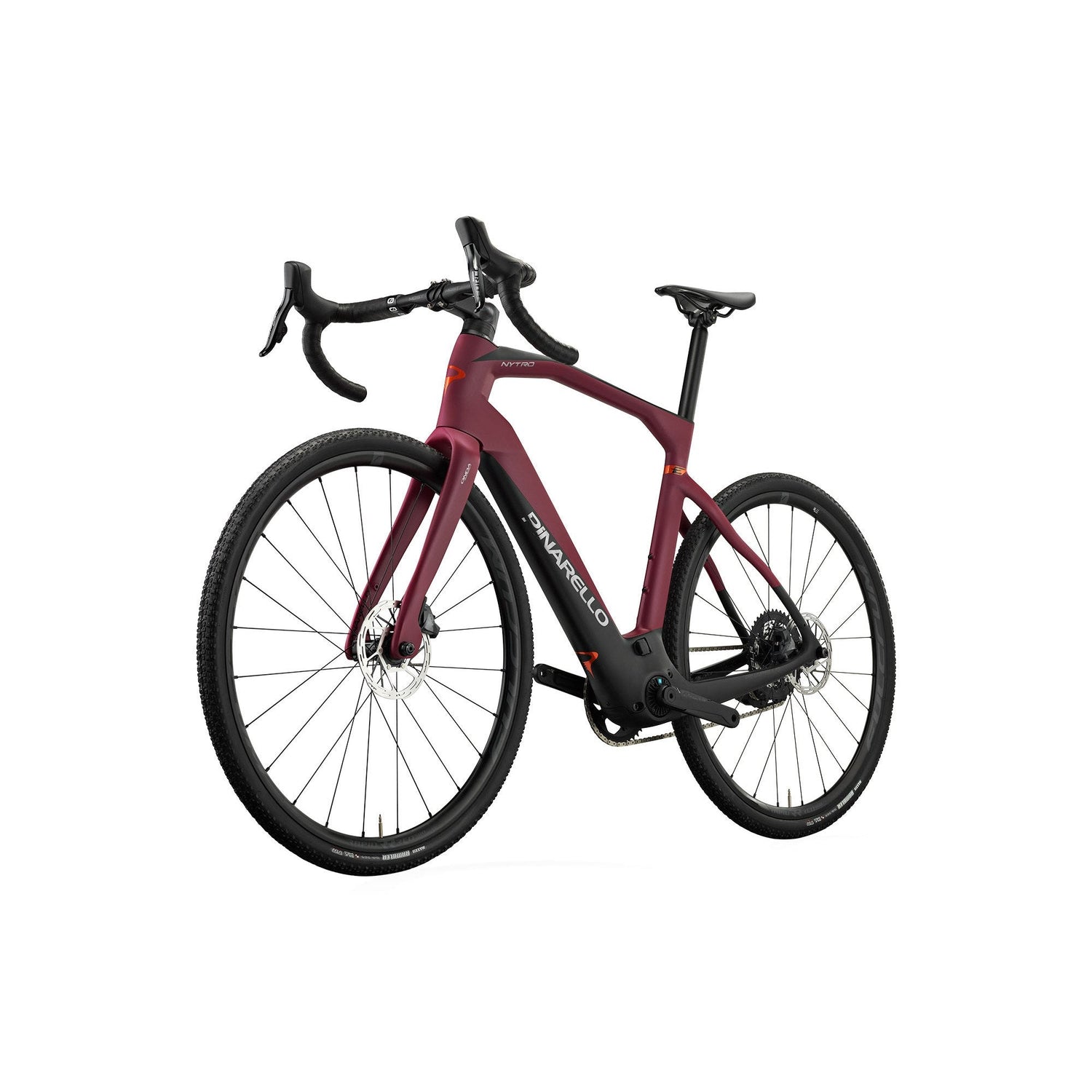

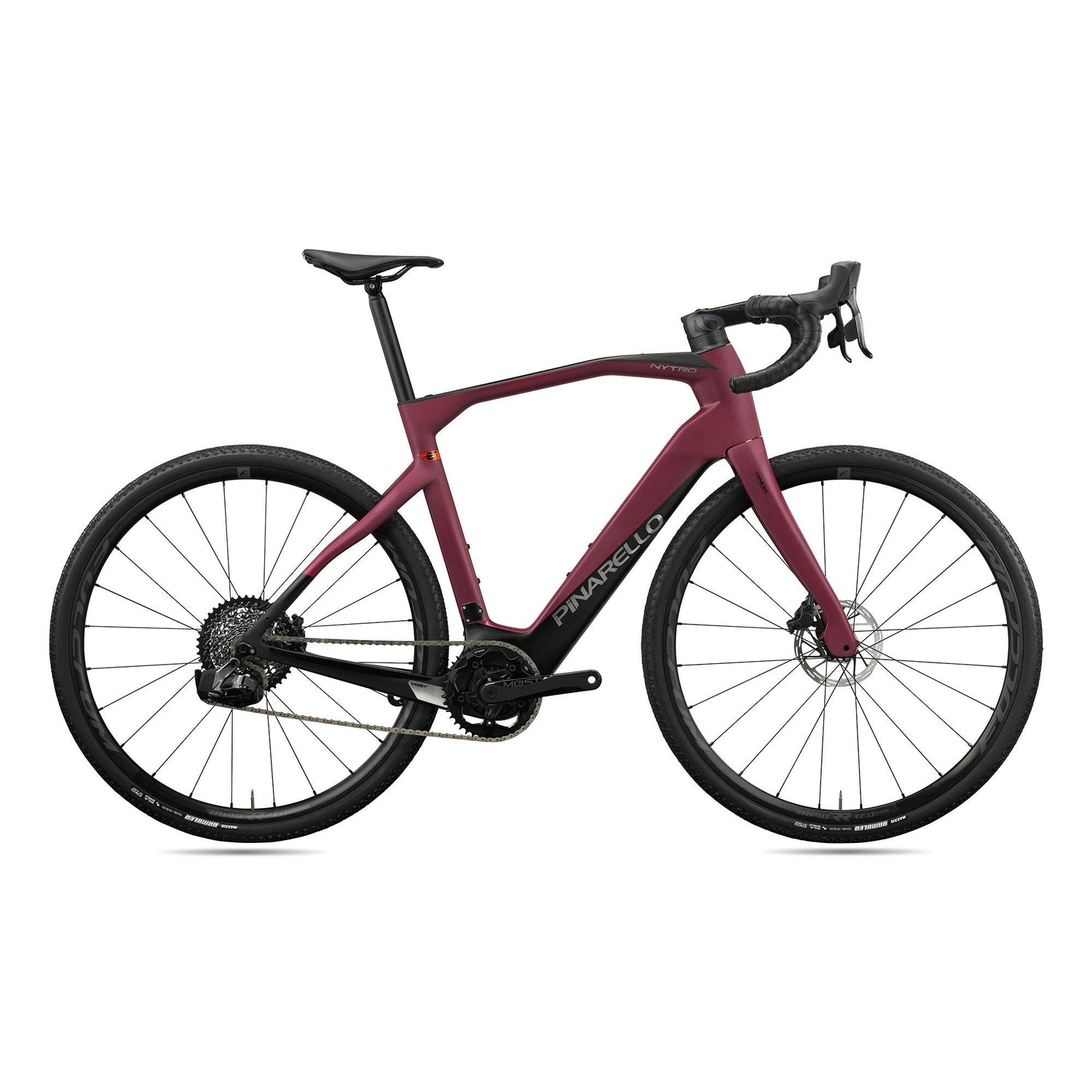

Pinarello Nytro Gravel E7 Force AXS Bike - DEMO
$8,80000
Unit price
/
Unavailable
Pinarello | SKU: C1781274141-27504-D
| Option:
Couldn't load pickup availability
Pinarello Nytro Gravel E7 Force AXS Bike - DEMO
$8,80000
Unit price
/
Unavailable
Pinarello Nytro Gravel E7 Force AXS Bike - DEMO Specifications
Frame Material:
Toray T900 Carbon
Fork:
Pinarello Onda Gravel
Headset:
TiCR integrated
Front Derailleur:
None
Rear Derailleur:
SRAM Force AXS
Crankset:
MOST
Chainrings:
42T
Bottom Bracket:
Included with Drive Unit
Brake Calipers:
SRAM Force Hydraulic Disc
Rotors:
SRAM 160mm
Shifters / Levers:
SRAM Force AXS
Cassette:
SRAM Force 12-speed 10-44
Chain:
SRAM Force 12-speed
Battery:
360Wh Integrated Battery
Motor:
TQ-HPR50
Display:
Integrated and Compatible with ANT+ Bike Computers
Wheel - Front:
Fulcrum Rapid Red 500
Wheel - Rear:
Fulcrum Rapid Red 500
Stem:
MOST Tiger Aero Alu TiCR
Handlebar:
MOST Jaguar GR TiCR
Saddle:
MOST Lynx Aircross
Tires:
Maxxis Rambler 700x40
Bar Tape:
MOST Ultragrip EVO 3mm
Pedals:
Not Included
*Specifications are subject to change.
Pinarello Nytro Gravel E7 Force AXS Bike - DEMO Geometry
Size:
50
B. Seat Tube (c-t)
480
C. Top Tube Length
535
D. Head Tube Length
137
E. Chain Stay Length
437
F. BB Drop
78
G. Seat Tube Angle
74
H. Head Tube Angle
70
J. Wheel Size
700c
K. Stack
571.3
L. Reach
364.2
Stem Length
90mm
M. Crank Length
170mm
