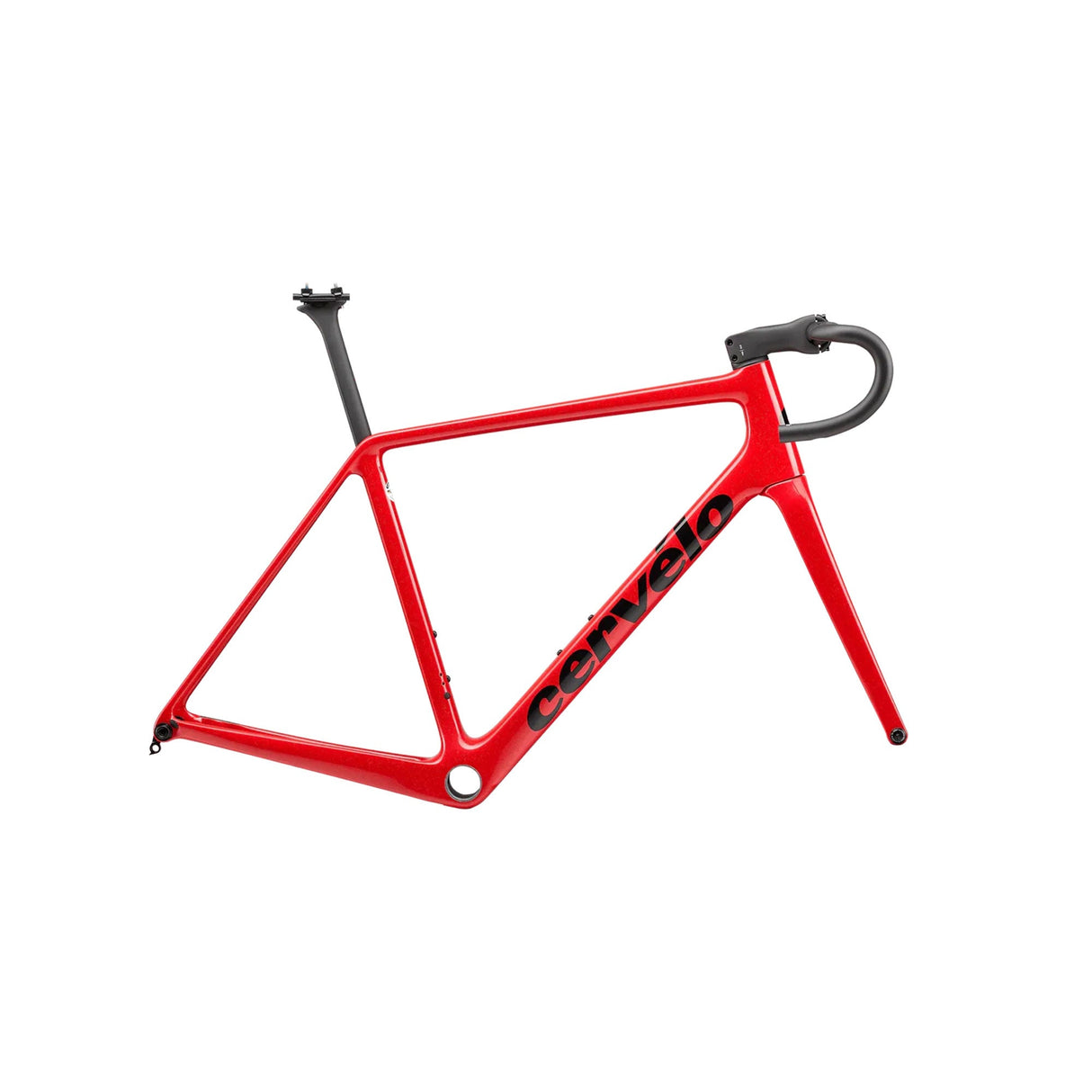

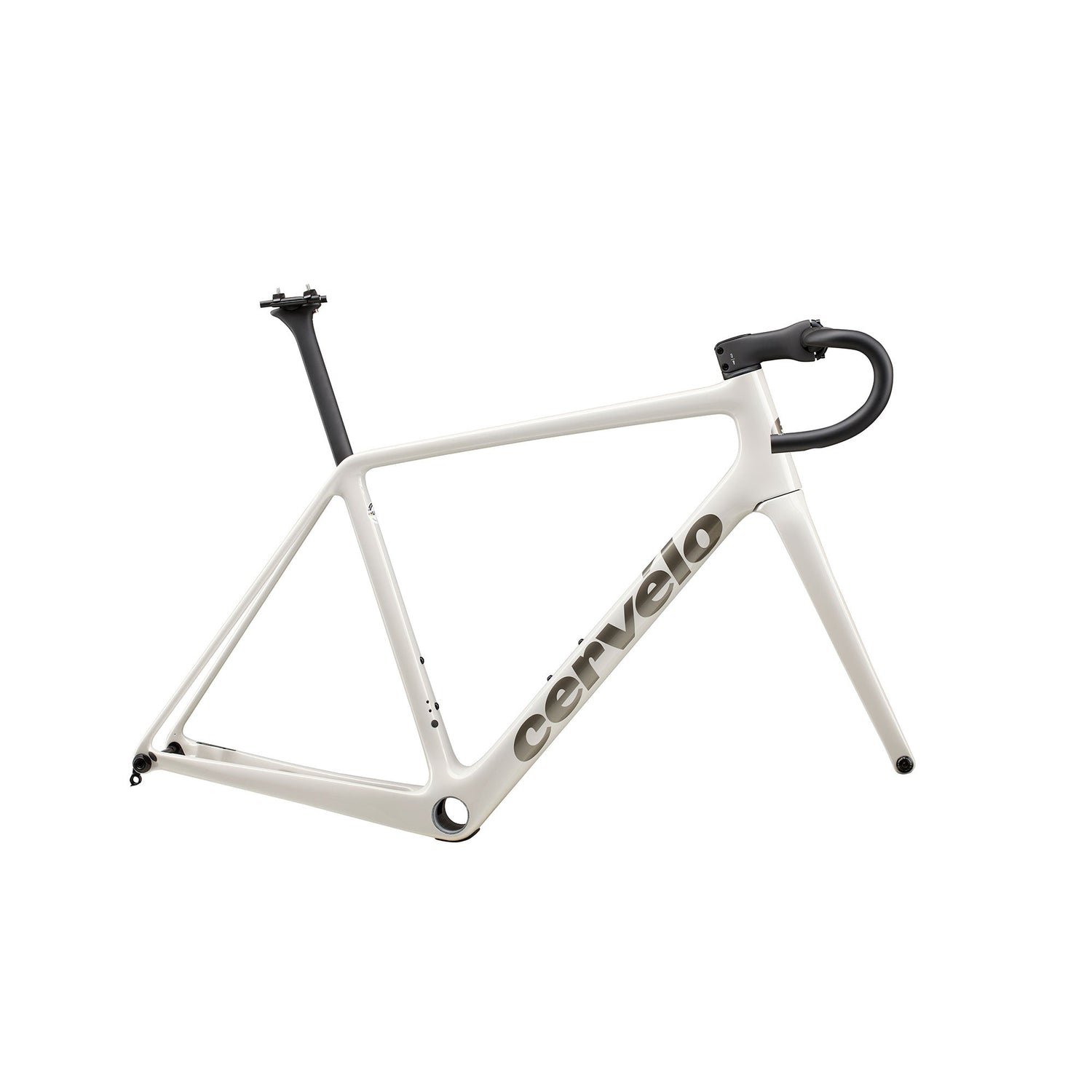

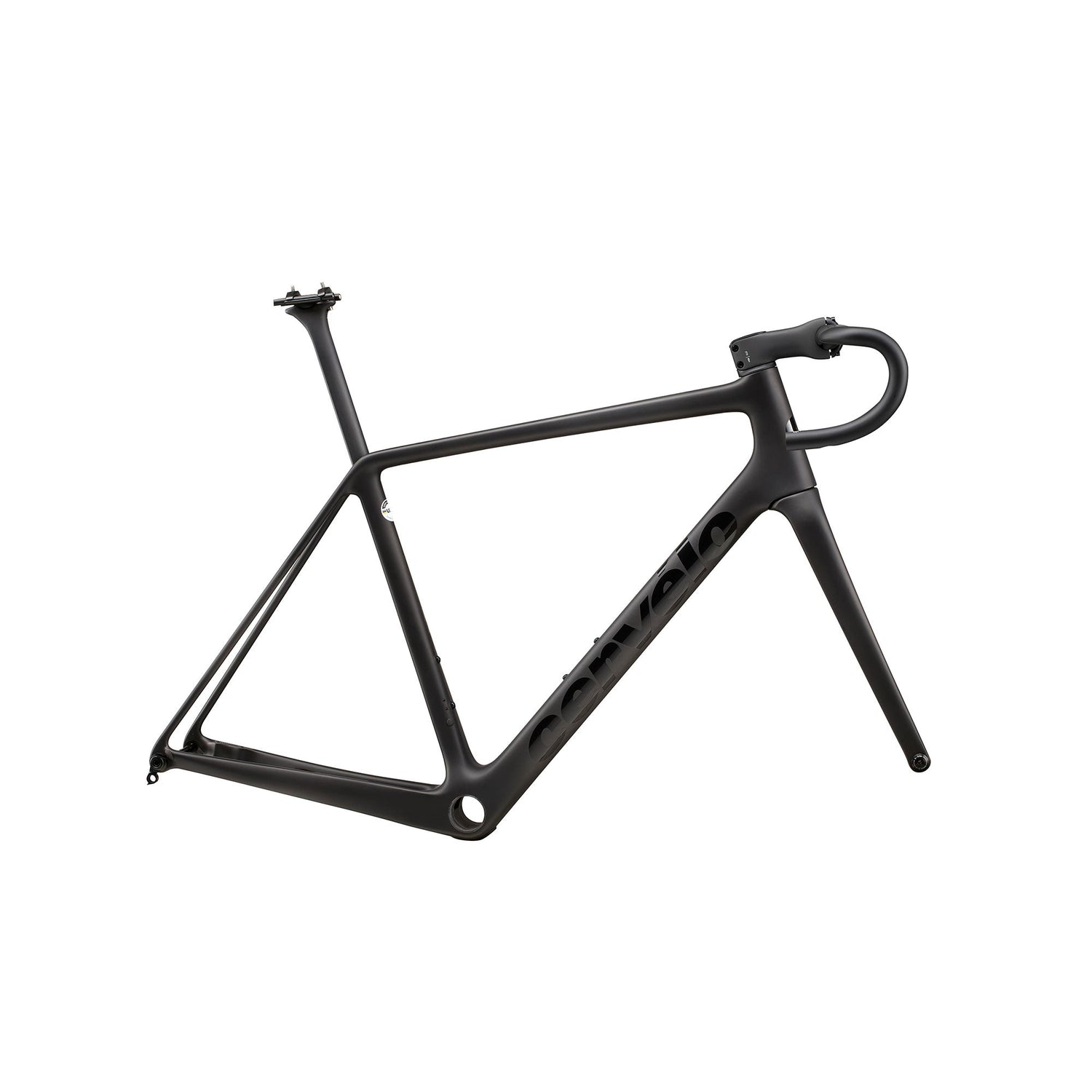

Cervelo R5 Frameset


$5,50000

Color 1
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Cervelo  |  SKU: 0K0R5GFS3X48 | Option: Tiger Eye, 48cm

In-store pickup only for this product.


Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242


* Product image may vary. Refer to the description for accurate details.

Cervelo R5 Frameset Info

The Cervélo R5 is a world class climbing bike that has shown dominance all over the road on the World Tour. Each year, it gets lighter and faster, and this time around is no exception. It is the main bike of Team Visma-Lease a Bike on mountain stages and was most notably seen helping Jonas Vingegaard win two Tour de France titles. The newest iteration of the R5 is lighter and more aerodynamic than ever. It balances all of its features to remain comfortable through a grueling climb while getting you to the top as fast as possible. Of course, a climbing bike needs to be able to take on the inevitable descent. The R5 is ready to fly around hairpin turns with impeccable handling, making it a truly elite bike in all areas of road riding.

The R5 has always been one of the lightest bikes on the market but Cervélo keeps finding ways to shed more weight. They managed to make the new R5 frame 130 grams lighter than the previous model. This comes out to a staggering 16 percent weight reduction. Even the graphics and paint are lighter than before, giving you the lightest road bike you could possibly imagine. With a frame that light, you have the freedom to build it up any way you want without compromising its climbing ability. The Cervélo R5 is the kind of bike you want to have when it is time to charge up the mountains.

In addition to its weight reduction, the Cervélo R5 is flat out faster than ever. Obviously aerodynamics are not as much of a focus as they would be on the S5 or P5, but more speed never hurts. They used internal cable routing which reduced drag by 25 grams. The R5 has a sweet spot of stiffness that is less than an aero bike but still elads to great power generation. While power transfer is important, you need to feel fresh, stable, and comfortable on difficult climbs. The Cervélo R5 is the kind of bike that is made to get you to the top but it is still fun and effective in every area of your ride. The Cervélo R5 is one of the best road bikes in the world for riders who want to dominate the climb.

Cervelo R5 Frameset - Specifications

Frame Material:
Carbon
Fork:
Cervélo All-Carbon
Headset:
FSA IS2 1-1/4 x 1-1/2
Seatpost:
Cervélo SP24 Carbon
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
BBRight Required
Stem:
Cervélo ST31 Carbon
Handlebar:
Cervélo HB13 Carbon / 31.8mm clamp
Pedals:
Not Included
Accessories:
Cervélo Faceplate Front Computer/Accessory Mount / Cervélo Rear Accessory Mount / Cervélo Aero Thru-Axles 12x100/142mm

*Specifications are subject to change.

Cervelo R5 Frameset Geometry

Cervelo R5 Frameset Geometry
Size:
48
51
54
56
58
61
C. Top Tube Length
515
531
548
564
581
598
D. Head Tube Length
93
114
137
163
192
218
E. Chain Stay Length
410
410
410
410
410
410
F. BB Drop
74.5
74.5
72
72
69.5
69.5
G. Seat Tube Angle
73
73
73
73
73
73
H. Head Tube Angle
71
72
73
73
73
73
I. Stand Over Height
695
724
755
778
800
824
J. Wheel Size
700c
700c
700c
700c
700c
700c
K. Stack
497
522
547
572
597
622
L. Reach
363
371
380
389
398
407
Stem Length
80mm
90mm
100mm
100mm
110mm
110mm
Bar Width
38cm
38cm
40cm
40cm
42cm
42cm
