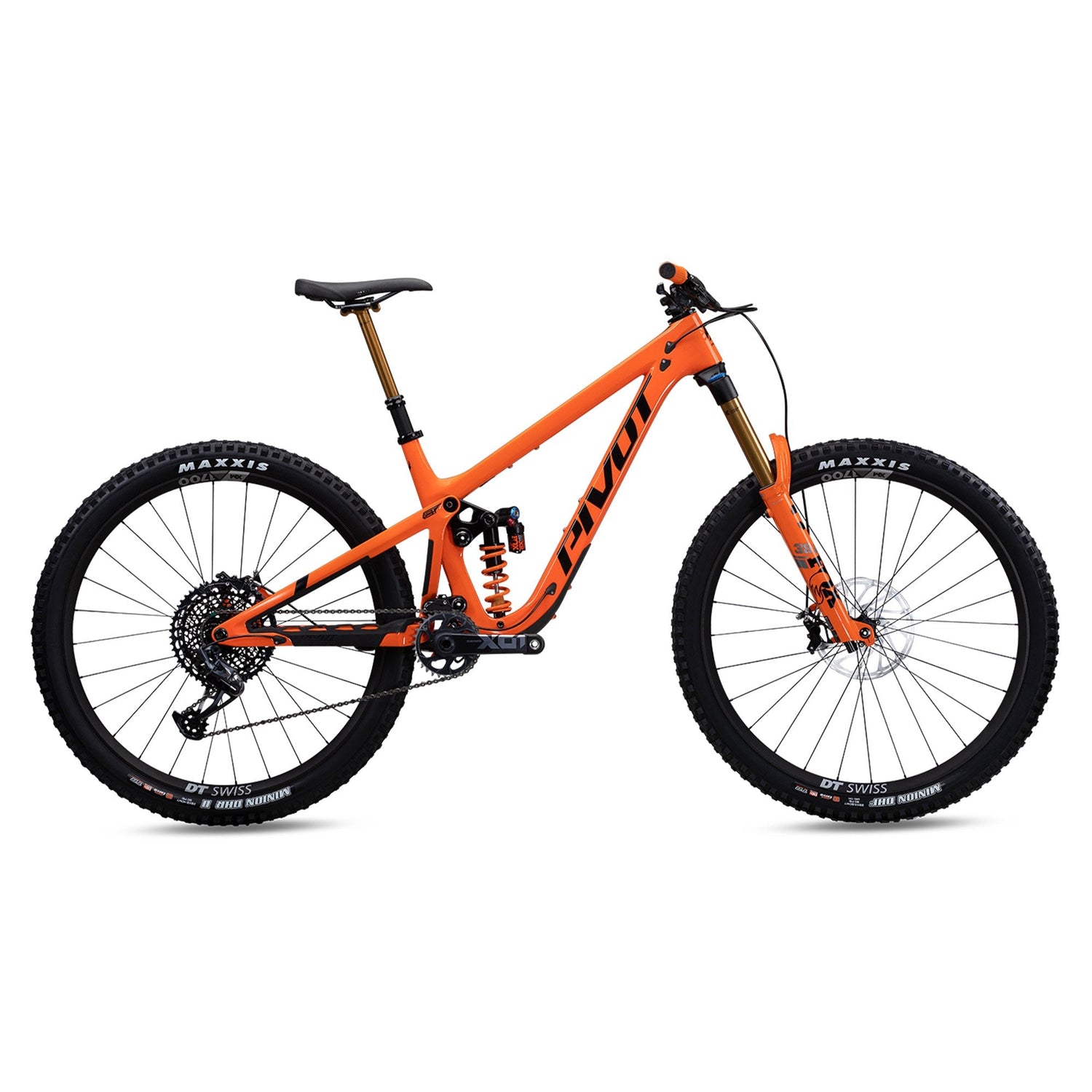

Pivot Firebird Pro X01 FOX DHX2 Bike Info

The Pivot Firebird Pro X01 is a world class endurance trail bike that is fast, fun, and stable in any situation. Pivot says that the Firebird “rewrites the 29er playbook” with its ability to fly up climbs and just as easily bounce down a technical descent. While there are plenty of 29-inch endurance bikes that can take on technical terrain and bomb downhills, there are few as lightweight and capable of climbing or sprinting like the Firebird. This version is equipped with a SRAM X01 Eagle groupset for high-level 12-speed trail shifting at a lower price. Used by a ton of Pivot’s professional racers, the Firebird is worthy of world-class riding.

The frame of the Pivot Firebird is made with a lightweight carbon fiber, making it lighter than the majority of bikes in its class. Pivot’s engineering process utilizes hollow-core carbon and a high compression molding process. This leads to an incredibly light frame that compensates for the extra grams caused by 29-inch wheels. This version features alloy DT Swiss XM1700 wheels for a lower price and prime durability. The engineering process also leads to a frame that is strong enough to withstand the most aggressive World Cup downhill punishment. With its carbon build and capable suspension, the Firebird strikes a seemingly impossible combination of low weight and durability.

When it comes to stability at high speeds, the Pivot Firebird is hard to compete with. It features the longest reach in its class along with incredibly short chainstays. This allows for a much lower center of gravity and low riding position. A 65-degree slack angle also helps the rider stay low and in position for unmatched stability. With 165mm of travel at the rear and 170mm at the front with an offset suspension fork, the Pivot Firebird can take on any challenge while leaving the rider feeling completely in control. This version utilizes a Fox Factory DHX2 suspension and Factory 38 fork for professional level compliance. The Pivot Firebird is ready to dominate any obstacles the trail throws its way.

Pivot Firebird Pro X01 FOX DHX2 Bike - Specifications

Frame Material:
Carbon
Fork:
Fox Factory 38 29", 44mm offset, GRIP2 - 170mm
Rear Suspension:
Fox Factory DHX2
Headset:
Pivot Precision Sealed Cartridge
Seatpost:
Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Front Derailleur:
None
Rear Derailleur:
Sram X01 Eagle 12-Speed
Crankset:
Sram X01 Eagle DUB 32t
Bottom Bracket:
Sram DUB
Brake Calipers:
Sram Code RSC 4-piston
Brake Levers:
Sram Code RSC 4-piston
Rotors:
Sram Centerline CenterLock - 200mm
Shifters:
Sram X01 Eagle 12-Speed
Cassette:
Sram XG-1275 10-52t
Chain:
Sram X01 Eagle 12-Speed
Wheel - Front:
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110
Wheel - Rear:
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 12x157
Stem:
Phoenix Team Enduro/Trail
Handlebar:
Phoenix Team Low Rise Carbon - 800mm
Saddle:
Phoenix WTB Volt Pro (Medium Width)
Tires:
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA / Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Grips:
Phoenix Factory Lock-On
Pedals:
Not Included

*Specifications are subject to change.

Pivot Firebird Pro X01 FOX DHX2 Bike Geometry

Pivot Firebird Pro X01 FOX DHX2 Bike Mountain Bike Geometry
Size:
XL
B. Seat Tube (c-t)
470
C. Top Tube Length
664-665
D. Head Tube Length
128
E. Chain Stay Length
444-445
G. Seat Tube Angle
77.0-77.5
H. Head Tube Angle
64.0-64.6
I. Stand Over Height
704-709
J. Wheel Size
29"
K. Stack
642-645
L. Reach
510-515

Pivot Firebird Pro X01 FOX DHX2 Bike Video
