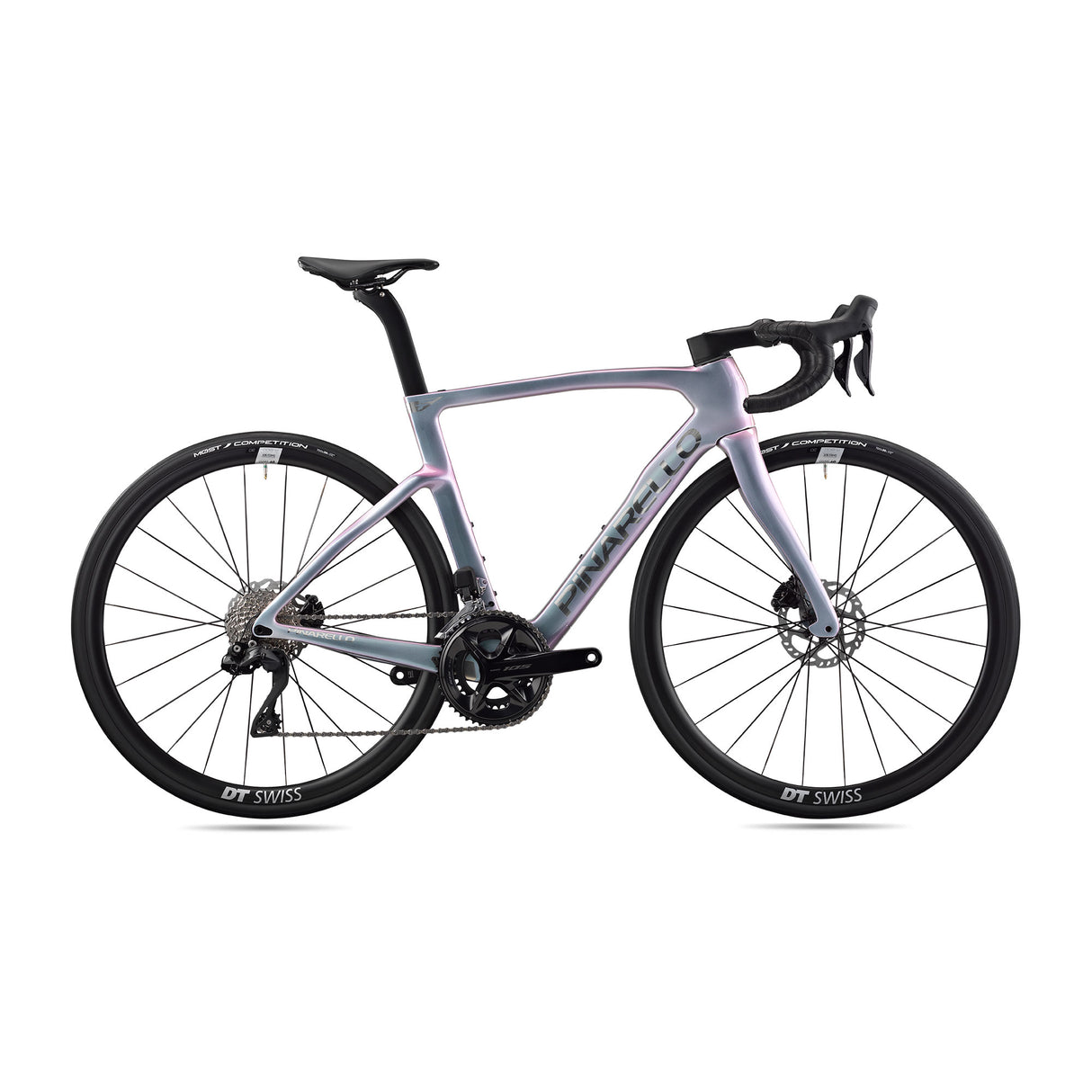

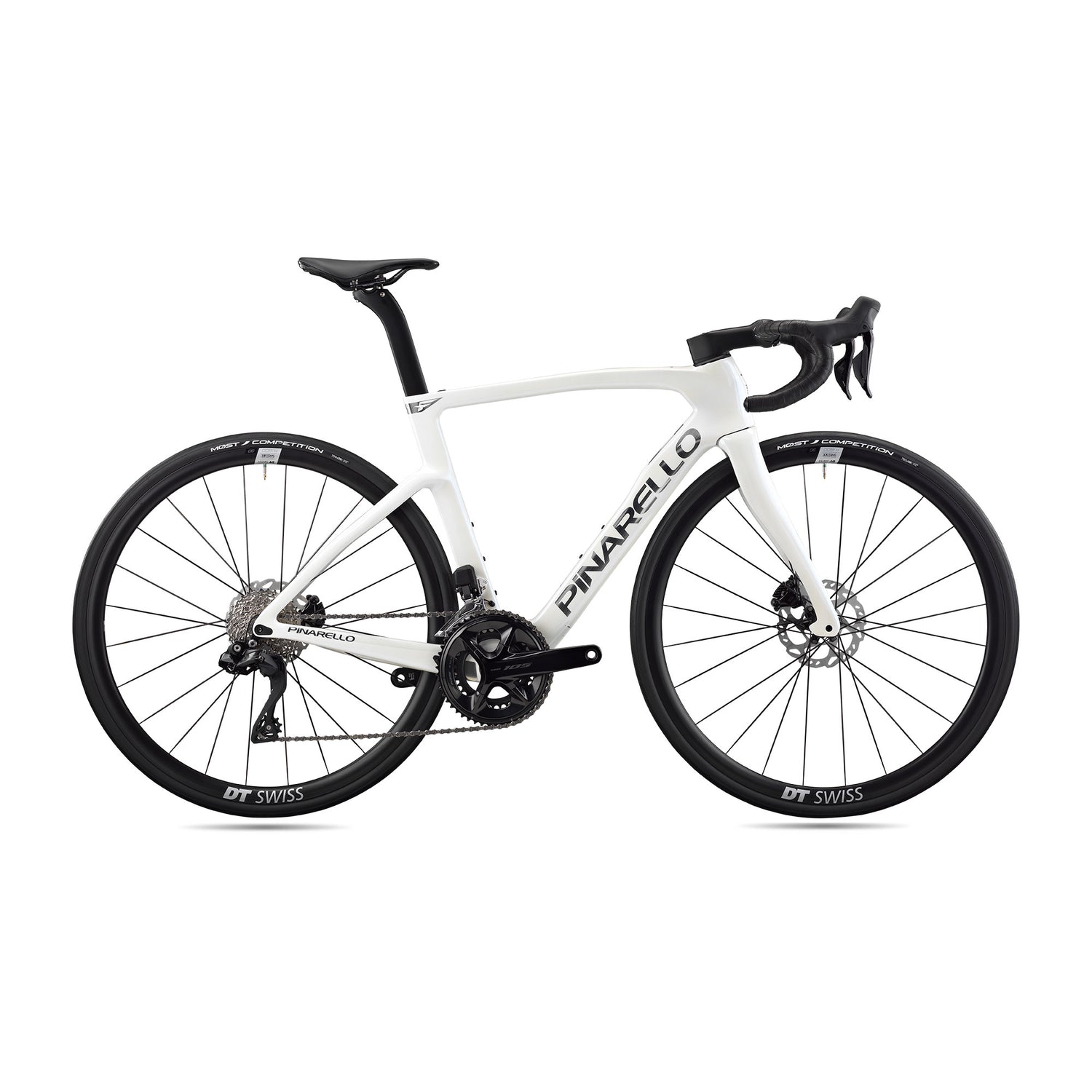

Pinarello F3 105 Di2 DT Swiss A1800 Bike
$5,20000
Unit price
/
Unavailable
-
RA price match promise
-
Pay later with
,and
Pinarello | SKU: D2117157206-00001
| Option:
Couldn't load pickup availability
Questions about this product?
Questions about this product?
What size do I need?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
Pinarello F3 105 Di2 DT Swiss A1800 Bike
$5,20000
Unit price
/
Unavailable
* Product image may vary. Refer to the description for accurate details.
Pinarello F3 105 Di2 DT Swiss A1800 Bike - Specifications
Frame Material:
TorayCa T700 UD
Fork:
F-Series Onda Carbon
Headset:
E-TiCR integrated
Seatpost:
F-Series Carbon
Front Derailleur:
Shimano 105 Di2 R7150
Rear Derailleur:
Shimano 105 Di2 R7150
Crankset:
Shimano 105 R7100
Chainrings:
50/34
Bottom Bracket:
Shimano 105
Brake Calipers:
Shimano 105 R7170 Hydraulic Disc
Rotors:
Shimano 160mm
Shifters / Levers:
Shimano 105 Di2 R7170
Cassette:
Shimano 105 R7100 12-speed 11-34
Chain:
Shimano M7100 12-speed
Wheel - Front:
DT Swiss A1800
Wheel - Rear:
DT Swiss A1800
Stem:
MOST Jaguar Claw Ultra Aero Aluminum
Handlebar:
MOST Jaguar Claw Ultra Aluminum
Saddle:
MOST Lynx
Tires:
MOST Competition 700x30
Pedals:
Not Included
*Specifications are subject to change.
Pinarello F3 105 Di2 DT Swiss A1800 Bike Geometry
Size:
43
46.5
50
51.5
53
54.5
56
57.5
59.5
B. Seat Tube (c-t)
430
465
500
515
530
545
560
575
595
C. Top Tube Length
500
515
525
535
545
555
565
578
600
D. Head Tube Length
97
104
109
114
123
138
149.5
178
220
E. Chain Stay Length
406
408
408
408
408
410
410
410
410
F. BB Drop
67
72
72
72
72
72
72
72
67
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73
73
72.4
H. Head Tube Angle
69.5
70.5
71.4
72
72.5
72.8
73.2
73.7
73.4
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
502.5
517.7
525.5
532.3
542.6
557.9
570.3
599.3
633.5
L. Reach
351.3
365.2
372.1
378.1
385.6
388.3
390.8
395.4
400.3
Stem Length
80mm
90mm
90mm
100mm
100mm
100mm
110mm
110mm
110mm
Bar Width
40cm
42cm
42cm
42cm
44cm
44cm
44cm
46cm
46cm
M. Crank Length
170mm
170mm
170mm
170mm
172.5mm
172.5mm
172.5mm
175mm
175mm
