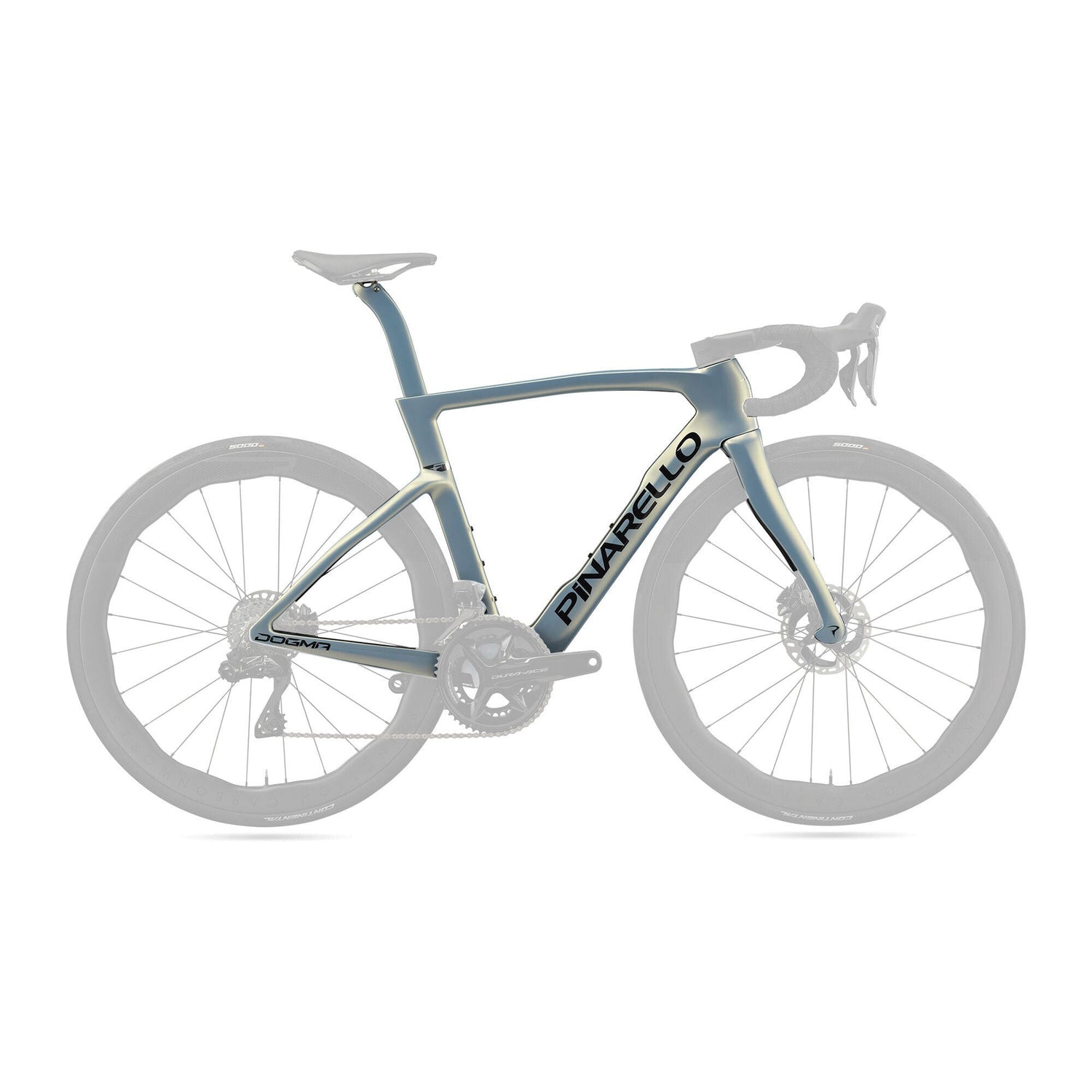

Pinarello Dogma F Frameset


$6,95000

Benefits of buying from RA Cycles:


Color 2
Size

Coming soon! Backorder this item and one of our sales associates will contact you within 24 hours confirming its shipping date.

Pinarello  |  SKU: F196-30922 | Option: G111 - Black on Black, 43cm


What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242



Pinarello Dogma F Frameset Info

For years, the Pinarello Dogma has been at the top of the sport. Countless wins in the Tour de France and every other professional race imaginable have given it the title as one of the most dominant bikes in history. Pinarello knows that to stay at the head of the pack in an ever growing field, technological advancements are required with each new Dogma iteration. The Dogma F blends accepted cycling performance details with unique geometry and shape choices that cannot be found on any other brand. As the official bike provider for Team INEOS Grenadiers, Pinarello is confident that the Dogma F can get it done at the absolute pinnacle of the sport.

One of the biggest upgrades made to the Dogma F is the use of their new Toray M40X carbon fiber to construct the frame. They have been testing this material on their lightest bikes and even on the INEOS Grenadiers team bikes for some time and have finally dialed it in to perfection. The new M40X carbon improves in tensile strength, allowing the Dogma F to reach a new level of lateral stiffness. The Dogma has always prided itself on its ability to keep up with lightweight climbing bikes and sprinting bikes, making it an all around weapon. This version of the Dogma F makes it an even better sprinter without adding weight.

The shape of the Dogma F has been improved as well to enhance aerodynamic efficiency, handling, and save weight. The downtube was redesigned to make it less thick in certain areas, helping to improve the overall aerodynamic profile of the bike. The ONDA fork was redesigned and made thinner as well for optimal aerodynamics. It was rotated 3.5 degrees to improve the performance of the BB area by 1.2 percent. The fork was tested by professional riders to assure optimal steering and descending speed. Dogmas have always had a unique headtube shape which has been revised to include an 8mm nose are which is also a reduction that will help with aero efficiency. In today’s peloton, aerodynamics are essential and Pinarello stays ahead of the curve.

Integration is easy with the Dogma F. Start with the frame and add pieces like the Talon Ultra Fast integrated cockpit is included which is lighter and more aero. It has a twisted lever position which allows riders to get into their most aerodynamic position faster and safer. The seatpost clamp is now smaller and integrates into the frame seat tube. Even the rear derailleur dropout has been integrated thanks to shorter thru axles. This frame is the beginning to building the fastest bike you have ever ridden. The Pinarello Dogma F is at the top of the heap in all around cycling performance.

Pinarello Dogma F Frameset Specifications

Frame Material:
TorayCa M40X
Fork:
eTICR Onda Fork with ForkFlap
Headset:
Integrated
Seatpost:
Pinarello Aero with 3D printed titanium top seat clamp and bolts
Front Derailleur Type:
Braze-On Required
Bottom Bracket Type:
70mm Italian Threaded Required

*Specifications are subject to change.

Pinarello Dogma F Frameset Geometry

Pinarello Dogma F Frameset Geometry
Size:
43
46.5
50
51.5
53
54
55
56
57.5
59.5
62
B. Seat Tube (c-t)
430
465
500
515
530
540
550
560
575
595
620
C. Top Tube Length
500
515
525
535
545
550
557
565
575
587
620
D. Head Tube Length
102
109
114
119
128
136
147
154.5
168
204
244
E. Chain Stay Length
407
407
407
407
407
408
408
409
409
409
411
F. BB Drop
67
72
72
72
72
72
72
72
72
67
67
G. Seat Tube Angle
74.4
74.4
74
73.7
73.7
73.4
73.4
73
73
72.4
72
H. Head Tube Angle
69.5
70.5
71.4
72
72.5
72.8
72.8
73.2
73.7
73.4
73.4
J. Wheel Size
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
700c
K. Stack
502
517.3
525.2
532.1
542.4
551
561.5
570.1
584.8
613.2
651.6
L. Reach
351.5
365.4
372.2
378.2
385.6
385.3
389.2
390.8
396.7
393.4
410
